Volume II, No. 6 Bulletin No. 10

OHIO BIOLOGICAL SURVEY

THE ASCOMYCETES OF OHIO IV

THE LECIDEACEAE

By BRUCE FINK

THE ASCOMYCETES OF OHIO V

THE PELTIGERACEAE

By LEAFY J. CORRINGTON

Published by
THE OHIO STATE UNIVERSITY
Columbus,
1921

[Pg 334]

THE ASCOMYCETES OF OHIO IV[A]

The Lecideaceae.

Bruce Fink.

GENERAL CONSIDERATIONS

It was stated in the second paper of this series that the disposition of the Lecideaceae in an early paper of the series would show what slight changes are needed in treating lichens as we treat other ascomycetes. It is hoped that this paper has accomplished this in phraseology intelligible to those acquainted with the present-day language of systematic mycology.

The Lecideaceae form a well-defined family of lichens, the affinities of which seem plainly marked. In apothecial structure, and so far as known, in structure of the sexual reproductive areas, the family seems to be closely related to the mainly non-lichen Patellariaceae and to such lichens as the Gyalectaceae, the Lecanactidaceae, the Collemaceae, the Baeomycetaceae, and the Cladoniaceae.

Following the commonly-accepted theory that the lichens have been evolved from non-algicolous fungi, the origin of the Lecideaceae and related lichens from Patellaria-like ancestors is a reasonable supposition, though the relative rank of the various related families named in the last paragraph is not easy to decide. Within the Lecideaceae, the line of evolution seems to have been in the direction of a well-developed exciple and from simpler to more complex spores. With the advance in these two directions has gone a slightly increased development of the thallus.

In structure, the thallus is crustose, and the thalli vary from inconspicuous, evanescent conditions to those which are conspicuous and sometimes even subsquamulous. Rarely the thallus extends upward as a veil which surrounds the apothecia laterally and suggests how the thalloid exciple of higher families probably arose. As usual in crustose forms, the thalli are composed of hyphae which are densely disposed toward the upper, exposed surface and more loosely disposed toward the lower surface (Fig. 2).

The apothecial evolution passes from forms with weak, light-colored exciples and soft texture (Fig. 10) to those with strong, dark exciples, which are firm in texture (Fig. 11). The superficial apothecial characters are so much alike in many of the species that one cannot always feel certain even of the genus of unfamiliar forms until he has studied them microscopically.[Pg 335]

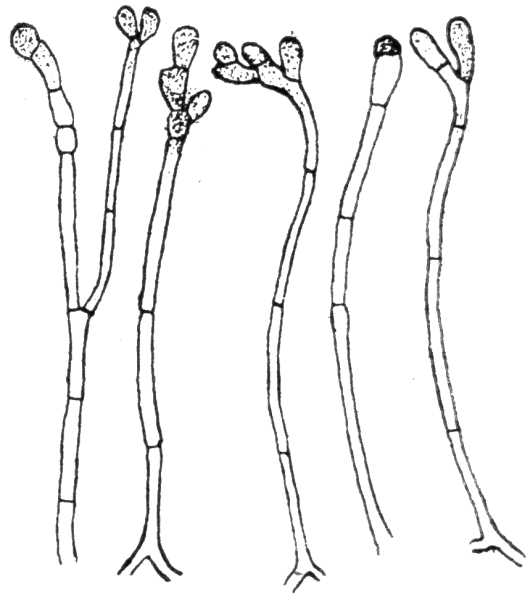

The paraphyses are commonly distinct in young apothecia, but in mature apothecia they are usually more or less gelatinized and coherent. In some of the species, they become so gelatinized that they form a homogeneous mass about the asci, in which the individual paraphyses are no longer discernible. When distinct, the paraphyses are sometimes branched, most commonly toward their apices (Fig. 1 and 12).

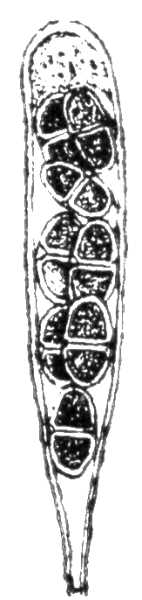

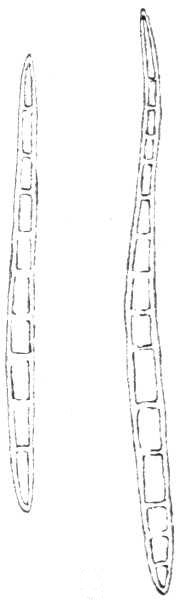

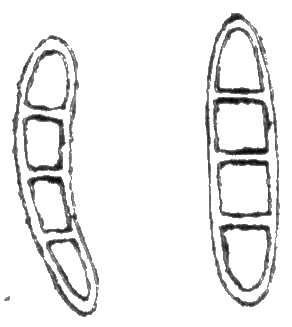

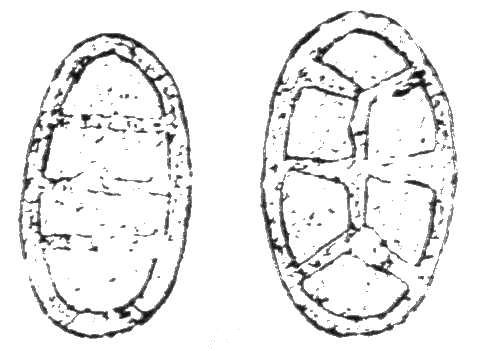

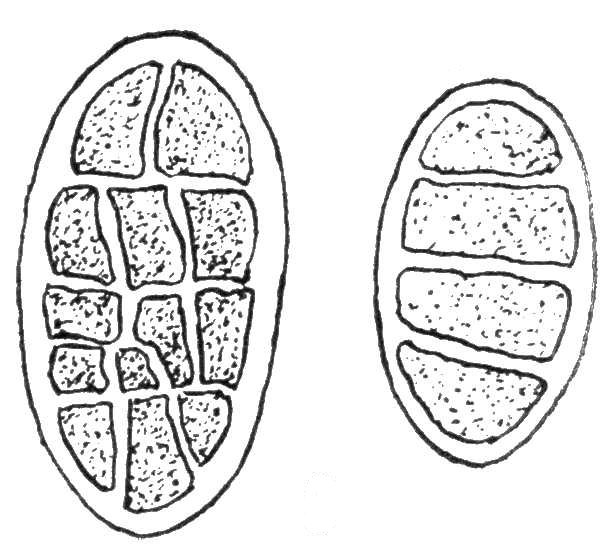

There is great diversity with respect to spore development, the whole range of spore structure, from minute, simple, hyaline spores to those which are large, brown, and muriform being found within the family (Figs. 3, 4, 5, 6, 7, 8, 9, and 13). This condition makes it appear quite possible that the family may be polygenetic.

The genus, Biatorella, contains non-lichen forms and is probably as a whole more closely related to the Patellariaceae than to the Lecidiaceae. However, our two species, both of which are lichens, are herein admitted to the latter family. Through one or more species with larger spores than are usually found in this genus, Biatorella approaches Lecidea. Starting with Lecidea, we have a natural series in spore development with intermediate conditions difficult to place. The series runs thus: Lecidea with simple hyaline spores (Fig. 3); Biatorina with two-celled, hyaline spores (Fig. 4); Bilimbia with several-celled, hyaline spores, not much narrowed (Fig. 5); and Bacidia with several-celled, hyaline, acicular spores (Fig. 6). Buellia and Rhizocarpon are aberrant genera, brown-spored, and closely related among themselves (Figs. 8, 9, and 13). Through Buellia, the two genera are related to Rinodina of the Physciaceae. The two aberrant genera are like other members of the Lecideaceae with respect to thallus development and general apothecial characters, the aberrancy being with respect to the spores, on which account the two genera are placed in another family, the Buelliaceae, by some workers, perhaps with sufficient reason.

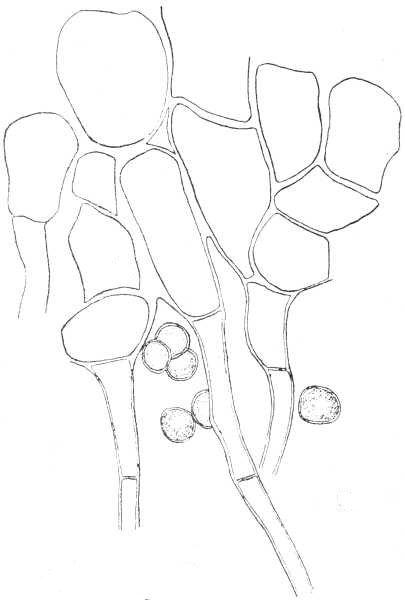

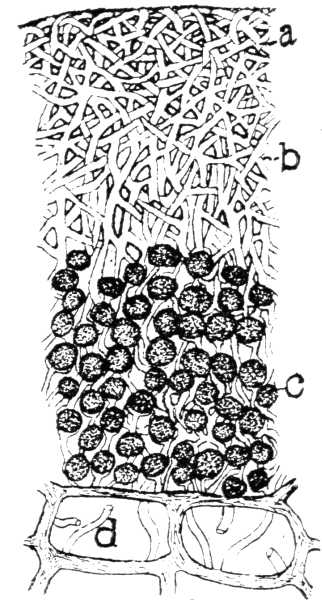

The algal host is Pleurococcus-like (Fig. 2, c) in nearly all species of the Lecideaceae; but the host cells are so hypertrophied and distorted that their generic rank is often difficult to ascertain, except by cultivation outside of the lichen thallus. The algal-host cells are few in number in some of the species and are sometimes absent during a portion of the life history of the lichen. The host is usually found throughout the superficial portions of the thallus, except near the upper surface, from which portion the algae are usually absent, except in a dead or dying condition, difficult to detect.

The writer has collected the Lecideaceae, with other fungi, in Butler County for fifteen years, and has worked for the Ohio Biological Survey in Preble, Warren, Highland, Fairfield, Adams, Hocking, and Lake counties. Besides these collections made by the writer, a few specimens were examined from Champaign, Hamilton, Wayne, Morgan, Madison, Muskingum, Franklin, Vinton, and Summit counties. Of the 37 species treated in this paper, 24 had not been reported from Ohio previously.

[Pg 336]

Systematic Account.

LECIDEACEAE

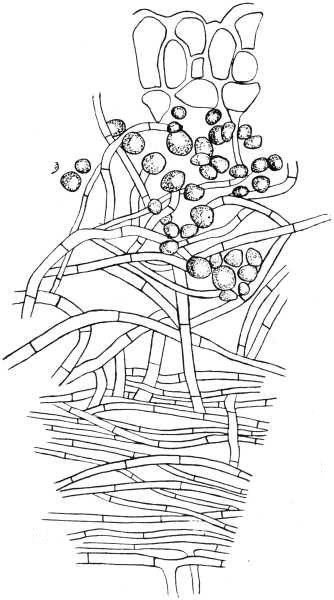

Thallus crustose, without plectenchymatous cortex (Fig. 2, a), varying from granulose and often evanescent to conspicuous, areolate, or even subsquamulose conditions, attached to the substratum by hyphal rhizoids (Fig. 2, d), and in a few instances extending up as a veil and surrounding the apothecia laterally, the hyphae densely interwoven toward the upper surface, but more loosely disposed below (Fig. 2, a and b); apothecia usually minute or small, commonly rounded, the exciple weak and obscure (Fig. 10, d), or more strongly developed when conspicuous and much darker in color (Fig. 11, b); hypothecium varying from hyaline to dark brown (Fig. 10, b and Fig. 11, c); hymenium almost always lighter and commonly hyaline (Figs. 10 and 11, a); paraphyses usually simple, but branched forms to be found frequently (Figs. 1 and 12), pale throughout or darkened toward the sometimes enlarged apex, commonly more or less coherent and indistinct at maturity; spores simple and hyaline to muriform and brown (Figs. 2, 3, 4, 5, 6, 7, 8, 9, and 13).

KEY TO THE GENERA

Biatorella De Not. Giorn. Bot. Ital. 21. 192. 1846.

Thallus granulose to verrucose and subareolate, sometimes inconspicuous and evanescent; apothecia minute to middle-sized, adnate or more or less immersed, exciple usually prominent and persistent, but sometimes becoming covered, disk flat to convex; hypothecium and hymenium pale to brown; spores simple, hyaline, minute, numerous in each ascus.

KEY TO THE SPECIES OF BIATORELLA

1. Biatorella simplex (Dav.) Br. & Rostr. Bot. Tidssk. 3: 241 1869.

Lichen simplex Dav. Trans. Linn. Soc. Lond. 2: 283 pl. 28. f. 2. 1794.

Thallus thin and smooth or thicker and roughened, sometimes subareolate, ash-white to green-gray and darkening, rarely disappearing; apothecia minute to middle-sized, 0.2 to 0.8 mm. in diameter, adnate, scattered or[Pg 337] crowded, rounded or variously irregular, black but usually dark red when damp, flat or slightly convex, the thin exciple raised and persistent; hypothecium light or darker brown; hymenium pale or tinged brown; paraphyses semi-distinct to coherent-indistinct; asci cylindrico-clavate; spores oblong-ellipsoid, 3 to 5 mic. long and 1 to 1.5 mic. wide.

Collected in Butler, Adams, Montgomery, Hocking, and Ross counties. On limestone. Not previously reported from Ohio, but probably frequent where there is limestone, though inconspicuous and easily overlooked.

2. Biatorella pruinosa (J.E. Smith) Mudd Man. Brit. Lich. 191. 1861.

Lichen pruinosus J.E. Smith in Sowerby, Eng. Bot. 32: pl. 2244 1811.

Thallus light colored, usually thin and smooth, rarely disappearing; apothecia minute to middle-sized, 0.2 to 1 mm. in diameter, adnate scattered or crowded, flat or slightly convex, the disk pruinose, and the exciple persistent; hypothecium lighter or darker brown; hymenium usually pale; paraphyses coherent and becoming indistinct; asci cylindrico-clavate; spores oblong-ellipsoid, 3 to 5 mic. long and 1 to 1.5 mic. wide.

Collected in Butler and Adams counties. On limestone. Not previously reported from Ohio, but often occurring with the last in limestone areas.

Lecidea Ach. Meth. Lich. XXX. 32. pl. 2. f. 1, 2. 1803.

Thallus smooth, roughened, or verrucose, in some species chinky to areolate, or even subsquamulose, rarely rudimentary and evanescent; apothecia minute to middle-sized, usually adnate, but rarely sessile or immersed, with pale to black, and flat to strongly convex disk; exciple and hypothecium from pale to dark brown in section; hymenium lighter, most commonly pale; spores simple, hyaline, 8 in each ascus.

KEY TO THE SPECIES OF LECIDEA

[Pg 338]

1. Lecidea coarctata (J.E. Smith) Nyl. Act. Soc. Linn. Bord. 21: 358. 1856.

Lichen coarctatus J.E. Smith in Sowerby, Eng. Bot. 8: pl. 534. 1789.

Thallus of minute, scattered or clustered, rounded, angular, or minutely and irregularly crenate, green-gray, pale brown, or more commonly ash-white granules, sometimes passing into a subcontinuous, chinky or areolate crust; apothecia minute to small, 0.2 to 0.4 mm. in diameter, adnate, from flesh-colored to black, commonly concave or flat, sometimes difform, frequently surrounded laterally by a thalloid veil; hypothecium and hymenium pale to pale brown; paraphyses distinct; asci clavate or cylindrico-clavate; spores ovoid to ellipsoid, 13 to 23 mic. long and 7 to 10 mic. wide.

Collected in Lake, Ross, Hocking, and Preble counties. Also examined from Lawrence County. On rocks and old bricks. Not previously reported from Ohio. Widely distributed in the State, but rare, except in Lake County, where this fungus was unusually common.

2. Lecidea intropallida sp. nov.

Thallus a continuous, smooth or slightly roughened, ash-gray and darkening crust; apothecia minute, 0.15 to 0.25 mm. in diameter, adnate or partly immersed, flesh-colored to yellow-brown, flat to slightly convex, the concolorous and inconspicuous exciple soon covered; hypothecium and hymenium pale; paraphyses sometimes distinct, but more commonly coherent-indistinct; asci clavate; spores simple, hyaline, ellipsoid, 5 to 7 mic. long and 2.5 to 3 mic. wide.

Collected near Painesville in Lake County. On pebbles in a moist wood. The type specimen is deposited in the writer's herbarium, and a cotype may be seen in the State Herbarium.

3. Lecidea varians Ach. Syn. Meth. Lich. 38. 1914.

Thallus of very minute, raised or flattened, green-gray to yellow-green granules, these forming a thin but continuous, smooth or granulate-rugose, often chinky crust, usually bordered and often decussated by black lines; apothecia minute, 0.12 to 0.25 mm. in diameter, often clustered or even conglomerate, adnate, from pale yellow to brown and finally black, flat with a thin exciple to convex with covered exciple; hypothecium pale to pale yellow; hymenium pale below, but often yellow or blue-violet above; paraphyses usually coherent, distinct or indistinct; asci clavate; spores oviod-ellipsoid, 7 to 15 mic. long and 5 to 7.5 mic. wide.

Collected in Adams County. On maple bark. Also reported from Franklin County. The plant is so minute and inconspicuous as to be very difficult to detect and is probably distributed widely in the State.

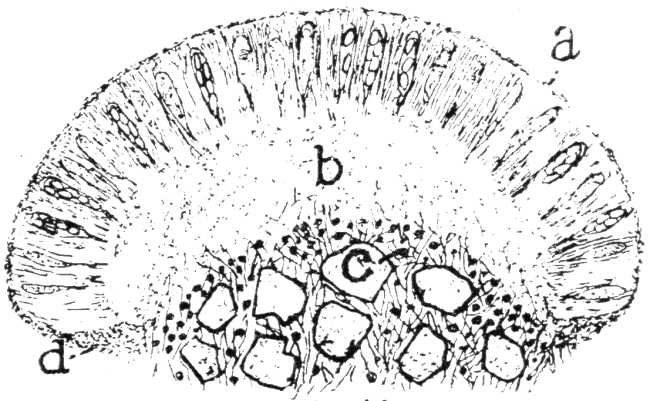

4. Lecidea rupestris (Scop.) Ach. Meth. Lich. 70. 1803. (See Fig. 10).

Lichen rupestris Scop. Fl. Carn. ed. 2. 2: 363, 364. 1772.

Thallus a continuous, moderately thick, smooth or more or less roughened, often chinky to subareolate, ash-gray, yellow-green, or darken[Pg 339]ing crust; apothecia small to large, 0.4 to 1.3 mm. in diameter, at first immersed but becoming adnate, yellow to yellow or red-brown, flat to strongly convex and the exciple covered; hypothecium pale or pale yellow; hymenium pale; paraphyses coherent, semi-distinct to indistinct; asci clavate; spores ellipsoid, 10 to 15 mic. long and 5 to 7 mic. wide.

Collected in Adams Country. On calcareous rocks. Not previously reported from North America.

5. Lecidea viridescens (Schrad.) Ach. Meth. Lich. 62. 1903.

Lichen viridescens Schrad. Spic. Fl. Germ. 88. 1794.

Thallus of very minute, smooth or deliquescent and powdery, ash-grey to grey-green granules, spread over the substratum as a thin or rarely thicker crust; apothecia minute to small, 0.2 to 0.5 mm. in diameter, adnate, frequently clustered or even conglomerate, becoming black, from flat with the thin livid or darker exciple visible to convex with the exciple covered; hypothecium pale or darker brown; hymenium pale to pale brown; paraphyses coherent, semi-distinct to indistinct; asci clavate; spores oblong-ellipsoid, 9 to 12 mic. long and 4 to 5.5 mic. wide.

Collected on Little Mountain in Lake County, and in Hocking County. On logs in woods. Not previously reported from Ohio, and probably rare in the State.

6. Lecidea humicola (Ach.) comb. nov.

Lecidea uliginosa humicola Ach. Meth. Lich. 43. 1903.

Thallus of very minute inconspicuous and evanescent, brown-black granules; apothecia minute, 0.2 to 0.4 mm. in diameter, adnate, dark brown to black, scattered or clustered, plain with a thin concolorous exciple visible, to convex with the exciple finally covered; hypothecium dark brown; hymenium pale brown; asci clavate; paraphyses coherent-indistinct; spores oblong-ellipsoid, 9 to 15 mic. long and 5 to 7 mic. wide.

Collected in Hocking County. On soil in a moist wood. Not previously reported from North America.

7. Lecidea uliginosa (Schrad.) Ach. Meth. Lich. 43. 1803.

Lichen uliginosus Schrad. Spic. Fl. Germ. 88. 1794.

Thallus of scattered, clustered, or even heaped, irregular and minute, green-olive to rust-brown, or even brown-black, somewhat raised and rarely coralloid granules, these forming a scattered or continuous crust; apothecia minute to small, 0.2 to 0.4 mm. in diameter, closely adnate or more or less immersed, often clustered, brown to black-brown, flat with the thin lighter-colored or black exciple visible, or becoming strongly convex, with the exciple finally covered; hypothecium light or darker brown; hymenium tinged yellow or brown; paraphyses closely coherent, but usually remaining distinct; asci long-clavate; spores oblong-ellipsoid, 8 to 14 mic. long and 4 to 7 mic. wide.[Pg 340]

Collected in Preble, Butler, Warren, Adams, Fairfield, and Lake counties. On dead wood. Widely distributed in Ohio.

8. Lecidea sylvicola Koerb. Syst. Lich. 254. 1855.

Thallus of minute, irregular, somewhat flattened or more rarely hemispherical, green-gray, olive-brown, or darker granules, these forming a thin, continuous, or rarely scattered, subleprose, verrucose, or even subareolate, wide-spread crust; apothecia minute to small, 0.2 to 0.5 mm. in diameter, adnate or rarely more or less immersed, dark brown to black, flat to convex, the black exciple soon becoming covered; hypothecium brown to black-brown; hymenium pale or tinged brown; paraphyses coherent, semi-distinct to indistinct; asci clavate; spores ellipsoid, 5 to 9 mic. long and 2.5 to 4 mic. wide.

Collected in Lake, Ross, Preble, Hocking, and Butler counties. On various rocks. Not previously reported from Ohio, and apparently new to America under this name. Widely distributed in Ohio.

For possible relationship to Lecidea myriocarpoides Nyl. See "The Lichens of Minnesota" (Cont. Nat. Herb. 14: 74. 1910).

9. Lecidea flexuosa (Fr.) Nyl. Act. Soc. Linn. Bord. 21. 356. 1856.

Biatora flexuosa Fr. Vet. Akad. Handl. 1822: 267. 1822.

Thallus of small or minute, flattened or rugose, scattered or clustered, ash-grey to green-gray granules, these bursting into sorediate heaps, or forming a moderately thick, areolate crust; apothecia minute to small, 0.2 to 0.4 mm. in diameter, adnate, black, and flat, the thin, livid or darker, persistent exciple becoming flexuous; hypothecium pale or darker brown; hymenium tinged brown; paraphyses coherent, semi-distinct to indistinct; asci cylindrico-clavate; spores oblong-ellipsoid, 5 to 10 mic. long and 3 to 5 mic. wide.

Collected in Preble, Adams, Ross, and Butler counties. On dead wood. Not previously reported from Ohio, and rare, though probably distributed widely in the State.

The spores are slightly below normal size in our specimens.

10. Lecidea enteroleuca Ach. Lich. Univ. 177. 1810.

Thallus thin or becoming moderately thick, smooth or more often granulate, chinky or areolate, the granules or verrucae rarely becoming heaped in the thicker forms, ash- to green-gray, occurring in rounded areas, or irregularly and often widely spread over the substratum; apothecia minute to middle-sized, 0.35 to 1.2 mm. in diameter, adnate, black, flat to more commonly convex, the frequently flexuous exciple often becoming covered; hypothecium pale to dark brown; hymenium pale below, but usually more or less colored above; paraphyses distinct, but often more or less coherent; asci clavate; spores ovoid-ellipsoid, 8 to 17 mic. long and 5 to 9 mic. wide (Fig. 3).[Pg 341]

Collected in Lake, Adams, and Hocking counties. On bark and rocks. Not previously reported from Ohio. Rare, but doubtless distributed widely in the State.

11. Lecidea albocaerulescens (Wulf.) Schaer. Lich. Helv. Spic. 3: 142. 1828.

Lichen albocaerulescens Wulf. in Jacq. Coll. Bot. 2: 184. pl. 5. f. 1. 1788.

Thallus smooth or somewhat rough, more or less chinky or becoming obscurely small-areolate, ash- to green-gray, or becoming olivaceous, spreading over the substratum as a continuous, moderately thick crust; apothecia small to large, 0.5 to 1.5 mm. in diameter, adnate or more or less immersed, usually flat, almost always white or rusty-green pruinose, the black exciple rarely becoming covered; hypothecium brown to black-brown; hymenium commonly pale; paraphyses distinct, but usually coherent; asci clavate to inflated-clavate; spores ovoid-ellipsoid, 15 to 24 mic. long and 7 to 10 mic. wide.

Collected in Preble, Hocking, and Lake counties. Also examined from Lawrence County. On rocks other than calcareous. Not previously reported from Ohio. Rare, but apparently distributed widely in the State.

12. Lecidea platycarpa Ach. Lich. Univ. 173. pl. 2. f. 5. 1810.

Thallus a thin, obscurely or more or less plainly roughened, usually chinky to subareolate, ash- to green-gray, continuous or more or less scattered, sometimes disappearing crust; apothecia small to middle-sized or even larger, 0.4 to 1.5 mm. in diameter, commonly scattered, brown-black to black, rarely and obscurely white-pruinose, adnate to sessile, rounded to flexuous, flat or finally convex, the raised exciple sometimes becoming covered; hypothecium dark brown; hymenium pale below and colored above; paraphyses distinct or coherent-semidistinct; asci clavate; spores ovoid- to oblong-ellipsoid, 14 to 20 mic. long and 6 to 10 mic. wide.

Collected in Ross and Hocking Counties. On rocks. Not previously reported from Ohio.

Biatorina Mass. Ric. Lich. 134. f. 262-271. 1852.

Thallus commonly granulose, and often passing into verrucose and chinky conditions, but scarcely ever areolate, sometimes scant and evanescent; apothecia usually minute or small, and commonly adnate, exciple weak and often becoming covered; hypothecium and hymenium passing from pale through shades of brown, the former becoming darker than the latter, this rarely tinged blue or violet above; spores hyaline, 2-celled.

KEY TO THE SPECIES OF BIATORINA

[Pg 342]

1. Biatorina heerii (Hepp) Fink Cont. Nat. Herb. 14: 83. 1910.

Biatora heerii Hepp, Spore Flecht. Eur. pl. 16. f. 135. 1853.

Thallus of very minute, rounded and frequently heaped granules, sometimes visible under a hand lens, but often seen only in sections of the substratum, rarely disappearing; apothecia minute, 0.1 to 0.3 mm. in diameter, adnate to sessile, flesh-colored and blackening, flat to slightly convex, the concolorous or darker exciple commonly persistent; hypothecium and hymenium pale to light brown; paraphyses distinct to coherent-indistinct; asci clavate; spores ellipsoid, 7 to 12 mic. long and 3 to 3.5 mic. wide.

Collected in Butler County. On the thallus of Peltigera canina. Not previously reported from Ohio. So minute as to be difficult to detect. Consequently nothing further is known of its distribution in the State.

2. Biatorina prasina (Fr.) Fink Cont. Nat. Herb. 14: 84. 1910.

Micarea prasina Fr. Syst. Orb. Veg. 257. 1825.

Thallus of minute, closely clustered or even heaped granules, these forming a wide-spread, frequently subleprose, green-gray to dark-olive crust; apothecia minute to small, 0.2 to 0.5 mm. in diameter, adnate, commonly carneous or darkening, more or less convex and usually becoming convex with the exciple finally covered; hypothecium pale or pale brown; hymenium pale below and commonly darker above; paraphyses coherent, semi-distinct to indistinct; asci clavate; spores oblong-ellipsoid, 8 to 12 mic. long and 3.5 to 5 mic. wide.

Collected on Little Mountain in Lake County. On a rotten log. Not previously reported from Ohio, and evidently rare in the State.

Simple spores were seen in the specimens collected, but they were supposed to be immature.

3. Biatorina lentibularis (Ach.) Koerb. Syst. Lich. 191. 1855.

Lecidea lentibularis Ach. Syn. Meth. Lich. 28. 1814.

Thallus a thin, smooth or subtartareous, rarely rimose-areolate, ash-white to brown-gray, wide-spread and continuous or finally disappearing crust; apothecia minute to small, 0.2 to 0.5 mm. in diameter, adnate, black, from flat becoming convex and often irregular, the inconspicuous exciple then becoming covered; hypothecium pale to darker brown; hymenium pale or tinged brown; paraphyses distinct to coherent-indistinct; asci clavate; spores oblong-ellipsoid, 8 to 11 mic. long and 2.7 to 4 mic. wide.

A single collection was made in Highland County. On exposed calcareous rocks. Not previously reported from Ohio, and doubtless rare in the State.

An occasional 4-celled spore was seen, a transitional character previously noted by Th. M. Fries. The plant is closely related to the next below, from which it may not be distinct.

[Pg 343]

4. Biatorina chalybeia (Borr.) Mudd, Man. Brit. Lich. 180. 1861.

Lecidea chalybeia Borr. in Sowerby, Eng. Bot. Suppl. 1: pl. 2687. f. 2. 1831.

Thallus a thin, smooth or roughened, ash-gray and darkening crust, forming a continuous layer, becoming inconspicuous and rarely disappearing; apothecia minute to small, 0.3 to 0.5 mm. in diameter, adnate to sessile, concave to slightly convex, black, the exciple concolorous, prominent, and rarely becoming covered; hypothecium dark brown; hymenium pale below and pale brown above; paraphyses wide and strong, distinct to coherent-indistinct; asci clavate; spores oblong-ellipsoid, 8 to 12 mic. long and 3.5 to 4.75 mic. wide (Fig. 4).

Collected in Butler County. On calcareous rocks. Not previously reported from Ohio, and probably rare in the State.

The spores are somewhat larger than in European specimens.

Bilimbia De Not. Giorn. Bot. Ital. 21: 190. 1846.

Thallus usually composed of minute granules, these often run together to form a leprose or verrucose and rarely areolate or even subsquamulose crust, rarely disappearing; apothecia minute or small, usually adnate, with a weak and often covered exciple; hypothecium pale to dark brown; hymenium pale or tinged brown; spores hyaline, usually fusiform or dactyloid, varying from 4- to 9-celled.

KEY TO THE SPECIES OF BILIMBIA

1. Bilimbia sphaeroides (Dicks.) Koerb. Syst. Lich. 213. 1855.

Lichen sphaeroides Dicks. Pl. Crypt. Brit. 1: 9. pl. 2. f. 3. 1785.

Thallus of minute, gray-green, often heaped granules, these forming a continuous, thin or thicker crust; apothecia minute to small, 0.2 to 0.4 mm. in diameter, adnate, flesh-colored to red-brown, flat to convex and subglobose, the inconspicuous, concolorous exciple soon covered; hypothecium and hymenium pale; paraphyses usually coherent-indistinct; asci clavate; spores fusiform-ellipsoid, 4-celled, 12 to 20 mic. long and 4 to 6 mic. wide.

Collected on Little Mountain, in Lake County. On a rotten log in a wood. Rare in Ohio, and its distribution unknown.

The plant is typical internally, but is young with small, flat or slightly convex, light-colored apothecia.[Pg 344]

2. Bilimbia hypnophila (Ach.) Th. Fr. Nov. Act. Reg. Soc. Sci. Ups. III. 3: 283. 1861.

Lecidea hypnophila Ach. Lich. Univ. 199. 1810.

Thallus of minute, usually crowded, sometimes confluent granules, these forming an ash- or green-gray, thin, leprose or subgranulose, sometimes scattered and disappearing crust; apothecia minute to middle-sized, 0.2 to 0.75 mm. in diameter, light brown to black, adnate to sessile, scattered or clustered, becoming strongly convex and the exciple becoming covered; hypothecium pale or darker brown; hymenium pale, or tinged brown below and more plainly brown above; paraphyses coherent, semi-distinct to indistinct; asci clavate or long-clavate; spores ellipsoid to fusiform, 4- to 8-celled, 16 to 35 mic. long and 4 to 8 mic. wide.

Collected in Preble, Hocking, and Adams counties. Over mosses on rocks or bases of trees; or rarely on rocks, soil, bark, or wood. Not previously reported from Ohio, and not a common fungus in the State.

3. Bilimbia naegelii (Hepp) Zwackh. Flora. 45: 505. 1862.

Biatora naegelii Hepp, Spor. Flecht. Eur. pl. 4. f. 1. 19. 1853.

Thallus of usually flattened granules, these commonly running together to form a moderately thin, more or less roughened, often chinky, ash- or green-gray, or darkening, limited or rarely wide-spread crust; apothecia minute to middle-sized, 0.2 to 0.9 mm. in diameter, adnate or rarely sessile, flesh-colored to dark brown, scattered or clustered, flat with the thin exciple visible to strongly convex with the exciple covered; hypothecium pale or tinged brown; hymenium pale throughout or tinged brown above; paraphyses coherent, semi-distinct to indistinct; asci clavate; spores fusiform-ellipsoid, 4- to 8-celled, 18 to 25 mic. long and 3 to 4 mic. wide.

Collected in Highland County. On bark. Not previously reported from Ohio, and doubtless rare in the State.

The usual width given for the spores is 4 to 6 mic., and our plant is placed here provisionally.

4. Bilimbia melaena (Nyl.) Th. Fr. Lich. Scand. 383-385. 1871.

Lecidea melaena Nyl. Bot. Not. 1853: 182. 1853.

Thallus of minute, olive-green to black-brown granules, these forming a thin, granulose or scurfy, sometimes disappearing crust; apothecia minute to small, 0.25 to 0.55 mm. in diameter, black-brown to black, sessile, occurring singly or in clusters, strongly convex to subglobose, the exciple soon covered; hypothecium pale brown to red-brown; hymenium pale or tinged brown; paraphyses coherent, semi-distinct to indistinct; asci clavate to inflated-clavate; spores oblong-ellipsoid or dactyloid, 2- to 4-celled, 12 to 22 mic. long and 4 to 6 mic. wide.

Collected in Lake County. On an old log in a wood. Not previously reported in Ohio, and rare in the State.[Pg 345]

Nylander called the apothecium pale within, but forms with red-brown hypothecia are admitted by later writers.

5. Bilimbia microcarpa Th. Fr. Bot. Not. 1863: 8. 1863.

Bilimbia obscurata microcarpa Th. Fr. Nov. Act. Soc. Sci. Ups. III. 3: 183. 1861.

Thallus of minute ash-gray or green-gray granules, these rarely forming a thin or moderately thick, subcontinuous, verrucose crust, but more often scattered or disappearing entirely; apothecia minute to small, 0.25 to 0.7 mm. in diameter, scattered or conglomerate, dirty brown to black, soon becoming convex and subglobose, with the pale exciple then covered; hypothecium pale to pale red-brown; hymenium pale; asci clavate to inflated-clavate; paraphyses coherent-indistinct; spores fusiform, 4-celled, 16 to 25 mic. long and 4 to 6 mic. wide.

Collected in Hocking County. On shaded sandstone. Not previously reported from North America.

6. Bilimbia trachona (Ach.) Oliver Lich. France 38,39. 1903.

Verrucaria trachona Ach. Meth. Lich. Suppl. 16. 1803.

Thallus thin and granular, passing into smooth or leprose conditions, thence to thickened and subareolate states, ash-colored to dark brown-green, usually continuous over considerable areas; apothecia minute to middle-sized, 0.4 to 0.1 mm. in diameter, from brown-black with lighter exciple to wholly black, adnate or somewhat immersed, flat or finally convex with the exciple at length covered; hypothecium pale brown to black-brown; hymenium pale or rarely pale brown; paraphyses distinct to coherent semi-distinct; asci clavate; spores fusiform-dactyloid, 4-celled, 12 to 20 mic. long and 2.5 to 4.5 mic. wide (Fig. 5).

Collected in several localities in Preble, Highland, and Adams counties. On rocks, usually limestone. Also reported from Cuyahoga and Ottawa counties. Not common, but doubtless distributed widely in the State.

Bacidia De Not. Giorn. Bot. Ital. 2: 189. 1846.

Thallus granulose, passing into chinky, verrucose, subareolate and subsquamulose conditions, seldom or never disappearing; apothecia minute to large, adnate or rarely immersed more or less, exciple usually weak and becoming covered; hypothecium commonly some shade of yellow or brown; hymenium pale to light brown; spores hyaline, acicular, varying from 4- to 16-celled, often curved or variously twisted, usually 8 in each ascus.

KEY TO THE SPECIES OF BACIDIA

1. Bacidia egenuloidea sp. nov.

Thallus of minute, crowded granules, forming a rather thick, conspicuous, rugose and obscurely chinky, dirt-olive and darkening, wide-spread crust; apothecia minute to small, 0.25 to 0.4 mm. in diameter, yellow-brown and darkening, adnate-sessile, flat with an elevated, darker exciple; hypothecium and hymenium pale or tinged brown; paraphyses coherent, semi-distinct; asci clavate; spores hyaline obscurely several-celled, variously curved, 25 to 40 mic. long and 0.75 to 1.25 mic. wide.

Collected in Preble County. On granite in a damp field near West Alexandria. The type specimen is deposited in the writer's herbarium, and a cotype may be found in the State Herbarium.

2. Bacidia rubella (Hoffm.) Mass. Ric. Lich. 118. f. 231. 1852.

Verrucaria rubella Hoffm. Deutsch. Fl. 2: 174. 1795.

Thallus of minute, scattered or crowed granules, these frequently becoming compacted into a subleprose or more or less verrucose or chinky, ash- to green-gray, moderately thick or thinner, continuous or sometimes scattered and disappearing crust (Fig. 2); apothecia small to large, 0.5 to 1.35 mm. in diameter, sessile to adnate, flesh-yellow to red-brown, flat with a rather thick and lighter-colored exciple, or becoming convex with the exciple finally covered; hypothecium pale yellow to brown; hymenium pale yellow; paraphyses coherent, semi-distinct to indistinct; asci long clavate; spores about 8- to 16-celled, 45 to 65 mic. long and 3 to 4 mic. wide.

Collected in Butler, Highland, Adams, and Preble counties. Also examined from Franklin County. On bark. Widely distributed in Ohio, but not common.

3. Bacidia fuscorubella (Hoffm.) Arn. Flora 54: 55. 1871.

Verrucaria fuscorubella Hoffm. Deutsch. Fl. 2: 175. 1795.

Thallus of minute, crowded or scattered granules, these forming a usually conspicuous and often rugose and chinky, green-gray or darker, frequently wide-spread, rarely disappearing crust; apothecia small to large, 0.6 to 1.5 mm. in diameter, pale to darker brown and finally black, adnate or sessile, flat with an elevated, and sometimes transversely striate, and usually pruinose exciple, less frequently becoming convex with the exciple rarely becoming covered; hypothecium yellow to yellow-brown; hymenium[Pg 347] pale yellow; paraphyses coherent, semi-distinct to indistinct; asci long-clavate; spores about 7- to 14-celled, 40 to 70 mic. long and 3 to 5 mic. wide.

Collected in Butler and Adams counties. Also reported from Champaign and Hamilton counties. On bark. This fungus appears to be rare in Ohio.

In one specimen, some of the disks are partly or wholly pruinose, but the plant seemed nearer to this than to Bacidia suffusa (Fr.) Fink.

4. Bacidia schweinitzii (Tuck.) Fink Cont. Nat. Herb. 14: 89. 1910.

Biatora schweinitzii Tuck. in Darl Fl. Cestr. ed. 3. 447. 1853.

Thallus thin and inconspicuous, or becoming thick and more prominent, composed of rounded and often crowded or even heaped granules, these frequently compacted into a continuous or scattered, verrucose and often chinky, green-gray to olivaceous crust; apothecia small to large, 0.6 to 1.75 mm. in diameter, dark brown to black, adnate or sessile, flat or slightly convex, the concolorous or lighter exciple frequently becoming flexuous; hypothecium pale yellow to dark brown; hymenium pale yellow; paraphyses coherent, distinct to semi-distinct: asci long-clavate; spores about 7- to 15-celled, 40 to 70 mic. long and 2.5 to 3.5 mic. wide.

Collected in Fairfield, Hocking, and Adams counties. On bark. Evidently a rare fungus in Ohio.

5. Bacidia inundata (Fr.) Koerb. Syst. Lich. 187. 1855.

Biatora inundata Fr. Vet. Akad. Handl. 1822: 270. 1822.

Thallus of minute granules, these usually compacted into a thin or rarely thicker, granulate, chinky, or subareolate, ash- or green-gray or darkening, commonly wide-spread, continuous or scattered crust; apothecia minute to middle-sized, 0.2 to 0.75 mm. in diameter, pale brown to finally black, adnate or rarely more or less immersed, usually flat and bordered by the commonly lighter colored exciple, rarely becoming convex, the exciple then finally covered; hypothecium pale to brown; hymenium pale to pale brown; paraphyses coherent, semi-distinct to indistinct; asci clavate to long-clavate, spores 4- to 8-celled, 15 to 40 mic. long and 1.5 to 2.6 mic. wide.

Collected in Butler, Preble, Highland, Adams, Warren, and Lake counties. On various rocks in shaded or open moist places, and also about the moist shaded bases of rocks in dry fields. Also reported from Cuyahoga county and doubtless common in all parts of the State.

6. Bacidia incompta (Borr.) Anzi. Cat. Lich. Sondr. 70. 1860.

Lecidea incompta Borr. in Sowerby, Engl. Bot. Suppl. 2: pl. 2699. 1834.

Thallus of very minute granules, these forming a continuous or more or less broken, wide-spread, sometimes thick and rugose or rarely even subareolate, or again thin, smooth, more or less mealy, light or darker green-gray, rarely disappearing crust; apothecia minute to middle-sized, 0.3 to 0.75 mm. in diameter, dark brown to black, adnate to sub-sessile,[Pg 348] flat or becoming convex, with a thin and frequently flexuous exciple; hypothecium pale brown to brown; hymenium pale below and pale brown above; paraphyses coherent, semi-distinct to indistinct; asci long-clavate; spores 4- to 12-celled, 18 to 35 mic. long and 1.5 to 3 mic. wide.

Collected in Adams County. On bark. Not previously reported from Ohio, and doubtless rare in the State.

7. Bacidia umbrina (Ach.) Br. & Rostr. Bot. Tidssk. 3: 235. 1869.

Lecidea umbrina Ach. Lich. Univ. 183. 1810.

Thallus a rather thick and continuous, or rarely thinner and scattered, subleprose, chinky, rugose-granulate or subareolate, green-gray to dark olive-brown, sometimes largely disappearing crust; apothecia minute to small, 0.25 to 0.6 mm. in diameter, light brown to black, adnate to somewhat immersed, at first flat with a commonly paler exciple, becoming convex with the exciple sometimes covered; hypothecium pale or darker brown; hymenium pale throughout, or tinged brown above; paraphyses coherent, semi-distinct to indistinct; asci long-clavate, or inflated-clavate; spores hamate, or more or less spirally twisted, about 4- to 8-celled, 18 to 30 mic. long and 2 to 3 mic. wide (Fig. 7).

Collected in Preble, Lake, Hocking, and Adams counties. Also examined from Wayne County. On various rocks. Not previously reported from Ohio, but evidently distributed widely in the State.

Buellia De Not. Giorn. Bot. Ital. 21: 195. 1846.

Thallus granulose, verrucose, or areolate, rather better developed than those of the preceding genera as shown in the more frequent verrucose and areolate conditions; apothecia minute to large, sessile to immersed, the disk and the exciple usually black; hypothecium usually brown; hymenium pale to light brown; paraphyses usually distinct; spores brown, 2-celled.

KEY TO THE SPECIES OF BUELLIA

1. Buellia myriocarpa (Lam. & DC.) Mudd. Man. Brit. Lich. 217. 1861.

Patellaria myriocarpa Lam. & DC. Fl. ed. 3. 2: 346. 1805.

Thallus a thin and scurfy, smooth or chinky, or thicker and roughened-verrucose, ash- to green-gray, or darkening crust, irregularly spread over small areas, and rarely disappearing; apothecia minute to small, 0.2 to 0.6 mm. in diameter, often numerous, black, adnate, flat and bordered by an exciple, or becoming convex with the exciple sometimes covered; hypothecium dark brown; hymenium pale, or pale below and pale brown above; paraphyses distinct, but sometimes loosely coherent; asci clavate; spores oblong-ellipsoid, 7 to 16 mic. long and 4 to 7.5 mic. wide.[Pg 349]

Collected in Butler and Lake counties. On dead wood, especially posts and boards. Also reported from Cuyahoga County. An inconspicuous fungus, doubtless distributed widely in the State.

2. Buellia parasema (Ach.) Koerb. Syst. Lich. 228. 1855.

Lichen parasemus Ach. Lich. Suec. 64. 1798.

Thallus usually continuous and smooth, but sometimes becoming thicker and roughened, granulate, chinky, or finally areolate, ash- to green-gray, and darkening, or even yellow-green, usually bordered wholly or in part by a black margin; apothecia small to large, 0.4 to 1.3 mm. in diameter, black, adnate to sessile, or rarely more or less immersed, flat with a prominent, concolorous, sometimes flexuous exciple, or sometimes becoming convex, with the exciple often covered (Fig. 11); hypothecium dark brown; hymenium pale below and pale brown above; paraphyses distinct (Fig. 12), but sometimes loosely coherent; asci clavate (Fig. 13), or rarely inflated clavate; spores oblong to ellipsoid, 10 to 18 mic. long and 5 to 9 mic. wide, rarely 3-celled (Fig. 13).

Collected in Fairfield, Lake, Adams, Highland, Hocking, and Butler counties. Also examined from Morgan, Madison, and Muskingum counties. On bark. Generally distributed in Ohio.

3. Buellia turgescentoides sp. nov.

Thallus a thick, continuous or scattered, flat or verrucose, areolate or subareolate, dull olive-brown, and darkening crust, covering small areas or spreading widely over the substratum, the marginal areoles sometimes lobulate; apothecia minute to small, 0.2 to 0.5 mm. in diameter, immersed to adnate, scattered or clustered, black, flat with the thin concolorous exciple visible, or convex with the exciple covered; hypothecium pale or darker brown; hymenium pale; paraphyses stout, distinct, but often loosely coherent; asci clavate or inflated-clavate; spores brown, 2-celled, oblong to oblong-ellipsoid, 8 to 13 mic. long, and 4 to 6 mic. wide, 8 in each ascus.

Collected in Lake County. On exposed igneous rocks. The type specimen is deposited in the writer's herbarium, and a cotype may be found in the State Herbarium.

This species is a coarser plant than Buellia turgescens (Nyl.) Tuck., with much stronger, darker thallus and apothecia on the whole larger.

Rhizocarpon Ram. in Lam. & DC. Fl. Fr. ed. 3. 2: 365. 1805.

Thallus usually verrucose, areolate or subareolate, tending toward squamulose conditions, better developed than in other members of the family, scarcely ever showing granulate conditions, and never disappearing entirely; apothecia also larger than in the other genera, adnate to immersed, usually black, but rarely white-pruinose; hypothecium usually dark brown; hymenium pale to light brown; spores 4-celled to muriform, and pale to brown, various conditions of septation and coloration sometimes appearing in the same hymenium.

[Pg 350]

KEY TO THE SPECIES OF RHIZOCARPON

1. Rhizocarpon vernicomoideum sp. nov.

Thallus of minute, rounded, scattered or sometimes clustered, straw-colored granules, covering small areas, and usually resting on and limited wholly or in part by a black hypothallus; apothecia minute to small, 0.2 to 0.6 mm. in diameter, black, semi-immersed to adnate, at first flat with a thin somewhat raised exciple, becoming convex with the exciple finally covered; hypothecium brown; hymenium pale or tinged brown below and light brown above; paraphyses coherent, distinct or semi-distinct; asci clavate; spores brown, 4-celled, becoming slightly constricted at the septa, 15 to 18 mic. long and 5 to 7 mic. wide, 8 in each ascus.

Collected at Cantwell Cave in Hocking County. On shaded sandstone, intermingled with an ash-gray, crustose thallus, which appeared like a sterile Pertusaria. The type specimen is deposited in the writer's herbarium, and a cotype may be seen in the State Herbarium.

The plant resembles Buellia vernicoma Tuck.

2. Rhizocarpon alboatrum (Hoffm.) Th. Fr. Nov. Act. Reg. Soc. Sci. Ups. III. 3: 337. 1861.

Lichen alboater Hoffm. Lich. Icon. 30. 1784.

Thallus ash-gray varying toward white, commonly spread widely over the substratum as a continuous or rarely scattered or disappearing, smooth, chinky, verrucose-areolate, or sometimes mealy crust: apothecia small to middle-sized, 0.35 to 1 mm. in diameter, adnate or immersed, dull black and often more or less white-pruinose, flat with the black exciple visible, or convex when the exciple often becomes covered; hypothecium brown to black-brown; hymenium pale or tinged brown; paraphyses distinct, but sometimes coherent; asci clavate; spores oblong-ellipsoid, brown, 4-celled to muriform, 12 to 22 mic. long and 4 to 9 mic. wide (Fig. 8), 8 in each ascus.

Collected in Butler, Preble, Ross, and Highland counties. On bark, especially elm bark. Also reported from Ottawa County. Rare but doubtless distributed widely in the State.

3. Rhizocarpon petraeum (Wulf.) Koerb. Syst. Lich. 260. 1855.

Lichen petraeus Wulf. in Jacq. Coll. Bot. 3: 4. pl. 6. f. 2a. 1789.

Thallus an ash or green-gray crust, or varying toward brown or brown-black, smooth to more commonly roughened, chinky to areolate, continuous or scattered, of moderate thickness, often widely and irregularly disposed on the substratum; apothecia small to large, 0.5 to 1.3 mm. in diameter, immersed to adnate, black-brown to black, flat with the concolorous[Pg 351] exciple visible, or becoming somewhat convex, with the exciple often covered; hypothecium dark brown; hymenium pale, or tinged brown, especially above; paraphyses coherent, semi-distinct; asci clavate or inflated-clavate; spores oblong-ellipsoid, 4-celled to muriform, hyaline to finally brown, 15 to 40 mic. long and 7 to 18 mic. wide. 8 in each ascus (Fig. 9).

Collected in Lake, Hocking, and Ross counties. Also examined from Summit, Vinton, and Ashtabula counties. On rocks. Rare but widely distributed in the State.

[Pg 352]

EXPLANATION OF PLATE XIII

Fig. 1. Five paraphyses of Rhizocarpon alboatrum to illustrate types of simple and branched forms found in the same hymenium. X 450.

Fig. 2. A section of the thallus of Bacidia rubella and two cells of the woody substratum: a, the upper densely interwoven portion of the thallus; b, part of the less densely interwoven portion below; c, the algal-host cells; d, one of the cells of the woody substratum and three hypal rhizoids within it. X 450.

Fig. 3. Spores of Lecidea enteroleuca to illustrate the simple, hyaline type. X 760.

Fig. 4. Spores of Biatorina chalybeia to illustrate the 2-celled, hyaline type. X 760.

Fig. 5. Spores of Bilimbia trachona to illustrate the several-celled, hyaline, fusiform or dactyloid type. X 760.

Fig. 6. Spores of Bacidia fuscorubella to illustrate the several-celled, hyaline, acicular type. X 760.

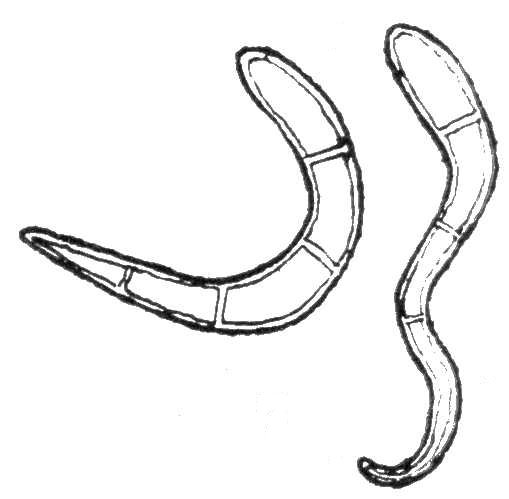

Fig. 7. Spores of Bacidia umbrina to illustrate the several-celled, hyaline, hamate or spirally twisted type. X 760.

Fig. 8. Spores of Rhizocarpon alboatrum to illustrate the several-celled to many-celled and muriform, hyaline to brown type. X 760.

Fig. 9. Spores of Rhizocarpon petraeum of the same type as those shown in the last figure, but larger, and usually composed of more cells. X 760.

Fig. 10. A vertical section through an apothecium of Lecidea rupestris: a, the hymenium, composed of asci and paraphyses; b, the hypothecium; c, the mycelium, the cells of the algal host, and particles of the limestone on which the plant was growing; d, the weak, light-colored, covered exciple. X 79.

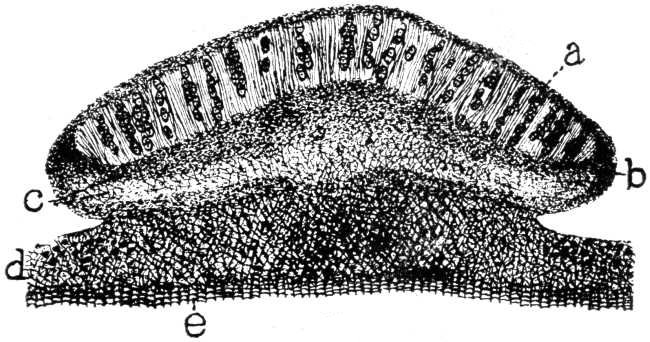

Fig. 11. A vertical section through an apothecium of Buellia parasema, the thallus below, and a portion of the woody substratum: a, the hymenium, composed of asci and paraphyses; b, the strongly developed, dark colored exciple; c, the dark colored hypothecium; d, the thallus, composed of interwoven hyphae, and enclosing cells of the algal host, a portion of the woody substratum. X 79.

Fig. 12. One branched and one unbranched paraphysis of Buellia parasema. X 450.

Fig. 13. An ascus of Buella parasema, containing 8 spores. X 450.

[Pg 353]

PLATE XIII.

Fig 1.

Fig 2.

Fig 3.

Fig 4.

Fig 5.

Fig 6.

Fig 7.

Fig 8.

Fig 9.

Fig 10.

Fig 11.

Fig 12.

Fig 13.

[Pg 354]

THE ASCOMYCETES OF OHIO V[B]

The Peltigeraceae.

Leafy J. Corrington.

Two genera, Peltigera and Nephroma, constitute the Peltigeraceae as represented in the flora of Ohio. The thallus is plainly foliose with the margins of the lobes usually ascending and is gray-green to brown in color. The lower surface is often conspicuously veined. There are two pronounced distinctions between the two genera. Peltigera has a well-developed cortex on the upper side of the thallus only (Fig. 1), while in Nephroma there is a well-developed cortex on both upper and lower sides (Fig. 2).

The position of the apothecia constitutes another distinction. In both genera the apothecia are marginal or submarginal on the lobes, which are usually narrow and somewhat extended; but in Peltigera they are immersed in the upper surface, while in Nephroma they are imbedded in the lower surface.

Peltigera furnishes seven species for Ohio, while only one species of Nephroma has thus far been found in the State.

The algal hosts are usually Dactylococcus or Polycoccus, and both hosts are sometimes found in the same thallus. The chains of cells are usually badly broken up, and the nature of the algal host is, therefore, difficult to distinguish. Other algae doubtless sometimes occur in the thalli of Peltigerae.

Nephroma with cortex on both sides, is to be regarded higher than Peltigera, which has the cortex on the upper side only. The family is most closely related to the Stictaceae, from which family it is kept distinct on account of the absence of cyphellae and the difference in disposition of the apothecia.

The collecting on which this paper is based was partly by Bruce Fink in connection with general collecting of fungi in Butler County and in collecting in Adams, Warren, Fairfield, Preble, Ross, Highland, and Lake counties for the Ohio Biological Survey. However, a considerable amount of material found by other collectors and previously reported from Ohio was examined. Hence, the collecting for the Ohio Biological Survey added little to knowledge of the Peltigeraceae of Ohio, except in way of addition to distribution in the State.

Systematic Account.

PELTIGERACEAE

Thallus foliose, with plectenchymatous cortex above (Fig. 5), or both above and below (Fig. 2), with medulla of loosely interwoven hyphae, trichomatic hyphae, usually present, attached to the substratum by com[Pg 355]pound rhizoids; apothecia of considerable size, commonly on extended lobes, usually imbedded in the tissues on the upper side, or more rarely on the lower side; exciple inconspicuous; hypothecium usually light or darker brown; hymenium usually pale below and brown or tinged brown above; paraphyses simple or branched, distinct, seldom gelatinized or coherent; spores hyaline or brown, 4- to several-celled, elongated.

KEY TO THE GENERA

Peltigera Willd. Fl. Berol. Prodr. 347. 1787.

Thallus foliose, usually adnate toward the center, with the lobes more or less ascending at the margins, green-gray varying toward brown, the upper surface sometimes bare, or again clothed with trichomatic hyphae, giving it a downy appearance, or bearing cephalodia or isidioid branchlets, the lower surface usually conspicuously veined, with tufted rhizoids descending from the veins, color of these light or dark; cross section showing two distinct layers, the upper plectenchymatous cortex composed of 2 to 4 layers of meshes, and the medulla, composed of densely interwoven and irregularly disposed hyphae; lower cortex lacking, but the hyphae of the lower portion in some instances more or less horizontally arranged and produced into hyphal rhizoids, thus serving for support and protection much like a true plectenchymatous cortex; apothecia usually orbicular, frequently revolute, imbedded in the upper surface of the lobes; exciple plectenchymatous (Fig. 4); hypothecium of interwoven hyphae, usually tinged brown; hymenium commonly pale below and brown above; paraphyses usually simple, but some branched ones present in all of the species, hyaline in the main, but usually enlarged and tinged brown at the apex; asci usually cylindrico-clavate; spores hyaline, fusiform to acicular, sometimes curved, 4 to 8-celled, 8 arranged parallel in the asci.

The algal host cells lie in the medulla, just below the upper cortex.

KEY TO THE SPECIES OF PELTIGERA

[Pg 356]

1. Peltigera aphthosa (L.) Willd. Fl. Berol. Prodr. 347. 1787.

Lichen aphthosus L. Sp. Pl. 1148. 1753.

Thallus closely attached to the substratum at the center, the lobes ascending, 6 to 8 cm. in diameter, smooth and devoid of trichomatic hyphae above, cephalodia more or less rounded and irregularly scattered over the surface (Fig. 3), the lobes broad and rounded with crenate margins, brown above, the lower surface having numerous veins, these forming a dark brown nap at the center, the veins distinct and light toward the margin, dark rhizoids extending from the veins; medulla composed of thick-walled, densely interwoven hyphae, irregularly disposed; apothecia on extended lobules, orbicular and frequently revolute, the disk red-brown, 2 to 5 mm. in diameter, the margin entire or crenulate; hypothecium pale brown; hymenium hyaline to pale brown above; asci cylindrico-clavate; spores acicular, straight, 4- to 6-celled, 47 to 66 mic. long and 4 to 5 mic. wide (Fig. 8, d).

Examined from Clark County. Also reported from Champaign County. On earth and often on humus-covered rocks. Rare in Ohio.

2. Peltigera praetextata (Sommerf.) Fink. Proc. Ind. Acad. Sci. 1918: 267. 1918.

Peltigera ulorrhiza praetextata Sommerf. Lapp. Suppl. 123. 1826.

Thallus adnate toward the center, more or less ascending toward the margins, 7 to 15 cm. in diameter, the upper surface having isidioid branchlets or lobules scattered more or less thickly, the lobes broad, wavy, crenate, with frequently isidioid, lobulate margins, trichomatic hyphae often present, usually green-gray toward the center, becoming brown toward the margin, the lower surface light with numerous dark veins and bearing rhizoids of the same color, the veins and rhizoids becoming light colored toward the margin; medulla of densely interwoven and irregularly disposed hyphae; apothecia on narrow, somewhat extended lobes, the disk brown to brown-black, revolute, 2 to 5 mm. in diameter, hypothecium light to darker brown; hymenium pale below and brown above; asci cylindrico-clavate; spores sub-fusiform to acicular, usually straight but sometimes slightly curved, 4- to 6-celled, 42 to 56 mic. long and 3 to 5 mic. wide.

Examined from Franklin, Adams, Butler, Marion, Jefferson, and Preble counties. On soil, old logs, and moss in woods. Not previously reported from Ohio, but included under Peltigera canina and Peltigera rufescens. Evidently widely distributed and frequent in the State, but seldom fruited.

3. Peltigera sorediata (Schaer.) Fink comb. nov.

Peltigera canina spuria sorediata Schaer. Enum. Lich. Eur. 21. 1850.

Thallus small, composed of scattered lobes, these 1 to 4.5 cm. in length, adnate with slightly ascending rounded, and crenate margins, the upper surface usually deep gray at the center, becoming lighter toward the margin, thickly covered with trichomatic hyphae, orbicular sorediate areas[Pg 357] scattered over the upper surface, the lower surface ash-white to cream-colored, with a network of veins of the same color, with similarly colored rhizoids extending downward; medulla of small, densely interwoven and irregularly extending hyphae; apothecia somewhat digitately clustered on the narrow lobes, small, 1.3 to 3 mm. in diameter, orbicular, flat or semi-revolute, dark brown; hypothecium light brown; hymenium hyaline below and brown above; asci long-clavate; spores acicular, 6- to 8-celled, 53 to 66 mic. long and 3 to 3.5 mic. wide (Fig. 8, b).

Examined from Butler and Lake counties. On damp earth and mossy rocks. Not previously reported from Ohio, and probably not widely distributed in the State. Surely rare.

4. Peltigera canina (L.) Hoffm. Deutsch. Fl. 2: 108. 1795.

Lichen caninus L. Sp. Pl. 1149. 1753.

Thallus closely adnate toward center, the lobes more or less ascending, 6 to 15 cm. in diameter, the upper surface for the most part thickly covered with trichomatic hyphae, generally giving it a downy appearance under the lens, the lobes numerous and usually broad and rounded, with entire or crenate and much crisped margins, usually green-gray but sometimes becoming brown, below almost white, netted with light brown or gray veins, these bearing rhizoids of the same color; medulla (Fig. 5) of densely interwoven and irregularly disposed hyphae; apothecia on narrow, extended lobes, often erect, orbicular, usually revolute, 2 to 7 mm. in diameter, the disk dark brown; hypothecium (Fig. 7) pale brown; hymenium (Fig. 6) pale below and brown above; asci long-clavate; spores acicular, straight or sometimes curved, 4- to 8-celled, 30 to 65 mic. long and 3 to 5 mic. wide (Fig. 8, d).

Examined from Butler, Franklin, Ashtabula, Green, Seneca, Summit, Lorain, Preble, Brown, and Adams counties. On soil or mosses in woods. Generally distributed and frequent in Ohio.

5. Peltigera rufescens (Neck.) Hoffm. Deutsch. Fl. 2: 107. 1795.

Lichen rufescens Neck. Meth. Musc. 79. 1771.

Thallus closely adnate at the center with ascending lobes, 5 to 15 cm. in diameter, the upper surface smooth and devoid of trichomatic hyphae for the most part, but the margins sometimes sparingly covered with them, green-gray to brown, the lobes crowded, rather small with crenate, much crisped, elevated margins, the lower surface usually becoming dark brown except at the margins, and thickly reticulated with brown veins, from these numerous rhizoids of similar color extending; medulla of densely interwoven variously disposed hyphae; apothecia numerous on narrow, extending lobes, the disk brown to black-brown, revolute, 4 to 7 mm. in diameter; hypothecium pale brown; hymenium hyaline to pale brown below and dark brown above; asci long-clavate; spores acicular, straight or curved, 4- to 8-celled, 45 to 68 mic. long and 3.5 to 5 mic. wide.[Pg 358]

Examined from Butler, Preble, Clark, Adams, and Summit counties. Also reported from Champaign County. On earth and mosses, commonly about trees. Widely distributed in Ohio, but infrequent.

6. Peltigera polydactyla (Neck.) Hoffm. Deutsch. Fl. 2: 106. 1795.

Lichen polydactylon Neck. Musc. 85. 1771.

Thallus adnate at the center with ascendant margins of the lobes, 6 to 11 cm. in diameter, the upper surface smooth and shining, devoid of trichomatic hyphae, the lobes broad with crisped, crenate margins, except those bearing the apothecia, these much narrower and more elongated and usually digitately clustered, brown in color for the most part, the lower surface showing through a reticulation of dark veins as small light-colored spots, numerous dark rhizoids extending downward from the veins; medulla of densely interwoven and irregularly disposed hyphae; apothecia orbicular, and usually revolute, the disk dark brown, 3 to 10 mm. in diameter; hypothecium pale brown; hymenium pale below and dark brown above; asci clavate to cylindrico-clavate; spores acicular, straight or slightly curved, 4- to 6-celled, 42 to 70 mic. long and 3 to 4 mic. wide.

Examined from Clark, Fairfield, and Morgan counties. On earth. Rare in Ohio.

7. Peltigera horizontalis (L.) Hoffm. Deutsch. Fl. 2: 107. 1795.

Lichen horizontalis L. Mant. Pl. 2: 132. 1771.

Thallus mostly adnate, the margins scarcely ascending, 6 to 20 cm. in diameter, the upper surface smooth and shining, devoid of trichomatic hyphae, green-gray to brown, the lobes broad and rounded with entire or crenate margins, the lower surface covered with numerous veins, these giving a dark coloration toward the center and becoming light colored toward the margins, numerous dark rhizoids extending down from the veins; medulla of thick-walled, densely and irregularly disposed hyphae; apothecia on somewhat narrowed lobes, transversely oblong or infrequently orbicular, the disk red-brown, concave, 2 to 4 mm. in diameter; hypothecium light brown; hymenium pale below and dark brown toward the upper surface; asci cylindrico-clavate; spores fusiform to long-ellipsoid, straight to curved, 4-celled, 26 to 40 mic. long and 5 to 6.5 mic. wide. (Fig. 8 a).

Examined from Lake and Fairfield counties. On earth and mossy rocks. Rare in Ohio.

Nephroma Ach. Lich. Univ. 101. 521. pl. 11. f. 1. 1810.

Thallus foliose, but smaller and thinner than that of Peltigera, and devoid of trichomatic hyphae, more or less closely attached to the substratum by rhizoids; cortex well developed on both upper and lower sides; medulla well developed (Fig. 2); apothecia confined to the lower side of the thallus, marginal on narrow, slightly elongated lobes, thalloid margin persistent and crenate; hypothecium usually some shade of brown; hymenium[Pg 359] usually pale below and brown above; paraphyses simple or branched; spores brown, 4-celled, 8 in each ascus.

The algal-host cells occur as in Peltigera.

1. Nephroma helvetica Ach. Lich. Univ. 523. 1810.

Thallus adnate, rather closely attached to the substratum by numerous short, hyaline, thick-walled rhizoids, irregular or sometimes orbicular in form, 6 to 10 cm. in diameter, green-gray to brown above, smooth or bearing tooth-like branchlets, narrowly and laciniately lobed, the margins of the lobes serrate or crenate, slightly ascending, beneath finally tomentose, and brown or black-brown; plectenchymatous cortices well developed above and below; medulla of narrow, thin-walled, densely, variously disposed hyphae; apothecia numerous, the disk red-brown to almost black, 1.3 to 3 mm. in diameter; hypothecium of interwoven hyphae, pale brown; hymenium pale brown below and darker above; asci clavate; paraphyses simple or branched, slightly swollen and brown at the apex; spores brown, ellipsoid, 4-celled, 15 to 21 mic. long and 5.5 to 8 mic. wide.

Examined from Butler and Champaign Counties. On trunks and mossy rocks. Rare and usually sterile in Ohio.

[Pg 360]

EXPLANATION OF PLATE XIV

Fig. 1. A section through the thallus of Peltigera canina, showing the cortex above and the medulla below, the medullary hyphae of the lower portion running in a somewhat horizontal direction. The algal cells shaded. X 380.

Fig. 2. A section through the thallus of Nephroma helvetica, showing the cortices, upper and lower, and the mycelial medulla within. The algal cell shaded. X 760.

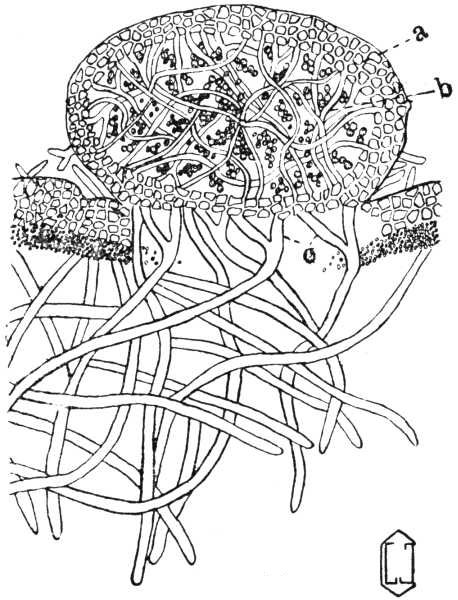

Fig. 3. A section through a cephalodium of Peltigera aphthosa; a, the surrounding cortex; b, the internal hyphae and the cells of the algal host; c, the supporting hyphae from the thallus below. Partly diagramatic. X 48.

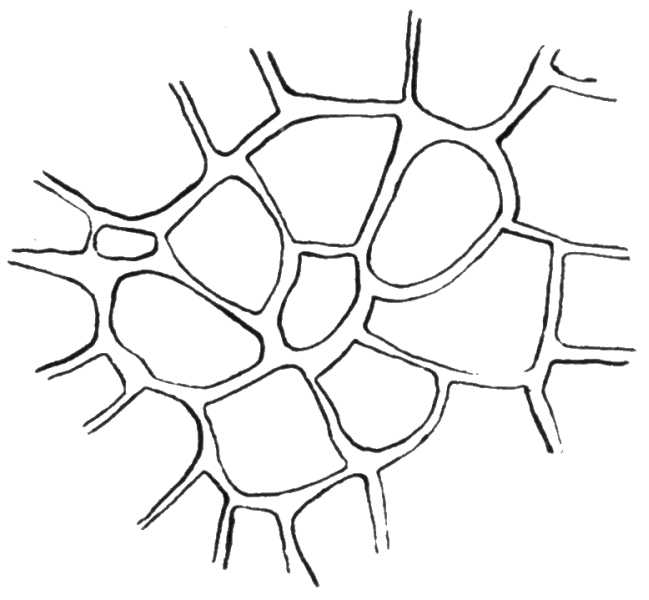

Fig. 4. A small portion of a section through the exciple of Peltigera canina, showing the plectenchymatous structure. X 380.

[Pg 361]

PLATE XIV.

Fig 1.

Fig 2.

Fig 3.

Fig 4.

[Pg 362]

EXPLANATION OF PLATE XV

Fig. 5. A section through the cortex of Peltigera canina, showing its relation to the medullary hyphae. X 760.

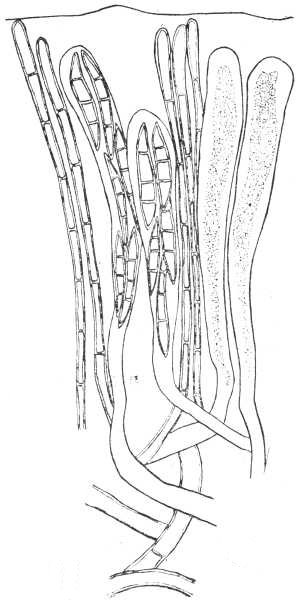

Fig. 6. A portion of a section of the hymenium of Peltigera canina, showing two asci containing spores, two asci with protoplasmic contents, and five paraphyses. X 760.

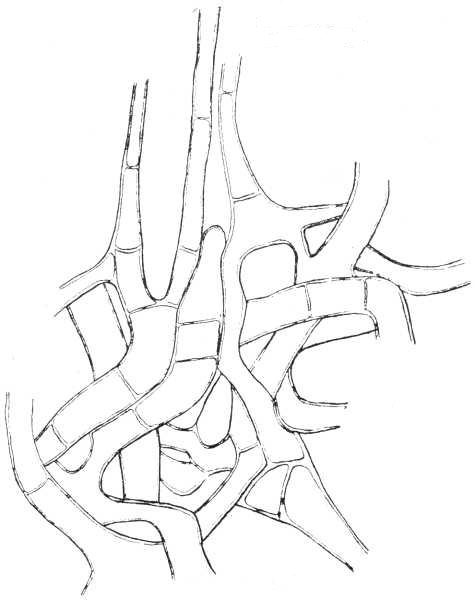

Fig. 7. A portion of a section through an apothecium of Peltigera canina, showing part of the hymenium of interwoven hyphae below and the bases of three paraphyses above. X 760.

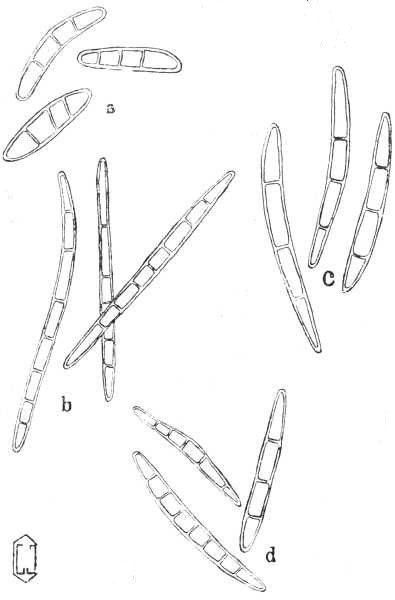

Fig. 8. Types of spores found in the Peltigeraceae: a, 4-celled spores of Peltigera horizontalis; b, 6- to 8-celled spores of Peltigera sorediata; c, 4-celled spores of Peltigera aphthosa; d, 4- to 8-celled spores of Peltigera canina. X 380.

[Pg 363]

PLATE XV.

Fig 5.

Fig 6.

Fig 7.

Fig 8.

[Pg 364]

INDEX

• Bacidia, 345
• Bacidia egenuloidea, 346
• Bacidia fuscorubella, 346
• Bacidia incompta, 347
• Bacidia inundata, 347
• Bacidia rubella, 346
• Bacidia schweinitzii, 347
• Bacidia umbrina, 348
• Biatorella, 336
• Biatorella pruinosa, 337
• Biatorella simplex, 336
• Biatorina, 341
• Biatorina chalybeia, 341
• Biatorina heerii, 343
• Biatorina lentibularis, 342
• Biatorina prasina, 342
• Bilimbia, 343
• Bilimbia hypnophila, 344
• Bilimbia melaena, 344
• Bilimbia microcarpa, 345
• Bilimbia naegelii, 344
• Bilimbia sphaeroides, 343
• Bilimbia trachona, 345
• Buellia, 348
• Buellia myriocarpa, 348
• Buellia parasema, 349
• Buellia turgescentoides, 349

• Lecideaceae, 336
• Lecidea, 337
• Lecidea albocaerulescens, 341
• Lecidea coarctata, 338
• Lecidea enteroleuca, 340
• Lecidea flexuosa, 340
• Lecidea humicola, 339
• Lecidea intropallida, 338
• Lecidea platycarpa, 341
• Lecidea rupestris, 338
• Lecidea sylvicola, 340
• Lecidea uliginosa, 339
• Lecidea varians, 338
• Lecidea viridescens, 339

• Nephroma, 358
• Nephroma helvetica, 359

• Peltigeraceae, 354
• Peltigera aphthosa, 356
• Peltigera canina, 357
• Peltigera horizontalis, 358
• Peltigera polydactyla, 358
• Peltigera praetextata, 356
• Peltigera rufescens, 357
• Peltigera sorediata, 356

• Rhizocarpon, 349
• Rhizocarpon alboatrum, 350
• Rhizocarpon petraeum, 350
• Rhizocarpon vernicomoideum, 350

Bulletins Ohio Biological Survey

End of the Project Gutenberg EBook of Ohio Biological Survey, Bull. 10, Vol.
11, No. 6, by Bruce Fink and Leafy J. Corrington

*** END OF THIS PROJECT GUTENBERG EBOOK OHIO BIOLOGICAL SURVEY ***

***** This file should be named 18754-h.htm or 18754-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/1/8/7/5/18754/

Produced by Charlene Taylor, La Monte H.P. Yarroll, Taavi
Kalju and the Online Distributed Proofreading Team at
http://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
http://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, is critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at http://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
http://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at http://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit http://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including checks, online payments and credit card donations.
To donate, please visit: http://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart is the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     http://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
