Transcriber's Note: Text in bold italics is in blackletter typeface in the original book.

Contents

Ely: Hills & Son
Tho^s. Kell Sculp^t. London

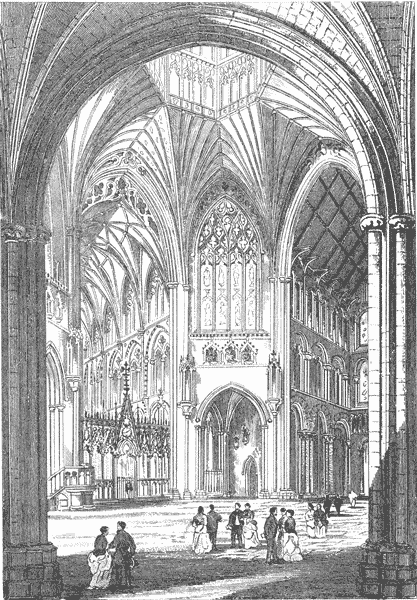

ELY CATHEDRAL—THE OCTAGON.

Ely Cathedral

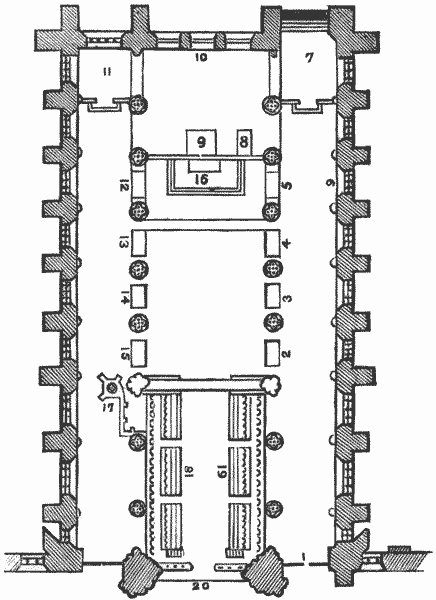

GROUND PLAN OF THE CHOIR.

Ground Plan of the Choir of Ely Cathedral.

The first three bays are in the Decorated style, about the same date as the Octagon (1337-1361). The Norman bays which they replaced were injured by the fall of the central Tower in 1322. The six eastern bays (the Presbytery) are in the Early English Style, and were built by Bishop Northwold (1235-1252).

Having entered the South aisle of the Choir by the iron gate marked 1 on the plan, and passed, on the right, the monuments of Bishop Allen, and the Stewards, we come to 2. Bishop de Luda's monument (1298) restored on the north side by Dean Peacock. 3. Bishop Barnet's tomb (1373). 4. Tomb of John Tiptoft, Earl of Worcester, and his two wives (1470). 5. Tomb of Bishop Hotham (1337) who left money for the rebuilding of the three Decorated bays of the Choir. 6. On the south side of the aisle is the monument erected in 1879 to Canon Selwyn. 7. Bishop West's Chapel, built about 1534, containing the graves of Bishops West, Keene, and Sparke, and on the south side the remains of seven benefactors of the monastery removed from the Conventual Church in 1154; and built in the north wall is the tomb of Cardinal de Luxemburg, Bishop of Ely, who died 1443. 8. In the Retro-Choir is the tomb of Dr. Mill, Canon of Ely, and Regius Professor of Hebrew at Cambridge, who died in 1853. 9. Grave of Bishop and Mrs. Allen (1845). 10. The east wall on which are traces of painting of which no account can be given. 11. Bishop Alcock's Chapel, containing his grave; he died in 1500; he was founder of Jesus College, Cambridge. 12. Tomb of Bishop Northwold, founder of the Presbytery, who was Abbot of Bury before he became Bishop of Ely; died in 1254. 13. The monument formerly placed over Bishop Hotham's tomb, but supposed to be part of the shrine of St. Etheldreda as adapted by Alan de Walsingham. 14. Tomb of Bishop Kilkenny (1250). 15. Tomb of Bishop Redman (1505). 16. The Reredos, designed by Sir G.G. Scott, presented by John Dunn Gardner, Esq., in memory of his wife (1851). 17. The spiral Staircase leading to the organ loft: the organ was built by Hill and Son, of London. 18 and 19. The Stalls—very ancient, though the carved panels above them are modern; the north side represents a series of pictures from the New Testament; on the south side are illustrations of the Old Testament; they were carved by Abeloos of Louvain. The sub-stalls are new. 20. The oaken Screen designed by Sir G.G. Scott.

For further particulars see "Hand-Book to the Cathedral," published by Messrs. Hills and Son, Minster Place, near the western entrance to the Cathedral.

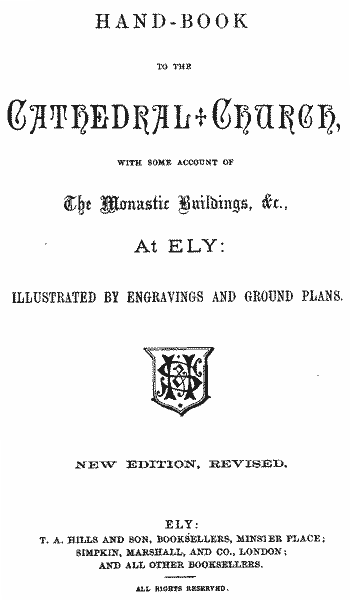

HAND-BOOK

TO THE

CATHEDRAL CHURCH,

WITH SOME ACCOUNT OF

The Monastic Buildings, &c.,

At ELY:

ILLUSTRATED BY ENGRAVINGS AND GROUND PLANS.

NEW EDITION, REVISED.

ELY:
T.A. HILLS AND SON, BOOKSELLERS, MINSTER PLACE;
SIMPKIN, MARSHALL, AND CO., LONDON;
AND ALL OTHER BOOKSELLERS.

ALL RIGHTS RESERVED.

TO

The Rev. the Dean and Chapter of Ely,

WHOSE UNREMITTING EXERTIONS

TO PROMOTE THE RESTORATIONS AND IMPROVEMENTS

OF THEIR CATHEDRAL CHURCH

MERIT THE GRATITUDE OF EVERY LOVER OF ART,

AND THE

SUPPORT OF THE COUNTRY AT LARGE:

THIS ELEVENTH EDITION OF

“A HAND-BOOK TO THE CATHEDRAL CHURCH,”

IS

MOST RESPECTFULLY DEDICATED,

BY THEIR OBLIGED SERVANT,

THE COMPILER.

St. ETHELDREDA.

Advertisement

TO THE ELEVENTH EDITION.

HEN this Work first appeared as a candidate for public favour in 1852, the Compiler had but faint hopes of its ever attaining a position of usefulness which the sale of the several editions has proved it to have done. His constant aim has been to render it a faithful as well as a convenient and useful companion to strangers and others when examining this interesting Cathedral; and, in order to render each succeeding edition more complete, his study has been to give from time to time the best information in his power upon the improvements which have for many years been in progress. He tenders his best thanks for the kindness of many friends who have afforded him information, and has availed himself of the important remarks of the late Sir G.G. Scott at the Etheldreda Festival in 1873, and of the valuable work of Mr. Stewart to correct as well as to verify and support his own statements, for which his grateful acknowledgments are due. The whole has been revised, and some additions have been made, which he is induced to hope will enhance its value, and render it more worthy of public favor.

April, 1880.

Advertisement

TO THE FIRST EDITION.

HIS Hand-book is intended simply as a "guide" for those who visit Ely for the purpose of seeing the Cathedral, the remains of the ancient Monastery, and other objects of similar interest.

The Compiler acknowledges himself greatly indebted for much valuable information to the elaborate works of Mr. Bentham and Mr. Millers; and, although he is conscious that his task has been performed but imperfectly, he still ventures to hope that, in the absence of the larger works above referred to, his little compilation will prove both interesting and useful.

May, 1852.

THE MINSTER.

Copied, by permission, from "Good Words."

[Pg 1]

HE introductory chapter of a book is often passed over without the careful perusal it very frequently deserves, when, perhaps, its purpose is to promote a better understanding of the subject contained in the main portion of the work. In the present instance our object is to give our readers an outline—a very brief one it is true—of the history and foundation of the monastery at Ely twelve centuries ago, which led to the subsequent erection of one of the noblest Cathedrals in the kingdom, in order to enable them to understand more fully some of the remarks in our description of this grand edifice as we now see it. To those who desire a more elaborate detail or fuller description than we can offer in our limited space, we would recommend a reference to The History and Antiquities of Ely Cathedral, by the Rev. James Bentham; or a more recent work, The Architectural History of Ely Cathedral, by the Rev. D.J. Stewart, M.A., formerly Minor Canon of Ely.

Christianity was first introduced into East Anglia about the end of the sixth century, by Redwald, the grandson of Uffa, founder of that kingdom; but it appears that little progress was made in his time, although Ethelbert, king of Kent, is said to[Pg 2] have founded a monastery at Ely about a.d. 604. Eorpwald, and after him, Sigebert, sons of Redwald, greatly promoted the cause of Christianity, and it was during the reign of Sigebert that the truths of the Gospel spread over the kingdom; three monasteries were founded, one at Bury St. Edmunds, another at Burgh Castle, near Yarmouth, and a third at Soham; and the first Bishop of East Anglia was consecrated. The pagan king of Mercia frequently disturbed the tranquility of the kingdom, and Sigebert and his cousin Egric (to whom Sigebert had resigned his kingdom) were both slain in repelling an invasion. Anna met with the same fate; he was a prince greatly esteemed for his good qualities; he married Heriswitha, sister of St. Hilda, the foundress of Whitby Abbey, and had a numerous family, among whom may be named Sexburga, who was married to Ercombert, king of Kent; Withburga, who founded a nunnery at Dereham; and Æthelryth, or, as she is more commonly called, Etheldreda, the renowned foundress of the monastery at Ely, who was born about the year 630, at Exning, in Suffolk, a short distance from Newmarket.

Before commencing our sketch of the life of Etheldreda, we may by way of explanation say that what is now the Isle of Ely, was "anciently called Suth Girwa,"[1] and is a large tract of high ground en-compassed with fens that were formerly overflowed with water, of which Ely is the principal place, and gives name to the whole. The boundaries as now recognised are Lincolnshire on the north, Norfolk on the east, Huntingdonshire and Northamptonshire on the west, and Cambridgeshire on the south, of which county it forms the northern portion, with a jurisdiction partially separate; within its bounds there are, besides the city of Ely, several towns and villages, as Wisbech, March, Chatteris,[Pg 3] &c. and the former great waste of marsh and fen has become, by means of drainage, a fertile corn-growing district of great importance. Ely is believed to have taken its name from Elig in the Saxon tongue, signifying a willow; or from Elge in the Latin of Bede the historian, from the abundance of eels produced in the surrounding waters. We now continue our sketch.

Etheldreda, or Audrey, a princess of distinguished piety, devoted herself to the service of God in early life, but urged by her parents, was married to Tonbert, or Tonberet, Earldorman, or Prince of the South Gyrvii, or Fenmen, a.d. 652, who settled upon her the whole Isle of Ely as a dower. Three years after her marriage Tonbert died, and left Etheldreda in sole possession, who, after a short time, committed the care of her property to Ovin, her steward, and retired to Ely for the purpose of religious meditation, for which it was well adapted, as being surrounded by fens and waters it was difficult of access. She was again solicited to enter the marriage state, and, although for some time reluctant, she was induced by her uncle Ethelwold, then king of East Anglia, to give her hand to Egfrid, son of Oswy, king of Northumberland, and she afterwards became queen by the accession of her husband to his father's kingdom. After the lapse of twelve years she gained the permission of her husband to withdraw from his court, and retired to the Abbey of Coldingham, where she took the veil; thence withdrew to Ely, and repaired the old church founded by Ethelbert, at a place called Cratendune, about a mile from the present city, (of which place however nothing is now known); but, shortly after, a more commodious site was chosen nearer the river, where the foundations of her church were laid, and the monastery was commenced.

The history of this distinguished princess as related by various[Pg 4] writers, would be interesting and amusing, if space allowed; it is to be found in Bede's Ecclesiastical History, in the Liber Eliensis, a very valuable manuscript written or compiled by Thomas, a monk of Ely, who lived in the twelfth century; and Mr. Bentham also relates it at some length in his work;[2] but it would extend far beyond the limits allowed in this sketch; we have, however, we hope given sufficient to throw some light upon remarks we may make in subsequent pages. She governed her house in such a manner as to gain the esteem both of its members and the inhabitants of the surrounding country; living and dying an example of piety and holiness, for we read that "in her last sickness, when sensible of her approaching end, she was calm and composed, and retained her memory and understanding to the last, and expired in the very act of her calling, in the presence of her flock; and whilst she was instructing them how to live, by her example also taught them how to die."[3] She was interred, in accordance with her own wish, in the grave-yard of the monastery, but after a period of sixteen years her remains were translated, with much reverence and ceremony, to the church she had founded. The account of this translation might interest some of our readers, but is too long for insertion here.

The following lines, written at an early date, picture the fen country as a series of lakes and water-courses, (as it was until drained six centuries after,) studded with islands, on one of which the monastery of Ely stood, and the music of its 'nones' or 'vespers' sounding soft and sweet over the solitude.

We will now continue our narrative, briefly taking in review the history of the monastery as it is handed down to us. About a.d. 673 Etheldreda commenced the foundation of a monastery for both sexes, and was installed the first abbess; she gave the whole Isle of Ely to the monastery as an endowment, and died a.d. 679. She was succeeded by her elder sister Sexburga, then a widow, who died a.d. 699, and was buried beside her sister in the church of the monastery. Erminilda, daughter of Sexburga, and widow of Wulfure, king of Mercia, next succeeded; and the fourth abbess was Werburga, daughter of Erminilda, the time of whose death is not known. Although St. Etheldreda's monastery continued to enjoy a regular succession of abbesses for nearly two centuries, not a single name of its superiors is preserved; protected by its situation in the midst of waters, it was little molested by external troubles until a.d. 870, when it was destroyed—like that of Peterborough—by the Danes, the monastery burnt, and the inhabitants put to the sword.

After the destruction of the monastery a century elapsed be[Pg 6]fore steps were taken for its restoration. At length Ethelwold, then Bishop of Winchester, who is spoken of as "a great builder of churches and of various other works," re-founded the monastery in the year 970, by the direction of Edgar "the peaceful," who then sat on the throne of England. After some time Ethelwold arranged with the king for the surrender of the whole district of the Isle of Ely, by way of purchase and exchange, for the use of the monastery. The king, for certain considerations, gave his royal charter[4] restoring the revenues, rights, and privileges to the monastery for ever. This charter (which was afterwards confirmed by king Edward the Confessor,) formed the base of that temporal power given to the church and monastery of Ely by St. Etheldreda, and exercised (with some interruption) by the abbots and bishops down to the year 1836, when it was discontinued by an Act of Parliament.

On the re-foundation of the monastery it was placed under the Benedictine rule, which required the separation of the sexes, whereas under the previous order both men and women had resided in the same establishment. Brithnoth, prior of Winchester, was instituted as the first abbot of the restored monastery, by Ethelwold, and appears to have been zealous in his duty; he governed the house eleven years, but in the year 981 he met an untimely death at the instigation of Elfrida, queen dowager of king Edgar. He was succeeded by Elsin, Leofric, Leofsin, Wilfric, Thurstan, (the last Saxon abbot, who surrendered the monastery to the Conqueror in 1071,) Theodwin, Godfrey, (a monk, as Administrator ad interim,) and Simeon, the ninth abbot, who was a relative of king William, and prior of Winchester; he recovered for his monastery some of the lands which had been given to the Normans during the siege of the fen[Pg 7] district. This was the "Camp of Refuge" for all the English who refused submission to the arbitrary rule of the foreigners, and thus it was the last strong hold of the Saxons, and cost the Norman king much loss of time, blood, and treasure, before he obtained possession, which was, however, at last effected by the treachery of the abbot Thurstan. Simeon, though a very old man when he was appointed abbot, laid the foundation of a new church (the present Cathedral) a.d. 1083, as his brother Walkelin, bishop of Winchester, had done there about four years before; he lived to the age of one hundred years, and died in 1093; after this a vacancy of seven years occurred, during which the revenues were claimed for the use of the king (William II.) after whose death the work was continued by Richard, the tenth and last abbot, who was appointed on the accession of Henry I. a.d. 1100, and governed the monastery seven years, and his church is said by Thomas of Ely[5] to have been one of the noblest in the kingdom, and a marvel of architectural skill; and was sufficiently far advanced to allow him to translate into it on the 17th of October, 1106, the remains of Etheldreda and her companions and canonized successors, placing them behind the high altar in the new presbytery, with great pomp and ceremony. Further progress was made under Hervè le Breton, formerly Bishop of Bangor, who was appointed administrator to the monastery after the death of Richard.

Hitherto, spiritual jurisdiction over the Isle of Ely had been claimed by the Bishop of Lincoln, but Abbot Richard obtained the consent of the king (Henry I.) to a scheme for converting the abbacy into a bishopric; and after much negociation, the change was effected in 1109, by the appointment of Hervè (then administrator) as the first Bishop of Ely. He set himself ener[Pg 8]getically to the task of settling the government of his See, and of apportioning the lands and revenues of the monastery between the monks and himself, with a keen eye to his own interests and those of his successors.

At the time of the conversion of the abbacy into a bishopric, when the Conventual Church became a Cathedral, the number of monks was about fifty, though the usual number was seventy; of these the chief in subordination to the Bishop, was the Prior, (sometimes styled the Lord Prior) who had the superintendence over all the inferior members; and next, the Sub-Prior, or Prior's deputy, to assist him when present and act for him in his absence. The other officers were, the Sacrist, who had the care of the books, vestments, plate, and ornaments belonging to the church, as well as the superintendence of the buildings; the Cellarer, who procured all the necessaries for the living of the community; the Chamberlain, who provided their clothes, beds, and bedding; the Almoner, who distributed the charities of the monastery; the Precentor, who regulated the singing and the choristers; the Hosteller, who entertained strangers; the Infirmarer, who had the charge of the sick; and the Treasurer, who received the rents and other means of revenue, and made the disbursements.

We have endeavoured briefly to bring down our history from the period of the introduction of Christianity into East Anglia, and the foundation of the monastery, to the time when the present Cathedral was commenced and some way advanced; we will follow it up with a brief account of the periods of erection of this noble edifice, reserving the more particular description of the several parts for our survey of the building.

There is no Cathedral in England which possesses finer examples of the various successive styles of ecclesiastical architecture[Pg 9] than that of Ely; affording excellent opportunities of judging of the comparative merits of each. The Norman portion of the building—the Nave and Transept—is lighter in character than earlier examples of the same style; indeed, in many places it bears marks of transition from the round to the pointed style. Of each of the several periods of what is usually termed Pointed, or Gothic, Ely Cathedral possesses pure and perfect specimens: the Galilee, or western porch, and the Presbytery were built when the Early English style was perfected: the Octagon, the three bays of the stalled Choir, and the Lady Chapel, when the Decorated English prevailed: and the chapels of bishops Alcock and West when the Perpendicular style was adopted. "It will be thus seen that this remarkable structure completely illustrates the history of church architecture in England from the Conquest to the Reformation," viz., Norman, a.d. 1066-1150; Transitional, 1150-1200; Early English, 1200-1300; Decorated, 1300-1460; Florid, or Perpendicular, 1460-1550.[6]

The Cathedral was commenced, as before stated, in a.d. 1083, by Simeon, in the Norman style; the Choir, with its apse or semicircular end—altered however to a square end before it had proceeded far—the central Tower, the great Transept, and part of the Nave were begun by him, but were not finished at his death in 1093; of this work, only the ground-story of the great Transept now remains; the original plan, as was usual in Norman churches, comprehended an eastern arm of moderate length, a Transept, with a central Tower at the crossing, and a Nave; the Choir usually occupying the crossing and one or more bays of the Nave, the eastern arm being used as a presbytery or sanctuary.[Pg 10]

After a delay of seven years, the work was carried on by Abbot Richard (1100-1107), who probably completed them, with the exception of the Nave, which was finished about 1174, affording a fine specimen of later Norman, and by its extension westward gave the church the form of a Latin cross, then much used. It is not improbable that the Conventual Church, which the new building was intended to supersede, stood on the site of the present Nave, and was removed from time to time to make room for the new and enlarged building then in progress.

A few years later the great western Tower with the wings, forming a second Transept, were begun, but whether by Bishop Harvey or by the monks themselves during the episcopate of Bishop Nigel (1133-1169), we cannot say; they were carried on during the episcopate of Bishop Ridel (1174-1189), and completed as high as the first battlements during that of his successor, Longchamp (1189-1197), producing a fine example of what is called the Transitional style. During this latter period the Romanesque had been rapidly giving way to the Pointed style, and thus as the building progressed one style merged into the other.

After some years further progress was made towards the west, as the Galilee, or western porch, is stated to have been erected by Bishop Eustace (1198-1215), of whom it is recorded that "he built from the foundation the new Galilee of the Church at Ely, towards the west, at his own cost." "This has given rise to much difference of opinion. Some persons think that by the 'Galilee towards the west,' is meant the western porch, while others holding that so fine a work is inconsistent with so early a date, suppose the Galilee to have been the northern half (now lost) of the western Transept.... My own impression has always been that it was the west porch which still[Pg 11] exists."[7] Be this as it may, it is a beautiful specimen of the Early English style; and Bishop Northwold (1229-1254) took down the east end of the church and lengthened it by the six eastern arches, usually called the Presbytery, with its magnificent eastern façade, in the same style; they were begun a.d. 1234, and finished and dedicated in 1252, being "one of the noblest pieces of architecture of that glorious architectural period." About the same time a spire of timber covered with lead was erected on the Tower.

We now come to the period in which the "two great and famous productions of the fourteenth century—the two special objects of pride which our Cathedral boasts—the Lady Chapel and the central Octagon, with the three adjoining bays eastward,"[8] were erected; "each work is of the highest and of undisputed merit, and forms a most marked feature in the building;"[9] affording most admirable specimens of the Decorated English style. In 1321 the foundation stone of the vast and magnificent Lady Chapel was laid by Alan de Walsingham, then sub-prior, in the time of Bishop Hotham (1316-1337), the work was continued under Bishop Montacute (1337-1345), and finished in 1349, under Bishop L'Isle (1345-1362). In the year following the commencement of this work the fall of the great central Tower took place, ruining the adjoining bays all round, and especially those of the Norman Presbytery. This catastrophe was not altogether unexpected, for the monks had discontinued the use of the Choir and held their services in St. Catherine's Chapel, in the western part of the Cathedral. The Tower fell with such noise and violence as "to make the whole city to tremble, and to cause men to think that an earthquake[Pg 12] had taken place." The work of rebuilding was soon undertaken, and under the skilful directions of the same Alan de Walsingham (who was doubtless the architect of both these erections,) the grand work was accomplished; the stone-work of the Octagon was finished (if indeed it ever was quite finished) in 1328, and the woodwork and roof about 1342. The plan of the Octagon included in its area one bay on each of its four sides. The expense of rebuilding the three bays on the eastern side was defrayed by a sum of money left by Bishop Hotham.

The spire erected on the western Tower by Bishop Northwold was taken down in the latter part of the fourteenth century, and was replaced by an octagonal story, flanked with turrets, in the Decorated style, above which a spire was again placed. This was an injudicious step, and has been thought to have been the primary cause of the ruin of the north-western Transept, the great additional weight being more than the four supporting arches (which were lofty) were intended to bear. Of the period when the Transept fell, or was taken down, we have no record; but the character of the buttress on the site of the western wall shows that it must have been at an early period, probably about a.d. 1400, as the strengthening arches placed within the original ones appear to have been erected a few years after.

We have no further additions to the fabric to particularise in this sketch, with the exception of the chapel of Bishop Alcock, (1486-1500), in the Perpendicular style; and that of Bishop West (1515-1533), in the same style, but when it was approaching to Renaissance; but the alterations of windows and other parts, together with necessary repairs, have been numerous and various at different periods.

The Choir was under the Octagon until 1770, when it was removed to the east end of the church; it was again altered in[Pg 13] 1852 to its present position. Many costly and extensive restorations[10] and alterations have been made within the last thirty-five years, and others are still in progress. The Galilee, or western porch, has been cleansed and floored, and the arch of communication with the Tower beautifully restored; the western Tower has been strengthened, the interior thrown more open, a painted ceiling put up, and a new floor laid; the south-west Transept has been opened, repaired, ceiled, paved and cleansed; the apsidal Chapel of St. Catherine has been rebuilt and paved; the roof of the Nave has been re-covered with lead, the interior walls have been cleansed, a new and beautiful painted ceiling completed, and a new floor laid in the Nave and aisles; the Octagon and Lantern have undergone a thorough repair, and the decoration of the dome and lantern has been effected; the great Transept has been repaired, the polychrome roof re-painted, and a new floor laid in the northern portion. The whole of the eastern portion of the church has been cleansed and restored; the beautiful Purbeck marble pillars have been re-polished; the floor of the Choir has been re-laid with veined and black marble combined with encaustic tiles; an enriched oaken screen has been erected at the entrance of the Choir, near which a new and elegant stone pulpit has been placed; the original stalls have been repaired, and improved by the introduction of a series of[Pg 14] carved panels, and new sub-stalls erected; and a new and elaborate reredos or altar screen has been placed in the Choir. More than eighty windows, exclusive of the eight lights at the east end of the church, have been filled with stained glass by various artists, and several others, which had for many years been stopped up, have been re-opened; the organ has been very considerably enlarged and improved, put into a new and elegant case, and placed in another position; and several stoves have been introduced for warming the Cathedral when necessary. The whole has been done at considerable expense, to meet which the funds have been raised by subscriptions, towards which the late Bishops Sparke, Allen, Turton, and Browne, the late Deans Peacock and Goodwin, the Canons and their families and connections, with many noblemen, gentlemen, and others, have been contributors: the capitular body have done much towards the work in general, but particularly towards the repairs of the fabric, the enlargement of the organ, and the warming of the Cathedral. For a more detailed account of works and expenses we refer our readers to Appendix II. at the end of the work.

St. Etheldreda's church was dedicated to the Blessed Virgin; the church erected by Ethelwold to St. Peter and St. Etheldreda; but since the Reformation the dedication of the Cathedral has been to "The Holy and Undivided Trinity."

HISTORICAL SUMMARY.

[Pg 17]

DGAR "the peaceful," by his charter, as mentioned in the Introduction, restored the powers and privileges enjoyed by the Superiors of the monastery previous to its destruction by the Danes, to the newly-appointed Abbot on its re-foundation by Bishop Ethelwold, a.d. 970, and the Abbots of Ely successively exercised powers nearly similar to a County Palatine, and after the change from an abbacy to a bishopric, the bishops continued to exercise similar authority until the reign of Henry VIII., when they were greatly abridged by an Act of Parliament. The successive Bishops of Ely, however, until the year 1836, possessed a jurisdiction of considerable importance, and had almost sovereign authority within the district known as the Isle of Ely, which was styled "The Royal Franchise or Liberty of the Bishops of Ely."

On the conversion of the abbacy into a bishopric a.d. 1109, a division of the property and revenues took place, and the bishop took care to protect his own interests and those of his successors, but the charge and repairs of the church and monastery fell to the share of the prior and monks, the bishop retaining a certain jurisdiction over them. The County of Cambridge, with the exception of a few parishes, was transferred from the See of Lin[Pg 18]coln to the new See of Ely, and the Manor of Spaldwick, in the County of Huntingdon, was given to the Bishop of Lincoln in compensation. The See now comprises the Counties of Cambridge, Huntingdon, and Bedford, and the western division of the County of Suffolk, comprised in the Archdeaconry of Sudbury. It is divided into four Archdeaconries, which are subdivided into thirty-three Rural Deaneries, except the Isle of Ely, which is under the peculiar Archidiaconal jurisdiction of the Bishop, and is divided into two Rural Deaneries. There are five hundred and fifty-four benefices in the diocese. The population of the whole is about 500,000; and the area in acres is 1,357,756.

The Bishop has patronage to a considerable extent; he appoints to the Chancellorship, to the Registrarship, to the four Archdeaconries, the Rural Deaneries, to four Canonries in the Cathedral, and several Honorary Canonries; to the Mastership and one Fellowship of Jesus College, to one Fellowship at St. John's College, to the Mastership of St. Peter's College, and is Visitor of four Colleges, in Cambridge, and of several schools; and has about fifty livings in his gift.

Arms of the See—Gu. three ducal coronets or. These are derived from the arms of the East Anglian kings.

The following list of the Bishops, to which is prefixed the succession of Abbesses and Abbots, is derived chiefly from Mr. Bentham's History and Antiquities of Ely Cathedral.

ABBESSES.

[Pg 19]

ABBOTS.

BISHOPS.

[Pg 22]

Diocese of Ely.

The Lord Bishop.

The Right Rev. James Russell Woodford, D.D., The Palace, Ely, and Ely House, Dover Street, London, W.

Chancellor of the Diocese.

Worshipful Isambard Brunel, Esq., D.C.L., 4, Stone Buildings, Lincoln's Inn, London, W.C.

Archdeacons.

Registrar.

William Johnson Evans, Esq., Ely.

Chaplains to the Bishop.

Rev. H.M. Luckock, D.D., Canon of the Cathedral.[11]
Rev. H.F. St. John, M.A., Trinity College, Cambridge, Dinmore House, Hereford.
Rev. A.R. Evans, M.A., Oriel College, Oxford.[12]
Rev. V.H. Stanton, M.A., Fellow of Trinity College, Cambridge.[13]
Rev. J. Watkins, M.A., St. John's College, Cambridge; Gamlingay Vicarage, Sandy.
Rev. Francis Paget, M.A., Senior Student and Tutor of Christ Church, Oxford.[14]

Proctors in Convocation.

Rev. Canon Hopkins.
Rev. Canon Birkett.

Secretaries.

J.B. & H.W. Lee, Esqs., 2, Broad Sanctuary, Westminster.
William Johnson Evans, Esq., Ely.

Diocesan Architect.

Arthur Blomfield, Esq.

[Pg 23]

HEN the abbacy was converted into a bishopric, a.d. 1109, the office of Abbot merged into that of bishop, and an officer called the Prior, or Lord Prior, became the head of the community; he presided in chapter, and governed generally the affairs of the monastery; and in the reigns of some of our kings he was summoned to sit in Parliament. The first Prior after this alteration was Vincent, and there followed in succession thirty-six others, the last of whom, Robert Wells otherwise Steward, surrendered the monastery, with its goods and possessions, into the hands of King Henry the Eighth, at the general dissolution in November, 1539. Agreeably to the powers vested in him by Parliament, the king, by letters patent dated September 10th, 1541, "did grant his royal charter for erecting the Cathedral Church of the late monastery of St. Peter and St. Etheldreda at Ely into a Cathedral Church, by the name and title of "The Cathedral Church of the Holy and Undivided Trinity of Ely" to consist of one Dean, a priest, and eight Prebendaries,[15] priests, with other ministers necessary for the celebrating Divine service therein." And "did ordain the said Cathedral Church to be the Episcopal See of the Bishop of Ely and his successors, with all[Pg 24] the honours and privileges of an Episcopal See and Cathedral Church. And that the said Dean and Prebendaries be one body corporate, have perpetual succession, one common seal, be the Chapter of the then Bishop of Ely, and his successors, and be called 'The Dean and Chapter of the Cathedral Church of the Holy and Undivided Trinity of Ely:' also did give and grant unto them the whole site of the late dissolved monastery, with all the ancient privileges, liberties, and free customs of the same, and nearly all the revenues thereof." Robert Steward, the late Prior, was made the first Dean, since whose time twenty-three others have held the office exclusive of the present Dean, who was appointed in December, 1869.

We append a list of the Priors and Deans of Ely.

PRIORS.

DEANS.

Arms of the Deanery—Gu. three keys or. These were the arms of Ethelwold, Bishop of Winchester, and from him assumed as the arms of the monastery.

The Dean and Chapter have the patronage of sixteen livings in this diocese, three in the diocese of Norwich, and one in the diocese of Rochester. They also appoint to the Minor Canonries and other offices connected with the Cathedral.

Service—On Sundays at 9 0, a.m., 11 0, a.m., and 4 0, p.m.

A Parochial Service at 6 30, p.m.

The Ordinary Daily Service at 10 0, a.m., and 4 0, p.m.[Pg 26]

List of Clergy and Officers.

Dean.

The Very Rev. Charles Merivale, D.D., D.C.L. 1869.

Canons.[16]

Honorary Canons.

Head Master of the Grammar School—Rev. R. Winkfield, M.A.

Second Master—Rev. C. Bokenham, M.A.

Precentor, Sacrist, and Prælector Theologicus.—W.E. Dickson, M.A., 1858.

Minor Canons.

Chaplains.

George Hall, M.A.
John Franey, M.A.
Richard Winkfield, M.A.
E.H. Lowe, M.A.

Librarian, George Simey, M.A., 1874.

Chapter Clerk and Registrar—W.J. Evans, Esq., Ely.

Master of the Choristers, and Organist—Edmund Thomas Chipp, Mus. Doc.

Eight Lay Clerks and Eight Choristers, and Twelve Supernumeraries.

The Choristers are educated in a School within the College, maintained
by the Dean and Chapter. Master—Henry Jackman, Battersea College.

King's Scholars—Twelve on the Foundation.

Sub-Sacrists and Vergers,—William Henry Southby; Henry Stone White.

Bedesmen—Six on the Foundation.

Clerk of the Works—Mr. R.R. Rowe.

[Pg 27]

The West Front.

N taking a survey of this noble edifice it is better to commence with the western front, which, as Mr. Millers observes, on account of its height and breadth, should be viewed from a competent distance; a good point of observation may be easily found on the Palace Green. Even in its present state it must be admired for its impressive though irregular grandeur, but when the north wing was standing, corresponding with the south, which remains comparatively perfect—before the erection of the octagonal story on the Tower, and the Galilee or portico, which, however beautiful in itself, has no proper connection with the rest—it must have presented a frontage exceedingly grand, and inferior to but few others in the kingdom. Such, we believe, was the original design, but succeeding bishops or rulers made such alterations and additions as their tastes dictated, and in the style then prevailing. This may in some measure account for the alterations of windows and other parts from their original designs, and the transitions from one style to another, producing examples partaking of two periods, but not perfect in either.[Pg 28]

The stone used in the erection of the Cathedral was brought from Barnack, near Stamford, and is of a much harder nature than what was commonly used; it gives proof of great soundness and durability in the excellent preservation of some of the mouldings. The soft white stone used for some of the interior decorations is called "clunch," and is found within a few miles of Ely; it is well adapted for the purposes to which it is applied, it is easily worked and capable of being highly finished, but will not bear exposure to the weather. Most of the pillars with their capitals and bases, as well as many of the mouldings and ornaments in the Early English portion of the church, are of Purbeck marble.

The lower portions both of the Tower and wings were built by Bishop Ridel (1174-1189), and completed as high as the first battlements, during the episcopate of his successor, Longchamp (1189-1197), who however, spent none of his money on the fabric; the lower part of this work is late Norman, but the upper portions show indications of transition towards the pointed style. The architecture of the Tower is worthy of attention, as it shews some beautiful specimens of arcading in bands between rows of windows, all enriched with mouldings of various kinds; the western face shows three rows of windows, the others but two, as the lower one would have been hidden by the roof of the nave and of the wing on each side, these last being originally of a higher pitch than the remaining one now is. The upper band consists of circular openings with quatrefoils in the centre, and above that is a corbel-table. A spire of timber covered with lead was erected on the Tower about the middle of the thirteenth century, but it was afterwards removed, and the upper portion of the Tower, in the Decorated style, was added, and it was again surmounted by a spire. These additions were found to be injurious, and it became necessary to strengthen the lower portions of the Tower to support it; nor is it improbable that the fall of the north-western Transept was in some degree owing to[Pg 29] the great additional weight, or that it was so far injured as to require removal. The spire was, we believe, finally removed about the end of the last century.

The octagonal story does not harmonize with the lower portion. There is a large window with transoms in each of the four principal sides, the upper portions only being glazed; it is flanked by octagonal turrets, which rise a little higher than the centre, they are faced with shallow arcading and connected with the centre portion by small flying buttresses; in each turret is a winding stair, but only that in the south-eastern turret is used. In the top of this turret is placed the clock bell.

The wings of the western Tower formed a second Transept to the church, and were doubtless perfectly similar; the remaining wing has towers at the angles; that at the south-west angle is larger than the other, though they are of equal height, and rise considerably higher than the wing. Both wing and towers are covered with ranges of arcading one above another, commencing a few feet from the bottom; the three lowest tiers are round-headed, the fourth are trefoil-headed, the fifth and all above are pointed and profusely adorned with mouldings; and the whole surface is enriched with diaper patterns. The roof was formerly of a higher pitch, as may be seen by the marks on the Tower.

Some years ago there was a communication by a covered viaduct over the road, between this Transept and the east wing of the Bishop's Palace, which enabled him to visit the Cathedral under cover; and the road over which it passed is still called "The Gallery."

"Mr. Stewart has pointed out the fact that the Galilee porch is not parallel to the axis of the Nave, but has a marked inclination to the north, while the Choir on the other hand (like that of Exeter), inclines to the south. This doubtless was for a symbolical reason. The ground plans of churches, by so frequently assuming a cross form, typify the doctrine of the Atonement—the Choir or Chancel marking the position of the Saviour's[Pg 30] Head, the Transepts His Arms, and the Nave His Body. By an expansion of this idea the Choir is made to bend southwards to shew the inclination of the Redeemer's Head upon the cross; while, as it would seem here the Porch is turned in an opposite direction to indicate the position of His feet."[22]

The Galilee[23] or Western Porch.

This has been stated to have been erected by Bishop Eustace (1198-1215), but although he is known to have made large additions to the building and to have built the Church of St. Mary, it has been thought the present building is not quite so early as that date, and that it was "the work of some unknown benefactor, who had probably seen Hugh de Northwold's presbytery, and determined to lengthen the church westward as it had been extended in the opposite direction?"[24] and that it occupies the site of a former building. Sir G. Scott seemed to think it was the work of Bishop Eustace.[25]

It is a beautiful specimen, and may fairly be ranked among the most exquisite Early English works we possess. "Nothing," says Mr. Parker, "can exceed the richness, freedom and beauty of this work; it is one of the finest porches in the world."[26] Externally, both sides are adorned with four tiers of arcading of different heights, one above another; in front, the recesses of the arches are deeper, and were probably intended for the re[Pg 31]ception of statues; some of them are ornamented with dog-tooth mouldings, and have trefoils in the spandrils. It is of two stories without windows in the sides; in the upper story there is a triple lancet window at the west end, the middle light being higher than the one on either side; the lower story receives light through the western opening. The arch of entrance is very elegant, and worthy of notice; it is receding, with rich and various mouldings, which on each side rest upon slender columns; a central group of shafts separates the opening into two smaller arches, with good tracery in the tympanum. The length on each side, internally, is occupied by two large pointed arches, comprehending under each two tiers of subordinate ones, the upper tier of five and the lower of three, which contains both outer and inner arches of different heights, supported by very slender columns; all the shafts were originally of Purbeck marble, with elegant capitals; the ribs of the vaulting are of free-stone, but the vault is of clunch. The arch of communication with the Tower is also very beautiful; it is similar in form to the exterior arch, but the ornaments in the mouldings are richer and more delicate: this has just been restored, and the Purbeck marble pillars—some of which had disappeared and others had become decayed—have been replaced by pillars of Devonshire marble with Purbeck plinths and capitals; the vesica in the tympanum has been filled with stained glass representing St. Etheldreda, the foundress; the original oaken doors have been repaired, faced, and ornamented with scrollwork in iron: this has been effected at a cost of more than £1000. contributed by Mrs. Waddington, of Twyford House, Winchester, as a memorial to her husband.

The Interior of the Tower

has been considerably improved by the removal of a floor which had been inserted just above the lower arches, thus opening it to the great lantern, bringing into view a series of beautiful[Pg 32] colonnades and arches, for many years hidden, except to those who explored the upper portions, besides relieving it of the weight of a large quantity of stone and materials.[27] The tops of the four fine arches which originally supported the Tower can now be partially seen; they were spacious openings, but are contracted by interior arches in a different style, which were inserted in the early part of the fifteenth century, for the purpose of strengthening the building. The beautiful painted ceiling of the Tower was designed, and all its essential parts executed, with a rare union of artistic skill and archæological knowledge, by H.S. le Strange, Esq., of Hunstanton Hall, Norfolk, at the expense of H.R. Evans, Esq., then Registrar to the Dean and Chapter; the centre contains a figure of the Saviour in an aureole: He is represented as holding a globe in His left hand, and is surrounded by the sun, moon, and stars; on either side are Cherubim and Seraphim bearing scrolls containing the words "Holy! Holy! Lord God of Sabaoth." The eastern centre contains a shield on which is the dextra Domini, the "right hand of the Lord," as an emblem of the Creator; the corners are enriched with foliage, and the whole is surrounded by a border containing the words "Thou art worthy, O Lord, to receive glory, and honour, and power; for Thou hast created all things, and for Thy pleasure they are and were created." This was finished in 1855. The floor, of which the pattern forms a labyrinth, was completed in 1870.

The window over the entrance from the Galilee, was inserted a.d. 1800, and improved in 1807 at the expense of Bishop Yorke, who filled two portions of the upper part with stained glass, the other two being filled at the cost of Dr. Waddington, then a Prebendary of the Cathedral; the remainder has lately been[Pg 33] completed by Mr. Clutterbuck; the subjects are taken from the history of our Lord. This, with the wall decoration below, has been done at the expense of J.T. Waddington, Esq., and of his widow. Beneath the window are four shields of arms; the upper one on the south side shows the arms of Bishop Yorke impaled with the arms of the see; on the north side are those of Bishop Yorke with those of Dr. Waddington; the lower ones contain on the south, the arms of J.T. Waddington, Esq., and on the north side, the same impaled with those of the family of Cocksedge, of which Mrs. Waddington was a member.

Before proceeding further the visitor should pause, and observe the great length of the Cathedral, the noble appearance of the lofty arches, and the sublime grandeur of the whole. When we look around and see the lofty Tower with its decorated ceiling above; on the right, the south-west Transept, rich in the extreme with its several arcades of plain, intersecting, and trifoliated arches; and in front, through the long vista of the Nave, the noble Octagon, and the enriched Choir, to the extreme end of the church, we cannot but pause and admire the skill of man shewn in such a work; but when we consider to whose honour and glory such skill is exerted, we no longer wonder that man's best energies should be called forth to construct and ornament such a temple,

May those who visit this temple for the purpose of examining it as a building made with hands, ever bear in mind the great and solemn purpose for which it was erected—the worship of Almighty God—and let their aspirations of prayer and praise ascend to Him in thankfulness for the privilege afforded to them of freely and openly worshipping Him, who as freely invites all to become partakers of a home made without hands, eternal in the heavens.[Pg 34]

The South-west Transept

was, until a few years ago, separated from the Tower by a wall of stud and plaster, and used as a receptacle for materials required for the repair of the fabric, but is now thrown open in all its beauty; it has been repaired and restored at considerable expense.

The architecture of this portion of the Cathedral is worthy of special notice; the various forms of the arches, and the beautiful mouldings and ornaments on some of them, cannot but attract attention. The panelled ceiling has been painted by T. Gambier Parry, Esq., of Highnam Court, Gloucester; the floor has been re-laid with encaustic tiles and marble; a new font[28] in the transitional style, has been placed here, at the cost of the late Canon Selwyn, and this Transept will in future be used as the Baptistry of the Cathedral. Several windows, which had for many years been blocked up with stone and rubbish, have been re-opened, and those of the lower tier at the south end filled with stained glass by Mr. Wailes:

Adjoining this Transept on the east is the apsidal Chapel of St. Catharine, for many years in ruins, but rebuilt in 1848, and the floor laid in a combination of marble and encaustic tiles, with borders of incised Portland stone, the incisions being filled with coloured cement; the windows have been filled with stained glass by Mr. Wilmshurst:[Pg 35]

We now proceed on our course, and enter

The Nave,

which is of ample dimensions, being 203 feet in length; it has a lighter appearance than many churches of Norman architecture, and may be considered a late specimen of that style, having been finished about 1174. The length originally comprised thirteen bays, one of which has been included in the plan of the Octagon; there are no single cylindrical columns as in many churches, but the pillars are clustered and alternate in size and pattern; the arches appear to be somewhat higher than semicircular, being stilted, or some little way rectilinear before they take the circular bend. Those of the second tier comprehend in each two smaller ones, supported by a much lighter column; each compartment in the upper tier is divided into three small arches, the middle one being larger and higher than that on either side of it. Over the whole aisle on each side runs a broad gallery usually called the "triforium," lighted by Perpendicular windows in the outer wall; and above is the "clerestory," or "clear-story," affording a narrow passage in the thickness of the main wall, lighted by the original Norman windows; thus the height is divided into three parts—ground-story, triforium, and clerestory; and the breadth into the same number—nave, north aisle, and south aisle; probably designed as a type of the Trinity, as it is thought by many that these symbolical considerations were used in the building of churches in early ages.[Pg 36]

A new floor has been laid in the Nave[29] in a design which introduces several kinds of stone and marble, each bay in a pattern differing from the adjoining one; the large slab of marble which laid in the second bay from the east, and from which the memorial brass has long disappeared, remains in situ, it is not known to whose memory it was originally placed, but evidently to some dignified ecclesiastic. Towards the west the floor has been lowered so as to shew the bases of the columns which had for many years been hidden. A semicircular roof-shaft runs from the floor to the top of the wall between the bays, but the roof, until lately, was open to view from the floor to the rafters; a new painted ceiling has been executed,[30] which adds much to the grandeur of the building.

This ceiling was commenced in 1858, by Henry Styleman le Strange, Esq., of Hunstanton Hall, and the six western bays were designed and the chief parts executed by him, and finished in 1861; his lamented decease in the following year gave rise to some fears as to its completion, but his friend T. Gambier Parry, Esq., undertook to finish the work so ably begun, as a token of affection to his memory, and it now presents a beautiful series of pictures in compartments, forming, as it were, a carefully studied epitome of the sacred history of man as recorded in Holy Scripture; and exhibiting specimens of skill and taste executed by two gentlemen of independent fortune that may be almost considered marvellous.

It may be mentioned that the ceiling is upwards of 200 feet long, and is 86 feet from the floor, and the general size of the principal figures in the painting is nine feet.

The central subjects are arranged in chronological order from[Pg 37] the west, each being surrounded by a border varying in form, and containing a legend; in the ten western bays the subjects are supported by figures which are for the most part representations of Patriarchs and Prophets, carrying scrolls[31] upon which are written words of their own, bearing more or less forcibly upon the coming of the Messiah. The eleventh subject has, properly speaking, no supporters, but the Shepherds and the Magi are so arranged as to carry on the artistic effect of a central group with conspicuous lateral figures. In the twelfth and last subject, the picture extends entirely across the ceiling; in the centre is the Lord Jesus in His glorified humanity, seated on a throne, round about which is a "rainbow like unto an emerald." Above His head is the choir of Seraphim, painted in prismatic colours, and reflected in the "sea of glass before the throne." On the right and left are the figures of the twelve apostles seated; beyond them, on the dexter side, are two archangels, St. Gabriel, "the angel of redemption," holding the standard of the cross, and St. Raphael, holding a sword with its point downwards, expressive of victory and peace; at their feet rise three figures, typical of the blessed received into glory. On the sinister side are also two archangels, St. Uriel holding his sword downwards, and St. Michael spearing the dragon, expressive of the condemnation of, and victory over, sin. The figure of our Lord is connected with the tree of Jesse by its last branches, which break into scrolls and golden fruit at His feet.

The arch which separates the Nave from the Octagon has also been decorated, as well as the wall which connects the arch with the ceiling; the design contains the evangelistic symbols of St. Matthew and St. John, and the text "Blessed be the Name of His Majesty for ever, and all the earth shall be filled with His Majesty. Amen and Amen."

[Pg 38]

Transcriber's Note: The text in the above illustration appears below. The first paragraph contains the text along the sides of the image.

[Pg 40]

Traces of early fresco work may be seen on some of the arches of the Nave, on both sides, and in all probability other parts were also decorated.

Before proceeding further eastward we will examine the

Nave Aisles,

commencing with that on the south, at the western end. We first observe a range of small semicircular arches running under the windows, with a chevron moulding over some of them; in the first bay from the west there is a row of intersecting arches over them. The vaulting is supported by semi-columns placed at the back of the pillars on one side, and on the other by wall-shafts between the windows, and forms a great contrast to the rich vaulting of the eastern portions of the Cathedral. Several traces of early fresco work may be observed in the vault of the tenth bay from the west, and in other places.

Under the fourth window is a doorway, which is, on the exterior, richly ornamented, filling all available space, the whole of the imposts, arch mouldings and capitals being thickly sculptured with interlaced carving. In the tympanum is a figure of the Saviour in an aureole (or 'glory' of a pointed oval shape), held up by two angels sitting, holding an open book surmounted by a cross in His left hand, His right being elevated in the act of benediction. The mouldings above, as well as the capitals, jambs, and pilasters, are enriched with running foliage, and with a series of medallions containing birds, animals, flowers, &c., some of which are very curious. This was formerly the Prior's entrance from the cloisters; it now opens into a private garden belonging to the Deanery.[32]

Near this doorway stands a curious relic, deserving attention. It is the lower portion of a stone cross with a square pedestal, found some years ago at Haddenham, in the Isle of Ely, where[Pg 41] it was used as a horse-block; the inscription on the pedestal is in Roman capitals, except the E, which is Saxon:

“LUCEM-TUAM-OVINO-DA-DEUS-ET-REQUIĒ.-AMEN.”

A translation of it is thus given by Mr. Bentham: "Grant, O God, to Ovin, thy light and rest. Amen." On reference to the history of St. Etheldreda, foundress of the monastery at Ely,[33] to which allusion was made in the introduction to this work, it will be seen that her steward bore the name of Ovin, and it is not improbable that the cross was erected either to his honour during his life, or to his memory soon after his death; probably in the early part of the eighth century: this would make it earlier by nearly four hundred years than anything else in the church. The Bissexcentenary, or twelve-hundredth anniversary of the foundation of the monastery at Ely by St. Etheldreda was commemorated by a grand Festival in October, 1873.

The doorway at the east end of the aisle, under the last window, formerly the entrance for the monks from the cloisters, now the south entrance to the Cathedral, is also worthy of special observation; the head is trefoiled, and ornamented with figures holding pastoral staves; above, two dragons are represented with their necks entwined; the mouldings are rich and various, and the capitals and jambs are sculptured with grotesque ornaments. By some persons it has been thought that these doorways were insertions, as they do not accord with the lines of the adjoining wall, perhaps brought from some other building, and re-erected here when the cloisters were built.

On the second pillar from the east end of the Nave in both aisles, may be observed a niche with a canopy, indicating the position of the rood-screen at the western extremity of the original Choir, which extended eastward across and beyond the space now covered by the Octagon.

The windows of the aisles, as also those of the triforium, were originally Norman, but were altered at some subsequent period[Pg 42] to a later style; those, however, of this aisle have, with one exception, been restored to their original form, and all are filled with stained glass. We will endeavour to describe them in their order, beginning at the western end of the aisle.

We now turn our attention to the north aisle, and observe a range of arches similar to those in the south aisle, but with the line of chevron moulding in the eastern bay only; an intermission under one of the windows marks the place where probably was a doorway for communication with the church of St. Cross, but closed above two hundred years ago, when the Lady Chapel was given for the use of the parish of the Holy Trinity in lieu of that church which had become ruinous.

The windows in this aisle retain their altered form; and all have been recently filled with stained glass; in describing them we will commence at the western end, as the subjects are arranged chronologically.

[Pg 45]

A tablet on the wall, near the eastern window of this aisle, bears the following inscription:—

"1676,
Roger Clopton,
Rector of Downham,
Gave two hundred pounds,
By which The greatest Part
of the Nave of This
Church Was
paved."

The Nave and aisles do not now require a gift of this kind, having been recently paved at considerable expense, but the floor of the Octagon, South Transept, and Choir aisles will require a large sum to complete them, and if some kind friends will follow the example of Roger Clopton it will indeed be a timely benefaction, and now very much to be desired as an important step towards the completion of the work of restoration.

Before examining the Octagon we will make some observations on

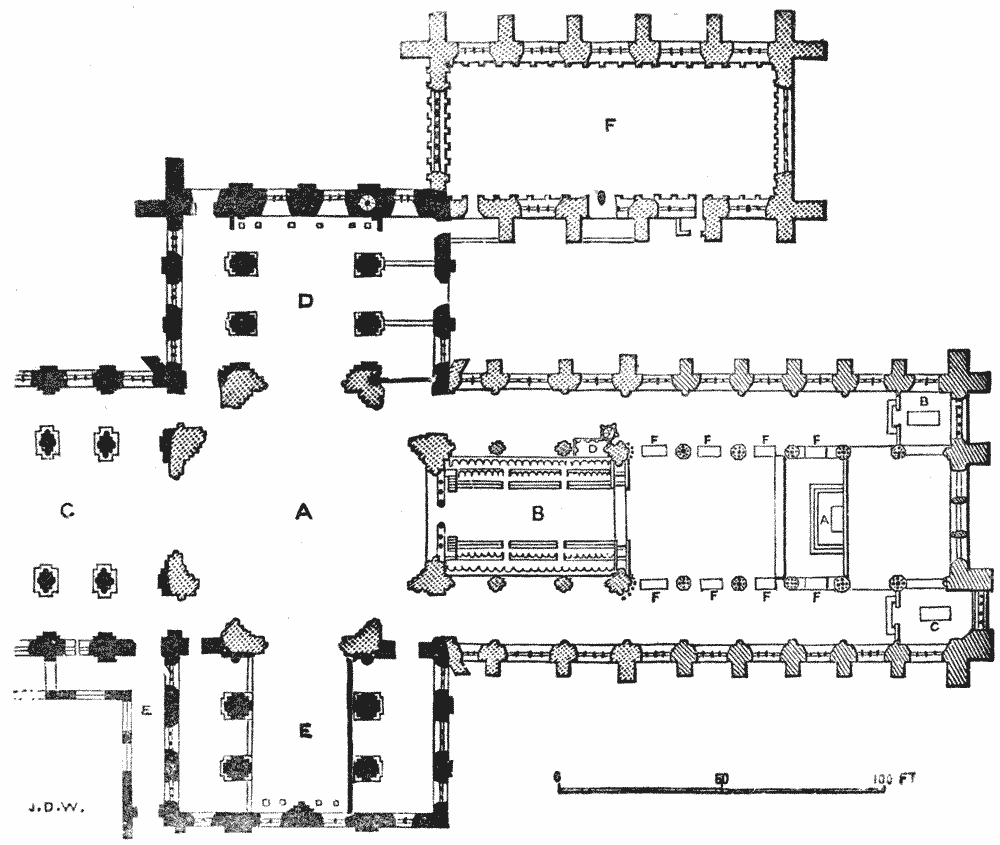

The Great Transept.

This includes both arms, although for distinction it is frequently spoken of as the north and south Transept. This is the oldest portion of the Cathedral, having been begun by Abbot Simeon a.d. 1083, of whose work, however, but little more than the ground story remains. Before the fall of the Norman Tower in 1322, each arm was longer by one bay, which is now included in the plan of the Octagon, in the same manner as the Nave. Both arms have aisles, but those of the south, and one in the north, are enclosed for various purposes. In each arm there is a simple cylindrical shaft, of which no other specimen occurs in any other part of the church. The capitals of the columns and the arches above the lower tier are similar to those of the Nave. The roof in both is of bare rafters with rich cornices, painted with flowers and devices, and angels with wings expanded under[Pg 46] the principals; both arms have recently undergone a thorough repair, the rafters and cornices have been re-painted and gilded in their original style, which, with the stained glass lately inserted in the windows, produces an amount of colour the effect of which is very striking.

We will first refer for details to the north arm; of which the western aisle is open, and is lighted by three Norman windows, all of which have been recently filled with stained glass:

At the north end of the Transept is a small colonnade, the arches of which are irregular, those opposite the lower windows being higher than the others to allow free passage to the light. At the north-east corner is a doorway communicating with a staircase leading to the upper parts of the church. In the year 1699 the fall of a portion of the north-west corner took place, but it was so well rebuilt as not to be discernable in the interior. The windows in the triforium on the east side are original; those of the triforium on the west side, and the upper ones at the north end, are Perpendicular insertions; the rest are all in their original form, or have been restored to it; those in the north end have been filled with stained glass:

The eastern aisle is divided by walls behind the columns into compartments; the northern one forms a communication with the entrance to the Lady Chapel; the middle one a vestry for the Grammar Scholars; and the third a vestry for the Lay-Clerks; remains of fresco paintings may be seen on the walls of both these compartments.

The floor of this portion has been recently re-laid by the munificence of the late Canon E.B. Sparke.

We now cross the Octagon (which we will examine afterwards) to the south arm of the Transept. At the south end is a colonnade, but differing in design to that in the north arm, the arches being all of equal height, but not so high as the others; over these is a row of intersecting arches. It is probable that these galleries were added at a period subsequent to the erection of the Transept, and intended as a means of communication from one triforium to the other; in the south east corner is a staircase leading to the triforium. Some remains of ancient decoration may be observed on the walls and capitals, portions of which have been renewed.

The eastern aisle was formerly divided by a wall behind each[Pg 48] column into three compartments, with wooden screens in front; but these were all removed in 1814, when it was enclosed as we now see it to form the Library, which is lighted on the east by three Early English windows, and on the south by a Norman one. The western aisle appears to have been closed for many years, as on the walls built in the arches (and which until lately completely filled the openings,) there is an arcade of intersecting Norman arches. Of this aisle, thus inclosed, one portion is used as a vestry by the Vergers, having an entrance from the south aisle of the Nave; the remaining portion as a vestry for the Clergy. The carved oak door to this vestry deserves attention; it is not exactly known whether it originally belonged to the Cathedral, the carved devices are similar to those in the chapel of Bishop Alcock, in the north aisle of the Choir; there is no doubt that it belonged to some building erected by that prelate, if not to this, probably to the chapel of Jesus College, Cambridge, of which Bishop Alcock was the founder. It was found at Landbeach, and sent to the Cathedral by Canon Fardell.

The windows of the western aisle and those of the clerestory on both sides are in their original form, and so are those of the two lower tiers at the south end, but the others are of later age; in the gable is a low window of seven lights, very different to the upper windows in the north arm: those in the south end and two in the western aisle have been filled with stained glass:

The piece of tessellated pavement in the floor was found some years ago between the Choir and the Lady Chapel, under the present level of the earth, and was placed here for preservation; when the floor of this arm of the Transept is re-laid, this may perhaps be again inserted, or removed to some other place.

The Octagon.

We now come to this special glory of the Cathedral, "in which," says Mr. Millers, "elegance, magnificence, and strength are so happily blended, that it is impossible to determine in which respect it is most admirable." We follow up the description nearly in his own words. Here stood originally a square Norman tower, which in the year 1322, from the unequal pressure of the four parts of the church, gave way and fell eastward, crushing in its fall several adjoining arches. "It could not have happened at a more favourable conjuncture; as the convent was rich, spirited, and liberal; and though another great work had been begun the preceding year, (the erection of[Pg 50] a new Lady Chapel,) the repair of this great dilapidation was immediately undertaken, and completed in a few years, by Alan de Walsingham, at that time sacrist,[34] an officer under whose particular charge were all the monastic buildings. It has continued above five hundred years, and may it yet continue a noble proof of his consummate skill as an architect!" The conception was original, being perhaps the first building of the kind ever erected. By throwing the weight upon eight strong piers and arches instead of four, he has probably guarded against the recurrence of a similar accident; at the same time he has given a larger space, a more agreeable form, and greater scope for embellishment, which is, however, most judiciously confined within such limits as not to interfere with sober and impressive grandeur. No one can behold it without admiring the skill which has suspended, rather than supported, a very heavy timber roof over so wide an area without a pillar.

"It is not equilateral; there are four longer and four shorter sides, alternate and respectively equal. Four lofty arches, in the four longer sides, open into the four principal parts of the church: alternately with these, in the four shorter sides, are as many more, much lower, opening obliquely into the aisles above and below the Transept. The arches are all supported by elegant clustered and conjoined columns, and their capitals are wreaths of flowers and foliage."

In the shorter sides there is room for some ornamentation, but the ornaments are chaste and not profuse. The four low arches in them are under canopies resting on good carved heads, which remain perfect. Those on the north-east are said to be intended for Edward III. and his queen Phillippa, in whose time the building was erected; on the south-eastern arch are represented the heads of a bishop and a priest, perhaps meant for Bishop Hotham and Prior Crauden, superiors at the period[Pg 51] of erection. On the north-west arch are the heads of another priest, apparently younger, and of some secular person with long hair; the former is supposed to represent Alan de Walsingham, the skilful architect of this noble work; and the latter the chief mason. On the remaining arch are two figures, the meaning of which we can scarcely comprehend.

A little above each of these lower arches are three brackets, or corbels, with canopies; the original figures (if any) placed on these brackets have long since disappeared, but the spaces have lately been filled with sitting figures of the Apostles,[35] executed in stone by Mr. Redfern, each holding a symbolical instrument. If we start from the Choir and proceed to the right hand we shall find them placed in the following order:—

There are also sixteen small stone heads, four connected with each group of three Apostles, which are not very clearly seen, perhaps, from the floor of the Cathedral, but which, when examined, shew by the conventual prophetic cap given to them, that they are intended to represent the sixteen Prophets of the Old Testament. Above these canopies, in each of the four sides, is a gallery or passage with an embattled parapet, and above that a large window of four lights with geometrical tracery; it[Pg 52] is extremely sharp pointed, and towards the top each window is faced internally with a trellis or lattice-work of stone, which adds to its elegance without intercepting the light. These windows rise to the same height as the higher arches; they have been filled with stained glass by Mr. Wailes, and the subjects are chiefly representations of persons who were instrumental in the foundation, erection, or restoration of the Cathedral, of the reigning sovereigns at the respective periods, and of others who figured in the traditionary history of the foundress.

Midway up each vaulting shaft is a canopied niche of unusual but very beautiful character; these niches rest upon sculptured corbels representing some striking incidents of St. Etheldreda's[Pg 54] life, by beginning at the right-hand side of the north-west arch, and continuing our course to the right-hand round the Octagon, we may examine them in detail.

These were probably placed there to break the apparent great preponderance of vertical lines. The vaulting is of wood, and its fan-shaped compartments terminate at a distance from the centre, thus allowing an aperture thirty feet wide, over which rises the Lantern, an exact octagon, having on each of its sides a large pointed window of four openings with rich tracery, all filled with stained glass, which has the effect of subduing the light; below these windows are a series of panels with decorated heads, and under them another series of smaller ones; above the ceiling is a chamber formerly used for bells. The Lantern also is of English oak, and its construction a curious piece of carpentry. The whole has been thoroughly repaired, and in a great measure restored in exact conformity with the original, at a considerable expense.[37]

[Pg 55]

When the white and yellow-wash was cleared away from the woodwork of the Octagon and Lantern in 1850, some remnants of ancient colouring were discovered. In the archives of the Cathedral are preserved the accounts of the materials used in this painting, the prices of the colours, and the wages paid to the workmen. The name of the principal artist was Walter; he is dignified by the name of "Pictor," but he only received Eightpence per week, "præter mensam et robam" the "roba" being the painter's dress of the period, which was very like a modern gentleman's dressing gown. The colouring of this "Walter" between the years 1335 and 1351 seems to have been of a very simple character. The only evidence of designs that remained in 1850 were on the flat panels of the vaulting, which was covered with an imitation of ordinary gothic flowing tracery. The pattern was a series of quatrefoils painted in stone-colour on the wood, outlined black, and filled with green. The bosses of the Lantern, which are not carved, had been evidently painted and gilt, but the patterns of foliage were rough and too much injured to afford any distinct composition.

The small amount of colouring which remained on some of the mouldings of the Octagon was principally of a bright red, but only in small patches, the ground-work having peeled off and the colour with it.

In attempting to describe briefly the recent decoration of the Octagon and Lantern we cannot do better than quote the substance of a paper read during the Conference in June, 1875, explaining the history and nature of the ornamentation which has been carried out with such loving care and artistic skill under Gambier Parry, Esq., who designed the whole and painted the chief figures.[Pg 56]

"The internal repair of the Lantern and Octagon was begun in February, 1874, and required a year for its completion. The ornamentation is in the style of the fourteenth century. The central boss of the lantern groining is a half-length figure of Christ in glory, considerably above life size, and with the conventual clouding around it; it is boldly carved in oak. The right hand is raised in the attitude of blessing, and with the left the inner garment is drawn open to exhibit the wound in the right side. Around this figure is painted a group of Seraphim on a grey blue ground. The panels of the window hoods are painted red, marking the distinction already made by the architectural construction, and on them are painted Cherubim and golden stars. The windows of the lantern were filled, some years ago, with coloured glass, the colouring of which is harsh, and in strong contrast with the mellow and rich painting of the woodwork, and injurious to the general effect.

"Below the windows are thirty-two openings surmounted with rich tracery. They are filled by panels on which is painted the angel choir. The figures are composed in groups of four, under each window, and are represented playing mediæval instruments. The two eastern and two western bays are intended to be severally grouped together, forming distinct series of eight figures. The instruments in the hands of the figures over the transepts are the psaltery and cithern, the regale, tabret, lute, violin, bagpipe and trumpet, (illustrating the 150th Psalm.) Below this range of figures are smaller panels, simply ornamented with the sacred monogram, the cross and the crown, resting on a fine and richly carved cornice, which forms the base of the lantern. The groining of the Octagon forms eight hoods, four above the windows, and four above the great arches of the Choir, Nave and Transepts. Beneath these last are remarkable statues of the four evangelists, about life size, seated in the attitude of writing, with a pen in one hand and a long scroll in the other; a writing table by the side of each figure with the ink[Pg 57] horn attached to it by a strap, and a loop to hold the pen, is very complete. The space between the great arch and the groining of the Choir is filled with rich tracery, on the central panel of which is painted the Crucifixion, with angels holding the chalice and palm branch on the right and left. The long spandrils of the groining are painted with conventional scrollwork of leaves and flowers in a style contemporaneous with the architecture. The monogram and crown of St. Etheldreda are found in several parts of the ornamental design. The total expense of the decoration has been about £2500."

An elegantly carved pulpit has been placed near the entrance to the Choir; it is of Ancaster stone resting upon columns of Purbeck marble, the front relieved by alabaster figures of St. Peter and St. Paul; the steps are of Purbeck marble, guarded by very elaborate scrollwork in iron. It was designed by Sir G.G. Scott, and executed by Messrs. Rattee and Kett; the figures by Mr. Redfern, and the iron work by Messrs. Potter and Son. It was supplied by a legacy left by the daughter of Bishop Allen, and adds much towards the general improvements.

Before leaving the Octagon the visitor would do well to contemplate this portion of the building, as affording an extraordinary example of the skill and judgment of the man who designed and carried into effect so grand and unique a specimen of architecture, covering, as it does, a large area without supporting columns; no heavy mass of stone-work meets the eye, but the pillars, though strong and of great height are so constructed as to give an appearance of lightness and elegance; the vaulting is rich though simple, and the lantern above deserves notice from its singular position, apparently without support, but starting as it were from the ends of the ribs of the groining: taken as a whole it may be fairly considered as without parallel in this country.

The architectural views from the Octagon in every direction[Pg 58] are exceedingly fine, and will repay the visitor for a pause of a few minutes to notice them; on all sides are examples of great beauty and variety. There are many other points in the Cathedral which afford attractive scenes as shewn in the effects of light and shade, the intersections of arches, perspective, &c., which may be found by the visitor in his survey, if watched for, but we cannot undertake to point them out.

The next portion of the building to which our attention is attracted is

The Choir,

which, previous to 1322 was under the central Tower, and extended, including the rood-loft, from the second column at the eastern end of the Nave, as it now is, (it then extended one bay further eastward,) to about the same distance, or rather more, on the opposite side; and after the erection of the Octagon was again placed there; in 1770 it was removed to the six eastern arches of the Cathedral, the space under the Octagon and the two bays eastward of it being used as a sermon-place.[38] It was again removed in 1852, and now commences at the eastern side of the Octagon, extending to the length of seven bays, (the stalled portion occupying three of them,) leaving the two eastern bays as a retro-choir.

This will be better understood by reference to the accompanying plans, (for the use of which we are indebted to the kindness of the Editor of the "Architectural Quarterly Review,") one shewing the position of the Choir previous to the year 1770, and the other the arrangement made at the last alteration.[Pg 59]

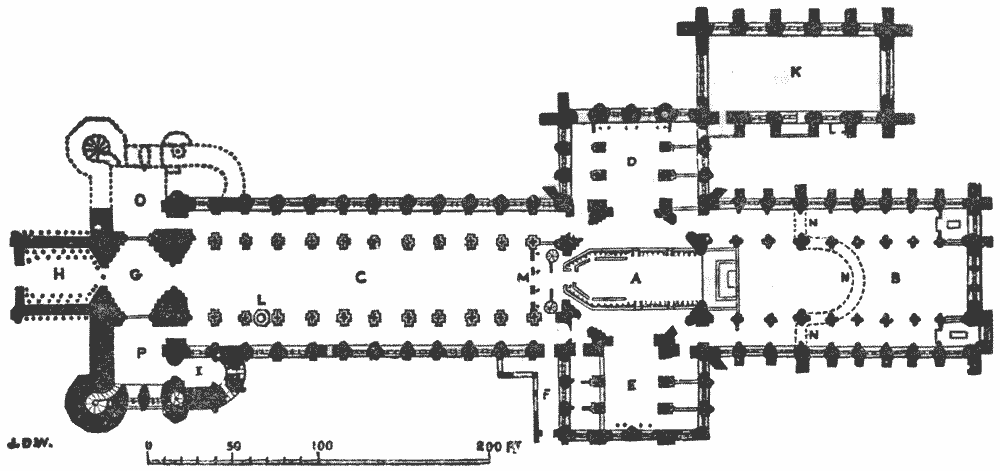

GENERAL PLAN

[Enlarge]

[Pg 60]

CHOIR AND TRANSEPT, shewing new arrangements.

[Enlarge]

The black tint represents the Norman work of Abbots Simeon and Richard, 1083-1106.

The lined tint represents Bishop Northwold's work, 1229-1254.

The dotted tint represents the work of Bishops Hotham, Montacute, and L'Isle, 1316-1361.

[Pg 61]

The new oaken screen at the entrance of the Choir will attract the attention of the visitor, both by its elegant design and its skilful execution; it is of open work, comprising a centre opening with brass gates, through which is the passage into the Choir, under a pointed arch, over this is rich tracery within a high pointed gable, having an elegant foliated cross on the apex: on either side are three smaller openings, each divided into two parts by a bar or transom, and finished at the top with a gable; the openings below the transoms are filled with elaborate grilles of brass foliage; a beautiful cresting runs over the whole, with a high pinnacle of tabernacle work at each end; several statuettes have been placed under canopies in each face, which add considerably to the general effect. The screen was designed by Sir G.G. Scott, and executed by Mr. Rattee; the statuettes by M. Abeloos, and the brass gates with the foliage in the lower panels by Mr. Hardman: the whole testifies highly to the taste of the designer as well as to the skill of those who executed the several parts.

In making a particular survey of the Choir, it would perhaps be better to examine carefully the architecture of the six eastern bays first, and then the three western bays, which were built subsequently to the others, before examining the reredos, monuments, &c.; this is simply a suggestion, we leave the visitor to follow his own inclination, and continue our description in the order of our course from west to east.

The architecture of the three first bays is greatly to be admired as a specimen of the Decorated style, perhaps not surpassed by any other in the kingdom; they were erected about the same time as the Octagon, and most probably under the superintendence of the same skilful architect, and for which purpose Bishop Hotham left a sum of money at his death; they were built during the episcopate of his successors, Bishops Montacute (1337-1345), and L'Isle (1345-1361). The lower columns are nearly, the capitals entirely, of the same form with[Pg 62] those of the Octagon, but the arches are more ornamented, some of them having bosses of foliage attached to their mouldings; and those of the triforium are, as Mr. Bentham observes, "embellished with tracery work of such elegance and delicacy as seems scarcely consistent with strength." Between each of the lower arches is a corbel or elongated bracket profusely adorned with foliage carved in high relief, richly coloured and gilded; from this rises a column between the upper arches, and from the top of this column spring the ribs of the vaulting, which spread in lavish ramifications over it, dividing it into angular compartments, and at the angles are flowers and other ornaments, curiously carved, and originally were coloured. In the spandrils of the lower and triforium arches (with the exception of the first bay on the south side, which contains the arms of the see, those of Bishop Hotham, and another shield), are sunk trefoils, some of which are painted dark blue relieved with small stars in gold, having an elegant appearance. The range of pierced parapet at the bases of the triforium and clerestory has been entirely renewed; and on the south side, the triforium roof (which on both sides is of bare rafters,) has been recently painted and ornamented in a style similar to those of the Transept. The windows in the clerestory are large, filling the whole opening, having in each four lights with rich tracery, and the same kind of trellis-work we noticed in the large windows in the Octagon; these windows, on both sides have been recently filled with stained glass, executed by Mr. Wailes, the expense defrayed out of the balance of the accumulated fund for the east window; the subjects are illustrative of two verses of the "Te Deum," with figures of angels and the arms of the donor, &c., in the tracery:

The absence of a bishop's throne is peculiar to this Cathedral; the bishop occupies the return stall on the south side, and the dean that on the north; those seats being generally appropriated to the dean and sub dean. When the abbacy was converted into a bishopric (a.d. 1109) the bishop took the seat previously held by the abbot, the prior retaining his own; and, on the re-foundation in 1541, the dean took the seat previously used by the priors, and here occupies traditionally the side opposite to his customary position.

On the right hand of the entrance, therefore, is the seat of the bishop, and on the left hand that of the dean, both surmounted by lofty pinnacles of tabernacle work; and the ancient stalls, formerly used under the Octagon, extend on both sides to the length of the three western bays. These, which we believe form the sole existing specimen of stalls of that date in England, have been cleansed from their coats of paint and restored, and harmonise well with the new work: the canopies are rich and elaborate, and the panels in the upper portions have recently been filled with sculptured groups illustrative of Scripture history, those on the north side from the New, and those on the south side from the Old Testament; they are beautifully designed, and contribute greatly to the good effect of the whole. These sculptures have been executed in oak by M. Abeloos, of Louvain, (with one exception, "the Nativity," by Mr. Philip,) and are the gifts of various benefactors. They are placed in chrono[Pg 64]logical order and, as we proceed from west to east, the subjects may be noticed in the positions described as follows.

The sub-stalls are new, and of good design; the stall-ends in the upper range have a series of statuettes of the principal among the ancient benefactors, or of the builders of various portions of the church, each under a canopy, and for finials they have figures of angels with instruments of music. Each of the statuettes (where finished) is represented as holding some type or model of the particular portion with which its prototype is more intimately connected. They were designed and modelled by Mr. J. Philip, and executed partly by him and partly by[Pg 65] Mr. Rattee; we append a list of them in the order in which they are placed, commencing from the west, as before:

The fronts of the stalls are generally of open work, shewing the hinged seats, or misereres as they are usually called, behind; in both series of stalls these are curiously and grotesquely carved beneath. On the faces of the stall-ends of the lower tier are various emblematical devices, crests, and shields, beautifully carved; our list is made in the same order as of the statuettes.

An elegant brass lectern the gift of the late Canon Sparke, has been placed in the Choir, as a memorial of H.S. le Strange, Esq., who painted the ceiling of the Tower and the western portion of the Nave ceiling.

The organ is placed in a position differing from that of most others in England, although not unusual in Continental Cathedrals. The pedal and swell organs have been placed in the triforium on the north side, and the great organ, with the choir organ beneath it, project in front of the third bay, resting upon an over-hanging chamber behind the stalls. The organ was reconstructed, with great additions, by Messrs. Hill and Son, of London, when the removal took place in 1851, and several[Pg 66] important additions were made in 1867, by the same firm.[39] The magnificent organ-case, with its sculptures, was executed by Mr. Rattee; the pipes in front have been gilded and ornamented by Mr. Castell, of London, and much of the woodwork having been left in its natural colour forms an agreeable contrast, and the effect produced, from almost every point of view, is rich and beautiful; while from its unusual position it loses little of its power or sweetness of tone, but sends forth its pealing sounds reverberating through the lofty arches with fine effect. We know nothing more sublime than the voices of a congregation, guided and supported by such an instrument, praising and adoring the great Creator and Father of all, and are led to exclaim with the poet Milton—

The division between the Early English work of Bishop Northwold and that part generally spoken of as Hotham's work is marked by two steps in the floor, and by two strong piers rising from the floor to the vault, which were in fact the original Norman shafts near the commencement of the apse or east end taken down by Hugh de Northwold, eighth bishop, who added the six beautiful eastern bays at his own expense; these form a pure and good example of Early English work, and were completed a.d. 1252, and dedicated in the same year, in the presence of King Henry III., and many nobles and prelates. This was called the "Presbytery," or "Sanctuary," a common name at that time for the east end of a church.

"The character of the three western bays is singularly yet beautifully arranged to harmonize, in point of elevation of its[Pg 67] parts, with the six eastern arches; this and the very great excellence of the details, render this part of the edifice a most valuable study."[40] The absolute contact here of the two styles, Early English and Decorated, affords the spectator an opportunity of contrasting them, and of judging of the comparative merits of each. By many, the eastern bays are preferred for their chaste and elegant appearance, not being so profusely ornamented as those of the western ones, but, as Mr. Millers observes, "everything seems in its proper place and fitly proportioned: all harmonize, and taken altogether, give a general character of lightness and elegance. This is nowhere more conspicuous than in the roof; the plain ribs of which, diverging from their imposts, instead of crossing each other and spreading into intricate forms, go straight to a longitudinal midline running from west to east, and decorated with coloured figures or flowers where the springers meet it. There is a precise line of separation between this and the more elaborate ceiling of Bishop Hotham's work; being thus brought into contact the two may be compared with singular advantage."[41]

The bases of the piers of the lower arches are octagonal, but the shafts are cylindrical, surrounded by slenderer detached ringed shafts with foliated capitals, all of Purbeck marble. The triforium (except in the first and second bays on both sides,) extends over the aisles, and is lighted by large windows with Decorated tracery in the outer wall; and the arches are separated by a cluster of slender shafts into two smaller ones with trefoil heads; and between the two is a quatrefoil; all highly adorned with mouldings. Between each of these lower arches is an enriched corbel of Purbeck marble, adorned with foliage in high relief, from which rises the vaulting-shaft, in a group of three, between the arches of the triforium to the base of the clerestory, having a capital of leafage, and from the top of which spring the ribs of the vaulting. The spandrils throughout are[Pg 68] relieved with trefoils and quatrefoils, deeply sunk and backed with Purbeck marble; and, on the whole, the contrast of light and shade, depth and projection, produces a very fine effect. The clerestory arches are of the same span, but each is divided into three smaller ones, the centre arch being higher than those on either side, in order to admit light through the windows behind, which are three lancet-shaped lights under one arch in the outer wall, and are, we believe, original; these windows have been filled with stained glass, which is another important step towards the general improvement.

The windows of the aisles and triforium were originally three lancet-shaped lights under one arch, but were replaced in the fourteenth and fifteenth centuries by larger windows of a flamboyant character. In the first and second bays on both sides the triforium windows are placed in the inner wall, probably to give more light to the high altar, the position of which was indicated by a boss in the ceiling with a figure of St. Peter; and also to give greater effect to the rich and gorgeous shrine of St. Etheldreda, said to have been of pure silver adorned with jewels, which at that period stood near the altar and to her place of sepultre, indicated by a boss in the ceiling with her effigy on it. The tracery in these windows bears a similarity to those in the corresponding arches of Hotham's work, but is not so ornamented. All have been filled with stained glass by Mr. Wailes, the expense defrayed out of the east window fund:

"The east end," says Mr. Millers, "is eminently beautiful,[Pg 69] and will not by any means shrink from comparison with the more gorgeous termination of any church built after great end windows came into fashion. There are two tiers of lights; the lower consists of three very high lancet-shaped lights, nearly all equal; the second of five, the middle one being higher, and those on the sides gradually lower."[42] They are enriched by slender columns, with leafy capitals, and ornamented with toothed and other mouldings, presenting altogether more gracefulness and elegance than one large window filling nearly the whole end. In the last century Bishop Mawson had formed a design of filling this window (for it is generally considered as one window of eight lights,) with stained glass, and selected an artist to carry it into effect; the work, however, was not then finished; a figure of St. Peter, and the arms of the bishop and contemporary members of the Chapter, are the only remains of it known to be in existence, and these were lately removed from the centre lancet and placed in the east window of the north triforium of the Nave. The window has at length been completed by the liberality of Bishop Sparke, who gave in his lifetime a large sum for that purpose.[43] The bishop died some few years after making his munificent donation, and his two sons, Rev. J.H. Sparke and Rev. E.B. Sparke, then Canons of the cathedral, as Trustees of the fund, took steps to carry his wishes into effect. Several designs were prepared, and one by Mr. Wailes was selected, but the execution was deferred for some years in order that advantage might be taken of further experience, and thus, if possible, to realize some of those gorgeous effects which have made the thirteenth century windows of Canterbury, Chartres, Bourges, and elsewhere, so justly celebrated.

The eastern lancets were executed by Mr. Wailes in 1857, and the representatives of the donor have good reason to be satisfied with the result. The general effect produced is magnificent;[Pg 70] the three lower lancets in particular present that happy combination of sparkling brilliancy with that somewhat mysterious indefiniteness in the distribution of colour which is so well suited to the architectural effect. It is sufficient to compare the present window with others in the Cathedral, not excluding the productions of Mr. Wailes himself, to shew the great advance which the art of glass-painting has recently made, both in the richness of the colours employed and their arrangement—the improvement arising, doubtless, from a more accurate study of the great masters of the middle ages.

The figures and groups in the three noble lancets are executed with great spirit; and although numerous, are arranged, more especially in the central window, in masses which the eye can readily follow, and by occupying so large a portion of the entire surface, leave little room for the monotonous repetitions of foliage or other patterns; the distribution of colour is also thus sufficiently varied without its masses in one part of the window unduly preponderating over those in another, a condition which is never grossly violated without serious injury to just architectural effect.

In the central window of the clerestory range, the spaces between the medallions and the border are filled with a diapered ground, which, though rich in colour, is somewhat formal in effect; whilst the field in the side windows, within the border, is too narrow to allow the figures to be sufficiently separated and relieved from the rest of the ground. It arises, probably, from these or other causes that the general effect which the upper lancets produce, though otherwise good, is by no means so rich and sparkling as that of the lower windows.

The floor of the Choir has been re-laid with marble combined with Minton's encaustic tiles, and a large marble slab has been placed over the grave of Bishop Hotham, inlaid with brass and bearing the arms of the see and those of the bishop, surrounded by an inscription. At the foot of this another has been laid over the grave of Prior Crauden, superior of the monastery at the time of the erection of the Octagon; this is the original gravestone of the prior, but it had been removed with several others to another part of the church; the brass insertion has been renewed, shewing a kneeling figure with a large foliated cross issuing from his bosom, with the initials I.C. on either side, and surrounded by an inscription.

In the wide treading of one of the steps at the end of the stalled choir are placed the arms of some of the benefactors to the restoration of the Cathedral;[44] executed by Messrs. Minton. In the Presbytery, where the absence of stall-work allows space[Pg 72] for more elaborate design, it will be seen much care and skill has been used, and the effect produced is very good. The communion table is raised five steps above the level of the floor, each step being laid in mosaic and encaustic tiles of beautiful and varied patterns, used in conjunction with veined, and faced with black, marble.

The new reredos or altar screen is remarkable for its chaste but elaborate design and richness of detail, as well as skill in execution; and is not, perhaps, surpassed by any modern work of the kind; our limited space will not allow us to attempt anything like an adequate description of this beautiful work, but we will endeavour briefly to point out the prominent features, and recommend to the visitor a careful examination of its various details.

It comprises a centre with wings, having openings with geometrical tracery and foliated mouldings, surmounted by an elegant cresting. The front of the central portion is of the most beautiful design, executed in alabaster, enriched with colour and gilding, and will doubtless claim the first attention of the visitor. The sides of the space occupied by the altar is covered with diaper work exhibiting a series of roses, apparently connected together by their stems running through the pattern under the bars of the diaper-work; above this, the whole width is divided into five compartments—the centre one being wider than the others—separated by enriched columns, around which are spiral belts with cornelians and blood-stones on a gold ground, and having elegant foliated capitals, copied from natural objects; on these capitals stand a series of angels bearing instruments of the passion—cross, crown of thorns, nails, spear, &c., and each having under his feet a dragon or other reptile, typical of the triumph over Satan by the Sacrifice of the Atonement. The lower part of each compartment is occupied by quatrefoils ornamented with ball-flowers, and filled in with mosaic work of verd antique, rosso antico, gialo antico, and lapis lazuli: above these are panels con[Pg 73]taining alto-relievo sculptures of great excellence, the subjects taken from the life of the Saviour; beginning on the north side, we find Christ's entry into Jerusalem, Christ washing His disciples' feet, the Institution of the Sacrament, Christ's agony in the Garden, and Christ bearing His cross: another series of spiral pillars stand in the front and on the sides of these panels with capitals similar to those already mentioned. These pillars have their spiral course in the opposite direction to the former, which adds to the general beauty of the whole. Above the sculptured panels, each of the four side compartments is surmounted by two small gables with their outer mouldings foliated, crowned with a finial, and finished at the bottom by a grotesque figure of a dragon or other animal; the inner face of each gable contains within a circle a head in bas-relief, those on the north side representing the major prophets, Isaiah, Jeremiah, Ezekiel, and Daniel; those on the south represent four doctors of the church, Jerome, Ambrose, Augustine, and Gregory; the other portions being filled in with mosaic work. The centre compartment has three projecting canopies, the faces of which are enriched with mosaic, the angles are crocketed, and finished at the bottom with roses and grotesque figures. Above the centre canopy, on a lofty enriched pinnacle, stands a figure of our Lord; on the north side, on a lower pinnacle, stands a figure of Moses; and on the south side a figure of Elias, the three being typical of the Transfiguration.

The upper portion of the white stone screen behind the alabaster work is also divided into five compartments of open work with geometrical tracery; in front rise five gables, the centre being larger and higher than the others. The outer mouldings of the centre gable are enriched with foliated crocketing with which is intermixed the early church symbol—pelican feeding her young—and the apex surmounted by a figure of our Lord enthroned: the inner portion of the gable contains, in a trefoil, a basso-relievo of the Annunciation, in alabaster. The four side[Pg 74] compartments are also surmounted by gables, on the top of which stand respectively the figures of the four Evangelists, in alabaster, their respective emblems being worked in the crockets; on the inner faces of the gables, within trefoils, are busts in relief, those on the north side represent Mary Magdelene and Mary the mother of James; those on the south, St. John the Baptist and St. John the divine; the remaining space in each gable being filled in with mosaic. Outside and between these gables rise spiral pillars, on the tops of which are placed figures of the virtues, Faith, Hope, and Charity, on the north side; and of the graces, Justice, Prudence, and Fortitude, on the south side, executed in alabaster.

The wings also are of white stone, and not so high as the centre; in each are three openings with geometrical tracery; and below these openings the wall is covered with diaper-work of an elegant pattern.

The portion of this screen, which forms the reredos, is the munificent gift of John Dunn Gardner, Esq., of Chatteris, in this county, and designed as a memorial to his first wife. The work took upwards of five years to execute, and cost about £4000. Some of the more important of the sculptures, mosaics, and other decorations, were suggested by the donor, and the whole was designed by Sir G.G. Scott, and affords a magnificent example of his skill and taste. The stone-work, including the architectural carving, was executed by Mr. Rattee and his successors, at Cambridge; the sculptures by Mr. Philip; the mosaics by Mr. Field; and the gilding and painting by Mr. Hudson.

The Reredos was expressly designed with reference to a painted window placed behind it: it is hardly necessary to say that it is greatly benefitted by the general reduction of the glare of light, which rendered the outlines of much of the statuary and more delicate ornaments undistinguishable at a distance, but still more by the transmission through it of glimpses of the[Pg 75] most beautiful colours, which change with every movement, however slight, in the position of the eye, and whose very indistinctness and transitory character contributes not a little to the effect which they tend to produce on the mind.

The altar being raised above the level of the floor shews to advantage the magnificent altar cloth, which is of rich crimson velvet, embroidered with much taste and skill by Miss Agnes and Miss Ellen Blencowe, and is thought to be worthy of the best ages of Mediæval embroidery. "Its length is divided into three parts; the middle containing a very beautiful figure of our Lord as risen, contained within a pointed aureole of a deep blue colour, and bordered by radiating beams. Broad orphreys embroidered in flowers divide the middle compartment from the sides, which are of red velvet powdered with conventional flowers;"[45] the largest were copied from ancient examples at East Langdon, Kent, and the others from Ottery, Somersetshire. The following passage is worked in gold on the super-frontal:—

"Agnus Dei qui tollis peccata mundi dona nobis pacem.
Agnus Dei, miserere nobis."[46]

We now direct our attention to the monuments in the Choir, and commence with the first arch on the south side of the Presbytery which is occupied by the once gorgeous monument of Bishop de Luda, or Louth (1290-1298), it consists of a lofty central arch with smaller openings on the sides; above the arches are enriched gables with pinnacles and finials; over the centre arch in a trefoil is a figure of the Saviour; the restoration of the north side of this monument will afford some idea of its original appearance; the effect has been somewhat subdued by the softened light from the east window. The indent in the gravestone under the arch leaves no doubt of its having been once finished with a brass effigy.[Pg 76]

The next arch contains the tomb of Bishop Barnet (1366-1373); it is of Purbeck marble, with quatrefoils on the sides, and had originally the effigy of the bishop engraved in brass on the table of the tomb.

Under the third arch is the high monument of John Tiptoft, earl of Worcester, one of the patrons of Caxton, the first English printer; this is in the Perpendicular style, but less beautiful than that of Bishop Redman, on the opposite side: on the table of the tomb are the effigies of the earl and his two wives; the two latter only were buried here, the earl having been beheaded and buried in London in 1470.

The tomb of Bishop Hotham (1316-1337) has been partially restored and placed in the next arch, on the south side of the altar; it formerly stood under a high canopy on the north side, but originally in the first arch of his own work. There was probably a recumbent figure on the top, but it has long since disappeared.

Opposite to this, on the north side of the altar, on a base of Purbeck marble, are placed the interesting remains of the tomb of Bishop Northwold (1229-1254), the munificent founder of the Presbytery, which were originally placed over his grave in the centre of his own work. It is a large slab of Purbeck marble, highly adorned with carving; perhaps one of the finest specimens of its period: the effigy of the prelate is represented as resting beneath a cinquefoil canopy in his robes, bearing his crosier, with a lion and dragon under his feet; beneath this is a representation of the martyrdom of St. Edmund, a prince of East Anglia, by the Danes, commemorative of his having been lord abbot of Bury before he was preferred to the see of Ely; the niches in the sides of the prelate's stall have statuettes—on the left, St. Etheldreda, an abbess crowned, and a nun; on the right, a king, an abbot, and a monk: at the top on each side of the head are angels with censers, and other symbolical figures.[Pg 77]

The monument or shrine which was formerly placed over the tomb of Bishop Hotham, has been in part restored, and now occupies the third arch on the north side. This, with the tomb now on the south side of the altar under it, originally stood in the first arch of his own work, near his place of sepultre; it is in the Decorated style, and was richly coloured and gilded. Part of it was cut away in order to make room for the stalls when the choir occupied the six eastern arches, but this has been rebuilt. This is now thought to have been part of the sub-structure of the shrine of St. Etheldreda, as adapted by Alan de Walsingham.

The second arch from the west, is occupied by the tomb of Bishop Kilkenny (1254-1256,) who died at Sugho, in Spain, while on an embassy to the Spanish Court; his body was buried there, his heart being only interred here. The tomb is of Purbeck marble, and is a fine example of the Early English style. The bishop is represented as in the act of benediction, with a pastoral staff, and in full pontificals; his head is shown as resting on a cushion, and is surmounted by a trefoil arch with a crocketed gable, and a censer-bearing angel on each side.

In the next, or more western arch, is the beautiful monument of Bishop Redman (1501-1505). It is a fine specimen of the Perpendicular Style, and is richly ornamented with niches and canopies, and a variety of shields with arms, and emblems of the passion; the effigy of the bishop is recumbent on a high tomb under a rich canopy, with a space left at the foot for a chantry priest. Passing through this space we enter the

North Aisle of the Choir,

and first proceeding towards the western end of it, we notice the new back screens which have been erected to mask the stall work in two of the bays, and against which have been placed the monuments of Bishop Fleetwood (1714-1723), and of his son Dr. Charles Fleetwood (1737); the third bay is occupied[Pg 78] by the new and elegant staircase to the organ; it is of open work, richly carved, with foliated mouldings and ornaments.

Opposite to this, in the north wall, is a beautiful door-arch, formerly the means of communication with the Lady Chapel; it has statues in large niches on each side, many smaller niches, crockets, and finials, and over the keystone a sitting figure; the mouldings and ornaments were originally beautified by colours and gilding, but all are injured and defaced, and the figures have disappeared.

A little further eastward is the memorial brass laid over the grave of Mr. Bassevi, the eminent architect of the Fitzwilliam Museum at Cambridge, who was accidentally killed by a fall in the western Tower in 1845.

The monuments of Bishop Redman and Kilkenny, which we noticed in our survey of the Choir, are in their original places; and we now pass in succession those of Bishops Patrick (1691-1707), Mawson (1754-1770), and Laney (1667-1675). In 1770 many monuments were removed from the Presbytery to make room for the Choir, and a few were again removed for the purpose of carrying out the recent arrangements. In the last bay but one (now opening to the Retro-Choir) stood the monument of Bishop Gray (1454-1478), but the gravestone only remains, from which the brass has been removed. The arms of this prelate may be observed in the sides of three of the windows of this aisle, no doubt altered by him to their present form.

At the end of this aisle, occupying the space of one bay, is the Chapel of Bishop Alcock, (1486-1500), who was comptroller of works under Henry VII., and founder of Jesus College, Cambridge. The chapel is in the Perpendicular style, and was built a.d. 1488, as appears from a stone found underground some years ago, and inserted in the wall under the east window, bearing the following inscription, scarcely legible:

"Johanes Alkoc epus Eliesis hanc fabrica fieri fecit.
M.cccclxxxviii."

The ornamental portion is curiously executed, but the pinnacles are disproportioned and crowded, presenting a confused and heavy appearance; the vaulted ceiling is rich and elaborate, with a large pendent of curious workmanship in the centre. The principal entrance is on the west, but there is a door on the south side; and the bishop's tomb is on the north side with a window behind containing some fragments of stained glass. It is probable from its appearance that the monument contained two effigies, one representing the bishop in his pontifical robes and another on a higher ledge, which represented a body in a state of decay, as contrasting life and death. A carved oak door at the foot of the monument appears as an entrance to a[Pg 80] chantry, or as by some supposed to have been a confessional. The bishop was buried in the centre of the chapel; his favorite device—a rebus of his name—a cock standing on a globe, and his arms may be seen in the window and in several other places. The chapel has been much defaced and many figures and ornaments have disappeared, but something has been done towards restoration at the cost of the Master and Fellows of Jesus College; the new portion of the floor was laid at the cost of the Rev. Lord Aylwyne Compton; and we hope ere long to see the east window filled with stained glass, which will contribute much to its improvement.

The Retro-Choir.

This occupies the space of the two eastern bays of the Cathedral, allowing a passage behind the altar-screen from one aisle to the other, and affords a good position for a closer inspection of the lower portions of the east window, under which are some remains of ancient decoration on the wall.

Nearly under the central window, a memorial brass has been laid over the grave of Canon Fardell, who died in 1854, and of his widow, who died in 1861; to whose memories respectively the two stained glass windows were inserted in the north aisle of the Choir, noticed in p. 79. Near this stands an ancient oaken chest, covered with elaborate and curious ironwork, with four locks.

Behind the new altar-screen, beneath a large and costly slab of Alexandrine mosaic, is the grave of Bishop Allen (1836-1845), to whose memory a monument in white marble has been erected in the south aisle of the Choir. A little further southward is a monument erected over the grave of Dr. Mill, Canon of Ely, and Regius Professor of Hebrew in the University of Cambridge, who died in 1853. It is an altar tomb of serpentine and alabaster, ornamented with marble mosaic and polished stones, bearing a recumbent effigy of Dr. Mill in his[Pg 81] robes; at the feet are two kneeling figures, one an oriental character, and the other a student; the figure is in copper and was formed by the electrotype process. It was designed by Sir G.G. Scott, and executed by Mr. Philip.

In the eastern bay on the south side is a monument of Cardinal de Luxemburg, Archbishop of Rouen, and Bishop of Ely (1438-1443). This monument was for many years hidden by a screen, but on the removal of the Choir the screen was taken away and the monument partially restored, the figure remains but the head is gone. The Cardinal-bishop died at Hatfield, and his body was buried at Ely, but his heart was conveyed to his Cathedral at Rouen. The niches and canopies with their finials in the tympanum of the arch above this monument will attract attention, being chaste and elegant; they are similar to those in the interior of Bishop West's chapel, but are in a more perfect state.

South Aisle of the Choir.

The eastern portion of this aisle is occupied by the elegant mortuary Chapel of Bishop West, (1515-1534), filling the space of one bay in a similar way to that of Bishop Alcock in the north aisle. It is a rich specimen of that gorgeous style by some called the "Florid English," by others the "Perpendicular," but when that style was verging into "Renaissance." The niches and canopies are very numerous, and almost endless in variety of size, shape, and decoration. There are places for upwards of two hundred statues, large and small; and some of the carved heads were of medallion size, and well executed. It is impossible to contemplate this beautiful oratory, even in its mutilated state, but with feelings of admiration; the taste of the designer, no less than the execution of the sculptor, are wonderful, and although every part is covered with niches, pedestals, and canopies, interspersed with relievos, grotesque designs and ornaments, the whole appears light and airy. The ceilings of[Pg 82] the canopies are covered with tracery that can only be compared to lace-work exquisitely varied and finished; the ceiling and pendents are deserving attention; the former is divided into lozenge shaped compartments of different sizes, all are coloured, and on many of them are painted the arms of the see, and those of the founder of the chapel; the pendents are formed by figures of angels holding the same arms and those of Henry VIII. Over the door on the inside is this inscription:

“GRACIA DEI SUM QUOD ID SUM, A.D. 1534.”

and the same without the date and the word "id" is to be seen in several other places both within and without. The gates are worthy of notice as originals, and as specimens of wrought-iron work of that period. This chapel, which is the burial place of Bishop West, may be compared with that built by him in the parish church of his birth-place, Putney; but every part of it has suffered the most barbarous mutilation, not a figure can be found perfect, all have been removed or defaced, probably in consequence of an order in council made a.d. 1547-8, against the Romish superstition, and for removing images out of churches; or it might have been done by the Puritans in the time of the Protector (Cromwell), whose soldiers it is stated, made use of the Cathedral as stabling for their horses.

Bishop Keene (1771-1781), was also buried here; and Bishop Sparke (1812-1836) and Mrs. Sparke were interred in this chapel, to whose memories the monument at the east end has been erected, and the stained glass window behind is inserted:

A slab of black marble, inlaid with a foliated cross, the arms of the sees of Chester and Ely, and surrounded by an inscription in brass, has been laid over the grave of Bishop Sparke, and the[Pg 83] gravestones of Bishops West and Keene have been replaced, and the remainder of the floor laid with encaustic tiles.

Some fragments of stained glass may be seen in a window on the south side, under which stand the remains of Bishop West's monument. Just above this, in seven small arches, closed with as many stones inscribed with names and dates, are immured the remains of seven eminent persons[47] of the tenth and eleventh centuries, who were originally interred in the Conventual church, but from which they were removed in 1154, and the small chests which contained their remains, were placed in the north wall of the Choir of the present Cathedral; and when the position of the Choir was altered in 1770 they were again removed, and deposited in their present resting places.

The perspective view westward through the south aisles of the Choir and the Nave is worthy of notice for the various intersections of the arches and groinings, as seen from a narrow window in the west side of the chapel, or from the door.

The architecture of the south aisle is similar to the north aisle, and the windows were probably altered to their present form about the same period as those in the north aisle. Five of them (as on the other side) have been filled with stained glass:

Under the second window from the chapel is an arched recess, which is thought to have formed an entrance to the church for the convenience of the sisters and others attendant on the sick in the Infirmary which stood near, but it has been closed on the exterior for many years. The interior may have been since used as a receptacle for relics; now it is occupied as a receptacle for a beautiful life-size effigy of Dr. Selwyn, for upwards of forty years Canon of Ely, and for many years St Margaret Professor of Divinity at Cambridge;[48] who died in 1875. The figure is represented as vested in cassock, surplice, and stole, with the hands joined as in prayer, in white statuary marble, and resting on a moulded base of Purbeck marble. The cost was defrayed by subscriptions from several noblemen and gentlemen formerly Eton scholars.

Near this we may notice an ancient gravestone, or part of a monument found under the floor of the nave in St. Mary's Church, in 1829. It represents an angel with wings raised above the head, bearing a small naked figure, probably representing the soul of a bishop, as a crozier appears at the side; the angel has on a kind of cope with an ornamental border; and around the head is a large circular aureole, and the canopy[Pg 85] shows a mass of buildings with semicircular arches. There is an inscription on the rim, "St. Michael oret p' me." To whose memory it was executed it is impossible to say, but it is doubtless of great interest.

A good view of the organ may be had from this aisle by looking over the tomb in the fourth bay from the chapel.

Several other monuments to former prelates of the church, and to other persons, may be observed in this aisle: one to Bishop Gunning (1675-1684), worthy of remembrance as the author of the "Prayer for all sorts and conditions of men." Near the foot of this monument is a piscina in the wall. A little further we find one to Bishop Heton (1600-1609), occupying the fifth bay, and is perhaps the only instance since the Reformation, of the effigy of a bishop in a cope ornamented with saints; the figures on the left border are those of St. Bartholomew, St. Matthias, St. Andrew, St. Peter, and St. John.

Before passing on to the few remaining monuments we will notice the only two specimens of ancient memorial brasses, of which there were many in the Cathedral, as appears by the numerous incised stones in different parts of the church, many of them were evidently of a rich and elaborate character, but all, with the above exception, have disappeared by the act of the mercenary or the fanatic. The first is a memorial to Bishop Goodrich (1534-1554), a singular instance of a hot reformer commemorated by a brass in which are pourtrayed all the ecclesiastical vestments, he holds his crozier in his left hand, and in his right he carries a Bible from which depends the great seal of England, the bishop having been appointed Lord High Chancellor in 1551; the inscription has been removed. The other is in memory of Humphrey Tyndall, fourth dean of the Cathedral (1591-1614), who is represented in his robes, with a square-cut beard; an inscription is engraved in the border, and the following lines beneath the feet of the effigy:[Pg 86]

We have now an opportunity of noticing the piers which separate Bishop Northwold's work from that of Bishop Hotham; "they are," as Mr. Millers observes, "a combination of the two sorts of column severally in use at the respective times at which the two fabrics were erected; the east side has the small shafts distinct from the main column, and the west side is clustered, and where they meet is a niche for a statue."[49] In the niche on this side is a tablet to the memory of the Rev. James Bentham, Canon of Ely, and author of "The History and Antiquities of Ely Cathedral," a work of acknowledged merit, the result of many years' labour and research. He died in 1794, aged 86.

The monument to Robert Steward, Esq., who died a.d. 1570, is next in our route, and beyond that one to Sir Mark Steward, who died a.d. 1603, both examples of no particular style. In the last bay is the monument erected to the memory of Bishop Allen, whose gravestone we noticed in passing the retro-choir; on the table of the monument is a reclining figure of the prelate in his robes, in white marble, considered to be a good likeness.

Back-screens to mask the stalls, similar to those in the north aisle, have been erected on this side, against which have been placed the monuments of Bishop Moore (1707-1714), Bishop Butts (1738-1748), and Bishop Greene (1723-1738). On the pillar between the two last is a tablet to the memory of William Lynne, gentleman, of Bassingbourne, the first husband of Elizabeth, daughter of William Steward, of Ely, and afterwards mother of Oliver Cromwell.[Pg 87]

The new screens with gates at the western end of the aisles are worthy of notice as specimens of modern work in wrought iron; they were executed by Mr. Skidmore, of Coventry, from designs by Sir G.G. Scott. That in the south aisle was given by G.A. Lowndes, Esq., of Barrington Hall, Essex; and that in the north aisle by Dean Peacock.

Near the Library door is a simple memorial stone[50] to Dean Peacock, the great promoter of the recent restorations, who died in 1858, and was buried in the Cemetery. Just below this is an elegant memorial brass to the Rev. Solomon Smith, M.A., for over forty years a Minor Canon of the Cathedral, and for many years Incumbent of St. Mary's.

Several other memorial remains may be observed in various parts of the church, but to enumerate them or to point them out would exceed our limits, one we may notice in passing, that of Dean Cæsar (1614-1636), which has been removed from a position it long occupied in the north aisle of the Choir, to the junction of that aisle with the closed end of the eastern aisle of the north Transept, near the new pulpit.

We may also notice a new oaken lectern or reading desk near the pulpit, containing a beautifully carved figure representative of the first beatitude, under a cinquefoil canopy, the gift of the Very Rev. the Dean.

"Of fifty-four bishops of Ely," says Mr. Millers, "thirty-five are known to have been buried in this Cathedral, and two in the Lady Chapel. Of these thirty-seven, there are memorials of twenty; some of them very scanty and much mutilated, and many removed from the spots where the bodies of those whom they commemorate repose. Of the other seventeen, there were no doubt, similar memorials, but they 'are perished as though they had never been.'"[51] Since the above was written two[Pg 88] others have been buried in the Cathedral—Bishop Sparke in West's chapel, and Bishop Allen behind the altar screen, as we have noticed; Bishop Turton (1845-1864), was buried at Kensal Green.

The Lady Chapel.

We will now direct the attention of the visitor to this most interesting building, which stands on the north side of the Cathedral, parallel with the Choir, and is approached through a doorway at the north-east corner of the north Transept. This chapel was erected in the early part of the fourteenth century, the first stone being laid on Lady-day, 1321, by Alan de Walsingham, then sub-prior, and the whole was completed a.d. 1349. The works were carried on chiefly under the charge of John de Wisbech, one of the monks, who, it is stated, whilst assisting in digging the foundations, found a brazen pot of old coins buried in the earth, and which proved a great assistance in carrying on the work. This was, perhaps, one of the most beautiful and elaborate specimens of the Decorated style in England; and as Mr. Stewart observes, "must have been a perfect storehouse of statuary and elaborate tabernacle work." Even in its present dilapidated state it will amply repay a careful examination. It was dedicated to St. Mary, and after the Reformation, was (in 1566) assigned by the Dean and Chapter for the use of the inhabitants of the parish of Holy Trinity in lieu of their own church then in ruins, and has since been frequently called "Trinity Church."

This is, perhaps, the widest single-span church in the kingdom, being 46 feet in width; the length is 100 feet, and the height 60 feet to the centre of the ceiling. Its length is divided into five severies, in each of which, on both sides, is a window of great size with four lights and rich tracery, in some of which are fragments of the original stained glass, sufficient to indicate[Pg 89] that they were all, at one period, entirely so filled. The end windows are noble and spacious, the west window having eight lights, and the east window seven, both have transoms, and each with tracery differing from the other, and from the windows in the sides. Both are insertions of a somewhat later date than the building, the east window by Bishop Barnet about 1373, and the other a little later.

The walls everywhere display a rich profusion and variety of ornament, once beautified with colouring and gilding, but some years ago covered with whitewash; a few faint traces of its former splendour may yet be found in various parts of the chapel, enough perhaps to shew that it must have been gorgeous in the extreme.

A low bench table runs along the walls and carries a series of niches with canopies richly decorated, the piers of which rise from the floor, but each is divided into two by a slender pillar rising from the bench table; the arcade on the north side consists of nineteen tabernacles separated by square pilasters of Purbeck marble; there are five sets of three each under the windows, and the remaining four fill up the intermediate spaces between the five groups. The canopy of each of the fifteen tabernacles consists of a head of singular beauty, radiated and inclined forwards, on the apex is, or was, the figure of a saint; above these is a hood-mould crocketed, and terminating with a finial. The other four are wider, and instead of the figure of a saint on the apex each terminates in a group of three elaborately carved brackets or corbels, which support two other ranges of niches in pairs, surmounted by ornamented canopies, and between them runs a roof-shaft, from which spring the ribs of the vaulting, which is similar to that of the stalled Choir. The spandrils of the tabernacle work is filled with diaper work and alto relievos which are supposed to represent some legendary history, most probably that of the virgin.

The south side is similar to the north, except that the range[Pg 90] of tabernacles is broken by doorways. The west end contains eight of these tabernacles, and at the east end a larger niche occupied the centre with others on the sides, but these were altered at a later period. The altar is elevated above the level of the floor, and the niches on the side walls are raised in accordance. Large niches are placed on the sides of all the windows, and a pierced parapet standing on an entablature formed of a receding hollow, runs under the side windows only.

The backs of the niches and indeed many parts of the chapel show remains of rich colouring; the ceiling was painted a rich blue studded with silver stars, the bosses at the intersections of the ribs represented flowers, foliage, and grotesque masks, and some of those along the mid-rib represented emblems of the nativity, crucifixion, the virgin, &c.; they had been richly coloured and gilded, but, like other parts of the building, have been defaced and injured; and every person who sees it must feel a deep regret that so beautiful a building should ever reach such a stage of desecration.

A few modern monumental tablets are placed on the walls, but they diminish rather than increase the decoration: some others have been removed to the entrance, and in 1865 the close pews were taken away and replaced by open seats; the organ has been enlarged and its position changed, which does not improve the appearance of the church; some of the windows have been re-glazed and other improvements effected. The present Incumbent is the Rev. E.H. Lowe, M.A.

The position of the Lady Chapel here is rather unusual, it is generally placed at the east end of the Church; but in some few instances that honourable position was appropriated to the shrine of the local saint; here it was occupied by the shrine of St. Etheldreda, whose final resting place was within the apse of the original Choir, before the Presbytery was built.

[Pg 91]

The Upper parts of the Church.

To those who may feel disposed to explore the upper parts of the church, facilities are afforded by a staircase commencing at the south-west Transept leading to the western Tower; and by another leading from the north Transept; but permission must be obtained, for which an application should be made to the Verger in attendance. The ascent, though tedious, is not dangerous, if due caution be used. Many parts will be found worthy of attention; the timber work of the Octagon is a very curious piece of carpentry executed in English oak, and very massive. A fine view of the interior may be had by standing against the upper tier of the windows at the east end, and looking westward; and another from the great Tower, by looking eastward through one of the openings near the clock face in the Nave. An extensive view of the surrounding country may be obtained from the summit of the Tower, exhibiting a complete panorama of the district, with several churches peeping from among the trees, and the river Ouse tracing its meandering course towards the sea, while corn-fields, meadows, and pastures contribute towards the beauty of the scene.

Exterior of the Cathedral.

After a careful examination of the interior, the visitor will do well to look round the exterior. We will continue our observations for his guidance and assistance, starting from the western front where we began; or by leaving the Cathedral by the north door into the church-yard, we turn to the left hand towards the north-west corner of the building, and proceed eastward.

While we are on the spot it may be well to observe the burial-ground near us, where lie the remains of generation after generation of former inhabitants of the town. Reader, let thy foot tread lightly hereabout, for the dust it presses on is all that remains of the earthly portion of creatures once breathing and[Pg 92] living like yourself. What a lesson is afforded us when we contemplate, on the one hand the works of men of ages long past, but still standing as monuments of their skill and piety, and on the other the graves of the silent dead; the heads which planned and the hands which executed, where are they? Long since consigned to earth. All must feel, more or less, the influence of impressions to which such thoughts and scenes give rise, and may such feelings cause us to remember that we are but dust, and that we must, perhaps soon, become as those who lie beneath our feet!

The church-yard has been closed from burials for some years, and a cemetery has been formed a short distance from the town for the use of both parishes, as well as for the precincts which are extra-parochial. Many of the gravestones have been laid down, others removed, but a few inscriptions might be found which would afford food for meditation to those who may feel inclined to examine them.

At the commencement of our survey we examined the western front, and will now turn our attention to the remains of the north-west Transept. Some persons have doubted whether this wing ever existed, but Sir. G.G. Scott, in his able Lecture on the Cathedral, delivered at the Etheldreda Festival in October, 1873, gave good reasons for believing that it was built at the same time as the Tower and the south wing; and we cannot but think the ruins give strong evidence of its having been similar in all respects to that on the south side. There is in this, as in the other, a grand semicircular arch on the eastern side, and portions of another which probably communicated with some chapel, of which however there are neither remains nor record. It would appear that after the fall of the original wing a new building was begun on the same spot, not however of the same[Pg 93] dimensions, and carried but a few feet and then discontinued. A band of panelling in the western face of the buttress corresponds with the work on the monument of Bishop Redman, who died in 1505, but the fall of the Transept took place some years, probably a century, before that. The arches built within the original arches of the Tower to afford additional support are believed to have been erected in the early part of the fifteenth century.

We have reasons to hope that steps will ere long be taken to raise a fund towards rebuilding this Transept;[52] which would indeed be a grand improvement, and worthy the support, not only of the Diocese of Ely but of the nation at large.

A good view of the Nave may be obtained as it is unobstructed through its whole length. A band of treble billet moulding runs under the lower windows; a double hatched moulding under the second tier; and immediately below the parapet is the ornament called the corbel table; these with the billet moulding round the clerestory windows, are in excellent preservation. The parapet on the wall of the aisle is embattled, that above the clerestory windows is plain. Although at one time battlements ran the whole length on both sides, those on the north were removed nearly one hundred years ago. The windows in the clerestory retain their original form, but those of the two lower tiers have been altered. Over one of the lower windows there appears a date (1662), probably referring to the period of some important repairs or alterations on this side. The removal of the ruins of the old Church of St. Cross, which stood near[Pg 94] this spot, took place in the reign of Elizabeth, when the use of the Lady Chapel was granted to the parish of Holy Trinity.

We next turn our attention to the Octagon, which forms a grand central point from which radiate the four principal parts of the church—the Nave, the Choir, and the north and south arms of the Transept. Here originally stood a large square Norman Tower, which fell down in 1322, and was replaced by the present building; it is not an exact octagon, having four longer sides adjoining the four main portions of the building, and four shorter sides at the angles. The design was a grand one, but whether it was ever fully carried out is somewhat doubtful, the stone-work is carried up to a height a little above the roof of the Nave, &c., but the Lantern above is of English oak covered with lead. From a strong buttress, surmounted by a pinnacle, at each of the angles formed by the walls of the Nave and Choir aisles with those of the Transept spring two massive flying buttresses, abutting octagonal turrets at each angle of the Octagon; these turrets were probably originally designed to be finished with pinnacles, and thus form a corona; between them runs a pierced parapet formerly surmounted by a bold cresting of leaves and other ornaments; and there are bases of pillars at the cardinal points. These pinnacles with the cresting have just been completed in Clipsham stone, by Mr. Wood, of Ely, in a manner highly creditable to his skill, and greatly to the improvement of the appearance of the building. Beneath the parapet, instead of a corbel table, there is a deep hollow, with running leaves, and small ball flowers at intervals. The sides of the Octagon are adorned with an arcade of pointed arches, some of which are pierced and glazed to admit light; the longer sides have six, and the shorter three, of these arches. In each of the turrets is a winding stair communicating respectively with the main parts of the building. The Lantern above is of two stories, the lower, (which is open to the interior of the Octagon) is lighted by windows assimilating with the large[Pg 95] windows in the angles of the Octagon; the upper story is lighted by louvres as adapted to a belfry, for which purpose this chamber was originally designed; the lower windows have been reconstructed, a series of flying buttresses (which had been taken away) have been re-placed against the angle divisions, which are finished with embattled turrets instead of pinnacles, and between them runs an open-work parapet. The whole of the Lantern has been repaired, and the exterior wood work re-covered with lead.

The portion of the north Transept which fell down in 1699, although soon afterwards carefully restored, and the mouldings and ornaments nicely replaced, may yet be distinguished from the old work: the Tuscan door-arch, however, in its northern face, is quite out of place here, not according with the style of the building in which it is placed. The restorations were executed under the directions of Sir Christopher Wren. The northern face of the Transept shows two pairs of Norman windows, the second pair being longer than those in the lower tier; above these is an arcade of small arches, and over these are two high Perpendicular windows, which reach partly into the gable. Over the doorway in the eastern aisle is an original Norman window, and in the western aisle is a replaced one.

The west front of the Lady Chapel[53] is richly decorated with niches, and has a noble window, under which is an arcade of small arches formed entirely in the thickness of the wall, in the back of some of which may be seen traces of coloured decoration; the gable point is adorned with a niche rising above the pierced parapet running up the sides. On each side of the building are five large windows, the tracery of which is much decayed, having been executed in a softer kind of stone than the walls. Between each two windows is a deep projecting buttress surmounted by a crocketed pinnacle; at the angles are double buttresses, on which are two kinds of tabernacles, both are square[Pg 96] and occupy the breadth of the buttress, the upper one is recessed in the body of the buttress, the lower one is open on three sides, and had small pillars at the front angles rising from the set-off and carrying the projecting canopy; the tops being finished with crocketed pinnacles. The east end is not so richly ornamented as the west; the window is a very fine one but not so large as the western one, and there are no niches on the sides nor beneath it.

The north side of the Choir is somewhat hidden by the Lady Chapel, which stands parallel to it, although the latter is much shorter; but a better view may be had by going between them. An opportunity is also thus afforded of observing the original Norman windows of the triforium of the Transept.

The windows of the aisle are uniform in size and shape, those of the triforium are nearly similar, but all were originally lancet-shaped, but altered to their present form in the latter part of the fifteenth century. The aisle roof of the two western bays of Bishop Northwold's work (the six eastern bays) was perhaps originally as high as the other parts, but altered at a later period; the tracery of these windows on the north side remains, but on the south side there is a difference which should be noticed. The lighter style of architecture and the large windows of the fourteenth and fifteenth centuries made the support of buttresses necessary, in this instance they are deep, and surmounted by crocketed pinnacles; on the sides of many of them are gargoyles, or water-spouts of grotesque figures; flying buttresses are sometimes used in addition, reaching from the side buttresses to the clerestory walls, thus forming an important addition to the support as well as to the external beauty of the fabric: of this the exterior of the Choir of Ely Cathedral is a splendid proof.

The east end of the Cathedral is one of the finest specimens extant of an Early English east front. It is divided into three stories; the lowest has three lancet windows of nearly equal[Pg 97] height; the next tier has five windows of the same shape, side by side, the centre one being higher and those on the sides gradually lower; the third story, which is within the gable, contains three lancet windows, not seen in the Choir, but giving light to the space between the ceiling and the roof. There are several niches for statues, but no figures; and the spandrils of the window arches are relieved by quatrefoils and other ornaments. The gable point is adorned with an ornamented cross, which has been restored at the expense of Lady Mildred Hope; and a crocketed pinnacle at the south-east corner has been given by A.J.B. Beresford Hope, Esq. Rather more than a century ago this end was about two feet out of the perpendicular, but was skilfully restored by Mr. Essex, the architect.

The eastern faces of the aisles appear as wings to the end of the Choir, and are flanked with double buttresses at the angles, upon which are set larger pinnacles crocketed. The windows lighting the two chapels at the end of the aisles were probably inserted when the chapels were erected; that in the north aisle is set in the wall, while that in the south aisle projects beyond the wall nearly to the depth of the buttress.

The south side of the Choir is similar to the north, with the exception before mentioned—the two western bays of Bishop Northwold's work, in each of which the opening in the triforium is formed into two arches of a style differing from the adjoining portion of the building, but which have the appearance of originality. The walls of the triforium, both in the Choir and Nave were not originally so high as we now see them, but no doubt were heightened when the larger windows were inserted.

The south end of the Transept differs from the north in the arrangement of the windows; in the gable is a low Perpendicular window of seven lights, sunk within a deep recess; the north end has in the upper tier two large Perpendicular windows side by side. There is also a difference in the gable and pinnacles. Some corbels in the lower part of the wall would[Pg 98] indicate the former existence of an adjoining structure but what it was we cannot undertake to say.

Considerable anxiety has been felt as to the stability of some portions of the south side, and it has been found necessary to underpin some of the buttresses of the Choir and the walls of the Transept with large slabs of Yorkshire stone. It has also been deemed desirable to circumscribe the two round towers of the south west Transept with iron bands.

The south entrance to the Cathedral is through a portion of the eastern side of the Cloisters. The arch of entrance however, does not harmonise with the other portions of the Transept, and was doubtless an insertion, probably at the same time as a similar one in the north Transept, and by the same architect. It passes through a beautiful Norman door-arch in the south wall of the Nave, as described in p. 41. Near this are the remains of an enriched arch, recently discovered when the wall was repaired; if it is in its original position it must have formed a communication from the Cloisters to that portion of the western aisle of the south Transept which now forms the Vergers' vestry.

The south side of the Nave is nearly similar to the north, but there is no corbel table under the embattled parapet of the aisle: the aisle windows have, with one exception, been restored to their original form; those in the second tier retain their altered shape; but those of the clerestory, as on the north side, are original.

The apsidal Chapel of St. Catharine, adjoining the south-west Transept, has been rebuilt in accordance with the original structure.

[Pg 99]

Dimensions of the Cathedral.

INTERIOR.

EXTERIOR.

[Pg 100]

Having finished our survey of this noble edifice, we will proceed to make a few observations on the remains of the monastery, which will form the subject of a separate chapter. In order to bring them all conveniently before the visitor we will retrace our steps for a short distance round the east end of the Cathedral, and commence with the buildings on the north side of the Lady Chapel.

[Pg 101]

&c. &c.

E will commence our notice of these remains of former ages by observing that as they now, in a great measure, form private residences, they can only be seen by visitors externally; it will be sufficient, therefore, for us to point out the several localities, and state, as far as we are able, their original uses, and present appropriation.

On the north side of the Lady Chapel stands an old square tower, now used as a belfry for the parish of the Holy Trinity, but it is not certain for what purpose it was originally used. Adjoining this is a building recently erected on the site of a former one, comprising a practice-room and school-room for the Choristers, with a residence for the master; beyond this, eastward, is an arched gateway communicating with the public street: this was closed up for many years, but has lately been re-opened; over it is the muniment room of the Dean and Chapter. Next is a residence for one of the Vergers, and beyond that is another dwelling house; the next portion is in a dilapidated state, and at the present time is used as a mason's yard and workshop for carrying on the works in progress: these occupy the site of the ancient Sacristy. A little further in the same direction stands the residence of one of the prebendaries, on the site of the ancient Almonry; there are in this building[Pg 102] some remains of Early English vaulting, and at the east end may be observed the remains of a triplet window of the same period; the middle window has been destroyed by the insertion of a modern window, now blocked up, but the stone work of the side windows can easily be traced.

We next proceed round the east end of the Cathedral to the south end of the Transept, a few yards south of which may be observed a range of Early English arches, each containing a double arch, which is again subdivided, but all have been long blocked up; this was a portion of what was called the "Dark Cloister." To the eastward of these is another range of arches with piers about twelve feet in height, some of which are comparatively perfect; these piers are alternately cylindrical and octagonal, the octagonal columns presenting alternately a side or an angle in front. The arches are profusely enriched with mouldings; the walls above were pierced with a row of small windows with semicircular heads. These piers and arches may be seen on both sides of the road-way, corresponding with each other like the nave of a church, and afford a good example of "highly refined Norman work." A beautiful arch at the end leads to another series, and beyond this, in one of the prebendal houses, is a vaulted room which seems to have been erected about the period of the transition from the Norman style to the Early English.

They form a church-like building, and by some historians have been described as the remains of the Conventual Church erected at the restoration of the monastery by Ethelwold, a.d. 970, and including the ruins of St. Etheldreda's own church, founded a.d. 673. This, if correct, would make it one of the oldest specimens of the Saxon style in the kingdom. This statement has been contradicted by others, and Professor Willis, who had devoted much attention to these buildings, stated that they are the remains of the Infirmary of the monastery, with a chapel attached, and erected many years subsequent to the pe[Pg 103]riod mentioned; the portion we have likened to the nave of a church—now affording an approach to several residences—was the body of the Infirmary; the portion east of the arch was no doubt the chapel, and the vaulted room spoken of, the chancel. This statement derives some confirmation from the existence, in a similar position, of the Infirmary at Peterborough, and at some other places. The style of architecture too denotes a period subsequent to the erection of the nave of the Cathedral.

The house on the north side, adjoining the chapel before mentioned, now a prebendal residence, appears to have undergone little alteration since its erection; the parapet, and the almost flat roof covered with lead, appear to be original. This was probably used by the master of the Infirmary as a residence, and a hall to entertain the aged and infirm separately from the sick monks, being near the chapel and the Infirmary. The next house westward, now the residence of a Minor Canon, is said to have been the "Painted Chamber," but to what use it was applied we are not able to say.

The residence on the south side of the Infirmary, opposite to the last mentioned, now the residence of a prebendary, stands on the site of the "Cellarer's Lodging"; and the next house, eastward, also a prebendal residence, on the site of the "Black Hostelry," or near it.

The Dormitory of the monks was generally a long narrow room, standing north and south, near the church, convenient for the monks' attendance on the nocturnal services; here it was situated near what has been pointed out as part of the "Dark Cloister," not far from the south end of the Transept, and probably the communication was by a passage leading to a winding stair still standing in the south-east angle of the Transept.

The Chapter House is believed to have stood between the north end of the Dormitory and the Transept, similar to Peterborough, having its entrance from the east side of the Cloisters; nothing however remains to shew its exact position; both Mr.[Pg 104] Bentham and Mr. Millers describe it as having stood on the space now occupied by the Dean's flower garden, where are some remains of a building in the Norman style, but which has since been stated to have been the Monks' kitchen; but in consequence of the many alterations which have been made at different periods, the demolition and removal of some buildings, and the ruin of others, it is difficult to speak with certainty. The monastery was a large one, and the buildings numerous for the various requirements, of many of which no traces remain, nor is it known where they were situated.

The only part remaining of the Cloisters is the north-east angle, through one part of which is the south entrance to the Cathedral. The inner wall of the north side and part of the east side are yet standing, with the openings partially bricked up, but the roof is gone. These are not the original Cloisters, but occupy nearly the same position as the earlier ones.

The Refectory, according to Professor Willis and others, stood at the south side of the Cloisters, on part of the space now occupied by the Dean's garden, a portion of a very thick wall, in which are some Early English corbels, is still remaining.

Our attention will next be directed to the Deanery, sometime thought to have been the Refectory, but was more probably the Guest-hall for the entertainment of strangers and others visiting the monastery. It is a large building, standing like several others upon vaults, and appears to have been built in the latter part of the thirteenth century; it has, however, undergone considerable alterations at different times, and now presents but few remains of that period, although the walls, buttresses, and vaults bear strong characteristics of it. This formed the northern side of a small court, around which were buildings forming the residence of the priors of the monastery, of which also the next house, now the residence of a prebendary, formed a part; the vaulting of this is very ancient, probably in the early part[Pg 105] of the Norman era, but the superstructure is of a later period. There is a fine fourteenth-century fire place in the house.

Adjoining this house, at the south-west corner, next the garden, stands a building generally known as “Prior Crauden’s Chapel,” having been founded by John de Crauden, prior of Ely (1321-1341), as a private chapel attached to his residence, and built under the direction of Alan de Walsingham, the skilful architect of the Octagon. It is most interesting for the rich remains of architectural beauty which it displays. "It is," says Mr. Rickman, "one of the most curious and valuable Decorated remains in the kingdom; its ornaments are of the best character, and well executed, and the whole design is of great excellence." It belongs to the Deanery, but was for many years used in connection with the adjoining house, having been converted into three rooms by floors inserted; these floors have been removed, and the chapel in some degree restored; some of the windows which had been closed have been re-opened, and the eastern one filled with stained glass, the gift of Mrs. Smart. It is now used as a private chapel for the Grammar School.

The Chapel stands upon a vault, the floor of which is nearly upon a level with the surrounding ground; the vault has a groined ceiling supported by plain columns, and the original en[Pg 106]trance was directly under the west window of the Chapel, but is now on the north side. The entrance to the chapel is by a staircase which winds within the buttress at the north-west angle. The length is divided into four compartments by clustered columns, from the tops of which sprung the ribs of the vaulting. The first compartment is plain, and was probably the ante-chapel: the second is ornamented with a double niche, richly decorated with small columns, pinnacles, crockets, &c.; in the lower niche the wall is pierced for a small window; the upper one probably contained a figure: the third and fourth compartments have long pointed windows, separated into two lights by a mullion. The east end has ornamented niches in the angles, it projects a little beyond the compartments, forming a recess, in which is the large window, divided into five lights, with elaborate tracery. The floor is elevated at the east end for the altar, and is formed of mosaic tiles; upon the raised portion is represented the Fall of man, and the remainder is ornamented with various other figures and devices; some portions are nearly perfect, but the colouring is greatly faded. Some remains of fresco painting were discovered on the walls when the restorations were in progress, and probably the chapel had originally been richly embellished with colours and gilding, in the style of the period in which it was built.

We have now an opportunity of glancing at some of the other portions of the monastic buildings, which formerly extended from the Prior's Lodge to the gateway, but are now somewhat short of it, as a garden intervenes.

The first, adjoining the Deanery, formerly the Registry, but originally part of the residence of the former priors, was called “The Lodge,” and contained the great hall, named "The Fair Hall," the high sharp-pointed windows of which still remain in the first story; from the corner of this hall a gallery or passage led to the prior's chapel just mentioned. This formed the western side of the small court before spoken of, around which the[Pg 107] residence of the priors was built. This is now the residence of the Rev. R. Winkfield, Head Master of the Grammar School, and the adjoining house, formerly the school house, is used as a dormitory, &c. for the pupils. Next to this is the residence of the Rev. W.E. Dickson, Minor Canon and Precentor, which brings us to the end of this series of the buildings. These all stand upon vaults or crypts, which were probably used as cellars or store-houses, and the superstructure as lodgings for guests of the prior, being near his residence; these buildings formed the western side of the monastery, and were built about 1180, but raised and altered by Alan de Walsingham, about 1320.

This brings us in our progress to the great gate of the monastery, called “Ely Porta,” or more frequently, the "Porter's Lodge." It is a large and massive pile, having square towers at the angles, and was begun by Prior Buckton shortly before his death in 1397, and probably finished by his successor, Walpol, as it is sometimes spoken of as "Walpol's Gate." On the[Pg 108] eastern side the opening is a single arch of great span, but on the western side there are two, a large one—but smaller than that on the eastern side—for carriages, and a still smaller one for foot passengers. The north end of the building is occupied as the residence of the Porter, who is also a Verger of the Cathedral; the south end with the rooms above, including a large one over the archway, is used for the Cathedral Grammar School, or King’s School, founded in 1541, by Henry VIII., and is under the control of the Dean and Chapter. The foundation is for twenty-four boys, who are elected without restriction as to birth or residence, and are entitled to some privileges in reduction of school fees. The school has lately been re-modelled by the Dean and Chapter, in order to bring it up to the requirements of the age, and extensive alterations have been made to provide accommodation for boarders.[54] The school is not restricted to the foundation boys, but is open to all who are prepared to accede to the terms, and is now in a flourishing condition.

We will now cast our eyes over the Park, which was much improved by the exertions of Dean Peacock; it was formerly divided into several inclosures by walls or hedges, but is now in two pieces, separated by iron fencing, and has been planted in various parts with ornamental trees; a pathway runs round the south-eastern portion, and another across it, and by a pair of iron gates (closed at night) a communication is formed with a street at the lower part of the city. On the south side is an artificial mound generally called "Cherry Hill," the origin of which is uncertain; but it was probably occupied by a mill for the use of the monastery; Mr. Millers thought it once formed the site of a castle erected for the defence of the monastery, which in early times experienced some of the vicissitudes of[Pg 109] war; it is covered with trees and shrubs, and a winding path leads to the top, where there is a kind of summer-house. A good view of the adjacent country may be had from the summit, particularly towards the east, south, and west.

From the foot of this hill, extending to some length westward, is a range of buildings used in part as stables and coach-houses, and partly as workshops and store-houses for stone and materials required for the repair of the Cathedral and buildings; this was the small grange within the precincts, a larger one stood more to the westward, outside the monastery.

We will pass through the gateway and examine its western front which remains nearly in its original state; there are some niches and canopies, and several shields but their bearings are nearly all obliterated. The gates are closed at night.

While here we may notice at a short distance to the left, at the south-west corner of the open space, the new Theological College, designed for candidates for Holy Orders desirous of religious preparation, theological instruction, and pastoral training; and is open to students who have graduated at one of the Universities: of which the Rev. Dr. Luckock, Canon of the Cathedral, is principal. The building is of red brick with stone dressings, and contains chapel, lecture room, studies and dormitories for the accommodation of twelve students, with the usual offices.

Our course will now take us northwards towards the Cathedral, outside the western boundary of the monastery, thus giving the opportunity of observing the other side of the buildings we noticed after Prior Crauden's chapel: that they are of great antiquity is evident by the flat Norman buttresses on part of the western wall; but they have at various times undergone considerable alterations which have done much to obliterate their original appearance, and alter the character of the buildings. We first pass the house occupied by the Rev. W.E. Dickson, then those occupied by the Rev. R. Winkfield, includ[Pg 110]ing the house standing a few feet in retreat, originally part of the prior's residence, which adjoins the western end of the Deanery; the remaining space to the south-west Transept being occupied as a private garden by the Dean. On our left are the gardens belonging to the Bishop's Palace; and this brings us to the west end of the Cathedral, from whence we started on our tour of observation.

The Cathedral is too much encumbered by buildings to allow us to take the whole of it into view from any one position; but several good points of view may be found at moderate distances, ranging from south-west to east, which will, we think, amply repay those who may have leisure and inclination to go a short distance to observe them.

Having endeavoured to point out, to the best of our ability, the objects most worthy of notice in the Cathedral, as well as others around it within the precincts of the ancient monastery, we will add a brief notice of a few other buildings which are without the precincts, but should not be passed without some observation.

The Bishop’s Palace.

This is a large mansion consisting of a centre and two wings, nearly adjoining the west end of the Cathedral, being separated from it only by a public road. But little is known of a palace here prior to the time of Bishop Alcock, who erected the present wings with a noble hall or gallery about the end of the fifteenth century: his arms, and those of the see may be seen in the face of the eastern wing. The gallery adjoining the western wing was erected by Bishop Goodrich in the third year of the reign of Edward VI., whose arms appear in stone on the centre of the lower panels of the bay window; on the panel to the right of this are the arms of Bishop Goodrich, and on the left panel, the same arms impaling those of the see; on the left-hand splay[Pg 111] panel is carved the "Duty towards God," and on the right-hand splay panel the "Duty towards our neighbour." The more modern part of the house next the garden is said to have been erected by Bishop Keene, but was perhaps only altered by him, as there was on the eastern side of the part projecting into the garden, a stone door arch apparently much older than this part of the house; and another on the eastern side near the chapel; this has been removed, and now forms the servants' entrance from "the Green."

The interior of the house has been much improved, and the chapel in the eastern wing fitted up with taste, the windows being filled with stained glass. The gardens are neat and kept in excellent order. There are in the Palace several portraits of bishops and others, also a curious painting called the "Tabula Eliensis" representing the forty knights who were quartered on the monastery by William I., each with his shield of arms, and a monk as his companion. There is also a picture 6 ft. 6 in. long and 2 ft. 2 in. high, representing the funeral of Bishop Cox, in 1581. Bishop Turton left by his will two pictures, to remain in the palace; and there is a good library belonging to the see.

Formerly the bishops of Ely had residences at several other places, viz., palaces at Somersham and Downham; Wisbech Castle, and the Manor-houses at Doddington, Fen Ditton, and other places in Cambridgeshire; and Hatfield, and Hadham, in Hertfordshire; there were ten manor-houses and places of residence belonging to the Bishop of Ely at the time of Bishop Barnet. The London residence of the bishops of Ely was formerly in Ely Place, Holborn, which was occupied successively by forty-one bishops, extending over a period of nearly five hundred years; it is now in Dover Street, Piccadilly, in a house built by Bishop Keene, on the site of Albemarle House and other messuages, which were purchased for the see in 1772.

The "Green" in front of the palace was formerly a piece of waste ground; a few years ago it was laid out and planted with[Pg 112] shrubs, and fenced off with a neat iron railing, at the expense of Bishop Turton, reserving to the public the right of free admission from eight a.m., until an hour after sunset; this improvement has, we regret to say, through an unfortunate misunderstanding, been done away, and it now presents an appearance of desolation and neglect much to be deprecated. We hope something may be done in order to remedy this sad state, and render it more worthy of its position in front of one of the noblest Cathedrals in England, and of the residence of the chief pastor of a large and important diocese.

The house standing in a garden with iron gates, nearly opposite the bay window in the palace stands upon the site of the residence of the chaplains of an ancient chantry founded by Bishop Northwold, called "The Chantry on the Green."

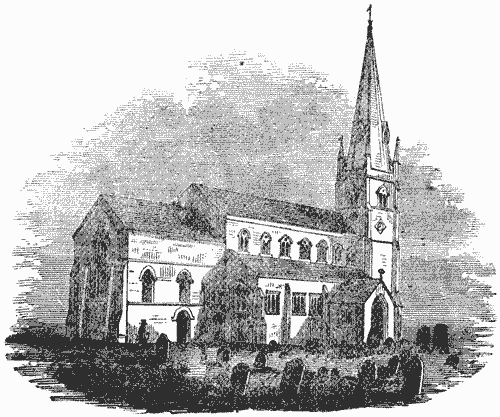

St. Mary’s Church.

This church will be found a short distance to the westward of the Palace, standing in a large grave-yard with a row of lime trees in front. It is a neat building having a Nave with aisles,[Pg 113] a Chancel and a Tower surmounted by a spire at the west end. The Church is a mixture of the Transitional and Early English styles, but the Tower and Spire are in the Decorated style. It was built by Bishop Eustachius in the early part of the thirteenth century on the site of a former church. "It contains," says Mr. Millers, "some curious architectural remains, particularly the north and south[55] door arches, which are pointed and decorated with different sorts of Norman mouldings; but the columns have slender detached shafts, united under one capital wreathed with foliage, as in the Early English style. Of this mixture there is no other specimen at Ely, and I have not met with an account of such an one in any other place." "In the Tower of the Cathedral we have the Norman style with pointed arches; in the Galilee, built a very few years after, we have the Early English style; but each of these is perfectly and characteristically distinct: in the interval, between the erection of one and the other, the public taste had undergone a change. It seems as if the work before us had been erected in that interval, and that the architect was disposed to adopt the new style without quitting the old one."[56] The Galilee of the Cathedral was erected about 1215, and it is not improbable that this church was erected shortly before, and as it is stated during the episcopate of the same bishop.

The columns of the Nave are simple and cylindrical, the capitals are Norman, and nearly similar to some of those in what has been called "The Infirmary," but the high pointed arches which they support are of a shape usual in the age in which this church was built, and some of the mouldings are Early English. The windows in the aisles and clerestory are Perpendicular, probably inserted at a later period, when the church was repaired. The Chancel is Early English, with an inserted[Pg 114] Perpendicular east window; there is a double sedile under one trefoil arch, and a double piscina in the south wall.

A chapel on the south side is also Early English; it has a triple lancet east window, and a west window of two lights with a quatrefoil in the head; there is here also a double piscina in the south wall. A portion of this chapel was partitioned off for use as a vestry, but is now thrown open to the church.

The church was repaired and pewed, and a gallery erected on the south side in 1829-30, but this gallery, with another at the west end erected many years before, have lately been removed, the tower arch opened, and the nave restored, the floor raised, and the passages and other portions laid with Staffordshire tiles; the nearly flat plastered ceiling is divided into compartments by moulded ribs of wood, and the panels painted in distemper, among the patterns of which may be seen the sacred monogram, the arms of the see and of the Dean and Chapter. The pews erected in 1829 have been removed and replaced by open seats of oak, free to all, and a new oaken pulpit resting on a pillar of stone, the gift of the Bishop, placed against the chancel arch on the south side. A new font, the gift of one friend, and an elegant brass lectern the gift of another, have assisted in the general improvement. A fine-toned organ, built by Bishop and Sons, removed from Trinity Church, Paddington, has been erected at the east end of the north aisle, on a site formerly occupied by a large faculty pew belonging to "Chantry House," alluded to in p. 112.

The chancel has been partially rebuilt and thoroughly restored, and fitted with appropriate seats in oak, at the cost of the Ecclesiastical Commissioners.

The church is warmed by hot water, and lighted by gas. A fine peal of eight bells hang in the Tower. There are no ancient monuments, but a few modern tablets on the walls record the deaths of some former residents of the parish; and a new and elegant memorial brass has been put up in the chancel to[Pg 115] the Rev. Solomon Smith, M.A., Minor Canon of the Cathedral, and for forty years incumbent of the parish.

The restoration of the church, the purchase of the organ, the fittings, &c., has been effected by subscriptions at a cost of nearly £2500, but a further sum is still required to repair and restore the tower and spire, improve the church-yard, &c.

The living is a vicarage, in the patronage of the Dean and Chapter; the present incumbent is the Rev. John Franey, M.A. Minor Canon of the Cathedral.

The Grange.

The premises adjoining the church-yard on the west stand on part of the ground formerly occupied by "The Grange" of the monastery, and the house is stated to have been at one time the residence of the Protector, Cromwell. The "Sextry Barn," one of the largest in the county, perhaps in the kingdom, stood here, and is stated to have been 291 ft. 6 in. long, and 39 ft. 5 in. wide, inside; it was built about the middle of the thirteenth century, and taken down in 1842, and the space once occupied by the monastic "farm-yard" is now covered by modern buildings, part of which at least, are used for as good purposes; on one part excellent and commodious National Schools for both boys and girls have been erected, and on another a series of substantial and comfortable Almshouses for aged men and women, inhabitants of Ely.

St. John’s Hospital.

The site of this hospital is a few hundred yards further west; the remains of it are very scanty, but sufficient to show that the buildings were of an early age, although not enough to enable us to give an opinion as to their form or extent; what is left has been converted into use as farm buildings, one portion near the dwelling house, and another a short distance from it. There were formerly two hospitals in Ely, this dedicated to St. John[Pg 116] the Baptist, and another to St. Mary Magdelene, the site of which is now unknown. According to Mr. Bentham, the revenues of the two were united, and the communities associated by Bishop Northwold about a.d. 1240, by whose ordinance the united hospital was to consist of thirteen chaplains and brethren, who were to have a common refectory and dormitory, and to wear an uniform habit, and be under the immediate government of the Sacrist of Ely. It seems that this was not, like other hospitals of the kind, dissolved by Henry VIII., for it was held under the mastership of Edward Leedes, the second prebendary of the eighth stall, who was also chancellor of the diocese under Bishop Goodrich, in the reign of Queen Elizabeth; he was at the same time chaplain to Archbishop Parker, and Master of Clare Hall, Cambridge; he afterwards obtained from the queen a grant of the hospital, and with the consent of Bishop Cox, he surrendered the whole site and possession to his college; his grant to the college was confirmed by the Dean and Chapter in 1562, and the property is now in the hands of the Master, Fellows, and Scholars of Clare College, Cambridge.

[Pg 117]

APPENDIX I.

THE CATHEDRAL ORGAN.

The following brief account of this fine instrument, furnished by the Rev. the Precentor, may be interesting to many:—

At a very early period the Cathedral or Conventual Church contained an organ or organs: this clearly appears from records preserved among the muniments of the Chapter; and at the dissolution of the Abbey we read that there were "two pair of organs in the Quire, and one pair in the Lady Chapel." It is highly probable, from indications in the stone-work, that one, at least, of these Pre-Reformation organs was placed in the triforium of the present nave, on the north side. It is well known that the Quire at that period extended westward across the Octagon: the organ therefore was situated near the gates, and above the stalls of the ancient Quire, nearly as it is now in the modern Quire. The Great Rebellion swept away organs from Ely, as from all other English Cathedrals; and during this dreary period the Choral Service was suppressed and prohibited. After the Restoration, viz., about the year 1685, a new organ was erected by the celebrated Harris; and it is remarkable that this organ remained in daily use up to the year 1831, without material alteration, not even a swell having been added to the original great and choir. It is worthy of mention, that during the extensive repairs of the Cathedral, conducted by the able architect, Essex, about the middle of the last century, a proposition to place the organ at the eastern end of the Quire was seriously urged by him on the consideration of the Dean and Chapter. He alleged that the instrument would "conceal much cold unornamented wall!" The condition of Harris' organ had[Pg 118] become dangerously crazy when Messrs. Elliot and Hill were employed to rebuild it, or rather to insert a new instrument in the old case. This they did with great ability and success, and the organ which comprised ten stops in the great, five in each of choir and swell, and one set of pedal pipes, was a fine specimen of the art as it was understood and practised about forty years ago. When the restorations were commenced which have resulted in the present splendid embellishment of the Cathedral, the organ-screen was removed; and in 1851 the organ was re-modelled and altered to the CC compass, enclosed in its costly and exquisite case of carved oak, and suspended from the triforium of the Choir, above the stalls on the north, or (at Ely) Decani side. Provision was made for an adequate pedal organ, lodged in the triforium gallery, where an admirable site was also secured for the swell-box: the choir organ is beneath the great, and behind it, in a picturesque stone tribune or loft, the organist was seated at the manuals. Three stops, viz. a manual Double of wood and metal, 16 feet tone; a metal Quint of 6 feet; and a Posaune of 8 feet; were added to the great organ, which then possessed a tone of great power and beauty.

By the liberality of the Chapter, the completion and great enlargement of the organ was effected in the year 1867. Messrs. Hill have introduced a new swell of 13 stops throughout, with a pedal organ of adequate dimensions. To this pedal organ the principal inhabitants of the city of Ely contributed the important addition of a Sub-base of 32 feet tone, at a cost of upwards of £80. The whole instrument has 40 sounding stops, and it will be seen from an inspection of the list that every stop, even to the clarionet, is complete and entire, extending through the full compass of its manual. The tone of the full organ, with swell coupled, is very grand. The reeds, like all the stops of this class manufactured by Messrs. Hill, are positively models of smoothness, equality, and power. The two 8 feet reeds of the great, and the 16 feet reed, with the Horn, of the swell, are[Pg 119] specimens of which the builders may well be somewhat proud. All the compound stops are very brilliant. Equal temperament has been applied to the tuning.

Great Organ—CC to F in Alt.

Swell Organ—CC to F in Alt.

Choir Organ—CC to F in Alt.

Pedal Organ—CCC to E.

Couplers.

Six composition pedals, three to the Great, acting simultaneously on Pedal: three to Swell.
Total number of Pipes, 2421.

[Pg 120]

APPENDIX II.

STATEMENT OF RESTORATIONS ACCOMPLISHED AND REQUIRED,
AND OF SUMS EXPENDED THEREON.

The following extract from a Memorandum issued by the Dean in October,
1873, is appended, by permission, to show the progress of works
done, and the amount expended; as well as of works
required to complete the restorations.

The following Memorandum of Works accomplished or required, was issued by Dean Goodwin, January, 1866:—

"The time seems to be now come, when the completion of the great work of restoration, commenced under Dean Peacock and guided for many years by his care and judgment, may be looked upon as being within reach.

The works which have been hitherto accomplished may be enumerated as follows:—

[Pg 121]

The expense of the restoration of the Cathedral cannot be given with perfect accuracy, but the account which is here subjoined will be near enough for all practical purposes.

It would thus appear that since the commencement of the great works in 1845 to the present time, the sum of £27,185 has been expended, of which £15,200 has been furnished by the Dean and Chapter. It ought to be added that the sum contributed by the public includes a donation of £500 by the Bishop of the Diocese, and about £1000 contributed by members of the Chapter in their individual capacity.

It must be observed, however, that the sum just mentioned by no means represents all that has been done for the Cathedral. The following works and gifts are not included:—

Neither does the sum mentioned as having been contributed by the public include a legacy of £500 from the late Miss Allen, daughter of Bishop Allen, (which has been appropriated to a new pulpit, now in progress from the designs of G.G. Scott, Esq.,) and a legacy of equal amount, from Bishop Turton, for the purpose of re-paving the Nave.

It may be safely stated that the expense of the works and the gifts above specified has not been less than £13,000; the windows alone have cost nearly £9000. The entire sum already expended upon the Cathedral will thus be found to exceed £40,000.

In order to bring the Cathedral into such a condition as would appear satisfactory to those who have taken part in its restoration, the following works require to be done:—

From this statement then it would appear that an expenditure of from £7000 to £8000 would complete the principal necessary works of the Cathedral, with the exception of the rebuilding of the north-west Transept, which it will probably be deemed desirable to omit from consideration, at all events until all the other works specified have been finished.

Call the sum necessary £7000; this is not much to raise for so good a purpose; and when it is considered what the effect of the expenditure of such a sum will be, it seems difficult to believe that the money will not be forthcoming.

The Dean and Chapter have not shown themselves hitherto insensible to the primary claim which the Cathedral has upon them, nor are they likely to do so in the completion of the great work which they have now had in hand so long. But the Cathedral has claims upon others beside the Capitular body. It has claims, which it is believed will be once more acknowledged by the wealthy landowners of the Diocese, by the Colleges of Cambridge, several of which are intimately connected with Ely, and finally by lovers of architectural beauty and ecclesiastical propriety throughout the country.

To all persons, therefore, who take an interest in Ely Cathedral on Diocesan or any other grounds, an appeal is now made, and they are respectfully urged to make one final effort for the purpose of completing a work which has been so well begun, and hitherto so prosperously carried out.

H. GOODWIN."

"The Deanery, Ely, January, 1866."

Since the issue of the foregoing memorandum further progress has been made in the Restoration of the Cathedral.

Several works still remain to be effected before the restoration can be considered as complete.

A generous offer has been made for the interior decoration of the Lantern and vault of the Octagon, which there is every reason to hope will be executed at no distant time.

C. MERIVALE.

The Deanery, October, 1873.

Summary of Expenditure upon Restorations, Memorials, and Special Works executed in Ely Cathedral within the last thirty years.

[Pg 126]

Lists of those persons who have contributed from time to time to these Restorations have been published. The general amount of these offerings are shown by the following summary:—

Besides the Restorations of the Cathedral, and the defraying of numerous expenses incident to their position as patrons or proprietors, considerable works have been carried on by the Dean and Chapter during the last thirty years in providing houses for the Masters of the Grammar School, converting the Great Gate into suitable Schoolrooms (towards which friends have contributed £575, including £325 by the City of Ely), partially restoring Prior Crauden's Chapel, improving the Deanery and the Canons' houses, building new Schools for the Choristers, with a Master's house, turning part of the old Sacristy into a muniment room and Verger's lodge, executing important sanitary works, laying underground drains, laying out and planting the grounds around the Cathedral, &c., at a cost altogether exceeding £12,000, exclusive of ordinary repairs. Total cost of Restorations and Improvements about £70,000.

Some of the works named as being required to be done have been completed since the issue of the Dean's statement in 1873, viz., the decoration of the Octagon and Lantern; the three figures of the Apostles required to complete the series in the Octagon; the floor of the north arm of the Transept; and the erection of pinnacles on the exterior of the Octagon.

Illustrations of Ely Cathedral.

---

T.A. HILLS AND SON,

GENERAL STATIONERS,

Printers, Publishers, Booksellers,

&c., &c.

MINSTER PLACE, ELY,

Have constantly on hand a large and well-selected Stock of

FRITH’S

PHOTO-PICTURES OF ELY CATHEDRAL,

MOUNTED AND UNMOUNTED.

Panoramic size, 11 in. by 6 in.,	exclusive of mounts,	about 17	varieties.
Universal series, 8½ in. by 6⅓ in.,	"	30	"
Cabinet series, 6 in. by 4 in.,	"	25	"
Carte de visite series, 4 in. by 2 in.,	"	30	"

Lists may be had on application.

A SELECTION of 20 PHOTOGRAPHS, Cabinet size, mounted,
and bound in a volume for the Drawing Room table, 21s. cloth.

Any of Frith's Photographs of English and Foreign Scenery,
Cathedrals, &c. can be supplied.

A large SELECTION of PHOTOGRAPHS by various artists, mounted and unmounted, from 6d. to 3s. 6d. each.

---

Architectural Gems of Ely Cathedral,

A series of beautiful Engravings of the various styles of Architecture.

1s. sewed.

A Packet of Six colour-printed Views, in wrapper, 1s.

And a variety of Fancy Articles.



FOOTNOTES

End of the Project Gutenberg EBook of Ely Cathedral, by Anonymous

*** END OF THIS PROJECT GUTENBERG EBOOK ELY CATHEDRAL ***

***** This file should be named 20924-h.htm or 20924-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/2/0/9/2/20924/

Produced by Juliet Sutherland, Linda Cantoni, and the
Online Distributed Proofreading Team at http://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
http://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, is critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at http://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
http://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at http://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit http://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including checks, online payments and credit card donations.
To donate, please visit: http://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart is the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     http://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
