University of Kansas Publications
Museum of Natural History

Volume 12, No. 13, pp. 553-573, 7 figs.

March, 2, 1964

Thoracic and Coracoid Arteries In Two Families of Birds, Columbidae and Hirundinidae

BY

MARION ANNE JENKINSON

University of Kansas
Lawrence
1964

University of Kansas Publications, Museum of Natural History

Editors: E. Raymond Hall, Chairman, Henry S. Fitch,
Theodore H. Eaton, Jr.

Volume 12, No. 13, pp. 553-573, 7 figs.
Published March 2, 1964

University of Kansas
Lawrence, Kansas

PRINTED BY THE STATE PRINTER
TOPEKA, KANSAS
1964


[Pg 555]

Thoracic and Coracoid Arteries In Two Families of Birds, Columbidae and Hirundinidae

BY

MARION ANNE JENKINSON


CONTENTS

PAGE

Introduction 555

Methods and Materials 556

Myology and Angiology: Hirundinidae 557
Myology 557
Angiology 558

Myology and Angiology: Columbidae 560
Myology 560
Angiology 560

Summary of Arterial Arrangement 562

Discussion and Conclusions 562
Individual Variation 562
Intrafamilial Differences 563
Interfamilial Differences 565

Summary 567

Literature Cited 573


INTRODUCTION

Most descriptions of the circulatory system of birds, largely the work of Glenny, have dealt with arteries of the neck and thorax in a wide variety of species. As a result of his work, Glenny offered several hypotheses concerning the phylogenetic, hence taxonomic, significance of differences in some of these vessels. He also described six types of thoracic arterial arrangements and stated that these categories might represent various levels of evolution (Glenny, 1955:543-544).

The families Columbidae (pigeons) and Hirundinidae (swallows) have two nearly extreme arterial types described by Glenny, and are universally acknowledged as monophyletic. Differences within the families, therefore, can be considered as valid intrafamilial differences. I have investigated the thoracic and coracoid arteries and their branches in members of these two families to determine the degree of individual variability of the vessels, and the possible causes of interspecific and intrafamilial differences.


[Pg 556]

METHODS AND MATERIALS

All specimens studied are in The University of Kansas Museum of Natural History. They were preserved in alcohol and their blood vessels were not injected. Dissections were made with the aid of a binocular microscope at magnifications of 10× and 20×.

Following is a list of the species studied, the number of individuals of each species dissected, and the catalogue numbers of the specimens. The nomenclature and classification are those of the American Ornithologists' Union's Check-List of North American Birds, fifth edition (1957).

Family Columbidae
Zenaidura macroura (Linnaeus), Mourning Dove 2: 40325, 40326.
Zenaida asiatica (Linnaeus), White-winged Dove 1: 40328.
Scardafella inca (Lesson), Inca Dove 5: 34894, 34896, 34902, 34906, 34907.
Columba livia Gmelin, Rock Dove (domestic pigeon) 1: 40321.
Family Hirundinidae
Iridoprocne bicolor (Vieillot), Tree Swallow 1: 38101.
Progne subis (Linnaeus), Purple Martin 5: 37711, 38794, 38796, 38798, 38804.
Stelgidopteryx ruficollis (Vieillot), Rough-winged Swallow 1: 38277.
Riparia riparia (Linnaeus), Bank Swallow 2: 38784, 38785.
Hirundo rustica (Linnaeus), Barn Swallow 1: 38839.

The following descriptions are of Progne subis and Scardafella inca. Differences in the vascular system in other members of the families represented by P. subis and S. inca are mentioned at the appropriate places. The muscles briefly described for each of these two species are those that are supplied by the thoracic or coracoid arteries or by branches of the same, and muscles that, by their origin, location, or insertion, seem to affect the course or origin of one of these arteries.

The following sources have been particularly useful for the terminology of muscles and of skeletal features: Ashley (1941), Beddard (1898), Coues (1903), Howard (1929), Howell (1937), and Hudson and Lanzillotti (1955).

The names used for most arteries are those in common usage for vertebrates. I have not used the terms "internal mammary" and "intercostal" artery as substitutes for "thoracic" artery, except when referring to the work of others. The vessel's homology with the internal mammary artery of mammals has been denied (Glenny, 1955:541), and the name "mammary" is certainly not useful descriptively in birds. The term "intercostal" is less objectionable, except that such a name may call to mind segmental vessels arising from the dorsal aorta. The term "thoracic" seems best, as it is reasonably descriptive, and has been used by Glenny in the majority of his descriptions covering a wide variety of birds. The name "sternoclavicular" has been used by others as a synonym for the "coracoid" artery. I have arbitrarily chosen to use the latter.

ACKNOWLEDGMENTS

I gratefully acknowledge many valuable suggestions in my research and the preparation of this manuscript from Professors Theodore H. Eaton, A. Byron Leonard, Richard F. Johnston, Robert M. Mengel, and E. Raymond Hall. Mr. Abbot S. Gaunt and Miss Sandra Lovett assisted in collecting specimens. Final drafts of the illustrations were prepared by Mr. Thomas Swearingen.


[Pg 557]

MYOLOGY AND ANGIOLOGY: HIRUNDINIDAE

Figs. 1, 2, 3, and 4 illustrate the following muscles and arteries described for Progne subis.

Myology

M. pectoralis thoracica, Fig. 1. The origin is from slightly less than the posterior half of the sternum, from the ventral half of the keel, almost the entire length of the posterolateral surface of the clavicle and adjacent portion of the sterno-coraco-clavicular membrane, and tendinously from the ventral thoracic ribs. This massive muscle covers the entire ventral surface of the thorax and converges to insert on the ventral side of the humerus on the pectoral surface.

M. supracoracoideus, Fig. 1. The origin is from the dorsal portion of the keel and medial portion of the sternum, and is bordered ventrally by the origin of M. pectoralis thoracica, and laterally by M. coracobrachialis posterior. The origin is also from the manubrium and the anterolateral portion of the proximal half of the coracoid and to a slight extent from the sterno-coraco-clavicular membrane adjacent to the manubrium. This large pinnate muscle converges, passes through the foramen triosseum, and inserts by a tendon on the external tuberosity of the humerus, immediately proximal to the insertion of M. pectoralis thoracica.

M. coracobrachialis posterior, Figs. 1 and 3. The origin is from the dorsolateral half of the coracoid, anterolateral portion of the sternum (where the area of origin is bordered medially by M. supracoracoideus, posteriorly by M. pectoralis thoracica, and laterally by M. sternocoracoideus), and also to a slight extent from the area of attachment of the thoracic ribs to the sternum. The muscle fibers converge along the lateral edge of the coracoid and insert on the median crest of the humerus immediately proximal to the pneumatic foramen. In passing from the origin on the sternum to the insertion on the humerus, the belly of the muscle bridges the angle formed by the costal process of the sternum and the coracoid.

M. sternocoracoideus, Figs. 2 and 3. The origin is from the entire external surface of the costal process of the sternum, and to a small extent from the extreme proximal ends of the thoracic ribs where they articulate with the costal process. The muscle inserts on a triangular area on the dorsomedial surface of the coracoid. Like M. coracobrachialis posterior, this muscle bridges the angle formed by the costal process and the coracoid.

M. subcoracoideus (ventral head), Figs. 2 and 3. The origin is from the dorsomedial edge of the coracoid at its extreme proximal end, and to a slight extent from the adjacent portion of the manubrium. The origin is medial to the insertion of M. sternocoracoideus. The ventral head passes anterodorsally along the medial edge of the coracoid and joins the dorsal head (not here described). The combined muscle then inserts by a tendon onto the internal tuberosity of the humerus.

M. costi-sternalis, Figs. 1, 2, and 3. The origin is from the anterior edge of the sternal portion of the first four thoracic ribs. This triangular muscle narrows and inserts on the posterior edge of the apex of the costal process. The portion arising from the first rib may share slips with M. sternocoracoideus.[Pg 558]

M. costi-sternalis anterior, Figs. 1, 2, and 3. This muscle is variously developed, and originates from a small area on the ventral end of the vertebral portion of the last cervical rib. The insertion is on the apex of the costal process, immediately anterior to the insertion of M. costi-sternalis.

Mm. intercostales externus, Fig. 1. These muscles extend posteroventrally between the vertebral portions of successive thoracic ribs, and between the last cervical and first thoracic ribs. In the more posterior intercostal spaces these muscles are poorly developed, but they become progressively better developed anteriorly, and are fully represented in the most anterior intercostal spaces.

Mm. intercostales internus, Fig. 3. These muscles resemble the external intercostal muscles, but extend anteroventrally, with the muscles being most fully developed posteriorly, and progressively less so anteriorly.

Costopulmonary muscles, Fig. 3. This diagonal series of muscle slips from the thoracic ribs attaches to the aponeurosis covering the lungs.

Angiology

Figs. 3 and 4 show all arteries discussed for this family. The numbers following the names or descriptions of arteries in the text refer to numbered arteries in one or both of these figures.

The right and left innominate or brachiocephalic arteries arise from the aortic trunk and give rise to the common carotid arteries (14). The major vessel continuing across the thoracic cavity is the subclavian artery. Classically the subclavian is considered as continuing into the anterior appendage as the axillary artery. However, in the species studied, the axillary artery can best be described as a branch from the subclavian; the pectoral stem forms a more direct continuation of the subclavian. In traversing the thoracic cavity, the subclavian gives rise to the thoracic, coracoid, and axillary arteries, and leaves the thoracic cavity as the pectoral trunk, dorsal to the area where Mm. coracobrachialis posterior and sternocoracoideus span the angle formed by the coracoid and costal process.

The pectoral trunk bifurcates into two main pectoral arteries (9), which penetrate M. pectoralis thoracica. Neither the axillary artery nor these pectoral arteries were traced in my study.

The coracoid artery (2) arises from the ventral face of the subclavian (1), either opposite the base of, or medial to, the axillary artery (10). The coracoid artery passes ventrad between the medial edge of the coracoid and the ventral head of M. subcoracoideus, and an artery (7) is given off to supply that muscle. The main vessel then penetrates M. supracoracoideus and bifurcates or ramifies into several vessels (12).

Between the origin of the coracoid artery from the subclavian, and the point where the coracoid artery passes the medial edge of the coracoid, several branches are given off. These vessels are highly variable in origin, as described below, and not all were always found. Along with the coracoid artery, they are termed a "coracoid complex."

The first artery (11) of this complex arises from any one of several places: from the lateral face of the coracoid artery at its base; independently from the subclavian immediately lateral to the origin of the coracoid artery; and from the thoracic artery near its origin. This vessel travels laterad, parallel to the[Pg 559] subclavian, and penetrates M. coracobrachialis posterior at the same point that the pectoral artery passes dorsal to that muscle.

Another vessel (common stem of 4 and 5) of the coracoid complex in most specimens arises from the anterior face of the coracoid artery and branches into several vessels, some of which (5) supply M. subcoracoideus, and some of which (4) feed M. coracobrachialis posterior. The vessel occasionally shares a common stem with the main vessel (11) to M. coracobrachialis posterior, and in some specimens arises independently from the subclavian, immediately anterior to the origin of the coracoid artery. The branch (4) to M. coracobrachialis posterior was also seen to arise independently from any of the above-mentioned positions.

Two remaining vessels (6 and 8) are often found as branches from the coracoid artery. They were small and often were collapsed in the individuals I dissected, but were most clearly seen in Iridoprocne bicolor. The vessels occasionally had a common base, and in some specimens only one vessel was found. The first artery (6) passes mediad into M. sternocoracoideus, or continues across that muscle onto the inner face of the sternum. The second vessel (8) also supplies M. sternocoracoideus or the inner surface of the sternum, and often a large branch continues across the dorsal surface of the coracoid to M. coracobrachialis posterior. Fig. 3 shows a composite of these vessels; not all branches were seen in any one specimen. In the specimen of I. bicolor a foramen existed on the lateral edge of the coracoid where the branch (of 8) to M. coracobrachialis posterior passed. An examination of skeletons of five to 10 individuals each of the five species for which dissections were made, and of Petrochelidon pyrrhonota (Cliff Swallow) and Tachycineta thalassina (Violet-green Swallow), in the University of Kansas collection, showed that most coracoids of these seven species of swallows had a small notch (as shown in Fig. 4) or a complete foramen there.

The thoracic artery (3) arises from the subclavian opposite the base of the coracoid artery, or from the base of the coracoid artery. Of the five specimens of P. subis dissected, one individual had the former arrangement on both sides, and one had the latter on both sides, whereas in the remaining three the thoracic artery arose from the coracoid artery on one side and from the subclavian on the other side. The distance between these two possible sites of origin is slight.

The thoracic artery usually passes ventral to M. costi-sternalis anterior. Occasionally a small artery (13) could be traced from the main trunk of the thoracic artery to that muscle. The main thoracic artery bifurcates near the insertion of M. costi-sternalis, the branches traveling posteriad on both sides of the muscle. On one side of one specimen this artery bifurcated immediately after leaving the subclavian, the dorsal trunk passing dorsal to M. costi-sternalis anterior, and the ventral trunk ventral to the muscle. On the other side of the same individual the artery passed dorsal to M. costi-sternalis anterior, bifurcating at the normal point.

From the ventral trunk of the thoracic artery a variable number of small vessels arises to supply the costosternal articulations. The main ventral trunk bifurcates into two branches, one of which passes onto the inner face of the sternum, and one of which supplies the posterior two intercostal spaces.

The dorsal thoracic trunk supplies M. costi-sternalis, several dorsal intercostal areas, and the costopulmonary muscles. Minor variations in all of the smaller branches of the thoracic artery were common.


[Pg 560]

MYOLOGY AND ANGIOLOGY: COLUMBIDAE

Figs. 5, 6, and 7 illustrate the following muscles and arteries described for Scardafella inca.

Myology

M. pectoralis thoracica, Fig. 5. The origin is from approximately the ventral third of the keel, the lateral and anterior portion of the clavicle and the adjacent sterno-coraco-clavicular membrane, and from the lateral portion of the sternum and the fascia overlying the thoracic ribs. This massive muscle covers the entire ventral surface of the thorax, converges, and inserts on the pectoral surface on the ventral side of the humerus.

M. supracoracoideus, Fig. 5. The origin is from the dorsal two-thirds of the keel and medial half of the sternum (where the origin is bordered ventrally, posteriorly, and laterally by the origin of M. pectoralis thoracica) and from the sterno-coraco-clavicular membrane adjacent to the coracoid. This large pinnate muscle converges, passes through the foramen triosseum, and inserts by means of a strong tendon on the dorsal surface of the humerus on the deltoid ridge.

M. coracobrachialis posterior, Fig. 5. The origin is from a prominent lateral wing on the posterolateral portion of the coracoid, and from the lateral surface of the proximal two-thirds of the coracoid. The insertion is by means of a tendon on the internal tuberosity of the humerus. Of the muscles described here, this one differs most strikingly from the homologous muscle in P. subis. The difference can be seen by comparing Figs. 1 and 5.

M. sternocoracoideus, Figs. 5, 6, and 7. The origin is from the external, and to a slight extent from the internal, surface of the costal process. The insertion is on a posterolateral triangular area on the dorsal surface of the coracoid.

M. costi-sternalis, Figs. 5 and 6. The origin is from the anterior edge of the sternal portion of the first three thoracic ribs. The muscle converges and inserts on the apex of the costal process.

M. subcoracoideus (ventral head), Fig. 6. The origin is from the manubrium and from approximately the posterior half of the coracoid and on the medial and dorsal surface of that bone, and the medial side of the sterno-coraco-clavicular membrane adjacent to the coracoid. The ventral head passes anterodorsally to join with the dorsal head (not here described), and the combined muscle inserts by a tendon on the internal tuberosity of the humerus.

Mm. intercostales externus, Fig. 5. These muscles extend posteroventrally between successive thoracic ribs and between the last cervical and first thoracic ribs.

Mm. intercostales internus, Fig. 7. These muscles extend anteroventrally between the last three thoracic ribs.

Costopulmonary muscles, Fig. 7. This series of muscle slips from the thoracic ribs attaches to the aponeurosis covering the lungs.

Angiology

Figs. 5, 6, and 7 show all arteries discussed for this family. The numbers following names or descriptions of arteries in the text refer to numbered arteries[Pg 561] in one of these figures. Insofar as possible, the numbers used for these arteries are the same numbers used for the homologous vessels in swallows.

The right and left innominate arteries arise from the aortic trunk and give rise to the common carotid (14) and subclavian (1) arteries. The latter continues across the thoracic cavity, giving rise to the coracoid (2) and axillary (10) arteries, and becoming the pectoral trunk. That trunk swings posteriorly and leaves the thoracic cavity near the apex of the costal process, as shown in Fig. 7. Where the trunk passes under M. sternocoracoideus, the thoracic artery (3) is given off.

The various branches of the coracoid artery, again referred to as a "coracoid complex," are as follows: The first branch, from the posterior face of the coracoid artery, is a relatively large vessel (6) here termed the sternal artery; it passes mediad across M. sternocoracoideus, sending off a branch (6a) to that muscle. The right sternal artery continues posteriorly on the mid-line of the inner surface of the sternum, and appears to send branches into the various pneumatic foramina of the sternum, but these vessels are minute and exceedingly difficult to trace accurately. The corresponding left vessel is smaller and ramifies on the anteromedial surface of the sternum. Variations found in these vessels were the following: In one specimen of S. inca the sternal artery had, on both sides, an independent origin from the subclavian, lateral to the origin of the coracoid artery. In Zenaidura macroura both right and left sternal arteries were similar to the left vessel described above, no median longitudinal vessel being seen. In Columba livia no vessel corresponding to the sternal artery was seen. In Zenaida asiatica these arteries penetrated M. sternocoracoideus; no branch to the sternum was seen.

A small complex of vessels (4 and 4a) arises from the lateral face of the coracoid artery and feeds M. coracobrachialis posterior, and occasionally M. sternocoracoideus. One branch (4a) passes under the coracoid and travels along the lateral side of that bone, supplying small branches to M. coracobrachialis posterior, and finally ramifying on the head of the coracoid. In C. livia, Zenaidura macroura, and Zenaida asiatica this complex usually arises independently from the subclavian, and in one case it arose from the axillary artery.

Two other branches from the coracoid artery were regularly seen. The first (8) passes across M. sternocoracoideus and appears to supply the area of the coracoid articulation with the sternum; the second (7) supplies M. subcoracoideus as the main vessel passes between that muscle and the coracoid and penetrates M. suparacoracoideus. A small notch on the medial side of the coracoid (shown in Figs. 6 and 7) often marks the passage of the coracoid artery.

All vessels of the coracoid complex are exceedingly variable, in number, size, and site of origin.

A prominent vessel (15) is given off from the posterior pectoral artery, outside the thoracic cavity, passes ventrad, and sends two branches into M. supracoracoideus. No corresponding artery was seen in the swallows dissected.

The thoracic artery (3), arising from the pectoral stem, characteristically bifurcates at the anterior end of M. costi-sternalis. The dorsal, and larger, branch passes posteriorly, sends several small branches to M. costi-sternalis, and continues to the most posterior rib. The ventral trunk bifurcates, one branch passing along the edge of, and supplying, M. costi-sternalis, the other[Pg 562] branch passing onto the surface of the sternum. In some specimens two such branches to the sternum were seen.


SUMMARY OF ARTERIAL ARRANGEMENT

In both families the vessels that are relatively constant in appearance are: a subclavian giving rise to the carotid and axillary arteries, and becoming the pectoral trunk; the thoracic artery arising variously, and passing posteriorly to the rib cage; and the coracoid complex of vessels. The coracoid complex includes the coracoid artery, the vessels to Mm. sternocoracoideus and coracobrachialis posterior, and the sternal artery, which is variously present, and more extensive in some species than in others.


DISCUSSION AND CONCLUSIONS

In the vessels studied individual variation is marked, but the arterial arrangement within both families is relatively constant. Interfamilial differences probably represent responses of the arteries to adaptive structural differences of other systems of the body.

Individual Variation

The term "individual variation" is used here to mean "continuous non-sex-associated variation" (see Mayr, Linsley, and Usinger, 1953:93) found between members of the same species or between the two sides of the same individual. It is hazardous to define individual variation (and also interspecific differences, as discussed later) in the origin of one vessel by relating its location to other vessels, because these may likewise vary in origin. But, by necessity, certain vessels that are probably less variable (axillary, carotid, and pectoral arteries) have been considered here as being constant in origin. If these three vessels are accepted as reference points, individual variants, as well as interspecific differences, can easily be described in the thoracic and coracoid arteries and in their various branches.

The thoracic artery in P. subis arose either from the subclavian artery, or from the coracoid artery. Likewise in other swallows, both of these origins were found. In doves the thoracic artery arose consistently from the pectoral stem, lateral to the origin of the axillary artery.

The coracoid artery in P. subis and other swallows arose from the subclavian artery, either opposite the base of the axillary artery, or medial to that vessel. In all doves studied the coracoid artery arose from the subclavian medial to the axillary artery. I observed much[Pg 563] individual variation in the branches of the coracoid artery (that is to say, in the vessels of the coracoid complex). In S. inca the sternal artery arose either from the coracoid artery, or independently from the subclavian. As mentioned earlier, in members of both families the vessels to Mm. coracobrachialis posterior and subcoracoideus are highly variable, arising in swallows from the coracoid artery or from the subclavian artery, and in doves from either of these two sites or from the axillary artery. The distribution of these arteries after their origin is also diverse.

Individual variation in the arteries of the thorax has been recorded previously. Bhaduri, Biswas, and Das (1957:2) state that, in the domestic pigeon, "the origin and course of various smaller arteries... show noticeable variation," although they do not specifically state to which vessels they are referring. Fisher (1955:287-288) found variability in the Whooping Crane, Grus americana, of the axillary, coracoid, thoracic, and pectoral arteries. In one specimen he found these vessels arising on the right side from the subclavian, in the sequence just listed, and on the left side all arose from the same point. Berger (1956:439-440) strongly emphasized the variability of the vascular system, calling it the most variable in the body. As he stated, this high degree of individual variation seems to be due to the embryological development of the system, wherein many of the adult channels of circulation are derived from embryonic plexuses.

Intrafamilial Differences

In spite of the rather extensive amount of individual variability in some vessels, I found the over-all pattern of arteries to be relatively constant within the family Columbidae and within the family Hirundinidae. There are, nevertheless, several intrafamilial differences needing some further discussion and clarification.

Others have reported the occasional presence of more than one coracoid artery on each side in some columbids, these arteries being described as arising from various sites and being variously named. Bhaduri and Biswas (1954) described the arterial situation in seven species of the family Columbidae (Columba livia, Streptopelia tranquebarica, S. chinensis, S. senegalensis, Chalcophaps indica, Treron bicincta, and T. phoenicoptera) and stated (op. cit.: 348) that "The sternoclavicular [= coracoid] artery is similar in all the species, but the domestic pigeon seems to be unique in that it has, in addition, a small vessel, the accessory sternoclavicular." This artery was described later, in the domestic pigeon, as[Pg 564] follows (Bhaduri, Biswas, and Das, 1957:5): "A minute and insignificant vessel which has been termed the accessory sternoclavicular artery... is given off close to the origin of the sternoclavicular. It passes anteroventrally to supply the adjacent muscles." Glenny (1955:577) described the arterial pattern characteristic of members of the family Columbidae (more than 30 species studied by him) and stated that "three pairs of coracoid arteries are found in Otidiphaps nobilis, normally one or two pairs may be found." As suggested by Bhaduri and Biswas (1954:348), the "accessory" vessel probably corresponds to a vessel previously described by Glenny (1940) in Streptopelia chinensis and referred to as the "coracoid minor."

Bhaduri and Biswas (1954:348) have suggested that "the accessory sternoclavicular artery occurring sporadically as it does in some species of diverse groups may not have any phylogenetic value."

In no case did I find more than one coracoid artery on a side. When one of the highly variable arteries feeding Mm. coracobrachialis posterior and sternocoracoideus (arteries 4 and 4a, Fig. 7) arises from the subclavian or axillary artery instead of from the coracoid artery, that vessel may have been interpreted by others as a second (accessory or minor) coracoid artery. If so, this artery probably does not "occur sporadically." Rather, its origin from the subclavian, axillary, or thoracic artery may be sporadic, subject to individual variation, and it may have been overlooked when it arose from the coracoid artery.

Of the vessels described here, the only one that differed distinctly in one species was the sternal artery. In Scardafella inca the right sternal vessel was long, extending down the mid-line of the inner surface of the sternum, whereas in other columbids the right and left arteries ramified on the anterior part of the inner surface of the sternum, or were altogether lacking. I am unable to account for the differential development of this artery in S. inca.

In describing the arterial arrangement in the seven species of Indian columbids named earlier, Bhaduri and Biswas (1954:348) state that all species except Treron phoenicoptera have two "internal mammary" arteries on each side "showing variable sites of origin." These arteries were later described (Bhaduri, Biswas, and Das, 1957:4-5) as "a slender (outer) internal mammary artery... to the outer wall of the thoracic cavity" and "a slender (inner) internal mammary artery... to supply the inner wall of the chest cavity." From this description, the question arises as to[Pg 565] whether the "outer" one of these arteries should properly be called an external instead of internal mammary artery. In any case, I saw no specimen possessing two thoracic arteries on a side.

Interfamilial Differences

As shown above, there is a high degree of individual variation in the vessels being considered, while at the same time, few interspecific differences were noted within the families. On the other hand, the vascular arrangement of swallows consistently differed from that of pigeons in the species studied. The differences are most easily described by discussing the resulting change in the site of origin of the thoracic artery. In swallows the thoracic artery arises between the carotid and axillary arteries, either from the stem of the coracoid artery or independently from the subclavian, but in pigeons the thoracic artery arises from the pectoral stem, a site of attachment that is relatively more lateral than in swallows.

This difference, in my opinion, demonstrates well the topological relationships of various systems of the body, here especially of the skeletal, muscular, and vascular systems. The location of the thoracic artery seems to be determined by the particular configuration of skeletal and muscular elements, although even within the bounds set by these elements, individual variation in the precise origin of the artery is possible. In all swallows dissected Mm. coracobrachialis posterior and sternocoracoideus bridge the angle formed by the costal process and the coracoid. This arrangement makes it necessary for the subclavian to leave the thoracic cavity dorsal to the costal process, although it does pass immediately anterior to that process. The thoracic artery arises from the vessel next to the apex of the costal process, hence from the subclavian, between the axillary and carotid arteries.

In pigeons, the wing of the coracoid extends farther laterally than does the costal process, and the apex of the latter is displaced farther posteriorly than it is in swallows. M. coracobrachialis posterior does not arise from the sternum, and only part of the costal process serves as a point of origin for M. sternocoracoideus. Consequently, this region differs from that of swallows; the area between the costal process and coracoid is not entirely bridged by muscle, and the space between the two skeletal elements is of a different shape and size. It seems that these differences have resulted, in pigeons, in the subclavian assuming a more anterior position with reference to the costal process. The subclavian in these birds leads into the pectoral artery, which runs posteriad, passing[Pg 566] under M. sternocoracoideus and leaving the thoracic cavity approximately opposite the apex of the costal process. The thoracic artery arises immediately opposite the apex of the costal process from the main artery in the area, as it does in swallows, except that in this case the adjacent artery from which it arises is the pectoral stem.

The thoracic area seems to be most "efficiently" arranged when the thoracic artery arises opposite the apex of the costal process, from whatever main artery is closest to that site. This arrangement existed in all species studied. Considering the differences in skeletal and muscular structures, between pigeons and swallows, it would be much more remarkable if an alternative were the case, that is to say if the thoracic artery had the same site of attachment on the subclavian in both groups.

A comparison of these suggestions with statements made previously about these arteries seems necessary. When Glenny (1955) summarized his accumulative findings, concerning the main arteries in the region of the heart, based on individuals representing more than 750 avian species of 27 orders and 120 families, he described five types of thoracic arteries that were distinguished by differences in the site of their origin, and one type in which there were two thoracic arteries on each side. His statements regarding these differences were as follows (Glenny, 1955:543-544):

"The thoracic, intercostal, or internal mammary artery of birds... is found to arise at slightly different relative positions—from a point at the base of the inferior pectoral artery to a point near the base of the coracoid or sternoclavicular artery, and in some instances both of these vessels have a common root from the subclavian artery. Such differences are found to be of common occurrence within several orders of birds. In the Galliformes and the Passeriformes there appears to be a graded series in the sites of attachment of the thoracic artery from a lateral to a medial position. As a result of these observations, numerical values can be assigned to the site of attachment of the intercostal or thoracic artery, and these values may come to be used as an index in specific levels of evolution....

"The medial migration of the thoracic artery appears to have some phylogenetic significance as yet not understood."

The six types of thoracic arteries described in Glenny's classification were distinguished as follows (Glenny, 1955:544):

"Type 1: attachment to the pectoral stem lateral to the axillary.

"Type 2: attachment to the subclavian between the axillary and coracoid.

"Type 3: attachment to the subclavian at the base of the coracoid.

"Type 4: attachment to the subclavian, but with a common root for both the coracoid and thoracic.

"Type 5: attachment to the subclavian medial to both the axillary and coracoid.[Pg 567]

"Type 6: two separate thoracic arteries are present; the primary thoracic is the same as type 1 above, while the secondary thoracic is the same as type 3 or type 4 above."

Possibly the thoracic artery has undergone migration but apparent differences in its origin might well be due to differences in other vessels of the thoracic area. Additionally, there seems to be no reason to assume that the lateral position of the thoracic artery is the primitive one, or that the medial is the derived position, as is implied by the phrase "medial migration." Although the lateral site of attachment (type 1) is predominant in the lower orders of birds, and the medial attachment is found primarily in Passeriformes, a fact which may indicate that type 1 is the more primitive, it must nevertheless be kept in mind that a sequence of a single morphological character does not necessarily represent the phylogenetic sequence of the character itself (see Mayr, 1955:41).

Also, a given arterial arrangement might be independently derived more than once. If such has been the case, similarities in arterial arrangements in different taxa would sometimes be "chance similarities," that is to say, "resemblance in characteristics developed in separate taxa by independent causes and without causal relationship involving the similarity as such" (Simpson, 1961:79).

The particular arrangement of the arteries of the thoracic area also seems to be of limited value as a clue to taxonomic relationships. If the origin of any artery is determined by skeletal and muscular features, as I suggest, the artery perhaps ought not be considered as a separate character, but as part of a "character complex" that varies as a unit (see Mayr, Linsley, and Usinger, 1953:123). The skeleton offers a potential fossil record for consideration. Changes in the skeleton and muscles, great enough to affect the blood vessels, would probably be detected more easily than would the resulting vascular changes. Also, I did not find as much individual variation in the skeleton and muscles in the area studied as I did in the vascular system. In other words, within the bounds established by the skeletal and muscular features, the artery still exhibited individual variation in exact origin.


SUMMARY

The origin, distribution, and individual variation of the thoracic and coracoid arteries, and their branches, have been studied in four species of the family Columbidae (pigeons) and in five species of the family Hirundinidae (swallows). These arteries are described for Scardafella inca (Inca Dove) and Progne subis (Purple Martin). Muscles that are supplied by these vessels, and muscles the particular[Pg 568] configuration of which seems to effect the arrangement of the arteries have also been described. Correlation of the arteries observed with those named and described by other workers has been attempted.

In most of the vessels studied there is a high degree of individual variation, but few interspecific differences were noticed within either family. Differences in the arteries of the thorax between the two families are described by discussing the resulting different origins of the thoracic artery. In swallows the thoracic artery arises from either the subclavian artery or the coracoid artery, whereas in pigeons it arises from the pectoral trunk. This difference in site of attachment seems to be a result of differences between the two families in muscular and skeletal elements of the thorax.

The particular site of attachment of the thoracic artery is of limited value as a taxonomic character. Several considerations influenced this conclusion. (1) If the location of the artery is determined by skeletal and muscular elements, these associated structures must be considered taxonomically as a "character complex" (a set of characters varying as a unit). (2) Even within the bounds established by the skeleton and muscles, the artery displays a high degree of individual variation in exact origin. (3) A given arterial arrangement could have been derived independently many times. (4) Because differences are defined relative to other likewise variable vessels, supposed similarities or differences in the one artery may be artifacts of the system of description.

My findings and interpretations do not support previous suggestions that the thoracic artery has undergone a mediad migration, and that the various sites of attachment of that vessel may come to represent various levels of evolution. The primitive site of attachment of the vessel is unknown, and it seems to me that it has not been sufficiently demonstrated that the vessel has undergone any "migration."[Pg 569]

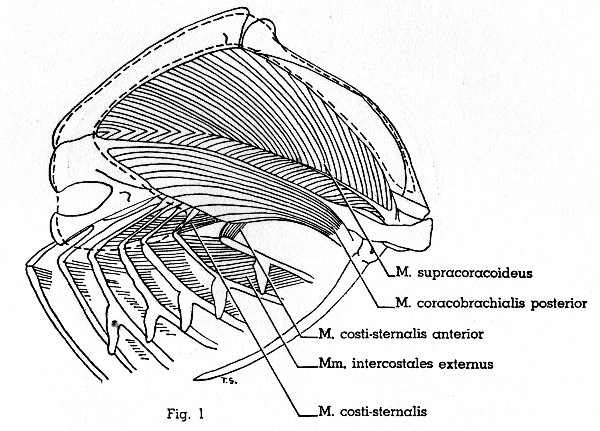

Fig. 1. Progne subis. Lateral view of left half of
thorax. M. pectoralis thoracica (area of insertion indicated by dotted
line) has been removed. Muscles not described in text are not shown. (×
1.5.) Fig. 1. Progne subis. Lateral view of left half of thorax. M. pectoralis thoracica (area of insertion indicated by dotted line) has been removed. Muscles not described in text are not shown. (× 1.5.)

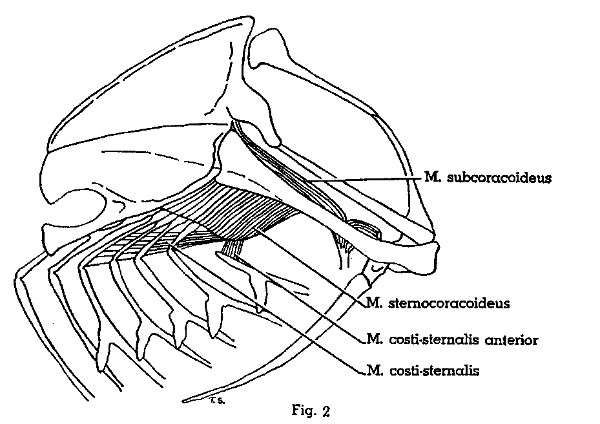

Fig. 2. Progne subis. Lateral view of left half of
thorax. Same view as shown in Fig. 1, but with Mm. supracoracoideus,
coracobrachialis posterior, and intercostales externus removed. (×
1.5.) Fig. 2. Progne subis. Lateral view of left half of thorax. Same view as shown in Fig. 1, but with Mm. supracoracoideus, coracobrachialis posterior, and intercostales externus removed. (× 1.5.)

[Pg 570]

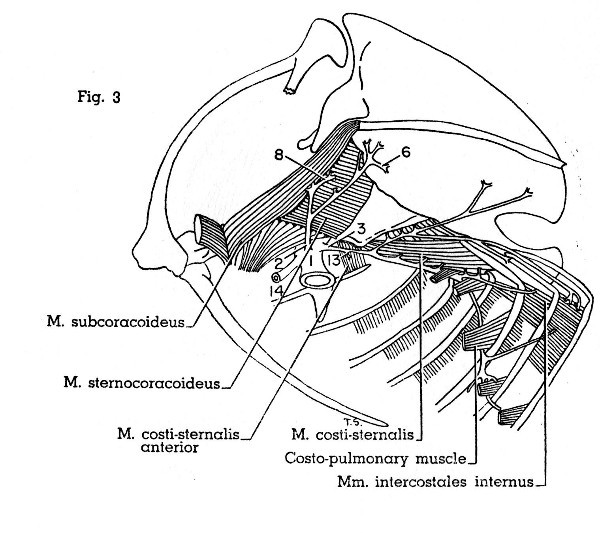

Fig. 3. Progne subis. Medial view of left half of
thorax. Not all muscles shown. See Fig. 4 for identification of
arteries. (× 1.5.) Fig. 3. Progne subis. Medial view of left half of thorax. Not all muscles shown. See Fig. 4 for identification of arteries. (× 1.5.)

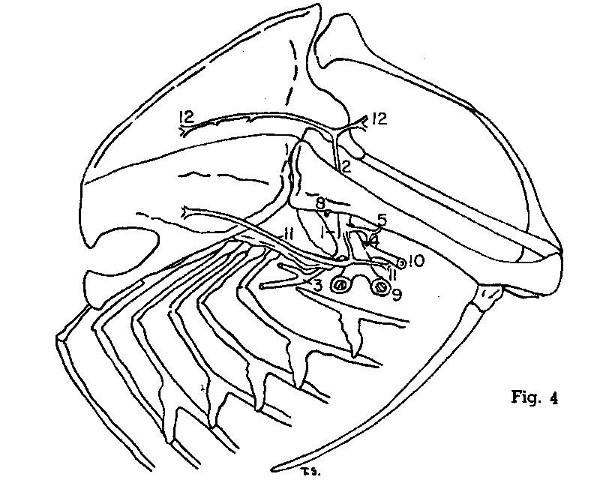

Fig. 4. Progne subis. Lateral view of left half of
thorax. (× 1.5.) Fig. 4. Progne subis. Lateral view of left half of thorax. (× 1.5.)

(Applies also to Fig. 3.)

1. Subclavian artery.
2. Coracoid artery.
3. Thoracic artery.
4. (Unnamed.) Supplies M. coracobrachialis posterior.
5. (Unnamed.) Supplies M. subcoracoideus.
6. (Unnamed.) Supplies M. sternocoracoideus and sternum.
7. (Unnamed.) Supplies M. subcoracoideus.
8. (Unnamed.) Supplies M. sternocoracoideus, M. coracobrachialis posterior, and sternum.
9. Pectoral artery.
10. Axilliary artery.
11. (Unnamed.) Supplies M. coracobrachialis posterior.
12. (Unnamed.) Supplies M. supracoracoideus.
13. (Unnamed.) Supplies M. costi-sternalis anterior.
14. Carotid artery.

[Pg 571]

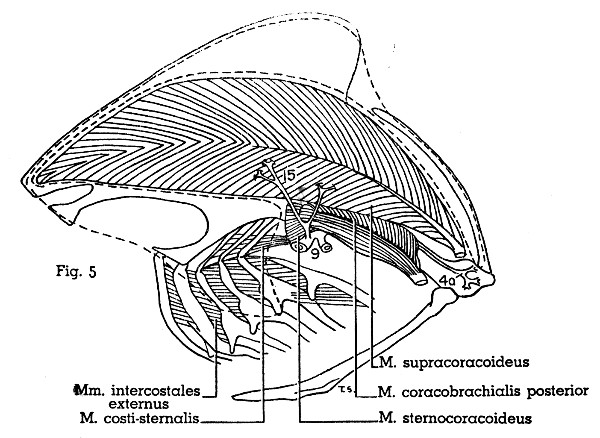

Fig. 5. Scardafella inca. Lateral view of left half of
thorax. M. pectoralis thoracica (area of insertion indicated by dotted
line) has been removed. Muscles not described in text are not shown. See
legend for Fig. 7 for identification of arteries. (× 1.) Fig. 5. Scardafella inca. Lateral view of left half of thorax. M. pectoralis thoracica (area of insertion indicated by dotted line) has been removed. Muscles not described in text are not shown. See legend for Fig. 7 for identification of arteries. (× 1.)
Fig. 6. Scardafella inca. Lateral view of left half of
thorax. See legend for Fig. 7 for identification of arteries. (× 1.) Fig. 6. Scardafella inca. Lateral view of left half of thorax. See legend for Fig. 7 for identification of arteries. (× 1.)

[Pg 572]

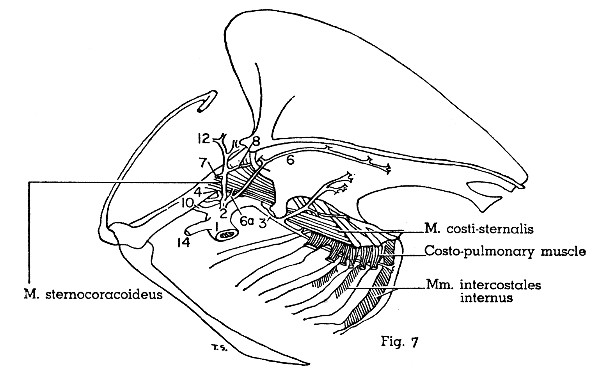

Fig. 7. Scardafella inca. Medial view of left half of
thorax. (× 1.) Fig. 7. Scardafella inca. Medial view of left half of thorax. (× 1.)

Key

(Applies also to Figs. 5 and 6.) Numerals not used are those used for Progne subis for which no homologous artery occurs in Scardafella inca.

1. Subclavian artery.
2. Coracoid artery.
3. Thoracic artery.
4. (Unnamed.) Supplies Mm. coracobrachialis posterior and sternocoracoideus.
4a. (Unnamed.) Supplies M. coracobrachialis posterior.
6. Sternal artery. (Shown as it appears on right side. Left sternal artery not so extensive.)
6a. (Unnamed.) Supplies M. sternocoracoideus.
7. (Unnamed.) Supplies M. subcoracoideus.
8. (Unnamed.) Supplies coracoid-sternal articulation.
9. Pectoral artery.
10. Axillary artery.
12. (Unnamed.) Supplies M. supracoracoideus.
14. Carotid artery.
15. (Unnamed.) Supplies M. supracoracoideus.

[Pg 573]

LITERATURE CITED

American Ornithologists' Union

1957. Check-List of North American birds. Baltimore, Maryland, Amer. Ornith. Union, xiv + 691 pp.

Ashley, J. F.

1941. A study of the structure of the humerus in the Corvidae. Condor, 43:184-195.

Beddard, F. E.

1898. The structure and classification of birds. London, Longmans, Green, & Co., xx + 548 pp.

Berger, A. J.

1956. Anatomical variation and avian anatomy. Condor, 58:433-441.

Bhaduri, J. L., and Biswas, B.

1954. The main cervical and thoracic arteries of birds. Series 2. Columbiformes, Columbidae, part 1. Anat. Anz., 100:337-350.

Bhaduri, J. L., Biswas, B., and Das, S. K.

1957. The arterial system of the domestic pigeon (Columba livia Gmelin). Anat. Anz., 104:1-14.

Coues, E.

1903. Key to North American birds. Vol. I, Fifth edit. Boston, The Page Company, xlii + 535 + [55] pp.

Fisher, H. I.

1955. Major arteries near the heart in the Whooping Crane. Condor, 57:286-289.

Glenny, F. H.

1940. The main arteries in the region of the heart of three species of doves. Bull. Fan Mem. Inst. Biol., Zool. ser., vol. 10, pt. 4, 271-278. (Not seen.)

1955. Modifications of pattern in the aortic arch system of birds and their phylogenetic significance. Proc. U. S. Nat. Mus., 104:525-621.

Howard, H.

1929. The avifauna of Emeryville Shellmound. Univ. Calif. Publs. Zool., 32:301-394.

Howell, A. B.

1937. Morphogenesis of the shoulder architecture: Aves. Auk, 54:364-375.

Hudson, G. E., and Lanzillotti, P. J.

1955. Gross anatomy of the wing muscles in the family Corvidae. Amer. Midl. Nat., 53:1-44.

Mayr, E.

1955. Comments on some recent studies of song bird phylogeny. Wilson Bull., 67:33-44.

Mayr, E., Linsley, E. G., and Usinger, R. L.

1953. Methods and principles of systematic zoology. New York, McGraw-Hill Book Co., x + 336 pp.

Simpson, G. G.

1961. Principles of animal taxonomy. New York, Columbia Univ. Press, xiv + 247 pp.

Transmitted June 24, 1963.






End of the Project Gutenberg EBook of Thoracic and Coracoid Arteries In Two
Families of Birds, Columbidae and Hirundinidae, by Marion Anne Jenkinson

*** END OF THIS PROJECT GUTENBERG EBOOK THORACIC AND CORACOID ARTERIES ***

***** This file should be named 33558-h.htm or 33558-h.zip *****
This and all associated files of various formats will be found in:
        https://www.gutenberg.org/3/3/5/5/33558/

Produced by Chris Curnow, Joseph Cooper, Josephine Paolucci
and the Online Distributed Proofreading Team at
https://www.pgdp.net.


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
https://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at https://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
https://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at https://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit https://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including including checks, online payments and credit card
donations.  To donate, please visit: https://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     https://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
