THE ENCYCLOPÆDIA BRITANNICA

A DICTIONARY OF ARTS, SCIENCES, LITERATURE AND GENERAL INFORMATION

ELEVENTH EDITION

VOLUME XII SLICE VII

Gyantse to Hallel

Articles in This Slice

750

GYANTSE, one of the large towns of Tibet. It lies S.E. of Shigatse, 130 m. from the Indian frontier and 145 m. from Lhasa. Its central position at the junction of the roads from India and Bhutan with those from Ladakh and Central Asia leading to Lhasa makes it a considerable distributing trade centre. Its market is the third largest in Tibet, coming after Lhasa and Shigatse, and is especially celebrated for its woollen cloth and carpet manufactures. Here caravans come from Ladakh, Nepal and upper Tibet, bringing gold, borax, salt, wool, musk and furs, to exchange for tea, tobacco, sugar, cotton goods, 751 broadcloth and hardware. The town is compactly built of stone houses, with wooden balconies facing the main street, whence narrow lanes strike off into uninviting slums, and contains a fort and monastery. In the British expedition of 1904 Gyantse formed the first objective of the advance, and the force was besieged here in the mission post of Changlo for some time. The Tibetans made a night attack on the post, and were beaten off with some difficulty, but subsequently the British attacked and stormed the fort or jong. Under the treaty of 1904 a British trade agent is stationed at Gyantse.

GYGES, founder of the third or Mermnad dynasty of Lydian kings, he reigned 687-652 B.C. according to H. Geizer, 690-657 B.C. according to H. Winckler. The chronology of the Lydian kings given by Herodotus has been shown by the Assyrian inscriptions to be about twenty years in excess. Gyges was the son of Dascylus, who, when recalled from banishment in Cappadocia by the Lydian king Sadyattes—called Candaules “the Dog-strangler” (a title of the Lydian Hermes) by the Greeks—sent his son back to Lydia instead of himself. Gyges soon became a favourite of Sadyattes and was despatched by him to fetch Tudo, the daughter of Arnossus of Mysia, whom the Lydian king wished to make his queen. On the way Gyges fell in love with Tudo, who complained to Sadyattes of his conduct. Forewarned that the king intended to punish him with death, Gyges assassinated Sadyattes in the night and seized the throne with the help of Arselis of Mylasa, the captain of the Carian bodyguard, whom he had won over to his cause. Civil war ensued, which was finally ended by an appeal to the oracle of Delphi and the confirmation of the right of Gyges to the crown by the Delphian god. Further to secure his title he married Tudo. Many legends were told among the Greeks about his rise to power. That found in Herodotus, which may be traced to the poet Archilochus of Paros, described how “Candaules” insisted upon showing Gyges his wife when unrobed, which so enraged her that she gave Gyges the choice of murdering her husband and making himself king, or of being put to death himself. Plato made Gyges a shepherd, who discovered a magic ring by means of which he murdered his master and won the affection of his wife (Hdt. i. 8-14; Plato, Rep. 359; Justin i. 7; Cicero, De off. iii. 9). Once established on the throne Gyges devoted himself to consolidating his kingdom and making it a military power. The Troad was conquered, Colophon captured from the Greeks, Smyrna besieged and alliances entered into with Ephesus and Miletus. The Cimmerii, who had ravaged Asia Minor, were beaten back, and an embassy was sent to Assur-bani-pal at Nineveh (about 650 B.C.) in the hope of obtaining his help against the barbarians. The Assyrians, however, were otherwise engaged, and Gyges turned to Egypt, sending his faithful Carian troops along with Ionian mercenaries to assist Psammetichus in shaking off the Assyrian yoke (660 B.C.). A few years later he fell in battle against the Cimmerii under Dugdammē (called Lygdamis by Strabo i. 3. 21), who took the lower town of Sardis. Gyges was succeeded by his son Ardys.

GYLIPPUS, a Spartan general of the 5th century B.C.; he was the son of Cleandridas, who had been expelled from Sparta for accepting Athenian bribes (446 B.C.) and had settled at Thurii. His mother was probably a helot, for Gylippus is said to have been, like Lysander and Callicratidas, a mothax (see Helot). When Alcibiades urged the Spartans to send a general to lead the Syracusan resistance against the Athenian expedition, Gylippus was appointed, and his arrival was undoubtedly the turning point of the struggle (414-413). Though at first his long hair, his threadbare cloak and his staff furnished the subject of many a jest, and his harsh and overbearing manner caused grave discontent, yet the rapidity and decisiveness of his movements, won the sympathy and respect of the Syracusans. Diodorus (xiii. 28-32), probably following Timaeus, represents him as inducing the Syracusans to pass sentence of death on the captive Athenian generals, but we need have no hesitation in accepting the statement of Philistus (Plutarch, Nicias, 28), a Syracusan who himself took part in the defence, and Thucydides (vii. 86), that he tried, though without success, to save their lives, wishing to take them to Sparta as a signal proof of his success. Gylippus fell, as his father had done, through avarice; entrusted by Lysander with an immense sum which he was to deliver to the ephors at Sparta, he could not resist the temptation to enrich himself and, on the discovery of his guilt, went into exile.

GYLLEMBOURG-EHRENSVÄRD, THOMASINE CHRISTINE, Baroness (1773-1856), Danish author, was born on the 9th of November 1773, at Copenhagen. Her maiden name was Buntzen. Her great beauty early attracted notice, and before she was seventeen she married the famous writer Peter Andreas Heiberg. To him she bore in the following year a son, afterwards illustrious as the poet and critic Johan Ludvig Heiberg. In 1800 her husband was exiled, and she obtained a divorce, marrying in December 1801 the Swedish Baron K. F. Ehrensvärd, himself a political fugitive. Her second husband, who presently adopted the name of Gyllembourg, died in 1815. In 1822 she followed her son to Kiel, where he was appointed professor, and in 1825 she returned with him to Copenhagen. In 1827 she first appeared as an author by publishing her romance of The Polonius Family in her son’s newspaper Flyvende Post. In 1828 the same journal contained The Magic Ring, which was immediately followed by En Hverdags historie (An Everyday Story). The success of this anonymous work was so great that the author adopted until the end of her career the name of “The Author of An Everyday Story.” In 1833-1834 she published three volumes of Old and New Novels. New Stories followed in 1835 and 1836. In 1839 appeared two novels, Montanus the Younger and Ricida; in 1840, One in All; in 1841, Near and Far; in 1843, A Correspondence; in 1844, The Cross Ways; in 1845, Two Generations. From 1849 to 1851 the Baroness Ehrensvärd-Gyllembourg was engaged in bringing out a library edition of her collected works in twelve volumes. On the 2nd of July 1856 she died in her son’s house at Copenhagen. Not until then did the secret of her authorship transpire; for throughout her life she had preserved the closest reticence on the subject even with her nearest friends. The style of Madame Ehrensvärd-Gyllembourg is clear and sparkling; for English readers no closer analogy can be found than between her and Mrs Gaskell, and Cranford might well have been written by the witty Danish authoress.

GYLLENSTJERNA, JOHAN, Count (1635-1680), Swedish statesman, completed his studies at Upsala and then visited most of the European states and laid the foundations of that deep insight into international politics which afterwards distinguished him. On his return home he met King Charles X. in the Danish islands and was in close attendance upon him till the monarch’s death in 1660. He began his political career at the diet which assembled in the autumn of the same year. An aristocrat by birth and inclination, he was nevertheless a true patriot and demanded the greatest sacrifices from his own order in the national interests. He was therefore one of those who laboured most zealously for the recovery of the crown lands. In the Upper House he was the spokesman of the gentry against the magnates, whose inordinate privileges he would have curtailed or abolished. His adversaries vainly endeavoured to gain him by favour, for as court-marshal and senator he was still more hostile to the dominant patricians who followed the adventurous policy of Magnus de la Gardie. Thus he opposed the French alliance which de la Gardie carried through in 1672, and consistently advocated economy in domestic and neutrality in foreign affairs. On the outbreak of the war in 1675 he was the 752 most loyal and energetic supporter of the young Charles XI., and finally his indispensable counsellor. Indeed, it may be said, that the political principles which he instilled into the youthful monarch were faithfully followed by Charles during the whole of his reign. In 1679 Gyllenstjerna was appointed the Swedish plenipotentiary at the peace congress of Lund. The alliance which he then concluded with Denmark bound the two northern realms together in a common foreign policy, and he sought besides to facilitate their harmonious co-operation by every means in his power. In 1680, after bringing home Charles XI.’s Danish bride from Copenhagen, he was appointed governor-general of Scania (Skåne), but expired a few weeks later.

GYMKHANA, a display of miscellaneous sports, originally at the military stations of India. The word would seem to be a colloquial remodelling of the Hindustani gend-khana, ball-house or racquet-court, by substituting for gend the first syllable of the English word “gymnastics.” The definition given in Yule’s Glossary is as follows: “A place of public resort at a station, where the needful facilities for athletics and games ... are provided.” The name of the place was afterwards applied to the games themselves, and the word is now used almost exclusively in this sense. According to Yule the first use of it that can be traced was, on the authority of Major John Trotter, at Rurki in the year 1861, when a gymkhana was instituted there. Gymkhana sports were invented to relieve the monotony of Indian station life, and both officers and men from the ranks took part in them. The first meetings consisted of promiscuous horse and pony races at catch weights. To these were soon added a second variety, originally called the pāgŏl (funny races), the one generally known outside India, which consisted of miscellaneous races and competitions of all kinds, some serious and some amusing, on horseback, on foot and on bicycles. Among these may be mentioned the usual military sports; such as tent-pegging, lemon-cutting and obstacle racing; rickshaw racing; tilting at the ring sack, pillion, hurdle, egg-and-spoon, blindfold, threading-the-needle and many other kinds of races depending upon the inventive powers of the committees in charge.

GYMNASTICS AND GYMNASIUM, terms signifying respectively a system of physical exercises practised either for recreation or for the purpose of promoting the health and development of the body, and the building where such exercises are carried on. The gymnasium of the Greeks was originally the school where competitors in the public games received their training, and was so named from the circumstance that these competitors exercised naked (γυμνός). The gymnasium was a public institution as distinguished from the palaestra, which was a private school where boys were trained in physical exercises, though the term palaestra is also often used for the part of a gymnasium specially devoted to wrestling and boxing. The athletic contests for which the gymnasium supplied the means of training and practice formed part of the social life of the Greeks from the earliest times. They were held in honour of heroes and gods; sometimes forming part of a periodic festival, sometimes of the funeral rites of a deceased chief. In course of time the Greeks grew more attached to such sports; their free active life, spent to a great extent in the open air, fostered the liking almost into a passion. The victor in any athletic contest, though he gained no money prize, was rewarded with the honour and respect of his fellow citizens; and a victory in the great religious festivals was counted an honour for the whole state. In these circumstances the training of competitors for the greater contests became a matter of public concern; and accordingly special buildings were provided by the state, and their management entrusted to public officials. The regulation of the gymnasium at Athens is attributed by Pausanias (i. 39. 3) to Theseus. Solon made several laws on the subject; but according to Galen it was reduced to a system in the time of Cleisthenes. Ten gymnasiarchs, one from each tribe, were appointed annually. These performed in rotation the duties of their office, which were to maintain and pay the persons who were training for public contests, to conduct the games at the great Athenian festivals, to exercise general supervision over the morals of the youths, and to adorn and keep up the gymnasium. This office was one of the ordinary λειτουργίαι (public services), and great expense was entailed on the holders. Under them were ten sophronistae, whose duty was to watch the conduct of the youths at all times, and especially to be present at all their games. The practical teaching and selecting of the suitable exercises for each youth were in the hands of the paedotribae and gymnastae, the latter of whom also superintended the effect on the constitution of the pupils, and prescribed for them when they were unwell. The aleiptae oiled and rubbed dust on the bodies of the youths, acted as surgeons, and administered the drugs prescribed. According to Galen there was also a teacher of the various games of ball. The gymnasia built to suit these various purposes were large buildings, which contained not merely places for each kind of exercise, but also a stadium, baths, covered porticos for practice in bad weather, and outer porticos where the philosophers and men of letters read public lectures and held disputations.

The gymnasium of the Greeks did not long remain an institution exclusively devoted to athletic exercises. It soon began to be applied to other uses even more important. The development arose naturally through the recognition by the Greeks of the important place in education occupied by physical culture, and of the relation between exercise and health. The gymnasium accordingly became connected with education on the one hand and with medicine on the other. Due training of the body and maintenance of the health and strength of children were the chief part of earlier Greek education. Except the time devoted to letters and music, the education of boys was conducted in the gymnasia, where provision was made, as already mentioned, for their moral as well as their physical training. As they grew older, conversation and social intercourse took the place of the more systematic discipline. Philosophers and sophists assembled to talk and to lecture in the gymnasia, which thus became places of general resort for the purpose of all less systematic intellectual pursuits, as well as for physical exercises. In Athens there were three great public gymnasia—Academy, Lyceum and Cynosarges—each of which was consecrated to a special deity with whose statue it was adorned; and each was rendered famous by association with a celebrated school of philosophy. Plato’s teaching in the Academy has given immortality to that gymnasium; Aristotle conferred lustre on the Lyceum; and the Cynosarges was the resort of the Cynics. Plato when treating of education devotes much consideration to gymnastics (see especially Rep. iii. and various parts of Laws); and according to Plato it was the sophist Prodicus who first pointed out the connexion between gymnastics and health. Having found such exercises beneficial to his own weak health, he formulated a method which was adopted generally, and which was improved by Hippocrates. Galen lays the greatest stress on the proper use of gymnastics, and throughout ancient medical writers we find that special exercises are prescribed as the cure for special diseases.

The Greek institution of the gymnasium never became popular with the Romans, who regarded the training of boys in gymnastics with contempt as conducive to idleness and immorality, and of little use from a military point of view; though at Sparta gymnastic training had been chiefly valued as encouraging warlike tastes and promoting the bodily strength needed for the use of weapons and the endurance of hardship. Among the Romans of the republic, the games in the Campus Martius, the duties of camp life, and the enforced marches and other hardships of actual warfare, served to take the place of the gymnastic exercises required by the Greeks. The first public gymnasium at Rome was built by Nero and another by Commodus. In the middle ages, though jousts and feats of horsemanship and field sports of various kinds were popular, the more systematic training of the body which the Greeks had associated with the gymnasium fell into neglect; while the therapeutic value of special exercises as understood by Hippocrates and Galen appears to have been lost sight of. Rousseau, in his Émile, was the first in modern times to call attention to the injurious consequences of such 753 indifference, and he insisted on the importance of physical culture as an essential part of education. It was probably due in some measure to his influence that F. L. Jahn and his followers in Germany, encouraged by the Prussian minister Stein, established the Turnplätze, or gymnastic schools, which played an important part during the War of Liberation, and in the political agitations which followed the establishment of the German confederation by the Congress of Vienna. The educational reformers Pestalozzi and Froebel emphasized the need for systematic physical training in any complete scheme of education.

The later development of the classical gymnasium (when it had become the school of Intellectual culture rather than of exclusively physical exercise), and not the original idea, has been perpetuated in the modern use of the word in Germany, where the name “gymnasium” is given to the highest grade of secondary school, and the association of the word with athleticism has been entirely abandoned. On the other hand, in England, France and elsewhere in Europe, as well as in America, the history of the word has been precisely the reverse; the connexion of the gymnasium with philosophy and mental culture has been dropped, and it indicates a building exclusively intended for the practice of physical exercises. But whereas the Greeks received training in the gymnasium for contests which are now designated as athletic sports (q.v.), gymnastics in the modern sense is a term restricted to such exercises as are usually practised indoors, with or without the aid of mechanical appliances, as distinguished from sports or games practised in the open air.

It was not until near the end of the 19th century that gymnastics were recognized in England as anything more than a recreation; their value as a specifically therapeutic agent, or as an article in the curriculum of elementary schools, was not realized. More recently, however, educationists have urged with increasing insistence the need for systematic physical training, and their views received greater attention when evidence of deterioration in the physique of the people began to accumulate. During the first decade of the 20th century more than one commission reported to parliament in England in favour of more systematic and general physical training being encouraged or even made compulsory by public authority. Voluntary associations were formed for encouraging such training and providing facilities for it. Gymnastics had already for several years been an essential part of the training of army recruits with exceedingly beneficial results, and gymnasia had been established at Aldershot and other military centres. Physical exercises, although not compulsory, obtained a permanent place in the code for elementary schools in Great Britain; and much care has been taken to provide a syllabus of exercises adapted for the improvement of the physique of the children. These exercises are partly gymnastic and partly of the nature of drill; they do not in most cases require the use of appliances, and are on that account known as “free movements,” which numbers of children go through together, accompanied whenever possible by music. On the other hand at the larger public schools and universities there are elaborate gymnasia equipped with a great variety of apparatus, the skilful use of which demands assiduous practice; and this is encouraged by annual contests between teams of gymnasts representing rival institutions.

The appliances vary to some extent in different gymnasia, some of the more complicated requiring a greater amount of space and involving a larger cost than is often practicable. But where these considerations are negligible, substantial uniformity is to be found in the equipment Gymnastic apparatus. of gymnasia not designed for specifically medical purposes. The simplest, and in many respects the most generally useful, of all gymnastic apparatus is the dumb-bell. It was in use in England as early as the time of Elizabeth, and it has the advantage that it admits of being exactly proportioned to the individual strength of each learner, and can be adjusted in weight as his strength increases. The exercises that may be performed with the dumb-bell, combined with a few simple drill-like movements, give employment to all parts of the body and to both sides equally. Dumb-bell exercises, therefore, when arranged judiciously and with knowledge, are admirably suited for developing the physique, and are extensively employed in schools both for boys and girls. The bar-bell is merely a two-handed dumb-bell, and its use is similar in principle. The Indian club is also in use in most gymnasia; but the risk of overstraining the body by its unskilful handling makes it less generally popular than the dumb-bell. All these appliances may be, and often are, used either in ordinary schoolrooms or elsewhere outside the gymnasium. The usual fixed sorts of apparatus, the presence of which (or of some of them) in a building may be said to constitute it a gymnasium, are the following: a leaping-rope; a leaping-pole; a vaulting-horse; a horizontal bar, so mounted between two upright posts that its height from the ground may be adjusted as desired; parallel bars, used for exercises to develop the muscles of the trunk and arms; the trapeze consisting of a horizontal bar suspended by ropes at a height of 4 to 5 ft. from the ground; the bridge ladder; the plank; the inclined plane; the mast; swinging rings; the prepared wall; the horizontal beam.

Before the end of the 19th century the therapeutic value of gymnastics was fully realized by the medical profession; and a number of medical or surgical gymnasia came into existence, provided with specially devised apparatus for the treatment of different physical defects or weaknesses. The exercises practised in them are arranged upon scientific principles based on anatomical and physiological knowledge; and these principles have spread thence to influence largely the practice of gymnastics in schools and in the army. A French medical writer enumerates seven distinct groups of maladies, each including a number of different complaints, for which gymnastic exercises are a recognized form of treatment; and there are many malformations of the human body, formerly believed to be incurable, which are capable of being greatly remedied if not entirely corrected by regular gymnastic exercises practised under medical direction.

The value of gymnastics both for curing defects, and still more for promoting health and the development of normal physique, is recognized even more clearly on the continent of Europe than in Great Britain. In Germany the government not only controls the practice of gymnastics but makes it compulsory for every child and adult to undergo a prescribed amount of such physical training. In France also, physical training by gymnastics is under state control; in Sweden, Denmark, Switzerland, Italy, Russia, systems more or less distinct enjoy a wide popularity; and in Finland gymnastics are practised on lines that exhibit national peculiarities. The Finns introduce an exceptional degree of variety into their exercises as well as into the appliances devised to assist them; women are scarcely less expert than men in the performance of them; and the enthusiasm with which the system is supported produces the most beneficial results in the physique of the people. International gymnastic contests have become a feature of the revived Olympic Games (see Athletic Sports), and in those held at Athens in 1906 a team of Danish ladies took part in the competition and proved by their skilful performance that gymnastics may be practised with as much success by women as by men.

GYMNOSOPHISTS (Lat. gymnosophistae, from Gr. γυμνός, σοφιστής, “naked philosophers”), the name given by the Greeks to certain ancient Hindu philosophers who pursued asceticism to the point of regarding food and clothing as detrimental to purity of thought. From the fact that they often 754 lived as hermits in forests, the Greeks also called them Hylobioi (cf. the Vāna-prasthās in Sanskrit writings). Diogenes Laërtius (ix. 61 and 63) refers to them, and asserts that Pyrrho of Elis, the founder of pure scepticism, came under their influence, and on his return to Elis imitated their habits of life, to what extent does not appear. Strabo (xv. 711, 714) divides them into Brahmans and Sarmans (or Shamans). See Jains.

GYMNOSPERMS, in Botany. The Gymnosperms, with the Angiosperms, constitute the existing groups of seed-bearing plants or Phanerogams: the importance of the seed as a distinguishing feature in the plant kingdom may be emphasized by the use of the designation Spermophyta for these two groups, in contrast to the Pteridophyta and Bryophyta in which true seeds are unknown. Recent discoveries have, however, established the fact that there existed in the Palaeozoic era fern-like plants which produced true seeds of a highly specialized type; this group, for which Oliver and Scott proposed the term Pteridospermae in 1904, must also be included in the Spermophyta. Another instance of the production of seeds in an extinct plant which further reduces the importance of this character as a distinguishing feature is afforded by the Palaeozoic genus Lepidocarpon described by Scott in 1901; this lycopodiaceous type possessed an integumented megaspore, to which the designation seed may be legitimately applied (see Palaeobotany: Palaeozoic).

As the name Gymnosperm (Gr. γυμνός, naked, σπέρμα, seed) implies, one characteristic of this group is the absence of an ovary or closed chamber containing the ovules. It was the English botanist Robert Brown who first recognized this important distinguishing feature in conifers and cycads in 1825; he established the gymnospermy of these seed-bearing classes as distinct from the angiospermy of the monocotyledons and dicotyledons. As Sachs says in his history of botany, “no more important discovery was ever made in the domain of comparative morphology and systematic botany.” As Coulter and Chamberlain express it, “the habitats of the Gymnosperms to-day indicate that they either are not at home in the more genial conditions affected by Angiosperms, or have not been able to maintain themselves in competition with this group of plants.”

These naked-seeded plants are of special interest on account of their great antiquity, which far exceeds that of the Angiosperms, and as comprising different types which carry us back to the Palaeozoic era and to the forests of the coal period. The best known and by far the largest division of the Gymnosperms is that of the cone-bearing trees (pines, firs, cedars, larches, &c.), which play a prominent part in the vegetation of the present day, especially in the higher latitudes of the northern hemisphere; certain members of this class are of considerable antiquity, but the conifers as a whole are still vigorous and show but little sign of decadence. The division known as the Cycadophyta is represented by a few living genera of limited geographical range and by a large number of extinct types which in the Mesozoic era (see Palaeobotany: Mesozoic) played a conspicuous part in the vegetation of the world. Among existing Cycadophyta we find surviving types which, in their present isolation, their close resemblance to fossil forms, and in certain morphological features, constitute links with the past that not only connect the present with former periods in the earth’s history, but serve as sign-posts pointing the way back along one of the many lines which evolution has followed.

It is needless to discuss at length the origin of the Gymnosperms. The two views which find most favour in regard to the Coniferales and Cycadophyta are: (1) that both have been derived from remote filicinean ancestors; (2) that the cycads are the descendants of a fern-like stock, while conifers have been evolved from lycopodiaceous ancestors. The line of descent of recent cycads is comparatively clear in so far as they have undoubted affinity with Palaeozoic plants which combined cycadean and filicinean features; but opinion is much more divided as to the nature of the phylum from which the conifers are derived. The Cordaitales (see Palaeobotany: Palaeozoic) are represented by extinct forms only, which occupied a prominent position in the Palaeozoic period; these plants exhibit certain features in common with the living Araucarias, and others which invite a comparison with the maidenhair tree (Ginkgo biloba), the solitary survivor of another class of Gymnosperms, the Ginkgoales (see Palaeobotany: Mesozoic). The Gnetales are a class apart, including three living genera, of which we know next to nothing as regards their past history or line of descent. Although there are several morphological features in the three genera of Gnetales which might seem to bring them into line with the Angiosperms, it is usual to regard these resemblances as parallel developments along distinct lines rather than to interpret them as evidence of direct relationship.

Gymnospermae.—Trees or shrubs; leaves vary considerably in size and form. Flowers unisexual, except in a few cases (Gnetales) without a perianth. Monoecious or dioecious. Ovules naked, rarely without carpellary leaves, usually borne on carpophylls, which assume various forms. The single megaspore enclosed in the nucellus is filled with tissue (prothallus) before fertilization, and contains two or more archegonia, consisting usually of a large egg-cell and a small neck, rarely of an egg-cell only and no neck (Gnetum and Welwitschia). Microspore spherical or oval, with or without a bladder-like extension of the exine, containing a prothallus of two or more cells, one of which produces two non-motile or motile male cells. Cotyledons two or several. Secondary xylem and phloem produced by a single cambium, or by successive cambial zones; no true vessels (except in the Gnetales) in the wood, and no companion-cells in the phloem.

I.	Pteridospermae (see Palaeobotany, Palaeozoic).
II.	Cycadophyta.
	A. Cycadales (recent and extinct).
	B. Bennettitales (see Palaeobotany: Mesozoic).
III.	Cordaitales (see Palaeobotany: Palaeozoic).
IV.	Ginkgoales (recent and extinct).
V.	Coniferales.
	A. Taxaceae.
	B. Pinaceae.

There is no doubt that the result of recent research and of work now in progress will be to modify considerably the grouping of the conifers. The family Araucarieae, represented by Araucaria and Agathis, should perhaps be separated as a special class and a rearrangement of other genera more in accord with a natural system of classification will soon be possible; but for the present its twofold subdivision may be retained.

VI.	Gnetales.
	A. Ephedroideae.
	B. Gnetoideae.
	C. Welwitschioideae (Tumboideae).

Cycadophyta.—A. Cycadales.—Stems tuberous or columnar, not infrequently branched, rarely epiphytic (Peruvian species of Zamia); fronds pinnate, bi-pinnate in the Australian genus Bowenia. Dioecious; flowers in the form of cones, except the female flowers of Cycas, which consist of a rosette of leaf-like carpels at the apex of the stem. Seeds albuminous, with one integument; the single embryo, usually bearing two partially fused cotyledons, is attached to a long tangled suspensor. Stems and roots increase in diameter by secondary thickening, the secondary wood being produced by one cambium or developed from successive cambium-rings.

Fig. 1.—Stem of Cycas. F, foliage-leaf bases; S, scale-leaf bases.

Fig. 2.—Cycas siamensis.

The cycads constitute a homogeneous group of a few living members confined to tropical and sub-tropical regions. As a fairly typical and well-known example of the Cycadaceae, a species of the genus Cycas (e.g. C. circinalis, C. revoluta, &c.) is briefly described. The stout columnar stem may reach a height of 20 metres, and a diameter of half a metre; it remains either unbranched or divides near the summit into several short and thick branches, each branch terminating in a crown of long pinnate leaves. The surface of the stem is covered with rhomboidal areas, which represent the persistent bases of foliage- and scale-leaves. In some species of Cycas there is a well-defined alternation of transverse zones on the stem, consisting of larger areas representing foliage-leaf bases, and similar but smaller areas formed by the bases of scale-leaves (F and S, fig. 1). The scale-leaves clothing the terminal bud are linear-lanceolate in form, and of a brown or yellow colour; they are pushed aside as the stem-axis elongates and becomes shrivelled, finally falling off, leaving projecting bases which are eventually cut off at a still lower level. Similarly, the dead fronds fall off, leaving a ragged petiole, which is afterwards separated from the stem by an absciss-layer a short distance above the base. In some species of Cycas the leaf-bases do not persist as a permanent covering to the stem, but the surface 755 is covered with a wrinkled bark, as in Cycas siamensis, which has a stem of unusual form (fig. 2). Small tuberous shoots, comparable on a large scale with the bulbils of Lycopodium Selago, are occasionally produced in the axils of some of the persistent leaf-bases; these are characteristic of sickly plants, and serve as a means of vegetative reproduction. In the genus Cycas the female flower is peculiar among cycads in consisting of a terminal crown of separate leaf-like carpels several inches in length; the apical portion of each carpellary leaf may be broadly triangular in form, and deeply dissected on the margins into narrow woolly appendages like rudimentary pinnae. From the lower part of a carpel are produced several laterally placed ovules, which become bright red or orange on ripening; the bright fleshy seeds, which in some species are as large as a goose’s egg, and the tawny spreading carpels produce a pleasing combination of colour in the midst of the long dark-green fronds, which curve gracefully upwards and outwards from the summit of the columnar stem. In Cycas the stem apex, after producing a cluster of carpellary leaves, continues to elongate and produces more bud-scales, which are afterwards pushed aside as a fresh crown of fronds is developed. The young leaves of Cycas consist of a straight rachis bearing numerous linear pinnae, traversed by a single midrib; the pinnae are circinately coiled like the leaf of a fern (fig. 3). The male flower of Cycas conforms to the type of structure characteristic of the cycads, and consists of a long cone of numerous sporophylls bearing many oval pollen-sacs on their lower faces. The type described serves as a convenient representative of its class. There are eight other living genera, which may be classified as follows:—

Fig. 3.—Cycas. Young Frond.

Classification.—A. Cycadeae.—Characterized by (a) the alternation of scale- and foliage-leaves (fig. 1) on the branched or unbranched stem; (b) the growth of the main stem through the female flower; (c) the presence of a prominent single vein in the linear pinnae; (d) the structure of the female flower, which is peculiar in not having the form of a cone, but consists of numerous independent carpels, each of which bears two or more lateral ovules. Represented by a single genus, Cycas. (Tropical Asia, Australia, &c.).

B. Zamieae.—The stem does not grow through the female flower; both male and female flowers are in the form of cones. (a) Stangerieae.—Characterized by the fern-like venation of the pinnae, which have a prominent midrib, giving off at a wide angle simple or forked and occasionally anastomosing lateral veins. A single genus, Stangeria, confined to South Africa, (b) Euzamieae.—The pinnae are traversed by several parallel veins. Bowenia, an Australian cycad, is peculiar in having bi-pinnate fronds (fig. 5). The various genera are distinguished from one another by the shape and manner of attachment of the pinnae, the form of the carpellary scales, and to some extent by anatomical characters. Encephalartos (South and Tropical Africa).—Large cones; the carpellary scales terminate in a peltate distal expansion. Macrozamia (Australia).—Similar to Encephalartos except in the presence of a spinous projection from the swollen distal end of the carpels. Zamia (South America, Florida, &c.).—Stem short and often divided into several columnar branches. Each carpel terminates in a peltate head. Ceratozamia (Mexico).—Similar in habit to Macrozamia, but distinguished by the presence of two horn-like spinous processes on the apex of the carpels. Microcycas (Cuba).—Like Zamia, except that the ends of the stamens are flat, while the apices of the carpels are peltate. Dioon (Mexico) (fig. 4).—Characterized by the woolly scale-leaves and carpels; the latter terminate in a thick laminar expansion of triangular form, bearing two placental cushions, on which the ovules are situated. Bowenia (Australia).—Bi-pinnate fronds; stem short and tuberous (fig. 5).

From a photograph of a plant in Peradeniya Gardens, Ceylon, by Professor R. H. Yapp.	Fig. 5.—Bowenia spectabilis: frond.
Fig. 4.—Dioon edule.

Fig. 6.—Macrozamia heteromera. A, part of frond; B, single pinna.

The stems of cycads are often described as unbranched; it is true that in comparison with conifers, in which the numerous branches, springing from the main stem, give a characteristic form to the tree, the tuberous or columnar stem of the Cycadaceae Stem and leaf. constitutes a striking distinguishing feature. Branching, however, occurs not infrequently: in Cycas the tall stem often produces several candelabra-like arms; in Zamia the main axis may break up near the base into several cylindrical branches; in species of Dioon (fig. 4) lateral branches are occasionally produced. The South African Encephalartos frequently produces several branches. Probably the oldest example of this genus in cultivation is in the Botanic Garden of Amsterdam, its age is considered by Professor de Vries to be about two thousand years: although an accurate determination of age is impossible, there is no doubt that many cycads grow very slowly and are remarkable for longevity. The thick armour of petiole-bases enveloping the stem is a characteristic Cycadean feature; in Cycas the alternation of scale-leaves and fronds is more clearly shown than in other cycads; in Encephalartos, Dioon, &c., the persistent scale-leaf bases are almost equal in size to those of the foliage-leaves, and there is no regular alternation of zones such as characterizes some species of Cycas. Another type of stem is illustrated by Stangeria and Zamia, also by a few forms of Cycas (fig. 2), in which the fronds fall off completely, leaving a comparatively smooth stem. The Cyas type of frond, except as regards the presence of a midrib in each pinna, characterizes the cycads generally, except Bowenia and Stangeria. In the monotypic genus Bowenia the large fronds, borne singly on the short and thick stem, are bi-pinnate (fig. 5); the segments, which are broadly ovate or rhomboidal, have several forked spreading veins, and resemble the large pinnules of some species of Adiantum. In Stangeria, also a genus represented by one species (S. paradoxa of South Africa), the long and comparatively broad pinnae, with an entire or irregularly incised margin, are very fern-like, a circumstance which led Kunze to describe the plant in 1835 as a species of the fern Lomaria. In rare cases the pinnae of cycads are lobed or branched: in Dioon spinulosum (Central America) the margin of the segments bears numerous spinous processes; in some species of Encephalartos, e.g. E. horridus, the lamina is deeply lobed; and in a species of the Australian genus Macrozamia, M. heteromera, the narrow pinnae are dichotomously branched almost to the base (fig. 6), and resemble the frond of some species of the fern Schizaea, or the fossil genus Baiera (Ginkgoales). An interesting species of Cycas, C. Micholitzii, has recently been described by Sir William Thiselton-Dyer from Annam, where it was collected by one of Messrs Sanders & Son’s collectors, in which the pinnae instead of being of the usual simple type are 756 dichotomously branched as in Macrozamia heteromera. In Ceratozamia the broad petiole-base is characterized by the presence of two lateral spinous processes, suggesting stipular appendages, comparable, on a reduced scale, with the large stipules of the Marattiaceae among Ferns. The vernation varies in different genera; in Cycas the rachis is straight and the pinnae circinately coiled (fig. 3); in Encephalartos, Dioon, &c., both rachis and segments are straight; in Zamia the rachis is bent or slightly coiled, bearing straight pinnae. The young leaves arise on the stem-apex as conical protuberances with winged borders on which the pinnae appear as rounded humps, usually in basipetal order; the scale-leaves in their young condition resemble fronds, but the lamina remains undeveloped. A feature of interest in connexion with the phylogeny of cycads is the presence of long hairs clothing the scale-leaves, and forming a cap on the summit of the stem-apex or attached to the bases of petioles; on some fossil cycadean plants these outgrowths have the form of scales, and are identical in structure with the ramenta (paleae) of the majority of ferns.

The male flowers of cycads are constructed on a uniform plan, and in all cases consist of an axis bearing crowded, spirally disposed sporophylls. These are often wedge-shaped and angular; in some cases they consist of a short, thick Flower. stalk, terminating in a peltate expansion, or prolonged upwards in the form of a triangular lamina. The sporangia (pollen-sacs), which occur on the under-side of the stamens, are often arranged in more or less definite groups or sori, interspersed with hairs (paraphyses); dehiscence takes place along a line marked out by the occurrence of smaller and thinner-walled cells bounded by larger and thicker-walled elements, which form a fairly prominent cap-like “annulus” near the apex of the sporangium, not unlike the annulus characteristic of the Schizaeaceae among ferns. The sporangial wall, consisting of several layers of cells, encloses a cavity containing numerous oval spores (pollen-grains). In structure a cycadean sporangium recalls those of certain ferns (Marattiaceae, Osmundaceae and Schizaeaceae), but in the development of the spores there are certain peculiarities not met with among the Vascular Cryptogams. With the exception of Cycas, the female flowers are also in the form of cones, bearing numerous carpellary scales. In Cycas revoluta and C. circinalis each leaf-like carpel may produce several laterally attached ovules, but in C. Normanbyana the carpel is shorter and the ovules are reduced to two; this latter type brings us nearer to the carpels of Dioon, in which the flower has the form of a cone, and the distal end of the carpels is longer and more leaf-like than in the other genera of the Zamieae, which are characterized by shorter carpels with thick peltate heads bearing two ovules on the morphologically lower surface. The cones of cycads attain in some cases (e.g. Encephalartos) a considerable size, reaching a length of more than a foot. Cases have been recorded (by Thiselton-Dyer in Encephalartos and by Wieland in Zamia) in which the short carpellary cone-scales exhibit a foliaceous form. It is interesting that no monstrous cycadean cone has been described in which ovuliferous and staminate appendages are borne on the same axis: in the Bennettitales (see Palaeobotany: Mesozoic) flowers were produced bearing on the same axis both androecium and gynoecium.

Fig. 7.—Zamia. Part of Ovule in longitudinal section. (After Webber.)
P, Prothallus. A, Archegonia. N, Nucellus. C, Pollen-chamber.	Pt, Pollen-tube. Pg, Pollen-grain. G, Generative cell (second cell of pollen-tube).

Fig. 8.—Zamia. Proximal end of Pollen-tube, a, a, Spermatozoids from G of fig. 7; Pg, pollen-grain; c, proximal cell (first cell). (After Webber.)

The pollen-grains when mature consist of three cells, two small and one large cell; the latter grows into the pollen-tube, as in the Coniferales, and from one of the small cells two large ciliated spermatozoids are eventually produced. A Microspores and megaspores. remarkable exception to this rule has recently been recorded by Caldwell, who found that in Microcycas Calocoma the body-cells may be eight or even ten in number and the sperm-cells twice as numerous. One of the most important discoveries made during the latter part of the 19th century was that by Ikeno, a Japanese botanist, who first demonstrated the existence of motile male cells in the genus Cycas. Similar spermatozoids were observed in some species of Zamia by H. J. Webber, and more recent work enables us to assume that all cycads produce ciliated male gametes. Before following the growth of the pollen-grain after pollination, we will briefly describe the structure of a cycadean ovule. An ovule consists of a conical nucellus surrounded by a single integument. At an early stage of development a large cell makes its appearance in the central region of the nucellus; this increases in size and eventually forms three cells; the lowest of these grows vigorously and constitutes the megaspore (embryo-sac), which ultimately absorbs the greater part of the nucellus. The megaspore-nucleus divides repeatedly, and cells are produced from the peripheral region inwards, which eventually fill the spore-cavity with a homogeneous tissue (prothallus); some of the superficial cells at the micropylar end of the megaspore increase in size and divide by a tangential wall into two, an upper cell which gives rise to the short two-celled neck of the archegonium, and a lower cell which develops into a large egg-cell. Each megaspore may contain 2 to 6 archegonia. During the growth of the ovum nourishment is supplied from the contents of the cells immediately surrounding the egg-cell, as in the development of the ovum of Pinus and other conifers. Meanwhile the tissue in the apical region of the nucellus has been undergoing disorganization, which results in the formation of a pollen-chamber (fig. 7, C) immediately above the megaspore. Pollination in cycads has always been described as anemophilous, but according to recent observations by Pearson on South African species it seems probable that, at least in some cases, the pollen is conveyed to the ovules by animal agency. The pollen-grains find their way between the carpophylls, which at the time of pollination are slightly apart owing to the elongation of the internodes of the flower-axis, and pass into the pollen-chamber; the large cell of the pollen-grain grows out into a tube (Pt), which penetrates the nucellar tissue and often branches repeatedly; the pollen-grain itself, with the prothallus-cells, projects freely into the pollen-chamber (fig. 7). The nucleus of the outermost (second) small cell (fig. 7, G) divides, and one of the daughter-nuclei passes out of the cell, and may enter the lowest (first) small cell. The outermost cell, by the division of the remaining nucleus, produces two large spermatozoids (fig. 8, a, a). In Microcycas 16 sperm-cells are produced. In the course of division two bodies appear in the cytoplasm, and behave as centrosomes during the karyokinesis; they gradually become threadlike and coil round each daughter nucleus. This thread gives rise to a spiral ciliated band lying in a depression on the body of each spermatozoid; the large spermatozoids eventually escape from the pollen-tube, and are able to perform ciliary movements in the watery liquid which occurs between the thin papery remnant of nucellar tissue and the archegonial necks. Before fertilization a neck-canal cell is formed by the division of the ovum-nucleus. After the body of a spermatozoid has coalesced with the egg-nucleus the latter divides repeatedly and forms a mass of tissue which grows more vigorously in the lower part of the fertilized ovum, and extends upwards towards the apex of the ovum as a peripheral layer of parenchyma surrounding a central space. By further growth this tissue gives rise to a proembryo, which consists, at the micropylar end, of a sac; the tissue at the chalazal end grows into a long and tangled suspensor, terminating in a mass of cells, which is eventually differentiated into a radicle, plumule and two cotyledons. In the ripe seed the integument assumes the form of a fleshy envelope, succeeded internally by a hard woody shell, internal to which is a thin papery membrane—the apical portion of the nucellus—which is easily dissected out as a conical cap covering the apex of the endosperm. A thorough examination of cycadean seeds has recently been made by Miss Stopes, more particularly with a view to a comparison of their vascular supply with that in Palaeozoic gymnospermous seeds (Flora, 1904). The first leaves borne on the seedling axis are often scale-like, and these are followed by two or more larger laminae, which foreshadow the pinnae of the adult frond.

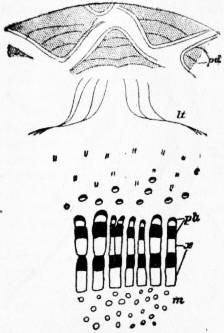

Fig. 9.—Macrozamia. Diagrammatic transverse section of part of Stem. (After Worsdell.)

pd, Periderm in leaf-bases. lt, Leaf-traces in cortex. ph, Phloem. x, Xylem. m, Medullary bundles. c, Cortical bundles.

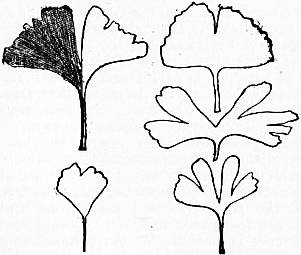

Fig. 10.—Ginkgo biloba. Leaves.

Fig. 11.—Ginkgo adiantoides. Fossil (Eocene) leaf from the Island of Mull.

The anatomical structure of the vegetative organs of recent cycads is of special interest as affording important evidence of relationship with extinct types, and with other groups of recent plants. Brongniart, who Anatomy. was the first to investigate in detail the anatomy of a cycadean stem, recognized an agreement, as regards the secondary wood, with Dicotyledons and Gymnosperms, rather than with Monocotyledons. He drew attention also to certain structural similarities between Cycas and Ginkgo. The main anatomical features of a cycad stem may be summarized as follows: the centre is occupied by a large parenchymatous pith traversed by numerous secretory canals, and in some genera by cauline vascular bundles (e.g. Encephalartos and Macrozamia). In addition to these cauline strands (confined to the stem and not connected with the leaves), collateral bundles are often met with in the pith, which form the vascular supply of terminal flowers borne at intervals on the apex of the stem. These latter bundles may be seen in sections of old stems to pursue a more or less horizontal course, passing outwards through the main woody cylinder. This lateral course is due to the more vigorous growth of the axillary branch formed near the base of each flower, which is a terminal structure, and, except in the female flower of Cycas, puts a limit to the apical growth of the stem. The vigorous lateral branch therefore continues the line of the main axis. The pith is encircled by a cylinder of secondary wood, consisting of single or multiple radial rows of tracheids separated by broad medullary rays composed of large parenchymatous cells; the tracheids bear numerous bordered 757 pits on the radial walls. The large medullary rays give to the wood a characteristic parenchymatous or lax appearance, which is in marked contrast to the more compact wood of a conifer. The protoxylem-elements are situated at the extreme inner edge of the secondary wood, and may occur as small groups of narrow, spirally-pitted elements scattered among the parenchyma which abuts on the main mass of wood. Short and reticulately-pitted tracheal cells, similar to tracheids, often occur in the circummedullary region of cycadean stems. In an old stem of Cycas, Encephalartos or Macrozamia the secondary wood consists of several rather unevenly concentric zones, while in some other genera it forms a continuous mass as in conifers and normal dicotyledons. These concentric rings of secondary xylem and phloem (fig. 9) afford a characteristic cycadean feature. After the cambium has been active for some time producing secondary xylem and phloem, the latter consisting of sieve-tubes, phloem-parenchyma and frequently thick-walled fibres, a second cambium is developed in the pericycle; this produces a second vascular zone, which is in turn followed by a third cambium, and so on, until several hollow cylinders are developed. It has been recently shown that several cambium-zones may remain in a state of activity, so that the formation of a new cambium does not necessarily mark a cessation of growth in the more internal meristematic rings. It occasionally happens that groups of xylem and phloem are developed internally to some of the vascular rings; these are characterized by an inverse orientation of the tissues, the xylem being centrifugal and the phloem centripetal in its development. The broad cortical region, which contains many secretory canals, is traversed by numerous vascular bundles (fig. 9, c) some of which pursue a more or less vertical course, and by frequent anastomoses with one another form a loose reticulum of vascular strands; others are leaf-traces on their way from the stele of the stem to the leaves. Most of these cortical bundles are collateral in structure, but in some the xylem and phloem are concentrically arranged; the secondary origin of these bundles from procambium-strands was described by Mettenius in his classical paper of 1860. During the increase in thickness of a cycadean stem successive layers of cork-tissue are formed by phellogens in the persistent bases of leaves (fig. 9, pd), which increase in size to adapt themselves to the growth of the vascular zones. The leaf-traces of cycads are remarkable both on account of their course and their anatomy. In a transverse section of a stem (fig. 9) one sees some vascular bundles following a horizontal or slightly oblique course in the cortex, stretching for a longer or shorter distance in a direction concentric with the woody cylinder. From each leaf-base two main bundles spread right and left through the cortex of the stem (fig. 9, lt), and as they curve gradually towards the vascular ring they present the appearance of two rather flat ogee curves, usually spoken of as the leaf-trace girdles (fig. 9, lt). The distal ends of these girdles give off several branches, which traverse the petiole and rachis as numerous collateral bundles. The complicated girdle-like course is characteristic of the leaf-traces of most recent cycads, but in some cases, e.g. in Zamia floridana, the traces are described by Wieland in his recent monograph on American fossil cycads (Carnegie Institution Publications, 1906) as possessing a more direct course similar to that in Mesozoic genera. A leaf-trace, as it passes through the cortex, has a collateral structure, the protoxylem being situated at the inner edge of the xylem; when it reaches the leaf-base the position of the spiral tracheids is gradually altered, and the endarch arrangement (protoxylem internal) gives place to a mesarch structure (protoxylem more or less central and not on the edge of the xylem strand). In a bundle examined in the basal portion of a leaf the bulk of the xylem is found to be centrifugal in position, but internally to the protoxylem there is a group of centripetal tracheids; higher up in the petiole the xylem is mainly centripetal, the centrifugal wood being represented by a small arc of tracheids external to the protoxylem and separated from it by a few parenchymatous elements. Finally, in the pinnae of the frond the centrifugal xylem may disappear, the protoxylem being now exarch in position and abutting on the phloem. Similarly in the sporophylls of some cycads the bundles are endarch near the base and mesarch near the distal end of the stamen or carpel. The vascular system of cycadean seedlings presents some features worthy of note; centripetal xylem occurs in the cotyledonary bundles associated with transfusion-tracheids. The bundles from the cotyledons pursue a direct course to the stele of the main axis, and do not assume the girdle-form characteristic of the adult plant. This is of interest from the point of view of the comparison of recent cycads with extinct species (Bennettites), in which the leaf-traces follow a much more direct course than in modern cycads. The mesarch structure of the leaf-bundles is met with in a less pronounced form in the flower peduncles of some cycads. This fact is of importance as showing that the type of vascular structure, which characterized the stems of many Palaeozoic genera, has not entirely disappeared from the stems of modern cycads; but the mesarch bundle is now confined to the leaves and peduncles. The roots of some cycads Roots. resemble the stems in producing several cambium-rings; they possess 2 to 8 protoxylem-groups, and are characterized by a broad pericyclic zone. A common phenomenon in cycads is the production of roots which grow upwards (apogeotropic), and appear as coralline branched structures above the level of the ground; some of the cortical cells of these roots are hypertrophied, and contain numerous filaments of blue-green Algae (Nostocaceae), which live as endoparasites in the cell-cavities.

Fig. 12.—Ginkgo biloba. A, Male flower; B, C, single stamens; D, female flower.

Ginkgoales.—This class-designation has been recently proposed to give emphasis to the isolated position of the genus Ginkgo (Salisburia) among the Gymnosperms. Ginkgo biloba, the maidenhair tree, has usually been placed by botanists in the Taxeae in the neighbourhood of the yew (Taxus), but the proposal by Eichler in 1852 to institute a special family, the Salisburieae, indicated a recognition of the existence of special characteristics which distinguish the genus from other members of the Coniferae. The discovery by the Japanese botanist Hirase of the development of ciliated spermatozoids in the pollen-tube of Ginkgo, in place of the non-motile male cells of typical conifers, served as a cogent argument in favour of separating the genus from the Coniferales and placing it in a class of its own. In 1712 Kaempfer published a drawing of a Japanese tree, which he described under the name Ginkgo; this term was adopted in 1771 by Linnaeus, who spoke of Kaempfer’s plant as Ginkgo biloba. In 1797 Smith proposed to use the name Salisburia adiantifolia in preference to the “uncouth” genus Ginkgo and “incorrect” specific term biloba. Both names are still in common use. On account of the resemblance of the leaves to those of some species of Adiantum, the appellation maidenhair tree has long been given to Ginkgo biloba. Ginkgo is of special interest on account of its isolated position among existing plants, its restricted geographical distribution, and its great antiquity (see Palaeobotany: Mesozoic). This solitary survivor of an ancient stock is almost extinct, but a few old and presumably wild trees are recorded by travellers in parts of China. Ginkgo is common as a sacred tree in the gardens of temples in the Far East, and often cultivated in North America and Europe. Ginkgo biloba, which may reach a height of over 30 metres, forms a tree of pyramidal shape with a smooth grey bark. The leaves (figs. 10 and 11) have a long, slender petiole terminating in a fan-shaped lamina, which may be entire, divided by a median incision into two wedge-shaped lobes, or subdivided into several narrow segments. The venation is like that of many ferns, e.g. Adiantum; the lowest vein in each half of the lamina follows a course parallel to the edge, and gives off numerous branches, which fork repeatedly as they spread in a palmate manner towards the leaf margin. The foliage-leaves occur either scattered on long shoots of unlimited growth, or at the apex of short shoots (spurs), which may eventually elongate into long shoots.

758

Fig. 13.—Ginkgo. Apex of Ovule, and Pollen-grain. (After Hirase.)

p, Pollen-tube (proximal end). c, Pollen-chamber. e, Upward prolongation of megaspore. a, Archegonia. Pg, Pollen-grain. Ex, Exine.

The flowers are dioecious. The male flowers (fig. 12), borne in the axil of scale-leaves, consist of a stalked central axis bearing loosely disposed stamens; each stamen consists of a slender filament terminating in a small apical scale, which bears Flowers. usually two, but not infrequently three or four pollen-sacs (fig. 12, C). The axis of the flower is a shoot bearing leaves in the form of stamens. A mature pollen-grain contains a prothallus of 3 to 5 cells (Fig. 13, Pg); the exine extends over two-thirds of the circumference, leaving a thin portion of the wall, which on collapsing produces a longitudinal groove similar to the median depression on the pollen-grain of a cycad. The ordinary type of female flower has the form of a long, naked peduncle bearing a single ovule on either side of the apex (fig. 12), the base of each being enclosed by a small, collar-like rim, the nature of which has been variously interpreted. A young ovule consists of a conical nucellus surrounded by a single integument terminating as a two-lipped micropyle. A large pollen-chamber occupies the apex of the nucellus; immediately below this, two or more archegonia (fig. 13, a) are developed in the upper region of the megaspore, each consisting of a large egg-cell surmounted by two neck-cells and a canal-cell which is cut off shortly before fertilization. After the entrance of the pollen-grain the pollen-chamber becomes roofed over by a blunt protuberance of nucellar tissue. The megaspore (embryo-sac) continues to grow after pollination until the greater part of the nucellus is gradually destroyed; it also gives rise to a vertical outgrowth, which projects from the apex of the megaspore as a short, thick column (fig. 13, e) supporting the remains of the nucellar tissue which forms the roof of the pollen-chamber (fig. 13, c). Surrounding the pitted wall of the ovum there is a definite layer of large cells, no doubt representing a tapetum, which, as in cycads and conifers, plays an important part in nourishing the growing egg-cell. The endosperm detached from a large Ginkgo ovule after fertilization bears a close resemblance to that of a cycad; the apex is occupied by a depression, on the floor of which two small holes mark the position of the archegonia, and the outgrowth from the megaspore apex projects from the centre as a short peg. After pollination the pollen-tube grows into the nucellar tissue, as in cycads, and the pollen-grain itself (fig. 13, Pg) hangs down into the pollen-chamber; two large spirally ciliated spermatozoids are produced, their manner of development agreeing very closely with that of the corresponding cells in Cycas and Zamia. After fertilization the ovum-nucleus divides and cell-formation proceeds rapidly, especially in the lower part of the ovum, in which the cotyledon and axis of the embryo are differentiated; the long, tangled suspensor of the cycadean embryo is not found in Ginkgo. It is often stated that fertilization occurs after the ovules have fallen, but it has been demonstrated by Hirase that this occurs while the ovules are still attached to the tree. The ripe seed, which grows as large as a rather small plum, is enclosed by a thick, fleshy envelope covering a hard woody shell with two or rarely three longitudinal keels. A papery remnant of nucellus lines the inner face of the woody shell, and, as in cycadean seeds, the apical portion is readily separated as a cap covering the summit of the endosperm.

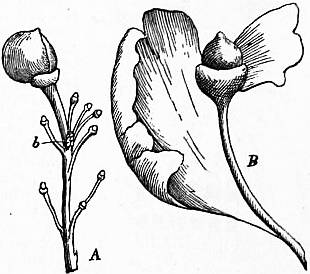

Fig. 14.—Ginkgo. Abnormal female Flowers. A, Peduncle; b, scaly bud; B, leaf bearing marginal ovule. (After Fujii.)

The morphology of the female flowers has been variously interpreted by botanists; the peduncle bearing the ovules has been described as homologous with the petiole of a foliage-leaf and as a shoot-structure, the collar-like envelope at the base of the ovules being referred to as a second integument or arillus, or as the representative of a carpel. The evidence afforded by normal and abnormal flowers appears to be in favour of the following interpretation: The peduncle is a shoot bearing two or more carpels. Each ovule is enclosed at the base by an envelope or collar homologous with the lamina of a leaf; the fleshy and hard coats of the nucellus constitute a single integument. The stalk of an ovule, considerably reduced in normal flowers and much larger in some abnormal flowers, is homologous with a leaf-stalk, with which it agrees in the structure and number of vascular bundles. The facts on which this description is based are derived partly from anatomical evidence, and in part from an account given by a Japanese botanist, Fujii, of several abnormal female flowers; in some cases the collar at the base of an ovule, often described as an arillus, is found to pass gradually into the lamina of a leaf bearing marginal ovules (fig. 14, B). The occurrence of more than two ovules on one peduncle is by no means rare; a particularly striking example is described by Fujii, in which an unusually thick peduncle bearing several stalked ovules terminates in a scaly bud (fig. 14, A, b). The frequent occurrence of more than two pollen-sacs and the equally common occurrence of additional ovules have been regarded by some authors as evidence in favour of the view that ancestral types normally possessed a greater number of these organs than are usually found in the recent species. This Anatomy. view receives support from fossil evidence. Close to the apex of a shoot the vascular bundles of a leaf make their appearance as double strands, and the leaf-traces in the upper part of a shoot have the form of distinct bundles, which in the older part of the shoot form a continuous ring. Each double leaf-trace passes through four internodes before becoming a part of the stele; the double nature of the trace is a characteristic feature. Secretory sacs occur abundantly in the leaf-lamina, where they appear as short lines between the veins; they are abundant also in the cortex and pith of the shoot, in the fleshy integument of the ovule, and elsewhere. The secondary wood of the shoot and root conforms in the main to the coniferous type; in the short shoots the greater breadth of the medullary rays in the more internal part of the xylem recalls the cycadean type. The secondary phloem contains numerous thick-walled fibres, parenchymatous cells, and large sieve-tubes with plates on the radial walls; swollen parenchymatous cells containing crystals are commonly met with in the cortex, pith and medullary-ray tissues. The wood consists of tracheids, with circular bordered pits on their radial walls, and in the late summer wood pits are unusually abundant on the tangential walls. A point of anatomical interest is the occurrence in the vascular bundles of the cotyledons, scale-leaves, and elsewhere of a few centripetally developed tracheids, which give to the xylem-strands a mesarch structure such as characterizes the foliar bundles of cycads. The root is diarch in structure, but additional protoxylem-strands may be present at the base of the main root; the pericycle consists of several layers of cells.

This is not the place to discuss in detail the past history of Ginkgo (see Palaeobotany: Mesozoic). Among Palaeozoic genera there are some which bear a close resemblance to the recent type in the form of the leaves; and petrified Palaeozoic seeds, Geological history. almost identical with those of the maidenhair tree, have been described from French and English localities. During the Triassic and Jurassic periods the genus Baiera—no doubt a representative of the Ginkgoales—was widely spread throughout Europe and in other regions; Ginkgo itself occurs abundantly in Mesozoic and Tertiary rocks, and was a common plant in the Arctic regions as elsewhere during the Jurassic and Lower Cretaceous periods. Some unusually perfect Ginkgo leaves have been found in the Eocene leaf-beds between the lava-flows exposed in the cliffs of Mull (fig. 11). From an evolutionary point of view, it is of interest to note the occurrence of filicinean and cycadean characters in the maidenhair tree. The leaves at once invite a comparison with ferns; the numerous long hairs which form a delicate woolly covering on young leaves recall the hairs of certain ferns, but agree more closely with the long filamentous hairs of recent cycads. The spermatozoids constitute the most striking link with both cycads and ferns. The structure of the seed, the presence of two neck-cells in the archegonia, the late development of the embryo, the partially-fused cotyledons and certain anatomical characters, are features common to Ginkgo and the cycads. The maidenhair tree is one of the most interesting survivals from the past; it represents a type which, in the Palaeozoic era, may have been merged into the extinct class Cordaitales. Through the succeeding ages the Ginkgoales were represented by numerous forms, which gradually became more restricted in their distribution and fewer in number during the Cretaceous and Tertiary periods, terminating at the present day in one solitary survivor.

Coniferales.—Trees and shrubs characterized by a copious branching of the stem and frequently by a regular pyramidal form. Leaves simple, small, linear or short and scale-like, usually persisting for more than one year. Flowers monoecious or dioecious, unisexual, without a perianth, often in the form of cones, but never terminal on the main stem.

The plants usually included in the Coniferae constitute a less homogeneous class than the Cycadaceae. Some authors use the term Coniferae in a restricted sense as including those genera which have the female flowers in the form of cones, External features. the other genera, characterized by flowers of a different type, being placed in the Taxaceae, and often spoken of as Taxads. 759 In order to avoid confusion in the use of the term Coniferae, we may adopt as a class-designation the name Coniferales, including both the Coniferae—using the term in a restricted sense—and the Taxaceae. The most striking characteristic of the majority of the Coniferales is the regular manner of the monopodial branching and the pyramidal shape. Araucaria imbricata, the Monkey-puzzle tree, A. excelsa, the Norfolk Island pine, many pines and firs, cedars and other genera illustrate the pyramidal form. The mammoth redwood tree of California, Sequoia (Wellingtonia) gigantea, which represents the tallest Gymnosperm, is a good example of the regular tapering main stem and narrow pyramidal form. The cypresses afford instances of tall and narrow trees similar in habit to Lombardy poplars. The common cypress (Cupressus sempervirens), as found wild in the mountains of Crete and Cyprus, is characterized by long and spreading branches, which give it a cedar-like habit. A pendulous or weeping habit is assumed by some conifers, e.g. Picea excelsa var. virgata represents a form in which the main branches attain a considerable horizontal extension, and trail themselves like snakes along the ground. Certain species of Pinus, the yews (Taxus) and some other genera grow as bushes, which in place of a main mast-like stem possess several repeatedly-branched leading shoots. The unfavourable conditions in Arctic regions have produced a dwarf form, in which the main shoots grow close to the ground. Artificially induced dwarfed plants of Pinus, Cupressus, Sciadopitys (umbrella pine) and other genera are commonly cultivated by the Japanese. The dying off of older branches and the vigorous growth of shoots nearer the apex of the stem produce a form of tree illustrated by the stone pine of the Mediterranean region (Pinus Pinea), which Turner has rendered familiar in his “Childe Harold’s Pilgrimage” and other pictures of Italian scenery. Conifers are not infrequently seen in which a lateral branch has bent sharply upwards to take the place of the injured main trunk. An upward tendency of all the main lateral branches, known as fastigiation, is common in some species, producing well-marked varieties, e.g. Cephalotaxus pedunculata var. fastigiata; this fastigiate habit may arise as a sport on a tree with spreading branches. Another departure from the normal is that in which the juvenile or seedling form of shoot persists in the adult tree; the numerous coniferous plants known as species of Retinospora are examples of this. The name Retinospora, therefore, does not stand for a true genus, but denotes persistent young forms of Juniperus, Thuja, Cupressus, &c., in which the small scaly leaves of ordinary species are replaced by the slender, needle-like leaves, which stand out more or less at right angles from the branches. The flat branchlets of Cupressus, Thuja (arbor vitae), Thujopsis dolabrata (Japanese arbor vitae) are characteristic of certain types of conifers; in some cases the horizontal extension of the branches induces a dorsiventral structure. A characteristic feature of the genus Agathis (Dammara) the Kauri pine of New Zealand, is the deciduous habit of the branches; these become detached from the main trunk leaving a well-defined absciss-surface, which appears as a depressed circular scar on the stem. A new genus of conifers, Taiwania, has recently been described from the island of Formosa; it is said to agree in habit with the Japanese Cryptomeria, but the cones appear to have a structure which distinguishes them from those of any other genus.

With a few exceptions conifers are evergreen, and retain the leaves for several years (10 years in Araucaria imbricata, 8 to 10 in Picea excelsa, 5 in Taxus baccata; in Pinus the needles usually fall in October of their third year). The larch (Larix) Leaves. sheds its leaves in the autumn, in the Chinese larch (Pseudolarix Kaempferi) the leaves turn a bright yellow colour before falling. In the swamp cypress (Taxodium distichum) the tree assumes a rich brown colour in the autumn, and sheds its leaves together with the branchlets which bear them; deciduous branches occur also in some other species, e.g. Sequoia sempervirens (redwood), Thuja occidentalis, &c. The leaves of conifers are characterized by their small size, e.g. the needle-form represented by Pinus, Cedrus, Larix, &c., the linear flat or angular leaves, appressed to the branches, of Thuja, Cupressus, Libocedrus, &c. The flat and comparatively broad leaves of Araucaria imbricata, A. Bidwillii, and some species of the southern genus Podocarpus are traversed by several parallel veins, as are also the still larger leaves of Agathis, which may reach a length of several inches. In addition to the foliage-leaves several genera also possess scale-leaves of various kinds, represented by bud-scales in Pinus, Picea, &c., which frequently persist for a time at the base of a young shoot which has pushed its way through the yielding cap of protecting scales, while in some conifers the bud-scales adhere together, and after being torn near the base are carried up by the growing axis as a thin brown cap. The cypresses, araucarias and some other genera have no true bud-scales; in some species, e.g. Araucaria Bidwillii, the occurrence of small foliage-leaves, which have functioned as bud-scales, at intervals on the shoots affords a measure of seasonal growth. The occurrence of long and short shoots is a characteristic feature of many conifers. In Pinus the needles occur in pairs, or in clusters of 3 or 5 at the apex of a small and inconspicuous short shoot of limited growth (spur), which is enclosed at its base by a few scale-leaves, and borne on a branch of unlimited growth in the axil of a scale-leaf. In the Californian Pinus monophylla each spur bears usually one needle, but two are not uncommon; it would seem that rudiments of two needles are always produced, but, as a rule, only one develops into a needle. In Sciadopitys similar spurs occur, each bearing a single needle, which in its grooved surface and in the possession of a double vascular bundle bears traces of an origin from two needle-leaves. A peculiarity of these leaves is the inverse orientation of the vascular tissue; each of the two veins has its phloem next the upper and the xylem towards the lower surface of the leaf; this unusual position of the xylem and phloem may be explained by regarding the needle of Sciadopitys as being composed of a pair of leaves borne on a short axillary shoot and fused by their margins (fig. 15, A). Long and short shoots occur also in Cedrus and Larix, but in these genera the spurs are longer and stouter, and are not shed with the leaves; this kind of short shoot, by accelerated apical growth, often passes into the condition of a long shoot on which the leaves are scattered and separated by comparatively long internodes, instead of being crowded into tufts such as are borne on the ends of the spurs. In the genus Phyllocladus (New Zealand, &c.) there are no green foliage-leaves, but in their place flattened branches (phylloclades) borne in the axils of small scale-leaves. The cotyledons are often two in number, but sometimes (e.g. Pinus) as many as fifteen; these leaves are usually succeeded by foliage-leaves in the form of delicate spreading needles, and these primordial leaves are followed, sooner or later, by the adult type of leaf, except in Retinosporas, which retain the juvenile foliage. In addition to the first foliage-leaves and the adult type of leaf, there are often produced leaves which are intermediate both in shape and structure between the seedling and adult foliage. Dimorphism or heterophylly is fairly common. One of the best known examples is the Chinese juniper (Juniperus chinensis), in which branches with spinous leaves, longer and more spreading than the ordinary adult leaf, are often found associated with the normal type of branch. In some cases, e.g. Sequoia sempervirens, the fertile branches bear leaves which are less spreading than those on the vegetative shoots. Certain species of the southern hemisphere genus Dacrydium afford particularly striking instances of heterophylly, e.g. D. Kirkii of New Zealand, in which some branches bear small and appressed leaves, while in others the leaves are much longer and more spreading. A well-known fossil conifer from Triassic strata—Voltzia heterophylla—also illustrates a marked dissimilarity in the leaves of the same shoot. The variation in leaf-form and the tendency of leaves to arrange themselves in various ways on different branches of the same plant are features which it is important to bear in mind in the identification of fossil conifers. In this connexion we may note the striking resemblance between some of the New Zealand Alpine Veronicas, e.g. Veronica Hectori, V. cupressoides, &c. (also Polycladus cupressinus, a Composite), and some of the cypresses and other conifers with small appressed leaves. The long linear leaves of some species of Podocarpus, in which the lamina is traversed by a single vein, recall the pinnae of Cycas; the branches of some Dacrydiums and other forms closely resemble those of lycopods; these superficial resemblances, both between different genera of conifers and between conifers and other plants, coupled with the usual occurrence of fossil coniferous twigs without cones attached to them, render the determination of extinct types a very unsatisfactory and frequently an impossible task.

A typical male flower consists of a central axis bearing numerous spirally-arranged sporophylls (stamens), each of which consists of a slender stalk (filament) terminating distally in a more or less prominent knob or triangular scale, and bearing Flowers. two or more pollen-sacs (microsporangia) on its lower surface. The pollen-grains of some genera (e.g. Pinus) are furnished with bladder-like extensions of the outer wall, which serve as aids to wind-dispersal. The stamens of Araucaria and Agathis are peculiar in bearing several long, and narrow free pollen-sacs; these may be compared with the sporangiophores of the horsetails (Equisetum); in Taxus (yew) the filament is attached to the centre of a large circular distal expansion, which bears several pollen-sacs on its under surface. In the conifers proper the female reproductive organs have the form of cones, which may be styled flowers or inflorescences according to different interpretations of their morphology. In the Taxaceae the flowers have a simpler structure. The female flowers of the Abietineae may be taken as representing a common type. A pine cone reaches maturity in two years; a single year suffices for the full development in Larix and several other genera. The axis of the cone bears numerous spirally disposed flat scales (cone-scales), each of which, if examined in a young cone, is found to be double, and to consist of a lower and an upper portion. The latter is a thin flat scale bearing a median ridge or keel (e.g. Abies), on each side of which is situated an inverted ovule, consisting of a nucellus surrounded by a single integument. As the cone grows in size and becomes woody the lower half of the cone-scale, which we may call the carpellary scale, may remain small, and is so far outgrown by the upper half (seminiferous scale) that it is hardly recognizable in the mature cone. In many species of Abies (e.g. Abies pectinata, &c.) the ripe cone differs from those of Pinus, Picea and Cedrus in the large size of the carpellary scales, which project as conspicuous thin appendages beyond the distal margins of the broader and more woody seminiferous scales; the long carpellary scale is a prominent feature also in the cone of the Douglas pine (Pseudotsuga Douglasii). The female flowers (cones) vary considerably in size; the largest are the more or less spherical cones of Araucaria—a single cone of A. imbricata may produce as many as 300 seeds, one seed to each fertile cone-scale—and the long pendent 760 cones, 1 to 2 ft. in length, of the sugar pine of California (Pinus Lambertiana) and other species. Smaller cones, less than an inch long, occur in the larch, Athrotaxis (Tasmania), Fitzroya (Patagonia and Tasmania), &c. In the Taxodieae and Araucarieae the cones are similar in appearance to those of the Abietineae, but they differ in the fact that the scales appear to be single, even in the young condition; each cone-scale in a genus of the Taxodiinae (Sequoia, &c.) bears several seeds, while in the Araucariinae (Araucaria and Agathis) each scale has one seed. The Cupressineae have cones composed of a few scales arranged in alternate whorls; each scale bears two or more seeds, and shows no external sign of being composed of two distinct portions. In the junipers the scales become fleshy as the seeds ripen, and the individual scales fuse together in the form of a berry. The female flowers of the Taxaceae assume another form; in Microcachrys (Tasmania) the reproductive structures are spirally disposed, and form small globular cones made up of red fleshy scales, to each of which is attached a single ovule enclosed by an integument and partially invested by an arillus; in Dacrydium the carpellary leaves are very similar to the foliage leaves—each bears one ovule with two integuments, the outer of which constitutes an arillus. Finally in the yew, as a type of the family Taxeae, the ovules occur singly at the apex of a lateral branch, enclosed when ripe by a conspicuous red or yellow fleshy arillus, which serves as an attraction to animals, and thus aids in the dispersal of the seeds.

(C and D after Worsdell.)

Fig. 15.—Diagrammatic treatment of: A, Double needle of Sciadopitys (a, a, leaves; b, shoot; Br, bract). B, seminiferous scale as leaf of axillary shoot (b, shoot; Sc, seminiferous scale; Br, bract). C, seminiferous scale as fused pair of leaves (l1, l2, l3, first, second and third leaves; b, shoot; Br, bract). D, cone-scale of Araucaria (n, nucellus; i, integument; x, xylem).

Fig. 16.—Abnormal Cone of Pinus rigida. (After Masters.)

It is important to draw attention to some structural features exhibited by certain cone-scales, in which there is no external sign indicative of the presence of a carpellary and a seminiferous scale. In Araucaria Cookii and some allied species each Morphology of female flower. scale has a small pointed projection from its upper face near the distal end; the scales of Cunninghamia (China) are characterized by a somewhat ragged membranous projection extending across the upper face between the seeds and the distal end of the scale; in the scales of Athrotaxis (Tasmania) a prominent rounded ridge occupies a corresponding position. These projections and ridges may be homologous with the seminiferous scale of the pines, firs, cedars, &c. The simplest interpretation of the cone of the Abietineae is that which regards it as a flower consisting of an axis bearing several open carpels, which in the adult cone may be large and prominent or very small, the scale bearing the ovules being regarded as a placental outgrowth from the flat and open carpel. In Araucaria the cone-scale is regarded as consisting of a flat carpel, of which the placenta has not grown out into the scale-like structure. The seminiferous scale of Pinus, &c., is also spoken of sometimes as a ligular outgrowth from the carpellary leaf. Robert Brown was the first to give a clear description of the morphology of the Abietineous cone in which carpels bear naked ovules; he recognized gymnospermy as an important distinguishing feature in conifers as well as in cycads. Another view is to regard the cone as an inflorescence, each carpellary scale being a bract bearing in its axil a shoot the axis of which has not been developed; the seminiferous scale is believed to represent either a single leaf or a fused pair of leaves belonging to the partially suppressed axillary shoot. In 1869 van Tieghem laid stress on anatomical evidence as a key to the morphology of the cone-scales; he drew attention to the fact that the collateral vascular bundles of the seminiferous scale are inversely orientated as compared with those of the carpellary scale; in the latter the xylem of each bundle is next the upper surface, while in the seminiferous scale the phloem occupies that position. The conclusion drawn from this was that the seminiferous scale (fig. 15, B, Sc) is the first and only leaf of an axillary shoot (b) borne on that side of the shoot, the axis of which is suppressed, opposite the subtending bract (fig. 15, A, B, C, Br). Another view is to apply to the seminiferous scale an explanation similar to that suggested by von Mohl in the case of the double needle of Sciadopitys, and to consider the seed-bearing scale as being made up of a pair of leaves (fig. 15, A, a, a) of an axillary shoot (b) fused into one by their posterior margins (fig. 15, A). The latter view receives support from abnormal cones in which carpellary scales subtend axillary shoots, of which the first two leaves (fig. 15, C, l1, l1) are often harder and browner than the others; forms have been described transitional between axillary shoots, in which the leaves are separate, and others in which two of the leaves are more or less completely fused. In a young cone the seminiferous scale appears as a hump of tissue at the base or in the axil of the carpellary scale, but Celakovský, a strong supporter of the axillary-bud theory, attaches little or no importance to this kind of evidence, regarding the present manner of development as being merely an example of a short cut adopted in the course of evolution, and replacing the original production of a branch in the axil of each carpellary scale. Eichler, one of the chief supporters of the simpler view, does not recognize in the inverse orientation of the vascular bundles an argument in support of the axillary-bud theory, but points out that the seminiferous scale, being an outgrowth from the surface of the carpellary scale, would, like outgrowths from an ordinary leaf, naturally have its bundles inversely orientated. In such cone-scales as show little or no external indication of being double in origin, e.g. Araucaria (fig. 15, D) Sequoia, &c., there are always two sets of bundles; the upper set, having the phloem uppermost, as in the seminiferous scale of Abies or Pinus, are regarded as belonging to the outgrowth from the carpellary scale and specially developed to supply the ovules. Monstrous cones are fairly common; these in some instances lend support to the axillary-bud theory, and it has been said that this theory owes its existence to evidence furnished by abnormal cones. It is difficult to estimate the value of abnormalities as evidence bearing on morphological interpretation; the chief danger lies perhaps in attaching undue weight to them, but there is also a risk of minimizing their importance. Monstrosities at least demonstrate possible lines of development, but when the abnormal forms of growth in various directions are fairly evenly balanced, trustworthy deductions become difficult. The occurrence of buds in the axils of carpellary scales may, however, simply mean that buds, which are usually undeveloped in the axils of sporophylls, occasionally afford evidence of their existence. Some monstrous cones lend no support to the axillary-bud theory. In Larix the axis of the cone often continues its growth; similarly in Cephalotaxus the cones are often proliferous. (In rare cases the proliferated portion produces male flowers in the leaf-axils.) In Larix the carpellary scale may become leafy, and the seminiferous scale may disappear. Androgynous cones may be produced, as in the cone of Pinus rigida (fig. 16), in which the lower part bears stamens and the upper portion carpellary and seminiferous scales. An interesting case has been figured by Masters, in which scales of a cone of Cupressus Lawsoniana bear ovules on the upper surface and stamens on the lower face. One argument that has been adduced in support of the axillary bud theory is derived from the Palaeozoic type Cordaites, in which each ovule occurs on an axis borne in the axil of a bract. The whole question is still unsolved, and perhaps insoluble. It may be that the interpretation of the female cone of the Abietineae as an inflorescence, which finds favour with many botanists, cannot be applied to the cones of Agathis and Araucaria. Without expressing any decided opinion as to the morphology of the double cone-scale of the Abietineae, preference may be felt in favour of regarding the cone-scale of the Araucarieae as a simple carpellary leaf bearing a single ovule. A discussion of this question may be found in a paper on the Araucarieae by Seward and Ford, published in the Transactions of the Royal Society of London (1906). Cordaites is an extinct type which in certain respects resembles Ginkgo, cycads and the Araucarieae, but its agreement with true conifers is probably too remote to justify our attributing much weight to the bearing of the morphology of its female flowers on the interpretation of that of the Coniferae. The greater simplicity of the Eichler theory may prejudice us in its favour; but, on the other hand, the arguments advanced in favour of the axillary-bud theories are perhaps not sufficiently cogent to lead us to accept an explanation based chiefly on the uncertain evidence of monstrosities.

A pollen-grain when first formed from its mother-cell consists of a single cell; in this condition it may be carried to the nucellus of the ovule (e.g. Taxus, Cupressus, &c.), or more usually (Pinus, Larix, &c.) it reaches maturity before the dehiscence Micro-spores and megaspores. of the microsporangium. The nucleus of the microspore divides and gives rise to a small cell within the large cell, a second small cell is then produced; this is the structure of the ripe pollen-grain in some conifers (Taxus, &c.). The large cell grows out as a pollen-tube; the second of the two small cells (body-cell) wanders into the tube, followed by the nucleus of the first small cell (stalk-cell). In Taxus the body-cell eventually divides into two, in which the products of division are of unequal size, the larger constituting the male generative cell, which fuses with the nucleus of the egg-cell. In Juniperus the products of division of the 761 body-cell are equal, and both function as male generative cells. In the Abietineae cell-formation in the pollen-grain is carried farther. Three small cells occur inside the cavity of the microspore; two of them collapse and the third divides into two, forming a stalk-cell and a larger body-cell. The latter ultimately divides in the apex of the pollen-tube into two non-motile generative cells. Evidence has lately been adduced of the existence of numerous nuclei in the pollen-tubes of the Araucarieae, and it seems probable that in this as in several other respects this family is distinguished from other members of the Coniferales. The precise method of fertilization in the Scots Pine was followed by V. H. Blackman, who also succeeded in showing that the nuclei of the sporophyte generation contain twice as many chromosomes as the nuclei of the gametophyte. Other observers have in recent years demonstrated a similar relation in other genera between the number of chromosomes in the nuclei of the two generations. The ovule is usually surrounded by one integument, which projects beyond the tip of the nucellus as a wide-open lobed funnel, which at the time of pollination folds inwards, and so assists in bringing the pollen-grains on to the nucellus. In some conifers (e.g. Taxus, Cephalotaxus, Dacrydium, &c.) the ordinary integument is partially enclosed by an arillus or second integument. It is held by some botanists (Celakovský) that the seminiferous scale of the Abietineae is homologous with the arillus or second integument of the Taxaceae, but this view is too strained to gain general acceptance. In Araucaria and Saxegothaea the nucellus itself projects beyond the open micropyle and receives the pollen-grains direct. During the growth of the cell which forms the megaspore the greater part of the nucellus is absorbed, except the apical portion, which persists as a cone above the megaspore; the partial disorganization of some of the cells in the centre of the nucellar cone forms an irregular cavity, which may be compared with the larger pollen-chamber of Ginkgo and the cycads. In each ovule one megaspore comes to maturity, but, exceptionally, two may be present (e.g. Pinus sylvestris). It has been shown by Lawson that in Sequoia sempervirens (Annals of Botany, 1904) and by other workers in the genera that several megaspores may attain a fairly large size in one prothallus. The megaspore becomes filled with tissue (prothallus), and from some of the superficial cells archegonia are produced, usually three to five in number, but in rare cases ten to twenty or even sixty may be present. In the genus Sequoia there may be as many as sixty archegonia (Arnoldi and Lawson) in one megaspore; these occur either separately or in some parts of the prothallus they may form groups as in the Cupressineae; they are scattered through the prothallus instead of being confined to the apical region as in the majority of conifers. Similarly in the Araucarieae and in Widdringtonia the archegonia are numerous and scattered and often sunk in the prothallus tissue. In Libocedrus decurrens (Cupressineae) Lawson describes the archegonia as varying in number from 6 to 24 (Annals of Botany xxi., 1907). An archegonium consists of a large oval egg-cell surmounted by a short neck composed of one or more tiers of cells, six to eight cells in each tier. Before fertilization the nucleus of the egg-cell divides and cuts off a ventral canal-cell; this cell may represent a second egg-cell. The egg-cells of the archegonia may be in lateral contact (e.g. Cupressineae) or separated from one another by a few cells of the prothallus, each ovum being immediately surrounded by a layer of cells distinguished by their granular contents and large nuclei. During the development of the egg-cell, food material is transferred from these cells through the pitted wall of the ovum. The tissue at the apex of the megaspore grows slightly above the level of the archegonia, so that the latter come to lie in a shallow depression. In the process of fertilization the two male generative nuclei, accompanied by the pollen-tube nucleus and that of the stalk-cell, pass through an open pit at the apex of the pollen-tube into the protoplasm of the ovum. After fertilization the nucleus of the egg divides, the first stages of karyokinesis being apparent even before complete fusion of the male and female nuclei has occurred. The result of this is the production of four nuclei, which eventually take up a position at the bottom of the ovum and become separated from one another by vertical cell-walls; these nuclei divide again, and finally three tiers of cells are produced, four in each tier. In the Abietineae the cells of the middle tier elongate and push the lowest tier deeper into the endosperm; the cells of the bottom tier may remain in lateral contact and produce together one embryo, or they may separate (Pinus, Juniperus, &c.) and form four potential embryos. The ripe albuminous seed contains a single embryo with two or more cotyledons. The seeds of many conifers are provided with large thin wings, consisting in some genera (e.g. Pinus) of the upper cell-layers of the seminiferous scale, which have become detached and, in some cases, adhere loosely to the seed as a thin membrane; the loose attachment may be of use to the seeds when they are blown against the branches of trees, in enabling them to fall away from the wing and drop to the ground. The seeds of some genera depend on animals for dispersal, the carpellary scale (Microcachrys) or the outer integument being brightly coloured and attractive. In some Abietineae (e.g. Pinus and Picea)—in which the cone-scales persist for some time after the seeds are ripe—the cones hang down and so facilitate the fall of the seeds; in Cedrus, Araucaria and Abies the scales become detached and fall with the seeds, leaving the bare vertical axis of the cone on the tree. In all cases, except some species of Araucaria (sect. Colymbea) the germination is epigean. The seedling plants of some Conifers (e.g. Araucaria imbricata) are characterized by a carrot-shaped hypocotyl, which doubtless serves as a food-reservoir.

The roots of many conifers possess a narrow band of primary xylem-tracheids with a group of narrow spiral protoxylem-elements at each end (diarch). A striking feature in the roots of several genera, excluding the Abietineae, is the occurrence Anatomy. of thick and somewhat irregular bands of thickening on the cell-walls of the cortical layer next to the endodermis. These bands, which may serve to strengthen the central cylinder, have been compared with the netting surrounding the delicate wall of an inflated balloon. It is not always easy to distinguish a root from a stem; in some cases (e.g. Sequoia) the primary tetrarch structure is easily identified in the centre of an old root, but in other cases the primary elements are very difficult to recognize. The sudden termination of the secondary tracheids against the pith-cells may afford evidence of root-structure as distinct from stem-structure, in which the radial rows of secondary tracheids pass into the irregularly-arranged primary elements next the pith. The annual rings in a root are often less clearly marked than in the stem, and the xylem-elements are frequently larger and thinner. The primary vascular bundles in a young conifer stem are collateral, and, like those of a Dicotyledon, they are arranged in a circle round a central pith and enclosed by a common endodermis. It is in the nature of the secondary xylem that the Coniferales are most readily distinguished from the Dicotyledons and Cycadaceae; the wood is homogeneous in structure, consisting almost entirely of tracheids with circular or polygonal bordered pits on the radial walls, more particularly in the late summer wood. In many genera xylem-parenchyma is present, but never in great abundance. A few Dicotyledons, e.g. Drimys (Magnoliaceae) closely resemble conifers in the homogeneous character of the wood, but in most cases the presence of large spring vessels, wood-fibres and abundant parenchyma affords an obvious distinguishing feature.

The abundance of petrified coniferous wood in rocks of various ages has led many botanists to investigate the structure of modern genera with a view to determining how far anatomical characters may be used as evidence of generic distinctions. There are a few well-marked types of wood which serve as convenient standards of comparison, but these cannot be used except in a few cases to distinguish individual genera. The genus Pinus serves as an illustration of wood of a distinct type characterized by the absence of xylem-parenchyma, except such as is associated with the numerous resin-canals that occur abundantly in the wood, cortex and medullary rays; the medullary rays are composed of parenchyma and of horizontal tracheids with irregular ingrowths from their walls. In a radial section of a pine stem each ray is seen to consist in the median part of a few rows of parenchymatous cells with large oval simple pits in their walls, accompanied above and below by horizontal tracheids with bordered pits. The pits in the radial walls of the ordinary xylem-tracheids occur in a single row or in a double row, of which the pits are not in contact, and those of the two rows are placed on the same level. The medullary rays usually consist of a single tier of cells, but in the Pinus type of wood broader medullary rays also occur and are traversed by horizontal resin-canals. In the wood of Cypressus, Cedrus, Abies and several other genera, parenchymatous cells occur in association with the xylem-tracheids and take the place of the resin-canals of other types. In the Araucarian type of wood (Araucaria and Agathis) the bordered pits, which occur in two or three rows on the radial walls of the tracheids, are in mutual contact and polygonal in shape, the pits of the different rows are alternate and not on the same level; in this type of wood the annual rings are often much less distinct than in Cupressus, Pinus and other genera. In Taxus, Torreya (California and the Far East) and Cephalotaxus the absence of resin-canals and the presence of spiral thickening-bands on the tracheids constitute well-marked characteristics. An examination of the wood of branches, stems and roots of the same species or individual usually reveals a fairly wide variation in some of the characters, such as the abundance and size of the medullary rays, the size and arrangement of pits, the presence of wood-parenchyma—characters to which undue importance has often been attached in systematic anatomical work. The phloem consists of sieve-tubes, with pitted areas on the lateral as well as on the inclined terminal walls, phloem-parenchyma and, in some genera, fibres. In the Abietineae the phloem consists of parenchyma and sieve-tubes only, but in most other forms tangential rows of fibres occur in regular alternation with the parenchyma and sieve-tubes. The characteristic companion-cells of Angiosperms are represented by phloem-parenchyma cells with albuminous contents; other parenchymatous elements of the bast contain starch or crystals of calcium oxalate. When tracheids occur in the medullary rays of the xylem these are replaced in the phloem-region by irregular parenchymatous cells known as albuminous cells. Resin-canals, which occur abundantly in the xylem, phloem or cortex, are not found in the wood of the yew. Cephalotaxus (Taxeae) is also peculiar in having resin-canals in the pith (cf. Ginkgo). One form of Cephalotaxus is characterized by the presence of short tracheids in the pith, in shape like ordinary parenchyma, but in the possession of bordered pits and lignified walls agreeing with ordinary xylem-tracheids; it is probable that these short tracheids serve as reservoirs for storing rather than for conducting water. The vascular bundle entering the stem from a leaf with a single vein passes by a more or less direct course into the 762 central cylinder of the stem, and does not assume the girdle-like form characteristic of the cycadean leaf-trace. In species of which the leaves have more than one vein (e.g. Araucaria imbricata, &c.) the leaf-trace leaves the stele of the stem as a single bundle which splits up into several strands in its course through the cortex. In the wood of some conifers, e.g. Araucaria, the leaf-traces persist for a considerable time, perhaps indefinitely, and may be seen in tangential sections of the wood of old stems. The leaf-trace in the Coniferales is simple in its course through the stem, differing in this respect from the double leaf-trace of Ginkgo. A detailed account of the anatomical characters of conifers has been published by Professor D. P. Penhallow of Montreal and Dr. Gothan of Berlin which will be found useful for diagnostic purposes. The characters of leaves most useful for diagnostic purposes are the position of the stomata, the presence and arrangement of resin-canals, the structure of the mesophyll and vascular bundles. The presence of hypodermal fibres is another feature worthy of note, but the occurrence of these elements is too closely connected with external conditions to be of much systematic value. A pine needle grown in continuous light differs from one grown under ordinary conditions in the absence of hypodermal fibres, in the absence of the characteristic infoldings of the mesophyll cell-walls, in the smaller size of the resin-canals, &c. The endodermis in Pinus, Picea and many other genera is usually a well-defined layer of cells enclosing the vascular bundles, and separated from them by a tissue consisting in part of ordinary parenchyma and to some extent of isodiametric tracheids; but this tissue, usually spoken of as the pericycle, is in direct continuity with other stem-tissues as well as the pericycle. The occurrence of short tracheids in close proximity to the veins is a characteristic of coniferous leaves; these elements assume two distinct forms—(1) the short isodiametric tracheids (transfusion-tracheids) closely associated with the veins; (2) longer tracheids extending across the mesophyll at right angles to the veins, and no doubt functioning as representatives of lateral veins. It has been suggested that transfusion-tracheids represent, in part at least, the centripetal xylem, which forms a distinctive feature of cycadean leaf-bundles; these short tracheids form conspicuous groups laterally attached to the veins in Cunninghamia, abundantly represented in a similar position in the leaves of Sequoia, and scattered through the so-called pericycle in Pinus, Picea, &c. It is of interest to note the occurrence of precisely similar elements in the mesophyll of Lepidodendron leaves. An anatomical peculiarity in the veins of Pinus and several other genera is the continuity of the medullary rays, which extend as continuous plates from one end of the leaf to the other. The mesophyll of Pinus and Cedrus is characterized by its homogeneous character and by the presence of infoldings of the cell-walls. In many leaves, e.g. Abies, Tsuga, Larix, &c., the mesophyll is heterogeneous, consisting of palisade and spongy parenchyma. In the leaves of Araucaria imbricata, in which palisade-tissue occurs in both the upper and lower part of the mesophyll, the resin-canals are placed between the veins; in some species of Podocarpus (sect. Nageia) a canal occurs below each vein; in Tsuga, Torreya, Cephalotaxus, Sequoia, &c., a single canal occurs below the midrib; in Larix, Abies, &c., two canals run through the leaf parallel to the margins. The stomata are frequently arranged in rows, their position being marked by two white bands of wax on the leaf-surface.

The chief home of the Coniferales is in the northern hemisphere, where certain species occasionally extend into the Arctic circle and penetrate beyond the northern limit of dicotyledonous trees. Wide areas are often exclusively occupied by Distribution. conifers, which give the landscape a sombre aspect, suggesting a comparison with the forest vegetation of the Coal period. South of the tree-limit a belt of conifers stretches across north Europe, Siberia and Canada. In northern Europe this belt is characterized by such species as Picea excelsa (spruce), which extends south to the mountains of the Mediterranean region; Pinus sylvestris (Scottish fir), reaching from the far north to western Spain, Persia and Asia Minor; Juniperus communis, &c. In north Siberia Pinus Cembra (Cembra or Arolla Pine) has a wide range; also Abies sibirica (Siberian silver fir), Larix sibirica and Juniperus Sabina (savin). In the North American area Picea alba, P. nigra, Larix americana, Abies balsamea (balsam fir), Tsuga canadensis (hemlock spruce), Pinus Strobus (Weymouth pine), Thuja occidentalis (white cedar), Taxus canadensis are characteristic species. In the Mediterranean region occur Cupressus sempervirens, Pinus Pinea (stone pine), species of juniper, Cedrus atlantica, C. Libani, Callitris quadrivalvis, Pinus montana, &c. Several conifers of economic importance are abundant on the Atlantic side of North America—Juniperus virginiana (red cedar, used in the manufacture of lead pencils, and extending as far south as Florida), Taxodium distichum (swamp cypress), Pinus rigida (pitch pine), P. mitis (yellow pine), P. taeda, P. palustris, &c. On the west side of the American continent conifers play a still more striking rôle; among them are Chamaecyparis nutkaensis, Picea sitchensis, Libocedrus decurrens, Pseudotsuga Douglasii (Douglas fir), Sequoia sempervirens, S. gigantea (the only two surviving species of this generic type are now confined to a few localities in California, but were formerly widely spread in Europe and elsewhere), Pinus Coulteri, P. Lambertiana, &c. Farther south, a few representatives of such genera as Abies, Cupressus, Pinus and juniper are found in the Mexican Highlands, tropical America and the West Indies. In the far East conifers are richly represented; among them occur Pinus densiflora, Cryptomeria japonica, Cephalotaxus, species of Abies, Larix, Thujopsis, Sciadopitys verticillata, Pseudolarix Kaempferi, &c. In the Himalaya occur Cedrus deodara, Taxus, species of Cupressus, Pinus excelsa, Abies Webbiana, &c. The continent of Africa is singularly poor in conifers. Cedrus atlantica, a variety of Abies Pinsapo, Juniperus thurifera, Callitris quadrivalvis, occur in the north-west region, which may be regarded as the southern limit of the Mediterranean region. The greater part of Africa north of the equator is without any representatives of the conifers; Juniperus procera flourishes in Somaliland and on the mountains of Abyssinia; a species of Podocarpus occurs on the Cameroon mountains, and P. milanjiana is widely distributed in east tropical Africa. Widdringtonia Whytei, a species closely allied to W. juniperoides of the Cedarberg mountains of Cape Colony, is recorded from Nyassaland and from N.E. Rhodesia; while a third species, W. cupressoides, occurs in Cape Colony. Podocarpus elongata and P. Thunbergii (yellow wood) form the principal timber trees in the belt of forest which stretches from the coast mountains of Cape Colony to the north-east of the Transvaal. Libocedrus tetragona, Fitzroya patagonica, Araucaria brasiliensis, A. imbricata, Saxegothaea and others are met with in the Andes and other regions in South America. Athrotaxis and Microcachrys are characteristic Australian types. Phyllocladus occurs also in New Zealand, and species of Dacrydium, Araucaria, Agathis and Podocarpus are represented in Australia, New Zealand and the Malay regions.

Gnetales.—These are trees or shrubs with simple leaves. The flowers are dioecious, rarely monoecious, provided with one or two perianths. The wood is characterized by the presence of vessels in addition to tracheids. There are no resin-canals. The three existing genera, usually spoken of as members of the Gnetales, differ from one another more than is consistent with their inclusion in a single family; we may therefore better express their diverse characters by regarding them as types of three separate families—(1) Ephedroideae, genus Ephedra; (2) Welwitschioideae, genus Welwitschia; (3) Gnetoideae, genus Gnetum. Our knowledge of the Gnetales leaves much to be desired, but such facts as we possess would seem to indicate that this group is of special importance as foreshadowing, more than any other Gymnosperms, the Angiospermous type. In the more heterogeneous structure of the wood and in the possession of true vessels the Gnetales agree closely with the higher flowering plants. It is of interest to note that the leaves of Gnetum, while typically Dicotyledonous in appearance, possess a Gymnospermous character in the continuous and plate-like medullary rays of their vascular bundles. The presence of a perianth is a feature suggestive of an approach to the floral structure of Angiosperms; the prolongation of the integument furnishes the flowers with a substitute for a stigma and style. The genus Ephedra, with its prothallus and archegonia, which are similar to those of other Gymnosperms, may be safely regarded as the most primitive of the Gnetales. In Welwitschia also the megaspore is filled with prothallus-tissue, but single egg-cells take the place of archegonia. In certain species of Gnetum described by Karsten the megaspore contains a peripheral layer of protoplasm, in which scattered nuclei represent the female reproductive cells; in Gnetum Gnemon a similar state of things exists in the upper half of the megaspore, while the lower half agrees with the megaspore of Welwitschia in being full of prothallus-tissue, which serves merely as a reservoir of food. Lotsy has described the occurrence of special cells at the apex of the prothallus of Gnetum Gnemon, which he regards as imperfect archegonia (fig. 17, C, a); he suggests they may represent vestigial structures pointing back to some ancestral form beyond the limits of the present group. The Gnetales probably had a separate origin from the other Gymnosperms; they carry us nearer to the Angiosperms, but we have as yet no satisfactory evidence that they represent a stage in the direct line of Angiospermic evolution. It is not improbable that the three genera of this ancient phylum survive as types of a blindly-ending branch of the Gymnosperms; but be that as it may, it is in the Gnetales more than in any other Gymnosperms that we find features which help us to obtain a dim prospect of the lines along which the Angiosperms may have been evolved.

Ephedra.—This genus is the only member of the Gnetales represented in Europe. Its species, which are characteristic of warm temperate latitudes, are usually much-branched shrubs. The finer branches are green, and bear a close resemblance to the stems of Equisetum and to the slender twigs of Casuarina; the surface of the long internodes is marked by fine longitudinal ribs, and at the nodes are borne pairs of inconspicuous scale-leaves. The flowers are small, and borne on axillary shoots. A single male flower consists of an axis enclosed at the base by an inconspicuous perianth formed of two concrescent leaves and terminating in two, or as many as eight, shortly stalked or sessile anthers. The female flower is enveloped in a closely fitting sac-like investment, which must be regarded as a perianth; within this is an orthotropous ovule surrounded by a single integument prolonged upwards as a beak-like micropyle. The flower may be described as a bud bearing a pair of leaves which become fused and constitute a perianth, the apex of the shoot forming an ovule. In function the perianth may be compared with a unilocular ovary containing a single ovule; the projecting integument, which at the time of pollination secretes a drop of liquid, serves the same purpose as the style and stigma of an angiosperm. The megaspore 763 is filled with tissue as in typical Gymnosperms, and from some of the superficial cells 3 to 5 archegonia are developed, characterized by long multicellular necks. The archegonia are separated from one another, as in Pinus, by some of the prothallus-tissue, and the cells next the egg-cells (tapetal layer) contribute food-material to their development. After fertilization, some of the uppermost bracts below each flower become red and fleshy; the perianth develops into a woody shell, while the integument remains membranous. In some species of Ephedra, e.g. E. altissima, the fertilized eggs grow into tubular proembryos, from the tip of each of which embryos begin to be developed, but one only comes to maturity. In Ephedra helvetica, as described by Jaccard, no proembryo or suspensor is formed; but the most vigorous fertilized egg, after undergoing several divisions, becomes attached to a tissue, termed the columella, which serves the purpose of a primary suspensor; the columella appears to be formed by the lignification of certain cells in the central region of the embryo-sac. At a later stage some of the cells in the upper (micropylar) end of the embryo divide and undergo considerable elongation, serving the purpose of a secondary suspensor. The secondary wood of Ephedra consists of tracheids, vessels and parenchyma; the vessels are characterized by their wide lumen and by the large simple or slightly-bordered pits on their oblique end-walls.

Fig. 17.—Gnetum Gnemon. (After Lotsy.)
A, Female Flower. a, Imperfect Archegonia. n, Nucellus. e, Partially developed Megaspore. pc, Pollen-chamber. F, Fertile half. i, Integument. S, Sterile half. p′, Inner Perianth. pt, Pollen-tube. p″, Outer Perianth. z, Zygote. B, C, Megaspore. z′, Prothallus.	a, Imperfect Archegonia. e, Partially developed Megaspore. F, Fertile half. S, Sterile half. pt, Pollen-tube. z, Zygote. z′, Prothallus.

Gnetum.—This genus is represented by several species, most of which are climbing plants, both in tropical America and in warm regions of the Old World. The leaves, which are borne in pairs at the tumid nodes, are oval in form and have a Dicotyledonous type of venation. The male and female inflorescences have the form of simple or paniculate spikes. The spike of an inflorescence bears whorls of flowers at each node in the axils of concrescent bracts accompanied by numerous sterile hairs (paraphyses); in a male inflorescence numerous flowers occur at each node, while in a female inflorescence the number of flowers at each node is much smaller. A male flower consists of a single angular perianth, through the open apex of which the flower-axis projects as a slender column terminating in two anthers. The female flowers, which are more complex in structure, are of two types, complete and incomplete; the latter occur in association with male flowers in a male inflorescence. A complete female flower consists of a nucellus (fig. 17, A, n), surrounded by a single integument (fig. 17, A, i), prolonged upwards as a narrow tube and succeeded by an inner and an outer perianth (fig. 17, A, p′ and p″). The whole flower may be looked upon as an adventitious bud bearing two pairs of leaves; each pair becomes concrescent and forms a perianth, the apex of the shoot being converted into an orthotropous ovule. The incomplete female flowers are characterized by the almost complete suppression of the inner perianth. Several embryo-sacs (megaspores) are present in the nucellus of a young ovule, but one only attains full size, the smaller and partially developed megaspores (fig. 17, B and C, e) being usually found in close association with the surviving and fully-grown megaspore. In Gnetum Gnemon, as described by Lotsy, a mature embryo-sac contains in the upper part a large central vacuole and a peripheral layer of protoplasm, including several nuclei, which take the place of the archegonia of Ephedra; the lower part of the embryo-sac, separated from the upper by a constriction, is full of parenchyma. The upper part of the megaspore may be spoken of as the fertile half (fig. 17, B and C, F) and the lower part, which serves only as food-reservoir for the growing embryo, may be termed the sterile half (fig. 17, B and C, S). (Coulter, Bot. Gazette, xlvi., 1908, regards this tissue as belonging to the nucellus.) At the time of pollination the long tubular integument secretes a drop of fluid at its apex, which holds the pollen-grains, brought by the wind, or possibly to some extent by insect agency, and by evaporation these are drawn on to the top of the nucellus, where partial disorganization of the cells has given rise to an irregular pollen-chamber (fig. 17, A, pc). The pollen-tube, containing two generative and one vegetative nucleus, pierces the wall of the megaspore and then becomes swollen (fig. 17, B and C, pt); finally the two generative nuclei pass out of the tube and fuse with two of the nuclei in the fertile half of the megaspore. As the result of fertilization, the fertilized nuclei of the megaspore become surrounded by a cell-wall, and constitute zygotes, which may attach themselves either to the wall of the megaspore or to the end of a pollen-tube (fig. 17, C, z and z′); they then grow into long tubes or proembryos, which make their way towards the prothallus (C, z′), and eventually embryos are formed from the ends of the proembryo tubes. One embryo only comes to maturity. The embryo of Gnetum forms an out-growth from the hypocotyl, which serves as a feeder and draws nourishment from the prothallus. The fleshy outer portion of the seed is formed from the outer perianth, the woody shell being derived from the inner perianth. The climbing species of Gnetum are characterized by the production of several concentric cylinders of secondary wood and bast, the additional cambium-rings being products of the pericycle, as in Cycas and Macrozamia. The structure of the wood agrees in the main with that of Ephedra.

Welwitschia (Tumboa).—This is by far the most remarkable member of the Gnetales, both as regards habit and the form of its flowers. In a supplement to the systematic work of Engler and Prantl the well-known name Welwitschia, instituted by Hooker in 1864 in honour of Welwitsch, the discoverer of the plant, is superseded by that of Tumboa, originally suggested by Welwitsch. The genus is confined to certain localities in Damaraland and adjoining territory on the west coast of tropical South Africa. A well-grown plant projects less than a foot above the surface of the ground; the stem, which may have a circumference of more than 12 ft., terminates in a depressed crown resembling a circular table with a median groove across the centre and prominent broad ridges concentric with the margin. The thick tuberous stem becomes rapidly narrower, and passes gradually downwards into a tap-root. A pair of small strap-shaped leaves succeed the two cotyledons of the seedling, and persist as the only leaves during the life of the plant; they retain the power of growth in their basal portion, which is sunk in a narrow groove near the edge of the crown, and the tough lamina, 6 ft. in length, becomes split into narrow strap-shaped or thong-like strips which trail on the ground. Numerous circular pits occur on the concentric ridges of the depressed and wrinkled crown, marking the position of former inflorescences borne in the leaf-axil at different stages in the growth of the plant. An inflorescence has the form of a dichotomously-branched cyme bearing small erect cones; those containing the female flowers attain the size of a fir-cone, and are scarlet in colour. Each cone consists of an axis, on which numerous broad and thin bracts are arranged in regular rows; in the axil of each bract occurs a single flower; a male flower is enclosed by two opposite pairs of leaves, forming a perianth surrounding a central sterile ovule encircled by a ring of stamens united below, but free distally as short filaments, each of which terminates in a trilocular anther. The integument of the sterile ovule is prolonged above the nucellus as a spirally-twisted tube expanded at its apex into a flat stigma-like organ. A complete and functional female flower consists of a single ovule with two integuments, the inner of which is prolonged into a narrow tubular micropyle, like that in the flower of Gnetum. The megaspore of Welwitschia is filled with a prothallus-tissue before fertilization, and some of the prothallus-cells function as egg-cells; these grow upwards as long tubes into the apical region of the nucellus, where they come into contact with the pollen-tubes. After the egg-cells have been fertilized by the non-motile male cells they grow into tubular proembryos, producing terminal embryos. The stem is traversed by numerous collateral bundles, which have a limited growth, and are constantly replaced by new bundles developed from strands of secondary meristem. One of the best-known anatomical characteristics of the genus is the occurrence of numerous spindle-shaped or branched fibres with enormously-thickened walls studded with crystals of calcium oxalate. Additional information has been published by Professor Pearson of Cape Town based on material collected in Damaraland in 1904 and 1906-1907. In 1906 he gave an account of the early stages of development of the male and female organs and, among other interesting statements in regard to the general biology of Welwitschia, he expressed the opinion that, as Hooker suspected, the ovules are pollinated by insect-agency. In a later paper Pearson considerably extended our knowledge of the reproduction and gametophyte of this genus.

Authorities.—General: Bentham and Hooker, Genera Plantarum (London, 1862-1883); Engler and Prantl, Die natürlichen Pflanzenfamilien (Leipzig, 1889 and 1897); Strasburger, Die Coniferen und Gnetaceen (Jena, 1872); Die Angiospermen und die Gymnospermen (Jena, 1879); Histologische Beiträge, iv. (Jena, 1892); Coulter and Chamberlain, Morphology of Spermatophytes (New York, 1901); Rendle, The Classification of Flowering Plants, vol. i. (Cambridge, 1904); “The Origin of Gymnosperms” (A discussion at the Linnean Society; New Phytologist, vol. v., 1906). Cycadales: Mettenius, “Beiträge zur Anatomie der Cycadeen,” Abh. k. sächs. 764 Ges. Wiss. (1860); Treub, “Recherches sur les Cycadées,” Ann. Bot. Jard. Buitenzorg, ii. (1884); Solms-Laubach, “Die Sprossfolge der Stangeria, &c.,” Bot. Zeit. xlviii. (1896); Worsdell, “Anatomy of Macrozamia,” Ann. Bot. x. (1896) (also papers by the same author, Ann. Bot., 1898, Trans. Linn. Soc. v., 1900); Scott, “The Anatomical Characters presented by the Peduncle of Cycadaceae,” Ann. Bot. xi. (1897); Lang, “Studies in the Development and Morphology of Cycadean Sporangia, No. I.,” Ann. Bot. xi. (1897); No. II., Ann. Bot. xiv. (1900); Webber, “Development of the Antherozoids of Zamia,” Bot. Gaz. (1897); Ikeno, “Untersuchungen über die Entwickelung, &c., bei Cycas revoluta,” Journ. Coll. Sci. Japan, xii. (1898); Wieland, “American Fossil Cycads,” Carnegie Institution Publication (1906); Stopes, “Beiträge zur Kenntnis der Fortpflanzungsorgane der Cycadeen,” Flora (1904); Caldwell, “Microcycas Calocoma,” Bot. Gaz. xliv., 1907 (also papers on this and other Cycads in the Bot. Gaz., 1907-1909); Matte, Recherches sur l’appareil libéro-ligneux des Cycadacées (Caen, 1904). Ginkgoales: Hirase, “Études sur la fécondation, &c., de Ginkgo biloba,” Journ. Coll. Sci. Japan, xii. (1898); Seward and Gowan, “Ginkgo biloba,” Ann. Bot. xiv. (1900) (with bibliography); Ikeno, “Contribution à l’étude de la fécondation chez le Ginkgo biloba,” Ann. Sci. Nat. xiii. (1901); Sprecher, Le Ginkgo biloba (Geneva, 1907). Coniferales: “Report of the Conifer Conference” (1891) Journ. R. Hort. Soc. xiv. (1892); Beissner, Handbuch der Nadelholzkunde (Berlin, 1891); Masters, “Comparative Morphology of the Coniferae,” Journ. Linn. Soc. xxvii. (1891); ibid. (1896), &c.; Penhallow, “The Generic Characters of the North American Taxaceae and Coniferae,” Proc. and Trans. R. Soc. Canada, ii. (1896); Blackman, “Fertilization in Pinus sylvestris,” Phil. Trans. (1898) (with bibliography); Worsdell, “Structure of the Female Flowers in Conifers,” Ann. Bot. xiv. (1900) (with bibliography); ibid. (1899); Veitch, Manual of the Coniferae (London, 1900); Penhallow, “Anatomy of North American Coniferales,” American Naturalist (1904); Engler and Pilger, Das Pflanzenreich, Taxaceae (1903); Seward and Ford, “The Araucarieae, recent and extinct,” Phil. Trans. R. Soc. (1906) (with bibliography); Lawson, “Sequoia sempervirens,” Annals of Botany (1904); Robertson, “Torreya Californica,” New Phytologist (1904); Coker, “Gametophyte and Embryo of Taxodium,” Bot. Gazette (1903); E. C. Jeffrey, “The Comparative Anatomy and Phylogeny of the Coniferales, part i. The Genus Sequoia,” Mem. Boston Nat. Hist. Soc. v. No. 10 (1903); Gothan, “Zur Anatomie lebender und fossiler Gymnospermen-Hölzer,” K. Preuss. Geol. Landes. (Berlin, 1905) (for more recent papers, see Ann. Bot., New Phytologist, and Bot. Gazette, 1906-1909). Gnetales: Hooker, “On Welwitschia mirabilis.” Trans. Linn. Soc. xxiv. (1864); Bower, “Germination, &., in Gnetum,” Journ. Mic. Sci. xxii. (1882); ibid. (1881); Jaccard, “Recherches embryologiques sur l’Ephedra helvetica,” Diss. Inaug. Lausanne (1894); Karsten, “Zur Entwickelungsgeschichte der Gattung Gnetum,” Cohn’s Beiträge, vi. (1893); Lotsy, “Contributions to the Life-History of the genus Gnetum,” Ann. Bot. Jard. Buitenzorg, xvi. (1899); Land, “Ephedra trifurca,” Bot. Gazette (1904); Pearson, “Some observations on Welwitschia mirabilis,” Phil. Trans. R. Soc. (1906); Pearson, “Further Observations on Welwitschia,” Phil. Trans. R. Soc. vol. 200 (1909).

GYMNOSTOMACEAE, an order of Ciliate Infusoria (q.v.), characterized by a closed mouth, which only opens to swallow food actively, and body cilia forming a general or partial investment (rarely represented by a girdle of membranellae), but not differentiated in different regions. With the Aspirotrochaceae (q.v.) it formed the Holotricha of Stein.

GYMPIE, a mining town of March county, Queensland, Australia, 107 m. N. of Brisbane, and 61 m. S. of Maryborough by rail. Pop. (1901) 11,959. Numerous gold mines are worked in the district, which also abounds in copper, silver, antimony, cinnabar, bismuth and nickel. Extensive undeveloped coal-beds lie 40 m. N. at Miva. Gympie became a municipality in 1880.

GYNAECEUM (Gr. γυναικεῖον, from γυνή, woman), that part in a Greek house which was specially reserved for the women, in contradistinction to the “andron,” the men’s quarters; in the larger houses there was an open court with peristyles round, and as a rule all the rooms were on the same level; in smaller houses the servants were placed in an upper storey, and this seems to have been the case to a certain extent in the Homeric house of the Odyssey. “Gynaeconitis” is the term given by Procopius to the space reserved for women in the Eastern Church, and this separation of the sexes was maintained in the early Christian churches where there were separate entrances and accommodation for the men and women, the latter being placed in the triforium gallery, or, in its absence, either on one side of the church, the men being on the other, or occasionally in the aisles, the nave being occupied by the men.

GYNAECOLOGY (from Gr. γυνή, γυναικός, a woman, and λόγος, discourse), the name given to that branch of medicine which concerns the pathology and treatment of affections peculiar to the female sex.

Gynaecology may be said to be one of the most ancient branches of medicine. The papyrus of Ebers, which is one of the oldest known works on medicine and dates from 1550 B.C., contains references to diseases of women, and it is recorded that specialism in this branch was known amongst Egyptian medical practitioners. The Vedas contain a list of therapeutic agents used in the treatment of gynaecological diseases. The treatises on gynaecology formerly attributed to Hippocrates (460 B.C.) are now said to be spurious, but the wording of the famous oath shows that he was at least familiar with the use of gynaecological instruments. Diocles Carystius, of the Alexandrian school (4th century B.C.), practised this branch, and Praxagoras of Cos, who lived shortly after, opened the abdomen by laparotomy. While the Alexandrine school represented Greek medicine, Greeks began to practise in Rome, and in the first years of the Christian era gynaecologists were much in demand (Häser). A speculum for gynaecological purposes has been found in the ruins of Pompeii, and votive offerings of anatomical parts found in the temples show that various gynaecological malformations were known to the ancients. Writers who have treated of this branch are Celsus (50 B.C.-A.D. 7) and Soranus of Ephesus (A.D. 98-138), who refers in his works to the fact that the Roman midwives frequently called to their aid practitioners who made a special study of diseases of women. These midwives attended the simpler gynaecological ailments. This was no innovation, as in Athens, as mentioned by Hyginus, we find one Agnodice, a midwife, disguising herself in man’s attire so that she might attend lectures on medicine and diseases of women. After instruction she practised as a gynaecologist. This being contrary to Athenian law she was prosecuted, but was saved by the wives of some of the chief men testifying on her behalf. Besides Agnodice we have Sotira, who wrote a work on menstruation which is preserved in the library at Florence, while Aspasia is mentioned by Aetius as the author of several chapters of his work. It is evident that during the Roman period much of the gynaecological work was in the hands of women. Martial alludes to the “feminae medicae” in his epigram on Leda. These women must not be confounded with the midwives who on monuments are always described as “obstetrices.” Galen devotes the sixth chapter of his work De locis affectis to gynaecological ailments. During the Byzantine period may be mentioned the work of Oribasius (A.D. 325) and Moschion (2nd century A.D.) who wrote a book in Latin for the use of matrons and midwives ignorant of Greek.

In modern times James Parsons (1705-1770) published his Elenchus gynaicopathologicus et obstetricarius, and in 1755 Charles Perry published his Mechanical account and explication of the hysterical passion and of all other nervous disorders incident to the sex, with an appendix on cancers. In the early part of the 19th century fresh interest in diseases of women awakened. Joseph Récamier (1774-1852) by his writings and teachings advocated the use of the speculum and sound. This was followed in 1840 by the writings of Simpson in England and Huguier in France. In 1845 John Hughes Bennett published his great work on inflammation of the uterus, and in 1850 Tilt published his book on ovarian inflammation. The credit of being the first to perform the operation of ovariotomy is now credited to McDowell of Kentucky in 1809, and to Robert Lawson Tait (1845-1899) in 1883 the first operation for ruptured ectopic gestation.

GYÖNGYÖSI, ISTVÁN [Stephen] (1620-1704), Hungarian poet, was born of poor but noble parents in 1620. His abilities early attracted the notice of Count Ferencz Wesselényi, who in 1640 appointed him to a post of confidence in Fülek castle. Here he remained till 1653, when he married and became an assessor of the judicial board. In 1681 he was elected as a representative of his county at the diet held at Soprony (Oedenburg). From 1686 to 1693, and again from 1700 to his death in 1704, he was deputy lord-lieutenant of the county of Gömör. Of his literary works the most famous is the epic poem Murányi Venus (Caschau, 1664), in honour of his benefactor’s wife Maria Szécsi, the heroine of Murány. Among his later productions the best known are Rózsa-Koszorú, or Rose-Wreath (1690), Kemény-János (1693), Cupidó (1695), Palinodia (1695) and Chariklia (1700).

GYÖR (Ger. Raab), a town of Hungary, capital of a county of the same name, 88 m. W. of Budapest by rail. Pop. (1900) 768 27,758. It is situated at the confluence of the Raab with the Danube, and is composed of the inner town and three suburbs. Györ is a well-built town, and is the seat of a Roman Catholic bishop. Amongst its principal buildings are the cathedral, dating from the 12th century, and rebuilt in 1639-1654; the bishop’s palace; the town hall; the Roman Catholic seminary for priests and several churches. There are manufactures of cloth, machinery and tobacco, and an active trade in grain and horses. Twenty miles by rail W. S. W. of the town is situated Csorna, a village with a Premonstratensian abbey, whose archives contain numerous valuable historical documents.

Györ is one of the oldest towns in Hungary and occupies the site of the Roman Arabona. It was already a place of some importance in the 10th century, and its bishopric was created in the 11th century. It was a strongly fortified town which resisted successfully the attacks of the Turks, into whose hands it fell by treachery in 1594, but they retained possession of it only for four years. Montecucculi made Györ a first-class fortress, and it remained so until 1783, when it was abandoned. At the beginning of the 19th century, the fortifications were re-erected, but were easily taken by the French in 1809, and were again stormed by the Austrians on the 28th of June 1849.

About 11 m. S.E. of Györ on a spur of the Bakony Forest lies the famous Benedictine abbey of Pannonhalma (Ger. St Martinsberg; Lat. Mons Sancti Martini), one of the oldest and wealthiest abbeys of Hungary. It was founded by King St Stephen, and the original deed from 1001 is preserved in the archives of the abbey. The present building is a block of palaces, containing a beautiful church, some of its parts dating from the 12th century, and lies on a hill 1200 ft. high. The church has a tower 130 ft. high. In the convent there are a seminary for priests, a normal school, a gymnasium and a library of 120,000 vols. The chief abbot has the rank of a bishop, and is a member of the Upper House of the Hungarian parliament, while in spiritual matters he is subordinate immediately to the Roman curia.

GYP, the pen name of Sibylle Gabrielle Marie Antoinette Riqueti de Mirabeau, Comtesse de Martel de Janville (1850-  ) French writer, who was born at the château of Koetsal in the Morbihan. Her father, who was the grandson of the vicomte de Mirabeau and great-nephew of the orator, served in the Papal Zouaves, and died during the campaign of 1860. Her mother, the comtesse de Mirabeau, in addition to some graver compositions, contributed to the Figaro and the Vie parisienne, under various pseudonyms, papers in the manner successfully developed by her daughter. Under the pseudonym of “Gyp” Madame de Martel, who was married in 1869, sent to the Vie parisienne, and later to the Revue des deux mondes, a large number of social sketches and dialogues, afterwards reprinted in volumes. Her later work includes stories of a more formal sort, essentially differing but little from the shorter studies. The following list includes some of the best known of Madame de Martel’s publications, nearly seventy in number: Petit Bob (1882); Autour du mariage (1883); Ce que femme veut (1883); Le Monde à côté (1884), Sans voiles (1885); Autour du divorce (1886); Dans le train (1886); Mademoiselle Loulou (1888); Bob au salon (1888-1889); L’Education d’un prince (1890); Passionette (1891); Ohé! la grande vie (1891); Une Élection à Tigre-sur-mer (1890), an account of “Gyp’s” experiences in support of a Boulangist candidate; Mariage civil (1892); Ces bons docteurs (1892); Du haut en bas (1893); Mariage de chiffon (1894); Leurs âmes (1895); Le Cœur d’Ariane (1895); Le Bonheur de Ginette (1896); Totote (1897); Lune de miel (1898); Israël (1898); L’Entrevue (1899); Le Pays des champs (1900); Trop de chic (1900); Le Friquet (1901); La Fée (1902); Un Mariage chic (1903); Un Ménage dernier cri (1903); Maman (1904); Le Cœur de Pierrette (1905). From the first “Gyp,” writing of a society to which she belonged, displayed all the qualities which have given her a distinct, if not pre-eminent, position among writers of her class. Those qualities included an intense faculty of observation, much skill in innuendo, a mordant wit combined with some breadth of humour, and a singular power of animating ordinary dialogues without destroying the appearance of reality. Her Parisian types of the spoiled child, of the precocious schoolgirl, of the young bride, and of various masculine figures in the gay world, have become almost classical, and may probably survive as faithful pictures of luxurious manners in the 19th century. Some later productions, inspired by a violent anti-Semitic and Nationalist bias, deserve little consideration. An earlier attempt to dramatize Autour du mariage was a failure, not owing to the audacities which it shares with most of its author’s works, but from lack of cohesion and incident. More successful was Mademoiselle Ève (1895), but indeed “Gyp’s” successes are all achieved without a trace of dramatic faculty. In 1901 Madame de Martel furnished a sensational incident in the Nationalist campaign during the municipal elections in Paris. She was said to have been the victim of a kidnapping outrage or piece of horseplay provoked by her political attitude, but though a most circumstantial account of the outrages committed on her and of her adventurous escape was published, the affair was never clearly explained or verified.

GYPSUM, a common mineral consisting of hydrous calcium sulphate, named from the Gr. γύψος, a word used by Theophrastus to denote not only the raw mineral but also the product of its calcination, which was employed in ancient times, as it still is, as a plaster. When crystallized, gypsum is often called selenite, the σεληνίτης of Dioscorides, so named from σελήνη, “the moon,” probably in allusion to the soft moon-like reflection of light from some of its faces, or, according to a legend, because it is found at night when the moon is on the increase. The granular, marble-like gypsum is termed alabaster (q.v.).

Fig. 1.	Fig. 2.

Gypsum crystallizes in the monoclinic system, the habit of the crystals being usually either prismatic or tabular; in the latter case the broad planes are parallel to the faces of the clinopinacoid. The crystals may become lenticular by curvature of certain faces. In the characteristic type represented in fig. 1, f represents the prism, l the hemi-pyramid and P the clinopinacoid. Twins are common, as in fig. 2, forming in some cases arrow-headed and swallow-tailed crystals. Cleavage is perfect parallel to the clinopinacoid, yielding thin plates, often diamond-shaped, with pearly lustre; these flakes are usually flexible, but may be brittle, as in the gypsum of Montmartre. Two other cleavages are recognized, but they are imperfect. Crystals of gypsum, when occurring in clay, may enclose much muddy matter; in other cases a large proportion of sand may be mechanically entangled in the crystals without serious disturbance of form; whilst certain crystals occasionally enclose cavities with liquid and an air-bubble. Gypsum not infrequently becomes fibrous. This variety occurs in veins, often running through gypseous marls, with the fibres disposed at right angles to the direction of the vein. Such gypsum when cut and polished has a pearly opalescence, or satiny sheen, whence it is called satin-spar (q.v.).

Gypsum is so soft as to be scratched even by the finger-nail (H = 1.5 to 2). Its specific gravity is about 2.3. The mineral is slightly soluble in water, one part of gypsum being soluble, according to G. K. Cameron, in 372 parts of pure water at 26° C. Waters percolating through gypseous strata, like the Keuper marls, dissolve the calcium sulphate and thus become permanently hard or “selenitic.” Such water has special value for brewing pale ale, and the water used by the Burton breweries is of this character; hence the artificial dissolving of gypsum in water for brewing purposes is known as “burtonization.” Deposits of gypsum are formed in boilers using selenitic water.

Pure gypsum is colourless or white, but it is often tinted, especially in the alabaster variety, grey, yellow or pink. Gypsum crystallizes with two molecules of water, equal to about 21% by 769 weight, and consequently has the formula CaSO4·2H2O. By exposure to strong heat all the water may be expelled, and the substance then has the composition of anhydrite (q.v.). When the calcination, however, is conducted at such a temperature that only about 75% of the water is lost, it yields a white pulverulent substance, known as “plaster of Paris,” which may readily be caused to recombine with water, forming a hard cement. The gypsum quarries of Montmartre, in the north of Paris, were worked in Tertiary strata, rich in fossils. Gypsum is largely quarried in England for conversion into plaster of Paris, whence it is sometimes known as “plaster stone,” and since much is sent to the Staffordshire potteries for making moulds it is also termed “potter’s stone.” The chief workings are in the Keuper marls near Newark in Nottinghamshire, Fauld in Staffordshire and Chellaston in Derbyshire. It is also worked in Permian beds in Cumberland and Westmorland, and in Purbeck strata near Battle in Sussex.

Gypsum frequently occurs in association with rock-salt, having been deposited in shallow basins of salt water. Much of the calcium in sea-water exists as sulphate; and on evaporation of a drop of sea-water under the microscope this sulphate is deposited as acicular crystals of gypsum. In salt-lagoons the deposition of the gypsum is probably effected in most cases by means of micro-organisms. Waters containing sulphuretted hydrogen, on exposure to the air in the presence of limestone, may yield gypsum by the formation of sulphuric acid and its interaction with the calcium carbonate. In volcanic districts gypsum is produced by the action of sulphuric acid, resulting from the oxidation of sulphurous vapours, on lime-bearing minerals, like labradorite and augite, in the volcanic rocks: hence gypsum is common around solfataras. Again, by the oxidation of iron-pyrites and the action of the resulting sulphuric acid on limestone or on shells, gypsum may be formed; whence its origin in most clays. Gypsum is also formed in some cases by the hydration of anhydrite, the change being accompanied by an increase of volume to the extent of about 60%. Conversely gypsum may, under certain conditions, be dehydrated or reduced to anhydrite.

Some of the largest known crystals of selenite have been found in southern Utah, where they occur in huge geodes, or crystal-lined cavities, in deposits from the old salt-lakes. Fine crystals, sometimes curiously bent, occur in the Permian rocks of Friedrichroda, near Gotha, where there is a grotto called the Marienglashöhle, close to Rheinhardsbrunn. Many of the best localities for selenite are in the New Red Sandstone formation (Trias and Permian), notably the salt-mines of Hall and Hallein, near Salzburg, and of Bex in Switzerland. Excellent crystals, usually of a brownish colour arranged in groups, are often found in the brine-chambers and the launders used in salt-works. Selenite also occurs in fine crystals in the sulphur-bearing marls of Girgenti and other Sicilian localities; whilst in Britain very bold crystals are yielded by the Kimeridge clay of Shotover Hill near Oxford. Twisted crystals and rosettes of gypsum found in the Mammoth Cave, Kentucky, have been called “oulopholites” (οὖλος, “woolly”; φωλεός, “cave”).

In addition to the use of gypsum in cement-making, the mineral finds application as an agricultural agent in dressing land, and it has also been used in the manufacture of porcelain and glass. Formerly it was employed, in the form of thin cleavage-plates, for glazing windows, and seems to have been, with mica, called lapis specularis. It is still known in Germany as Marienglas and Fraueneis. Delicate cleavage-plates of gypsum are used in microscopic petrography for the determination of certain optical constants in the rock-forming minerals.

GYROSCOPE AND GYROSTAT. These are scientific models or instruments designed to illustrate experimentally the dynamics of a rotating body such as the spinning-top, hoop and bicycle, and also the precession of the equinox and the rotation of the earth.

The gyroscope (Gr. γῦρος, ring, σκοπεῖν, to see) may be distinguished from the gyrostat (γῦρος, and στατικός, stationary) as an instrument in which the rotating wheel or disk is mounted in gimbals so that the principal axis of rotation always passes through a fixed point (fig. 1). It can be made to imitate the motion of a spinning-top of which the point is placed in a smooth agate cup as in Maxwell’s dynamical top (figs. 2, 3). (Collected Works, i. 248.) A bicycle wheel, with a prolongation of the axle placed in a cup, can also be made to serve (fig. 4).

Fig. 1.	Fig. 2.

The gyrostat is an instrument designed by Lord Kelvin (Natural Philosophy, § 345) to illustrate the more complicated state of motion of a spinning body when free to wander about on a horizontal plane, like a top spun on the pavement, or a hoop or bicycle on the road. It consists essentially of a massive fly-wheel concealed in a metal casing, and its behaviour on a table, or with various modes of suspension or support, described in Thomson and Tait, Natural Philosophy, serves to illustrate the curious reversal of the ordinary laws of statical equilibrium due to the gyrostatic domination of the interior invisible fly-wheel, when rotated rapidly (fig. 5).

The toy shown in figs. 6 and 7, which can be bought for a shilling, is acting as a gyroscope in fig. 6 and a gyrostat in fig. 7.

Fig. 3.	Fig. 4.

The gyroscope, as represented in figs. 2 and 3 by Maxwell’s dynamical top, is provided with screws by which the centre of gravity can be brought into coincidence with the point of support. It can then be used to illustrate Poinsot’s theory of the motion of a body under no force, the gyroscope being made kinetically unsymmetrical by a setting of the screws. The discussion of this movement is required for Jacobi’s theorems on the allied motion of a top and of a body under no force (Poinsot, Théorie nouvelle de la rotation des corps, Paris, 1857; Jacobi, Werke, ii. Note B, p. 476).

To imitate the movement of the top the centre of gravity is displaced from the point of support so as to give a preponderance. When the motion takes place in the neighbourhood of the downward vertical, the bicycle wheel can be made to serve again 770 mounted as in fig. 8 by a stalk in the prolongation of the axle, suspended from a universal joint at O; it can then be spun by hand and projected in any manner.

Fig. 5.

Fig. 6. Fig. 7.

Fig. 8.	Fig. 9.

The first practical application of the gyroscopic principle was invented and carried out (1744) by Serson, with a spinning top with a polished upper plane surface for giving an artificial horizon at sea, undisturbed by the motion of the ship, when the real horizon was obscured. The instrument has been perfected by Admiral Georges Ernest Fleuriais (fig. 9), and is interesting theoretically as showing the correction required practically for the rotation of the earth. Gilbert’s barogyroscope is devised for the same purpose of showing the earth’s rotation; a description of it, and of the latest form employed by Föppl, is given in the Ency. d. math. Wiss., 1904, with bibliographical references in the article “Mechanics of Physical Apparatus.” The rotation of the fly-wheel is maintained here by an electric motor, as devised by G. M. Hopkins, and described in the Scientific American, 1878. To demonstrate the rotation of the earth by the constancy in direction of the axis of a gyroscope is a suggestion that has often been made; by E. Sang in 1836, and others. The experiment was first carried out with success by Foucault in 1851, by a simple pendulum swung in the dome of the Pantheon, Paris, and it has been repeated frequently (Mémoires sur le pendule, 1889).

A gyroscopic fly-wheel will preserve its original direction in space only when left absolutely free in all directions, as required in the experiments above. If employed in steering, as of a torpedo, the gyroscope must act through the intermediary of a light relay; but if direct-acting, the reaction will cause precession of the axis, and the original direction is lost.

The gyrostatic principle, in which one degree of freedom is suppressed in the axis, is useful for imparting steadiness and stability in a moving body; it is employed by Schlick to mitigate the rolling of a ship and to maintain the upright position of Brennan’s monorail car.

Lastly, as an application of gyroscopic theory, a stretched chain of fly-wheels in rotation was employed by Kelvin as a mechanical model of the rotary polarization of light in an electromagnetic field; the apparatus may be constructed of bicycle wheels connected by short links, and suspended vertically.

Theory of the Symmetrical Top.

1. The physical constants of a given symmetrical top, expressed in C.G.S. units, which are employed in the subsequent formulae, are denoted by M, h, C and A. M is the weight in grammes (g) as given by the number of gramme weights which equilibrate the top when weighed in a balance; h is the distance OG in centimetres (cm.) between G the centre of gravity and O the point of support, and Mh may be called the preponderance in g.-cm.; Mh and M can be measured by a spring balance holding up in a horizontal position the axis OC in fig. 8 suspended at O. Then gMh (dyne-cm. or ergs) is the moment of gravity about O when the axis OG is horizontal, gMh sin θ being the moment when the axis OG makes an angle θ with the vertical, and g = 981 (cm./s2) on the average; C is the moment of inertia of the top about OG, and A about any axis through O at right angles to OG, both measured in g-cm.2.

To measure A experimentally, swing the top freely about O in small plane oscillation, and determine the length, l cm., of the equivalent simple pendulum; then

l = A/Mh, A = Mhl.

(1)

Next make the top, or this simple pendulum, perform small conical revolutions, nearly coincident with the downward vertical position of equilibrium, and measure n, the mean angular velocity of the conical pendulum in radians / second; and T its period in seconds; then

4π2/T2 = n2 = g/l = gMh/A;

(2)

and f = n/2π is the number of revolutions per second, called the frequency, T = 2π/n is the period of a revolution, in seconds.

2. In the popular explanation of the steady movement of the top at a constant inclination to the vertical, depending on the composition of angular velocity, such as given in Perry’s Spinning Tops, or Worthington’s Dynamics of Rotation, Steady motion of the top. it is asserted that the moment of gravity is always generating an angular velocity about an axis OB perpendicular to the vertical plane COC′ through the axis of the top OC′; and this angular velocity, compounded with the resultant angular velocity about an axis OI, nearly coincident with OC′, causes the axes OI and OC′ to keep taking up a new position by moving at right angles to the plane COC′, at a constant precessional angular velocity, say μ rad./sec., round the vertical OC (fig. 4).

If, however, the axis OC′ is prevented from taking up this precessional velocity, the top at once falls down; thence all the ingenious attempts—for instance, in the swinging cabin of the Bessemer ship—to utilise the gyroscope as a mechanical directive agency have always resulted in failure (Engineer, October 1874), unless restricted to actuate a light relay, which guides the mechanism, as in steering a torpedo.

An experimental verification can be carried out with the gyroscope in fig. 1; so long as the vertical spindle is free to rotate in its socket, the rapidly rotating wheel will resist the impulse of tapping on the gimbal by moving to one side; but when the pinch screw prevents the rotation of the vertical spindle in the massive pedestal, this resistance to the tapping at once disappears, provided the friction of the table prevents the movement of the pedestal; and if the wheel has any preponderance, it falls down.

Familiar instances of the same principles are observable in the movement of a hoop, or in the steering of a bicycle; it is essential that the handle of the bicycle should be free to rotate to secure the stability of the movement.

The bicycle wheel, employed as a spinning top, in fig. 4, can also be held by the stalk, and will thus, when rotated rapidly, convey a distinct muscular impression of resistance to change of direction, if brandished.

3. A demonstration, depending on the elementary principles of dynamics, of the exact conditions required for the Elementary demonstration of the condition of steady motion. axis OC′ of a spinning top to spin steadily at a constant inclination θ to the vertical OC, is given here before proceeding to the more complicated question of the general motion, when θ, the inclination of the axis, is varying by nutation.

It is a fundamental principle in dynamics that if OH is a vector representing to scale the angular momentum of a system, and if Oh is the vector representing the axis of the impressed couple or torque, then OH will vary so that the velocity of H is represented to scale by the impressed couple Oh, and if the top is moving freely about O, Oh is at right angles to the vertical plane COC′, and

Oh = gMh sin θ.

(1)

771

In the case of the steady motion of the top, the vector OH lies in the vertical plane COC′, in OK suppose (fig. 4), and has a component OC = G about the vertical and a component OC′ = G′, suppose, about the axis OC; and G′ = CR, if R denotes the angular velocity of the top with which it is spun about OC′.

If μ denotes the constant precessional angular velocity of the vertical plane COC′ the components of angular velocity and momentum about OA are μ sin θ and Aμ sin θ, OA being perpendicular to OC′ in the plane COC′; so that the vector OK has the components

OC′ = G′, and C′K = Aμ sin θ,

(2)

and the horizontal component

CK = OC′ sin θ − C′K cos θ
= G′ sin θ − Aμ sin θ cos θ.

(3)

The velocity of K being equal to the impressed couple Oh,

gMh sin θ = μ·CK = sin θ (G′μ − Aμ2 cos θ),

(4)

and dropping the factor sin θ,

Aμ2 cos θ − G′μ + gMh = 0, or Aμ2 cos θ − CRμ + An2 = 0,

(5)

the condition for steady motion.

Solving this as a quadratic in μ, the roots μ1, μ2 are given by

μ1, μ2 =	G′	sec θ [1 ± √ (1 −	4A2n2	cos θ) ];
	2A		G′2

(6)

and the minimum value of G′ = CR for real values of μ is given by

G′2	= cos θ,	CR	2√(cos θ);
4A2n2		An

(7)

for a smaller value of R the top cannot spin steadily at the inclination θ to the upward vertical.

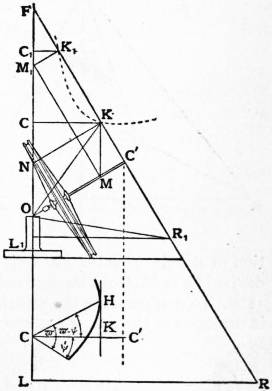

Interpreted geometrically in fig. 4

μ = gMh sin θ/CK = An2/KN, and μ = C′K/A sin θ = KM/A,

(8)

KM·KN = A2 n2,

(9)

so that K lies on a hyperbola with OC, OC′ as asymptotes.

4. Suppose the top or gyroscope, instead of moving freely about the point O, is held in a ring or frame which is compelled Constrained motion of the gyroscope. to rotate about the vertical axis OC with constant angular velocity μ; then if N denotes the couple of reaction of the frame keeping the top from falling, acting in the plane COC’, equation (4) § 3 becomes modified into

gMh sin θ − N = μ·CK = sin θ G′μ − Aμ2 cos θ,

(1)

N = sin θ (Aμ2 cos θ − G′μ + gMh)
= A sin θ cos θ (μ − μ1) (μ − μ2);

(2)

and hence, as μ increases through μ2 and μ1, the sign of N can be determined, positive or negative, according as the tendency of the axis is to fall or rise.

When G′ = CR is large, μ2 is large, and

μ1 ≈ gMh/G′ = An2/CR,

(3)

Fig. 10.

the same for all inclinations, and this is the precession observed in the spinning top and centrifugal machine of fig. 10 This is true accurately when the axis OC′ is horizontal, and then it agrees with the result of the popular explanation of § 2.

If the axis of the top OC′ is pointing upward, the precession is in the same direction as the rotation, and an increase of μ from μ1 makes N negative, and the top rises; conversely a decrease of the procession μ causes the axis to fall (Perry, Spinning Tops, p. 48).

If the axis points downward, as in the centrifugal machine with upper support, the precession is in the opposite direction to the rotation, and to make the axis approach the vertical position the precession must be reduced.

This is effected automatically in the Weston centrifugal machine (fig. 10) used for the separation of water and Centrifugal machine. molasses, by the friction of the indiarubber cushions above the support; or else the spindle is produced downwards below the drum a short distance, and turns in a hole in a weight resting on the bottom of the case, which weight is dragged round until the spindle is upright; this second arrangement is more effective when a liquid is treated in the drum, and wave action is set up (The Centrifugal Machine, C. A. Matthey).

Similar considerations apply to the stability of the whirling bowl in a cream-separating machine.

We can write equation (1)

N = An2 sin θ − μ·CK = (A2n2 − KM·KN) sin θ/A,

(4)

so that N is negative or positive, and the axis tends to rise or fall according as K moves to the inside or outside of the hyperbola of free motion. Thus a tap on the axis tending to hurry the precession is equivalent to an impulse couple giving an increase to C′K, and will make K move to the interior of the hyperbola and cause the axis to rise; the steering of a bicycle may be explained in this way; but K1 will move to the exterior of the hyperbola, and so the axis will fall in this second more violent motion.

Friction on the point of the top may be supposed to act like a tap in the direction opposite to the precession; and so the axis of a top spun violently rises at first and up to the vertical position, but falls away again as the motion dies out. Friction considered as acting in retarding the rotation may be compared to an impulse couple tending to reduce OC′, and so make K and K1 both move to the exterior of the hyperbola, and the axis falls in both cases. The axis may rise or fall according to the direction of the frictional couple, depending on the shape of the point; an analytical treatment of the varying motion is very intractable; a memoir by E. G. Gallop may be consulted in the Trans. Camb. Phil. Soc., 1903.

The earth behaves in precession like a large spinning top, of which the axis describes a circle round the pole of the ecliptic of mean angular radius θ, about 23½°, in a period of 26,000 years, so that R/μ = 26000 × 365; and the mean couple producing precession is

CRμ sin θ = CR2 sin 23½° /26000 × 365,

(5)

one 12 millionth part of ½CR2, the rotation energy of the earth.

5. If the preponderance is absent, by making the C·G coincide with O, and if Aμ is insensible compared with G′,

N = −G′μ sin θ,

(1)

the formula which suffices to explain most gyroscopic action.

Thus a carriage running round a curve experiences, in consequence Gyroscopic action of railway wheels. of the rotation of the wheels, an increase of pressure Z on the outer track, and a diminution Z on the inner, giving a couple, if a is the gauge,

Za = G′μ,

(2)

tending to help the centrifugal force to upset the train; and if c is the radius of the curve, b of the wheels, C their moment of inertia, and v the velocity of the train,

μ = v/c, G′ = Cv/b,

(3)

Z = Cv2/abc (dynes),

(4)

so that Z is the fraction C/Mab of the centrifugal force Mv2/c, or the fraction C/Mh of its transference of weight, with h the height of the centre of gravity of the carriage above the road. A Brennan carriage on a monorail would lean over to the inside of the curve at an angle α, given by

tan α = G′μ/gMh = G′v/gMhc.

(6)

The gyroscopic action of a dynamo, turbine, and other rotating machinery on a steamer, paddle or screw, due to its rolling and pitching, can be evaluated in a similar elementary manner (Worthington, Dynamics of Rotation), and Schlick’s gyroscopic apparatus is intended to mitigate the oscillation.

6. If the axis OC in fig. 4 is inclined at an angle α to the vertical, the equation (2) § 4 becomes

N = sin θ (Aμ2 cos θ − G′μ) + gMh sin (α − θ).

(1)

Suppose, for instance, that OC is parallel to the earth’s axis, and that the frame is fixed in the meridian; then α is the co-latitude, and μ is the angular velocity of the earth, the square of which may be neglected; so that, putting N = 0, α − θ = E,

gMh sin E − G′μ sin (α − E) = 0,

(2)

tan E =	G′μ sin α	≈	G′μ	sin α.
	gMh + G′μ cos α		gMh

(3)

This is the theory of Gilbert’s barogyroscope, described in Appell’s Mécanique rationnelle, ii. 387: it consists essentially of a rapidly The barogyroscope. rotated fly-wheel, mounted on knife-edges by an axis perpendicular to its axis of rotation and pointing east and west; spun with considerable angular momentum G′, and provided with a slight preponderance Mh, it should tilt to an angle E with the vertical, and thus demonstrate experimentally the rotation of the earth.

In Foucault’s gyroscope (Comptes rendus, 1852; Perry, p. 105) Foucault’s gyroscope. the preponderance is made zero, and the axis points to the pole, when free to move in the meridian.

Generally, if constrained to move in any other plane, the axis seeks the position nearest to the polar axis, like a dipping needle with respect to the magnetic pole. (A gyrostatic working model of the magnetic compass, by Sir W. Thomson. British Association Report, Montreal, 1884. A. S. Chessin, St Louis Academy of Science, January 1902.)

A spinning top with a polished upper plane surface will provide an artificial horizon at sea, when the real horizon is obscured. The first instrument of this kind was constructed by Serson, and is described in the Gentleman’s Magazine, Gyroscopic horizon. vol. xxiv., 1754; also by Segner in his Specimen theoriae turbinum (Halae, 1755). The inventor was sent to sea by the Admiralty to test his instrument, but he was lost in the wreck of the “Victory,” 1744. A copy of the Serson top, from the royal collection, is now in the Museum of King’s College, London. Troughton’s Nautical Top (1819) is intended for the same purpose.

The instrument is in favour with French navigators, perfected by 772 Admiral Fleuriais (fig. 9); but it must be noticed that the horizon given by the top is inclined to the true horizon at the angle E given by equation (3) above; and if μ1 is the precessional angular velocity as given by (3) § 4, and T = 2π/μ, its period in seconds,

tan E =	μ	cos lat =	T cos lat	, or E =	T cos lat	,
	μ1		86400		8π

(4)

if E is expressed in minutes, taking μ = 2π/86400; thus making the true latitude E nautical miles to the south of that given by the top (Revue maritime, 1890; Comptes rendus, 1896).

This can be seen by elementary consideration of the theory above, for the velocity of the vector OC′ of the top due to the rotation of the earth is

μ·OC′ cos lat = gMh sin E = μ1·OC′ sin E,

sin E =	μ	cos lat, E =	T cos lat	,
	μ1		8π

(5)

Fig. 11.

in which 8π can be replaced by 25, in practice; so that the Fleuriais gyroscopic horizon is an illustration of the influence of the rotation of the earth and of the need for its allowance.

7. In the ordinary treatment of the general theory of the gyroscope, the motion is referred to two sets of rectangular axes; the Euler’s coordinate angles. one Ox, Oy, Oz fixed in space, with Oz vertically upward and the other OX, OY, OZ fixed in the rotating wheel with OZ in the axis of figure OC.

The relative position of the two sets of axes is given by means of Euler’s unsymmetrical angles θ, φ, ψ, such that the successive turning of the axes Ox, Oy, Oz through the angles (i.) ψ about Oz, (ii.) θ about OE, (iii.) φ about OZ, brings them into coincidence with OX, OY, OZ, as shown in fig. 11, representing the concave side of a spherical surface.

The component angular velocities about OD, OE, OZ are

ψ sin θ, θ, φ + ψ cos θ;

(1)

so that, denoting the components about OX, OY, OZ by P, Q, R,

P =	θ cos φ	+ ψ sin θ sin φ,
Q =	−θ sin φ	+ ψ sin θ cos φ,
R =	φ	+ ψ cos θ.

(2)

Consider, for instance, the motion of a fly-wheel of preponderance Mh, and equatoreal moment of inertia A, of which the axis OC is held in a light ring ZCX at a constant angle γ with OZ, while OZ is held by another ring zZ, which constrains it to move round the vertical Oz at a constant inclination θ with constant angular velocity μ, so that

θ = 0, ψ = μ;

(3)

P = μ sin θ sin φ, Q = μ sin θ cos φ, R = φ + μ cos θ.

(4)

With CXF a quadrant, the components of angular velocity and momentum about OF, OY, are

P cos γ − R sin γ, Q, and A (P cos γ − R sin γ), AQ,

(5)

so that, denoting the components of angular momentum of the fly-wheel about OC, OX, OY, OZ by K or G′, h1, h2, h3,

h1 = A (P cos γ − R sin γ) cos γ + K sin γ,

(6)

h2 = AQ,

(7)

h3 = −A (P cos γ − R sin γ) sin γ + K cos γ;

(8)

and the dynamical equation

dh3	− h1Q + h2P = N,
dt

(9)

with K constant, and with preponderance downward

N = gMh cos zY sin γ = gMh sin γ sin θ cos φ,

(10)

reduces to

A	d2φ	sin γ + Aμ2 sin γ sin2 θ sin φ cos φ
	dt2

+ Aμ2 cos γ sin θ cos θ cos φ − (Kμ + gMh) sin θ cos φ = 0.

(11)

The position of relative equilibrium is given by

cos φ = 0, and sin φ =	Kμ + gMh − Aμ2 cos γ cos θ	.
	Aμ2 sin γ sin θ

(12)

For small values of μ the equation becomes

A	d2φ	sin γ − (Kμ + gMh) sin θ cos φ = 0,
	dt2

(13)

so that φ = ½π gives the position of stable equilibrium, and the period of a small oscillation is 2π √{A sin γ/(Kμ + gMh) sin θ}.

In the general case, denoting the periods of vibration about φ = ½π, −½π, and the sidelong position of equilibrium by 2π/(n1, n2, or n3), we shall find

n12 =	sin θ	{ gMh + Kμ − Aμ2 cos (γ − θ) },
	A sin γ

(14)

n22 =	sin θ	{ −gMh − Kμ + Aμ2 cos (γ + θ) },
	A sin γ

(15)

n3 = n1 n2/μ sin θ.

(16)

The first integral of (11) gives

½A (	dφ	)	2	sin γ + ½Aμ2 sin γ sin2 θ sin2 φ
	dt

− Aμ2 cos γ sin θ cos θ sin φ + (Kμ + gMh) sin θ sin φ − H = 0,

(17)

and putting tan (¼π + ½φ) = z, this reduces to

dz	n √Z
dt

(18)

where Z is a quadratic in z2, so that z is a Jacobian elliptic function of t, and we have

tan (¼π + ½φ) = C (tn, dn, nc, or cn) nt,

(19)

according as the ring ZC performs complete revolutions, or oscillates about a sidelong position of equilibrium, or oscillates about the stable position of equilibrium φ = ±½π.

Suppose Oz is parallel to the earth’s axis, and μ is the diurnal rotation, the square of which may be neglected, then if Gilbert’s barogyroscope of § 6 has the knife-edges turned in azimuth to make an angle β with E. and W., so that OZ lies in the horizon at an angle E·β·N., we must put γ = ½π, cos θ = sin α sin β; and putting φ = ½π − δ + E, where δ denotes the angle between Zz and the vertical plane Zζ through the zenith ζ,

sin θ cos δ = cos α, sin θ sin δ = sin α cos β;

(20)

so that equations (9) and (10) for relative equilibrium reduce to

gMh sin E = KQ = Kμ sin θ cos φ = Kμ sin θ sin (δ − E),

(21)

and will change (3) § 6 into

tan E =	Kμ sin α cos β	,
	gMh + Kμ cos α

(22)

a multiplication of (3) § 6 by cos β (Gilbert, Comptes rendus, 1882).

Changing the sign of K or h and E and denoting the revolutions/second of the gyroscope wheel by F, then in the preceding notation, T denoting the period of vibration as a simple pendulum,

tan E =	Kμ sin α cos β	=	F sin α cos β	,
	gMh − Kμ cos α		86400 A/T2C − F cos α

(23)

so that the gyroscope would reverse if it were possible to make F cos α > 86400 A/T2C (Föppl, Münch. Ber, 1904).

A gyroscopic pendulum is made by the addition to it of a fly-wheel, balanced and mounted, as in Gilbert’s barogyroscope, in a ring movable about an axis fixed in the pendulum, in the vertical plane of motion.

As the pendulum falls away to an angle θ with the upward vertical, and the axis of the fly-wheel makes an angle φ with the vertical plane of motion, the three components of angular momentum are

h1 = K cos φ, h2 = Aθ + K sin φ, h3 = Aφ,

(24)

where h3 is the component about the axis of the ring and K of the fly-wheel about its axis; and if L, M′, N denote the components of the couple of reaction of the ring, L may be ignored, while N is zero, with P = 0, Q = θ, R = 0, so that

M′ = h2 = Aθ + Kφ cos φ,

(25)

0 = h3 − h1θ = Aφ − Kθ cos φ.

(26)

For the motion of the pendulum, including the fly-wheel,

MK2θ = gMH sin θ − M′ = gMH sin θ − Aθ − Kφ cos φ.

(27)

If θ and φ remain small,

Aφ = Kθ, Aφ = K(θ − α),

(28)

(MK2 + A) θ + (K2/A) (θ − α) − gMHθ = 0;

(29)

so that the upright position will be stable if K2 > gMHA, or the rotation energy of the wheel greater than ½A/C times the energy acquired by the pendulum in falling between the vertical and horizontal position; and the vibration will synchronize with a simple pendulum of length

(MK2 + A) / [(K2/gA) − MH].

(30)

This gyroscopic pendulum may be supposed to represent a ship among waves, or a carriage on a monorail, and so affords an explanation of the gyroscopic action essential in the apparatus of Schlick and Brennan.

8. Careful scrutiny shows that the steady motion of a top is not steady absolutely; it reveals a small nutation General motion of the top. superposed, so that a complete investigation requires a return to the equations of unsteady motion, and for the small oscillation to consider them in a penultimate form.

In the general motion of the top the vector OH of resultant angular momentum is no longer compelled to lie in the vertical plane COC′ (fig. 4), but since the axis Oh of the gravity couple is always horizontal, H will describe a curve in a fixed horizontal plane through C. The vector OC′ of angular momentum about the axis will be constant in length, but vary in direction; and OK will be the component angular momentum in the vertical plane COC′, if the planes through C and C′ perpendicular to the lines OC and OC′ intersect in the line KH; and if KH is the component angular momentum perpendicular to the plane COC′, the resultant angular momentum OH has the three components OC′, C′K, KH, represented in Euler’s angles by

KH = A dθ/dt, C′K = A sin θd ψ/dt, OC′ = G′.

(1)

Drawing KM vertical and KN parallel to OC′, then

KM = A dψ/dt, KN = CR − A cos θ dψ/dt = (C − A) R + A dφ/dt

(2)

so that in the spherical top, with C = A, KN = A dφ/dt.

773

The velocity of H is in the direction KH perpendicular to the plane COC′, and equal to gMh sin θ or An2 sin θ, so that if a point in the axis OC′ at a distance An2 from O is projected on the horizontal plane through C in the point P on CK, the curve described by P, turned forwards through a right angle, will be the hodograph of H; this is expressed by

An2 sin θ e(ψ + 1/2π)i = iAn2 sin θ eψi =	d	(ρeῶi)
	dt

(3)

where ρeῶi is the vector CH; and so the curve described by P and the motion of the axis of the top is derived from the curve described by H by a differentiation.

Resolving the velocity of H in the direction CH,

d·CH/dt = An2 sin θ sin KCH = An2 sin θ KH/CH,

(4)

d·½CH2/dt = A2n2sin θ dθ/dt.

(5)

and integrating

½CH2 = A2n2 (E − cos θ),

(6)

½OH2 = A2n2 (F − cos θ),

(7)

½C′H2 = A2n2 (D − cos θ),

(8)

where D, E, F are constants, connected by

F = E + G2/2A2n2 = D + G′2/2A2n2.

(9)

Then

KH2 = OH2 − OK2,

(10)

OK2 sin2 θ = CC′2 = G2 − 2GG′ cos θ + G′2,

(11)

A2 sin2 θ (dθ/dt)2 = 2A2n2 (F − cos θ) sin2 θ − G2 + 2GG′ cos θ − G′2;

(12)

and putting cos θ = z,

(	dz	) = 2n2 (F − z) (1 − z2) − (G2 − 2GG′z + G′2) /A2
	dt

(13)

= 2n2 (E − z) (1 − z2) − (G′ − Gz)2 /A2 = 2n2 (D − z) (1 − z2) − (G − G′z)2 /A2 = 2n2 Z suppose.

Denoting the roots of Z = 0 by z1, z2, z3, we shall have them arranged in the order

z1 > 1 > z2 > z > z3 > −1.

(14)

(dz/dt)2 = 2n2 (z1 − z) (z2 − z) (z − z3).

(15)

nt = ∫ zz3 dz/ √(2Z),

(16)

an elliptic integral of the first kind, which with

m = n √	z1 − z3	, κ2 =	z2 − z3	,
	2		z1 − z2

(17)

can be expressed, when normalized by the factor √(z1 − z3)/2, by the inverse elliptic function in the form

mt = ∫ zz3	√ (z1 − z3) dz
	√ [4 (z1 − z) (z2 − z) (z − z3)]

= sn−1 √	z − z3	= cn−1 √	z2 − z	= dn−1 √	z1 − z	.
	z2 − z3		z2 − z3		z1 − z3

(18)

z − z3 = (z2 − z3) sn2mt, z2 − z = (z2 − z3) cn2mt, z1 − z = (z1 − z3) dn2mt.

(19)

z = z2sn2mt + z3cn2mt.

(20)

Interpreted dynamically, the axis of the top keeps time with the beats of a simple pendulum of length

L = l/½ (z1 − z3),

(21)

suspended from a point at a height ½ (z1 + z3)l above O, in such a manner that a point on the pendulum at a distance

½ (z1 − z3) l = l2/L

(22)

from the point of suspension moves so as to be always at the same level as the centre of oscillation of the top.

The polar co-ordinates of H are denoted by ρ, ῶ in the horizontal plane through C; and, resolving the velocity of H perpendicular to CH,

ρdῶ/dt = An2 sin θ cos KCH.

(23)

ρ2dῶ/dt = An2 sin θ·CK = An2 (G′ − G cos θ)

(24)

ῶ = ½ ∫	G′ − Gz		dt	= ∫ z3	(G′ − Gz) / 2An		dz	,
	E − z		A		E − z		√ (2Z)

(25)

an elliptic integral, of the third kind, with pole at z = E; and then

ῶ − ψ = KCH = tan−1 KH/CH

= tan−1	A sin θ dθ/dt	= tan−1	√ (2Z)	,
	G′ − G cos θ		(G′ − Gz) / An

(26)

which determines ψ.

Otherwise, from the geometry of fig. 4,

C′K sin θ = OC − OC′ cos θ,

(27)

A sin2 θ dψ/dt = G − G′ cos θ,

(28)

ψ = ∫

G − G′z

dt

= ½ ∫

G − G′

dt

+ ½ ∫

G + G′

dt

,

1 − z2

A

1 − z

A

1 + z

A

(29)

the sum of two elliptic integrals of the third kind, with pole at z = ±1; and the relation in (25) (26) shows the addition of these two integrals into a single integral, with pole at z = E.

The motion of a sphere, rolling and spinning in the interior of a spherical bowl, or on the top of a sphere, is found to be of the same character as the motion of the axis of a spinning top about a fixed point.

The curve described by H can be identified as a Poinsot herpolhode, that is, the curve traced out by rolling a quadric surface with centre fixed at O on the horizontal plane through C; and Darboux has shown also that a deformable hyperboloid made of the generating lines, with O and H at opposite ends of a diameter and one generator fixed in OC, can be moved so as to describe the curve H; the tangent plane of the hyperboloid at H being normal to the curve of H; and then the other generator through O will coincide in the movement with OC′, the axis of the top; thus the Poinsot herpolhode curve H is also the trace made by rolling a line of curvature on an ellipsoid confocal to the hyperboloid of one sheet, on the plane through C.

Kirchhoff’s Kinetic Analogue asserts also that the curve of H is the projection of a tortuous elastica, and that the spherical curve of C′ is a hodograph of the elastica described with constant velocity.

Writing the equation of the focal ellipse of the Darboux hyperboloid through H, enlarged to double scale so that O is the centre,

x2/α2 + y2/β2 + z2/O = 1,

(30)

with α2 + λ, β2 + λ, λ denoting the squares of the semiaxes of a confocal ellipsoid, and λ changed into μ and ν for a confocal hyperboloid of one sheet and of two sheets.

λ > 0 > μ > −β2 > ν > −α2,

(31)

then in the deformation of the hyperboloid, λ and ν remain constant at H; and utilizing the theorems of solid geometry on confocal quadrics, the magnitudes may be chosen so that

α2 + λ + β2 + μ + ν = OH2 = ½k2 (F − z) = ρ2 + OC2.

(32)

α2 + μ = ½k2 (z1 − z) = ρ2 − ρ12,

(33)

β2 + μ = ½k2 (z2 − z) = ρ2 − ρ22,

(34)

μ = ½k2 (z3 − z) = ρ2 − ρ32,

(35)

ρ12 < 0 < ρ22 < ρ2 < ρ32,

(36)

F = z1 + z2 + z3,

(37)

λ − 2μ + ν = k2z, λ − ν = k2,

(38)

λ − μ	=	1 + z	,	μ − ν	=	1 − z
λ − ν		2		λ − ν		2

(39)

with z = cos θ, θ denoting the angle between the generating lines through H; and with OC = δ, OC′ = δ′, the length k has been chosen so that in the preceding equations

δ/k = G/2An, δ′/k = G′/2An;

(40)

and δ, δ′, k may replace G, G′, 2An; then

2Z	=	1	(	dθ	)	2	=	4KH2	,
1 − z2		n2		dt				k2

(41)

while from (33-39)

2Z	=	4 (α2 + μ) (β2 + μ) μ	,
1 − z2		k2 (μ − λ) (μ − ν)

(42)

which verifies that KH is the perpendicular from O on the tangent plane of the hyperboloid at H, and so proves Darboux’s theorem.

Planes through O perpendicular to the generating lines cut off a constant length HQ = δ, HQ′ = δ′, so the line of curvature described by H in the deformation of the hyperboloid, the intersection of the fixed confocal ellipsoid λ and hyperboloid of two sheets ν, rolls on a horizontal plane through C and at the same time on a plane through C′ perpendicular to OC′.

Produce the generating line HQ to meet the principal planes of the confocal system in V, T, P; these will also be fixed points on the generator; and putting

(HV, HT, HP,)/HQ = D/(A, B, C,),

(43)

then

Ax2 + By2 + Cz2 = Dδ2

(44)

is a quadric surface with the squares of the semiaxes given by HV·HQ, HT·HQ, HP·HQ, and with HQ the normal line at H, and so touching the horizontal plane through C; and the direction cosines of the normal being

x/HV, y/HT, z/HP,

(45)

A2x2 + B2y2 + C2z2 = D2δ2,

(46)

the line of curvature, called the polhode curve by Poinsot, being the intersection of the quadric surface (44) with the ellipsoid (46).

There is a second surface associated with (44), which rolls on the plane through C′, corresponding to the other generating line HQ′ through H, so that the same line of curvature rolls on two planes at a constant distance from O, δ and δ′; and the motion of the top is made up of the combination. This completes the statement of Jacobi’s theorem (Werke, ii. 480) that the motion of a top can be resolved into two movements of a body under no force.

Conversely, starting with Poinsot’s polhode and herpolhode given in (44) (46), the normal plane is drawn at H, cutting the principal axes of the rolling quadric in X, Y, Z; and then

α2 + μ = x·OX, β2 + μ = y·OY, μ = z·OZ,

(47)

this determines the deformable hyperboloid of which one generator through H is a normal to the plane through C; and the other generator is inclined at an angle θ, the inclination of the axis of the top, while the normal plane or the parallel plane through O revolves with angular velocity dψ/dt.

The curvature is useful in drawing a curve of H; the diameter of curvature D is given by

774

D =	dp2	=	½k2 sin3 θ	,	½D	=	¼k2	.
	dp		δ − δ′		p		KM·KN

(48)

The curvature is zero and H passes through a point of inflexion when C′ comes into the horizontal plane through C; ψ will then be stationary and the curve described by C′ will be looped.

In a state of steady motion, z oscillates between two limits z2 and z3 which are close together; so putting z2 = z3 the coefficient of z in Z is

2Z1z3 + z23 = −1 +	GG′	= −1 +	(OM cos θ + ON) (OM + ON cos θ)	,
	A2n2		OM·ON

(49)

2z1z3 =	OM2 + ON2	cos θ, z1 =	OM2 + ON2	,
	OM·ON		2OM·ON

(50)

2 (z1 − z3) =	OM2 − 2OM·ON cos θ + ON2	=	MN2	.
	OM·ON		OM·ON

(51)

With z2 = z3, κ = 0, K = ½π; and the number of beats per second of the axis is

m	=	n	√	z1 − z3	=	MN		n	,
π		π		2		√ (OM·ON)		2π

(52)

beating time with a pendulum of length

L =	l	=	4OM·ON	l.
	½ (z1 − z3)		MN2

(53)

The wheel making R/2π revolutions per second,

beats/second	=	MN		n	=	C	·	MN	,
revolutions/second		√ (OM·ON)		R		A		OC′

(54)

from (8) (9) § 3; and the apsidal angle is

μ

½π

=

Aμ

·

n

·½π =

ON

·

2√ (OM·ON)

·½π =

ON

π,

m

An

m

√ (OM·ON)

MN

MN

(55)

and the height of the equivalent conical pendulum λ is given by

λ	=	g	=	n2	=	OM	=	KC	=	OL	,
l		lμ2		μ2		ON		KC′		OC′

(56)

if OR drawn at right angles to OK cuts KC′ in R, and RL is drawn horizontal to cut the vertical CO in L; thus if OC2 represents l to scale, then OL will represent λ.

9. The gyroscope motion in fig. 4 comes to a stop when the rim of the wheel touches the ground; and to realize the motion when the axis is inclined at a greater angle with the upward vertical, the stalk is pivoted in fig. 8 in a lug screwed to the axle of a bicycle hub, fastened vertically in a bracket bolted to a beam. The wheel can now be spun by hand, and projected in any manner so as to produce a desired gyroscopic motion, undulating, looped, or with cusps if the stalk of the wheel is dropped from rest.

As the principal part of the motion takes place now in the neighbourhood of the lowest position, it is convenient to measure the angle θ from the downward vertical, and to change the sign of z and G.

Equation (18) § 8 must be changed to

mt = nt √	z3 − z1	= ∫ z3z	√ (z3 − z1) dz	,
	2		√ (4Z)

(1)

Z = (z − F) (1 − z2) − (G2 − 2GG′z + G′2) / 2A2n2 = (z − D) (1 − z2) − (G − G′z)2 / 2A2n2 = (z − E) (1 − z2) − (G′ − Gz)2 / 2A2n2 = (z3 − z) (z − z2) (z − z1),

(2)

1 > z3 > z > z2 > −1, D, E > z1,

(3)

z1 + z2 + z3 = F = D − G′2 / 2A2n2 = E − G2 / 2A2n2,

(4)

and expressed by the inverse elliptic function

mt = sn−1 √	z3 − z	= cn−1 √	z − z2	= dn−1 √	z − z1	,
	z3 − z2		z3 − z2		z3 − z1

(5)

z = z2sn2mt + z3cn2mt, κ2 = (z3 − z2) / (z3 − z1).

(6)

Equation (25) and (29) § 8 is changed to

ῶ = ½ ∫	G′ − Gz		dt	= ½ ∫	G′ − GE		dt	−	Gt	,
	z − E		A		z − E		A		2A

(7)

ψ = ∫

G′z − G

dt

= ½ ∫

G′ + G

dt

− ½ ∫

G′ − G

dt

,

1 − z2

A

1 − z

A

1 + z

A

(8)

while ψ and ῶ change places in (26).

The Jacobian elliptic parameter of the third elliptic integral in (7) can be given by ν, where

v = ∫ z3E	√ (z3 − z1)	dz = ∫ z3z2 + ∫ z2E = K + (1 − f) Ki′,
	√ (4Z)

(9)

where f is a real fraction,

(1 − f) K′ = ∫ z2E	√ (z3 − z1)	dz,
	√ (−4Z)

(10)

fK′ = ∫ Ez1	√ (z3 − z1)	dz,
	√ (−4Z)

= sn−1 √	E − z1	= cn−1 √	z2 − E	= dn−1 √	z3 − E	,
	z2 − z1		z2 − z1		z3 − z1

(11)

with respect to the comodulus κ′.

Then, with z = E, and

2ZE = −{ (G′ − GE) / An}2,

(12)

if II denotes the apsidal angle of ῶ, and T the time of a single beat of the axle, up or down,

II +	GT	= ∫ z3z2	√ (−2ZE)		dz	,
	2A		z − E		√ (2Z)

= ½πf + Kznf K′,

(13)

in accordance with the theory of the complete elliptic integral of the third kind.

Interpreted geometrically on the deformable hyperboloid, flattened in the plane of the focal ellipse, if OQ is the perpendicular from the centre on the tangent HP, AOQ = amfK′, and the eccentric angle of P, measured from the minor axis, is am(1 − f) K′, the eccentricity of the focal ellipse being the comodulus κ′.

A point L is taken in QP such that

QL/OA = znfK′,

(14)

QV, QT, QP = OA (zs, zc, zd) fK′;

(15)

and with

mT = K, m/n = √ (z3 − z1) /2 = OA/k,

(16)

GT	=	G	·	k	K =	QH	K,
2A		2An		OA		OA

(17)

II = ½πf +	QL + QH	K = ½πf +	HL	K.
	OA		OA

(18)

By choosing for f a simple rational fraction, such as ½, 1⁄3, ¼, 1⁄5, ... an algebraical case of motion can be constructed (Annals of Mathematics, 1904).

Thus with G′ − GE = 0, we have E = z1 or z2, never z3; f = 0 or 1; and P is at A or B on the focal ellipse; and then

ῶ = −pt, p = G/2A,

(19)

ψ + pt = tan−1	n√ (2Z)	,
	2p (z − E)

(20)

sin θ exp (ψ + pt) i = i√ [(−z2 − z3) (z − z1)] + √ [(z3 − z) (z − z2)],

z1 =	1 + z2 z3	, √	−z2 − z3	=	G	=	p	=	G′	, or
	z2 + z3		2		2An		n		2Anz1

(21)

sin θ exp (ψ + pt)i = i√ [(−z1 − z3) (z − z2)] + √ [(z3 − z) (z − z1)],

z2 =	1 + z1 z3	, √	−z1 − z3	=	G	=	p	=	G′	.
	z1 + z3		2		2An		n		2Anz1

(22)

Thus z2 = 0 in (22) makes G′ = 0; so that if the stalk is held out horizontally and projected with angular velocity 2p about the vertical axis OC without giving any spin to the wheel, the resulting motion of the stalk is like that of a spherical pendulum, and given by

sin θ exp (ψ + pt)i = i √ (	2p2	cos θ ) + √ ( sin2 θ − 2	p2	cos θ ),
	n2		n2

= i sin α √ (sec α cos θ) + √ [(sec α + cos θ) (cos α − cos θ)],

(23)

if the axis falls in the lowest position to an angle α with the downward vertical.

With z3 = 0 in (21) and z2 = −cos β, and changing to the upward vertical measurement, the motion is given by

sin θ eψi = eint √ ½ cos β [√ (1 − cos β cos θ) + i√ (cos β cos θ − cos2 θ)],

(24)

and the axis rises from the horizontal position to a series of cusps; and the mean precessional motion is the same as in steady motion with the same rotation and the axis horizontal.

The special case of f = ½ may be stated here; it is found that

p	exp (ῶ − pt) i = √	(1 + x) (κ − x)	+ i √	(1 − x) (κ + x)	,
a		2		2

(25)

ρ2 = a2 (κ − x2),

(26)

½λ2 sin θ exp (ψ − pt) i = (L − 1 + κ − x) √	(1 − x) (κ + x
	2

+ i (L − 1 + κ + x) √	(1 + x) (κ − x)	,
	2

(27)

L = ½ (1 − κ) + λp/n,

(28)

so that p = 0 and the motion is made algebraical by taking L = ½ (1 − κ).

The stereoscopic diagram of fig. 12 drawn by T. I. Dewar shows these curves for κ = 15⁄17, 3⁄5, and 1⁄3 (cusps).

10. So far the motion of the axis OC’ of the top has alone been considered; for the specification of any point of the body, Euler’s third angle φ must be introduced, representing the angular displacement of the wheel with respect to the stalk. This is given by

dφ	+ cos θ	dψ	= R,
dt		dt

(1)

d(φ + ψ)	= ( 1 −	C	) R +	G′ + G	,
dt		A		A (1 + cos θ)

d(φ − ψ)	= ( 1 −	C	) R +	G′ − G	.
dt		A		A (1 − cos θ)

(2)

It will simplify the formulas by cancelling a secular term if we make C = A, and the top is then called a spherical top; OH becomes the axis of instantaneous angular velocity, as well as of resultant angular momentum.

When this secular term is restored in the general case, the axis OI of angular velocity is obtained by producing Q′H to I, making

HI	=	A − C	,	HI	=	A − C	,
Q′H		C		Q′I		A

(3)

775

and then the four vector components OC′, C′K, KH, HI give a resultant vector OI, representing the angular velocity ω, such that

OI/Q′I = ω/R.

(4)

Fig. 12.

The point I is then fixed on the generating line Q′H of the deformable hyperboloid, and the other generator through I will cut the fixed generator OC of the opposite system in a fixed point O′, such that IO′ is of constant length, and may be joined up by a link, which constrains I to move on a sphere.

In the spherical top then,

½ (φ + ψ)= ∫	G′ + G		dt	,   ½ (φ − ψ)= ∫	G′ − G		dt
	1 + z		2A		1 − z		2A

(5)

depending on the two elliptic integrals of the third kind, with pole at z = ±1; and measuring θ from the downward vertical, their elliptic parameters are:—

v1 = ∫ ∞1	√ (z3 − z1) dz	= f1K′i,
	√ (4Z)

(6)

v2 = ∫ −1−∞	√ (z3 − z1) dz	K + (1 − f2) K′i,
	√ (4Z)

(7)

f1K′ = ∫ ∞1	√ (z3 − z1) dz
	√ ( −4Z)

= sn−1 √	z3 − z1	= cn−1 √	1 − z3	= dn−1 √	1 − z2	,
	1 − z1		1 − z1		1 − z1

(8)

(1 − f2) K′ = ∫ −1z1	√ (z3 − z1) dz
	√ ( −4Z)

= sn−1 √	−1 − z1	= cn−1 √	1 + z2	= dn−1 √	1 + z3	.
	z2 − z1		z2 − z1		z3 − z1

(9)

Then if v′ = K + (1 − f′)K′i is the parameter corresponding to z = D, we find

f = f2 − f1, f′ = f2 + f1,

(10)

v = v1 + v2, v′ = v1 − v2.

(11)

The most symmetrical treatment of the motion of any point fixed in the top will be found in Klein and Sommerfeld, Theorie des Kreisels, to which the reader is referred for details; four new functions, α, β, γ, δ, are introduced, defined in terms of Euler’s angles, θ, ψ, φ, by

α = cos ½θ exp ½ (φ + ψ) i,

(12)

β = i sin ½θ exp ½ (−φ + ψ) i,

(13)

γ = i sin ½θ exp ½ (φ − ψ) i,

(14)

δ = cos ½θ exp ½ (−φ − ψ) i.

(15)

Next Klein takes two functions or co-ordinates λ and Λ, defined by

λ =	x + yi	=	r + z	,
	r − z		x − yi

(16)

and Λ the same function of X, Y, Z, so that λ, Λ play the part of stereographic representations of the same point (x, y, z) or (X, Y, Z) on a sphere of radius r, with respect to poles in which the sphere is intersected by Oz and OZ.

These new functions are shown to be connected by the bilinear relation

λ =	αΛ + β	,   αδ − βγ = 1,
	γΛ + δ

(17)

in accordance with the annexed scheme of transformation of co-ordinates—

	Ξ	Η	Ζ
ξ	α2	β2	2αβ
η	γ2	δ2	2γδ
ζ	αγ	βδ	αδ + βγ

where

ξ = x + yi,   η = −x + yi,   ζ = −z,
Ξ = X + Yi,   Η = −X + Yi,   Ζ = −Z;

(18)

and thus the motion in space of any point fixed in the body defined by Λ is determined completely by means of α, β, γ, δ; and in the case of the symmetrical top these functions are elliptic transcendants, to which Klein has given the name of multiplicative elliptic functions; and

αδ = cos2 ½θ,   βγ = −sin2 ½θ,
αδ − βγ = 1,   αδ + βγ = cos θ,
√ ( −4αβγδ) = sin θ;

(19)

while, for the motion of a point on the axis, putting Λ = 0, or ∞,

λ = β/δ = i tan ½θeψi, or λ = α/γ = −i cot ½θeψi,

(20)

and

αβ = ½i sin θeψi, αγ = ½i sin θeψi,

(21)

giving orthogonal projections on the planes GKH, CHK; and

α	dβ	−	dα	β = n	ρ	eῶi,
	dt		dt		k

(22)

the vectorial equation in the plane GKH of the herpolhode of H for a spherical top.

When f1 and f2 in (9) are rational fractions, these multiplicative elliptic functions can be replaced by algebraical functions, qualified by factors which are exponential functions of the time t; a series of quasi-algebraical cases of motion can thus be constructed, which become purely algebraical when the exponential factors are cancelled by a suitable arrangement of the constants.

Thus, for example, with f = 0, f′ = 1, f1 = ½, f2 = ½, as in (24) § 9, where P and P′ are at A and B on the focal ellipse, we have for the spherical top

(1 + cos θ) exp (φ + ψ − qt) i
= √ (sec β − cos θ) √ (cos β − cos θ) + i (√ sec β + √ cos β) √ cos θ,

(23)

(1 − cos θ) exp (φ − ψ − q′t) i
= √ (sec β − cos θ) √ (cos β − cos θ) + i (√sec β − √ cos β) √ cos θ,

(24)

q, q′ = n√ (2 sec β) ± n√ (2 cos β);

(25)

and thence α, β, γ, δ can be inferred.

The physical constants of a given symmetrical top have been denoted in § 1 by M, h, A, C, and l, n, T; to specify a given state of general motion we have G, G′ or CR, D, E, or F, which may be called the dynamical constants; or κ, v, w, v1, v2, or f, f′, f1, f2, the analytical constants; or the geometrical constants, such as α, β, δ, δ′, k of a given articulated hyperboloid.

There is thus a triply infinite series of a state of motion; the choice of a typical state can be made geometrically on the hyperboloid, flattened in the plane of the local ellipse, of which κ is the ratio of the semiaxes α and β, and am(1 − f) K′ is the eccentric angle from the minor axis of the point of contact P of the generator HQ, so that two analytical constants are settled thereby; and the point H may be taken arbitrarily on the tangent line PQ, and HQ′ is then the other tangent of the focal ellipse; in which case θ3 and θ2 are the angles between the tangents HQ, HQ′, and between the focal distances HS, HS′, and k2 will be HS·HS′, while HQ, HQ′ are δ, δ′. 776 As H is moved along the tangent line HQ, a series of states of motion can be determined, and drawn with accuracy.

Fig. 13.

11. Equation (5) § 3 with slight modification will serve with the same notation for the steady rolling motion at a constant inclination α to the vertical of a body of revolution, such as a disk, hoop, wheel, cask, wine-glass, plate, dish, bowl, spinning top, gyrostat, or bicycle, on a horizontal plane, or a surface of revolution, as a coin in a conical lamp-shade.

The point O is now the intersection of the axis GC′ with the vertical through the centre B of the horizontal circle described by the centre of gravity, and through the centre M of the horizontal circle described by P, the point of contact (fig. 13). Collected into a particle at G, the body swings round the vertical OB as a conical pendulum, of height AB or GL equal to g/μ2 = λ, and GA would be the direction of the thread, of tension gM(GA/GL) dynes. The reaction with the plane at P will be an equal parallel force; and its moment round G will provide the couple which causes the velocity of the vector of angular momentum appropriate to the steady motion; and this moment will be gM·Gm dyne-cm. or ergs, if the reaction at P cuts GB in m.

Draw GR perpendicular to GK to meet the horizontal AL in R, and draw RQC′K perpendicular to the axis Gz, and KC perpendicular to LG.

The velocity of the vector GK of angular momentum is μ times the horizontal component, and

horizontal component /Aμ sin α = KC/KC′,

(1)

so that

gM·Gm = Aμ2 sin α(KC/KC′),

(2)

A	=	KC′		g	Gm = GQ·Gm.
M		KC		μ2 sin α

(3)

The instantaneous axis of rotation of the case of a gyrostat would be OP; drawing GI parallel to OP, and KK′ parallel to OG, making tan K′GC′ = (A/C) tan IGC’1; then if GK represents the resultant angular momentum, K′K will represent the part of it due to the rotation of the fly-wheel. Thus in the figure for the body rolling as a solid, with the fly-wheel clamped, the points m and Q move to the other side of G. The gyrostat may be supposed swung round the vertical at the end of a thread PA′ fastened at A′ where Pm produced cuts the vertical AB, and again at the point where it crosses the axis GO. The discussion of the small oscillation superposed on the state of steady motion requisite for stability is given in the next paragraph.

12. In the theoretical discussion of the general motion General motion of a gyrostat rolling on a plane. of a gyrostat rolling on a horizontal plane the safe and shortest plan apparently is to write down the most general equations of motion, and afterwards to introduce any special condition.

Drawing through G the centre of gravity any three rectangular axes Gx, Gy, Gz, the notation employed is

u, v, w,	the components of linear velocity of G;
p, q, r,	the components of angular velocity about the axes;
h1, h2, h3,	the components of angular momentum;
θ1, θ2, θ3,	the components of angular velocity of the coordinate axes;
x, y, z,	the co-ordinates of the point of contact with the horizontal plane;
X, Y, Z,	the components of the reaction of the plane;
α, β, γ,	the direction cosines of the downward vertical.

The geometrical equations, expressing that the point of contact is at rest on the plane, are

u − ry + qz = 0,

(1)

v − pz + rx = 0,

(2)

w − qx + py = 0.

(3)

The dynamical equations are

du/dt − θ3v + θ2w = gα + X/M,

(4)

dv/dt − θ1w + θ2u = gβ + Y/M,

(5)

dw/dt − θ2u + θ1v = gγ + Z/M,

(6)

and

dh1/dt − θ3h2 + θ2h3 = yZ − zY,

(7)

dh2/dt − θ1h3 + θ3h1 = zX − xZ,

(8)

dh3/dt − θ2h1 + θ1h2 = xY − yX.

(9)

In the special case of the gyrostat where the surface is of revolution round Gz, and the body is kinetically symmetrical about Gz, we take Gy horizontal and Gzx through the point of contact so that y = 0; and denoting the angle between Gz and the downward vertical by θ (fig. 13)

α = sin θ,   β = 0,   γ = cos θ.

(10)

The components of angular momentum are

h1 = Ap,   h2 = Aq,   h3 = Cr + K,

(11)

where A, C denote the moment of inertia about Gx, Gz, and K is the angular momentum of a fly-wheel fixed in the interior with its axis parallel to Gz; K is taken as constant during the motion.

The axis Gz being fixed in the body,

θ1 = p,   θ2 = q = −dθ/dt,   θ3 = p cot θ.

(12)

With y = 0, (1), (2), (3) reduce to

u = −qz,   v = pz − rx,   w = qx;

(13)

and, denoting the radius of curvature of the meridian curve of the rolling surface by ρ,

dx	= ρ cos θ	dθ	= −q ρ cos θ,	dz	= −ρ sin θ	dθ	= q ρ sin θ;
dt		dt		dt		dt

(14)

so that

du	= −	dq	z − q2ρ sin θ,
dt		dt

(15)

dv	=	dp	z −	dr	x + pqρ sin θ + qrρ sin θ,
dt		dt		dt

(16)

dw	=	dq	x − q2ρ cos θ.
dt		dt

(17)

The dynamical equations (4)...(9) can now be reduced to

X	= −	dq	z − p2z cotθ + q2 (x − ρ sin θ) + prx cot θ − g sin θ,
M		dt

(18)

Y	=	dp	z −	dr	x − pq (x + z cot θ − ρ sin θ) + qrp cos θ,
M		dt		dt

(19)

Z	=	dq	x + q2 (z − ρ cos θ) + p2z − prx − g cos θ,
M		dt

(20)

−zY = A	dp	− Apq cot θ + qh3,
	dt

(21)

−zX − xZ = A	dq	+ Ap2 cot θ − ph3,
	dt

xY =	dh3	= C	dr	= −Cq	d	.
	dt		dt		dθ

(23)

Eliminating Y between (19) and (23),

(	C	+ x2 )	dr	− xz	dp	+ pqx (x + z cot θ − ρ sin θ) − qrxρ cos θ = 0,
	M		dt		dt

(24)

(	C	+ x2 )	dr	− xz	dp	− px (x + z cot θ − ρ sin θ) + rxρ cos θ = 0.
	M		dθ		dθ

(A)

Eliminating Y between (19) and (21)

(	A	+ z2 )	dp	− xz	dr	−	A	pq cot θ + q	h3
	M		dt		dt		M		M

− pqz (x + z cot θ − ρ sin θ) + qrzρ cos θ = 0,

(25)

−xz	dr	+ (	A	+ z2 )	dp	+	A	p cot θ −	h3
	dθ		M		dθ		M		M

+ pz (x + z cot θ − ρ sin θ) + rzρ cos θ = 0.

(B)

In the special case of a gyrostat rolling on the sharp edge of a circle passing through G, z = 0, ρ = 0, (A) and (B) reduce to

p = (	C	+ 1 )	dr	= (	1	+	1	)	dh3	,
	Mx2		dθ		Mx2		C		dθ

(26)

dp	+ p cot θ =	h3	,	d·p sin θ	=	h3 sin θ	;
dθ		A		dθ		A

(27)

d2h3	+	dh3	cot θ =	CMx2	h3,
dθ2		dθ		A (Mx2 + C)

(28)

a differential equation of a hypergeometric series, of the form of Legendre’s zonal harmonic of fractional order n, given by

n (n + 1) = CMx2 / A (Mx2 + C).

(29)

For a sharp point, x = 0, ρ = 0, and the previous equations are obtained of a spinning top.

The elimination of X and Z between (18) (20) (22), expressed symbolically as

(22) − z(18) + x(20) = 0,

(30)

gives

(	A	+ x2 + z2 )	dq	− p	h3	+ (	A	+ z2 ) p2 cot θ + p2xz
	M		dt		M		M

+ q2ρ (x cos θ − z sin θ) − prx (x + z cot θ) − g (x cos θ − z sin θ) = 0,

(C)

and this combined with (A) and (B) will lead to an equation the integral of which is the equation of energy.

13. The equations (A) (B) (C) are intractable in this general form; but the restricted case may be considered when the axis moves in steady motion at a constant inclination α to the vertical; and the stability is secured if a small nutation of the axis can be superposed.

It is convenient to put p = Ω sin θ, so that Ω is the angular velocity of the plane Gzx about the vertical; (A) (B) (C) become

777

(	C	+ x2 )	dr	− xz sin θ	dΩ
	M		dθ		dθ

− Ωx (x sin θ − 2z cos θ − ρ sin2 θ) + rxρ cos θ = 0,

(A*)

−xz	dr	+ (	A	+ z2 ) sin θ	dΩ	−	h3	+ 2Ω (	A	+ z2 ) cos θ
	dθ		M		dθ		M		M

+ Ωz sin θ (x − ρ sin θ) − rzρ cos θ = 0,

(B*)

(	A	+ x2 + z2 )	dq	+ q2p (x cos θ − z sin θ) − Ω	h3	sin θ
	M		dt		M

+ Ω2 (	A	+ z2 ) sin θ cos θ + Ω2xz sin2 θ
	M

− Ωrx (x sin θ + z cos θ) − g (x cos θ − z sin θ) = 0.

(C*)

The steady motion and nutation superposed may be expressed by

θ = α + L, sin θ = sin α + L cos α, cos θ = cos α − L sin α, Ω = μ + N, r = R + Q,

(1)

where L, N, Q are small terms, involving a factor enti, to express the periodic nature of the nutation; and then if a, c denote the mean value of x, z, at the point of contact

x = a + Lρ cos α, z = c − Lρ sin α,

(2)

x sin θ + z cos θ = a sin α + c cos α + L (a cos α − c sin α),

(3)

x cos θ − z sin θ = a cos α − c sin α − L (a sin α + c cos α − ρ).

(4)

Substituting these values in (C*) with dq/dt = −d2θ/dt2 = n2L, and ignoring products of the small terms, such as L2, LN, ...

(	A	+ a2 + c2 ) Ln2 − (μ + N) (	CR + K	+	CQ	) (sin α + L cos α)
	M		M		M

+ (μ2 + 2μN) (A/M + c2 − 2Lρc sin α) (sin α cos α + L cos α) + (μ2 + 2μN) [ac − Lρ (a sin α − c sin α)] (sin2 α + L sin 2α) − (μ + N) (R + Q) (a + Lρcos α) [a sin α + c cos α + L (a cos α − c sin α)] − g (a cos α − c sin α) + gL (a sin α + c cos α − ρ) = 0,

(C**)

which is equivalent to

−μ	CR + K	sin α + μ2 (	A	+ c2 ) sin αcos α
	M		M

+ μ2 ac sin2 α − μRa (a sin α + c cos α) − g (a cos α − c sin α) = 0,

(5)

the condition of steady motion; and

DL + EQ + FN = 0,

(6)

where

D = (	A	+ a2 + c2 ) n2 − μ	CK + K	cos α − 2μ2ρc sin2 α cos α
	M		M

+ μ2 (A/M + c2) cos α − μ2ρ (a sin α − c cos α) sin2 α + μ2ac sin 2α − μRρ cos α (a sin α + c cos α) − μRa (a cos α − c sin α) + g (a sin α + c cos α − ρ),

(7)

E = −μ	C	sin α − μa (a sin α + c cos α),
	M

(8)

F = −	CR + K	sin α + 2μ (	A	+ c2 ) sin α cos α
	M		M

+ 2μac sin2 α − Ra (a sin α + c cos α).

(9)

With the same approximation (A*) and (B*) are equivalent to

(	C	+ a2 )	Q	− ac sin α	N	− μa (a sin α + 2c cos α − ρ sin2 α) + Raρ cos α = 0,
	M		L		L

(A**)

−ac	Q	+ (	A	+ c2 ) sin α	N	−	CR + K	+ 2μ (	A	+ c2 ) cos α
	L		M		L		M		M

+ μc sin α (a − ρ sin α) − Rcρ cos α = 0.

(B**)

The elimination of L, Q, N will lead to an equation for the determination of n2, and n2 must be positive for the motion to be stable.

If b is the radius of the horizontal circle described by G in steady motion round the centre B,

b = v/μ = (cP − aR) / μ = c sin α − aR / μ,

(10)

and drawing GL vertically upward of length λ = g/μ2, the height of the equivalent conical pendulum, the steady motion condition may be written

(CR + K) μ sin α − μ2 sin α cos α = −gM (a cos α − c sin α)

+ M (μ2c sin α − μRa) (a sin α + c cos α)

= gM [bλ−1 (a sin α + c cos α) − a cos α + c sin α] = gM·PT,

(11)

LG produced cuts the plane in T.

Interpreted dynamically, the left-hand side of this equation represents the velocity of the vector of angular momentum about G, so that the right-hand side represents the moment of the applied force about G, in this case the reaction of the plane, which is parallel to GA, and equal to gM·GA/GL; and so the angle AGL must be less than the angle of friction, or slipping will take place.

Spinning upright, with α = 0, a = 0, we find F = 0, Q = 0, and

−	CR + K	+ 2μ (	A	+ c2 ) − Rcp = 0,
	M		M

(12)

(	A	+ c2 ) n2 = μ	CR + K	− μ2 (	A	+ c2 ) + μRρc − g (c − ρ),
	M		M		M

(13)

(	A	+ c2 )	2	n2 = ¼ (	CK + R	+ Rcρ )	2	− g (	A	+ c2 ) (c − ρ).
	M				M				M

(14)

Thus for a top spinning upright on a rounded point, with K = 0, the stability requires that

R > 2k′√ {g (c − ρ)} / (k2 + cρ),

(15)

where k, k′ are the radii of gyration about the axis Gz, and a perpendicular axis at a distance c from G; this reduces to the preceding case of § 3 (7) when ρ = 0.

Generally, with α = 0, but a ± 0, the condition (A) and (B) becomes

(	C	+ a2 )	Q	= 2μac − Raρ,
	M		L

−ac	Q	=	CR + K	+ Rcρ − 2μ (	A	+ a2 ),
	L		M		M

(16)

so that, eliminating Q/L,

2 [(	A	+ c2 )(	C	+ a2 ) − a2c2 ] μ = (	C	+ a2 )(	CR + K	) +	C	Rcρ,
	M		M		M		M		M

(17)

the condition when a coin or platter is rolling nearly flat on the table.

Rolling along in a straight path, with α = ½π, c = 0, μ = 0, E = 0; and

N/L = (CR + K)/A,

(18)

D = (	A	+ a2 ) n2 + g (a − ρ),
	M

F = −	CR + K	− Ra2,
	M

(19)

N	= −	D	=	( A + a2 ) n2 + g (a − ρ) M	,
L		F		( C + a2 ) R + K M M

(20)

(	A	+ a2 ) n2 =	(CR + K)	[(	C	+ a2 ) R +	K	] − g (a − ρ).
	M		A		M		M

(21)

Thus with K = 0, and rolling with velocity V = Ra, stability requires

V2	>	a − ρ	> ½	A		a − ρ	,
2g		2C/A (C/Ma2 + 1)		C		C/Ma2 + 1

(22)

or the body must have acquired velocity greater than attained by rolling down a plane through a vertical height ½ (a − ρ) A/C.

On a sharp edge, with ρ = 0, a thin uniform disk or a thin ring requires

V2/2g > a/6 or a/8.

(23)

The gyrostat can hold itself upright on the plane without advance when R = 0, provided

K2/AM − g (a − ρ) is positive.

(24)

For the stability of the monorail carriage of § 5 (6), ignoring the rotary inertia of the wheels by putting C = 0, and replacing K by G′ the theory above would require

G′	( aV +	G′	) > gh.
A		A

For further theory and experiments consult Routh, Advanced Rigid Dynamics, chap. v., and Thomson and Tait, Natural Philosophy, § 345; also Bourlet, Traité des bicycles (analysed in Appell, Mécanique rationnelle, ii. 297, and Carvallo, Journal de l’école polytechnique, 1900); Whipple, Quarterly Journal of Mathematics, vol. xxx., for mathematical theories of the bicycle, and other bodies.

14. Lord Kelvin has studied theoretically and experimentally the vibration of a chain of stretched gyrostats (Proc. London Math. Soc., 1875; J. Perry, Spinning Tops, Gyrostatic chain. for a diagram). Suppose each gyrostat to be equivalent dynamically to a fly-wheel of axial length 2a, and that each connecting link is a light cord or steel wire of length 2l, stretched to a tension T.

Denote by x, y the components of the slight displacement from the central straight line of the centre of a fly-wheel; and let p, q, 1 denote the direction cosines of the axis of a fly-wheel, and r, s, 1 the direction cosines of a link, distinguishing the different bodies by a suffix.

Then with the previous notation and to the order of approximation required,

θ1 = −dq/dt, θ2 = dp/dt,

(1)

h1 = Aθ1, h2 = Aθ2, h3 = K,

(2)

to be employed in the dynamical equations

dh1	− θ3h2 + θ2h3 = L, ...
dt

(3)

in which θ3h1 and θ3h2 can be omitted.

For the kth fly-wheel

−Aqk + Kpk = Ta (qk − sk) + Ta (qk − sk+1),

(4)

Apk + Kqk = −Ta (pk − rk) − Ta (pk − rk+1);

(5)

and for the motion of translation

Mxk = T (rk+1 − rk), Myk = T (sk+1 − sk);

(6)

while the geometrical relations are

xk+1 − xk = a (pk+1 + pk) + 2lrk+1,

(7)

yk+1 − yk = a (qk+1 + qk) + 2lsk+1.

(8)

Putting

x + yi = w, p + qi = ω, r + si = σ,

(9)

778

these three pairs of equations may be replaced by the three equations

Aῶk − Kῶki + 2Taῶk − Ta (σk+1 + σk) = 0,

(10)

Mῶk − T (σk+1 − σk) = 0,

(11)

ωk+1 − ωk − a(ῶk+1 + ῶk − 2lσk+1) = 0.

(12)

For a vibration of circular polarization assume a solution

ωk, ῶk, σk = (L, P, Q) exp (nt + kc) i,

(13)

so that c/n is the time-lag between the vibration of one fly-wheel and the next; and the wave velocity is

U = 2 (a + l) n/c.

(14)

Then

P (−An2 + Kn + 2Ta) − QTa (eci + 1) = 0,

(15)

−LMn2 − QT (eci − 1) = 0,

(16)

L (eci − 1) − Pa (eci + 1) − 2Qleci = 0,

(17)

leading, on elimination of L, P, Q, to

cos c =	(2 Ta + Kn − An2) (1 − Mn2l/T) − Mna2	,
	2Ta + Kn − An2 + Mna2

(18)

2 sin2 ½c =	Mn2 2Ta (a + l) + KNl − An2l	.
	T 2Ta + Kn − An2 + Mn2a2

(19)

With K = 0, A = 0, this reduces to Lagrange’s condition in the vibration of a string of beads.

Putting

ρ = M/2 (a + l),   the mass per unit length of the chain,

(20)

κ = K/2 (a + l),   the gyrostatic angular momentum per unit length,

(21)

α = A/2 (a + l),   the transverse moment of inertia per unit length,

(22)

1/2c = (a + l) n/U,

(23)

equation (19) can be written

{sin (a + l) n/U}2

= (a + l)2n2	ρ	·	Ta + κnl − αn2l	,
	T		Ta + κn (a + l) − αn2 (a + l) + ρn2a2 (a + l)

(24)

{	(a + l) n	}	2
	sin (a + l) n/U

=	T	·	T + (κn − αn2) (1 + l/a) + ρn2a (a + l)	.
	ρ		T + (κn − an2) l/a

(25)

In a continuous chain of such gyrostatic links, with a and l infinitesimal,

U2 =	T	{ 1 +	κn − αn2	}
	ρ		T + (κn − αn2 l/a)

(26)

for the vibration of helical nature like circular polarization.

Changing the sign of n for circular polarization in the opposite direction

U′2 =	T	{ 1 −	κn + αn2	}
	ρ		T − (κn + αn2 l/a)

(27)

In this way a mechanical model is obtained of the action of a magnetized medium on polarized light, κ representing the equivalent of the magnetic field, while α may be ignored as insensible (J. Larmor, Proc. Lond. Math. Soc., 1890; Aether and Matter, Appendix E).

We notice that U2 in (26) can be positive, and the gyrostatic chain stable, even when T is negative, and the chain is supporting a thrust, provided κn is large enough, and the thrust does not exceed

(κn − an2) (1 + l/a);

(28)

while U′2 in (27) will not be positive and the straight chain will be unstable unless the tension exceeds

(κn + αn2) (1 + l/a).

(29)

15. Gyrostat suspended by a Thread.—In the discussion of the small vibration of a single gyrostat fly-wheel about the vertical position when suspended by a single thread of length 2l = b, the suffix k can be omitted in the preceding equations of § 14, and we can write

Aῶ − Kῶi + Taῶ − Taσ = 0,

(1)

Mw + Tσ = 0, with T = gM,

(2)

w − aῶ − bσ = 0.

(3)

Assuming a periodic solution of these equations

w, ῶ, σ, = (L, P, Q) exp nti,

(4)

and eliminating L, P, Q, we obtain

(−An2 + Kn + gMa) (g − n2b) − gMn2a2 = 0,

(5)

and the frequency of a vibration in double beats per second is n/2π, where n is a root of this quartic equation.

For upright spinning on a smooth horizontal plane, take b = ∞ and change the sign of a, then

An2 − Kn + gMa = 0,

(6)

so that the stability requires

K2 > 4gAMa.

(7)

Here A denotes the moment of inertia about a diametral axis through the centre of gravity; when the point of the fly-wheel is held in a small smooth cup, b = 0, and the condition becomes

(A + Ma2) n2 − Kn + gMa = 0,

(8)

requiring for stability, as before in § 3,

K2 > 4g (A + M2) Ma.

(9)

For upright spinning inside a spherical surface of radius b, the sign of a must be changed to obtain the condition at the lowest point, as in the gyroscopic horizon of Fleuriais.

For a gyrostat spinning upright on the summit of a sphere of radius b, the signs of a and b must be changed in (5), or else the sign of g, which amounts to the same thing.

Denoting the components of horizontal displacement of the point of the fly-wheel by ξ, η, then

br = ξ, bs = η, bσ = ξ + ηi = λ (suppose),

(10)

ω = αῶ + λ.

(11)

If the point is forced to take the motion (ξ, η, ζ) by components of force X, Y, Z, the equations of motion become

−Aq + Kp =    Ya − Zaq,

(12)

Ap + Kq =    −Xa + Zap,

(13)

Mῶ = X + Yi, M (ζ − g) = Z;

(14)

so that

Aῶ − Kῶi + gMaῶ + Maw = Maῶζ,

(15)

or

(A + Ma2)ῶ − Kῶi + gMaῶ + Maλ = Maῶζ.

(16)

Thus if the point of the gyrostat is made to take the periodic motion given by λ = R exp nti, ζ = 0, the forced vibration of the axis is given by ῶ = P exp nti, where

P { −(A + Ma2) n2 + Kn + gMa} − RMn2a = 0;

(17)

and so the effect may be investigated on the Fleuriais gyroscopic horizon of the motion of the ship.

Suppose the motion λ is due to the suspension of the gyrostat from a point on the axis of a second gyrostat suspended from a fixed point.

Distinguishing the second gyrostat by a suffix, then λ = bῶ1, if b denotes the distance between the points of suspension of the two gyrostats; and the motion of the second gyrostat influenced by the reaction of the first, is given by

(A1 + M1h12)ῶ1 − K1ῶ1i

= −g (M1h1 + Mb) ῶ1 − b (X + Yi) = −g (M1h1 + Mb) ῶ1 − Mb(aῶ + λ);

(18)

so that, in the small vibration,

R	{ −(A1 + M1h12) n2 + K1n + g (M1h1 + Mb) } = Mn2b (aP + R),
b

(19)

R { −(A1 + M1h12 + Mb2) n2 + K1n + g (M1h1 + Mb)} − PMn2ab2 = 0.

(20)

Eliminating the ratio of P to R, we obtain

{ −(A + Ma2) n2 + Kn + gMa} × { −(A1 + M1h12 + Mb2) n2 + K1n + g (M1h1 + Mb)} − M2n4a2b2 = 0,

(21)

a quartic for n, giving the frequency n/2π of a fundamental vibration.

Change the sign of g for the case of the gyrostats spinning upright, one on the top of the other, and so realize the gyrostat on the top of a gyrostat described by Maxwell.

In the gyrostatic chain of § 14, the tension T may change to a limited pressure, and U2 may still be positive, and the motion stable; and so a motion is realized of a number of spinning tops, superposed in a column.

16. The Flexure Joint.—In Lord Kelvin’s experiment the gyrostats are joined up by equal light rods and short lengths of elastic wire with rigid attachment to the rod and case of a gyrostat, so as to keep the system still, and free from entanglement and twisting due to pivot friction of the fly-wheels.

When this gyrostatic chain is made to revolve with angular velocity n in relative equilibrium as a plane polygon passing through Oz the axis of rotation, each gyrostatic case moves as if its axis produced was attached to Oz by a flexure joint. The instantaneous axis of resultant angular velocity bisects the angle π − θ, if the axis of the case makes an angle θ with Oz, and, the components of angular velocity being n about Oz, and −n about the axis, the resultant angular velocity is 2n cos½ (π − θ) =2n sin½θ; and the components of this angular velocity are

(1) −2n sin ½θ sin ½θ = −n (1 − cos θ), along the axis, and

(2) −2n sin ½θ cos ½θ = −n sin θ, perpendicular to the axis of the case. The flexure joint behaves like a pair of equal bevel wheels engaging.

The component angular momentum in the direction Ox is therefore

L = −An sin θ cos θ − Cn (1 − cos θ) sin θ + K sin θ,

(3)

and Ln is therefore the couple acting on the gyrostat.

If α denotes the angle which a connecting link makes with Oz, and T denotes the constant component of the tension of a link parallel to Oz, the couple acting is

Ta cos θk (tan αk+1 + tan αk) − 2Tα sin θk,

(4)

which is to be equated to Ln, so that

−An2 sin θk cos θk − Cn (1 − cos θk) sin θk + Kn sin θk
−Ta cos θk (tan αk+1 + tan αk) + 2Tα sin θk = 0.

(5)

In addition

Mn2xk + T (tan αk+1 − tan αk) = 0,

(6)

with the geometrical relation

xk+1 − xk − a (sin θk+1 + sin θk) − 2l sin αk+1 = 0.

(7)

When the polygon is nearly coincident with Oz, these equations can be replaced by

779

(−An2 + Kn + 2Ta) θk − Ta (αk+1 + αk) = 0,

(8)

Mn2xk + T (αk+1 − αk) = 0,

(9)

xk+1 − xk − a (θk+1 + θk) − 2lak = 0,

(10)

and the rest of the solution proceeds as before in § 14, putting

xk, θk, αk = (L, P, Q) exp cki.

(11)

A half wave length of the curve of gyrostats is covered when ck = π, so that π/c is the number of gyrostats in a half wave, which is therefore of wave length 2π (a + l)/c.

A plane polarized wave is given when exp cki is replaced by exp (nt + ck) i, and a wave circularly polarized when w, ῶ, σ of § 14 replace this x, θ, α.

Gyroscopic Pendulum.—The elastic flexure joint is useful for supporting a rod, carrying a fly-wheel, like a gyroscopic pendulum.

Expressed by Euler’s angles, θ, φ, ψ, the kinetic energy is

T = ½A (θ2 + sin2 θψ2) + ½C′ (1 − cos θ)2ψ2 + ½C (φ + ψ cos θ)2,

(12)

where A refers to rod and gyroscope about the transverse axis at the point of support, C′ refers to rod about its axis of length, and C refers to the revolving fly-wheel.

The elimination of ψ between the equation of conservation of angular momentum about the vertical, viz.

(13) A sin2 θψ − C′ (1 − cos θ) cos θψ + C(φ + ψ cos θ) cos θ = G, a constant, and the equation of energy, viz.

(14) T − gMh cos θ = H, a constant, with θ measured from the downward vertical, and

(15) φ + ψ cos θ = R, a constant, will lead to an equation for dθ/dt, or dz/dt, in terms of cos θ or z, the integral of which is of hyperelliptic character, except when A = C′.

In the suspension of fig. 8, the motion given by φ is suppressed in the stalk, and for the fly-wheel φ gives the rubbing angular velocity of the wheel on the stalk; the equations are now

T = ½A (θ2 + sin2 θψ2) + ½C′ cos2 θψ2 + ½CR2 = H + gMh cos θ,

(16)

A sin2 θψ + C′ cos2 θψ + CR cos θ = G,

(17)

and the motion is again of hyperelliptic character, except when A = C′, or C′ = 0. To realize a motion given completely by the elliptic function, the suspension of the stalk must be made by a smooth ball and socket, or else a Hooke universal joint.

Finally, there is the case of the general motion of a top with a spherical rounded point on a smooth plane, in which the centre of gravity may be supposed to rise and fall in a vertical line. Here

T = ½ (A + Mh2 sin2 θ) θ2 + ½A sin2 θψ2 + ½CR2 = H − gMh cos θ,

(18)

with θ measured from the upward vertical, and

A sin2 θψ + CR cos θ = G,

(19)

where A now refers to a transverse axis through the centre of gravity. The elimination of ψ leads to an equation for z, = cos θ, of the form

(

dz

)

2

= 2

g

Z

= 2

g

(z1 − z) (z2 − z) (z3 − z)

,

dt

h

1 − z2 + A/Mh2

h

(z4 − z) (z − z5)

(20)

with the arrangement

z1, z4 > / > z2 > z > z3 > − / > z5;

(21)

so that the motion is hyperelliptic.

Authorities.—In addition to the references in the text the following will be found useful:—Ast. Notices, vol. i.; Comptes rendus, Sept. 1852; Paper by Professor Magnus translated in Taylor’s Foreign Scientific Memoirs, n.s., pt. 3, p. 210; Ast. Notices, xiii. 221-248; Theory of Foucault’s Gyroscope Experiments, by the Rev. Baden Powell, F.R.S.; Ast. Notices, vol. xv.; articles by Major J. G. Barnard in Silliman’s Journal, 2nd ser., vols. xxiv. and xxv.; E. Hunt on “Rotatory Motion,” Proc. Phil. Soc. Glasgow, vol. iv.; J. Clerk Maxwell, “On a Dynamical Top,” Trans. R.S.E. vol. xxi.; Phil. Mag. 4th ser. vols. 7, 13, 14; Proc. Royal Irish Academy, vol. viii.; Sir William Thomson on “Gyrostat,” Nature, xv. 297; G. T. Walker, “The Motion of a Celt,” Quar. Jour. Math., 1896; G. T. Walker, Math. Ency. iv. 1, xi. 1; Gallop, Proc. Camb. Phil. Soc. xii. 82, pt. 2, 1903, “Rise of a Top”; Price’s Infinitesimal Calculus, vol. iv.; Worms, The Earth and its Mechanism; Routh, Rigid Dynamics; A. G. Webster, Dynamics (1904); H. Crabtree, Spinning Tops and Gyroscopic Motion (1909). For a complete list of the mathematical works on the subject of the Gyroscope and Gyrostat from the outset, Professor Cayley’s Report to the British Association (1862) on the Progress of Dynamics should be consulted. Modern authors will be found cited in Klein and Sommerfeld, Theorie des Kreisels (1897), and in the Encyclopädie der mathematischen Wissenschaften.

GYTHIUM, the harbour and arsenal of Sparta, from which it was some 30 m. distant. The town lay at the N.W. extremity of the Laconian Gulf, in a small but fertile plain at the mouth of the Gythius. Its reputed founders were Heracles and Apollo, who frequently appear on its coins: the former of these names may point to the influence of Phoenician traders, who, we know, visited the Laconian shores at a very early period. In classical times it was a community of perioeci, politically dependent on Sparta, though doubtless with a municipal life of its own. In 455 B.C., during the first Peloponnesian War, it was burned by the Athenian admiral Tolmides. In 370 B.C. Epaminondas besieged it unsuccessfully for three days. Its fortifications were strengthened by the tyrant Nabis, but in 195 B.C. it was invested and taken by Titus and Lucius Quintius Flamininus, and, though recovered by Nabis two or three years later, was recaptured immediately after his murder (192 B.C.) by Philopoemen and Aulus Atilius and remained in the Achaean League until its dissolution in 146 B.C. Subsequently it formed the most important of the Eleutherolaconian towns, a group of twenty-four, later eighteen, communities leagued together to maintain their autonomy against Sparta and declared free by Augustus. The highest officer of the confederacy was the general (στρατηγός), who was assisted by a treasurer (ταμίας), while the chief magistrates of the several communities bore the title of ephors (ἔφοροι).

Pausanias (iii. 21 f.) has left us a description of the town as it existed in the reign of Marcus Aurelius, the agora, the Acropolis, the island of Cranae (Marathonisi) where Paris celebrated his nuptials with Helen, the Migonium or precinct of Aphrodite Migonitis (occupied by the modern town of Marathonisi or Gythium), and the hill Larysium (Koumaro) rising above it. The numerous remains extant, of which the theatre and the buildings partially submerged by the sea are the most noteworthy, all belong to the Roman period.

The modern town is a busy and flourishing port with a good harbour protected by Cranae, now connected by a mole with the mainland: it is the capital of the prefecture (νομός) of Λακωνική with a population in 1907 of 61,522.

GYULA-FEHÉRVÁR (Ger. Karlsburg), a town of Hungary, in Transylvania, in the county of Alsó-Feliér, 73 m. S. of Kolozsvár by rail. Pop. (1900) 11,507. It is situated on the right bank of the Maros, on the outskirts of the Transylvanian Erzgebirge or Ore Mountains, and consists of the upper town, or citadel, and the lower town. Gyula-Fehérvár is the seat of a Roman Catholic bishop, and has a fine Roman Catholic cathedral, built in the 11th century in Romanesque style, and rebuilt in 1443 by John Hunyady in Gothic style. It contains among other tombs that of John Hunyady. Near the cathedral is the episcopal palace, and in the same part of the town is the Batthyaneum, founded by Bishop Count Batthyány in 1794. It contains a valuable library with many incunabula and old manuscripts, amongst which is one of the Nibelungenlied, an astronomical observatory, a collection of antiquities, and a mineral collection. Gyula-Fehérvár carries on an active trade in cereals, wine and cattle.

Gyula-Fehérvár occupies the site of the Roman colony Apulum. Many Roman relics found here, and in the vicinity, are preserved in the museum of the town. The bishopric was founded in the 11th century by King Ladislaus I. (1078-1095). In the 16th century, when Transylvania separated from Hungary, the town became the residence of the Transylvanian princes. From this period dates the castle, and also the buildings of the university, founded by Gabriel Bethlen, and now used as barracks. After the reversion of Transylvania in 1713 to the Habsburg monarchy the actual strong fortress was built in 1716-1735 by the emperor Charles VI., whence the German name of the town.

780

H The eighth symbol in the Phoenician alphabet, as in its descendants, has altered less in the course of ages than most alphabetic symbols. From the beginning of Phoenician records it has consisted of two uprights connected by transverse bars, at first either two or three in number. The uprights are rarely perpendicular and the cross bars are not so precisely arranged as they are in early Greek and Latin inscriptions. In these the symbol takes the form of two rectangles out of which the ordinary develops by the omission of the cross bars at top and bottom. It is very exceptional for this letter to have more than three cross bars, though as many as five are occasionally found in N.W. Greece. Within the same inscription the appearance of the letter often varies considerably as regards the space between and the length of the uprights. When only one bar is found it regularly crosses the uprights about the middle. In a few cases the rectangle is closed at top and bottom but has no middle cross bar . The Phoenician name for the letter was Heth (Hēt). According to Semitic scholars it had two values, (1) a glottal spirant, a very strong h, (2) an unvoiced velar spirant like the German ch in ach. The Greeks borrowed it with the value of the ordinary aspirate and with the name ἧτα. Very early in their history, however, most of the Greeks of Asia Minor lost the aspirate altogether, and having then no further use for the symbol with this value they adopted it to represent the long e-sound, which was not originally distinguished by a different symbol from the short sound (see ). With this value its name has always been ἧτα in Greek. The alphabet of the Asiatic Greeks was gradually adopted elsewhere. In official documents at Athens H represented the rough breathing or aspirate ‘ till 403 B.C.; henceforth it was used for η. The Western Greeks, however, from whom the Romans obtained their alphabet, retained their aspirate longer than those of Asia Minor, and hence the symbol came to the Romans with the value not of a long vowel but of the aspirate, which it still preserves. The Greek aspirate was itself the first or left-hand half of this letter , while the smooth breathing ’ was the right-hand portion . At Tarentum is found for in inscriptions. The Roman aspirate was, however, a very slight sound which in some words where it was etymologically correct disappeared at an early date. Thus the cognate words of kindred languages show that the Lat. anser “goose” ought to begin with h, but nowhere is it so found. In none of the Romance languages is there any trace of initial or medial h, which shows that vulgar Latin had ceased to have the aspirate by 240 B.C. The Roman grammarians were guided to its presence by the Sabine forms where f occurred; as the Sabines said fasena (sand), it was recognised that the Roman form ought to be harena, and so for haedus (goat), hordeum (barley), &c. Between vowels h was lost very early, for ne-hemo (no man) is throughout the literature nēmo, bi-himus (two winters old) bīmus. In the Ciceronian age greater attention was paid to reproducing the Greek aspirates in borrowed words, and this led to absurd mistakes in Latin words, mistakes which were satirized by Catullus in his epigram (84) upon Arrius, who said chommoda for commoda and hinsidias for insidias. In Umbrian h was often lost, and also used without etymological value to mark length, as in comohota (= Lat. commota), a practice to which there are some doubtful parallels in Latin.

In English the history of h is very similar to that in Latin. While the parts above the glottis are in position to produce a vowel, an aspirate is produced without vibration of the vocal chords, sometimes, like the pronunciation of Arrius, with considerable effort as a reaction against the tendency to “drop the h’s.” Though h survives in Scotland, Ireland and America as well as in the speech of cultivated persons, the sound in most of the vulgar dialects is entirely lost. Where it is not ordinarily lost, it disappears in unaccented syllables, as “Give it ’im” and the like. Where it is lost, conscious attempts to restore it on the part of uneducated speakers lead to absurd misplacements of h and to its restoration in Romance words when it never was pronounced, as humble (now recognized as standard English), humour and even honour.

HAAG, CARL (1820-  ), a naturalized British painter, court painter to the duke of Saxe-Coburg and Gotha, was born in Bavaria, and was trained in the academies at Nuremburg and Munich. He practised first as an illustrator and as a painter, in oil, of portraits and architectural subjects; but after he settled in England, in 1847, he devoted himself to water colours, and was elected associate of the Royal Society of Painters in Water Colours in 1850 and member in 1853. He travelled much, especially in the East, and made a considerable reputation by his firmly drawn and carefully elaborated paintings of Eastern subjects. Towards the end of his professional career Carl Haag quitted England and returned to Germany.

HAAKON (Old Norse Hákon), the name of several kings of Norway, of whom the most important are the following:—

Haakon I., surnamed “the Good” (d. 961), was the youngest son of Harald Haarfager. He was fostered by King Aethelstan of England, who brought him up in the Christian religion, and on the news of his father’s death in 933 provided him with ships and men for an expedition against his half-brother Erik, who had been proclaimed king. On his arrival in Norway Haakon gained the support of the landowners by promising to give up the rights of taxation claimed by his father over inherited real property. Erik fled, and was killed a few years later in England. His sons allied themselves with the Danes, but were invariably defeated by Haakon, who was successful in everything he undertook except in his attempt to introduce Christianity, which aroused an opposition he did not feel strong enough to face. He was killed at the battle of Fitje in 961, after a final victory over Erik’s sons. So entirely did even his immediate circle ignore his religion that a court skald composed a poem on his death representing his welcome by the heathen gods into Valhalla.

Haakon IV., surnamed “the Old” (1204-1263), was declared to be the son of Haakon III., who died shortly before the former’s birth in 1204. A year later the child was placed under the protection of King Inge, after whose death in 1217 he was chosen king; though until 1223 the church refused to recognize him, on the ground of illegitimacy, and the Pope’s dispensation for his coronation was not gained until much later. In the earlier part of his reign much of the royal power was in the hands of Earl Skule, who intrigued against the king until 1239, when he proceeded to open hostility and was put to death. From this time onward Haakon’s reign was marked by more peace and prosperity than Norway had known for many years, until in 1263 a dispute with the Scottish king concerning the Hebrides, a Norwegian possession, induced Haakon to undertake an expedition to the west of Scotland. A division of his army seems to have repulsed a large Scottish force at Largs (though the later Scottish accounts claim this battle as a victory), and, having won back the Norwegian possessions in Scotland, Haakon was wintering in the Orkneys, when he was taken ill and died on the 15th of December 1263. A great part of his fleet had been scattered and destroyed by storms. The most important event in his reign was the voluntary submission of the Icelandic commonwealth. Worn out by internal strife fostered by Haakon’s emissaries, the Icelandic chiefs acknowledged the Norwegian king as overlord in 1262. Their example was followed by the colony of Greenland.

Haakon VII. (1872-  ), the second son of Frederick VIII., king of Denmark, was born on the 3rd of August 1872, and was usually known as Prince Charles of Denmark. When in 1905 Norway decided to separate herself from Sweden the Norwegians 781 offered their crown to Charles, who accepted it and took the name of Haakon VII., being crowned at Trondhjem in June 1906. The king married Maud, youngest daughter of Edward VII., king of Great Britain, their son, Prince Olav, being born in 1903.

HAARLEM, a town of Holland in the province of North Holland, on the Spaarne, having a junction station 11 m. by rail W. of Amsterdam. It is connected by electric and steam tramways with Zandvoort, Leiden, Amsterdam and Alkmaar. Pop. (1900) 65,189. Haarlem is the seat of the governor of the province of North Holland, and of a Roman Catholic and a Jansenist bishopric. In appearance it is a typical Dutch town, with numerous narrow canals and quaintly gabled houses. Of the ancient city gates the Spaarnewouder or Amsterdam gate alone remains. Gardens and promenades have taken the place of the old ramparts, and on the south the city is bounded by the Frederiks and the Flora parks, between which runs the fine avenue called the Dreef, leading to the Haarlemmer Hout or wood. In the Frederiks Park is a pump-room supplied with a powerful chalybeate water from a spring, the Wilhelminabron, in the Haarlemmer Polder not far distant, and in connexion with this there is an orthopaedic institution adjoining. In the great market place in the centre of the city are gathered together the larger number of the most interesting buildings, including the quaint old Fleshers’ Hall, built by Lieven de Key in 1603, and now containing the archives; the town hall; the old Stadsdoelen, where the burgesses met in arms; the Groote Kerk, or Great Church; and the statue erected in 1856 to Laurenz Janszoon Koster, the printer. The Great Church, dedicated to St Bavo, with a lofty tower (255 ft.), is one of the most famous in Holland, and dates from the end of the 15th and the beginning of the 16th centuries. Its great length (460 ft.) and the height and steepness of its vaulted cedar-wood roof (1538) are very impressive. The choir-stalls and screen (1510) are finely carved, and of further interest are the ancient pulpit sounding-board (1432), some old stained glass, and the small models of ships, copies dating from 1638 of yet earlier models originally presented by the Dutch-Swedish Trading Company. The church organ was long considered the largest and finest in existence. It was constructed by Christian Müller in 1738, and has 4 keyboards, 64 registers and 5000 pipes, the largest of which is 15 in. in diameter and 32 ft. long. Among the monuments in the church are those of the poet Willem Bilderdyk (d. 1831) and the engineer Frederik Willem Conrad (d. 1808), who designed the sea-sluices at Katwyk. In the belfry are the damiaatjes, small bells presented to the town, according to tradition, by William I., count of Holland (d. 1222), the crusader. The town hall was originally a palace of the counts of Holland, begun in the 12th century, and some old 13th-century beams still remain; but the building was remodelled in the beginning of the 17th century. It contains a collection of antiquities (including some beautiful goblets) and a picture gallery which, though small, is celebrated for its fine collection of paintings by Frans Hals. The town library contains several incunabula and an interesting collection of early Dutch literature. At the head of the scientific institutions of Haarlem may be placed the Dutch Society of Sciences (Hollandsche Maatschappij van Wetenschappen), founded in 1752, which possesses valuable collections in botany, natural history and geology. Teyler’s Stichting (i.e. foundation), enlarged in modern times, was instituted by the will of Pieter Teyler van der Hulst (d. 1778), a wealthy merchant, for the study of theology, natural science and art, and has lecture-theatres, a large library, and a museum containing a physical and a geological cabinet, as well as a collection of paintings, including many modern pictures, and a valuable collection of drawings and engravings by old masters. The Dutch Society for the Promotion of Industry (Nederlaandsche Maatschappij ter Bevordering van Nijverheid), founded in 1777, has its seat in the Pavilion Welgelegen, a villa on the south side of the Frederiks Park, built by the Amsterdam banker John Hope in 1778, and afterwards acquired by Louis Bonaparte, king of Holland. The colonial museum and the museum of industrial art were established in this villa by the society in 1871 and 1877 respectively. Besides these there are a museum of ecclesiastical antiquities, chiefly relating to the bishopric of Haarlem; the old weigh-house (1598) and the orphanage for girls (1608), originally an almshouse for old men, both built by the architect Lieven de Key of Ghent.

The staple industries of Haarlem have been greatly modified in the course of time. Cloth weaving and brewing, which once flourished exceedingly, declined in the beginning of the 16th century. A century later, silk, lace and damask weaving were introduced by French refugees, and became very important industries. But about the close of the 18th century this remarkable prosperity had also come to an end, and it was not till after the Belgian revolution of 1830-1831 that Haarlem began to develop the manufactures in which it is now chiefly engaged. Cotton manufacture, dyeing, printing, bleaching, brewing, type-founding, and the manufacture of tram and railway carriages are among the more important of its industries. One of the printing establishments has the reputation of being the oldest in the Netherlands, and publishes the oldest Dutch paper, De Opragte Haarlemmer Courant. Market-gardening, especially horticulture, is extensively practised in the vicinity, so that Haarlem is the seat of a large trade in Dutch bulbs, especially hyacinths, tulips, fritillaries, spiraeas and japonicas.

Haarlem, which was a prosperous place in the middle of the 12th century, received its first town charter from William II., count of Holland and king of the Romans, in 1245. It played a considerable part in the wars of Holland with the Frisians. In 1492 it was captured by the insurgent peasants of North Holland, was re-taken by the duke of Saxony, the imperial stadholder, and deprived of its privileges. In 1572 Haarlem joined the revolt of the Netherlands against Spain, but on the 13th of July 1573, after a seven months’ siege, was forced to surrender to Alva’s son Frederick, who exacted terrible vengeance. In 1577 it was again captured by William of Orange and permanently incorporated in the United Netherlands.

HAARLEM LAKE (Dutch Harlemmer Meer), a commune of the province of North Holland, constituted by the law of the 16th of July 1855. It has an area of about 46,000 acres, and its population increased from 7237 in 1860 to 16,621 in 1900. As its name indicates, the commune was formerly a lake, which is said to have been a relic of a northern arm of the Rhine which passed through the district in the time of the Romans. In 1531 the Haarlemmer Meer had an area of 6430 acres, and in its vicinity were three smaller sheets of water—the Leidsche Meer or Leiden Lake, the Spiering Meer, and the Oude Meer or Old Lake, with a united area of about 7600 acres. The four lakes were formed into one by successive inundations, whole villages disappearing in the process, and by 1647 the new Haarlem Lake had an area of about 37,000 acres, which a century later had increased to over 42,000 acres. As early as 1643 Jan Adriaanszoon Leeghwater proposed to endike and drain the lake; and similar schemes, among which those of Nikolaas Samuel Cruquius in 1742 and of Baron van Lijnden van Hemmen in 1820 are worthy of special mention, were brought forward from time to time. But it was not till a furious hurricane in November 1836 drove the waters as far as the gates of Amsterdam, and another on Christmas Day sent them in the opposite direction to submerge the streets of Leiden, that the mind of the nation was seriously turned to the matter. In August 1837 the king appointed a royal commission of inquiry; the scheme proposed by the commission received the sanction of the Second Chamber in March 1839, and in the following May the work was begun. A canal was first dug round the lake for the reception of the water and the accommodation of the great traffic which had previously been carried on. This canal was 38 m. in length, 123-146 ft. wide, and 8 ft. deep, and the earth which was taken out of it was used to build a dike from 30 to 54 yds. broad containing the lake. The area enclosed by the canal was rather more than 70 sq. m., and the average depth of the lake 13 ft. 1½ in., and as the water had no natural outfall it was calculated that probably 1000 million tons would have to be raised by mechanical means. 782 This amount was 200 million tons in excess of that actually discharged. Pumping by steam-engines began in 1848, and the lake was dry by the 1st of July 1852. At the first sale of the highest lands along the banks on the 16th of August 1853, about £28 per acre was paid; but the average price afterwards was less. The whole area of 42,096 acres recovered from the waters brought in 9,400,000 florins, or about £780,000, exactly covering the cost of the enterprise; so that the actual cost to the nation was only the amount of the interest on the capital, or about £368,000. The soil is of various kinds, loam, clay, sand and peat; most of it is sufficiently fertile, though in the lower portions there are barren patches where the scanty vegetation is covered with an ochreous deposit. Mineral springs occur containing a very high percentage (3.245 grams per litre) of common salt; and in 1893 a company was formed for working them. Corn, seeds, cattle, butter and cheese are the principal produce. The roads which traverse the commune are bordered by pleasant-looking farm-houses built after the various styles of Holland, Friesland or Brabant. Hoofddorp, Venneperdorp or Nieuw Vennep, Abbenes and the vicinities of the pumping-stations are the spots where the population has clustered most thickly. The first church was built in 1855; in 1877 there were seven. In 1854 the city of Leiden laid claim to the possession of the new territory, but the courts decided in favour of the nation.

HAASE, FRIEDRICH (1827-  ), German actor, was born on the 1st of November 1827, in Berlin, the son of a valet to King Frederick William IV., who became his godfather. He was educated for the stage under Ludwig Tieck and made his first appearance in 1846 in Weimar, afterwards acting at Prague (1849-1851) and Karlsruhe (1852-1855). From 1860 to 1866 he played in St Petersburg, then was manager of the court theatre in Coburg, and in 1869 (and again in 1882-1883) visited the United States. He was manager of the Stadt Theater in Leipzig from 1870 to 1876, when he removed to Berlin, where he devoted his energies to the foundation and management of the Deutsches Theater. He finally retired from the stage in 1898. Haase’s aristocratic appearance and elegant manner fitted him specially to play high comedy parts. His chief rôles were those of Rocheferrier in the Partie Piquet; Richelieu; Savigny in Der feiner Diplomat, and der Fürst in Der geheime Agent. He is the author of Ungeschminkte Briefe and Was ich erlebte 1846-1898 (Berlin, 1898).

HAASE, FRIEDRICH GOTTLOB (1808-1867), German classical scholar, was born at Magdeburg on the 4th of January 1808. Having studied at Halle, Greifswald and Berlin, he obtained in 1834 an appointment at Schulpforta, from which he was suspended and sentenced to six years’ imprisonment for identifying himself with the Burschenschaften (students’ associations). Having been released after serving one year of his sentence, he visited Paris, and on his return in 1840 he was appointed professor at Breslau, where he remained till his death on the 16th of August 1867. He was undoubtedly one of the most successful teachers of his day in Germany, and exercised great influence upon all his pupils.

HAAST, SIR JOHANN FRANZ JULIUS VON (1824-1887), German and British geologist, was born at Bonn on the 1st of May 1824. He received his early education partly in that town and partly in Cologne, and then entered the university at Bonn, where he made a special study of geology and mineralogy. In 1858 he started for New Zealand to report on the suitability of the colony for German emigrants. He then became acquainted with Dr von Hochstetter, and rendered assistance to him in the preliminary geological survey which von Hochstetter had undertaken. Afterwards Dr Haast accepted offers from the governments of Nelson and Canterbury to investigate the geology of those districts, and the results of his detailed labours greatly enriched our knowledge with regard to the rocky structure, the glacial phenomena and the economic products. He discovered gold and coal in Nelson, and he carried on important researches with reference to the occurrence of Dinornis and other extinct wingless birds (Moas). His Geology of the Provinces of Canterbury and Westland, N.Z., was published in 1879. He was the founder of the Canterbury museum at Christchurch, of which he became director, and which he endeavoured to render the finest collection in the southern hemisphere. He was surveyor-general of Canterbury from 1861 to 1871, and professor of geology at Canterbury College. He was elected F.R.S. in 1867; and he was knighted for his services at the time of the colonial exhibition in London in 1887. He died at Wellington, N.Z., on the 15th of August 1887.

HABABS (Az-Hibbehs), a nomadic pastoral people of Hamitic stock, living in the coast region north-west of Massawa. Physically they are Beja, by language and traditions Abyssinians. They were Christians until the 19th century, but are now Mahommedans. Their sole wealth consists in cattle.

HABAKKUK, the name borne by the eighth book of the Old Testament “Minor Prophets.” It occurs twice in the book itself (i. 1, iii. 1) in titles, but nowhere else in the Old Testament. The meaning of the name is uncertain. If Hebrew, it might be derived from the root חבק (to embrace) as an intensive term of affection. It has also been connected more plausibly with an Assyrian plant name, ḫambaḱūḱu (Delitzsch, Assyrisches Handwörterbuch, p. 281). The Septuagint has Ἀμβακούμ. Of the person designated, no more is known than may be inferred from the writing which bears his name. Various legends are connected with him, of which the best known is given in the Apocryphal story of “Bel and the Dragon” (v. 33-39); but none of these has any historic value.1

The book itself falls into three obvious parts, viz. (1) a dialogue between the prophet and God (i. 2-ii. 4); (2) a series of five woes pronounced on wickedness (ii. 5-ii. 20); (3) a poem describing the triumphant manifestation of God (iii.). There is considerable difficulty in regard to the interpretation of (1), on which that of (2) will turn; while (3) forms an independent section, to be considered separately.

In the dialogue, the prophet cries to God against continued violence and injustice, though it is not clear whether this is done within or to Israel (i. 2-4). The divine answer declares that God raises up the Chaldaeans, whose formidable resources are invincible (i. 5-11). The prophet thereupon calls God’s attention to the tyranny which He apparently allows to triumph, and declares his purpose to wait till an answer is given to his complaint (i. 12-ii. 2). God answers by demanding patience, and by declaring that the righteous shall live by his faithfulness (ii. 3-4).

The interpretation of this dialogue which first suggests itself is that the prophet is referring to wickedness within the nation, which is to be punished by the Chaldaeans as a divine instrument; in the process, the tyranny of the instrument itself calls for punishment, which the prophet is bidden to await in patient fidelity. On this view of the dialogue, the subsequent woes will be pronounced against the Chaldaeans, and the date assigned to the prophecy will be about 600 B.C., i.e. soon after the battle of Carchemish (605 B.C.), when the Chaldaean victory over Egypt inaugurated a period of Chaldaean supremacy which lasted till the Chaldaeans themselves were overthrown by Cyrus in 538 B.C. Grave objections, however, confront this interpretation, as is admitted even by such recent defenders of it as Davidson and Driver. Is it likely that a prophet would begin a complaint against Chaldaean tyranny (admittedly central in the prophecy) by complaining of that wickedness of his fellow-countrymen which seems partly to justify it? Are not the terms of reference in 783 i. 2 f. and 1. 12 f. too similar for the supposition that two distinct, even contradictory, complaints are being made (cf. “wicked” and “righteous” in i. 4 and i. 13, interchanged in regard to Israel, on above theory)? And if i. 5-11 is a genuine prophecy of the raising up of the Chaldaeans, whence comes that long experience of their rule required to explain the detailed denunciation of their tyranny? To meet the last objection, Davidson supposes i. 5-11 to be really a reference to the past, prophetic in form only, and brings down the whole section to a later period of Chaldaean rule, “hardly, one would think, before the deportation of the people under Jehoiachin in 597” (p. 49). Driver prefers to bisect the dialogue by supposing i. 2-11 to be written at an earlier period than i. 12 f. (p. 57). The other objections, however, remain, and have provoked a variety of theories from Old Testament scholars, of which three call for special notice. (1) The first of these, represented by Giesebrecht,2 Nowack and Wellhausen, refers i. 2-4 to Chaldaean oppression of Israel, the same subject being continued in i. 12 f. Obviously, the reference to the Chaldaeans as a divine instrument could not then stand in its present place, and it is accordingly regarded as a misplaced earlier prophecy. This is the minimum of critical procedure required to do justice to the facts. (2) Budde, followed by Cornill, also regards i. 2-4 as referring to the oppression of Israel by a foreign tyrant, whom, however, he holds to be Assyria. He also removes i. 5-11 from its present place, but makes it part of the divine answer, following ii. 4. On this view, the Chaldaeans are the divine instrument for punishing the tyranny of the Assyrians, to whom the following woes will therefore refer. The date would fall between Josiah’s reformation (621) and his death (609). This is a plausible and even attractive theory; its weakness seems to lie in the absence of any positive evidence in the prophecy itself, as is illustrated by the fact that even G. A. Smith, who follows it, suggests “Egypt from 608-605” as an alternative to Assyria (p. 124). (3) Marti (1904) abandons the attempt to explain the prophecy as a unity, and analyses it into three elements, viz. (a) The original prophecy by Habakkuk, consisting of i. 5-10, 14 f., belonging to the year 605, and representing the emergent power of the Chaldaeans as a divine scourge of the faithless people; (b) Woes against the Chaldaeans, presupposing not only tyrannous rule over many peoples, but the beginning of their decline and fall, and therefore of date about 540 B.C. (ii. 5-19); (c) A psalm of post-exilic origin, whose fragments, i. 2-4, 12 a, 13, ii. 1-4, have been incorporated into the present text from the margins on which they were written, its subject being the suffering of the righteous. Each of these three theories3 encounters difficulties of detail; none can be said to have secured a dominant position. The great variety of views amongst competent critics is significant of the difficulty of the problem, which can hardly be regarded as yet solved; this divergence of opinion perhaps points to the impossibility of maintaining the unity of chs. i. and ii., and throws the balance of probability towards some such analysis as that of Marti, which is therefore accepted in the present article.

In regard to the poem which forms the third and closing chapter of the present book of Habakkuk, there is much more general agreement. Its most striking characteristic lies in the superscription (“A prayer of Habakkuk the prophet, set to Shigionoth”), the subscription (“For the chief musician, on my stringed instruments”), and the insertion of the musical term “Selah” in three places (v. 3, 9, 13). These liturgical notes make extremely probable the supposition that the poem has been taken from some collection like that of our present book of Psalms, probably on the ground of the authorship asserted by the superscription there attached to it. It cannot, however, be said that the poem itself supports this assertion, which carries no more intrinsic weight than the Davidic titles of the Psalms. The poem begins with a prayer that God will renew the historic manifestation of the exodus, which inaugurated the national history and faith; a thunderstorm moving up from the south is then described, in which God is revealed (3-7); it is asked whether this manifestation, whose course is further described, is against nature only (8-11); the answer is given that it is for the salvation of Israel against its wicked foes (12-15); the poet describes the effect in terror upon himself (16) and declares his confidence in God, even in utter agricultural adversity (17-19). As Wellhausen says (p. 171): “The poet appears to believe that in the very act of describing enthusiastically the ancient deed of deliverance, he brings home to us the new; we are left sometimes in doubt whether he speaks of the past to suggest the new by analogy, or whether he is concerned directly with the future, and simply paints it with the colours of the past.” In any case, there is nothing in this fine poem to connect it with the conception of the Chaldaeans as a divine instrument. It is the nation that speaks through the poet (cf. v. 14), but at what period of its post-exilic history we have no means of inferring.

Our estimate of the theological teaching of this book will naturally be influenced by the particular critical theory which is adopted. The reduction of the book to four originally independent sections requires that the point of each be stated separately. When this is done, it will, however, be found that there is a broad unity of subject, and of natural development in its treatment, such as to some extent justifies the instinct or the judgment of those who were instrumental in effecting the combination of the separate parts. (1) The poem (iii.), though possibly latest in date,4 claims first consideration, because it avowedly moves in the circle of primitive ideas, and supplicates a divine intervention, a direct and immediate manifestation of the transcendent God. He is conceived as controlling or overcoming the forces of nature; and though an earlier mythology has supplied some of the ideas, yet, as with the opening chapters of Genesis, they are transfigured by the moral purpose which animates them, the purpose to subdue all things that could frustrate the destiny of God’s anointed (v. 13). The closing verses strike that deep note of absolute dependence on God, which is the glory of the religion of the Old Testament and its chief contribution to the spirit of the Gospels. (2) The prophecy of the Chaldaeans as the instruments of the divine purpose involves a different, yet related, conception of the divine providence. The philosophy of history, by which Hebrew prophets could read a deep moral significance into national disaster and turn the flank of resistless attack, became one of the most important elements in the nation’s faith. If the world-powers were hard as flint in their dealings with Israel, the people of God were steeled to such moral endurance that each clash of their successive onsets kindled some new flame of devotion. Through the Chaldaeans God worked a work which required centuries of life and literature to disclose its fulness (i. 5). (3) When we turn from this view of the Chaldaeans to the denunciation of their tyranny in “taunt songs” (ii. 5-20), we have simply a practical application of the doctrine of divine government. God being what He is, at once moral and all-powerful, the immoral life is doomed to overthrow, whether the immorality consist in grasping rapacity, proud self-aggrandizement, cruel exaction, exulting triumph or senseless idolatry. (4) Yet, because the doom so often tarries, there arises the problem of the suffering of the innocent and the upright. How can God look down with tolerance that seems favour on so much that conflicts with His declared will and character? This is the great problem of Israel, finding its supreme expression for all time in the book of Job (q.v.). In that book the solution of the problem of innocent suffering lies hidden from the sufferer, even to the end, for he is not admitted with the reader to the secret of the prologue; it is the practical solution of faithfulness resting on faith which is offered to us. So here, with the principle of ii. 4, “the righteous shall live by his faithfulness.” The different application of these words in the New Testament to “faith” 784 is well known (Rom. i. 17; Gal. iii. 11; Heb. x. 38) though the difference is apt to be exaggerated by those who forget how much of the element of אמונה: lies in Paul’s conception of πίστις. In G. A. Smith’s words, “as Paul’s adaptation, ‘the just shall live by faith,’ has become the motto of evangelical Christianity, so we may say that Habakkuk’s original of it has been the motto and the fame of Judaism: ‘the righteous shall live by his faithfulness.’”

HABDALA (lit. “separation”), a Hebrew term chiefly appropriated to ceremonies at the conclusion of Sabbath and festivals, marking the separation between times sacred and secular. On the Saturday night the ceremony consists of three items: (a) benediction over a cup of wine (common to many other Jewish functions); (b) benediction over a lighted taper, of which possibly the origin is utilitarian, as no light might be kindled on the Sabbath day, but the rite may be symbolical; and (c) benediction over a box of sweet-smelling spices. The origin of the latter has been traced to the bowl of burning spice which in Talmudic times was introduced after each meal. But here too symbolic ideas must be taken into account. Both the light and the spices would readily fit into the conception of the Sabbath “Over-soul” of the mystics.

HABEAS CORPUS, in English law, a writ issued out of the High Court of Justice commanding the person to whom it is directed to bring the body of a person in his custody before that or some other court for a specified purpose.

There are various forms of the writ, of which the most famous is that known as habeas corpus ad subjiciendum, the well-established remedy for violation of personal liberty. From the earliest records of the English law no free man could be detained in custody except on a criminal charge or conviction or for a civil debt. That right is expressed in the Great Charter in the words: “Nullus liber homo capiatur vel imprisonetur aut dissaisietur aut utlagetur, aut exuletur aut aliquo modo destruatur nec super eum ibimus nec super eum mittemus, nisi per legale judicium parium suorum, vel per legem terrae.”1 The writ is a remedial mandatory writ of right existing by the common law, i.e. it is one of the extraordinary remedies—such as mandamus, certiorari and prohibitions, which the superior courts may grant. While “of right,” it is not “of course,” and is granted only on application to the High Court or a judge thereof, supported by a sworn statement of facts setting up at least a probable case of illegal confinement. It is addressed to the person in whose custody another is detained, and commands him to bring his prisoner before the court immediately after the receipt of the writ, together with the day and cause of his being taken and detained, to undergo and receive (ad subjiciendum et recipiendum) whatsoever the court awarding the writ “may consider of concerning him in that behalf.”

It is often stated that the writ is founded on the article of the Great Charter already quoted; but there are extant instances of the issue of writs of habeas corpus before the charter. Other writs having somewhat similar effect were in use at an early date, e.g. the writ de odio et atiâ, used as early as the 12th century to prevent imprisonment on vexatious appeals of felony, and the writ of mainprise (de manucaptione), long obsolete if not abolished in England but which it was attempted to use in India so late as 1870. In the ease of imprisonment on accusation of crime the writ issued from the court of king’s bench (or from the chancery), and on its return the court judged of the legality of the imprisonment, and discharged the prisoner or admitted him to bail or remanded him to his former custody according to the result of the examination.

By the time of Charles I. the writ was fully established as the appropriate process for checking illegal imprisonment by inferior courts or by public officials. But it acquired its full and present constitutional importance by legislation.

In Darnel’s case (1627) the judges held that the command of the king was a sufficient answer to a writ of habeas corpus. The House of Commons thereupon passed resolutions to the contrary, and after a conference with the House of Lords the measure known as the Petition of Right was passed (1627, 3 Car. I. c. i.) which, inter alia, recited (s. 5) that, contrary to the Great Charter and the good laws and statutes of the realm, divers of the king’s subjects had of late been imprisoned without any cause shown, and when they were brought up on habeas corpus ad subjiciendum, and no cause was shown other than the special command of the king signified by the privy council, were nevertheless remanded to prison, and enacted “that no freeman in any such manner as is before mentioned be imprisoned or detained.” The Petition of Right was disregarded in Selden’s case (1629), when it was successfully returned to a habeas corpus that Selden and others were committed by the king’s special command “for notable contempts against the king and his government and for stirring up sedition against him.”2 This led to legislation in 1640 by which, after abolishing the Star Chamber, the right to a habeas corpus was given to test the legality of commitments by command or warrant of the king or the privy council.3

The reign of Charles II. was marked by further progress towards securing the freedom of the subject from wrongful imprisonment. Lord Clarendon was impeached, inter alia, for causing many persons to be imprisoned against law and to be conveyed in custody to places outside England. In 1668 a writ of habeas corpus was issued to test the legality of an imprisonment in Jersey. Though the authority of the courts had been strengthened by the Petition of Right and the act of 1640, it was still rendered insufficient by reason of the insecurity of judicial tenure, the fact that only the chancellor (a political as well as a legal officer) and the court of king’s bench had undoubted right to issue the writ, and the inability or hesitation of the competent judges to issue the writ except during the legal term, which did not cover more than half the year. A series of bills was passed through the Commons between 1668 and 1675, only to be rejected by the other House. In Jenkes’s case (1676) Lord Chancellor Nottingham refused to issue the writ in vacation in a case in which a man had been committed by the king in council for a speech at Guildhall, and could get neither bail nor trial. In 1679, but rather in consequence of Lord Clarendon’s arbitrary proceedings4 than of Jenkes’s case, a fresh bill was introduced which passed both Houses (it is said the upper House by the counting of one stout peer as ten) and became the famous Habeas Corpus Act of 1679 (31 Car. II. c. 2). The passing of the act was largely due to the experience and energy of Lord Shaftesbury, after whom it was for some time called. The act, while a most important landmark in the constitutional history of England, in no sense creates any right to personal freedom, but is essentially a procedure act for improving the legal mechanism by means of which that acknowledged right may be enforced.5 785 It declares no principles and defines no rights, but is for practical purposes worth a hundred articles guaranteeing constitutional liberty.6

In the manner characteristic of English legislation the act is limited to the particular grievances immediately in view and is limited to imprisonment for criminal or supposed criminal matters, leaving untouched imprisonment on civil process or by private persons. It recites that great delays have been used by sheriffs and gaolers in making returns of writs of habeas corpus directed to them; and for the prevention thereof, and the more speedy relief of all persons imprisoned for criminal or supposed criminal matters, it enacts in substance as follows: (1) When a writ of habeas corpus is directed to a sheriff or other person in charge of a prisoner, he must within 3, 10 or 20 days, according to the distance of the place of commitment, bring the body of his prisoner to the court, with the true cause of his detainer or imprisonment—unless the commitment was for treason or felony plainly expressed in the warrant of commitment. (2) If any person be committed for any crime—unless for treason or felony plainly expressed in the warrant—it shall be lawful for such person or persons (other than persons convicted or in execution by legal process) in time of vacation, to appeal to the lord chancellor as a judge, who shall issue a habeas corpus returnable immediately, and on the return thereof shall discharge the prisoner on giving security for his appearance before the proper court—unless the party so committed is detained upon a legal process or under a justice’s warrant for a non-bailable offence. Persons neglecting for two terms to pray for a habeas corpus shall have none in vacation. (3) Persons set at large on habeas corpus shall not be recommitted for the same offence unless by the legal order and process of the court having cognizance of the case. (4) A person committed to prison for treason or felony shall, if he requires it, in the first week of the next term or the first day of the next session of oyer and terminer, be indicted in that term or session or else admitted to bail, unless it appears on affidavit that the witnesses for the crown are not ready; and if he is not indicted and tried in the second term or session after commitment, or if after trial he is acquitted, he shall be discharged from imprisonment. (5) No inhabitant of England (except persons contracting, or, after conviction for felony, electing to be transported) shall be sent prisoner to Scotland, Ireland, Jersey, &c., or any place beyond the seas. Stringent penalties are provided for offences against the act. A judge delaying habeas corpus forfeits £500 to the party aggrieved. Illegal imprisonment beyond seas renders the offender liable in an action by the injured party to treble costs and damages to the extent of not less than £500, besides subjecting him to the penalties of praemunire and to other disabilities. “The great rank of those who were likely to offend against this part of the statute was,” says Hallam, “the cause of this unusual severity.” Indeed as early as 1591 the judges had complained of the difficulty of enforcing the writ in the case of imprisonment at the instance of magnates of the realm. The effect of the act was to impose upon the judges under severe sanction the duty of protecting personal liberty in the case of criminal charges and of securing speedy trial upon such charges when legally framed; and the improvement of their tenure of office at the revolution, coupled with the veto put by the Bill of Rights on excessive bail, gave the judicature the independence and authority necessary to enable them to keep the executive within the law and to restrain administrative development of the scope or penalties of the criminal law; and this power of the judiciary to control the executive, coupled with the limitations on the right to set up “act of state” as an excuse for infringing individual liberty is the special characteristic of English constitutional law.

It is to be observed that neither at common law nor under the act of 1679 was the writ the appropriate remedy in the case of a person convicted either on indictment or summarily. It properly applied to persons detained before or without trial or sentence; and for convicted persons the proper remedy was by writs of error or certiorari to which a writ of habeas corpus might be used as ancillary.

As regards persons imprisoned for debt or on civil process the writ was available at common law to test the legality of the detention: but the practice in these cases is unaffected by the act of 1679, and is of no present interest, since imprisonment on civil process is almost abolished. As regards persons in private custody, e.g. persons not sui juris detained by those not entitled to their guardianship or lunatics, or persons kidnapped, habeas corpus ad subjiciendum seems not to have been the ordinary common law remedy. The appropriate writ for such cases was that known as de homine replegiando. The use of this writ in most if not all criminal cases was forbidden in 1553; but it was used in the 17th century in a case of kidnapping (Designy’s case, 1682), and against Lord Grey for abducting his wife’s sister (1682), and in the earl of Banbury’s case to recover his wife (1704). The latest recorded instance of its use is Trebilcock’s case (1736), in which a ward sought to free himself from the custody of his guardian.

Since that date the habeas corpus ad subjiciendum has been used in cases of illegal detention in private custody. In 1758 questions arose as to its application to persons in naval or military custody, including pressed men, which led to the introduction of a bill in parliament and to the consultation by the House of Lords of the judges (see Wilmot’s Opinions, p. 77). In the same year the writ was used to release the wife of Earl Ferrers from his custody and maltreatment, and was unsuccessfully applied for by John Wilkes to get back his wife, who was separated from him by mutual agreement. But perhaps the most interesting instances of that period are the case of the negro Somerset (1771), who was released from a claim to hold him as a slave in England: and that of the Hottentot Venus (1810), where an alien woman on exhibition in England was brought before the court by Zachary Macaulay in order to ascertain whether she was detained against her will.

The experience of the 18th century disclosed defects in the procedure for obtaining liberty in cases not covered by the act of 1679. But it was not till 1816 that further legislation was passed for more effectually securing the liberty of the subject. The act of 1816 (56 Geo. III. c. 100), does not touch cases covered by the act of 1679. It enacts (1) that a writ of habeas corpus shall be issued in vacation time in favour of a person restrained of his liberty otherwise than for some criminal or supposed criminal matter (except persons imprisoned for debt or by civil process); (2) that though the return to the writ be good and sufficient in law, the judge shall examine into the truth of the facts set forth in such return, and if they appear doubtful the prisoner shall be bailed; (3) that the writ shall run to any port, harbour, road, creek or bay on the coast of England, although not within the body of any county. The last clause was intended to meet doubts on the applicability of habeas corpus in cases of illegal detention on board ship, which had been raised owing to a case of detention on a foreign ship in an English port.

It will appear from the foregoing statement that the issue and enforcement of the writ rests on the common law as strengthened by the acts of 1627, 1640, 1679 and 1816, and subject also to the regulations as to procedure contained in the Crown Office Rules, 1906. The effect of the statutes is to keep the courts always open for the issue of the writ. It is available to put an end to all forms of illegal detention in public or private custody. In the case of the Canadian prisoners (1839) it was used to obtain the release of persons sentenced in Canada for participating in the rebellion of 1837, who were being conveyed throughout England in custody on their way to imprisonment in another part of the empire, and it is matter of frequent experience for the courts to review the legality of commitments under the Extradition Acts and the Fugitive Offenders Act 1881, of fugitives from the justice of a foreign state or parts of the king’s dominions outside the British Islands.

In times of public danger it has occasionally been thought necessary to “suspend” the Habeas Corpus Act 1679 by special and temporary legislation. This was done in 1794 (by an act 786 annually renewed until 1801) and again in 1817, as to persons arrested and detained by his majesty for conspiring against his person and government. The same course was adopted in Ireland in 1866 during a Fenian rising. It has been the practice to make such acts annual and to follow their expiration by an act of indemnity. In cases where martial law exists the use of the writ is ex hypothesi suspended during conditions amounting to a state of war within the realm or the British possession affected (e.g. the Cape Colony and Natal during the South African War), and it would seem that the acts of courts martial during the period are not the subject of review by the ordinary courts. The so-called “suspension of the Habeas Corpus Act” bears a certain similarity to what is called in Europe “suspending the constitutional guarantees” or “proclaiming a state of siege,” but “is not in reality more than suspension of one particular remedy for the protection of personal freedom.”

United States.—Before the Declaration of Independence some of the North American colonies had adopted the act of 1679; and the federal and the other state legislatures of the United States have founded their procedure on that act. The common law as to the writ of habeas corpus has been inherited from England, and has been generally made to apply to commitments and detentions of all kinds. Difficult questions, unknown to English law, have arisen from the peculiar features of the American state-system. Thus the constitution provides that “the privilege of the writ of habeas corpus shall not be suspended unless when, in cases of rebellion or invasion, the public safety may require it”; and it has been the subject of much dispute whether the power of suspension under this provision is vested in the president or the congress. The weight of opinion seems to lean to the latter alternative. Again, conflicts have arisen between the courts of individual states and the courts of the union. It seems that a state court has no right to issue a habeas corpus for the discharge of a person held under the authority of the federal government. On the other hand, the courts of the union issue the writ only in those cases in which the power is expressly conferred on them by the constitution.

HABERDASHER, a name for a tradesman who sells by retail small articles used in the making or wearing of dress, such as sewing cottons or silks, tapes, buttons, pins and needles and the like. The sale of such articles is not generally carried on alone, and a “haberdashery counter” usually forms a department of 787 drapers’ shops. The word, found in Chaucer, and even earlier (1311), is of obscure origin; the suggestion that it is connected with an Icelandic haprtask, “haversack,” is, according to the New English Dictionary, impossible. Haperlas occurs in an early Anglo-French customs list, which includes articles such as were sold by haberdashers, but this word may itself have been a misspelling of “haberdash.” The obscurity of origin has left room for many conjectures such as that of Minsheu that “haberdasher” was perhaps merely a corruption of the German Habt ihr das? “Have you that?” or Habe das, Herr, “Have that, sir,” used descriptively for a general dealer in miscellaneous wares. The Haberdashers’ Company is one of the greater Livery Companies of the City of London. Originally a branch of the mercers, the fraternity took over the selling of “small wares,” which included not only articles similar to those sold as “haberdashery” now, but such things as gloves, daggers, glass, pens, lanterns, mousetraps and the like. They were thus on this side connected with the Milliners. On the other hand there was early a fusion with the old gild of the “Hurers,” or cap makers, and the hatters, and by the reign of Henry VII. the amalgamation was complete. There were long recognized two branches of the haberdashers, the haberdashers of “small wares,” and the haberdashers of hats (see further Livery Companies). The haberdashers are named, side by side with the capellarii, in the White Book (Liber Albus) of the city of London (see Munimenta Gildhallae Londiniensis, ed. H. T. Riley, Rolls Series, 12, 1859-1862), and a haberdasher forms one of the company of pilgrims in the Canterbury Tales (Prologue, 361).

HABINGTON, WILLIAM (1605-1654), English poet, was born at Hendlip Hall, Worcestershire, on the 4th of November 1605. He belonged to a well-known Catholic family. His father, Thomas Habington (1560-1647), an antiquary and historical scholar, had been implicated in the plots on behalf of Mary queen of Scots; his uncle, Edward Habington, was hanged in 1586 on the charge of conspiring against Elizabeth in connexion with Anthony Babington; while to his mother, Mary Habington, was attributed the revelation of the Gunpowder Plot. The poet was sent to the college at St Omer, but, pressure being brought to bear on him to induce him to become a Jesuit, he removed to Paris. He married about 1632 Lucy, second daughter of Sir William Herbert, first Baron Powys. This lady he had addressed in the volume of lyrical poems arranged in two parts and entitled Castara, published anonymously in 1634. In 1635 appeared a second edition enlarged by three prose characters, fourteen new lyrics and eight touching elegies on his friend and kinsman, George Talbot. The third edition (1640) contains a third part consisting of a prose character of “A Holy Man” and twenty-two devotional poems. Habington’s lyrics are full of the far-fetched “conceits” which were fashionable at court, but his verse is quite free from the prevailing looseness of morals. Indeed his reiterated praises of Castara’s virtue grow wearisome. He is at his best in his reflective poems on the uncertainty of human life and kindred topics. He also wrote a Historie of Edward the Fourth (1640), based on notes provided by his father; a tragi-comedy, The Queene of Arragon (1640), published without his consent by his kinsman, the earl of Pembroke, and revived at the Restoration; and six essays on events in modern history, Observations upon History (1641). Anthony à Wood insinuated that during the Commonwealth the poet “did run with the times, and was not unknown to Oliver the usurper.” He died on the 30th of November 1654.

HABIT (through the French from Lat. habitus, from habere, to have, hold, or, in a reflective sense, to be in a certain condition; in many of the English senses the French use habitude, not habit), condition of body or mind, especially one that has become permanent or settled by custom or persistent repetition, hence custom, usage. In botany and zoology the term is used both in the above sense of instinctive action of animals and tendencies of plants, and also of the manner of growth or external appearance of a plant or animal. From the use of the word for external appearances comes its use for fashion in dress, and hence as a term for a lady’s riding dress and for the particular form of garment adopted by the members of a religious order, like “cowl” applied as the mark of a monk or nun.

HABITAT (a French word derived from habiter, Lat. habitare, to dwell), in botany and zoology, the term for the locality in which a particular species of plants or animals thrives.

HABSBURG, or Hapsburg, the name of the famous family from which have sprung the dukes and archdukes of Austria from 1282, kings of Hungary and Bohemia from 1526, and emperors of Austria from 1804. They were also Roman emperors and German kings from 1438 to 1806, and kings of Spain from 1516 to 1700, while the minor dignities held by them at different times are too numerous to mention.

The name Habsburg, a variant of an older form, Habichtsburg (hawk’s castle), was taken from the castle of Habsburg, which was situated on the river Aar not far from its junction with the Rhine. The castle was built about 1020 by Werner, bishop of Strassburg, and his brother, Radbot, the founder of the abbey of Muri. These men were grandsons of a certain Guntram, who, according to some authorities, is identical with a Count Guntram who flourished during the reign of the emperor Otto the Great, and whose ancestry can be traced back to the time of the Merovingian kings. This conjecture, however, is extremely problematical. Among Radbot’s sons was one Werner, and Werner and his son Otto were called counts of Habsburg, Otto being probably made landgrave of upper Alsace late in the 11th or early in the 12th century. At all events Otto’s son Werner (d. 1167), and the latter’s son Albert (d. 1199), held this dignity, and both landgraves increased the area of the Habsburg lands. Albert became count of Zürich and protector of the monastery of Säckingen, and obtained lands in the cantons of Unterwalden and Lucerne; his son Rudolph, having assisted Frederick of Hohenstaufen, afterwards the emperor Frederick II., against the emperor Otto IV., received the county of Aargau. Both counts largely increased their possessions in the districts now known as Switzerland and Alsace, and Rudolph held an influential place among the Swabian nobility. After his death in 1232 his two sons, Albert and Rudolph, divided his lands and founded the lines of Habsburg-Habsburg and Habsburg-Laufenburg. Rudolph’s descendants, counts of Habsburg-Laufenburg, were soon divided into two branches, one of which became extinct in 1408 and the other seven years later. Before this date, however, Laufenburg and some other districts had been sold to the senior branch of the family, who thus managed to retain the greater part of the Habsburg lands.

Rudolph’s brother Albert (d. 1239), landgrave of Alsace, married Hedwig of Kyburg (d. 1260), and from this union there was born in 1218 Rudolph, the founder of the greatness of the house of Habsburg, and the first of the family to ascend the German throne. Through his mother he inherited a large part of the lands of the extinct family of Zähringen; he added in other ways to his possessions, and was chosen German king in September 1273. Acting vigorously in his new office, he defeated and killed his most formidable adversary, Ottakar II., king of Bohemia, in 1278, and in December 1282 he invested his sons, Albert and Rudolph, with the duchies of Austria and Styria, which with other lands had been taken from Ottakar. This was an event of supreme moment in the history of the Habsburgs, and was the first and most important stage in the process of transferring the centre of their authority from western to eastern Europe, from the Rhine to the Danube. On Rudolph’s death in July 1291 the German crown passed for a time away from the Habsburgs, but in July 1298 it was secured by his son, Albert, whose reign, however, was short and uneventful. But before 1308, the year of Albert’s death, the long and troubled connexion of the Habsburgs with Bohemia had already begun. In 1306 Wenceslas III., the last Bohemian king of the Přmyslide dynasty, was murdered. Seizing the opportunity and declaring that the vacant kingdom was an imperial fief, King Albert 788 bestowed it upon his eldest son, Rudolph, and married this prince to Elizabeth, widow of Wenceslas II. and stepmother of Wenceslas III. But Rudolph died in 1307, and his father’s attempt to keep the country in his own hands was ended by his murder in 1308.

Albert’s successor as German king was Henry of Luxemburg (the emperor Henry VII.), and this election may be said to initiate the long rivalry between the houses of Habsburg and Luxemburg. But the immediate enemy of the Habsburgs was not a Luxemburg but a Wittelsbach. Without making any definite partition, Albert’s five remaining sons spent their time in governing their lands until 1314, when one of them, Frederick called the Fair, forsook this comparatively uneventful occupation and was chosen by a minority of the electors German king in succession to Henry VII. At the same time the Wittelsbach duke of Bavaria, Louis, known to history as the emperor Louis the Bavarian, was also chosen. War was inevitable, and the battle of Mühldorf, fought in September 1322, sealed the fate of Frederick. Louis was victorious: his rival went into an honourable captivity, and the rising Habsburg sun underwent a temporary eclipse.

For more than a century after Frederick’s death in 1330 the Habsburgs were exiles from the German throne. But they were not inactive. In 1335 his two surviving brothers, Albert and Otto, inherited Carinthia and part of Carniola by right of their mother, Elizabeth; in 1363 Albert’s son Rudolph received Tirol; and during the same century part of Istria, Trieste and other districts were acquired. All King Albert’s six sons had died without leaving male issue save Otto, whose family became extinct in 1344, and Albert, the ancestor of all the later Habsburgs. Of Albert’s four sons two also left no male heirs, but the remaining two, Albert III. and Leopold III., were responsible for a division of the family which is of some importance. By virtue of a partition made upon their brother Rudolph’s death in 1365 Albert and his descendants ruled over Austria, while Leopold and his sons took Styria, Carinthia and Tirol, Alsace remaining undivided as heretofore.

Towards the middle of the 15th century the German throne had been occupied for nearly a hundred years by members of the Luxemburg family. The reigning emperor Sigismund, who was also king of Hungary and Bohemia, was without sons, and his daughter Elizabeth was the wife of Albert of Habsburg, the grandson and heir of Duke Albert III., who had died in 1395. Sigismund died in December 1437, leaving his two kingdoms to his son-in-law, who was crowned king of Hungary in January 1438 and king of Bohemia in the following June. Albert was also chosen and crowned German king in succession to Sigismund, thus beginning the long and uninterrupted connexion of his family with the imperial throne, a connexion which lasted until the dissolution of the Holy Roman Empire in 1806. He did not, however, enjoy his new dignities for long, as he died in October 1439 while engaged in a struggle with the Turks. Albert left no sons, but soon after his death one was born to him, called Ladislaus, who became duke of Austria and king of Hungary and Bohemia. Under the guardianship of his kinsman, the emperor Frederick III., the young prince’s reign was a troubled one, and when he died unmarried in 1457 his branch of the family became extinct, and Hungary and Bohemia passed away from the Habsburgs, who managed, however, to retain Austria.

Leopold III., duke of Carinthia and Styria, who was killed in 1386 at the battle of Sempach, had four sons, of whom two only, Frederick and Ernest, left male issue. Frederick and his only son, Sigismund, confined their attention mainly to Tirol and Alsace, leaving the larger destinies of the family in the hands of Ernest of Carinthia and Styria (d. 1424) and his sons, Frederick and Albert and after the death of King Ladislaus in 1457 these two princes and their cousin Sigismund were the only representatives of the Habsburgs. In February 1440 Frederick of Styria was chosen German king in succession to his kinsman Albert. He was a weak and incompetent ruler, but a stronger and abler man might have shrunk from the task of administering his heterogeneous and unruly realm. Although very important in the history of the house of Habsburg, Frederick’s long reign was a period of misfortune, and the motto which he assumed, A.E.I.O.U. (Austriae est imperare orbi universo), seemed at the time a particularly foolish boast. He acted as guardian both to Ladislaus of Hungary, Bohemia and Austria, and to Sigismund of Tirol, and in all these countries his difficulties were increased by the hostility of his brother Albert. Having disgusted the Tirolese he gave up the guardianship of their prince in 1446, while in Hungary and Bohemia he did absolutely nothing to establish the authority of his ward; in 1452 the Austrians besieged him in Vienna Neustadt and compelled him to surrender the person of Ladislaus, thus ending even his nominal authority. When the young king died in 1457 the Habsburgs lost Hungary and Bohemia, but they retained Austria, which, after some disputing, Frederick and Albert divided between themselves, the former taking lower and the latter upper Austria. This arrangement was of short duration. In 1461 Albert made war upon his brother and forced him to resign lower Austria, which, however, he recovered after Albert’s death in December 1463. Still more unfortunate was the German king in Switzerland. For many years the Swiss had chafed under the rule of the Habsburgs; during the reign of Rudolph I. they had shown signs of resentment as the kingly power increased; and the struggle which had been carried on for nearly two centuries had been almost uniformly in their favour. It was marked by the victory of Morgarten over Duke Leopold I. in 1315, and by that of Sempach over Leopold III. in 1386, by the conquest of Aargau at the instigation of the emperor Sigismund early in the 15th century, and by the final struggle for freedom against Frederick III. and Sigismund of Tirol. Taking advantage of some dissensions among the Swiss, the king saw an opportunity to recover his lost lands, and in 1443 war broke out. But his allies, the men of Zürich, were defeated, and when in August 1444 some French mercenaries, who had advanced to his aid, suffered the same fate at St Jakob, he was compelled to give up the struggle. A few years later Sigismund became involved in a war with the same formidable foemen; he too was worsted, and the “Perpetual Peace” of 1474 ended the rule of the Habsburgs in Switzerland. This humiliation was the second great step in the process of removing the Habsburgs from western to eastern Europe. In 1453, just after his coronation as emperor at Rome, Frederick legalized the use of the title archduke, which had been claimed spasmodically by the Habsburgs since 1361. This title is now peculiar to the house of Habsburg.

The reverses suffered by the Habsburgs during the reign of Frederick III. were many and serious, but an improvement was at hand. The emperor died in August 1493, and was followed on the imperial throne by his son Maximilian I., perhaps the most versatile and interesting member of the family. Before his father’s death Maximilian had been chosen German king, or king of the Romans, and had begun to repair the fortunes of his house. He had married Mary, daughter and heiress of Charles the Bold, duke of Burgundy; he had driven the Hungarians from Vienna and the Austrian archduchies, which Frederick had, perforce, allowed them to occupy; and he had received Tirol on the abdication of Sigismund in 1490. True it is that upon Mary’s death in 1482 part of her inheritance, the rich and prosperous Netherlands, held that her husband’s authority was at an end, while another part, the two Burgundies and Artois, had been seized by the king of France; nevertheless, after a protracted struggle the German king secured almost the whole of Charles the Bold’s lands for his son, the archduke Philip, the duchy of Burgundy alone remaining in the power of France after the conclusion of the peace of Senlis in 1493. Maximilian completed his work by adding a piece of Bavaria, Görz and then Gradiska to the Habsburg lands.

After Sigismund’s death in 1496 Maximilian and Philip were the only living male members of the family. Philip married Joanna, daughter of Ferdinand and Isabella of Spain, and died in 1506 leaving two sons, Charles and Ferdinand. Charles succeeded his father in the Netherlands; he followed one grandfather, Ferdinand, as king of Spain in 1516, and when the other, 789 Maximilian, died in 1519 he became the emperor Charles V., and succeeded to all the hereditary lands of the Habsburgs. But provision had to be made for Ferdinand, and in 1521 this prince was given the Austrian archduchies, Austria, Styria, Carinthia and Carniola; in the same year he married Anne, daughter of Wladislaus, king of Hungary and Bohemia, and when his childless brother-in-law, King Louis, was killed at the battle of Mohacs in August 1526 he claimed the two kingdoms, both by right of his wife and by treaty. After a little trouble Bohemia passed under his rule, but Hungary was more recalcitrant. A long war took place between Ferdinand and John Zapolya, who was also crowned king of Hungary, but in 1538 a treaty was made and the country was divided, the Habsburg prince receiving the western and smaller portion. However, he was soon confronted with a more formidable foe, and he spent a large part of his subsequent life in defending his lands from the attacks of the Turks.

The Habsburgs had now reached the summit of their power. The prestige which belonged to Charles as head of the Holy Roman Empire was backed by the wealth and commerce of the Netherlands and of Spain, and by the riches of the Spanish colonies in America. In Italy he ruled over Sardinia, Naples and Sicily, which had passed to him with Spain, and the duchy of Milan, which he had annexed in 1535; to the Netherlands he had added Friesland, the bishopric of Utrecht, Gröningen and Gelderland, and he still possessed Franche-Comté and the fragments of the Habsburg lands in Alsace and the neighbourhood. Add to this Ferdinand’s inheritance, the Austrian archduchies and Tirol, Bohemia with her dependent provinces, and a strip of Hungary, and the two brothers had under their sway a part of Europe the extent of which was great, but the wealth and importance of which were immeasurably greater. Able to scorn the rivalry of the other princely houses of Germany, the Habsburgs saw in the kings of the house of Valois the only foemen worthy of their regard.

When Charles V. abdicated he was succeeded as emperor, not by his son Philip, but by his brother Ferdinand. Philip became king of Spain, ruling also the Netherlands, Franche-Comté, Naples, Sicily, Milan and Sardinia, and the family was definitely divided into the Spanish and Austrian branches. For Spain and the Spanish Habsburgs the 17th century was a period of loss and decay, the seeds of which were sown during the reign of Philip II. The northern provinces of the Netherlands were lost practically in 1609 and definitely by the treaty of Westphalia in 1648; Roussillon and Artois were annexed to France by the treaty of the Pyrenees in 1659, while Franche-Comté and a number of towns in the Spanish Netherlands suffered a similar fate by the treaty of Nijmwegen in 1678. Finally Charles II., the last Habsburg king of Spain, died childless in November 1700, and his lands were the prize of the War of the Spanish Succession. The Austrian Habsburgs fought long and valiantly for the kingdom of their kinsman, but Louis XIV. was too strong for them, and by the peace of Rastatt Spain passed from the Habsburgs to the Bourbons. However, the Austrian branch of the family received in 1714 the Italian possessions of Charles II., except Sicily, which was given to the duke of Savoy, and also the southern Netherlands, which are thus often referred to as the Austrian Netherlands; and retained the duchy of Mantua, which it had seized in 1708.

Ferdinand I., the founder of the line of the Austrian Habsburgs, arranged a division of his lands among his three sons before his death in 1564. The eldest, Maximilian II., received Austria, Bohemia and Hungary, and succeeded his father as emperor; he married Maria, a daughter of Charles V., and though he had a large family his male line became extinct in 1619. The younger sons were Ferdinand, ruler of Tirol, and Charles, archduke of Styria. The emperor Maximilian II. left five sons, two of whom, Rudolph and Matthias, succeeded in turn to the imperial throne, but, as all the brothers were without male issue, the family was early in the 17th century threatened with a serious crisis. Rudolph died in 1612, the reigning emperor Matthias was old and ill, and the question of the succession to the Empire, to the kingdoms of Hungary and Bohemia, and to the hereditary lands of the Habsburgs became acute. Turning to the collateral branches of the family, the sons of the archduke Ferdinand were debarred from the succession owing to their father’s morganatic marriage with Philippine Welser, and the only hope of the house was in the sons of Charles of Styria. To prevent the Habsburg monarchy from falling to pieces the emperor’s two surviving brothers renounced their rights, and it was decided that Ferdinand, a son of Charles of Styria, should succeed his cousin Matthias. The difficulties which impeded the completion of this scheme were gradually overcome, and the result was that when Matthias died in 1619 the whole of the lands of the Austrian Habsburgs was united under the rule of the emperor Ferdinand II. Tirol, indeed, a few years later was separated from the rest of the monarchy and given to the emperor’s brother, the archduke Leopold, but this separation was ended when Leopold’s son died in 1665.

The arbitrary measures which followed Ferdinand’s acquisition of the Bohemian crown contributed to the outbreak of the Thirty Years’ War, but in a short time the Bohemians were subdued, and in 1627, following a precedent set in 1547, the emperor declared the throne hereditary in the house of Habsburg. The treaty of Westphalia which ended this war took comparatively little from the Habsburgs, though they ceded Alsace to France; but the Empire was greatly weakened, and its ruler was more than ever compelled to make his hereditary lands in the east of Europe the base of his authority, finding that he derived more strength from his position as archduke of Austria than from that of emperor. Ferdinand III. succeeded his father Ferdinand II., and during the long reign of the former’s son, Leopold I., the Austrian, like the Spanish, Habsburgs were on the defensive against the aggressive policy of Louis XIV., and in addition they had to withstand the assaults of the Turks. In two ways they sought to strengthen their position. The unity of the Austrian lands was strictly maintained, and several marriages kept up a close and friendly connexion with Spain. A series of victories over the sultan during the later part of the 17th century rolled back the tide of the Turkish advance, and the peace of Karlowitz made in 1699 gave nearly the whole of Hungary to the Habsburgs. Against France Austria was less successful, and a number of humiliations culminated in 1714 in the failure to secure Spain, to which reference has already been made.

The hostility of Austria and France, or rather of Habsburg and Bourbon, outlived the War of the Spanish Succession. In 1717 Spain conquered Sardinia, which was soon exchanged by Austria for Sicily; other struggles and other groupings of the European powers followed, and in 1735, by the treaty of Vienna, Austria gave up Naples and Sicily and received the duchies of Parma and Piacenza. These surrenders were doubtless inevitable, but they shook the position of the house of Habsburg in Italy. However, a domestic crisis was approaching which threw Italian affairs into the shade. Charles VI., who had succeeded his brother, Joseph I., as emperor in 1711, was without sons, and his prime object in life was to secure the succession of his elder daughter, Maria Theresa, to the whole of his lands and dignities. But in 1713, four years before the birth of Maria Theresa, he had first issued the famous Pragmatic Sanction, which declared that the Habsburg monarchy was indivisible and that in default of male heirs a female could succeed to it. Then after the death of his only son and the birth of Maria Theresa the emperor bent all his energies to securing the acceptance of the Pragmatic Sanction. Promulgated anew in 1724, it was formally accepted by the estates of the different Habsburg lands; in 1731 it was guaranteed by the imperial diet. By subordinating every other interest to this, Charles at length procured the assent of the various powers of Europe to the proposed arrangement; he married the young princess to Francis Stephen, duke of Lorraine, afterwards grand-duke of Tuscany, and when he died on the 20th of October 1740 he appeared to have realized his great ambition. With the emperor’s death the house of Habsburg, strictly speaking, became extinct, its place being taken by the house of Habsburg-Lorraine, which sprang from the union of Maria Theresa and Francis Stephen; and it is interesting to note that the present Habsburgs are only descended in the female line from Rudolph I. and Maximilian I.

790

GENEALOGICAL TABLE OF THE HOUSE OF HABSBURG-LORRAINE.

791

Immediately after the death of Charles the Pragmatic Sanction was forgotten. A crowd of claimants called for various parts of the Habsburg lands; Frederick the Great, talking less but acting more, invaded and conquered Silesia, and it seemed likely that the dissolution of the Habsburg monarchy would at no long interval follow the extinction of the Habsburg race. A Wittelsbach prince, Charles Albert, elector of Bavaria, the emperor Charles VII., and not Francis Stephen, was chosen emperor in January 1742, and by the treaty of Breslau, made later in the same year, nearly all Silesia was formally surrendered to Prussia. But the worst was now over, and when in 1748 the peace of Aix-la-Chapelle, which practically confirmed the treaty of Breslau, had cleared away the dust of war, Maria Theresa and her consort were found to occupy a strong position in Europe. In the first place, in September 1745, Francis had been chosen emperor; then the imperial pair ruled Hungary and Bohemia, although the latter kingdom was shorn of Silesia; in spite of French conquests the Austrian Netherlands remained in their hands; and in Italy Francis had added Tuscany to his wife’s heritage, although Parma and Piacenza had been surrendered to Spain and part of Milan to the king of Sardinia. The diplomatic volte-face and the futile attempts of Maria Theresa to recover Silesia which followed this treaty belong to the general history of Europe.

The emperor Francis I. died in 1765 and was succeeded by his son Joseph II., an ambitious and able prince, whose aim was to restore the Habsburgs and the Empire to their former great positions in Europe, and whose pride did not prevent him from learning from Frederick the Great, the despoiler of his house. His projects, however, including one of uniting Bavaria with Austria, which was especially cherished, failed completely, and when he died in February 1790 he left his lands in a state of turbulence which reflected the general condition of Europe. The Netherlands had risen against the Austrians, and in January 1790 had declared themselves independent; Hungary, angered by Joseph’s despotic measures, was in revolt, and the other parts of the monarchy were hardly more contented. But the 18th century saw a few successes for the Habsburgs. In 1718 a successful war with Turkey was ended by the peace of Passarowitz, which advanced the Austrian boundary very considerably to the east, and although by the treaty of Belgrade, signed twenty-one years later, a large part of this territory was surrendered, yet a residuum, the banate of Temesvar, was permanently incorporated with Hungary. The struggle over the succession to Bavaria, which was concluded in 1779 by the treaty of Teschen, was responsible for adding Innviertel, or the quarter of the Inn, to Austria; the first partition of Poland brought eastern Galicia and Lodomeria, and in 1777 the sultan ceded Bukovina. Joseph II. was followed by his brother, Leopold II., who restored the Austrian authority in the Netherlands, and the latter by his son Francis II., who resigned the crown of the Holy Roman Empire in August 1806, having two years before taken the title of emperor of Austria as Francis I.

Before the abdication of the emperor Francis in 1806 Austria had met and suffered from the fury of revolutionary France, but the cessions of territory made by her at the treaties of Campo Formio (1797), of Lunéville (1801) and of Pressburg (1805) were of no enduring importance. This, however, cannot be said for the treaties of Paris and of Vienna, which in 1814 and 1815 arranged the map of Europe upon the conclusion of the Napoleonic wars. These were highly favourable to the Habsburgs. In eastern and central Europe Austria regained her former position, the lands ceded to Bavaria and also eastern Galicia, which had been in the hands of Russia since 1809, being restored; she gave up the Austrian Netherlands, soon to be known as Belgium, to the new kingdom of the Netherlands, and acquiesced in the arrangement which had taken from her the Breisgau and the remnant of the Habsburg lands upon the Rhine. In return for these losses Austria became the dominant power In Italy. A mass of northern Italy, including her former possessions in Milan and the neighbourhood, and also the lands recently forming the republic of Venice, was made into the kingdom of Lombardy-Venetia, and this owned the emperor of Austria as king. Across the Adriatic Dalmatia was added to the Habsburg monarchy, the population of which, it has been estimated, was increased at this time by over four millions.

The illiberal and oppressive character of the Austrian rule in Italy made it very unpopular; it was hardly less so in Hungary and Bohemia, and the advent of the year 1848 found the subject kingdoms eager to throw off the Habsburg yoke. The whole monarchy was quickly in a state of revolution, in the midst of which the emperor Ferdinand, who had succeeded his father Francis in 1835, abdicated, and his place was taken by his young nephew Francis Joseph. The position of the Habsburg monarchy now seemed desperate. But it was strong in its immemorial tradition, which was enough to make the efforts of the Frankfort parliament to establish German unity under Prussian hegemony abortive; it was strong also in the general loyalty to the throne of the imperial army; and its counsels were directed by statesmen who knew well how to exploit in the interests of the central power the national rivalries within the monarchy. With the crushing of the Hungarian revolt by the emperor Nicholas I. of Russia in 1849 the monarchy was freed from the most formidable of its internal troubles; in 1850 the convention of Olmütz restored its influence in Germany.

Though the status quo was thus outwardly re-established, the revolutions of 1848 had really unchained forces which made its maintenance impossible. In Germany Prussia was steadily preparing for the inevitable struggle with Austria for the mastery; in France Napoleon III. was preparing to pose as the champion of the oppressed nationalities which had once more settled down sullenly under the Habsburg yoke. The alliance of the French emperor and the king of Sardinia, and the Italian war of 1859 ended in the loss of Lombardy to the Habsburgs. Seven years later the crushing defeat of Königgrätz not only ended their long rule in Italy, based on the tradition of the medieval empire, by leading to the cession of Venetia to the new Italian kingdom, but led to their final exclusion from the German confederation, soon to become, under the headship of Prussia, the German empire.

By the loss of the predominance in Germany conceded to it by the treaties of Vienna, and by the shifting of its “centre of gravity” eastward, the Habsburg monarchy, however, perhaps gained more than it lost. One necessary result, indeed, was the composition (Ausgleich) with Hungary in 1867, by which the latter became an independent state (Francis Joseph being crowned king at Pest in June 1867) bound to the rest of the monarchy only by the machinery necessary for the carrying out of a common policy in matters of common interest. This at least restored the loyalty of the Hungarians to the Habsburg dynasty; it is too soon yet to say that it secured permanently the essential unity of the Habsburg monarchy. By the system of the Dual Monarchy the rest of the Austrian emperor’s dominions (Cis-Leithan) were consolidated under a single central government, the history of which has been mainly that of the rival races within the empire struggling for political predominance. Since the development of the constitution has been consistently in a democratic direction and the Slavs are in a great majority, the tendency has been for the German element—strong in its social status and tradition of predominance—to be swamped by what it regards as an inferior race; and a considerable number of Austrian “Germans” have learned to look not to their Habsburg rulers, but to the power of the German empire for political salvation. The tendency eastwards of the monarchy was increased when in 1878 the congress of Berlin placed Bosnia and Herzegovina under Austrian rule. Old ambitions were now revived at the expense of the Ottoman empire, the goal of which was the port of Salonica; and not the least menacing aspect of the question of the near East has been that the rivalry of Italy and the Habsburg monarchy has been transferred to the Balkan peninsula. Yet, in spite of internal 792 dissensions arising out of questions fundamentally insoluble, and in spite of the constant threat of external complications that may lead to war, the Habsburg monarchy as the result of the changes in the 19th and 20th centuries is seemingly stronger than ever. The shadow of universal claims to empire and sonorous but empty titles have vanished, but so have the manifold rivalries and entanglements which accompanied the Habsburg rule in Italy and the Netherlands and Habsburg preponderance in Germany. The monarchy is stronger because its sphere is more defined; because as preserving the pax Romana among the jostling races of eastern Europe, it is more than ever recognized as an essential element in the maintenance of European peace, and is recognized as necessary and beneficial even by the ambitious and restless nationalities that chafe under its rule.

A few words must be said about the cadet branches of the Habsburg family. When, in 1765, Francis I. died and Joseph II. became emperor, the grand-duchy of Tuscany passed by special arrangement not to Joseph, but to his younger brother Leopold. Then in 1791, after Leopold had succeeded Joseph as emperor, he handed over the grand-duchy to his second son, Ferdinand (1769-1824). In 1801 this prince was deposed by Napoleon and Tuscany was seized by France. Restored to the Habsburgs in the person of Ferdinand in 1814, it remained under his rule, and then under that of his son Leopold (1797-1870), until the rising of 1859, when the Austrians were driven out and the grand-duchy was added to the kingdom of Sardinia. A similar fate attended the duchy of Modena, which had passed to the Habsburgs through the marriage of its heiress Mary Beatrice of Este (d. 1829) with the archduke Ferdinand (1754-1806), brother of the emperor Leopold II. From 1814 to 1846 this duchy was governed by Ferdinand’s son, Duke Francis IV., and from 1846 to 1859 by his grandson, Francis V. This family became extinct on the death of Francis V. in 1875.

In addition to his successor Francis II., and to Ferdinand, grand-duke of Tuscany, the emperor Leopold II. had eight sons, five of whom, including the archduke John (1782-1859), who saw a good deal of service during the Napoleonic Wars and was chosen regent (Reichsverweser) of Germany in 1848, have now no living male descendants. Thus the existing branches of the family are descended from Leopold’s five other sons. The descendants of Leopold, the dispossessed grand-duke of Tuscany, were in 1909 represented by his son, Ferdinand (b. 1835), who still claimed the title of grand-duke of Tuscany, and his son and grandsons; by the numerous descendants of the archduke Charles Salvator (1830-1892); and by the archduke Louis Salvator (b. 1847), a great traveller and a voluminous writer. The grand-duke’s fourth son was the archduke John Nepomuck Salvator, who, after serving in the Austrian army, resigned all his rights and titles and under the name of Johann Orth took command of a sailing vessel. He is supposed to have been drowned off the coast of South America in 1891, but reports of his continued existence were circulated from time to time after that date. Of the emperor Leopold’s other sons the archduke Charles, perhaps the most distinguished soldier of the family, left four sons, including Albert, duke of Teschen (1817-1895), who inherited some of his father’s military ability. Charles’s family was in 1909 represented by his grandsons, the sons of the archduke Charles Ferdinand (1818-1874). The archduke Joseph (1776-1847), palatine of Hungary, was represented by a grandson, Joseph Augustus (b. 1872), and the archduke Rainer (1783-1853), viceroy of Lombardy-Venetia, by a son Rainer (b. 1827), and by several grandsons.

The eldest and reigning branch of the family was in 1909 represented by the emperor Francis Joseph, whose father was the archduke Francis Charles (1802-1878), and whose grandfather was the emperor Francis II. Francis Joseph’s only son Rudolph died in 1889; consequently the heir to the Habsburg monarchy was the emperor’s nephew Francis Ferdinand (b. 1863), the eldest of the three sons of his brother Charles Louis (1833-1896). In 1875 Francis Ferdinand inherited the wealth of the Este family and took the title of archduke of Austria-Este; in 1900 he contracted a morganatic marriage with Sophia, countess of Chotek, renouncing for his sons the succession to the monarchy. Thus after Francis Ferdinand this would pass to the sons of his brother, the archduke Otto (1865-1906). One of the emperor’s three brothers was Maximilian, emperor of Mexico from 1863 to 1867.

With the exception of Charles V. the Habsburgs have produced no statesmen of great ability, while several members of the family have displayed marked traces of insanity. Nevertheless they secured, and for over 350 years they kept, the first place among the potentates of Europe; a dignity in origin and theory elective becoming in practice hereditary in their house. This position they owe to some extent to the tenacity with which they have clung to the various lands and dignities which have passed into their possession, but they owe it much more to a series of fortunate marriages and opportune deaths. The union of Maximilian and Mary of Burgundy, of Philip the Handsome and Joanna of Spain, of Ferdinand and Anna of Hungary and Bohemia; the death of Ottakar of Bohemia, of John, the only son of Ferdinand and Isabella of Spain, of Louis of Hungary and Bohemia—these are the corner-stones upon which the Habsburg monarchy has been built.

HACHETTE, JEAN NICOLAS PIERRE (1769-1834), French mathematician, was born at Mézières, where his father was a bookseller, on the 6th of May 1769. For his early education he proceeded first to the college of Charleville, and afterwards to that of Reims. In 1788 he returned to Mézières, where he was attached to the school of engineering as draughtsman to the professors of physics and chemistry. In 1793 he became professor of hydrography at Collioure and Port-Vendre. While there he sent several papers, in which some questions of navigation were treated geometrically, to Gaspard Monge, at that time minister of marine, through whose influence he obtained an appointment in Paris. Towards the close of 1794, when the École Polytechnique was established, he was appointed along with Monge over the department of descriptive geometry. There he instructed some of the ablest Frenchmen of the day, among them S. D. Poisson, F. Arago and A. Fresnel. Accompanying Guyton de Morveau in his expedition, earlier in the year, he was present at the battle of Fleurus, and entered Brussels with the French army. In 1816, on the accession of Louis XVIII., he was expelled from his chair by government. He retained, however, till his death the office of professor in the faculty of sciences in the École Normale, to which he had been appointed in 1810. The necessary royal assent was in 1823 refused to the election of Hachette to the Académie des Sciences, and it was not till 1831, after the Revolution, that he obtained that honour. He died at Paris on the 16th of January 1834. Hachette was held in high esteem for his private worth, as well as for his scientific attainments and great public services. His labours were chiefly in the field of descriptive geometry, with its application to the arts and mechanical engineering. It was left to him to develop the geometry of Monge, and to him also is due in great measure the rapid advancement which France made soon after the establishment of the École Polytechnique in the construction of machinery.

HACHETTE, JEANNE, French heroine. Jeanne Lainé, or Fourquet, called Jeanne Hachette, was born about 1454. We have no precise information about her family or origin. She is known solely for her act of heroism which on the 27th of June 1472 saved Beauvais when it was on the point of being taken by the troops of Charles the Bold, duke of Burgundy. The town was defended by only 300 men-at-arms, commanded by Louis de Balagny. The Burgundians were making an assault, and one of their number had actually planted a flag upon the battlements, when Jeanne, axe in hand, flung herself upon him, hurled him into the moat, tore down the flag, and revived the drooping courage of the garrison. In gratitude for this heroic deed, Louis XI. instituted a procession in Beauvais called the Procession of the Assault, and married Jeanne to her chosen lover Colin Pilon, loading them with favours.

HACHETTE, LOUIS CHRISTOPHE FRANÇOIS (1800-1864), French publisher, was born at Rethel in the Ardennes on the 5th of May 1800. After studying three years at a normal school with the view of becoming a teacher, he was in 1822 on political grounds expelled from the seminary. He then studied law, but in 1826 he established in Paris a publishing business for the issue of works adapted to improve the system of school instruction, or to promote the general culture of the community. He published manuals in various departments of knowledge, dictionaries of modern and ancient languages, educational journals, and French, Latin and Greek classics annotated with great care by the most eminent authorities. Subsequently to 1850 he, in conjunction with other partners, published a cheap railway library, scientific and miscellaneous libraries, an illustrated library for the young, libraries of ancient literature, of modern foreign literature, and of modern foreign romance, a series of guide-books and a series of dictionaries of universal reference. In 1855 he also founded Le Journal pour tous, a publication with a circulation of 150,000 weekly. Hachette also manifested great interest in the formation of mutual friendly societies among the working classes, in the establishment of benevolent institutions, and in other questions relating to the amelioration of the poor, on which subjects he wrote various pamphlets; and he lent the weight of his influence towards a just settlement of the question of international literary copyright. He died on the 31st of July 1864.

HACHURE (French for “hatching”), the term for the conventional lines used in hill or mountain shading upon a map (q.v.) to indicate the slope of the surface, the depth of shading being greatest where the slope is steepest. The method is less accurate than that of contour lines, but gives an indication of the trend and extent of a range or mountain system, especially upon small-scale maps.

HACIENDA (O. Span, facienda, from the Latin, meaning “things to be done”), a Spanish term for a landed estate. It is commonly applied in Spanish America to a country estate, on which stock-raising, manufacturing or mining may be carried on, usually with a dwelling-house for the owner’s residence upon it. It is thus used loosely for a country house.

HACKBERRY, a name given to the fruit of Celtis occidentalis, belonging to the natural botanical order Ulmaceae, to which also belongs the elm (Ulmus). It is also known under the name of “sugar-berry,” “beaver-wood” and “nettle-tree.” The hackberry tree is of middle size, attaining from 60 to 80 ft. in height (though sometimes reaching 130 ft.), and with the aspect of an elm. The leaves are ovate in shape, with a very long taper point, rounded and usually very oblique at the base, usually glabrous above and soft-pubescent beneath. The soft filmy flowers appear early in the spring before the expansion of the leaves. The fruit is oblong, about half to three-quarters of an inch long, of a reddish or yellowish colour when young, turning to a dark purple in autumn. This tree is distributed through the deep shady forests bordering river banks from Canada (where it is very rare) to the southern states. The fruit has a sweetish and slightly astringent taste, and is largely eaten in the United States. The seeds contain an oil like that of almonds. The bark is tough and fibrous like hemp, and the wood is heavy, soft, fragile and coarse-grained, and is used for making fences and furniture. The root has been used as a dye for linens.

HACKENSACK, a town and the county-seat of Bergen county, New Jersey, U.S.A., on the Hackensack river, 13 m. N. of Jersey City. Pop. (1890), 6004; (1900), 9443, of whom 2009 were foreign-born and 515 were negroes; (1905) 11,098; (1910) 14,050. It is served by the New York, Susquehanna & Western, and the New Jersey & New York railways, both being controlled by the Erie Company; and indirectly by the West Shore (at Bogota, ½ m. S.E.). Electric lines connect Hackensack with Newark, Passaic and Paterson, and with New York ferries. The town extends from the low bank of the river W. to the top of a ridge, about 40 ft. higher up, from which there are good views to the S. and E. Hackensack is principally a residential town, though there are a number of manufacturing establishments in and near it. Silk and silk goods and wall-paper are the principal manufactures. In 1905 the value of the town’s factory product was $1,488,358, an increase of 90.3% since 1900. There are an historic mansion-house and an interesting old Dutch church, both erected during the 18th century; and a monument marks the grave of General Enoch Poor (1736-1780), an officer in the War of Independence, who was born at Andover, Mass., entered the Continental Army from New Hampshire, and took part in the campaign against Burgoyne, in the battle of Monmouth and in General Sullivan’s expedition against the Iroquois. Hackensack was settled by the Dutch about 1640, and was named after the Hackensack Indians, a division of the Unami Delawares, who lived in the valleys of the Hackensack and Passaic rivers, and whose best-known chief was Oritany, a friend of the whites. Hackensack is coextensive with the township of New Barbadoes, first incorporated with considerably larger territory in 1693.

HACKET, JOHN (1592-1670), bishop of Lichfield and Coventry, was born in London and educated at Westminster and Trinity College, Cambridge. On taking his degree he was elected a fellow of his college, and soon afterwards wrote the comedy of Loiola (London, 1648), which was twice performed before James I. He was ordained in 1618, and through the influence of John Williams (1582-1650) became rector in 1621 of Stoke Hammond, Bucks, and Kirkby Underwood, Lincolnshire. In 1623 he was chaplain to James, and in 1624 Williams presented him to the livings of St Andrew’s, Holborn, and Cheam, Surrey. When the so-called “root-and-branch bill” was before parliament in 1641, Hacket was selected to plead in the House of Commons for the continuance of cathedral establishments. In 1645 his living of St Andrew’s was sequestered, but he was allowed to retain the rectory of Cheam. On the accession of Charles II. his fortunes improved; he frequently preached before the king, and in 1661 was consecrated bishop of Lichfield and Coventry. His best-known book is the excellent biography of his patron, Archbishop Williams, entitled Scrinia reserata: a Memorial offered to the great Deservings of John Williams, D.D. (London, 1693).

HACKETT, HORATIO BALCH (1808-1875), American biblical scholar, was born in Salisbury, Massachusetts, on the 27th of December 1808. He was educated at Phillips-Andover Academy, at Amherst College, where he graduated as valedictorian in 1830, and at Andover Theological Seminary, where he graduated in 1834. He was adjunct professor of Latin and Greek Languages and Literature at Brown University in 1835-1838 and professor of Hebrew Literature there in 1838-1839, was ordained to the Baptist ministry in 1839—he had become a Baptist at Andover as the result of preparing a paper on baptism in the New Testament and the Fathers—and in 1839-1868 he was professor of 794 Biblical literature and interpretation in Newton Theological Institution where his most important work was the introduction of the modern German methods of Biblical criticism, which he had learned from Moses Stuart at Andover and with which he made himself more familiar in Germany (especially under Tholuck at Halle) in 1841. He travelled in Egypt and Palestine in 1852, and in 1858-1859 in Greece, becoming proficient in modern Greek. From 1870 until his death in Rochester, New York, on the 2nd of November 1875, he was professor of Biblical literature and New Testament exegesis in the Rochester Theological Seminary. He was a great teacher but a greater critical and exegetical scholar.

HACKETT, JAMES HENRY (1800-1871), American actor, was born in New York. After an unsuccessful entry into business, in 1826 he went on the stage, where he soon established a reputation as a player of eccentric character parts. As Falstaff he was no less successful in England than in America. At various times he went into management, and he was the author of Notes and Comments on Shakespeare (1863).

His son, James Keteltas Hackett (1869-  ), born at Wolfe Island, Ontario, and educated at the College of the City of New York, also became an actor. He came into prominence at the Lyceum in Daniel Frohman’s company, and afterwards had considerable success in romantic parts. As a manager he stood outside the American syndicate of theatres, and organized several companies to play throughout the United States. In 1897 he married Mary Mannering, the Anglo-American actress.

HACKLÄNDER, FRIEDRICH WILHELM VON (1816-1877), German novelist and dramatist, was born at Burtscheid near Aix-la-Chapelle on the 1st of November 1816. Having served an apprenticeship in a commercial house, he entered the Prussian artillery, but, disappointed at not finding advancement, returned to business. A soldier’s life had a fascination for him, and he made his début as an author with Bilder aus dem Soldatenleben im Frieden (1841). After a journey to the east, he was appointed secretary to the crown prince of Württemberg, whom he accompanied on his travels. Wachtstubenabenteuer, a continuation of his first work, appeared in 1845, and it was followed by Bilder aus dem Soldatenleben im Kriege (1849-1850). As a result of a tour in Spain in 1854, appeared Ein Winter in Spanien (1855). In 1857 he founded, in conjunction with Edmund von Zoller, the illustrated weekly, Über Land und Meer. In 1859 Hackländer was appointed director of royal parks and public gardens at Stuttgart, and in this post did much towards the embellishment of the city. In 1859 he was attached to the headquarters staff of the Austrian army during the Italian war; in 1861 he was raised to an hereditary knighthood in Austria; in 1864 he retired into private life, and died on the 6th of July 1877. Hackländer’s literary talent is confined within narrow limits. There is much in his works of lively, adventurous and even romantic description, but the character-drawing is feeble and superficial.

HACKNEY, a north-eastern metropolitan borough of London, England, bounded W. by Stoke Newington and Islington, and S. by Shoreditch, Bethnal Green and Poplar, and extending N. and E. to the boundary of the county of London. Pop. (1901), 219,272. It is a poor and populous district, in which the main thoroughfares are Kingsland Road, continued N. as Stoke Newington Road and Stamford Hill; Mare Street, continued N.W. as Clapton Road to join Stamford Hill; and Lea Bridge Road running N.E. towards Walthamstow and Low Leyton. The borough includes the districts of Clapton in the north, Homerton in the east, and Dalston and part of Kingsland in the west. On the east lies the open flat valley of the Lea, which flows in several branches, and is bordered, immediately outside the confines of the borough, by the extensive reservoirs of the East London water-works. In these low lands lie the Hackney Marshes (338 acres; among several so-called marshes in the Lea valley), and the borough also contains part of Victoria Park and a number of open spaces collectively called the Hackney Commons, including Mill Fields, Hackney Downs, London Fields, &c. The total area of open spaces exceeds 500 acres. The tower of the ancient parish church of St Augustine, with the chapel of the Rowe family, still stands, and is the only historic building of importance. Among institutions are the German hospital, Dalston, Metropolitan hospital, Kingsland Road, and Eastern Fever hospital, Homerton; and the Hackney polytechnic institute, with which is incorporated the Sir John Cass institute. Cass (1666-1718), a merchant of the city of London, also a member of parliament and sheriff, bequeathed £1000 for the foundation of a free school; in 1732 the bequest was increased in accordance with an unfinished codicil to his will; and the income provided from it is now about £6000, some 250 boys and girls being educated. The parliamentary borough of Hackney comprises north, central and south divisions, each returning one member; and the northern division includes the metropolitan borough of Stoke Newington. The metropolitan borough of Hackney includes part of the Hornsey parliamentary division of Middlesex. The borough council consists of a mayor, 10 aldermen and 60 councillors. Area, 3288.9 acres.

In the 13th century the name appears as Hackenaye or Hacquenye, but no certain derivation is advanced. Roman and other remains have been found in Hackney Marshes. In 1290 the bishop of London was lord of the manor, which was so held until 1550, when it was granted to Thomas, Lord Wentworth. In 1697 it came into the hands of the Tyssen family. Extensive property in the parish also belonged to the priory of the Knights Hospitallers of St John of Jerusalem at Clerkenwell. From the 16th to the early 19th century there were many fine residences in Hackney. The neighbourhood of Hackney had at one time an evil reputation as the haunt of highwaymen.

HACKNEY (from Fr. haquenée, Lat. equus, an ambling horse or mare, especially for ladies to ride; the English “hack” is simply an abbreviation), originally a riding-horse. At the present day, however, the hackney (as opposed to a thoroughbred) is bred for driving as well as riding (see Horse: Breeds). From the hiring-out of hackneys, the word came to be associated with employment for hire (so “a hack,” as a general term for “drudge”), especially in combination, e.g. hackney-chair, hackney-coach, hackney-boat. The hackney-coach, a coach with four wheels and two horses, was a form of hired public conveyance (see Carriage).

HADAD, the name of a Syrian deity, is met with in the Old Testament as the name of several human persons; it also occurs in compound forms like Benhadad and Hadadezer. The divinity primarily denoted by it is the storm-god who was known also as Ramman, Bir and Dadda. The Syrian kings of Damascus seem to have habitually assumed the title of Benhadad, or son of Hadad (three of this name are mentioned in Scripture), just as a series of Egyptian monarchs are known to have been 795 accustomed to call themselves sons of Amon-Ra. The word Hadadrimmon, for which the inferior reading Hadarrimmon is found in some MSS. in the phrase “the mourning of (or at) Hadadrimmon” (Zech. xii. 11), has been a subject of much discussion. According to Jerome and all the older Christian interpreters, the mourning for something that occurred at a place called Hadadrimmon (Maximianopolis) in the valley of Megiddo is meant, the event alluded to being generally held to be the death of Josiah (or, as in the Targum, the death of Ahab at the hands of Hadadrimmon); but more recently the opinion has been gaining ground that Hadadrimmon is merely another name for Adonis (q.v.) or Tammuz, the allusion being to the mournings by which the Adonis festivals were usually accompanied (Hitzig on Zech. xii. 11, Isa. xvii. 8; Movers, Phönizier, i. 196). T. K. Cheyne (Encycl. Bibl. s.v.) points out that the Septuagint reads simply Rimmon, and argues that this may be a corruption of Migdon (Megiddo), in itself a corruption of Tammuz-Adon. He would render the verse, “In that day there shall be a great mourning in Jerusalem, as the mourning of the women who weep for Tammuz-Adon” (Adon means lord).

HADDINGTON, EARL OF, a Scottish title bestowed in 1627 upon Thomas Hamilton, earl of Melrose (1563-1637). Thomas, who was a member of the great family of Hamilton, being a son of Thomas Hamilton of Priestfield, was a lawyer who became a lord of session as Lord Drumcairn in 1592. He was on very friendly terms with James VI., his legal talents being useful to the king, and he was one of the eight men who, called the Octavians, were appointed to manage the finances of Scotland in 1596. Having also become king’s advocate in 1596, Hamilton was entrusted with a large share in the government of his country when James went to London in 1603; in 1612 he was appointed secretary of state for Scotland, and in 1613 he was created Lord Binning and Byres. In 1616 he became lord president of the court of session, and three years later was created earl of Melrose, a title which he exchanged in 1627 for that of earl of Haddington. After the death of James I. the earl resigned his offices of president of the court of session and secretary of state, but he served Charles I. as lord privy seal. He died on the 29th of May 1637. Haddington, who was both scholarly and wealthy, left a large and valuable collection of papers, which is now in the Advocates’ library at Edinburgh. James referred familiarly to his friend as Tam o’ the Cowgate, his Edinburgh residence being in this street.

The earl’s eldest son Thomas, the 2nd earl (1600-1640), was a covenanter and a soldier, being killed by an explosion at Dunglass castle on the 30th of August 1640. His sons, Thomas (d. 1645) and John (d. 1669), became respectively the 3rd and 4th earls of Haddington, and John’s grandson Thomas (1679-1735) succeeded his father Charles (c. 1650-1685), as 6th earl in 1685, although he was not the eldest but the second son. This curious circumstance arose from the fact that when Charles married Margaret (d. 1700), the heiress of the earldom of Rothes, it was agreed that the two earldoms should be left separate; thus the eldest son John became earl of Rothes while Thomas became earl of Haddington. Thomas was a supporter of George I. during the rising of 1715, and was a representative peer for Scotland from 1716 to 1734. He died on the 28th of November 1735.

The 6th earl was a writer, but in this direction his elder son, Charles, Lord Binning (1697-1732), is perhaps more celebrated. After fighting by his father’s side at Sheriffmuir in 1715 and serving as member of parliament for St Germans, Binning died at Naples on the 27th of December 1732. His eldest son, Thomas (c. 1720-1794), became the 7th earl in 1735, and the latter’s grandson Thomas (1780-1858) became the 9th earl in 1828. The 9th earl had been a member of parliament from 1802 to 1827, when he was made a peer of the United Kingdom as Baron Melros of Tyninghame, a title which became extinct upon his death. In 1834 he became lord-lieutenant of Ireland under Sir Robert Peel, leaving office in the following year, and in Peel’s second administration (1841-1846) he served as first lord of the admiralty and then as lord privy seal. When he died without sons on the 1st of December 1858 the earldom passed to his kinsman, George Baillie (1802-1870), a descendant of the 6th earl. This nobleman took the name of Baillie-Hamilton, and his son George (b. 1827) became 11th earl of Haddington in 1870.

HADDINGTON, a royal, municipal and police burgh, and county town of Haddingtonshire, Scotland. Pop. (1901), 3993. It is situated on the Tyne, 18 m. E. of Edinburgh by the North British railway, being the terminus of a branch line from Longniddry Junction. Five bridges cross the river, on the right bank of which lies the old and somewhat decayed suburb of Nungate, interesting as having contained the Giffordgate, where John Knox was born, and where also are the ruins of the pre-Reformation chapel of St Martin. The principal building in the town is St Mary’s church, a cruciform Decorated edifice in red sandstone, probably dating from the 13th century. It is 210 ft. long, and is surmounted by a square tower 90 ft. high. The nave, restored in 1892, is used as the parish church, but the choir and transepts are roofless, though otherwise kept in repair. In a vault is a fine monument in alabaster, consisting of the recumbent figures of John, Lord Maitland of Thirlestane (1545-1595), chancellor of Scotland, and his wife. The laudatory sonnet composed by James VI. is inscribed on the tomb. In the same vault John, duke of Lauderdale (1616-1682), is buried. In the choir is the tombstone which Carlyle erected over the grave of his wife, Jane Baillie Welsh (1801-1866), a native of the town. Other public edifices include the county buildings in the Tudor style, in front of which stands the monument to George, 8th marquess of Tweeddale (1787-1876), who was such an expert and enthusiastic coachman that he once drove the mail from London to Haddington without taking rest; the corn exchange, next to that of Edinburgh the largest in Scotland; the town house, with a spire 150 ft. high, in front of which is a monument to John Home, the author of Douglas; the district asylum to the north of the burgh; the western district hospital; the Tenterfield home for children; the free library and the Knox Memorial Institute. This last-named building was erected in 1879 to replace the old and famous grammar school, where John Knox, William Dunbar, John Major and possibly George Buchanan and Sir David Lindsay were educated. John Brown (1722-1787), a once celebrated dissenting divine, author of the Self-Interpreting Bible, ministered in the burgh for 36 years and is buried there; his son John the theologian (1754-1832), and his grandson Samuel (1817-1856), the chemist, noted for his inquiries into the atomic theory, were natives. Samuel Smiles (1812-1904), author of Character, Self-Help and other works, was also born there, and Edward Irving was for years mathematical master in the grammar school. In Hardgate Street is “Bothwell Castle,” the town house of the earl of Bothwell, where Mary Queen of Scots rested on her way to Dunbar. The ancient market cross has been restored. The leading industries are the making of agricultural implements, manufactures of woollens and sacking, brewing, tanning and coach-building, besides corn mills and engineering works.

The burgh is the retail centre for a large district, and its grain markets, once the largest in Scotland, are still of considerable importance. Haddington was created a royal burgh by David I. It also received charters from Robert Bruce, Robert II. and James VI. In 1139 it was given as a dowry to Ada, daughter of William de Warenne, earl of Surrey, on her marriage to Prince Henry, the only son of David I. It was occasionally the residence of royalty, and Alexander II. was born there in 1198. Lying in the direct road of the English invaders, the town was often ravaged. It was burned by King John in 1216 and by Henry III. in 1244. Fortified in 1548 by Lord Grey of Wilton, the English commander, it was besieged next year by the Scots and French, who forced the garrison to withdraw. So much slaughter had gone on during that period of storm and stress that it was long impossible to excavate in any direction without coming 796 on human remains. The town has suffered much periodically from floods. One of the most memorable of these occurred on the 4th of October 1775, when the Tyne rose 8 ft. 9 in. above its bed and inundated a great part of the burgh. An inscription in the centre of the town records the event and marks the point to which the water rose.

HADDINGTONSHIRE, or East Lothian, a south-eastern county of Scotland, bounded N. by the Firth of Forth, N.E. by the North Sea, E., S.E. and S. by Berwickshire, and S.W. and W. by Edinburghshire. It covers an area of 171,011 acres, or 267 sq. m. Its sea-coast measures 41 m. The Bass Rock and Fidra Isle belong to the shire, and there are numerous rocks and reefs off the shore, especially between Dunbar and Gullane Bay. Broadly speaking, the northern half of the shire slopes gently to the coast, and the southern half is hilly. Several of the peaks of the Lammermuirs exceed 1500 ft., and the more level tract is broken by Traprain Law (724) in the parish of Prestonkirk, North Berwick Law (612), and Garleton Hill (590) to the north of the county town. The only important river is the Tyne, which rises to the south-east of Borthwick in Mid-Lothian, and, taking a generally north-easterly direction, reaches the sea just beyond the park of Tynninghame House, after a course of 28 m., for the first 7 m. of which it belongs to its parent shire. It is noted for a very fine variety of trout, and salmon are sometimes taken below the linn at East Linton. The Whiteadder rises in the parish of Whittingehame, but, flowing towards the south-east, leaves the shire and at last joins the Tweed near Berwick. There are no natural lakes, but in the parish of Stenton is found Pressmennan Loch, an artificial sheet of water of somewhat serpentine shape, about 2 m. in length, with a width of some 400 yds., which was constructed in 1819 by damming up the ravine in which it lies. The banks are wooded and picturesque, and the water abounds with trout.

Climate and Agriculture.—Though the county is exposed to the full sweep of the east wind during March, April and May, the climate is on the whole mild and equable. The rainfall is far below the average of Great Britain, the mean for the year being 25 in., highest in midsummer and lowest in spring. The average temperature for the year is 47°.5 F., for January 38° and for July 59°. Throughout nearly the whole of the 19th century East Lothian agriculture was held to be the best in Scotland, not so much in consequence of the natural fertility of the soil as because of the enterprise of the cultivators, several of whom, like George Hope of Fenton Barns (1811-1876), brought scientific farming almost to perfection. Mechanical appliances were adopted with exceptional alacrity, and indeed some that afterwards came into general use were first employed in Haddington. Drill sowing of turnips dates from 1734. The threshing machine was introduced by Andrew Meikle (1719-1811) in 1787, the steam plough in 1862, and the reaping machine soon after its invention, while tile draining was first extensively used in the county. East Lothian is famous for the richness of its grain and green crops, the size of its holdings (average 200 acres) and the good housing of its labourers. The soils vary. Much of the Lammermuirs is necessarily unproductive, though the lower slopes are cultivated, a considerable tract of the land being very good. In the centre of the shire occurs a belt of tenacious yellow clay on a tilly subsoil which is not adapted for agriculture. Along the coast the soil is sandy, but farther inland it is composed of rich loam and is very fertile. The land about Dunbar is the most productive, yielding a potato—the “Dunbar red”—which is highly esteemed in the markets. Of the grain crops oats and barley are the principal, and their acreage is almost a constant, but wheat, after a prolonged decline, has experienced a revival. Turnips and potatoes are cultivated extensively, and with marked success, and constitute nearly all the green crops raised. Although pasture-land is below the average, live-stock are reared profitably. About one-sixteenth of the total area is under wood.

Other Industries.—Fisheries are conducted from Dunbar, North Berwick, Port Seton and Prestonpans, the catch consisting chiefly of cod, haddock, whiting and shellfish. Fireclay as well as limestone is worked, and there are some stone quarries, but the manufactures are mainly agricultural implements, pottery, woollens, artificial manures, feeding-stuffs and salt, besides brewing. Coal of a very fair quality is extensively worked at Tranent, Ormiston, Macmerry and near Prestonpans, the coal-field having an area of about 30 sq. m. Limestone is found throughout the greater part of the shire. A vein of hematite of a peculiarly fine character was discovered in 1866 at Garleton Hill, and wrought for some years. Ironstone has been mined at Macmerry.

The North British Company possess the sole running powers in the county, through which is laid their main line to Berwick and the south. Branches are sent off at Drem to North Berwick, at Longniddry to Haddington and also to Gullane, at Smeaton (in Mid-Lothian) to Macmerry, and at Ormiston to Gifford.

Population and Government.—The population was 37,377 in 1891, and 38,665 in 1901, when 459 persons spoke Gaelic and English, and 7 spoke Gaelic only. The chief towns are Dunbar (pop. in 1901, 3581), Haddington (3993), North Berwick (2899), Prestonpans (2614) and Tranent (2584). The county, which returns one member to Parliament, forms part of the sheriffdom of the Lothians and Peebles, and there is a resident sheriff-substitute at Haddington, who sits also at Dunbar, Tranent 797 and North Berwick. The shire is under school-board jurisdiction, and besides high schools at Haddington and North Berwick, some of the elementary schools earn grants for higher education. The county council spends a proportion of the “residue” grant in supporting short courses of instruction in technical subjects (chiefly agriculture), in experiments in the feeding of cattle and the growing of crops, and in defraying the travelling expenses of technical students.

History.—Of the Celts, who were probably the earliest inhabitants, traces are found in a few place names and circular camps (in the parishes of Garvald and Whittinghame) and hill forts (in the parish of Bolton). After the Roman occupation, of which few traces remain, the district formed part of the Saxon kingdom of Northumbria until 1018, when it was joined to Scotland by Malcolm II. It was comparatively prosperous till the wars of Bruce and Baliol, but from that period down to the union of the kingdoms it suffered from its nearness to the Border and from civil strife. The last battles fought in the county were those of Dunbar (1650) and Prestonpans (1745).

HADDOCK (Gadus aeglefinus), a fish which differs from the cod in having the mental barbel very short, the first anal fin with 22 to 25 rays, instead of 17 to 20, and the lateral line dark instead of whitish; it has a large blackish spot above each pectoral fin—associated in legend with the marks of St Peter’s finger and thumb, the haddock being supposed to be the fish from whose mouth he took the tribute-money. It attains to a weight of 15 ℔ and is one of the most valuable food fishes of Europe, both fresh and smoked, the “finnan haddie” of Scotland being famous. It is common round the British and Irish coasts, and generally distributed along the shores of the North Sea, extending across the Atlantic to the coast of North America.

HADDON HALL, one of the most famous ancient mansions in England. It lies on the left bank of the river Wye, 2 m. S.E. of Bakewell in Derbyshire. It is not now used as a residence, but the fabric is maintained in order. The building is of stone and oblong in form, and encloses two quadrangles separated by the great banqueting-hall and adjoining chambers. The greater part is of two storeys, and surmounted by battlements. To the south and south-east lie terraced gardens, and the south front of the eastern quadrangle is occupied by the splendid ball-room or long gallery. At the south-west corner of the mansion is the chapel; at the north-east the Peveril tower. The periods of building represented are as follows. Norman work appears in the chapel (which also served as a church for the neighbouring villagers), also in certain fundamental parts of the fabric, notably the Peveril tower. There are Early English and later additions to the chapel; the banqueting-hall, with the great kitchen adjacent to it, and part of the Peveril tower are of the 14th century. The eastern range of rooms, including the state-room, are of the 15th century; the western and north-western parts were built shortly after 1500. The ball-room is of early 17th-century construction, and the terraces and gardens were laid out at this time. A large number of interesting contemporary fittings are preserved, especially in the banqueting-hall and kitchen; and many of the rooms are adorned with tapestries of the 16th and 17th centuries, some of which came from the famous works at Mortlake in Surrey.

A Roman altar was found and is preserved here, but no trace of Roman inhabitants has been discovered. Haddon was a manor which before the Conquest and at the time of the Domesday Survey belonged to the king, but was granted by William the Conqueror to William Peverel, whose son, another William Peverel, forfeited it for treason on the accession of Henry II. Before that time, however, the manor of Haddon had been granted to the family of Avenell, who continued to hold it until one William Avenell died without male issue and his property was divided between his two daughters and heirs, one of whom married Richard Vernon, whose successors acquired the other half of the manor in the reign of Edward III. Sir George Vernon, who died in 1561, was known as the “King of the Peak” on account of his hospitality. His daughter Dorothy married John Manners, second son of the earl of Rutland, who is said to have lived for some time in the woods round Haddon Hall, disguised as a gamekeeper, until he persuaded Dorothy to elope with him. On Sir George’s death without male issue Haddon passed to John Manners and Dorothy, who lived in the Hall. Their grandson John Manners succeeded to the title of earl of Rutland in 1641, and the duke of Rutland is still lord of the manor.

HADEN, SIR FRANCIS SEYMOUR (1818-1910), English surgeon and etcher, was born in London on the 16th of September 1818, his father, Charles Thomas Haden, being a well-known doctor and amateur of music. He was educated at University College school and University College, London, and also studied at the Sorbonne, Paris, where he took his degree in 1840. He was admitted as a member of the College of Surgeons in London in 1842. Besides his many-sided activities in the scientific world, during a busy and distinguished career as a surgeon, he followed the art of original etching with such vigour that he became not only the foremost British exponent of that art but was the principal cause of its revival in England. By his strenuous efforts and perseverance, aided by the secretarial ability of Sir W. R. Drake, he founded the Royal Society of Painter-Etchers and Engravers. As president he ruled the destinies of that society with a strong hand from its first beginnings in 1880. In 1843-1844, with his friends Duval, Le Cannes and Col. Guibout, he had travelled in Italy and made his first sketches from nature. Haden attended no art school and had no art teachers, but in 1845, 1846, 1847 and 1848 he studied portfolios of prints belonging to an old second-hand dealer named Love, who had a shop in Bunhill Row, the old Quaker quarter of London. These portfolios he would carry home, and arranging the prints in chronological order, he studied the works of the great original engravers, Dürer, Lucas van Leyden and Rembrandt. These studies, besides influencing his original work, led to his important monograph on the etched work of Rembrandt. By lecture and book, and with the aid of the memorable exhibition at the Burlington Fine Arts Club in 1877, he endeavoured to give a just idea of Rembrandt’s work, separating the true from the false, and giving altogether a nobler idea of the master’s mind by taking away from the list of his works many dull and unseemly plates that had long been included in the lists. His reasons are founded upon the results of a study of the master’s works in chronological order, and are clearly expressed in his monograph, The Etched Work of Rembrandt critically reconsidered, privately printed in 1877, and in The Etched Work of Rembrandt True and False (1895). Notwithstanding all this study of the old masters of his art, Haden’s own plates are perhaps more individual than any artist’s, and are particularly noticeable for a fine original treatment of landscape subjects, free and open in line, clear and well divided in mass, and full of a noble and dignified style of his own. Even when working from a picture his personality dominates the plate, as for example in the large plate he etched after J. M. W. Turner’s “Calais Pier,” which is a classical example of what interpretative work can do in black and white. Of his original plates, more than 250 in number, one of the most notable was the large “Breaking up of the Agamemnon.” An early plate, rare and most beautiful, is “Thames Fisherman.” “Mytton Hall” is broad in treatment, and a fine rendering of a shady avenue of yew trees leading to an old manor-house in sunlight. “Sub Tegmine” was etched in Greenwich Park in 1859; and “Early Morning—Richmond,” full of the poetry and freshness of the hour, was done, the artist has said, actually at sunrise. One of the rarest and most beautiful of his plates is “A By-Road in Tipperary”; “Combe Bottom” is another; and “Shere Mill Pond” (both the small study and the larger plate), “Sunset in 798 Ireland,” “Penton Hook,” “Grim Spain” and “Evening Fishing, Longparish,” are also notable examples of his genius. A catalogue of his works was begun by Sir William Drake and completed by Mr N. Harrington (1880). During later years Haden began to practise the sister art of mezzotint engraving, with a measure of the same success that he had already achieved in pure etching and in dry-point. Some of his mezzotints are: “An Early Riser,” a stag seen through the morning mists, “Grayling Fishing” and “A Salmon Pool on the Spey.” He also produced some remarkable drawings of trees and park-like country in charcoal.

Other books by Haden not already mentioned are—Études à l’eau forte (Paris, 1865); About Etching (London, 1878-1879); The Art of the Painter-Etcher (London, 1890); The Relative Claims of Etching and Engraving to rank as Fine Arts and to be represented in the Royal Academy (London, 1883); Address to Students of Winchester School of Art (Winchester, 1888); Cremation: a Pamphlet (London, 1875); and The Disposal of the Dead, a Plea for Legislation (London, 1888). As the last two indicate, he was an ardent champion of a system of “earth to earth” burial.

Among numerous distinctions he received the Grand Prix, Paris, in 1889 and 1900, and was made a member of the Institut de France, Académie des Beaux-Arts and Société des Artistes Français. He was knighted in 1894, and died on the 1st of June 1910. He married in 1847 a sister of the artist J. A. M. Whistler; and his elder son, Francis Seymour Haden (b. 1850), had a distinguished career as a member of the government in Natal from 1881 to 1893, being made a C.M.G. in 1890.

HADENDOA (from Beja Hada, chief, and endowa, people), a nomad tribe of Africans of “Hamitic” origin. They inhabit that part of the eastern Sudan extending from the Abyssinian frontier northward nearly to Suakin. They belong to the Beja people, of which, with the Bisharin and the Ababda, they are the modern representatives. They are a pastoral people, ruled by a hereditary chief who is directly responsible to the (Anglo-Egyptian) Sudan government. Although the official capital of the Hadendoa country is Miktinab, the town of Fillik on an affluent of the Atbara is really their headquarters. A third of the total population is settled in the Suakin country. Osman Digna, one of the best-known chiefs during the Madhia, was a Hadendoa, and the tribe contributed some of the fiercest of the dervish warriors in the wars of 1883-98. So determined were they in their opposition to the Anglo-Egyptian forces that the name Hadendoa grew to be nearly synonymous with “rebel.” But this was the result of Egyptian misgovernment rather than religious enthusiasm; for the Hadendoa are true Beja, and Mahommedans only in name. Their elaborate hairdressing gained them the name of “Fuzzy-wuzzies” among the British troops. They earned an unenviable reputation during the wars by their hideous mutilations of the dead on the battlefields. After the reconquest of the Egyptian Sudan (1896-98) the Hadendoa accepted the new order without demur.

HADERSLEBEN (Dan. Haderslev), a town of Germany, in the Prussian province of Schleswig-Holstein, 31 m. N. from Flensburg. Pop. (1905) 9289. It lies in a pleasant valley on the Hadersleben fjord, which is about 9 m. in length, and communicates with the Little Belt, and at the junction of the main line of railway from Woyens with three vicinal lines. The principal buildings are the beautiful church of St Mary, dating from the 13th century, the theological seminary established in 1870, the gymnasium and the hospital. The industries include iron-founding, tanning, and the manufacture of machines, tobacco and gloves. The harbour is only accessible to small vessels.

Hadersleben is first mentioned in 1228, and received municipal rights from Duke Waldemar II. in 1292. It suffered considerably during the wars between Schleswig and Holstein in the 15th century. In November 1864 it passed with Schleswig to Prussia. Two Danish kings, Frederick II. and Frederick III., were born at Hadersleben.

HADING, JANE (1859-  ), French actress, whose real name was Jeanne Alfrédine Tréfouret, was born on the 25th of November 1859 at Marseilles, where her father was an actor at the Gymnase. She was trained at the local Conservatoire and was engaged in 1873 for the theatre at Algiers, and afterwards for the Khedivial theatre at Cairo, where she played, in turn, coquette, soubrette and ingénue parts. Expectations had been raised by her voice, and when she returned to Marseilles she sang in operetta, besides acting in Ruy Blas. Her Paris début was in La Chaste Suzanne at the Palais Royal, and she was again heard in operetta at the Renaissance. In 1883 she had a great success at the Gymnase in Le Maître de forges. In 1884 she married Victor Koning (1842-1894), the manager of that theatre, but divorced him in 1887. In 1888 she toured America with Coquelin, and on her return helped to give success to Lavedan’s Prince d’Aurec, at the Vaudeville. Her reputation as one of the leading actresses of the day was now established not only in France but in America and England. Her later répertoire included Le Demi-monde, Capus’s La Châtelaine, Maurice Donnay’s Retour de Jérusalem, La Princesse Georges by Dumas fils, and Émile Bergerat’s Plus que reine.

HADLEIGH, a market town in the Sudbury parliamentary division of Suffolk, England; 70 m. N.E. from London, the terminus of a branch of the Great Eastern railway. Pop. of Urban district (1901), 3245. It lies pleasantly in a well-wooded country on the small river Brett, a tributary of the Stour. The church of St Mary is of good Perpendicular work, with Early English tower and Decorated spire. The Rectory Tower, a turreted gate-house of brick, dates from c. 1495. The gild-hall is a Tudor building, and there are other examples of this period. There are a town-hall and corn exchange, and an industry in the manufacture of matting and in malting. Hadleigh was one of the towns in which the woollen industry was started by Flemings, and survived until the 18th century. Among the rectors of Hadleigh several notable names appear, such as Rowland Taylor, the martyr, who was burned at the stake outside the town in 1555, and Hugh James Rose, during whose tenancy of the rectory an initiatory meeting of the leaders of the Oxford Movement took place here in 1833.

Hadleigh, called by the Saxons Heapde-leag, appears in Domesday Book as Hetlega. About 885 Æthelflæd, lady of the Mercians, with the consent of Æthelred her husband, gave Hadleigh to Christ Church, Canterbury. The dean and chapter of Canterbury have held possession of it ever since the Dissolution. In the 17th century Hadleigh was famous for the manufacture of cloth, and in 1618 was sufficiently important to receive incorporation. It was constituted a free borough under the title of the mayor, aldermen and burgesses of Hadleigh. In 1635, in a list of the corporate towns of Suffolk to be assessed for ship money, Hadleigh is named as third in importance. In 1636, owing to a serious visitation of the plague, 200 families were thrown out of work, and in 1687 so much had its importance declined that it was deprived of its charter. An unsuccessful attempt to recover it was made in 1701. There is evidence of the existence of a market here as early as the 13th century. James I., in his charter of incorporation, granted fairs on Monday and Tuesday in Whitsun week, and confirmed an ancient fair at Michaelmas and a market on Monday.

HADLEY, ARTHUR TWINING (1856-  ), American political economist and educationist, president of Yale University, was born in New Haven, Connecticut, on the 23rd of April 1856. He was the son of James Hadley, the philologist, from whom, as from his mother—whose brother, Alexander Catlin Twining (1801-1884), was an astronomer and authority on constitutional law—he inherited unusual mathematical ability. He graduated at Yale in 1876 as valedictorian, having taken prizes in English, classics and astronomy; studied political 799 science at Yale (1876-1877) and at Berlin (1878-1879); was a tutor at Yale in 1879-1883, instructor in political science in 1883-1886, professor of political science in 1886-1891, professor of political economy in 1891-1899, and dean of the Graduate School in 1892-1895; and in 1899 became president of Yale University—the first layman to hold that office. He was commissioner of the Connecticut bureau of labour statistics in 1885-1887. As an economist he first became widely known through his investigation of the railway question and his study of railway rates, which antedated the popular excitement as to rebates. His Railroad Transportation, its History and Laws (1885) became a standard work, and appeared in Russian (1886) and French (1887); he testified as an expert on transportation before the Senate committee which drew up the Interstate Commerce Law; and wrote on railways and transportation for the Ninth and Tenth Editions (of which he was one of the editors) of the Encyclopaedia Britannica, for Lalor’s Cyclopaedia of Political Science, Political Economy, and Political History of the United Stales (3 vols., 1881-1884), for The American Railway (1888), and for The Railroad Gazette in 1884-1891, and for other periodicals. His idea of the broad scope of economic science, especially of the place of ethics in relation to political economy and business, is expressed in his writings and public addresses. In 1907-1908 he was Theodore Roosevelt professor of American History and Institutions in the university of Berlin.

HADLEY, JAMES (1821-1872), American scholar, was born on the 30th of March 1821 in Fairfield, Herkimer county, New York, where his father was professor of chemistry in Fairfield Medical College. At the age of nine an accident lamed him for life. He graduated from Yale in 1842, having entered the Junior class in 1840; studied in the Theological Department of Yale, and in 1844-1845 was a tutor in Middlebury College. He was tutor at Yale in 1845-1848, assistant professor of Greek in 1848-1851, and professor of Greek, succeeding President Woolsey, from 1851 until his death in Hew Haven on the 14th of November 1872. As an undergraduate he showed himself an able mathematician, but the influence of Edward Elbridge Salisbury, under whom Hadley and W. D. Whitney studied Sanskrit together, turned his attention toward the study of language. He knew Greek, Latin, Sanskrit, Hebrew, Arabic, Armenian, several Celtic languages and the languages of modern Europe; but he published little, and his scholarship found scant outlet in the college class-room. His most original written work was an essay on Greek accent, published in a German version in Curtius’s Studien zur griechischen und lateinischen Grammatik. Hadley’s Greek Grammar (1860; revised by Frederic de Forest Allen, 1884) was based on Curtius’s Schulgrammatik (1852, 1855, 1857, 1859), and long held its place in American schools. Hadley was a member of the American Committee for the revision of the New Testament, was president of the American Oriental Society (1871-1872), and contributed to Webster’s dictionary an essay on the History of the English Language. In 1873 were published his Introduction to Roman Law (edited by T. D. Woolsey) and his Essays, Philological and Critical (edited by W. D. Whitney).

HADLEY, a township of Hampshire county, Massachusetts, U.S.A., on the Connecticut river, about 20 m. N. of Springfield, served by the Boston & Maine railway. Pop. (1900), 1789; (1905, state census), 1895; (1910) 1999. Area, about 20 sq. m. The principal villages are Hadley (or Hadley Center) and North Hadley. The level country along the river is well adapted to tobacco culture, and the villages are engaged in the manufacture of tobacco and brooms. Hadley was settled in 1659 by members of the churches in Hartford and Wethersfield, Connecticut, who were styled “Strict Congregationalists” and withdrew from these Connecticut congregations because of ecclesiastical and doctrinal laxity there. At first the town was called Norwottuck, but within a year or two it was named after Hadleigh in England, and was incorporated under this name in 1661. Hopkins Academy (1815) developed from Hopkins school, founded here in 1664. The English regicides Edward Whalley and his son-in-law William Goffe found a refuge at Hadley from 1664 apparently until their deaths, and there is a tradition that Goffe or Whalley in 1675 led the people in repelling an Indian attack. From 1675 to 1713 Hadley, being in almost constant danger of attack from the Indians, was protected by a palisade enclosure and by stockades around the meeting-house. From Hadley, Hatfield was set apart in 1670, South Hadley in 1753, and Amherst in 1759.

HADRAMUT, a district on the south coast of Arabia, bounded W. by Yemen, E. by Oman and N. by the Dahna desert. The modern Arabs restrict the name to the coast between Balhāf and Sihut, and the valley of the Wadi Hadramut in the interior; in its wider and commonly accepted signification it includes also the Mahra and Gāra coasts extending eastwards to Mirbat; thus defined, its limits are between 14° and 18° N. and 47° 30′ to 55° E., with a total length of 550 m. and a breadth of 150 m.

Hadramut has preserved its name from the earliest times; it occurs in Genesis as Hazarmaveth and Hadoram, sons of Joktan; and the old Greek geographers mention Adramytta and Chadramotites in their accounts of the frankincense country. The numerous ruins discovered in the W. Duwān and Adim, as well as in the main valley, are evidences of its former prosperity and civilization.

The people, known as Hadrami (plural Ḣadārim), belong generally to the south Arabian stock, claiming descent from Ya‘rab bin Kahtān. There is, however, a large number of 800 Seyyids or descendants of the Prophet, and of townsmen of northern origin, besides a considerable class of African or mixed descent. Van den Berg estimates the total population of Hadramut (excluding the Mahra and Gāra) at 150,000, of which he locates 50,000 in the valley between Shibām and Tarim, 25,000 in the W. Duwān and its tributaries, and 25,000 in Mukalla, Shihr and the coast villages, leaving 50,000 for the non-agricultural population scattered over the rest of the country, probably an excessive estimate.

The Seyyids, descendants of Ḥosain, grandson of Mahomet, form a numerous and highly respected aristocracy. They are divided into families, the chiefs of which are known as Munsibs, who are looked on as the religious leaders of the people, and are even in some cases venerated as saints. Among the leading families are the Sheikh Abu Bakr of Aināt, the el-Aidrus of Shihr and the Sakkāf of Saiyun. They do not bear arms, nor occupy themselves in trade or manual labour or even agriculture; though owning a large proportion of the land, they employ slaves or hired labourers to cultivate it. As compared with the other classes, they are well educated, and are strict in their observance of religious duties, and owing to the respect due to their descent, they exercise a strong influence both in temporal and spiritual affairs.

The tribesmen, as in Arabia generally, are the predominant class in the population; all the adults carry arms; some of the tribes have settled towns and villages, others lead a nomadic life, keeping, however, within the territory which is recognized as belonging to the tribe. They are divided into sections or families, each headed by a chief or abu (lit. father), while the head of the tribe is called the mukaddam or sultan; the authority of the chief depends largely on his personality: he is the leader in peace and in war, but the tribesmen are not his subjects; he can only rule with their support. The most powerful tribe at present in Hadramut is the Kaiti, a branch of the Yāfa tribe whose settlements lie farther west. Originally invited by the Seyyids to protect the settled districts from the attacks of marauding tribes, they have established themselves as practically the rulers of the country, and now possess the coast district with the towns of Shihr and Mukalla, as well as Haura, Hajrēn and Shibām in the interior. The head of the family has accumulated great wealth, and risen to the highest position in the service of the nizam of Hyderabad in India, as Jamadar, or commander of an Arab levy composed of his tribesmen, numbers of whom go abroad to seek their fortune. The Kathiri tribe was formerly the most powerful; they occupy the towns of Saiyun, Tarim and el-Ghuraf in the richest part of the main Hadramut valley. The chiefs of both the Kaiti and Kathiri are in political relations with the British government, through the resident at Aden (q.v.). The ’Amudi in the W. Duwān, and the Nahdi, Awāmir and Tamimi in the main valley, are the principal tribes possessing permanent villages; the Saibān, Hamumi and Manāhil occupy the mountains between the main valley and coast.

The townsmen are the free inhabitants of the towns and villages as distinguished from the Seyyids and the tribesmen: they do not carry arms, but are the working members of the community, merchants, artificers, cultivators and servants, and are entirely dependent on the tribes and chiefs under whose protection they live. The servile class contains a large African element, brought over formerly when the slave trade flourished on this coast; as in all Mahommedan countries they are well treated, and often rise to positions of trust.

As already mentioned, a large number of Arabs from Hadramut go abroad; the Kaiti tribesmen take service in India in the irregular troops of Hyderabad; emigration on a large scale has also gone on, to the Dutch colonies in Java and Sumatra, since the beginning of the 19th century. According to the census of 1885, quoted by Van den Berg in his Report published by the government of the Dutch East Indies in 1886, the number of Arabs in those colonies actually born in Arabia was 2500, while those born in the colonies exceeded 20,000; nearly all of the former are from the towns in the Hadramut valley between Shibām and Tarim. Mukalla and Shihr have a considerable trade with the Red Sea and Persian Gulf ports, as well as with the ports of Aden, Dhafar and Muscat; a large share of this is in the hands of Parsee and other British Indian traders who have established themselves in the Hadramut ports. The principal imports are wheat, rice, sugar, piece goods and hardware. The exports are small; the chief items are honey, tobacco and sharks’ fins. In the towns in the interior the principal industries are weaving and dyeing.

HADRIA [mod. Atri (q.v.)], perhaps the original terminal point of the Via Caecilia, Italy. It belonged to the Praetutii. It became a colony of Rome in 290 B.C. and remained faithful to Rome. The coins which it issued (probably during the Punic Wars), are remarkable. The crypt of the cathedral of the modern town was originally a large Roman cistern; another forms the foundation of the ducal palace; and in the eastern portion of the town there is a complicated system of underground passages for collecting and storing water.

HADRIAN (Publius Aelius Hadrianus), Roman emperor A.D. 117-138, was born on the 24th of January A.D. 76, at Italica in Hispania Baetica (according to others, at Rome), where his ancestors, originally from Hadria in Picenum, had been settled since the time of the Scipios. On his father’s death in 85 or 86 he was placed under the guardianship of two fellow-countrymen, his kinsman Ulpius Trajanus (afterwards the emperor Trajan), and Caelius Attianus (afterwards prefect of the praetorian guard). He spent the next five years at Rome, but at the age of fifteen he returned to his native place and entered upon a military career. He was soon, however, recalled to Rome by Trajan, and appointed to the offices of decemvir stlitibus judicandis, praefectus feriarum Latinarum, and sevir turmae equitum Romanorum. About 95 he was military tribune in lower Moesia. In 97 he was sent to upper Germany to convey the congratulations of the army to Trajan on his adoption by Nerva; and, in January of the following year, he hastened to announce the death of Nerva to Trajan at Cologne. Trajan, who had been set against Hadrian by reports of his extravagance, soon took him into favour again, chiefly owing to the goodwill of the empress Plotina, who brought about the marriage of Hadrian with (Vibia) Sabina, Trajan’s great-niece. In 101 Hadrian was quaestor, in 105 tribune of the people, in 106 praetor. He served with distinction in both Dacian campaigns: in the second Trajan presented him with a valuable ring which he himself had received from Nerva, a token of regard which seemed to designate Hadrian as his successor. In 107 Hadrian was legatus praetorius of lower Pannonia, in 108 consul suffectus, in 112 archon at Athens, legatus in the Parthian campaign (113-117), in 117 consul designatus for the following year, in 119 consul for the third and last time only for four months. When Trajan, owing to a severe illness, decided to return home from the East, he left Hadrian in command of the army and governor of Syria. On the 9th of August 117, Hadrian, at Antioch, was informed 801 of his adoption by Trajan, and, on the 11th, of the death of the latter at Selinus in Cilicia. According to Dio Cassius (lxix. 1) the adoption was entirely fictitious, the work of Plotina and Attianus, by whom Trajan’s death was concealed for a few days in order to facilitate the elevation of Hadrian. Whichever may have been the truth, his succession was confirmed by the army and the senate. He hastened to propitiate the former by a donative of twice the usual amount, and excused his hasty acceptance of the throne to the senate by alleging the impatient zeal of the soldiers and the necessity of an imperator for the welfare of the state.

Hadrian’s first important act was to abandon as untenable the conquests of Trajan beyond the Euphrates (Assyria, Mesopotamia and Armenia), a recurrence to the traditional policy of Augustus. The provinces were unsettled, the barbarians on the borders restless and menacing, and Hadrian wisely judged that the old limits of Augustus afforded the most defensible frontier. Mesopotamia and Assyria were given back to the Parthians, and the Armenians were allowed a king of their own. From Antioch Hadrian set out for Dacia to punish the Roxolani, who, incensed by a reduction of the tribute hitherto paid them, had invaded the Danubian provinces. An arrangement was patched up, and while Hadrian was still in Dacia he received news of a conspiracy against his life. Four citizens of consular rank were accused of being concerned in it, and were put to death by order of the senate before he could interfere. Hurrying back to Rome, Hadrian endeavoured to remove the unfavourable impression produced by the whole affair and to gain the goodwill of senate and people. He threw the responsibility for the executions upon the prefect of the praetorian guard, and swore that he would never punish a senator without the assent of the entire body, to which he expressed the utmost deference and consideration. Large sums of money and games and shows were provided for the people, and, in addition, all the arrears of taxation for the last fifteen years (about £10,000,000) were cancelled and the bonds burnt in the Forum of Trajan. Trajan’s scheme for the “alimentation” of poor children was carried out upon a larger scale under the superintendence of a special official called praefectus alimentorum.

The record of Hadrian’s journeys1 through all parts of the empire forms the chief authority for the events of his life down to his final settlement in the capital during his last years. They can only be briefly touched upon here. His first great journey probably lasted from 121 to 126. After traversing Gaul he visited the Germanic provinces on the Rhine, and crossed over to Britain (spring, 122), where he built the great rampart from the Tyne to the Solway, which bears his name (see Britain: Roman). He returned through Gaul into Spain, and then proceeded to Mauretania, where he suppressed an insurrection. A war with the Parthians was averted by a personal interview with their king (123). From the Parthian frontier he travelled through Asia Minor and the islands of the Aegean to Athens (autumn, 125), where he introduced various political and commercial changes, was initiated at the Eleusinia, and presided at the celebration of the greater Dionysia. After visiting Central Greece and Peloponnesus, he returned by way of Sicily to Rome (end of 126). The next year was spent at Rome, and, after a visit to Africa, he set out on his second great journey (September 128). He travelled by way of Athens, where he completed and dedicated the buildings (see Athens) begun during his first visit, chief of which was the Olympieum or temple of Olympian Zeus, on which occasion Hadrian himself assumed the name of Olympius. In the spring of 129 he visited Asia Minor and Syria, where he invited the kings and princes of the East to a meeting (probably at Samosata). Having passed the winter at Antioch, he set out for the south (spring, 130). He ordered Jerusalem to be rebuilt (see Jerusalem) under the name of Aelia Capitolina, and made his way through Arabia to Egypt, where he restored the tomb of Pompey at Pelusium with great magnificence. After a short stay at Alexandria he took an excursion up the Nile, during which he lost his favourite Antinous. On the 21st of November 130, Hadrian (or at any rate his wife Sabina) heard the music which issued at sunrise from the statue of Memnon at Thebes (see Memnon). From Egypt Hadrian returned through Syria to Europe (his movements are obscure), but was obliged to hurry back to Palestine (spring, 133) to give his personal attention (this is denied by some historians) to the revolt of the Jews, which had broken out (autumn, 131, or spring, 132) after he had left Syria. The founding of a Roman colony on the site of Jerusalem (Dio Cass. lxix. 12) and the prohibition of circumcision (Spartianus, Hadrianus, 14) are said to have been the causes of the war, but authorities differ considerably as to this and as to the measures which followed the revolt (see art. Jews; also E. Schürer, Hist. of the Jewish People, Eng. tr., div. 1, vol. ii. p. 288; and S. Krauss in Jewish Encyc. s.v. “Hadrian”), which lasted till 135. Leaving the conduct of affairs in the hands of his most capable general, Julius Severus, in the spring of 134 Hadrian returned to Rome. The remaining years of his life were spent partly in the capital, partly in his villa at Tibur. His health now began to fail, and it became necessary for him to choose a successor, as he had no children of his own. Against the advice of his relatives and friends he adopted L. Ceionius Commodus under the name of L. Aelius Caesar, who was in a feeble state of health and died on the 1st of January 138, before he had an opportunity of proving his capabilities. Hadrian then adopted Arrius Antoninus (see Antoninus Pius) on condition that he should adopt M. Annius Verus (afterwards the emperor Marcus Aurelius) and the son of L. Aelius Caesar, L. Ceionius Commodus (afterwards the emperor Commodus). Hadrian died at Baiae on the 10th of July 138.

He was without doubt one of the most capable emperors who ever occupied the throne, and devoted his great and varied talents to the interests of the state. One of his chief objects was the abolition of distinctions between the provinces and the mother country, finally carried out by Caracalla, while at the same time he did not neglect reforms that were urgently called for in Italy. Provincial governors were kept under strict supervision; extortion was practically unheard of; the jus Latii was bestowed upon several communities; special officials were instituted for the control of the finances; and the emperor’s interest in provincial affairs was shown by bis personal assumption of various municipal offices. New towns were founded and old ones restored; new streets were laid out, and aqueducts, temples and magnificent buildings constructed. In Italy itself the administration of justice and the finances required special attention. Four legati juridici (or simply juridici) of consular rank were appointed for Italy, who took over certain important judicial functions formerly exercised by local magistrates (cases of fideicommissa, the nomination of guardians). The judicial council (consiliarii Augusti, later called consistorium), composed of persons of the highest rank (especially jurists), became a permanent body of advisers, although merely consultative. Roman law owes much to Hadrian, who instructed Salvius Julianus to draw up an edictum perpetuum, to a great extent the basis of Justinian’s Corpus juris (see M. Schanz, Geschichte der römischen Literatur, iii. p. 167). In the administration of finance, in addition to the remission of arrears already mentioned, a revision of claims was ordered to be made every fifteen years, thereby anticipating the “indictions” (see Calendar; Chronology). Direct collection of taxes by imperial procurators was substituted for the system of farming, and a special official (advocatus fisci) was instituted to look after the interests of the imperial treasury. The gift of “coronary gold” (aurum coronarium), presented to the emperor on certain occasions, was entirely remitted in the case of Italy, and partly in the case of the provinces. The administration of the postal service throughout the empire was taken over by the state, and municipal officials were relieved from the burden of maintaining the imperial posts. Humane regulations as to the treatment of slaves were strictly 802 enforced; the master was forbidden to put his slave to death, but was obliged to bring him before a court of justice; if he ill-treated him it was a penal offence. The sale of slaves (male and female) for immoral and gladiatorial purposes was forbidden; the custom of putting all the household to death when their master was murdered was modified. The public baths were kept under strict supervision; the toga was ordered to be worn in public by senators and equites on solemn occasions; extravagant banquets were prohibited; rules were made to prevent the congestion of traffic in the streets. In military matters Hadrian was a strict disciplinarian, but his generosity and readiness to share their hardships endeared him to the soldiers. He effected a material and moral improvement in the conditions of service and mode of life, but in other respects he does not appear to have introduced any important military reforms. During his reign an advance was made in the direction of creating an organized body of servants at the disposal of the emperor by the appointment of equites to important administrative posts, without their having performed the militiae equestres (see Equites). Among these posts were various procuratorships (chief of which was that of the imperial fisc), and the offices ab epistulis, a rationibus and a libellis (secretary, accountant, receiver of petitions). The prefect of the praetorian guard was now the most important person in the state next to the emperor, and subsequently became a supreme judge of appeal. Among the magnificent buildings erected by Hadrian mention may be made of the following: In the capital, the temple of Venus and Roma; his splendid mausoleum, which formed the groundwork of the castle of St Angelo; the pantheon of Agrippa; the Basilica Neptuni; at Tibur the great villa 8 m. in extent, a kind of epitome of the world, with miniatures of the most celebrated places in the provinces. Athens, however, was the favourite site of his architectural labours; here he built the temple of Olympian Zeus, the Panhellenion, the Pantheon, the library, a gymnasium and a temple of Hera.

Hadrian was fond of the society of learned men—poets, scholars, rhetoricians and philosophers—whom he alternately humoured and ridiculed. In painting, sculpture and music he considered himself the equal of specialists. The architect Apollodorus of Damascus owed his banishment and death to his outspoken criticism of the emperor’s plans. The sophist Favorinus was more politic; when reproached for yielding too readily to the emperor in some grammatical discussion, he replied that it was unwise to contradict the master of thirty legions. The Athenaeum (q.v.) owed its foundation to Hadrian. He was a man of considerable intellectual attainments, of prodigious memory, master of both Latin and Greek, and wrote prose and verse with equal facility. His taste, however, was curious; he preferred Cato the elder, Ennius and Caelius Antipater to Cicero, Virgil and Sallust, the obscure poet Antimachus to Homer and Plato. As a writer he displayed great versatility. He composed an autobiography, published under the name of his freedman Phlegon; wrote speeches, fragments of two of which are preserved in inscriptions (a panegyric on his mother-in-law Matidia, and an address to the soldiers at Lambaesis in Africa). In imitation of Antimachus he wrote a work called Catachannae, probably a kind of miscellanea. The Latin and Greek anthologies contain about a dozen epigrams under his name. The letter of Hadrian to the consul Servianus (in Vopiscus, Vita Saturnini, 8) is no longer considered genuine. Hadrian’s celebrated dying address to his soul may here be quoted:—

The character of Hadrian exhibits a mass of contradictions, well summed up by Spartianus (14, 11). He was grave and gay, affable and dignified, cruel and gentle, mean and generous, eager for fame yet not vain, impulsive and cautious, secretive and open. He hated eminent qualities in others, but gathered round him the most distinguished men of the state; at one time affectionate towards his friends, at another he mistrusted and put them to death. In fact, he was only consistent in his inconsistency (semper in omnibus varius). Although he endeavoured to win the popular favour, he was more feared than loved. A man of unnatural passions and grossly superstitious, he was an ardent lover of nature. But, with all his faults, he devoted himself so indefatigably to the service of the state, that the period of his reign could be characterized as a “golden age.”

HADRIAN’S WALL, the name usually given to the remains of the Roman fortifications which defended the northern frontier of the Roman province of Britain, between the Tyne and the Solway. The works consisted of (1) a continuous defensive rampart with a ditch in front and a road behind; (2) various forts, blockhouses and towers along the rampart; and (3) an earthwork to the south of it, generally called the Vallum, of uncertain use. The defensive wall was probably first erected by Hadrian about A.D. 122 as a turf wall, and rebuilt in stone by Septimius Severus about A.D. 208. See further Britain: Roman.

HADRUMETUM, a town of ancient Africa on the southern extremity of the sinus Neapolitanus (mod. Gulf of Hammamet) on the east coast of Tunisia. The site is partly occupied by the modern town of Susa (q.v.). The form of the name Hadrumetum varied much in antiquity; the Greeks called it Ἀδρύμης, Ἀδρύμητος, Ἀδραμύτης, Ἀδράμητος: the Romans Adrumetum, Adrimetum, Hadrumetum, Hadrymetum, &c.; inscriptions and coins gave Hadrumetum. The town was originally a Phoenician colony founded by Tyrians long before Carthage (Sallust, Jug. 19). It became subject to Carthage, but lost none of its prosperity. Often mentioned during the Punic Wars, it was captured by Agathocles in 310, and was the refuge of Hannibal and the remnants of his army after the battle of Zama in 202. During the last Punic War it gave assistance to the Romans; after the fall of Carthage in 146 it received an accession of territory and the title of civitas libera (Appian, Punica, xciv.; C.I.L. i. p. 84). Caesar landed there in 46 B.C. on his way to the victory of Thapsus (De bello Afric. iii.; Suetonius, Div. Jul. lix.).

In the organization of the African provinces Hadrumetum became a capital of the province of Byzacena. Its harbour was extremely busy and the surrounding country unusually fertile. Trajan made it a Latin colony under the title of Colonia Concordia Ulpia Trajana Augusta Frugifera Hadrumetina; a dedication to the emperor Gordian the Good, found by M. Cagnat at Susa in 1883 gives these titles to the town, and at the same time identifies it with Susa. Quarrels arose between Hadrumetum and its neighbour Thysdrus in connexion with the temple of Minerva situated on the borders of their respective territories (Frontinus, Gromatici, ed. Lachmannus, p. 57); Vespasian 803 when pro-consul of Africa had to repress a sedition among its inhabitants (Suetonius, Vesp. iv.; Tissot, Fastes de la prov. d’Afrique, p. 66); it was the birthplace of the emperor Albinus. At this period the metropolis of Byzacena was after Carthage the most important town in Roman Africa. It was the seat of a bishopric, and its bishops are mentioned at the councils of 258, 348, 393 and even later. Destroyed by the Vandals in 434 it was rebuilt by Justinian and renamed Justinianopolis (Procop. De aedif. vi. 6). The Arabic invasion at the end of the 7th century destroyed the Byzantine towns, and the place became the haunt of pirates, protected by the Kasbah (citadel); it was built on the substructions of the Punic, Roman and Byzantine acropolis, and is used by the French for military purposes. The Arabic geographer Bakri gave a description of the chief Roman buildings which were standing in his time (Bakri, Descr. de l’Afrique, tr. by de Slane, p. 83 et seq.). The modern town of Susa, despite its commercial prosperity, occupies only a third of the old site.

In 1863 the French engineer, A. Daux, discovered the jetties and the moles of the commercial harbour, and the line of the military harbour (Cothon); both harbours, which were mainly artificial, are entirely silted up. There remains a fragment of the fortifications of the Punic town, which had a total length of 6410 metres, and remains of the substructions of the Byzantine acropolis, of the circus, the theatre, the water cisterns, and of other buildings, notably the interesting Byzantine basilica which is now used as an Arab café (Kahwat-el-Kubba). In the ruins there have been found numerous columns of Punic inscriptions, Roman inscriptions and mosaic, among which is one representing Virgil seated, holding the Aeneid in his hand; another represents the Cretan labyrinth with Theseus and the Minotaur (Héron de Villefosse, Revue de l’Afrique française, v., December 1887, pp. 384 and 394; Comptes rendus de l’Acad. des Inscr. et Belles-Lettres, 1892, p. 318; other mosaics, ibid., 1896, p. 578; Revue archéol., 1897). In 1904 Dr Carton and the abbé Leynaud discovered huge Christian catacombs with several miles of subterranean galleries to which access is obtained by a small vaulted chamber. In these catacombs we find numerous sarcophagi and inscriptions painted or engraved of the Roman and Byzantine periods (Comptes rendus de l’Acad. des Inscr. et Belles-Lettres, 1904-1907; Carton and Leynaud, Les Catacombes d’Hadrumète, Susa, 1905). We can recognize also the Punic and Pagan-Roman cemeteries (C. R. de l’Acad. des Inscr. et Belles-Lettres, 1887; Bull. archéol. du Comité, 1885, p. 149; 1903, p. 157). The town had no Punic coins, but under the Roman domination there were coins from the time of the Republic. These are of bronze and bear the name of the city in abbreviations, Hadr or Hadrvm accompanying the head of Neptune or the Sun. We find also the names of local duumvirs. Under Augustus the coins have on the obverse the imperial effigy, and on the reverse the names and often the effigies of the pro-consuls who governed the province, P. Quintilius Varus, L. Volusius Saturninus and Q. Fabius Maximus Africanus. After Augustus the mint was finally closed.

HAECKEL, ERNST HEINRICH (1834-  ), German biologist, was born at Potsdam on the 16th of February 1834. He studied medicine and science at Würzburg, Berlin and Vienna, having for his masters such men as Johannes Müller, R. Virchow and R. A. Kölliker, and in 1857 graduated at Berlin as M.D. and M.Ch. At the wish of his father he began to practise as a doctor in that city, but his patients were few in number, one reason being that he did not wish them to be many, and after a short time he turned to more congenial pursuits. In 1861, at the instance of Carl Gegenbaur, he became Privatdozent at Jena; in the succeeding year he was chosen extraordinary professor of comparative anatomy and director of the Zoological Institute in the same university; in 1865 he was appointed to a chair of zoology which was specially established for his benefit. This last position he retained for 43 years, in spite of repeated invitations to migrate to more important centres, such as Strassburg or Vienna, and at Jena he spent his life, with the exception of the time he devoted to travelling in various parts of the world, whence in every case he brought back a rich zoological harvest.

As a field naturalist Haeckel displayed extraordinary power and industry. Among his monographs may be mentioned those on Radiolaria (1862), Siphonophora (1869), Monera (1870) and Calcareous Sponges (1872), as well as several Challenger reports, viz. Deep-Sea Medusae (1881), Siphonophora (1888), Deep-Sea Keratosa (1889) and Radiolaria (1887), the last being accompanied by 140 plates and enumerating over four thousand new species. This output of systematic and descriptive work would alone have constituted a good life’s work, but Haeckel in addition wrote copiously on biological theory. It happened that just when he was beginning his scientific career Darwin’s Origin of Species was published (1859), and such was the influence it exercised over him that he became the apostle of Darwinism in Germany. He was, indeed, the first German biologist to give a whole-hearted adherence to the doctrine of organic evolution and to treat it as the cardinal conception of modern biology. It was he who first brought it prominently before the notice of German men of science in his first memoir on the Radiolaria, which was completely pervaded with its spirit, and later at the congress of naturalists at Stettin in 1863. Darwin himself has placed on record the conviction that Haeckel’s enthusiastic propagandism of the doctrine was the chief factor of its success in Germany. His book on General Morphology (1866), published when he was only thirty-two years old, was called by Huxley a suggestive attempt to work out the practical application of evolution to its final results; and if it does not take rank as a classic, it will at least stand out as a landmark in the history of biological doctrine in the 19th century. Although it contains a statement of most of the views with which Haeckel’s name is associated, it did not attract much attention on its first appearance, and accordingly its author rewrote much of its substance in a more popular style and published it a year or two later as the Natural History of Creation (Natürliche Schöpfungsgeschichte), which was far more successful. In it he divided morphology into two sections—tectology, the science of organic individuality; and promorphology, which aims at establishing a crystallography of organic forms. Among other matters, he laid particular stress on the “fundamental biogenetic law” that ontogeny recapitulates phylogeny, that the individual organism in its development is to a great extent an epitome of the form-modifications undergone by the successive ancestors of the species in the course of their historic evolution. His well-known “gastraea” theory is an outcome of this generalization. He divided the whole animal creation into two categories—the Protozoa or unicellular animals, and the Metazoa or multicellular animals, and he pointed out that while the former remain single-celled throughout their existence, the latter are only so at the beginning, and are subsequently built up of innumerable cells, the single primitive egg-cell (ovum) being transformed by cleavage into a globular mass of cells (morula), which first becomes a hollow vesicle and then changes into the gastrula. The simplest multicellular animal he conceived to resemble this gastrula with its two primary layers, ectoderm and endoderm, and the earliest hypothetical form of this kind, from which the higher animals might be supposed to be actually descended, he called the “gastraea.” This theory was first put forward in the memoir on the calcareous sponges, which in its sub-title was described as an attempt at an analytical solution of the problem of the origin of species, and was subsequently elaborated in various Studies on the Gastraea Theory (1873-1884). Haeckel, again, was the first to attempt to draw up a genealogical tree (Stammbaum) exhibiting the relationship between the various orders of animals 804 with regard both to one another and their common origin. His earliest attempt in the General Morphology was succeeded by many others, and his efforts in this direction may perhaps be held to culminate in the paper he read before the fourth International Zoological Congress, held at Cambridge in 1898, when he traced the descent of the human race in twenty-six stages from organisms like the still-existing Monera, simple structureless masses of protoplasm, and the unicellular Protista, through the chimpanzees and the Pithecanthropus erectus, of which a few fossil bones were discovered in Java in 1894, and which he held to be undoubtedly an intermediate form connecting primitive man with the anthropoid apes.

Not content with the study of the doctrine of evolution in its zoological aspects, Haeckel also applied it to some of the oldest problems of philosophy and religion. What he termed the integration of his views on these subjects he published under the title of Die Welträtsel (1899), which in 1901 appeared in English as The Riddle of the Universe. In this book, adopting an uncompromising monistic attitude, he asserted the essential unity of organic and inorganic nature. According to his “carbon-theory,” which has been far from achieving general acceptance, the chemico-physical properties of carbon in its complex albuminoid compounds are the sole and the mechanical cause of the specific phenomena of movement which distinguish organic from inorganic substances, and the first development of living protoplasm, as seen in the Monera, arises from such nitrogenous carbon-compounds by a process of spontaneous generation. Psychology he regarded as merely a branch of physiology, and psychical activity as a group of vital phenomena which depend solely on physiological actions and material changes taking place in the protoplasm of the organism in which it is manifested. Every living cell has psychic properties, and the psychic life of multicellular organisms is the sum-total of the psychic functions of the cells of which they are composed. Moreover, just as the highest animals have been evolved from the simplest forms of life, so the highest faculties of the human mind have been evolved from the soul of the brute-beasts, and more remotely from the simple cell-soul of the unicellular Protozoa. As a consequence of these views Haeckel was led to deny the immortality of the soul, the freedom of the will, and the existence of a personal God.

Haeckel’s literary output was enormous, and at the time of the celebration of his sixtieth birthday at Jena in 1894 he had produced 42 works with 13,000 pages, besides numerous scientific memoirs. In addition to the works already mentioned, he wrote Freie Wissenschaft und freie Lehre (1877) in reply to a speech in which Virchow objected to the teaching of the doctrine of evolution in schools, on the ground that it was an unproved hypothesis; Die systematische Phylogenie (1894), which has been pronounced his best book; Anthropogenie (1874, 5th and enlarged edition 1903), dealing with the evolution of man; Über unsere gegenwärtige Kenntnis vom Ursprung des Menschen (1898, translated into English as The Last Link, 1898); Der Kampf um den Entwickelungsgedanken (1905, English version, Last Words on Evolution, 1906); Die Lebenswunder (1904), a supplement to the Riddle of the Universe; books of travel, such as Indische Reisebriefe (1882) and Aus Insulinde (1901), the fruits of journeys to Ceylon and to Java; Kunstformen der Natur (1904), with plates representing beautiful marine animal forms; and Wanderbilder (1905), reproductions of his oil-paintings and water-colour landscapes.

Fig. 1.

Fig. 2.

HAEMATITE, or Hematite, a mineral consisting of ferric oxide (Fe2O3), named from the Greek word αἷμα “blood,” in allusion to its typical colour, whence it is called also red iron ore. When crystallized, however, haematite often presents a dark colour, even iron-black; but on scratching the surface, the powder of the streak shows the colour of dried blood. Haematite crystallizes in the rhombohedral system, and is isomorphous with corundum (Al2O3). The habit of the crystals may be rhombohedral, pyramidal or tabular, rarely prismatic. In fig. 1 the crystal, from Elba, shows a combination of the fundamental rhombohedron (R), an obtuse rhombohedron (s), and the hexagonal bi-pyramid (n). Fig. 2 is a tabular crystal in which the basal pinacoid (o) predominates. Haematite has no distinct cleavage, but may show, in consequence of a lamellar structure, a tendency to parting along certain planes.

Crystallized haematite, such as that from the iron-mines of Elba, presents a steel-grey or iron-black colour, with a brilliant metallic lustre, sometimes beautifully iridescent. The splendent surface has suggested for this mineral such names as specular iron ore, looking-glass ore, and iron glance (fer oligiste of French writers). The hardness of the crystallized haematite is about 6, and the specific gravity 5.2. The so-called “iron roses” (Eisenrosen) of Switzerland are rosette-like aggregates of hexagonal tabular crystals, from fissures in the gneissose rocks of the Alps. Specular iron ore occurs in the form of brilliant metallic scales on many lavas, as at Vesuvius and Etna, in the Auvergne and the Eifel, and notably in the Island of Ascension, where the mineral forms beautiful tabular crystals. It seems to be a sublimation-product formed in volcanoes by the interaction of the vapour of ferric chloride and steam.

Specular haematite forms a constituent of certain schistose rocks, such as the Brazilian itabirite. In the Marquette district of Michigan (Lake Superior) schistose specular ore occurs in important deposits, associated with a jasper rock, in which the ore alternates with bands of red quartzite. Micaceous iron ore consists of delicate steel-grey scales of specular haematite, unctuous to the touch, used as a lubricant and also as a pigment. It is worked in Devonshire under the name of shining ore. Very thin laminae of haematite, blood-red by transmitted light, occur as microscopic enclosures in certain minerals, such as carnallite and sun-stone, to which they impart colour and lustre.

Much haematite occurs in a compact or massive form, often mammillary, and presenting on fracture a fibrous structure. The reniform masses are known as kidney ore. Such red ore is generally neither so dense nor so hard as the crystals. It often passes into an earthy form, termed soft red ore, and when mixed with more or less clay constitutes red ochre, ruddle or reddle (Ger. Rötel).

The hard haematite is occasionally cut and polished as an ornamental stone, and certain kinds have been made into beads simulating black pearls. It was worked by the Assyrians for their engraved cylinder-seals, and was used by the gnostics for amulets. Some of the native tribes in the Congo basin employ it as a material for axes. The hard fibrous ore of Cumberland is known as pencil ore, and is employed for the burnishers used by bookbinders and others. Santiago de Compostela in Spain furnishes a considerable supply of haematite burnishers.

Haematite is an important ore of iron (q.v.), and is extensively worked in Elba, Spain (Bilbao), Scandinavia, the Lake Superior region and elsewhere. In England valuable deposits occur in the Carboniferous Limestone of west Cumberland (Whitehaven district) and north Lancashire (Ulverston district). The hard ore is siliceous, and fine crystallized specimens occur in association with smoky quartz. The ore is remarkably free from phosphorus, and is consequently valued for the production of pig-iron to be converted into Bessemer steel.

HAEMATOCELE (Gr. αἷμα, blood, and κήλη, tumour), the medical term for a localized collection of blood in the tunica vaginalis or cord. It is usually the result of a sudden blow or severe strain, but may arise from disease. At first it forms a smooth, fluctuating, opaque swelling, but later becomes hard and firm. In chronic cases the walls of the tunica vaginalis 805 undergo changes. The treatment of a case seen soon after the injury is directed towards keeping the patient at rest, elevating the parts, and applying an evaporating lotion or ice-bag. In chronic cases it may be necessary to lay open the cavity and remove the coagulum.

HAEMOPHILIA, the medical term for a condition of the vascular system, often running in families, the members of which are known as “bleeders,” characterized by a disposition towards bleeding, whether with or without the provocation of an injury to the tissue. When this bleeding is spontaneous it comes from the mucous membranes, especially from the nose, but also from the mouth, bowel and bronchial tubes. Slight bruises are apt to be followed by extravasations of blood into the tissues; the swollen joints (knee especially) of a bleeder are probably due, in the first instance, to the escape of blood into the joint cavity or synovial membrane. It is always from the smallest vessels that the blood escapes, and may do so in such quantities as to cause death in a few hours.

HAEMORRHAGE (Gr. αἷμα, blood, and ῥηγνύναι, to burst), a general term for any escape of blood from a blood-vessel (see Blood). It commonly results from injury, as the tearing or cutting of a blood-vessel, but certain forms result from disease, as in scurvy and purpura. The chief varieties of haemorrhage are arterial, venous and capillary. Bleeding from an artery is of a bright red colour, and escapes from the end of the vessel nearest the heart in jets synchronous with the heart’s beat. Bleeding from a vein is of a darker colour; the flow is steady, and the bleeding is from the distal end of the vessel. Capillary bleeding is a general oozing from a raw surface. By extravasation of blood is meant the pouring out of blood into the areolar tissues, which become boggy. This is termed a bruise or ecchymosis. Epistaxis is a term given to bleeding from the nose. Haematemesis is vomiting of blood, the colour of which may be altered by digestion, as is also the case in melaena, or passage of blood with the faeces, in which the blood becomes dark and tarry-looking from the action of the intestinal fluids. Haemoptysis denotes an escape of blood from the air-passages, which is usually bright red and frothy from admixture with air. Haematuria means passage of blood with the urine.

Cessation of bleeding may take place from natural or from artificial means. Natural arrest of haemorrhage arises from (1) the coagulation of the blood itself, (2) the diminution of the heart’s action as in fainting, (3) changes taking place in the cut vessel causing its retraction and contraction. In the surgical treatment of haemorrhage minor means of arresting bleeding are: cold, which is most valuable in general oozing and local extravasations; very hot water, 130° to 160° F., a powerful haemostatic; position, such as elevation of the limb, valuable in bleeding from the extremities; styptics or astringents, applied locally, as perchloride of iron, tannic acid and others, the most valuable being suprarenal extract. In arresting haemorrhage temporarily the chief thing is to press directly on the bleeding part. The pressure to be effectual need not be severe, but must be accurately applied. If the bleeding point cannot be reached, the pressure should be applied to the main artery between the bleeding point and the heart. In small blood-vessels pressure will be sufficient to arrest haemorrhage permanently. In large vessels it is usual to pass a ligature round the vessel and tie it with a reef-knot. Apply the ligature, if possible, at the bleeding point, tying both ends of the cut vessel. If this cannot be done, the main artery of the limb must be exposed by dissection at the most accessible point between the wound and the heart, and there ligatured.

Haemorrhage has been classified as—(1) primary, occurring at the time of the injury; (2) reactionary, or within twenty-four hours of the accident, during the stage of reaction; (3) secondary, occurring at a later period and caused by faulty application of a ligature or septic condition of the wound. In severe haemorrhage, as from the division of a large artery, the patient may collapse and death ensue from syncope. In this case stimulants and strychnine may be given, but they should be avoided until it is certain the bleeding has been properly controlled, as they tend to increase it. Transfusion of blood directly from the vein of a healthy person to the blood-vessels of the patient, and infusion of saline solution into a vein, may be practised (see Shock). In a congenital condition known as haemophylia (q.v.) it is difficult to stop the flow of blood.

The surgical procedure for the treatment of an open wound is—(1) arrest of haemorrhage; (2) cleansing of the wound and removal of any foreign bodies; (3) careful apposition of its edges and surfaces—the edges being best brought in contact by sutures of aseptic silk or catgut, the surfaces by carefully applied pressure; (4) free drainage, if necessary, to prevent accumulation either of blood or serous effusion; (5) avoidance of sepsis; (6) perfect rest of the part. These methods of treatment require to be modified for wounds in special situations and for those in which there is much contusion and laceration. When a special poison has entered the wound at the time of its infliction or at some subsequent date, it is necessary to provide against septic conditions of the wound itself and blood-poisoning of the general circulation.

HAEMORRHOIDS, or Hemorrhoids (from Gr. αἷμα, blood, and ῥεῖν, to flow), commonly called piles, swellings formed by the dilatation of veins of the lowest part of the bowel, or of those just outside the margin of its aperture. The former, internal piles, are covered by mucous membrane; the latter, external piles, are just beneath the skin. As the veins of the lining of the bowel become dilated they form definite bulgings within the bowel, and, at last increasing in size, escape through the anus when a motion is being passed. Growing still larger, they may come down spontaneously when the individual is standing or walking, and they are apt to be a grave source of pain or annoyance. Eventually they may remain constantly protruded—nevertheless, they are still internal piles because they arise from the interior of the bowel. Though a pile is sometimes solitary, there are usually several of them. They are apt to become inflamed, and the inflammation is associated with heat, pain, discharge and general uneasiness; ulceration and bleeding are also common symptoms, hence the term “bleeding piles.” The external pile is covered by the thin dark-coloured skin of the anal margin. Severe pressure upon the large abdominal veins may retard the upward flow of blood to the heart and so give rise to piles; this is apt to happen in the case of disease of the liver, malignant and other tumours, and pregnancy. General weakness of the constitution or of the blood-vessels and habitual constipation may be predisposing causes of piles. The exciting cause may be vigorous straining at stool or exposure to damp, as from sitting on the wet ground. Piles are often only a symptom, and in their treatment this fact should be kept in view; if the cause is removed the piles may disappear. But in some cases it may be impossible to remove the cause, as when a widely-spreading cancerous growth of the rectum, or of the interior of the pelvis or abdomen, is blocking the upward flow of blood in the veins. Sometimes when a pile has been protruded, as during defaecation, it is tightly grasped by spasmodic contraction of the circular muscular fibres which guard the outlet of the bowel, and it then becomes swollen, engorged and extremely painful; the strangulation may be so severe that the blood in the vessels coagulates and the pile mortifies. This, indeed, is nature’s attempt at curing a pile, but it is distressing, and, as a rule, it is not entirely successful.

The palliative treatment of piles consists in obtaining a daily and easy action of the bowels, in rest, cold bathing, astringent injections, lotions and ointments. The radical treatment consists in their removal by operation, but this should not be contemplated until palliative treatment has failed. The operation consists in drawing the pile well down, and strangling the vessels entering and leaving its base, either by a strong ligature tightly applied, by crushing, or by cautery. Before dealing with the pile the anus is vigorously dilated in order that the pile may be dealt with with greater precision, and also that the temporary paralysis of the sphincter muscle, which follows the stretching, may prevent the occurrence of painful and spasmodic contractions subsequently. The ligatures by which the base of the piles are strangulated 806 slough off with the pile in about ten days, and in about ten days more the individual is, as a rule, well enough to return to his work. If, for one reason or another, no operation is to be undertaken, and the piles are troublesome, relief may be afforded by warm sponging and by sitz-baths, the pile being gently dried afterwards by a piece of soft linen, smeared with vaseline, and carefully returned into the bowel. Under surgical advice, cocaine or morphia may be brought in contact with the tender parts, either in the form of lotion, suppository or ointment. In operating upon internal piles it is undesirable to remove all the external piles around the anus, lest the contraction of the circumferential scar should cause permanent narrowing of the orifice. If, as often happens, blood clots in the vein of an external pile, the small, hard, tender swelling may be treated with anodyne fomentations, or it may be rendered insensitive by the ether spray and opened by a small incision, the clot being turned out.

HAEMOSPORIDIA, in zoology, an order of Ectospora, which although comparatively few in number and very inconspicuous in size and appearance, have of late years probably attracted greater attention and been more generally studied than any other Sporozoa; the reason being that they include the organisms well known as malarial parasites. In spite, however, of much and careful recent research—to a certain extent, rather, as a result of it—it remains the case that the Haemosporidia are, in some respects, the group of the Ectospora about which our knowledge is, for the time being, in the most unsatisfactory condition. Such important questions, indeed, as the scope and boundaries of the group, its exact origin and affinities, the rank and interclassification of the forms admittedly included in it, are answered quite differently by different workers. For example, one well-known Sporozoan authority (M. Lühe) has recently united the two groups, Haemosporidia and Haemoflagellates, bodily into one, while others (e.g. Novy and McNeal) deny that there is any connexion whatever between “Cytozoa” and Trypanosomes. Again, the inclusion or exclusion of forms like Piroplasma and Halteridium is also the subject of much discussion. The present writer accepts here the view that the Haemosporidia are derived from Haemoflagellates which have developed a gregariniform (Sporozoan) phase at the expense, largely or entirely, of the flagelliform one. The not inconsiderable differences met with among different types are capable of explanation on the ground that certain forms have advanced farther than others along this particular line of evolution. In other words, it is most probable that the Haemosporidia are to be regarded as comprising various parasites which represent different stages intermediate between, on the one side, a Flagellate, and on the other, a typical chlamydospore-forming Ectosporan parasite. While, however, it is easy enough sharply to separate off all Haemosporidia from other Ectospora, it is a very difficult matter to define their limits on the former side. Two principal criteria which a doubtful haemal parasite might very well be required to satisfy in order to be considered as a Haemosporidian rather than a Haemoflagellate are (a) the occurrence of schizogony during the “corpuscular” phase in the Vertebrate host, and (b) the formation of many germs (“sporozoites”) from the zygote; so long as these conditions were complied with, the present writer, at all events, would not feel he was countenancing any protozoological heresy in allowing for the possibility of a Flagellate (perhaps trypaniform) phase or features being present at some period or other in the life-cycle.1 To render this article complete, however, one or two well-known parasites, hitherto referred to this order, must also be mentioned, which, judged by the above (arbitrary) standard, are, it may be, on the Haemoflagellate side of the dividing line (e.g. Halteridium, according to Schaudinn).

The chief characters which distinguish the Haemosporidia from other Ectospora are the following. They are invariably blood parasites, and for part or all of the trophic period come into intimate relation with the cellular elements in the blood. There is always an alternation of hosts and of generations, an Invertebrate being the definitive host, in which sexual conjugation is undergone and which is to be regarded as the primary one, a Vertebrate being the intermediate or secondary one. The zygote or sporont is at first capable of movement and known as an ookinete. No resistant spores (chlamydospores) are formed, the ultimate germs or sporozoites always being free in the oocyst and not enclosed by sporocysts.

To Sir E. Ray Lankester is due the honour of discovering the first Haemosporidian, a discovery which did not take place until after most of the other kinds of Sporozoa were known. In 1871 this author described the parasite of the frog, which he later termed Drepanidium ranarum. The next discovery was the great and far-reaching one of Laveran, who in 1883 described all the characteristic phases of the malarial parasite which are met with in human blood. While regarding the organism as the cause of the disease, Laveran did not at once recognize its animal and Sporozoan nature, but considered it rather as a vegetable, and termed it Oscillaria malariae. As in the case of the Trypanosomes, we owe to Danilewsky (1885-1889) the first serious attempts to study the comparative anatomy and life-history of these parasites, from a zoological point of view. Danilewsky first named them Haemosporidia, and distinguished between Haemocytozoa and Leucocytozoa. To the brilliant researches of R. Ross and Grassi in the closing years of the 19th century is due the realization of the essential part played by the gnat or mosquito in the life-cycle and transmission of the parasites; and to MacCallum belongs the credit of first observing the true sexual conjugation, in the case of a Halteridium. Since then, thanks to the labours of Argutinsky and Schaudinn, our knowledge of the malarial parasites has steadily increased. Until quite recently, however, very little was known about the Haemosporidia of cold-blooded Vertebrates; but in 1903 Siegel and Schaudinn demonstrated that the same rôle is performed in their case by a leech or a tick, and since then many new forms have been described.

The Haemosporidia are widely distributed and of very general occurrence among the chief classes of Vertebrates. Among Invertebrates they are apparently limited to bloodsucking insects, ticks and leeches.2 As already stated, Occurrence: habitat; effects on host. the universal habitat of the parasites in the Vertebrate is the blood; as a result, of course, they are to be met with in the capillaries of practically all the important organs of the body; and it is to be noted that while certain phases (e.g. growing trophozoites, mature gametocytes) are found in the peripheral circulation, others (e.g. schizogonous “rosettes,” young gametocytes) occur in the internal organs, liver, kidneys, &c., where the circulation is sluggish. The relation of the parasites to the blood-cells varies greatly. Most attack, probably exclusively, the red blood corpuscles (haematids); a few, however, select the leucocytes, and are therefore known as Leucocytozoa. In the case of Mammalian and Avian forms (malarial parasites) Schaudinn and Argutinsky have shown that the trophic and schizogonic phases are not really endoglobular but closely attached to the corpuscle, hollowing out a depression or space into which they nestle; the gametocytes, on the other hand, are actually intercellular. Forms parasitic in cold-blooded Vertebrates, on the contrary, are always, so far as is known, endoglobular when in relation with the corpuscles; and the same is apparently the case with the Mammalian parasite, Piroplasma. Although in no instance so far described is the parasite actually intranuclear (as certain Coccidia are), in one or two cases (e.g. Karyolysus of lizards and certain species of Haemogregarina) it reacts markedly upon the nucleus and soon causes its disintegration. While many Haemosporidia (e.g. malarial parasites, with the exception of Halteridium) remain in connexion with the same corpuscle throughout the whole period of growth and schizogony, the new generation of merozoites first being set free from the broken-down cell, others (the Haemogregarines, 807 broadly speaking, and also Halteridium) leave one corpuscle after a short time, wander about free in the plasma, and then seek out another; and this may be repeated until the parasite is ready for schizogony, which generally occurs in the corpuscle.

As in the case of Trypanosomes (q.v.), normally—that is to say, when in an accustomed, tolerant host, and under natural conditions—Haemosporidia are non-pathogenic and do not give rise to any ill-effects in the animals harbouring them. When, however, the parasites gain an entry into the blood of man or other unadapted animals,3 they produce, as is well known, harmful and often very serious effects. There are three recognized types of malarial fever, each caused by a distinct form and characterized by the mode of manifestation. Two, the so-called benign fevers, are intermittent; namely, tertian and quartan fever, in which the fever recurs every second and third day respectively. This is due to the fact that schizogony takes different lengths of time in the two cases, 48 hours in the one, 72 in the other; the height of the fever-period coincides with the break-down of the corpuscle at the completion of the process, and the liberation of great numbers of merozoites in the blood. The third type is the dangerous aestivo-autumnal or pernicious malaria, in which the fever is irregular or continuous during long periods.

A very general symptom is anaemia, which is sometimes present to a marked extent, when it may lead to a fatal termination. This is the result of the very considerable destruction of the blood-corpuscles which takes place, the haemoglobin of which is absorbed by the parasites as nutriment. A universal feature connected with this mode of nutrition is the production, in the cytoplasm of the parasite, of a brown pigment, termed melanin; this does not represent reserve material, but is an excreted by-product derived from the haemoglobin. These pigment-grains are at length liberated into the blood-stream and become deposited in the various organs, spleen, liver, kidneys, brain, causing pronounced pigmentation.

Another type of fever, more acute and more generally fatal, is that produced by forms belonging to the genus Piroplasma, in cattle, dogs, horses and other domestic animals in different regions of the globe; and recently Wilson and Chowning have stated that the “spotted fever of the Rockies” is a human piroplasmosis caused by P. hominis. The disease of cattle is known variously as Texas-fever, Tristeza, Red-water, Southern cattle-fever, &c. In this type of illness the endogenous multiplication of the parasites is very great and rapid, and brings about an enormous diminution in the number of healthy red blood corpuscles. Their sudden destruction results in the liberation of large quantities of haemoglobin in the plasma, which turns deep-red in colour; and hence haemoglobinuria, which occurs only rarely in malaria, is a constant symptom in piroplasmosis.

The parasite of pernicious malaria, here termed Laverania malariae, will serve very well as a type of the general life-cycle (fig. 1). Slight differences shown by the other malarial parasites (Plasmodium) will be mentioned in passing, but the Example of the life-history. main divergences which other Haemosporidian types exhibit are best considered separately. With the bite of an infected mosquito, the minute sickle-like sporozoites are injected into the blood. They rapidly penetrate into the blood corpuscles, in which they appear as small irregular, more or less amoeboid trophozoites. A vacuole next arises in the cytoplasm, which increases greatly in size, and gives rise to the well-known, much discussed ring-form of the parasite, in which it resembles a signet-ring, the nucleus forming a little thickening to one side. Some authorities (e.g. Argutinsky) have regarded this structure as being really a greatly distended vesicular nucleus, and, to a large extent, indeed, an artifact, resulting from imperfect fixation; but Schaudinn considers it is a true vacuole, and explains it on the ground of the rapid nutrition and growth. Later on this vacuole disappears, and the grains of pigment make their appearance. The trophozoite is now large and full-grown, and has become rounded and ready for schizogony. The nucleus of the schizont divides several times (more or less directly, by simple or multiple fission) to form a number of daughter-nuclei, which take up a regular position near the periphery. Around these the cytoplasm becomes segmented, giving rise to the well-known corps en rosace. Eventually the merozoites, in the form of little round uninuclear bodies, are liberated from the now broken-down corpuscle, leaving behind a certain amount of residual cytoplasm containing the pigment grains. Besides the difference in the time taken by the complete process of schizogony in the various species (see above), there are distinctions in the composition of the rosettes. Thus, in Laverania, the number of merozoites formed is very variable; in Plasmodium vivax (the tertian parasite) there are only few (9 to 12) merozoites, but in P. malariae (the quartan form) they are more numerous, from 12 to 24. The liberated merozoites proceed to infect fresh blood corpuscles and a new endogenous cycle is started.

After asexual multiplication has gone on for some time, sexual forms become developed. According to Schaudinn, the stimulus which determines the production of gametocytes instead of schizonts is the reaction of the host (at the height of a fever period) upon the parasites. A young trophozoite which is becoming a gametocyte is distinguished from one which gives rise to a schizont by its much slower rate of growth, and the absence of any vacuoles in its cytoplasm. The gametocytes themselves are characterized by their peculiar shape, like that of a sausage, whence they are very generally known as “crescents.” Male and female gametocytes are distinguished (roughly) by the arrangement of the pigment-grains; in the former, they are fairly evenly scattered throughout the cytoplasm, but in the megagametocytes the pigment tends to be aggregated centrally, around the nucleus. As they become full-grown and mature, however, the gametocytes lose their crescentic form and assume that of an oval, and finally of a sphere. At the same time, they are set free from the remains of the blood corpuscle. The spherical stage is practically the limit of development in the Vertebrate host, although, sometimes, the nucleus of the microgametocyte may proceed to division. The “crescents” of the pernicious parasite afford a very important diagnostic difference from the gametocytes of both species of Plasmodium, which have the ordinary, rounded shape of the schizonts. In the case of the latter, points such as their slower growth, their less amoeboid character, and their size furnish the means of distinction.

When a gnat or mosquito sucks blood, all phases of the parasite in the peripheral circulation at that point may succeed in passing into the insect. If this occurs all trophic and schizogonic phases are forthwith digested, and the survival of the sexual phases depends entirely upon whether the insect is a gnat or mosquito. Only in the latter case can further development of the gametocytes go on; in other words, only the genus Anopheles, and not the genus Culex, furnishes specific hosts for the malarial parasites. This is a biological fact of considerable importance in connexion with the prophylactic measures against malaria. In the stomach of an Anopheles, the gametocytes quickly proceed to gamete-formation. The nucleus of the microgametocyte divides up, and the daughter-nuclei pass to the periphery. The surface of the body grows out into long, whip-like processes, of which there are usually 6 to 8 (probably the typical number is 8); each is very motile, in this respect strongly resembling a flagellum. This phase may also develop in drawn blood, which has, of course, become suddenly cooled by the exposure; and it seems evident that it is the change in temperature, from the warm to the cold-blooded host, which brings about the development of the actual sexual elements. Earlier observers regarded the phase just described as representing another parasite altogether, of a Flagellate nature—whence the well-known term, Polymitus-form; and even more recent workers, such as Labbé who connected it with the malarial parasite, 808 failed to appreciate its true significance, and considered it rather as a degeneration-appearance. The micro-gametes soon liberate themselves from the residual cytoplasm of the parent and swim away in search of a megagamete; each is a very slender, wavy filament, composed largely of chromatic substance. The finer details of structure of the microgamete of a malarial parasite cannot be said, however, to be thoroughly known, and it is by no means impossible that its structure is really trypaniform, as, according to Schaudinn’s great work, is the case with the merozoites and sporozoites.

From Lankester’s Treatise on Zoology.

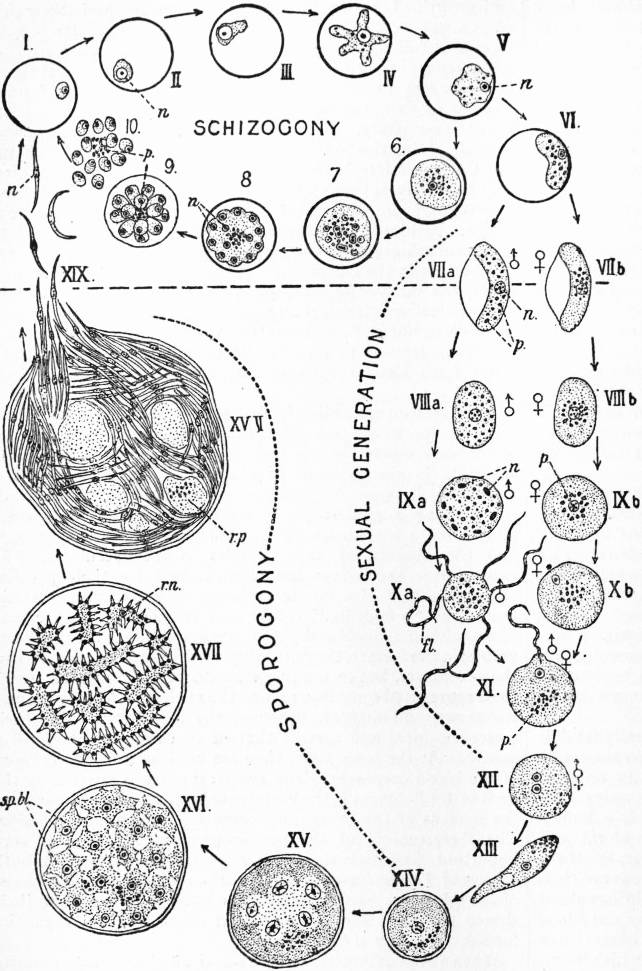

Fig. 1.—Diagram of the complete life-cycle of the parasite of pernicious malaria, Laverania malariae, Gr. et Fel. The stages on the upper side of the dotted line are those found in human blood; below the dotted line are seen the phases through which the parasite passes in the intermediate host, the mosquito. Plan and arrangement chiefly after Neveu-Lemaire; details of the figures founded on those of Grassi, Schaudinn (Leuckart’s Zoologische Wandtafeln), Ross and others.
I.-V. and 6-10 show the schizogony. VI.-XII., The sexual generation. XIII., The motile zygote. XIV.-XIX., Sporogony. I.-III., Young amoebulae in blood-corpuscles. IV., Older, actively amoeboid trophozoite. V., Still older, less amoeboid trophozoite. 6, Mature schizont. 7, Schizont, with nucleus dividing up. 8, Young rosette stage. 9, Fully formed rosette stage. 10, Merozoites free in the blood by breaking down of the corpuscle. VI., Young indifferent gametocyte. VII., a, Male crescent. VII., b, Female crescent. VIII., a and b, The gametocytes becoming oval. IX., a and b, Spherical gametocytes; in the male (IX. a) the nucleus has divided up. X., a and b, Formation of gametes; in the male (X. a) the so-called flagella or male gametes (fl) are thrown out, one of them is seen detached; in the female (X. b) a portion of the nucleus has been expelled.	XI., A male gamete penetrating a female gamete at a cone of reception formed near the nucleus. XII., Zygote with two pronuclei in proximity. XIII., Zygote in the motile stage (vermicule or oökinete). XIV., Encysted zygote (oöcyst). XV., Commencing multiplication of the nuclei in the oöcyst. XVI., Oöcyst with numerous sporoblasts. XVII., Commencing formation of sporozoites. XVIII., Full-grown oocyst crammed with ripe sporozoites; on one side the cyst has burst and the sporozoites are escaping. XIX., Free sporozoites, showing their changes of form. n, Nucleus of the parasite. p, Melanin pigment. fl, “Flagella.” sp. bl., Sporoblasts. r. n., Residual nuclei. r. p., Residual protoplasm.

From Lankester’s Treatise on Zoology.
Fig. 2.—Stomach of a mosquito, with cysts of Haemosporidia. (After Ross.)
oes, Oesophagus. st, Stomach. cy, Cysts.	Mt, Malpighian tubules. int, Intestine.

The megagametocyte becomes a megagamete directly after a process of maturation, which consists in the expulsion of a certain amount of nuclear substance. The actual conjugation is quite similar to the process in Coccidia, and the resulting zygote perfectly homologous. In the present case, however, the zygote does not at once secrete an oöcyst, with a thick resistant wall; on the contrary, it changes its shape, and becomes markedly gregariniform and active, and is known for this reason as an ookinete. The ookinete passes through the epithelial layer of the stomach, the thinner and more pointed end leading the way, and comes to rest in the connective tissue forming the outer layer of the stomach-wall (fig. 2). Here it becomes rounded and cyst-like, and grows considerably; for only a thin, delicate cyst-membrane is secreted, which does not impede the absorption of nutriment. Meanwhile, the nucleus has divided into several, around each of which the cytoplasm becomes segmented. Each of these segments (“blastophores,” “zoidophores”) is entirely comparable to a sporoblast in the Coccidian oocyst, the chief difference being that it never forms a spore; moreover the segments or sporoblasts in the oocyst of a malarial parasite are irregular in shape and do not become completely separated from one another, but remain connected by thin cytoplasmic strands. Repeated multiplication of the sporoblast-nuclei next takes place, with the result that a great number of little nuclei are found all round the periphery. A corresponding number of fine cytoplasmic processes grow out from the surface, each carrying a nucleus with it, and in this manner a 809 huge number of slender, slightly sickle-shaped germs or sporozoites (“blasts,” “zoids,” &c.) are formed. Each oocyst may contain from hundreds to thousands of sporozoites.

When the sporogony (which lasts about 10 days) is completed, the oocyst ruptures and the sporozoites are set free into the body-cavity, leaving behind a large quantity of residual cytoplasm, including pigment grains, &c. The sporozoites are carried about by the blood-stream; ultimately, however, apparently by virtue of some chemotactic attraction, they practically all collect in the salivary glands, filling the secretory cells and also invading the ducts. When the mosquito next bites a man, numbers of them are injected, together with the minute drop of saliva, into his blood, where they begin a fresh endogenous cycle.

There is only one other point with regard to the life-history that need be mentioned. With the lapse of time all trophic and schizogonic (asexual) phases of the parasite in the blood die off. But it has long been known that malarial patients, apparently quite cured, may suddenly exhibit all the symptoms again, without having incurred a fresh infection. Schaudinn has investigated the cause of this recurrence, and finds that it is due to the power of the megagametocytes, which are very resistant and long-lived, to undergo a kind of parthenogenesis under favourable conditions and give rise to the ordinary asexual schizonts, which in turn can repopulate the host with all the other phases. Microgametocytes, on the other hand, die off in time if they cannot pass into a mosquito.

From Lankester’s Treatise on Zoology.
Fig. 3.—Haemogregarina bigemina, Laveran, from the blood of blennies. (After Laveran, magnified about 1800 diameters.)
a, The form of the parasite found free in the blood-plasma. b, Parasite within a blood-corpuscle, preparing for division; the nucleus has already divided. c, The parasite has divided into two rounded corpuscles, which assume the form of the free parasite, as seen in d, e and f.	N, Nucleus of the blood-corpuscle. n, Nucleus of the parasite. The outline of the blood-corpuscle is indicated by a thick black line.

Various types of form are to be met with among the Haemosporidia. In one, characteristic of most (though not of absolutely all) parasites of warm-blooded Vertebrates, the trophozoites are of irregular amoeboid shape; hence this section Comparative Morphology; variations in the life-cycle where known. is generally known as the Haemamoebidae. In another type, characteristic of the parasites of cold-blooded Vertebrates, the body possesses a definite, vermiform, i.e. gregariniform shape, which is retained during the intracorpuscular as well as during the free condition; this section comprises the Haemogregarinidae. Allied to this latter type of form are the trophozoites of Piroplasma, which are normally pear-shaped; they differ, however, in being very minute, and, moreover, exhibit considerable polymorphism, rod-like (so-called bacillary) and ring-forms being of common occurrence. It is important to note that in a certain species of Haemogregarina (fig. 3) the young trophozoites markedly resemble Piroplasma in their pyriform appearance; and a further point of agreement between the two forms is mentioned below. Lastly there is the Avian genus Halteridium, the trophozoites of which are characteristically bean-shaped or reniform. True Haemogregarines also differ in other slight points from “Haemamoebae.” Thus the young endoglobular trophozoite does not exhibit a ring (vacuolar) phase; and the cytoplasm never contains, at any period, the characteristic melanin pigment above noted. In some species of Haemogregarina the parasite, while intracorpuscular, becomes surrounded by a delicate membrane, the cytocyst; on entering upon an active, “free” period, the cytocyst is ruptured and left behind with the remains of the corpuscle. A very interesting cytological feature is the occurrence, in one or two Haemosporidia, of nuclear dimorphism, i.e. of a larger and smaller chromatic body, probably comparable to the trophic and kinetic nuclei of a Trypanosome, or of the “Leishman-Donovan” bodies. Schaudinn was the first to notice this character, in Piroplasma canis, and his observation has since been confirmed by Lühe.4 Moreover, Brumpt has also noticed nuclear dimorphism in the ookinete of a species of Haemogregarina in a leech (as the Invertebrate host)—a highly important observation.

As regards the life-history, the endogenous (schizogonous) cycle is known in many cases. Sometimes schizogony takes the primitive form of simple binary (probably) longitudinal fission; this is the case in Piroplasma (fig. 4) and also in Haemogregarina bigemina just referred to. From this result the pairs of individuals (“twins”) so often found in the corpuscles. In addition, however, at any rate in Piroplasma, it is probable that multiple division (more allied to ordinary schizogony) also takes place; such is the case, according to Laveran, in P. equi, and the occurrence at times of four parasites in a corpuscle, arranged in a cruciform manner, is most likely to be thus explained. Labbé has described schizogony in Halteridium danilewskyi as taking place in a rather peculiar manner; the parasite becomes much drawn-out and halter-like, and the actual division is restricted to its two ends, two clumps of merozoites being formed, at first connected by a narrow strand of unused cytoplasm, which subsequently disappears. Some doubt, however, attaches to this account, as no one else appears to have seen the process. For the rest, schizogony takes place more or less in the customary way, allowing for variations in the mode of arrangement of the merozoites. It remains to be noted that in Karyolysus lacertarum, according to Labbé, two kinds of schizont are developed, which give rise, respectively, to micromerozoites and megamerozoites, in either case enclosed in a delicate cytocyst. This probably corresponds to an early sexual differentiation (such as is found among certain Coccidia (q.v.), the micromerozoites producing eventually micro-gametocytes, the others megagametocytes.

From Lankester’s Treatise on Zoology.
Fig. 4.—Development and schizogony of Piroplasma bigeminum in the blood-corpuscles of the ox. (After Laveran and Nicolle.)
a, Youngest form. b, Slightly older. c and d. Division of the nucleus.	e and f, Division of the body of the parasite. g, h, i, j, Various forms of the twin parasite. k and l, Doubly infected corpuscles.

It has now been recognized for some time that the sexual (exogenous) part of the life-cycle of all the Haemamoebidae takes place in an Invertebrate (Insectan) host, and is fundamentally similar to that above described in those cases where it has been followed. In contradistinction to the malarial parasites, this host, in the Avian forms (Haemoproteus and Halteridium)5 is a species of Culex and not of Anopheles; in other words, gamete-formation, conjugation and subsequent sporozoite-formation in these cases will only go on in the former. On the other hand, in the case of the Haemogregarines, it was thought until quite lately that the entire life-history, including conjugation and sporogony, went on in the Vertebrate host; and only in 1902 Hintze described what purported to be the complete life-history of Lankesterella (Drepanidium) ranarum undergone in the frog. This view was rendered obsolete by the work of Siegel and Schaudinn, who demonstrated the occurrence of an alternation of hosts and of generations in the case of Haemogregarina stepanovi, parasitic in a tortoise, and in Karyolysus lacertarum; the Invertebrate hosts, in which, in both cases, the sexual process is undergone, being respectively a leech (Placobdella) and a tick (Ixodes). With this discovery the main distinction (as supposed) between the Haemosporidia of warm and of cold-blooded Vertebrates vanished. It was further acknowledged by Schaudinn (under whom Hintze 810 had worked) that the latter had been misled by Coccidian cysts and spores, which he took for those of Lankesterella. The gametogony and sporogony of Haemogregarina stepanovi in the leech agree in essential particulars with the process above described. The microgametes are extremely minute, and the sporozoites, which are developed in the salivary glands, where the motile ookinetes finally come to rest, are extremely “spirochaetiform”—the full significance of this latter fact being, perhaps, not appreciated.

Christophers recently described some remarkable phases which he regarded as belonging to the cycle of Haemogregarina gerbilli (one of the few Mammalian Haemogregarines known) in a louse (Haematopinus). In a private communication, however, the author states that he has probably mistaken phases in the development of an ordinary gregarine parasite in the louse for part of the life-cycle of this Haemogregarine.

The Mammalian parasite Piroplasma is the one about whose life-history our knowledge is most vague. Besides the typical and generally occurring forms, others have also been observed in the blood, but it is doubtful how far these are to be looked upon as normal; for instance, Bowhill and Le Doux have described, in various species, a phase in which a long, slender pseudopodial-like outgrowth is present, with a swelling at the distal end. It is, moreover, quite uncertain which are the sexual forms, comparable to gametocytes. Doflein regards large pear-shaped forms as such (megagametocytes?), which become spherical when maturing; and Nocard and Motas have figured amoeboid, irregular forms, with the nucleus fragmented and possessing flagella-like processes (possibly microgametes?). The Invertebrate host is well known to be, in the case of all species, a tick; thus bovine piroplasmosis (P. bigeminum) in America is conveyed by Rhipicephalus annulatus (Boophilus bovis), canine piroplasmosis (P. canis) in South Africa by Haemaphysalis leachi (and perhaps Dermacentor reticulatus), and so on. The manner in which the infection is transmitted by the tick varies greatly. In some cases (e.g. P. bigeminum and P. canis) only the generation subsequent to that which receives the infection (by feeding on an infected ox) can transmit it back again to another ox; in other words, true hereditary infection of the ova in the mother-tick is found to occur. The actual period in the life of the daughter-tick at which it can convey the infection apparently varies. On the other hand, in the case of East African coast-fever, Theiler found that hereditary infection does not occur, the same generation transmitting the parasite (P. parvum) at different periods of life. Little is certainly known regarding the phases of the parasite which are passed through in the tick. Lignières has observed a kind of multiple fission in the stomach, several very minute bodies, consisting mostly of chromatin, being formed, which may serve for endogenous reproduction. Koch has published an account of certain curious forms of P. bigeminum, in which the body is produced into many stiff, ray-like processes, giving the appearance of a star; according to him fusion of such forms takes place, and the resulting zygote becomes rounded, perhaps transitional to the pear-shaped forms.

The classification and nomenclature of the Haemosporidia are in a very unsettled condition. For an account of the various systems and modifications hitherto adopted, the article of Minchin (see under Sporozoa: Bibliography) should be consulted. Classification. With the realization that the life-history in the case of the “Haemamoebae” and the Haemogregarines is fundamentally similar in type, the chief reason for grouping them as distinct suborders has disappeared. It is most convenient to regard them as separate, but closely allied families, the Plasmodidae (“Haemamoebidae”) and the Haemogregarinidae. The Piroplasmata, on the other hand, constitute another family, which is better placed in a distinct section or sub-order. In addition there are, as already noted, two or three genera whose systematic position must be considered as quite uncertain. One is the well-known Halteridium of Labbé, parasitic in various birds; the type-species is H. danilewskyi (Gt. and Fel.). Another is the much-debated parasite of white blood-corpuscles (leucocytes), originally described in birds by Danilewsky under the name of Leucocytozoon, a form of which has been recently observed in Mammals.

In conclusion, the chief members of the above-mentioned families may be enumerated.

Fam. Plasmodidae (“Haemamoebidae”).

Genus Laverania, Gr. and Fel. (syn. Haemamoenas, Ross), for L. malariae, Gr. and Fel. (synn. L. s. Plasmodium, s. “Haemamoeba,” &c., praecox s. immaculatum, &c.), the parasite of pernicious malaria. Genus Plasmodium, March. and Celli (syn. “Haemamoeba”) for P. vivax and P. malariae, the tertian and quartan parasite, respectively. There is also a form known in apes, P. kochi. Genus Haemoproteus, Kruse (syn. Proteosoma), for H. danilewskyi (syn. Proteosoma grassi, Plasmodium praecox, &c.), parasitic in numerous birds. Recently, another form has been described, from reptiles, which Castellani and Willey have termed Haemocystidium simondi.

Remarks.—The distinguishing characters of the malarial parasites have been mentioned above. Some authorities would include Laverania in the genus Plasmodium, as differing only specifically from the other two forms. It has, moreover, been suggested by Sergent that all three are merely different phases of the same parasite, predominating at different seasons; this idea cannot be regarded, however, as in any way proved so far. From what is known of the morphology and mode of manifestation of these forms, the differences between Laverania and the two species of Plasmodium are considerably more pronounced than those between P. vivax and P. malariae; if the latter are to be considered as distinct species, the first-named is probably generically distinct. Lühe, it may be noted, in his recent comprehensive account of the Haematozoa, also takes this view. Lastly, whatever be the correct solution of the above problem, there is certainly not sufficient justification for including the Avian genus Haemoproteus, as also only a species of Plasmodium, which is done by some. Its different Vertebrate habitat, and also the fact that its Insectan definitive host is Culex and not Anopheles, differentiate it sharply from Laverania and Plasmodium.

From Lankester’s Treatise on Zoology.
Fig. 5.—Haemoproteus danilewskyi, Kruse (parasite of various birds). × about 1200. a, b, c and d from the chaffinch; d and e from the lark. (After Labbé.)
a, Young trophozoite in a blood-corpuscle, b and c, Older trophozoite. d and e, Sporulation. d, Precocious sporulation with few merozoites. e, Sporulation of a full-grown schizont, with numerous merozoites. f, Gametocyte.	N, Nucleus of blood-corpuscle. n, Nucleus of parasite. p, Pigment. mz, Merozoites. r.p, Residual protoplasm.

From Lankester’s Treatise on Zoology.
Fig. 6.—Haemogregarina stepanovi, Danilewsky (par. Emys and Cistudo), phases of the schizogony. (a-e and j after Laveran; f-i after Börner.) × 1000 to 1200 diameters.
a, Blood-corpuscle with young trophozoite. b, Older trophozoite. c, Full-grown trophozoite, ready to leave the corpuscle. d and e, Trophozoites free in the blood-plasma, showing changes of form. f-i, Trophozoites, still within the blood-corpuscle (not drawn), showing the structure of the nucleus, the coarse chromatoid granules in the protoplasm and the manner in which the parasite grows into the U-shaped Haemogregarine without increase of body-mass.	j, Commencement of sporulation; the nucleus has divided into eight nuclei, and the body of the parasite is beginning to divide up into as many merozoites within a blood-corpuscle. N, Nucleus of the blood-corpuscle. n, Nucleus of the parasite.

Fam. Haemogregarinidae.—The different genera are characterized chiefly by their size relative to the blood-corpuscles, and their disposition in the latter. Here, again, it has been suggested to unite the various types all in one genus, Haemogregarina, but this seems at least premature when it is remembered how little is known in most cases of the life-cycle, which may prove to exhibit important divergences.

Genus Haemogregarina, Danilewsky (syn. Danilewskya, Labbé). 811 The body of the parasite exceeds the blood-corpuscle in length, when adult, and is bent upon itself, like a U. A very great number of species are known, mostly from reptiles and fishes; among them may be mentioned H. stepanovi (fig. 6), from Emys and Cistudo, whose sexual-cycle in a leech has been worked out by Siegel (see above), H. delagei, from Raja, H. bigemina, from blennies, and H. simondi, from soles. Recently one or two Mammalian forms have been observed, H. gerbilli, from an Indian rat (Gerbillus), and H. jaculi, from the jerboa.

Genus Lankesterella, Labbé (syn. Drepanidium, Lankester). The parasite is not more than three-quarters the length of the corpuscle. L. ranarum from Rana is the type-species; another, recently described by Fantham, is L. tritonis, from the newt.

From Lankester’s Treatise on Zoology.

Fig. 7.—Karyolysus lacertarum (Danil.), in the blood-corpuscles of Lacerta muralis, showing the effects of the parasite upon the nucleus of the corpuscle. In c and d the nucleus is broken up. N, Nucleus of the corpuscle; n, nucleus of the parasite, seen as a number of masses of chromatin, not enclosed by a distinct membrane. (After Marceau.)

Genus Karyolysus, Labbé. The parasite does not exceed the corpuscle in length; the forms included in this genus, moreover, although not actually intranuclear, have a marked karyolytic and disintegrating action upon the nucleus of the corpuscle. The type-species is the well-known K. lacertarum, of lizards; another is K. (Haemogregarina) viperini, from Tropidonotus.

In the section of the Piroplasmata there is only the genus Piroplasma, Patton (synn. Babesia, Starcovici, Pyrosoma, Smith and Kilborne), the principal species of which are as follows: P. bigeminum, the cause of Texas cattle-fever, tick-fever (Rinder-malaria) of South Africa, and P. bovis, causing haemoglobinuria of cattle in Southern Europe; there is some uncertainty as to whether these two are really distinct; P. canis, P. ovis and P. equi associated, respectively, with those animals. Lately, a very small form, P. parvum, has been described by Theiler in Rhodesia, which causes East-African coast-fever; and another, P. muris, has been observed in white rats by Fantham.

Bibliography.—(The older literature is enumerated in most treatises on Sporozoa—see bibliography under Sporozoa). P. Argutinsky, “Malariastudien,” Arch. mikr. Anat. 59, p. 315, pls. 18-21 (1901), and op. cit. 61, p. 331, pl. 18 (1902); A. Balfour, “Haemogregarine of Mammals,” J. Trop. Med. 8, p. 241, 8 figs. (1905); C. A. Bentley, “Leucocytozoan of the Dog,” B.M.J. (1905), 1, pp. 988 and 1078; N. Berestneff, “Über einen neuen Blutparasiten der indischen Frösche,” Arch. Protistenk. 2, p. 343, pl. 8 (1903); “Über das ’Leucocytozoan’ danilewskyi,” op. cit. 3, p. 376, pl. 15 (1904); A. Billet, “Contribution à l’étude du paludisme et de son hématozoaire en Algérie,” Ann. Inst. Pasteur, 16, p. 186 (1902); (Notes on various Haemogregarines). C. R. Soc. Biol. 56, pp. 482, 484, 607 and 741 (1904); C. Börner, “Untersuchungen über Hämosporidien,” Zeitschr. wiss. Zool. 69, p. 398, 1 pl. (1901); T. Bowhill, “Equine piroplasmosis,” &c., J. Hyg. 5, p. 7, pls. 1-3 (1905); Bowhill and C. le Doux, “Contribution to the Study of ’Piroplasmosis canis,’” op. cit. 4, p. 217, pl. 11 (1904); E. Brumpt and C. Lebailly, “Description de quelques nouvelles espèces de trypanosomes et d’hémogrégarines,” &c., C. R. Ac. Sci. 139, p. 613 (1904); A. Castellani and A. Willey, “Observations on the Haematozoa of Vertebrates in Ceylon,” Spolia Zeylan. 2, p. 78, 1 pl. (1904), and Q. J. Micr. Sci. 49, p. 383, pl. 24 (1905); S. R. Christophers, “Haemogregarina gerbilli,” Sci. Mem. India, 18, 15 pp., 1 pl. (1905); H. B. Fantham, “Lankesterella tritonis, n. sp.,” &c., Zool. Anz. 29, p. 257, 17 figs. (1905); “Piroplasma muris,” &c., Q. J. Micr. Sci. 50, p. 493, pl. 28 (1906); C. Graham-Smith, “A new Form of Parasite found in the Red Blood-Corpuscles of Moles,” J. Hyg. 5, p. 453, pls. 13 and 14 (1905); R. Hintze, “Lebensweise und Entwickelung von Lankesterella minima,” Zool. Jahrb. Anat. 15, p. 693, pl. 36 (1902); S. James, “On a Parasite found in the White Blood-Corpuscles of Dogs,” Sci. Mem. India, 14, 12 pp. 1 pl. (1905); R. Koch, “Vorläufige Mitteilungen über die Ergebnisse einer Forschungsreise nach Ostafrika,” Deutsch. med. Wochenschr., 1905, p. 1865, 24 figs.; A. Labbé, “Recherches sur les parasites endoglobulaires du sang des vertébrés,” Arch. zool. exp. (3) ii. p. 55, 10 pls. (1894); A. Laveran, “Sur quelques hémogrégarines des ophidiens,” C. R. Ac. Sci. 135, p. 1036, 13 figs. (1902); “Sur une Haemamoeba d’une mésange (Parus major),” C. R. Soc. Biol. 54, p. 1121, 10 figs. (1902); “Sur la piroplasmose bovine bacilliforme,” C. R. Ac. Sci. 138, p. 648, 18 figs. (1903); “Contribution à l’étude de Haemamoeba ziemanni,” C. R. Soc. Biol. 55, p. 620, 7 figs. (1903); “Sur une hémogrégarine des gerboises,” C. R. Ac. Sci. 141, p. 295, 9 figs. (1905); (On different Haemogregarines) C. R. Soc. Biol. 59, pp. 175, 176, with figs. (1905); “Haemocytozoa. Essai de classification,” Bull. Inst. Pasteur, 3, p. 809 (1905); Laveran and F. Mesnil, “Sur les hématozoaires des poissons marins,” C. R. Ac. Sci. 135, p. 567 (1902); “Sur quelques protozoaires parasites d’une tortue d’Asie,” t.c. p. 609, 14 figs. (1902); Laveran and Nègre, “Sur un protozoaire parasite de Hyalomma aegyptium,” C. R. Soc. Biol. 58, p. 964, 6 figs. (1905); (for various earlier papers by these authors, reference should be made to the C. R. Ac. Sci. and C R. Soc. Biol. for previous years); C. Lebailly (On Piscine Haemogregarines) C. R. Ac. Sci. 139, p. 576 (1904), and C. R. Soc. Biol. 59, p. 304 (1905); J. Lignières, “Sur la ‘Tristeza,’” Ann. Inst. Pasteur, 15, p. 121, pl. 6 (1901); “La Piroplasmose bovine; nouvelles recherches,” &c., Arch. parasit. 7, p. 398, pl. 4 (1903); M. Lühe, “Die im Blute schmarotzenden Protozoen,” in Mense’s Handbuch der Tropenkrankheiten (Leipzig, 1906), 3, 1; F. Marceau, “Note sur le Karyolysus lacertarum,” Arch. parasitol. 4, p. 135, 46 figs. (1901); W. MacCallum, “On the Haematozoan Infection of Birds,” J. Exp. Med. 3, p. 117, pl. 12 (1898); G. Mauser, “Die Malaria perniciosa,” Centrbl. Bakter. (1) 32, Orig. p. 695, 3 pls. (1902); C. Nicolle (On various Reptilian Haemogregarines), C. R. Soc. Biol. 56, pp. 330, 608 and 912, with figs. (1904); Nicolle and C. Comte, “Sur le rôle ... de Hyalomma ... dans l’infection hémogrégarinienne,” op. cit. 58, p. 1045 (1905); Norcard and Motas, “Contribution à l’étude de la piroplasmose canine,” Ann. Inst. Pasteur, 16, p. 256, pls. 5 and 6 (1902); G. Nuttall and G. Graham-Smith, “Canine piroplasmosis,” J. Hygiene, p. 237, pl. 9 (1905); F. Schaudinn, “Der Generationswechsel der Coccidien und Hämosporidien,” Zool. Centrbl. 6, p. 675 (1899); “Studien über krankheitserregende Protozoen—II. Plasmodium vivax,” Arb. Kais. Gesundheitsamte, 19, p. 169, pls. 4-6 (1902); E. and E. Sergent (On different Haemogregarines), C. R. Soc. Biol. 56, pp. 130, 132 (1904), op. cit. 58, pp. 56, 57, 670 (1905); J. Siegel, “Die geschlechtliche Entwickelung von Haemogregarina,” &c., Arch. Protistenk. 2, p. 339, 7 figs. (1903); P. L. Simond, “Contribution à l’étude des hématozoaires endoglobulaires des reptiles,” Ann. Inst. Pasteur, 15, p. 319, 1 pl. (1901); T. Smith and F. Kilborne, “Investigations into the Nature, Causation and Prevention of Texas Cattle Fever,” Rep. Bureau Animal Industry, U.S.A., 9 and 10, p. 177, pls. (1893); A. Theiler, “The Piroplasma bigeminum of the Immune Ox,” J. Army Med. Corps, 3, pp. 469, 599, 1 pl. (1904); J. Vassal, “Sur une hématozoaire endoglobulaire nouveau d’un mammifère,” Ann. Inst. Pasteur, 19, p. 224, pl. 10 (1905); L. B. Wilson and W. Chowning, “Studies in Piroplasmosis hominis,” J. Infect. Diseases, 1, p. 31, 2 pls. (1904).

HAETZER, or Hetzer, LUDWIG (d. 1529), Swiss divine, was born in Switzerland, at Bischofszell, in Thurgau. He studied at Freiburg-im-Breisgau, and began his career in a chaplaincy at Wadenswil, on the Lake of Zürich. At this time his attachment to the old faith was tempered by a mystical turn, and by a devotion to the prophetical writings of the Old Testament, which he studied in the original. By 1523 we find him in Zürich, where he published, at first anonymously and in Latin (Judicium Dei), later with his name and in German (Sept. 24, 1523), a small tract against the religious use of images, and bearing the motto attached to all his subsequent works, “O Got erlösz die (or dein) Gefangnen” (“O God, set the prisoners free”). An attempt to give effect to the teaching of this (frequently reprinted) tract was followed by a public religious disputation, of which Haetzer drew up the official account. In 1524 he brought out a tract on the conversion of the Jews, and published a German version of Johann Bugenhagen’s brief exposition of the epistles of St Paul (Ephesians to Hebrews); in the dedication (dated Zürich, June 29, 1524) he undertakes to translate Bugenhagen’s comment on the Psalter. He then went to Augsburg, bearing Zwingli’s introduction to Johann Frosch. Here he came for a time under the influence of Urbanus Regius, and was for a short time the guest of Georg Regel. Returning to Zürich, he was in intercourse with leading Anabaptists (though his own position was simply the disuse of infant baptism) till their expulsion in January 1525. Again resorting to Augsburg, and resuming work as corrector of the press for his printer Silvan Ottmar, he pushed his views to the extreme of rejecting all sacraments, reaching something like the mystical standpoint of the early Quakers. He was expelled from Augsburg in the autumn of 1525, and made his way through Constance to Basel, where Oecolampadius received him kindly. He translated into German the first treatise of Oecolampadius on the Lord’s Supper (in which the words of institution are taken figuratively), and proceeding to Zürich in November, published 812 his version there in February 1526, with a preface disclaiming connexion with the Anabaptists. His relations with Zwingli were difficult; returning to Basel he published (July 18, 1526) his translation of Malachi, with Oecolampadius’s exposition, and with a preface reflecting on Zwingli. This he followed by a version of Isaiah xxxvi.-xxxvii. He next went to Strassburg, and was received by Wolfgang Capito. At Strassburg in the late autumn of 1526 he fell in with Hans Dengk or Denck, who collaborated with him in the production of his opus magnum, the translation of the Hebrew Prophets, Alle Propheten nach hebraischer Sprach vertuetscht. The preface is dated Worms, 3 April 1527; and there are editions, Worms, 13 April 1527, folio; Augsburg, 22 June 1527, folio; Worms, 7 Sept. 1527, 16º; and Augsburg, 1528, folio. It was the first Protestant version of the prophets in German, preceding Luther’s by five years, and highly spoken of by him. Haetzer and Denck now entered on a propagandist mission from place to place, with some success, but of short duration. Denck died at Basel in November 1527. Haetzer was arrested at Constance in the summer of 1528. After long imprisonment and many examinations he was condemned on the 3rd of February 1529 to die by the sword, and the sentence was executed on the following day. His demeanour on the scaffold impressed impartial witnesses, Hans Zwick and Thomas Blaurer, who speak warmly of his fervour and courage. The Dutch Baptist Martyrology describes him as “a servant of Jesus Christ.” The Moravian Chronicle says “he was condemned for the sake of divine truth.” His papers included an unpublished treatise against the essential deity of Christ, which was suppressed by Zwingli; the only extant evidence of his anti-trinitarian views being contained in eight quaint lines of German verse preserved in Sebastian Frank’s Chronica. The discovery of his heterodox Christology (which has led modern Unitarians to regard him as their proto-martyr) was followed by charges of loose living, never heard of in his lifetime, and destitute of evidence or probability.

HĀFIZ. Shams-ud-din Mahommed, better known by his takhallus or nom de plume of Hāfiz, was one of the most celebrated writers of Persian lyrical poetry. He was born at Shiraz, the capital of Fars, in the early part of the 8th century of the Mahommedan era, that is to say, in the 14th of our own. The exact date of his birth is uncertain, but he attained a ripe old age and died in 791 A.H. (A.D. 1388). This is the date given in the chronogram which is engraved on his tomb, although several Persian biographers give a different year. Very little is actually known about his life, which appears to have been passed in retirement in Shiraz, of which he always speaks in terms of affectionate admiration. He was a subject of the Muzaffar princes, who ruled in Shiraz, Yazd, Kirman and Ispahan, until the dynasty was overthrown by Timur (Tamerlane). Of these princes his especial patrons were Shah Shujā’ and Shah Mansūr. He early devoted himself to the study of poetry and theology, and also became learned in mystic philosophy, which he studied under Shaik Mahmūd ‘Aṭṭār, chief of an order of dervishes. Hāfiz afterwards enrolled himself in the same order and became a professor of Koranic exegesis in a college which his friend and patron Haji Kiwam-ud-din, the vizier, specially founded for him. This was probably the reason of his adopting the sobriquet of Hāfiz (“one who remembers”), which is technically applied to any person who has learned the Koran by heart. The restraints of an ascetic life seem to have been very little to Hāfiz’s taste, and his loose conduct and wine-bibbing propensities drew upon him the severe censure of his monastic colleagues. In revenge he satirizes them unmercifully in his verses, and seldom loses an opportunity of alluding to their hypocrisy. Hāfiz’s fame as a poet was soon rapidly spread throughout the Mahommedan world, and several powerful monarchs sent him presents and pressing invitations to visit them. Amongst others he was invited by Mahmūd Shah Bahmani, who reigned in the south of India. After crossing the Indus and passing through Lahore he reached Hurmuz, and embarked on board a vessel sent for him by the Indian prince. He seems, however, to have been a bad sailor, and, having invented an excuse for being put ashore, made the best of his way back to Shiraz. Some biographies narrate a story of an interview between Hāfiz and the invader Timur. The latter sent for him and asked angrily, “Art thou he who was so bold as to offer my two great cities Samarkand and Bokhara for the black mole on thy mistress’s cheek?” alluding to a well-known verse in one of his odes. “Yes, sire,” replied Hāfiz, “and it is by such acts of generosity that I have brought myself to such a state of destitution that I have now to solicit your bounty.” Timur was so pleased at his ready wit that he dismissed the poet with a handsome present. Unfortunately for the truth of this story Timur did not capture Shiraz till A.D. 1393, while the latest date that can be assigned to Hāfiz’s death is 1391. Of his private life little or nothing is known. One of his poems is said to record the death of his wife, another that of a favourite unmarried son, and several others speak of his love for a girl called Shākh i Nabat, “Sugar-cane branch,” and this is almost all of his personal history that can be gathered from his writings. He was, like most Persians, a Shi‘ite by religion, believing in the transmission of the office of Imām (head of the Moslem Church) in the family of Ali, cousin of the prophet, and rejecting the Hadith (traditional sayings) of Mahomet, which form the Sunna or supplementary code of Mahommedan ceremonial law. One of his odes which contains a verse in praise of Ali is engraved on the poet’s tomb, but is omitted by Sudi, the Turkish editor and commentator, who was himself a rigid Sunnite. Hāfiz’s heretical opinions and dissipated life caused difficulties to be raised by the ecclesiastical authorities on his death as to his interment in consecrated ground. The question was at length settled by Hāfiz’s own works, which had then already begun to be used, as they are now throughout the East, for the purposes of divination, in the same manner as Virgil was employed in the middle ages for the divination called Sortes Virgilianae. Opening the book at random after pronouncing the customary formula asking for inspiration, the objectors hit upon the following verse—“Turn not away thy foot from the bier of Hāfiz, for though immersed in sin, he will be admitted into Paradise.” He was accordingly buried in the centre of a small cemetery at Shiraz, now included in an enclosure called the Hāfiziyeh.

His principal work is the Dīwān, that is, a collection of short odes or sonnets called ghazals, and consisting of from five to sixteen baits or couplets each, all the couplets in each ode having the same rhyme in the last hemistich, and the last couplet always introducing the poet’s own nom de plume. The whole of these are arranged in alphabetical order, an arrangement which certainly facilitates reference but makes it absolutely impossible to ascertain their chronological order, and therefore detracts from their value as a means of throwing light upon the growth and development of his genius or the incidents of his career. They are often held together by a very slender thread of continuous thought, and few editions agree exactly in the order of the couplets. Still, a careful study of them, especially from the point of view indicated by the Sufiistic system of philosophy, will always show that a single idea does run throughout the whole. The nature of these poems has been the subject of much discussion in the West, some scholars seeing in their anacreontic utterances nothing but sensuality and materialism, while others, following the Oriental school, maintain that they are wholly and entirely mystic and philosophic. Something between the two would probably be nearer the truth. It must be remembered that Hāfiz was a professed dervish and Sūfi, and that his ghazals were in all probability published from a takia, and arranged with at least a view to Sufiistic interpretation. At the same time it is ridiculous to suppose that the glowing imagery, the gorgeous and often tender descriptions of natural beauties, the fervent love passages, and the roystering drinking songs were composed in cool blood or with deliberate ascetic purpose. The beauty of Hāfiz’s poetry is that it is natural. It is the outcome 813 of a fervent soul and a lofty genius delighting in nature and enjoying life; and it is the poet’s misfortune that he lived in an age and amongst a people where rigid conventionality demanded that his free and spontaneous thoughts should be recast in an artificial mould.

HAG. (1) (Probably a shortened form of the O. Eng. hægtesse, hegtes, cognate with Ger. Hexe, witch, Dutch hecse), a word common during the 16th and 17th centuries for a female demon or evil spirit, and so particularly applied to such supernatural beings as the harpies and fairies of classical mythology, and also to witches. In modern usage the word is generally used of a hideous old woman whose repulsive exterior is accompanied by malice or wickedness. The name is also used of an eel-like parasitic fish, Myxine glutinosa, allied to the lamprey.

(2) A word common in Scottish and northern English dialects for an enclosed piece of wood, a copse. This is the same word as “hedge” (see Hedges) and “haw.” “Hag” also means “to cut,” and is used in Scotland of an extent of woodland marked out for felling, and of a quantity of felled wood. This word is also used of a cutting in the peat of a “moss” or “bog,” and hence applied to the small plots of firm ground or heather in a bog; it is common in the form “moss-hags.”

HAGEDORN, FRIEDRICH VON (1708-1754), German poet, was born on the 23rd of April 1708 at Hamburg, where his father, a man of scientific and literary taste, was Danish minister. He was educated at the gymnasium of Hamburg, and later (1726) became a student of law at Jena. Returning to Hamburg in 1729, he obtained the appointment of unpaid private secretary to the Danish ambassador in London, where he lived till 1731. Hagedorn’s return to Hamburg was followed by a period of great poverty and hardship, but in 1733 he was appointed secretary to the so-called “English Court” (Englischer Hof) in Hamburg, a trading company founded in the 13th century. He shortly afterwards married, and from this time had sufficient leisure to pursue his literary occupations till his death on the 28th of October 1754. Hagedorn is the first German poet who bears unmistakable testimony to the nation’s recovery from the devastation wrought by the Thirty Years’ War. He is eminently a social poet. His light and graceful love-songs and anacreontics, with their undisguised joie de vivre, introduced a new note into the German lyric; his fables and tales in verse are hardly inferior in form and in delicate persiflage to those of his master La Fontaine, and his moralizing poetry re-echoes the philosophy of Horace. He exerted a dominant influence on the German lyric until late in the 18th century.

HAGEN, FRIEDRICH HEINRICH VON DER (1780-1856), German philologist, chiefly distinguished for his researches in Old German literature, was born at Schmiedeberg In Brandenburg on the 19th of February 1780. After studying law at the university of Halle, he obtained a legal appointment in the state service at Berlin, but in 1806 resigned this office in order to devote himself exclusively to letters. In 1810 he was appointed professor extraordinarius of German literature in the university of Berlin; in the following year he was transferred in a similar capacity to Breslau, and in 1821 returned to Berlin as professor ordinarius. He died at Berlin on the 11th of June 1856. Although von der Hagen’s critical work is now entirely out of date, the chief merit of awakening an interest in old German poetry belongs to him.

HAGEN, a town of Germany, In the Prussian province of Westphalia. Pop. (1905), 77,498. It lies amid well-wooded hills at the confluence of the Ennepe with the Volme, 15 m. N.E. of Elberfeld, on the main line to Brunswick and Berlin, and at the junction of important lines of railway, connecting it with the principal towns of the Westphalian iron district. It has five Evangelical churches, a Roman Catholic church, an Old Catholic church, a synagogue, a gymnasium, realgyrnnasium, and a technical school with special classes for machine-building. There are also a museum, a theatre, and a prettily arranged municipal park. Hagen is one of the most flourishing commercial towns in Westphalia, and possesses extensive iron and steel works, large cotton print works, woollen and cotton factories, manufactures of leather, paper, tobacco, and iron and steel wares, breweries and distilleries. There are large limestone quarries in the vicinity and also an alabaster quarry.

HAGENAU, a town of Germany, in the imperial province of Alsace-Lorraine, situated in the middle of the Hagenau Forest, on the Moder, and on the railway from Strassburg to Weissenburg, 10 m. N.N.E. of the former city. Pop. (1905), 18,500. It has two Evangelical and two ancient Catholic churches (one dating from the 12th, the other from the 13th century), a gymnasium, a public library, a hospital, and a theatre. The principal industries are wool and cotton spinning, and the manufacture of porcelain, earthenware, boots, soap, oil, sparkling wines and beer. There is also considerable trade in hops and vegetables. Hagenau is an important military centre and has a large garrison, including three artillery battalions.

Hagenau dates from the beginning of the 12th century, and owes its origin to the erection of a hunting lodge by the dukes of Swabia. The emperor Frederick I. surrounded it with walls and gave it town rights in 1154. On the site of the hunting lodge he founded an imperial palace, in which were preserved the jewelled imperial crown, sceptre, imperial globe, and sword of Charlemagne. Subsequently it became the seat of the Landvogt 814 of Hagenau, the imperial advocatus in Lower Alsace. Richard of Cornwall, king of the Romans, made it an imperial city in 1257. In 1648 it came into the possession of France, and in 1673 Louis XIV. caused the fortifications to be razed. In 1675 it was captured by imperial troops, but in 1677 it was retaken by the French and nearly all destroyed by fire. In 1871 it fell, with the rest of Alsace-Lorraine, into the possession of Germany.

HAGENBACH, KARL RUDOLF (1801-1874). German church historian, was born on the 4th of March 1801 at Basel, where his father was a practising physician. His preliminary education was received at a Pestalozzian school, and afterwards at the gymnasium, whence in due course he passed to the newly reorganized local university. He early devoted himself to theological studies and the service of the church, while at the same time cherishing and developing broad “humanistic” tendencies which found expression in many ways and especially in an enthusiastic admiration for the writings of Herder. The years 1820-1823 were spent first at Bonn, where G. C. F. Lücke (1791-1855) exerted a powerful influence on his thought, and afterwards at Berlin, where Schleiermacher and Neander became his masters. Returning in 1823 to Basel, where W. M. L. de Wette had recently been appointed to a theological chair, he distinguished himself greatly by his trial-dissertation, Observationes historico-hermeneuticae circa Origenis methodum interpretendae sacrae Scripturae; in 1824 he became professor extraordinarius, and in 1829 professor ordinarius of theology. Apart from his academic labours in connexion with the history of dogma and of the church, he lived a life of great and varied usefulness as a theologian, a preacher and a citizen; and at his “jubilee” in 1873, not only the university and town of Basel but also the various churches of Switzerland united to do him honour. He died at Basel on the 7th of June 1874.

Hagenbach was a voluminous author in many departments, but he is specially distinguished as a writer on church history. Though neither so learned and condensed as the contributions of Gieseler, nor so original and profound as those of Neander, his lectures are clear, attractive and free from narrow sectarian prejudice. In dogmatics, while avowedly a champion of the “mediation theology” (Vermittelungstheologie), based upon the fundamental conceptions of Herder and Schleiermacher, he was much less revolutionary than were many others of his school. He sought to maintain the old confessional documents, and to make the objective prevail over the purely subjective manner of viewing theological questions. But he himself was aware that in the endeavour to do so he was not always successful, and that his delineations of Christian dogma often betrayed a vacillating and uncertain hand.

HAGENBECK, CARL (1844-  ), wild-animal collector and dealer, was born at Hamburg in 1844. In 1848 his father purchased some seals and a Polar bear brought to Hamburg by a whaler, and subsequently acquired many other wild animals. At the age of twenty-one Carl Hagenbeck was given the whole collection, and before long had greatly extended the business, so that in 1873 he had to erect large buildings in Hamburg to house his animals. In 1875 he began to exhibit a collection of the representative animals of many countries, accompanied by troupes of the natives of the respective countries, throughout all the large cities of Europe. The educational value of these exhibitions was officially recognized by the French government, which in 1891 awarded Hagenbeck the diploma of the Academy. Most of the wild animals exhibited in music-halls and other popular places of entertainment throughout the world have come from Hagenbeck’s collection at Stellingen, near Hamburg.

HAGERSTOWN, a city and the county-seat of Washington county, Maryland, U.S.A., near Antietam Creek, about 86 m. by rail W.N.W. from Baltimore. Pop. (1890), 10,118; (1900), 13,591, of whom 1277 were negroes; (1910, census), 16,507. Hagerstown is served by the Baltimore & Ohio, the Western Maryland, the Norfolk & Western, and the Cumberland Valley railways, and by an interurban electric line. It lies in a fertile valley overlooked by South Mountain to the E. and North Mountain, more distant, to the W. The city is the seat of Kee Mar College (1852; non-sectarian) for women. Hagerstown is a business centre for the surrounding agricultural district, has good water power, and as a manufacturing centre ranked third in the state in 1905, its factory products being valued in that year at $3,026,901, an increase of 66.3% over their value in 1900. Among the manufactures are flour, shirts, hosiery, gloves, bicycles, automobiles, agricultural implements, print paper, fertilizers, sash, doors and blinds, furniture, carriages, spokes and wheels. The municipality owns and operates its electric lighting plant. Hagerstown was laid out as a town in 1762 by Captain Jonathan Hager (who had received a patent to 200 acres here from Lord Baltimore in 1739), and was incorporated in 1791. It was an important station on the old National (or Cumberland) Road. General R. E. Lee concentrated his forces at Hagerstown before the battle of Gettysburg.

HAG-FISH, Glutinous Hag, Or Borer (Myxine), a marine fish which forms with the lampreys one of the lowest orders of vertebrates (Cyclostomata). Similar in form to a lamprey, it is usually found within the body of dead cod or haddock, on the flesh of which it feeds after having buried itself in the abdomen. When caught, it secretes a thick glutinous slime in such quantity that it is commonly believed to have the power of converting water into glue. It is found in the North Atlantic and other temperate seas of the globe, being taken in some localities in large numbers, e.g. off the east coast of Scotland and the west coast of California (see Cyclostomata).

HAGGADA, or ’Agada (literally “narrative”), includes the more homiletic elements of rabbinic teaching. It is not logically distinguishable from the halakha (q.v.), for the latter or forensic element makes up with the haggada the Midrash (q.v.), but, being more popular than the halakha, is often itself styled the Midrash. It may be described as the poetical and ethical element as contrasted with the legal element in the Talmud (q.v.), but the two elements are always closely connected. From one point of view the haggada, amplifying and developing the contents of Hebrew scripture in response to a popular religious need, may be termed a rabbinical commentary on the Old Testament, containing traditional stories and legends, sometimes amusing, sometimes trivial, and often beautiful. The haggada abounds in parables. The haggadic passages of the Talmud were collected in the Eye of Jacob, a very popular compilation completed by Jakob ibn Habib in the 16th century.

HAGGAI, in the Bible, the tenth in order of the “minor prophets,” whose writings are preserved in the Old Testament. The name Haggai (חגי, Gr. Ἀγγαῖος, whence Aggeus in the English version of the Apocrypha) perhaps means “born on the feast day,” “festive.” But Wellhausen1 is probably right in taking the word as a contraction for Hagariah (“Yahweh hath girded”), just as Zaccai (Zacchaeus) is known to be a contraction of Zechariah.

The book of Haggai contains four short prophecies delivered between the first day of the sixth month and the twenty-fourth day of the ninth month—that is, between September and December—of the second year of Darius the king. The king in question must be Darius Hystaspis (521-485 B.C.). The language of the prophet in ii. 3 suggests the probability that he was himself one of those whose memories reached across the seventy years of the captivity, and that his prophetic work began in extreme 815 old age. This supposition agrees well with the shortness of the period covered by his book, and with the fact that Zechariah, who began to prophesy in the same autumn and was associated with Haggai’s labours (Ezra v. 1), afterwards appears as the leading prophet in Jerusalem (Zech. vii. 1-4). We know nothing further of the personal history of Haggai from the Bible. Later traditions may be read in Carpzov’s Introductio, pars 3, cap. xvi. Epiphanius (Vitae prophetarum) says that he came up from Babylon while still young, prophesied the return, witnessed the building of the temple and received an honoured burial near the priests. Haggai’s name is mentioned in the titles of several psalms in the Septuagint (Psalms cxxxvii., cxlv.-cxlviii.) and other versions, but these titles are without value, and moreover vary in MSS. Eusebius did not find them in the Hexaplar Septuagint.2

In his first prophecy (i. 1-11) Haggai addresses Zerubbabel and Joshua, rebuking the people for leaving the temple unbuilt while they are busy in providing panelled houses for themselves. The prevalent famine and distress are due to Yahweh’s indignation at such remissness. Let them build the house, and Yahweh will take pleasure in it and acknowledge the honour paid to Him. The rebuke took effect, and the people began to work at the temple, strengthened by the prophet’s assurance that the Lord was with them (i. 12-15). In a second prophecy (ii. 1-9) delivered in the following month, Haggai forbids the people to be disheartened by the apparent meanness of the new temple. The silver and gold are the Lord’s. He will soon shake all nations and their choicest gifts will be brought to adorn His house. Its glory shall be greater than that of the former temple, and in this place He will give peace. A third prophecy (ii. 10-19) contains a promise, enforced by a figure drawn from the priestly ritual, that God will remove famine and bless the land from the day of the foundation of the temple onwards. Finally, in ii. 20-23, Zerubbabel is assured of God’s special love and protection in the impending catastrophe of kingdoms and nations to which the prophet had formerly pointed as preceding the glorification of God’s house on Zion. In thus looking forward to a shaking of all nations Haggai agrees with earlier prophecies, especially Isa. xxiv.-xxvii., while his picture of the glory and peace of the new Zion and its temple is drawn from the great anonymous prophet who penned Isa. lx and lxvi. The characteristic features of the book are the importance assigned to the personality of Zerubbabel, who, though a living contemporary, is marked out as the Messiah; and the almost sacramental significance attached to the temple. The hopes fixed on Zerubbabel, the chosen of the Lord, dear to Him as His signet ring (cf. Jer. xxii. 24), are a last echo in Old Testament prophecy of the theocratic importance of the house of David. In the book of Zechariah Zerubbabel has already fallen into the background and the high priest is the leading figure of the Judean community.3 The stem of David is superseded by the house of Zadok, the kingship has yielded to the priesthood, and the extinction of national hopes gives new importance to that strict organization of the hierarchy for which Ezekiel had prepared the way by his sentence of disfranchisement against the non-Zadokite priests.

The indifference of the Jews to the desolate conditions of their sanctuary opens up a problem of some difficulty. It is strange that neither Haggai nor his contemporary Zechariah mentions or implies any return of exiles from Babylon, and the suggestion has accordingly been made that the return under Cyrus described in Ezra i.-iv. is unhistorical, and that the community addressed by Haggai consisted of the remnant that had been left in Jerusalem and its neighbourhood after the majority had gone into exile or fled to Egypt (Jer. xliii.). Such a remnant, amongst whom might be members of the priestly and royal families, would gather strength and boldness as the troubles of Babylon increased and her vigilance was relaxed, and might receive from Babylon and other lands both refugees and some account at least of the writings of Ezekiel and the Second Isaiah. Stimulated by such causes and obtaining formal permission from the Persian government, they would arise as a new Israel and enter on a new phase of national life and divine revelation.

In spite, however, of the plausibility of this theory, it seems preferable to adhere to the story of Ezra i.-iv. Apart from the weighty objections that the Edomites would have frustrated such a recrudescence of the remnant Jews as has been described, it must be remembered that the main stream of Jewish life and thought had been diverted to Babylon. Thence, when the opportunity came under Cyrus, some 50,000 Jews, the spiritual heirs of the best elements of the old Israel, returned to found the new community. With them were all the resources, and the only people they found at Jerusalem were hostile gentiles and Samaritans. Full of enthusiasm, they set about rebuilding the temple and realizing the glowing promises about the prosperity and dominance of Zion that had fallen from the lips of the Second Isaiah (xlix. 14-26, xlv. 14). Bitter disappointment, however, soon overcame them, the Samaritans were strong enough to thwart and hinder their temple-building, and it seemed as though the divine favour was withdrawn. Apathy took the place of enthusiasm, and sordid worries succeeded to high hopes. “The like collapse has often been experienced in history when bands of religious men, going forth, as they thought, to freedom and the immediate erection of a holy commonwealth, have found their unity wrecked and their enthusiasm dissipated by a few inclement seasons on a barren and hostile shore.”4

From this torpor they were roused by tidings which might well be interpreted as the restoration of divine favour. Away in the East Cyrus had been succeeded in 529 B.C. by Cambyses, who had annexed Egypt and on whose death in 522 a Magian impostor, Gaumata, had seized the throne. The fraud was short-lived, and Darius I. became king and the founder of a new dynasty. These events shook the whole Persian empire; Babylon and other subject states rose in revolt, and to the Jews it seemed that Persia was tottering and that the Messianic era was nigh. It was therefore natural that Haggai and Zechariah should urge the speedy building of the temple, in order that the great king might be fittingly received.

It is sometimes levied as a reproach against Haggai that he makes no direct reference to moral duties. But it is hardly fair to contrast his practical counsel with the more ethical and spiritual teaching of the earlier Hebrew prophets. One thing was needful—the temple. “Without a sanctuary Yahweh would have seemed a foreigner to Israel. The Jews would have thought that He had returned to Sinai, the holy mountain; and that they were deprived of the temporal blessings which were the gifts of a God who literally dwelt in the midst of his people.” Haggai argued that material prosperity was conditioned by zeal in worship; the prevailing distress was an indication of divine anger due to the people’s religious apathy. Haggai’s reproofs touched the conscience of the Jews, and the book of Zechariah enables us in some measure to follow the course of a religious revival which, starting with the restoration of the temple, did not confine itself to matters of ceremony and ritual worship. On the other hand, Haggai’s treatment of his theme, practical and effective as it was for the purpose in hand, moves on a far lower level than the aspirations of the prophet who wrote the closing chapters of Isaiah. To the latter the material temple is no more than a detail in the picture of a work of restoration eminently ideal and spiritual, and he expressly warns his hearers against attaching intrinsic importance to it (Isa. lxvi. 1). To Haggai the temple appears so essential that he teaches that while it lay waste, the people and all their works and offerings were unclean (Hag. ii. 14). In this he betrays his affinity with Ezekiel, who taught that it is by the possession of the sanctuary that Israel is sanctified (Ezek. xxxvii. 28). In truth the new movement of religious thought and feeling which started from the fall of the Hebrew state took two distinct lines, of which Ezekiel and the anonymous 816 authors of Isa. xl.-lxvi. are the respective representatives. While the latter developed their great picture of Israel the mediatorial nation, the systematic and priestly mind of Ezekiel had shaped a more material conception of the religious vocation of Israel in that picture of the new theocracy where the temple and its ritual occupy the largest place, with a sanctity which is set in express contrast to the older conception of the holiness of the city of Jerusalem (cf. Ezek. xliii. 7 seq. with Jer. xxxi. 40, Isa. iv. 5), and with a supreme significance for the religious life of the people which is expressed in the figure of the living waters issuing from under the threshold of the house (Ezek. xlvii.). It was the conception of Ezekiel which permanently influenced the citizens of the new Jerusalem, and took final shape in the institutions of Ezra. To this consummation, with its necessary accompaniment in the extinction of prophecy, the book of Haggai already points.

HAGGARD, HENRY RIDER (1856-  ), English novelist, was born at Bradenham Hall, Norfolk, on the 22nd of June 1856. When he was nineteen he went to South Africa as secretary to Sir Henry Bulwer, governor of Natal. At the time of the first annexation of the Transvaal (1877), he was on the staff of the special commissioner, Sir Theophilus Shepstone; and he subsequently became a master of the high court of the Transvaal. He married in 1879 a Norfolk heiress, Miss Margitson, but returned to the Transvaal in time to witness its surrender to the Boers and the overthrow of the policy of his former chief. He returned to England and read for the bar, but soon took to literary work; he published Cetywayo and his White Neighbours (1882), written in defence of Sir T. Shepstone’s policy. This was followed by the novels Dawn (1884), The Witch’s Head (1885), which contains an account of the British defeat at Isandhlwana; and in 1886 King Solomon’s Mines, suggested by the Zimbabwe ruins, which first made him popular. She (1887), another fantastic African story, was also very successful, a sequel, Ayesha, or the Return of She, being published in 1905. The scene of Jess (1887) and of Allan Quatermain (1888) was also laid in Africa. In 1895 he unsuccessfully contested the East Norfolk parliamentary division in the Unionist interest; he showed great interest in rural and agricultural questions, being a practical gardener and farmer on his estate in Norfolk. In his Rural England (2 vols., 1902) he exposed the evils of depopulation in country districts. In 1905 he was commissioned by the colonial office to inquire into the Salvation Army settlements at Fort Romie, S. California, and Fort Amity, Colorado, with a view to the establishment of similar colonies in South Africa. His report on the subject was first published as a blue book, and afterwards, in an enlarged form, as The Poor and the Land (1905), with suggestions for a scheme of national land settlement in Great Britain itself.

HAGGIS, a dish consisting of a calf’s, sheep’s or other animal’s heart, liver and lungs, and also sometimes of the smaller intestines, boiled in the stomach of the animal with seasoning of pepper, salt, onions, &c., chopped fine with suet and oatmeal. It is considered peculiarly a Scottish dish, but was common in England till the 18th century. The derivation of the word is obscure. The Fr. hachis, English “hash,” is of later appearance than “haggis.” It may be connected with a verb “to hag,” meaning to cut in small pieces, and would then be cognate ultimately with “hash.”

HAGIOLOGY (from Gr. ἅγιος, saint, λόγος, discourse), that branch of the historical sciences which is concerned with the lives of the saints. If hagiology be considered merely in the sense in which the term has come to be understood in the later stages of its development, i.e. the critical study of hagiographic remains, there would be no such science before the 17th century. But the bases of hagiology may fairly be said to have been laid at the time when hagiographic documents, hitherto dispersed, were first brought together into collections. The oldest collection of this kind, the συναγωγὴ τῶν ἀρχαίων μαρτυρίων of Eusebius, to which the author refers in several passages in his writings (Hist. Eccl., v. proem 2; v. 20, 5), and which has left more than one trace in Christian literature, is unfortunately lost in its entirety. The Martyrs of Palestine, as also the writings of Theodoret, Palladius and others, on the origins of the monastic life, and, similarly, the Dialogues of St Gregory (Pope Gregory I.), belong to the category of sources rather than to that of hagiologic collections. The In gloria martyrum and In gloria confessorum of Gregory of Tours are valuable for the sources used in their compilation. The most important collections are those which comprise the Acts of the Martyrs and the lives of saints, arranged in the order of the calendar. In the Greek Church these are called menologies (from Gr. μήν, month, λόγος, discourse), and their existence can be traced back with certainty to the 9th century (Theodore of Studium, Epist. i. 2). One of them, the menology of Metaphrastes, compiled in the second half of the 10th century, enjoyed a universal vogue (see Symeon Metaphrastes). The corresponding works in the Western Church are the passionaries or legendaries, varieties of which are dispersed in libraries and have not been studied collectively. They generally draw from a common source, the Roman legendary, and the lives of the local saints, i.e. those specially honoured in a church, a province or a country. One of the best known is the Austrian legendary (De magno legendario Austriaco in the Analecta Bollandiana, xvii. 24-264). From the menologies and legendaries various compilations were made: in the Greek Church, the Synaxaria (see Synaxarium); in the Western Church, abridgments and extracts such as the Speculum hisloriale of Vincent de Beauvais; the Legenda aurea of Jacobus de Voragine; the Sanctorale of Bernard Guy [d. 1331] (see L. Delisle, Notice sur les manuscrits de Bernard Guy, Paris, 1879); the Sanctilogium of John of Tynemouth (c. 1366), utilized by John Capgrave, and published in 1516 under the name of Nova legenda Angliae (new edition by C. Horstman, Oxford, 1901); and the Catalogus sanctorum of Petrus de Natalibus (c. 1375), published at Vicenza in 1493, and many times reprinted. The Sanctuarium of B. Mombritius, published at Milan about 1480, is particularly valuable because it gives a faithful reproduction of the ancient texts according to the manuscripts. One of the most zealous collectors of lives of saints was John Gielemans of Brabant (d. 1487), whose work is of great value (Bollandists, De codicibus hagiographicis Iohannis Gielemans, Brussels, 1895), and with him must be associated Anton Geens, or Gentius, of Groenendael, who died in 1543 (Analecta Bollandiana, vi. 31-34).

Hagiology entered on a new development with the publication of the Sanctorum priscorum patrum vitae (Venice and Rome, 1551-1560) of Aloysius Lipomanus (Lippomano), bishop of Verona. As a result of the co-operation of humanist scholars a great number of Greek hagiographic texts became for the first time accessible to the West in a Latin translation. The Carthusian, Laurentius Surius, carried on the work of Lippomano, completed it, and arranged the materials strictly in the order 817 of the calendar (De probatis sanctorum historiis, Cologne, 1570-1575). What prevents the work of Surius from being regarded as an improvement upon Lippomano’s is that Surius thought it necessary to retouch the style of those documents which appeared to him badly written, without troubling himself about the consequent loss of their documentary value.

The actual founder of hagiologic criticism was the Flemish Jesuit, Heribert Rosweyde (d. 1629), who, besides his important works on the martyrologies (see Martyrology), published the celebrated collection of the Vitae patrum (Antwerp, 1615), a veritable masterpiece for the time at which it appeared. It was he, too, who conceived the plan of a great collection of lives of saints, compiled from the manuscripts and augmented with notes, from which resulted the collection of the Acta sanctorum (see Bollandists). This last enterprise gave rise to others of a similar character but less extensive in scope.

HAGIOSCOPE (from Gr. ἅγιος, holy, and σκοπεῖν, to see), in architecture, an opening through the wall of a church in an oblique direction, to enable the worshippers in the transepts or other parts of the church, from which the altar was not visible, to see the elevation of the Host. As a rule these hagioscopes, or “squints” as they are sometimes called, are found on one or both sides of the chancel arch. In some cases a series of openings has been cut in the walls in an oblique line to enable a person standing in the porch (as in Bridgewater church, Somerset) to see the altar; in this case and in other instances such openings were sometimes provided for an attendant, who had to ring the Sanctus bell when the Host was elevated. Though rarely met with on the continent of Europe, there are occasions where they are found, so as to enable a monk in one of the vestries to follow the service and communicate with the bell-ringers.

HAGONOY, a town of the province of Bulacan, Luzon, Philippine Islands, on Manila Bay and on the W. branch and the delta of the Pampanga Grande river, about 25 m. N.W. of Manila. Pop. (1903), 21,304. Hagonoy is situated in a rich agricultural region, producing rice, Indian corn, sugar and a little coffee. Alcohol is made in considerable quantities from the fermented juice of the nipa palm, which grows in the neighbouring swamps, and from the leaves of which the nipa thatch is manufactured. There is good fishing. The women of the town are very skilful in weaving the native fabrics. The language is Tagalog. Hagonoy was founded in 1581.

HAGUE, THE (in Dutch, ’s Gravenhage, or, abbreviated, den Haag; in Fr. La Haye; and in Late Lat. Haga Comitis), the chief town of the province of South Holland, about 2½ m. from the sea, with a junction station 9½ m. by rail S.W. by S. of Leiden. Steam tramways connect it with the seaside villages of Scheveningen, Kykduin and ’s Gravenzande, as well as with Delft, Wassenaar and Leiden, and it is situated on a branch of the main canal from Rotterdam to Amsterdam. Pop. (1900), 212,211. The Hague is the chief town of the province, the usual residence of the court and diplomatic bodies, and the seat of the government, the states-general, the high council of the Netherlands, the council of state, the chamber of accounts and various other administrative bodies. The characteristics of the town are quite in keeping with its political position; it is as handsome as it is fashionable, and was rightly described by de Amicis in his Olanda as half Dutch, half French. The Hague has grown very largely in modern times, especially on its western side, which is situated on the higher and more sandy soil, the south-eastern half of the town comprising the poorer and the business quarters. The main features in a plan of the town are its fine streets and houses and extensive avenues and well-planted squares; while, as a city, the neighbourhood of an attractive seaside resort, combined with the advantages and importance of a large town, and the possession of beautiful and wooded surroundings, give it a distinction all its own.

The medieval-looking group of government buildings situated in the Binnenhof (or “inner court”), their backs reflected in the pretty sheet of water called the Vyver, represent both historically and topographically the centre of the Hague. On the opposite side of the Vyver lies the parallelogram formed by the fine houses and magnificent avenue of trees of the Lange Voorhout, the Kneuterdyk and the Vyverburg, representing the fashionable kernel of the city. Close by lies the entrance to the Haagsche Bosch, or the wood, on one side of which is situated the deer-park, and a little beyond on the other the zoological gardens (1862). Away from the Lange Voorhout the fine Park Straat stretches to the “1813 Plein” or square, in the centre of which rises the large monument (1869) by Jaquet commemorating the jubilee of the restoration of Dutch independence in 1813. Beyond this is the Alexander Veld, used as a military drill ground, and close by is the entrance to the beautiful road called the Scheveningensche Weg, which leads through the “little woods” to Scheveningen. Parallel to the Park Straat is the busy Noordeinde, in which is situated the royal palace. The palace was purchased by the States in 1595, rebuilt by the stadtholder William III., and extended by King William I. in the beginning of the 19th century. In front of the building is an equestrian statue of William I. of Orange by Count Nieuerkerke (1845), and behind are the gardens and extensive stables. The Binnenhof, which has been already mentioned, was once surrounded by 818 a moat, and is still entered through ancient gateways. The oldest portion was founded in 1249 by William II., count of Holland, whose son, Florens V., enlarged it and made it his residence. Several centuries later the stadtholders also lived here. The fine old hall of the knights, built by Florens, and now containing the archives of the home office, is the historic chamber in which the states of the Netherlands abjured their allegiance to Philip II. of Spain, and in front of which the grey-headed statesman Johan van Oldenbarneveldt was executed in 1619. Close by on the one side are the courts of justice, and on the other the first and second chambers of the states-general, containing some richly painted ceilings and the portraits of various stadtholders. Government offices occupy the remainder of the buildings, and in the middle of the court is a fountain surmounted by a statuette of William II., count of Holland (1227-1256). In the adjoining Buitenhof, or “outer court,” is a statue of King William II. (d. 1849), and the old Gevangen Poort, or prison gate (restored 1875), consisting of a tower and gateway. It was here that the brothers Cornelis and Jan de Witt were killed by the mob in 1672. On the opposite side of the Binnenhof is the busy square called the Plein, where all the tram-lines meet. Round about it are the buildings of the ministry of justice and other government buildings, including one to contain the state archives, the large club-house of the Witte Societeit, and the Mauritshuis. The Mauritshuis was built in 1633-1644 by Count John Maurice of Nassau, governor of Brazil, and contains the famous picture gallery of the Hague. The nucleus of this collection was formed by the princes of Orange, notably by the stadtholder William V. (1748-1806). King William I. did much to restore the losses caused by the removal of many of the pictures during the French occupation. Other artistic collections in the Hague are the municipal museum (Gernsente Museum), containing paintings by both ancient and modern Dutch artists, and some antiquities; the fine collection of pictures in the Steengracht gallery, belonging to Jonkheer Steengracht; the museum Meermanno-Westreenianum, named after Count Meermann and Baron Westreenen (d. 1850), containing some interesting MSS. and specimens of early typography and other curiosities; and the Mesdag Museum, containing the collection of the painter H. W. Mesdag (b. 1831) presented by him to the state. The royal library (1798) contains upwards of 500,000 volumes, including some early illuminated MSS., a valuable collection of coins and medals and some fine antique gems. In addition to the royal palace already mentioned, there are the palaces of the queen-dowager, of the prince of Orange (founded about 1720 by Count Unico of Wassenaar Twiekels) and of the prince von Wied, dating from 1825, and containing some good early Dutch and Flemish masters. There are numerous churches of various denominations in the Hague as well as an English church, a Russian chapel and two synagogues, one of which is Portuguese. The Groote Kerk of St James (15th and 16th centuries) has a fine vaulted interior, and contains some old stained glass, a carved wooden pulpit (1550), a large organ and interesting sepulchral monuments, and some escutcheons of the knights of the Golden Fleece, placed here after the chapter of 1456. The Nieuwe Kerk, or new church (first half 17th century), contains the tombs of the brothers De Witt and of the philosopher Spinoza. Spinoza is further commemorated by a monument in front of the house in which he died in 1677. The picturesque town hall (built in 1565 and restored and enlarged in 1882) contains a historical picture gallery. The principal other buildings are the provincial government offices, the royal school of music, the college of art, the large building (1874) of the society for arts and sciences, the ethnographical institute of the Netherlands Indies with fine library, the theatres, civil and military hospitals, orphanage, lunatic asylum and other charitable institutions; the fine modern railway station (1892), the cavalry and artillery and the infantry barracks, and the cannon foundry. The chief industries of the town are iron casting, copper and lead smelting, cannon founding, the manufacture of furniture and carriages, liqueur distilling, lithographing and printing.

The Hague wood has been described as the city’s finest ornament. It is composed chiefly of oaks and alders and magnificent avenues of gigantic beech-trees. Together with the Haarlem wood it is thought to be a remnant of the immense forest which once extended along the coast. At the end of one of the avenues which penetrates into it from the town is the large summer club-house of the Witte Societeit, under whose auspices concerts are given here in summer. Farther into the wood are some pretty little lakes, and the famous royal villa called the Huis ten Bosch, or “house in the wood.” This villa was built by Pieter Post for the Princess Amelia of Solms, in memory of her husband the stadtholder, Frederick Henry of Orange (d. 1647), and wings were added to it by Prince William IV. in 1748. The chief room is the Orange Saloon, an octagonal hall 50 ft. high, covered with paintings by Dutch and Flemish artists, chiefly of incidents in the life of Prince Frederick. In this room the International Peace Conference had its sittings in the summer of 1899. The collections in the Chinese and Japanese rooms, and the grisailles in the dining-room painted by Jacobus de Wit (1695-1754), are also noteworthy.

The history of the Hague is in some respects singular. In the 13th century it was no more than a hunting-lodge of the counts of Holland, and though Count Floris V. (b. 1254-1296) made it his residence and it thus became the seat of the supreme court of justice of Holland and the centre of the administration, and from the time of William of Orange onward the meeting-place of the states-general, it only received the status of a town, from King Louis Bonaparte, early in the 19th century.

In the latter part of the 17th and the first half of the 18th century the Hague was the centre of European diplomacy. Among the many treaties and conventions signed here may be mentioned the treaty of the Triple Alliance (January 23, 1688) between England, Sweden and the Netherlands; the concert of the Hague (March 31, 1710) between the Emperor, England and Holland, for the maintenance of the neutrality of the Swedish provinces in Germany during the war of the northern powers against Sweden; the Triple Alliance (January 4, 1717) between France, England and Holland for the guarantee of the treaty of Utrecht; the treaty of peace (Feb. 17, 1717) between Spain, Savoy and Austria, by which the first-named acceded to the principles of the Triple Alliance; the treaty of peace between Holland and France (May 16, 1795); the first “Hague Convention,” the outcome of the “peace conference” assembled on the initiative of the emperor Nicholas II. of Russia (July 27, 1899), and the series of conventions, the results of the second peace conference (June 15-October 18, 1907). The International court of arbitration or Hague Tribunal was established in 1899 (see Europe: History; Arbitration, International). The Palace of Peace designed to be completed in 1913 as the seat of the tribunal, on the Scheveningen avenue, is by a French architect, L. M. Cordonnier, and A. Carnegie contributed £300,000 towards its cost.

HAHN, AUGUST (1792-1863), German Protestant theologian, was born on the 27th of March 1792 at Grossosterhausen near Eisleben, and studied theology at the university of Leipzig. In 1819 he was nominated professor extraordinarius of theology and pastor of Altstadt in Königsberg, and in 1820 received a superintendency in that city. In 1822 he became professor ordinarius. In 1826 he removed as professor of theology to Leipzig, where, hitherto distinguished only as editor of Bardesanes, Marcion (Marcion’s Evangelium in seiner ursprünglichen Gestalt, 1823), and Ephraem Syrus, and the joint editor of a Syrische Chrestomathie (1824), he came into great prominence as the author of a treatise, De rationalismi qui dicitur vera indole et qua cum naturalismo contineatur ratione (1827), and also of an Offene Erklärung an die Evangelische Kirche zunächst in Sachsen u. Preussen (1827), in which, as a member of the school of E. W. Hengstenberg, he endeavoured to convince the rationalists that it was their duty voluntarily and at once to withdraw from the national church. In 1833 Hahn’s pamphlet against K. G. Bretschneider (Über die Lage des Christenthums in unserer Zeit, 1832) having attracted the notice of Friedrich Wilhelm III., he was called to Breslau as theological professor and consistorial councillor, and in 1843 became “general superintendent” of 819 the province of Silesia. He died at Breslau on the 13th of May 1863. Though uncompromising in his “supra-naturalism,” he did not altogether satisfy the men of his own school by his own doctrinal system. The first edition of his Lehrbuch des christlichen Glaubens (1828) was freely characterized as lacking in consistency and as detracting from the strength of the old positions in many important points. Many of these defects, however, he is considered to have remedied in his second edition (1857). Among his other works are his edition of the Hebrew Bible (1833), his Bibliothek der Symbole und Glaubensregeln der apostolisch-katholischen Kirche (1842; 2nd ed. 1877) and Predigten (1852).

His eldest son, Heinrich August Hahn (1821-1861), after studying theology at Breslau and Berlin, became successively Privatdozent at Breslau (1845), professor ad interim (1846) at Königsberg on the death of Heinrich Hävernick, professor extraordinarius (1851) and professor ordinarius (1860) at Greifswald. Amongst his published works were a commentary on the Book of Job (1850), a translation of the Song of Songs (1852), an exposition of Isaiah xl.-lxvi. (1857) and a commentary on the Book of Ecclesiastes (1860).

HAHNEMANN, SAMUEL CHRISTIAN FRIEDRICH (1755-1843), German physician and founder of “homoeopathy,” was born at Meissen in Saxony on the 10th of April 1755. He was educated at the “elector’s school” of Meissen, and studied medicine at Leipzig and Vienna, taking the degree of M.D. at Erlangen in 1779. After practising in various places, he settled in Dresden in 1784, and thence removed to Leipzig in 1789. In the following year, while translating W. Cullen’s Materia medica into German, he was struck by the fact that the symptoms produced by quinine on the healthy body were similar to those of the disordered states it was used to cure. He had previously felt dissatisfied with the state of the science of medicine, and this observation led him to assert the truth of the “law of similars,” similia similibus curantur or curentur—i.e. diseases are cured (or should be treated) by those drugs which produce symptoms similar to them in the healthy. He promulgated his new principle in a paper published in 1796 in C. W. Hufeland’s Journal, and four years later, convinced that drugs in much smaller doses than were generally employed effectually exerted their curative powers, he advanced his doctrine of their potentization or dynamization. In 1810 he published his chief work, Organon der rationellen Heilkunde, containing an exposition of his system, which he called homoeopathy (q.v.), and in the following years appeared the six volumes of his Reine Arzneimittellehre, which detailed the symptoms produced by “proving” a large number of drugs, i.e. by systematically administering them to healthy subjects. In 1821 the hostility of established interests, and especially of the apothecaries, whose services were not required under his system, forced him to leave Leipzig, and at the invitation of the grand-duke of Anhalt-Cöthen he went to live at Cöthen. Fourteen years later he removed to Paris, where he practised with great success until his death on the 2nd of July 1843. Statues were erected to his memory at Leipzig in 1851 and at Cöthen in 1855. He also wrote, in addition to the works already mentioned, Fragmenta de viribus medicamentorum positivis (1805) and Die chronischen Krankheiten (1828-1830).

HAHN-HAHN, IDA, Countess Von (1805-1880), German author, was born at Tressow, in Mecklenburg-Schwerin, on the 22nd of June 1805, daughter of Graf (Count) Karl Friedrich von Hahn (1782-1857), well known for his enthusiasm for the stage, upon which he squandered a large portion of his fortune. She married in 1826 her wealthy cousin Count Adolf von Hahn-Hahn. With him she had an extremely unhappy life, and in 1829 her husband’s irregularities led to a divorce. The countess travelled, produced some volumes of poetry indicating true lyrical feeling, and in 1838 appeared as a novelist with Aus der Gesellschaft, a title which, proving equally applicable to her subsequent novels, was retained as that of a series, the book originally so entitled being renamed Ida Schönholm. For several years the countess continued to produce novels bearing a certain subjective resemblance to those of George Sand, but less hostile to social institutions, and dealing almost exclusively with aristocratic society. The author’s patrician affectations at length drew upon her the merciless ridicule of Fanny Lewald in a parody of her style entitled Diogena (1847), and this and the revolution of 1848 together seem to have co-operated in inducing her to embrace the Roman Catholic religion in 1850. She justified her step in a polemical work entitled Von Babylon nach Jerusalem (1851), which elicited a vigorous reply from H. Abeken. In 1852 she retired into a convent at Angers, which she, however, soon left, taking up her residence at Mainz where she founded a nunnery, in which she lived without joining the order, and continued her literary labours. For many years her novels were the most popular works of fiction in aristocratic circles; many of her later publications, however, passed unnoticed as mere party manifestoes. Her earlier works do not deserve the neglect into which they have fallen. If their sentimentalism is sometimes wearisome, it is grounded on genuine feeling and expressed with passionate eloquence. Ulrich and Gräfin Faustine, both published in 1841, mark the culmination of her power; but Sigismund Forster (1843), Cecil (1844), Sibylle (1846) and Maria Regina (1860) also obtained considerable popularity. She died at Mainz on the 12th of January 1880.

HAI (939-1038), Jewish Talmudical scholar, was born in 939. He was educated by his father Sherira, gaon of Pombeditha (Pumbedita), whom he afterwards assisted in his work. They were cast into prison for a short time by the caliph Qadir, and subsequently on Sherira’s death Hai was appointed gaon in his place (998). This office he held till his death on the 28th of March 1038. He is famous chiefly for his answers to problems of ritual and civil law. He composed important treatises on Talmudic law and the Mishnah; many poems are also attributed to him on doubtful authority. In his responsa he laid stress on custom and tradition provided no infringement of the law were involved, and was essentially conservative in theology. He had considerable knowledge not only of religious movements within the Jewish body, but also of Mahommedan theology and controversial method, and frequently consulted theologians of other beliefs.

HAIBAK, a town and khanate of Afghan Turkestan. The valley of Haibak, which is 3100 ft. above sea level, is fertile and richly cultivated. The town, which is famed in Persian legend, consists now of only a couple of streets, containing many Hindu shops and a small garrison. The inhabitants call themselves Jagatais, a Turki race, though now generally mixed with Tajiks and speaking Persian. In the neighbourhood of Haibak are some very typical Buddhist ruins. Haibak derives its importance from its position on the main line of communication between Kabul and Afghan Turkestan.

HAIDA, a tribe of North American Indians of Skittagetan stock. They still occupy their original home, the Queen Charlotte islands, British Columbia. They are skilful seamen, making long fishing expeditions in cedarwood canoes. They are noted for their carving and basket-work. They formerly made raids on the coast tribes. Slavery was hereditary, the slaves being prisoners of war. The population, some 7000 in the middle of the 19th century, is now reduced to a few hundreds.

820

HAIDINGER, WILHELM KARL, Ritter von (1795-1871), Austrian mineralogist, geologist and physicist, was born at Vienna on the 5th of February 1795. His father, Karl Haidinger, contributed largely to the development of mineralogical science in the latter half of the 18th century. Having studied at the normal school of St Anne, and attended classes at the university, Wilhelm, at the age of seventeen, joined Professor F. Mohs at Gratz, and five years later accompanied the professor to Freiberg on the transfer of his labours to the mining academy of that town.

In 1822 Haidinger visited France and England with Count Breunner, and, journeying northward, took up his abode in Edinburgh. He translated into English, with additions of his own, Mohs’s Grundriss der Mineralogie, published at Edinburgh in three volumes under the title Treatise on Mineralogy (1825). After a tour in northern Europe, including the Scandinavian mining districts, he undertook the scientific direction of the porcelain works at Elbogen, belonging to his brothers. In 1840 he was appointed counsellor of mines (Bergrat) at Vienna in the place of Professor Mohs, a post which included the charge of the imperial cabinet of minerals. He devoted himself to the rearrangement and enrichment of the collections, and the museum became the first in Europe. Shortly after (1843) Haidinger commenced a series of lectures on mineralogy, which was given to the world under the title Handbuch der bestimmenden Mineralogie (Vienna, 1845; tables, 1846). On the establishment of the imperial geological institute, he was chosen director (1849); and this important position he occupied for seventeen years. He was elected a member of the imperial board of agriculture and mines, and a member of the imperial academy of sciences of Vienna. He organized the society of the Freunde der Naturwissenschaften. As a physicist Haidinger ranked high, and he was one of the most active promoters of scientific progress in Austria. He was the discoverer of the interesting optical appearances which have been called after him “Haidinger’s brushes.” Knighted in 1865, the following year he retired to his estate at Dornbach near Vienna, where he died on the 19th of March 1871.

HAIDUK (also written Hayduk, Heiduc, Heyduke and Heyduque), a term which appears originally to have meant “robber” or “brigand,” a sense it retains in Servia and some other parts of the Balkan Peninsula. It is probably derived from the Turkish haidūd, “marauder,” but its origin is not absolutely certain. Most of the European races with which the Turks came into close contact during the 15th and 16th centuries seem to have adopted it as a loan-word, and it appears in Magyar as hajdú (plural hajduk), in Serbo-Croatian, Rumanian, Polish and Čech as hajduk, in Bulgarian as hajdutin and in Greek as χαιντούτης. By the beginning of the 17th century its use had spread north and west as far as Sweden and Great Britain. In Hungary it was applied to a class of mercenary foot-soldiers of Magyar stock. In 1605 these haiduks were rewarded for their fidelity to the Protestant party (see Hungary: History) with titles of nobility and territorial rights over a district situated on the left bank of the river Theiss, known thenceforward as the Haiduk region. This was enlarged in 1876 and converted into the county of Hajdú (Ger. Hajduken). Hajdú is also a common prefix in Hungarian place-names, e.g. Hajdú-Szoboszló, Hajdú-Námás. In Austria-Hungary, Germany, Poland, Sweden and some other countries, haiduk came to mean an attendant in a court of law, or a male servant, dressed in Hungarian semi-military costume. It is also occasionally used as a synonym for “footman” or “lackey.”

HAIFA, a town of Palestine at the foot of Mt. Carmel, on the south of the Bay of Acre. It represents the classical Sycaminum, but the present town is entirely modern. It has developed since about 1890 into an important port, and is connected by railway with Damascus. The population is estimated at 12,000 (Moslems 6000, Christians 4000, Jews 1500, Germans 500; the last belong for the greater part to the Unitarian sect of the “Templars,” who have colonies also at Jaffa and Jerusalem). The exports (grain and oil) were valued at £178,738 in 1900. Much of the trade that formerly went to Acre has been attracted to Haifa. This port is the best natural harbour on the Palestine coast.

HAIK (an Arabic word, from hak, to weave), a piece of cloth, usually of coarse hand-woven wool, worn by Arabs, Moors and other Mahommedan peoples. It is generally 6 to 6½ yds. long, and about 2 broad. It is either striped or plain, and is worn equally by both sexes, usually as an outer covering; but it is often the only garment of the poorer classes. By women the “haik” is arranged to cover the head and, in the presence of men, is held so as to conceal the face. A thin “haik” of silk, like a veil, is used by brides at their marriage.

HAIL (O. Eng. hægl and hagol,1 cf. the cognate Teutonic hagel, as in German, Dutch, Swedish, &c.; the Gr. κάχληξ, pebble, is probably allied), the name for rounded masses or single pellets of ice falling from the clouds in a shower. True hail has a concentric structure caused by the frozen particles of moisture first descending into a warm cloud, whence they are carried upwards on an ascending current of heated air into a cold stratum where the fresh coating of water vapour deposited in the cloud is frozen. The hailstone descends again, receives a fresh coating, is carried up once more, refrozen, and again descends. Thus the hailstone grows until the current is no longer strong enough to support it when it falls to the ground. At times masses of hail are frozen together, and a very sudden cooling will sometimes result in the formation of ragged masses of ice that fall with disastrous results. Hail must be distinguished from the frozen snow, “soft-hail” or “graupel,” that often falls at the rear of a spring cyclone, since true hail is almost entirely a summer phenomenon, and falls most frequently in thunderstorms which are produced under the conditions that are favourable to the formation of hail, i.e. great heat, a still atmosphere, the production of strong local convection currents in consequence, and the passage of a cold upper drift.
