[Pg 37]


Ohio Journal of Science

Ohio State University Scientific Society

Volume XVI   DECEMBER, 1915   No. 2


Wells—A Survey of the Zoocecidia on Species of Hicoria

Caused by Parasites Belonging to the Eriophyidæ
and the Itonididæ (Cecidomyiidæ)   37
West—The Geometry of the Translated Normal Curve 60
Gibson and Cogan—A Preliminary List of the Jassoidea
of Missouri, with Notes on Species 71
News and Notes 79


Bertram W. Wells.

This paper is primarily an attempt to present adequate descriptions of the types of 30 itonid (cecidomyid) and 2 eriophyid (mite) galls, collected by the writer on hickory leaves. It is believed to contain sufficient new material to warrant its publication in advance of a general survey of N. E. United States zoocecidia, of which it will form a part. The data is based on collections made in Connecticut, Ohio and Kansas, most of the material however, being taken in Ohio.

In addition, those forms (few in number) previously described which have not been seen by the author, have been added, so as to give a character of completeness to the survey of the two groups of galls. [Pg 38]

There are three groups of zoocecidia occurring on hickory trees:

1. Galls formed by species of Eriophyes (Fam. Eriophyidæ of the Acarina or mites), or an allied genus. Only two are known.

2. Galls induced by species of Phylloxera (Aphididæ of the Hemiptera). Pergande[2] has presented an excellent survey of these insects accompanied by very satisfactory descriptions of the cecidia formed by them.

3. Galls caused by species of Caryomyia (Itonididæ of the Diptera). Possibly other genera may be represented on the hickories, but according to Felt[3] “most of the hickory leaf galls are probably made by species of Caryomyia, though other midges have been reared from these deformities.”

The genus Caryomyia, which undoubtedly occupies an important place in relation to the majority of the galls described in the present paper, will be given special consideration. Felt, to whom American cecidology is heavily indebted for his extensive studies of dipterous cecidozoons, presents the following description of the genus Caryomyia in the same citation as that immediately above.

“Allied to Hormomyia, but differing by the thorax not being greatly produced over the head and by the presence of but 14 antennal segments. The males may have the flagellate antennal segments binodose or cylindric and subsessile and invariably with three low, stout circumfili. The antennal segments of the female are cylindric and with two circumfili; palpi tri- or quadri-articulate; wings rather broad, the third vein joining the costa at or near the wing apex; claws simple, the pulvilli well developed. The ovipositor of the female is short and with minute lobes apically. The genus appears to be confined to hickory leaf galls.”

Adult insects not technically known are given the old generic name “Cecidomyia.”

These galls as well as similar ones on other kinds of plants arise as the result of some stimulus (the nature of which is still not definitely known) applied by the very young larva to the growing tissue of the [Pg 39] immature leaf. Nothing has yet been done on the development of the itonid galls of the hickories, but from studies on very similar types we have reason to believe that the ontogeny of the itonid forms is as follows: The egg is probably deposited superficially (for the ovipositor of the female Caryomyia is short) on the under side of the leaflet; on the upper side in a few cases.

Hyperplasia or excessive cell proliferation results (probably not until after the larva has emerged from the egg) forming at first a saucer-shaped structure, then cup-shaped and finally by the ingrowth of the edges, the gall becomes a closed structure enveloping the larva in a chamber. The distal growth, seldom if ever in the hickory forms, proceeds so far as to obliterate the opening which was so prominent in the very immature cup-shape stage. Hence in practically all galls of this type a minute canal or pore can be demonstrated at the distal end. In Küster’s[4] very serviceable classification of abnormal plant parts, these fall under his “umwallungen” cecidia, a term very succinctly describing their mode of development.

Two of the following described galls have been studied histologically by Cook,[5] Caryomyia holotricha O. S. and C. tubicola O. S.

Concerning the problem of the distribution of the galls on the different species of hickory, it is still too early to be able to make any positive assertions. In most of the reports the species of tree has not been given. It is very well known that certain species of galls are found on 2 and 3 species of hickory, but whether they are developed on all indiscriminately is not known. H. cordiformis seems to bear much fewer species than H. ovata or H. alba. In the present list, the report of the gall upon a particular species of tree does not at all imply that it does not occur on others.

Having had the opportunity to give attention to gall collecting in three rather widely separate localities, eastern Connecticut, southern and northern Ohio and eastern Kansas, some observations on the geographical distributions of the hickory itonids are here briefly presented. [Pg 40]

It is sometimes stated that the distribution of gall insects is similar to that of their host plants. In certain cases this does not seem to be true. In that of my number 32 first found and described by Sears, no report of this large and striking form has appeared, showing it to occur east of the Allegheny mountain system, a region in which H. ovata is abundant. In the cases of my numbers 5, 9, 19 and 31, all heretofore unreported and possessing prominent distinguishing characters, it would seem as though they were somewhat restricted in their distribution, for while comparatively common in Ohio, they are never seen in Connecticut or Kansas, where equally intensive collecting was prosecuted. So few are the students of cecidia and so meager the data in this field, that it is, however, much too early to make positive assertions in matters of geographic distribution.

The data on the galls presented herewith was compiled for the most part at the time of collection; the notes and drawings made from fresh material. For later comparative work, the material was all preserved in formalin, each collection being assigned to a vial.

The writer has refrained from attaching a specific name to his new species of cecidia, a practice very common on the part of European cecidologists. Even though the adult gall has no direct relation to the adult insect, the fact, nevertheless, remains that the specificity of the gall owes its origin to the specificity of the physiological phenomena of the larval insect, and it is this, which in the mind of the writer, gives pre-eminence to the insect. The adult gall and the adult insect can be conceived as arising from the same complex, the larva, the adult insect bearing, however, a more intimate and direct relation to the original source of events than the gall. In many cases the adult insects offer characters, making possible the delimitation of species, with greater exactness, than do the galls. For these reasons new names of cecidia should only appear with adequate descriptions of the cecidozoons.

Though the galls almost uniformly occur on the under side of the leaflet, the drawings have presented them in an inverted position, with the gall uppermost, this being the position in which the galls would be examined. In practically all cases there are two sketches of the type, one showing the exterior aspect of the gall, the other the interior as seen in a vertical, median section. The figure number is in all cases the same as the list number. [Pg 41]

The writer wishes to express his appreciation of the hospitality of his friend, J. L. King, who, as assistant entomologist for the Ohio Experiment Station, shared his field laboratory during some of the time in which cecidological collecting was being carried on.

Though the writer has seen (with a few exceptions) the types herewith detailed an amply sufficient number of times to establish them as types, he does not claim infallibility, for the key he has worked out to these types. It is hoped, however, that it, together with the descriptions and illustrations will enable the student of the hickory galls to become better acquainted with the members of the two groups treated.

Britton and Brown’s Illustrated Flora Northern U. S. and Canada, (2nd edition), New York, 1913, has been followed in the matter of plant nomenclature.

The following two galls whose makers have been named by Felt have probably not been seen by the writer. Felt’s descriptions are given. They are not included in the key.

Caryomyia thompsoni Felt.
“Globose, thin-walled, long haired, melon-shaped, dia. 2-3 mm.”
See my number 23.

Caryomyia antennata Felt.
“Globose, thick-walled, yellowish green or brown. Dia. 4-5 mm.”

This description, as far as it goes, would indicate a similarity to C. persicoides Beut.

Felt, Jour. Econ. Ent. 4:456. 1911.

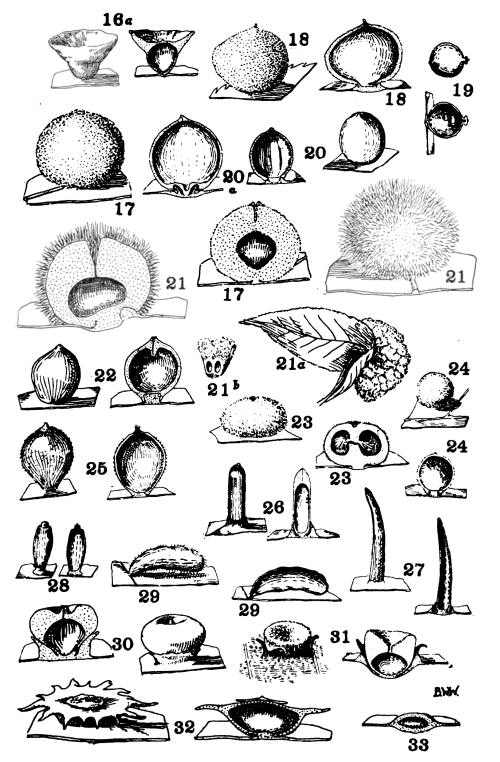

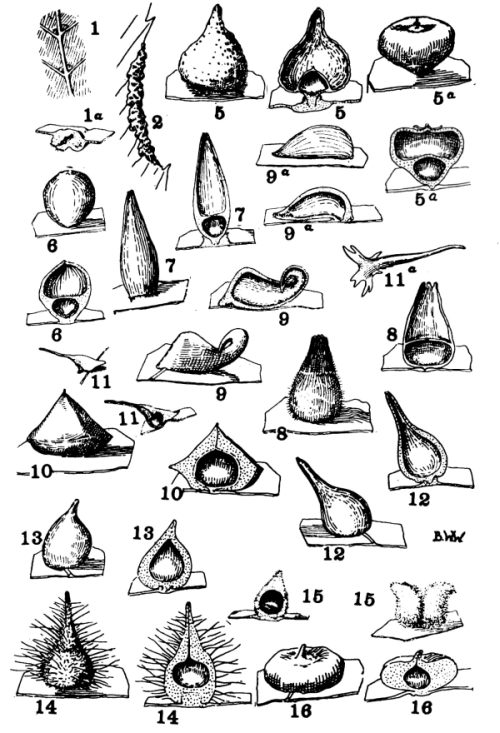

The itonid group of galls herewith presented can be distinguished with one exception (No. 33) from the very common Phylloxera galls (Aphididæ) by the fact that the latter forms which are sufficiently small to be comparable in size to the itonids are intercalated in the leaf blade, i. e. the gall extends more or less prominently from both sides of the leaf. The itonids always give the appearance of an appendicular structure attached to the leaf.

 1. Gall on nut. Caryomyia nucicola. (3)
 1. Gall on leaf. 2.
 2. An apparent elongate enlargement of vein. Cecidomyia cynipsea (?) (4).
 2. An inrolled leaf edge. (2).
 2. Galls arising from intervenal tissue between veins or immediately
   adjoining veins; radially symmetric structures with principal
[Pg 42]  axis more or less perpendicular to leaf blade. 3.
 3. Galls double-chambered as seen in vertical median section. 4.
 3. Galls single chambered. 7.
 4. Galls definitely depressed. (5).
 4. Galls small, sub-globular. (6).
 4. Galls definitely conic. 5.
 5. Elongate gall with rounded base in definite visible socket. (7).
 5. Shorter gall attached by pedicel from rounded base not articulating
   with definite socket. 6.
 6. Proximal chamber of gall, conic. (5).
 6. Proximal chamber of gall, depressed. (8).
 7. Galls definitely conic; forms having rounded bases, the distal portion
   is sufficiently drawn out to place the cecidium under this class. 8.
 7. Galls spheric, sub-spheric or depressed. 15.
 7. Galls sub-cylindric, 2½-3 times as long as wide. 22.
 7. Galls obconic, i. e., part projecting from leaf is flat topped,
   constricted proximally to the pedicel embedded in the leaf. 25.
 7. Blister gall, intercalated in the leaflet, projecting on both sides.
   Cecidomyia? sp. (33).
 8. Small irregular, low, masses of tissue always in axils of principal
   veins of leaflet. Eriophyes sp. (1).
 8. Galls definite structures projecting prominently from leaf surface. 9.
 9. Conic gall generally with strongly recurved tip appearing as though
   lying on side, decumbent. (9).
 9. Galls erect or tilted, seldom bent over, however, beyond angle of 45. 10.
10. Gall with flattened sides, pyramid-like. (10).
10. Galls with sides flattened. 11.
11. Proximal half of gall conic, never sub-globular. (11).
11. Proximal half sub-globular. 12.
12. Galls smooth. 13.
12. Galls pubescent. 14.
13. Galls large, 4-7 mm. long. (12).
13. Galls small, 1½-4 mm. long. (13).
14. Trichomes very long coarse. (14).
14. Pubescence short, fine. (15.)
15. Galls attached by proximal pedicel embedded in leaf, as seen in a
   median vertical section.
15. Galls attached by structure extending from leaf into base of gall,
   which remains on leaf when gall falls. 20.
16. Walls thick, soft. 17.
16. Walls thin, 18.
17. Galls smooth, depressed or with upward flaring walls forming a
   saucer or cup-shaped structure distal to the chamber. (16).
17. Gall globular, finely pubescent like that of a peach. (17).
18. Surface perfectly smooth, symmetrically sub-spherical galls. 19.
18. Surface minutely shagreen-roughened, gall asymmetric, one side
   prominently extended laterally. (18).
19. Small galls, 2½ mm. dia., nipple expanded and flattened resembling
   the end of a bottle. (19).
19. Larger gall, 3-4 mm. dia., nipple short, pointed. (20).
20. Thick-walled, particularly the distal end, covered with heavy
   tawny pubescence. (21).
20. Thinner walled, pubescence very short, puberulent. 21.
20. Very smooth. (22).
21. Depressed (not over 3 mm. high) with column extending through
   center of chamber. (23).
21. Globular, 4-5 mm. high. (24).
21. Definitely balloon-shape. (25).
22. Base embedded in socket. 23.
22. Base not embedded in socket. 24.
23. Round-conic at tip. Caryomyia tubicola. (26).
23.[Pg 43] Tapering to point, horn-like. (27).
24. Small gall, 2-2½ mm. high, with flaring base, attached by minute
   pedicel at center. (28).
24. Large gall, 5-6 mm. long, gradually constricted proximally to very
   narrow neck at point of attachment. (29).
25. Distal face with fovea containing a central nipple. Leaf not
   projecting on side opposite gall. (30).
25. Distal face with fovea, leading into central pore; no central nipple.
   Prominent convexity of leaf on side opposite the gall. (31).
25. Distal face flaring out at edge into radiate bracts; these
   sometimes strongly incurved. (32).


1. Eriophyes? sp. Cecidium nov.

Small galls in the axils of the lateral veins of the leaflets. Above marked by a light colored angular area 1-1½ mm. dia. Below a small mass of tissue (the gall proper) fills the angle, covered by a fine close pubescence. Chamber within of small diameter, irregular in shape. The characteristic mites were definitely observed. They are white in color. On some leaflets every angle made by the mid-vein branching into the lateral ones was occupied by a gall. On H. cordiformis, in Athens County, Ohio, August.

Type specimens at Ohio State University.

2. Eriophyes? sp.

Leaf edge gall; edge inrolled involving little more than the teeth. Variable in length from .5-2 cm. or longer, 1 mm.-2 mm. thick. Outer surface of affected area finely roughened; color of under side of the leaf. Thompson states that mites live within the fold. His report is the first one on this gall. Species of hickory on which specimens were found not determined.

Thompson, Illus. Cat. Am. Ins. Galls. 1915. p. 57, pl. 10, Fig. 260.


3. Caryomyia nucicola, O. S.

“Irregular swelling in the husk produced by the reddish larvæ. Reference to Caryomyia provisional.” Felt. “Contain thick walled cells. On Carya (Hicoria) alba.” Jarvis.

4. Cecidomyia cynipsea O. S.

“Rounded, irregular, hard swelling on the under side of the hickory [Pg 44] leaf, on the mid-rib near the base of the leaf about half an inch long. In July, pale yellowish and contained in several small hollows, minute whitish larvæ, with breast bone narrowed anteriorly and ending in a point.” Osten Sacken.

This form is so different from the other itonid galls of the hickory that the writer is inclined to place it here tentatively. It is very similar to Phylloxera caryævenæ Fitch, with the exception that the hyperplasia extends below the leaf, while in the phylloxera gall it is developed on the upper side. The writer has observed orange colored larvæ in the aphid galls, but they were not definitely determined to be itonid.

Since this type of gall has not since been reported as definitely caused by itonid larvæ, it is barely possible that Osten Sacken described the empty phylloxera gall above mentioned containing inquilinous itonid larvæ. The writer found many of these galls deserted by the aphids in the middle of July and Pergande states that the aphid nymphs begin to leave the galls in July. At this time, these galls are a “pale yellow” color as described for the “cynipsea” gall. The writer’s observations were made in southern Ohio, while Osten Sacken’s were made in the vicinity of Washington, D. C.

Osten Sacken, Lowe’s Monogr. Dipt. N. Am. Pt. 1. p. 193. 1862.

5. Cecidomyia sp.

Leaf, under side, double chambered conic or depressed (Fig. 5a) gall. The latter condition is perhaps the more usual. In these forms, the conic tip is sunken in the central fovea, the gall only measuring from 1½-2 mm. vertical diameter. The conic forms are as though the tip was pulled out destroying the fovea. These often measure 5 mm. in height. The width of the galls varies from 3-5 mm. Very light green, or when older yellow to red, surface roughened with low tubercles as seen with lens. Inner chamber sub-conic with short mucronate tip. Walls of both chambers thin and smooth, outer wall slightly sticky. Base of gall flat, arising from a definite pedicel, resting in a cup-like depression, which is formed in a definite hyperplasia intercalated in the leaf. Above, this hyperplasia is evident as a raised circular area, 2½ mm. diameter, in the center of which is a minute light colored papilla.

Rather common on H. alba. Collected in Hocking and Athens counties, Ohio. [Pg 45]

This double-chambered gall cannot be Caryomyia inanis Felt, for it is neither “globose and small.” The author describes elsewhere a specimen which fits that description and is very probably produced by the cecidozoon just mentioned. Absolute certainty, it must be remembered, can only be obtained by checking the reared adult insects with the original descriptions.

Sears described this gall from Cedar Point, Ohio, under the name C. inanis.

Sears, Ohio Nat. 15:380, pl. 18, Fig. 18. 1914.

6. Caryomyia inanis Felt.

“Globose, thin-walled with a false chamber at the apex. Dia. 2-3 mm.” Felt.

In my material, the false chamber is large, occupying more than half of the gall. The gall is slightly balloon-shape, 2½ mm. high. Surface perfectly smooth. Collected, Hocking County, Ohio, on H. ovata.

Sears in his “Insect Galls of Cedar Point (Ohio) and Vicinity,” described my number 5 under this species.

7. Cecidomyia sp. Cecidium nov.

On leaf, under side, elongate-conic constricted somewhat at base so as to resemble a miniature lamp chimney. Arises from saucer-like base. 5 mm. in length. Smooth, greenish-yellow to brown. Two chambered, the larval chamber at the proximal end, sub-spherical with a dia. about ⅓ the length of the gall. The distal false chamber large, the walls becoming thin apically. The partition separating the chambers is firm with a minute perforation at its center. Surface of leaf opposite gall not raised.

Collected in Hocking County, Ohio, on H. glabra, July.

Type specimens unaccountably missing. The description is nevertheless presented inasmuch as both it and the drawing were made from fresh material in the field.

8. Cecidomyia sp. Cecidium nov.

On leaf, under side, a gall similar to 7, perhaps a variety of it, though its prominent and constant differences would indicate a distinct species. Conic with rounded base and truncate tip, 4-6 mm. high, 3-4 [Pg 46] mm. broad in widest part. The wall at the tip thin, splitting into a fimbriate condition. Attached by a minute central pedicel, no trace of a saucer-shaped structure developing around the base. Galls greenish to red and purple tinted. Uniformly being covered with sparsely distributed short hairs. Interiorly two chambered, the larval chamber proximal and occupying nearly one-half of the gall. Walls including the partition comparatively thin. Surface of leaf opposite gall slightly raised with reddish tint.

Collected in Athens County, Ohio, on H. alba, August.

Type specimens at Ohio State University.

9. Cecidomyia sp. Cecidium nov.

On leaf, under side, elongate conic, asymmetric, the axis lying horizontal or parallel with the leaf blade plane. The tip is invariably strongly recurved upward and backward. The side of the proximal part of the gall lying against the leaf is flattened and rests close against the leaf and vein; the galls always spring from the side of a vein. Size variable from 2 mm. in length to 4 mm. this measurement distally not being made to the tip but merely to that part of the recurved terminal portion, farthest from the base. The larger specimens measure 1½-2 mm. in width at the proximal end. Light green to nearly white, or sometimes roseate tinged. Very smooth. Walls thin distally thickening toward the basal end.

Not uncommon on H. alba in Hocking County, Ohio, July.

Type specimens at Ohio State University.

A gall, somewhat similar and probably a variety of the above was collected on H. glabra, (Fig. 9a.)

Cylindric-conic, sharply bent over against the leaf, attenuate distal part short, not recurved, 3½ mm. long. Smooth, white like ivory. Wall rather thick, hard. Base of gall in shallow saucer-like depression against the vein. Interiorly the distal end is choked with coarse trichomes.

10. Cecidomyia sp. Cecidium nov.

Leaf, under side, distal ⅔ of gall dome-shaped with 3-many triangular sides, the flaring base resting on the proximal, constricted or saucer-shaped ⅓; 2-3 mm. high, 3-4 mm. wide. Tip attenuate, not sharp pointed, however. Light green to yellowish green, the tip darker, reddish to black. Surface smooth under lens. Larval chamber spherical, [Pg 47] surrounded by sclerenchmya layer. This gall is very distinctive no other forms having the peculiar angular structure which it possesses. Not abundant.

Collected at Gypsum, Ohio, August, on H. microcarpa.

Type specimens at Ohio State University.

11. Cecidomyia sp. Cecidium nov.

On leaf, under side, rather large conic gall, whose distal ½-⅓ constitutes a very slender apical process. Through this passes the fine canal leading to the depressed, sub-globular chamber in the proximal part of the gall. The galls are either erect or more generally tilted to one side, always arising from one of the larger veins. 5-8 mm. long, 2½-3½ mm. wide at base. Outline of the flaring sessile base generally angular. Attenuate distal portion turning dark early. Light greenish yellow to brown when old. Smooth. Walls of chamber thick. A slender probable variety of this is figured in 11a, pl. I.

Collected in Hocking County, Ohio, on H. alba. July.

Type specimens at Ohio State University.

12. Caryomyia caryæcola O. S.

On leaf, under side, large galls with globular basal part extending into a point distally. Shape suggests that of a Prince Rupert’s drop. 4-7 mm. long. Surface very smooth, greenish to reddish tinged. Some show a definite blue color over the attenuate apical end. Walls of medium thickness, very firm. Somewhat similar to C. sanguinolenta O. S. but differs from that gall in its larger size and much more attenuate distal end. Common on different hickories.

13. Caryomyia sanguinolenta O. S.

On leaf, beneath, stoutly conical, varying in size from 1½ mm. to 4 mm. high. Tip erect or often bent to one side. Smooth, green to purplish-red and finally a brown when old. Attached to smaller veins by short pedicel, hidden from view, however, by the rounded base of the gall. Walls medium in thickness, possessing the rather soft texture of charcoal when dry; brown in color.

This form is often found in enormous numbers on certain trees, bringing about early disintegration of the affected leaves. The lower leaves are [Pg 48] more heavily infested due to the fact that the insects are apt to reach these first in their flight from the ground in the spring.

14. Cecidomyia sp. Cecidium nov.

Leaf, under side, distal half conic-attenuate from the bulbous or sub-globular proximal half. Covered with long, coarse trichomes, the longest being half the length of the gall. Trichomes brown. Tip of gall generally darker than rest. 3-4 mm. high, 2-3 mm. wide. Cavity sub-spherical somewhat depressed at right angles to axis of gall. Walls relatively thick, especially the proximal part. Apical canal evident in median longitudinal section. Gall attached by short and broad pillar of tissue extending from the leaf into the fleshy base.

Gypsum, Ohio, August, on H. ovata.

Type specimens at Ohio State University.

15. Cecidomyia sp. Cecidium nov.

On leaf, under side, small, conic galls, generally found in pairs closely appressed to each other but not confluent. Distal attenuate ⅓ rather sharply constricted from the sub-globular ⅔ of the gall and generally turned to one side. 2 mm. high, 1½-2 mm. broad at base. Yellowish in color, definitely and constantly pubescent. Interiorly the lining of the sub-globular larval chamber is deep blue-black in color. Walls of medium thickness. Comparatively large region of the base involved in the attachment of the gall.

Collected in Hocking County, Ohio, on H. alba, July.

Type specimens at Ohio State University.

16. Cecidomyia sp.

On leaf, under side, greatly depressed with central, prominent nipple, 3-5 mm. dia. 1½-2½ mm. thick (vertical dia.) not including nipple. Light green, smooth. Firm fleshy with central sub-spherical larval chamber whose wall is differentiated from the surrounding tissue. Apical canal through nipple evident. This gall first reported and illustrated by Thompson. [Pg 49]

Thompson, Illus. Cat. Am. Ins. Galls. 1915. p. 56, pl. 13, Fig. 228.

A most interesting variant of this form is illustrated in Fig. 16a. If it were not for the large number of intermediate forms found, this one would easily be considered distinct. The region of the chamber surrounded by thick walls has been much reduced, so that only a circular area about the upper part of the chamber has the thick wall projecting from it. This new condition results in the formation of a definite saucer-shaped structure on the distal end of the gall. In some specimens the structure was no longer saucer-shape, but by the ingrowth of the edges it was assuming a spherical form, developing a two-chambered gall. It is natural to suspect that this may have been the mode of origin of the four-double-chambered galls described elsewhere in this paper. That, however, is entirely problematic.

17. Caryomyia periscoides Beut.

On leaf, underside, generally large, sub-globular galls. Younger ones appear like older, both often being found on same leaflet, 4-7 mm. diameter. Galls covered with a fine short yellowish to reddish pubescence, suggesting the texture of peach “bloom.” Walls very thick, firm fleshy, surrounding the central spherical cavity, pierced, however, at the distal end by the fine apical canal. Closely sessile on leaf, generally at side of principal vein. Collected on H. alba, glabra and ovata.

From Felt’s short description, Caryomyia antennata Felt, must have been taken from a similar gall.

18. Cecidomyia sp.

On leaf, under side, sub-globular (almost uniformly asymmetric in that one side projects laterally so as to present a parabolic outline, rather than a semi-circular one). A short definite nipple terminates the gall. 2-4 mm. diameter. White or light yellow to red. Walls medium in thickness, of a soft, almost fleshy consistency. Exterior surface almost uniformly minutely shagreen-roughened when observed with lens. The constricted base of the gall rests in a shallow saucer-shaped structure. [Pg 50]

This gall was described from Connecticut in citation below on H. ovata. Rather common in Hocking County, Ohio, on H. microcarpa. July, August.

19. Cecidomyia sp. Cecidium nov.

On leaf, under side, small, smooth, spherical galls, with a peculiar tip shaped like the end of a bottle, arising abruptly from the globular gall, 2-2½ mm. diameter. The gall reminds one of a miniature bomb. Green to yellowish with dark spots over the distal half. Thin-walled. Attached by a minute obconic pedicel. The pupa in these galls is suspended in the upper part of the chamber by a thread passing from each end of the body to the walls of the chamber. The galls drop from the leaves in late July. Not common.

Collected in Hocking County, Ohio, July, on H. microcarpa.

Type specimens at Ohio State University.

20. Caryomyia caryæ O. S.

On leaf, under side, sub-spherical gall with more or less prominent apical nipple. 3-3½ mm. diameter, rarely 4 mm. Light green, turning brown, smooth. In many, very definite meridian-like striations can be observed marking the wall. Wall thin, very fragile and dry. Surface of chamber smooth as though polished. Attached by conic pedicel arising from fovea in base of gall. This pedicel with its pointed end attached to the leaf is surrounded by or rests in a cup-like structure. In this respect the gall differs markedly from No. 22, which it superficially very much resembles.

Fig. 20a is a large specimen showing the peculiar interlocking base exceptionally well developed.

Collected from H. alba and H. ovata, July and August.

Felt, Jour. Econ. Ent. 4:456. 1911.

21. Caryomyia holotricha O. S.

On leaf, under side, large tawny, long-haired galls, distributed singly (Fig. 21) or massed (Fig. 21a) on the leaflet. When massed they form a conspicuous brown, hairy structure, suggesting a huge caterpillar. The isolated galls are sub-globular to round-conic with or without a small [Pg 51] terminal nipple. 3-5 mm. vertical diameter, 3-5 mm. wide. Interiorly the chamber of the isolated form is depressed, this fact being associated with that of the thick distal wall. Gall chamber surrounded by definite sclerenchyma layer. Cortical tissue firm. Attached by irregular process from leaf extending into base of gall. In the massed forms, the galls are similar in structure, but are variously shaped, due to mutual pressure, (Fig. 21b). Compactly attached to the common central hyperplasia along the vein, which on the upper side of the leaf is a reddish irregular, low elevation. Some of these masses are as long as 5 cm., possessing a thickness of 10-15 mm.

Common on various hickories, particularly H. ovata.

A gall which may eventually prove to be a different species but which here is provisionally classed as a variety of C. holotricha, was found in numbers on the leaves of H. alba, though it is probably not restricted to this species of hickory. Instead of an apical nipple, it has an apical pit, which is choked with the characteristic brown pubescence of this type of gall. Internally a tuft of coarse brown trichomes extends inwardly from the distal side of the chamber. The chamber occupies the proximal one-half to two-thirds of the gall, the wall over it being uniformly very thick. This type of gall is constant, being collected repeatedly and examined minutely.

Based on Felt’s brief description, his Caryomyia thompsoni Felt was taken from this gall or one very similar to it.

Closely allied to the above variety is another form, with internal tuft of trichomes, in which the apical nipple is present. The layer of tissue lining the chamber appears very white, due probably to the character of the tissue beneath the superficial nutritive layer. In section the thin white chamber wall is very definitely delimited from the adjoining darker tissues. Many of these conic-sub-spheric galls were 6 mm. in width. Collected on H. glabra. Types of this and the above variety are at the Ohio State University.

22. Cecidomyia sp. Cecidium nov.

On leaf, under side, sub-globular with minute apical nipple. Tip of latter truncate with fine pore in center. 3 mm. high, 2½-3 mm. wide. [Pg 52] Generally wider through one axis. Smooth; light greenish yellow. Interiorly a more or less prominent nipple projects inward from the distal end of the chamber, traversed by the apical pore. Toward maturity the interior wall is reddened. Gall attached by a short, cylindric pillar, extending from the leaf into the base of the globular structure. At the end of summer the galls fall from the leaf, leaving this pedicel on the leaf. Galls when found are apt to occur in large numbers, as many as 50-60 commonly being found on a single leaflet.

Collected in Hocking County, Ohio, on H. microcarpa, July.

Type specimens at Ohio State University.

23. Cecidomyia sp. Cecidium nov. (?)

Leaf, under side, depressed (door-knob-shape) closely sessile on leaf attached by a very short stout pedicel. 3-4 mm. wide, 2-2½ mm. high. Greenish to dull brown, covered with short, thin pubescence or smooth. Interiorally from both the proximal and distal sides, truncated, conic processes extend inward, meeting in the center. From the end of the upper one numerous, very coarse trichomes radiate into the gall chamber, which are white at first, turning brown. The central tissue and the walls are of a firm, fleshy character. There is commonly a more or less definite fovea, exteriorly at the distal end.

Collected in southern (Hocking County) and northern (Lake County) Ohio on H. ovata.

Thompson briefly describes and illustrates a gall similar to the above which Felt as editor called Caryomia thomsoni. The illustration, however, shows the gall not be to Felt’s C. thompsoni as he has described it, viz., “Globose, with long, erect, reddish, fuscous hairs.”

24. Cecidomyia sp. Caryomyia similis Felt (?)

On leaf, under side, large, globular, 4-5 mm. dia. Light yellow-green to brown, surface puberulent. A minute nipple terminates the gall. Walls thin. Attached by a short pillar, over which the basal part of the sphere fits like a cap. Surface of leaf not noticeably raised on side opposite the gall.

Collected on H. microcarpa in Ohio and H. glabra in Connecticut. [Pg 53]

This gall is very close if not identical with Caryomyia similis Felt. It differs from his description in that it is not “depressed.”

25. Cecidomyia sp.

On leaf, generally on upper side, balloon-shaped gall, 3-5 mm. high, 3-4 mm. wide. Terminal nipple arising from slight apical depression. Greenish-brown or sometimes varying toward a very dark purplish tinge, its peculiar color being very constant and characteristic. The surface is dotted over with short, swollen glandular hairs. Trichomes sometimes projecting slightly from apical pore. Walls very thin. Galls attached to short, stout process of the leaf, to be seen only in median, vertical section. Surface of leaf on side opposite the gall not raised. Never numerous on leaflet. Closely related, if not identical, with C. caryae O. S. See No. 20.

Observed on H. glabra, in Hocking County, Ohio, July.

26. Caryomyia tubicola O. S.

On leaf, under side, cylindrical with rounded distal end standing erect from the cup-like base embedded in the leaf blade. 4-6 mm. high, generally very close to 5 mm. 1 mm. dia. Body of gall, yellow to brown in color, distal end reddish to brown, at length almost black. Basal cup, greenish yellow to dark purple. Cylindrical part of gall smooth as though polished. Gall attached to the cup only at its central basal part. Before the end of summer the tube-like portion breaks away with its enclosed larva. On the side of the leaf opposite the gall its position is indicated merely by a dark discoloration. Very common on different kinds of hickories.

27. Cecidomyia sp. Cecidium nov.

Leaf, under side, arising from a shallow cup-like structure. Shape of a slender horn, slightly curved, 5-7 mm. long, 1¼ mm. wide at base. Light green at base, changing to yellow, the distal ⅔ of the gall a deep brown. No demonstrable opening at the end. Walls thin. Surface smooth, under lens minute longitudinal striations evident. Very little [Pg 54] discoloration on the upper side of the leaf to mark the location of the gall beneath. Resembles Caryomyia tubicola O. S. but is certainly a different species.

Collected in Hocking County, Ohio, July, on H. alba.

Type specimens at Ohio State University.

28. Cecidomyia sp. Cecidium nov.

On leaf, generally upper side, delicate, small, sub-cylindric galls, standing erect, 2-2½ mm. high, less than 1 mm. wide, constricted proximally to the slightly flaring base. Distal end marked off by a circular ridge, in the center of which is a rounded nipple. This latter turns dark early. Gall light green, at length turning brown. Arises from intervenal areas between the smaller veins. On the under side of the leaf the gall above is indicated by a minute dark area. Attached to leaf by minute central pedicel.

Collected in Hocking County, Ohio, on H. alba in July.

Type specimens at Ohio State University.

29. Cecidozoon (Type undetermined.) Cecidium nov.

On leaf, under side, rather large, pouch-like gall (5-6 mm. long) arising from a principal vein. Shaped like a stout gourd, it is bent over nearly recumbent against the blade of the leaf. 2-2½ mm. wide. The proximal end is sharply constricted at the minute point of attachment. The walls when collected were light brown in color, sparsely covered with short white hairs. Walls very thin and when dry brittle. Interior surface smooth. Inconspicuous on the upper side of the leaf, except for the minute pore next the vein. Two specimens from the same leaflet.

This gall differs so markedly from all the other cecidomyidous galls of the hickories, that I am not certain just where to place it. They contained no occupants of any kind.

Collected in Hocking County, Ohio, on H. glabra, July.

Type specimens at Ohio State University.

30. Cecidomyia sp. Cecidium nov.

On leaf, under side, obconic gall resting in firm collar-like base. Somewhat similar to 31, but differs in definite constant characters to make it distinct. Proximal end not rounded but definitely conic, distal [Pg 55] broad end with prominent fovea in the center of which arises a well defined nipple. Dia. across top, 2½ mm., height from leaf surface, 2 mm. Greenish to reddish brown, smooth. No prominence or convexity of leaf surface opposite the gall, a slight discoloration only marking the position of the cecidium.

Collected in Hocking County, Ohio, on H. microcarpa, July.

Type specimens at Ohio State University.

31. Cecidomyia sp. Cecidium nov.

On leaf, under side, small, obconic galls which in development appear to burst through the epidermis, for gall is surrounded by the ragged collar-like remnant. The rounded proximal end strongly sunken in the leaf blade which is prominently convex on the opposite side. Distal end truncate with funnel-like depression leading to the rather large apical pore. This latter connects the depressed chamber within with the exterior. Distal broad end 1½ mm. wide. Gall projects from leaf surface 1-1½ mm. Smooth; light greenish-yellow in color. Walls very thick distally, very thin proximally where it is connected to the leaf at the central region. On the upper side of the leaf the low, hemispheric convexity is reddened, particularly toward the periphery. At first it was thought that this gall might be a juvenile form of H. tubicola, but later observations have shown it to grow no further in length. It is without doubt distinct and new.

32. Cecidomyia sp.

“Leaf-gall on under surface, having the form of a much depressed inverted cone, attached by its apex, and with the free base surrounded by a conspicuous fringe. 3-4 mm. high, 4-5 mm. in diameter. Green to light yellow-green. Huron, July 25. Quite rare and I believe hitherto unreported.” Sears.

The author has collected this interesting gall at Gypsum, Ohio, in August. Many of them measured 5 mm., not including the radiate, bract-like processes borne on the flaring rim of the gall. The galls bear an evanescent thin disk of tissue on the distal, central region, which is clear brown in color and bears erect scattered trichomes. The underlying surface of the gall or the outer convex part is perfectly smooth. The origin of the apical, brown disk is problematical; from the [Pg 56] material at hand it appeared as if the rim of the gall had developed by pushing out beneath the original apical tissue. After the disk falls, only a minute dark spot marks the apex of the gall. The surface of the under half of the gall, below the flaring, lacerate rim, is more or less pubescent.

Chamber comparatively large; walls thin.

This very striking gall has thus far only been collected by Mr. Sears and myself, both times in northern Ohio and occurring on H. ovata.

Some specimens, all occurring on the same leaf varied in that they were not so depressed (almost sub-hemispheric) and had the rim strongly inturned against the very convex distal half of the gall.

Sears, Ohio Nat. 15:380. 1914.

33. Cecidomyia? sp.

On leaf, blister-like, irregularly circular in outline, 2½-3½ mm. diameter, ½ mm. thick. Extends above and below about equally. Sometimes a slight central nipple is formed below. Greenish to brownish with discolored margin.

Collected in Vinton County, Ohio, on H. cordiformis.

Probably same as Felt’s “Leaf blister gall, irregular, dull greenish or black margined with small nipple. Diameter 3mm.”

This type of gall is so different from all the other cecidomyid forms that it is doubtful if it is a member of that group. It may possibly be an immature or small Phylloxera gall. The writer found white larvæ within his specimens, but was unable to determine them as cecidomyid larvæ. This gall is thus introduced here, provisionally.

Felt, Jour. Econ. Ent. 4:456. 1911.

[Pg 57]


Plate I.
Fig. 1. Mite gall. Eriophyes? sp. × 1⅓.
Fig. 1a. Mite gall. Eriophyes? sp. × 5.
Fig. 2. Mite gall. Eriophyes? sp. × 3.
Fig. 5. Cecidomyia sp. × 4.
Fig. 5a. Cecidomyia sp. Variety. × 4.
Fig. 6. Caryomyia inanis Felt. × 5.
Fig. 7. Cecidomyia sp. New. × 5.
Fig. 8. Cecidomyia sp. New. × 4.
Fig. 9. Cecidomyia sp. New. × 5.
Fig. 9a. Cecidomyia sp. New. Variety. × 5.
Fig. 10. Cecidomyia sp. New. × 5.
Fig. 11. Cecidomyia sp. New. × 1⅓.
Fig. 11a. Cecidomyia sp. New. Variety? × 5.
Fig. 12. Caryomyia caryaecola O. S. × 3.
Fig. 13. Caryomyia sanguinolenta O. S. × 5.
Fig. 14. Cecidomyia sp. New. × 5.
Fig. 15. Cecidomyia sp. New. × 5.
Fig. 16. Cecidomyia sp. × 5.

Plate II.
Fig. 16a. Cecidomyia sp. Variety, new. × 5.
Fig. 17. Caryomyia persicoides. Beut. × 5.
Fig. 18. Cecidomyia sp. × 4.
Fig. 19. Cecidomyia sp. New. × 4.
Fig. 20. Caryomyia caryae O. S. × 5.
Fig. 20a. Caryomyia caryae. Large specimen. × 5.
Fig. 21. Caryomyia holotricha O. S. Isolated specimen. × 5.
Fig. 21a. Caryomyia holotricha O. S. Aggregate condition × ⅔.
Fig. 21b. Caryomyia holotricha O. S. Bilocular unit of aggregate form. × 2.
Fig. 22. Cecidomyia sp. New. × 5.
Fig. 23. Cecidomyia sp. Possibly new. × 5.
Fig. 24. Caryomyia similis Felt (?) × 1.
Fig. 25. Cecidomyia sp, Caryomyia caryae O. S. (?) × 5.
Fig. 26. Caryomyia tubicola O. S. × 3.
Fig. 27. Cecidomyia sp. New. × 3.
Fig. 28. Cecidomyia sp. New. × 5.
Fig. 29. Cecidozoon (undetermined). New. × 3.
Fig. 30. Cecidomyia sp. New. × 7.
Fig. 31. Cecidomyia sp. New. × 6.
Fig. 32. Cecidomyia sp. × 5.
Fig. 33. Cecidomyia ? sp. × 5.

[Pg 58]

Ohio Journal of Science.Vol. XVI. Plate I.


[Pg 59]

Ohio Journal of Science.Vol. XVI. Plate II.



[1] Contribution from the Botanical Laboratory of the Ohio State University, No. 92.

[2] Pergande, T. “North American Phylloxerinae affecting Hicoria and other Trees.” Proc. Davenport Acad. Sci. 9:185-271, pls. 1-21. 1903.

[3] Felt, E. P. “The Identity of the better known Midge Galls.” Ottawa Naturalist, Vol. 25, Nos. 11, 12. 1912.

[4] Küster, E. Die Gallen der Pflanzen, Leipzig. 1911.

[5] Cook, Mel T. “Galls and Insects Producing Them.” Ohio Nat. 4:140-141. 1904.

[Pg 60]


Carl J. West, Ph. D.

Introduction. In curve tracing the graphic representation is constructed from the equation. Due largely to the requirements of statistics the converse, namely, to find the equation of the curve when the distribution of points is given, has become of interest. This problem is very different from the exercises of analytical geometry in which a given law of distribution of points is to be translated into algebraic language. For the presence in the statistical data of accidental irregularities makes it undesirable as well as practically impossible to obtain a curve passing through the points. Instead, a curve is “fitted” to the points, that is, a curve is passed among the points in accordance with some generally accepted principal such as that of least squares or the agreement of moments.

Aside from the straight line and the parabolas, the curves proposed by Pearson[6] have found acceptance. In order to derive curves which can be fitted to widely varying distributions of points, Professor F. Y. Edgeworth[7] has proposed to modify, to translate, the normal probability curve with unit standard deviation.


In this article we shall discuss the geometry of the curves which Edgeworth obtains by this transformation and derive a method for an approximate solution of the two equations, one of the fourth and the other of the sixth degree, which arise in the fitting of a curve of this class.

[Pg 61]

In order that the final curve may be written in terms of the co-ordinates x and y the equation of the base or generating normal probability curve is written:


where t denotes abscissas and z ordinates.

Let the abscissas of the transformed curve be functions of the corresponding abscissas of the base curve. Then it may be assumed that x can be developed in powers of t, and hence we may write on omitting fourth and higher powers,

x = a(t + κt2 + λt3),

where a, κ and λ are constants to be determined in “fitting” the curve.

Since x denotes the value of a measurement and y the frequency of x, that is, the number of individuals possessing that value of x, the magnitude of an element of area denotes the number of individuals between two values of x. Obviously, therefore, if the transformation is to be of concrete value the magnitude of an element of area must not be altered, though of course the shape will be changed. Hence

y dx = z dt,


y = z dt/dx


The formulas of transformation are thus:

x = a(t + κt2 + λt3),


Maximum and Minimum Points. Since only curves with one maximum point or mode are practically useful it is desirable to determine what values of the constants a, κ and λ give unimodal curves.

We have


[Pg 62]

From the vanishing of the numerator of dy/dx there must result either one or three real modes for each pair of values for λ and κ, that is, for each translated curve. To determine what values of λ and κ give uni-modal curves and what tri-modal it is convenient to consider the plane of λ and κ.

The discriminant of the equation

3λt3 + 2κt2 + (1 + 6λ)t + 2κ = 0


16κ4 - κ2(1 + 66λ + 117λ2) + 3λ(1 + 6λ)3 = 0

This fourth degree curve crosses the horizontal or λ-axis at λ = 0 and at λ = -⅙ and when λ = 0 its equation reduces to 16κ^4 - κ^2 = 0 or κ = ±0, κ = ±¼. There is thus contact with the vertical or κ-axis at the origin and that axis is crossed at the points (0, ±¼). At the point (λ = -⅙, κ = 0) there is a cusp with the λ-axis for tangent. The other two intersections with the line λ = -⅙ are imaginary, indicating the presence of two branches to the curve.

The discriminant of the denominator of dy/dx is the parabola (in λ and κ),

κ2 - 3λ = 0

The evident close geometrical connection between the two discriminants suggests arranging the discriminant of the cubic curve in the following form:

2 - 3λ) (16κ2 - 117λ2 - 18λ - 1) - 27λ3(1 - 24λ) = 0

From the equation in this, the well known uv + kws = 0 form, numerous elementary geometrical facts can be derived. The relations to the hyperbola, 16κ2 - 117λ2 - 18λ - 1 = 0, and to the parabola, κ2 - 3λ = 0, premit of the ready plotting of the curve with sufficient accuracy. The general shape of the curve is shown in Figure 1.

It is to be noted that one branch of the curve is within the parabola, almost coinciding with it, while the other crosses it at λ = 1/24. From the original form of this equation it appears that the two branches of this discriminant meet just inside the parabola in the end points with approximate co-ordinates (0.043, ±0.360). The geometry of the cusp and end-points on the discriminant curve is suggestive of interesting development in detail. [Pg 63]

Values of λ and κ for points on the discriminant give curves with two modes coinciding. All points on one side of the discriminant have three real and distinct modes, and all on the other have one real and two imaginary modes. To determine on which side the points giving three real modes lie we examine a point inside the discriminant. When κ = 0 the modal equation becomes

3λt3 + (1 + 6λ)t = 0.

Hence the roots are

t = 0 and


The quantity under the radical is positive for values of λ between 0 and-⅙. Therefore, all points within the discriminant curve yield tri-modal curves and all without uni-modal curves.

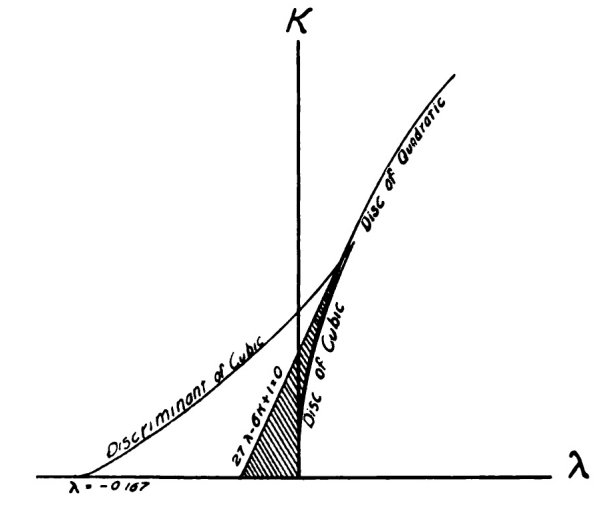

The plane of λ and κ


Fig. I

(The horizontal scale is twice the vertical scale)

The infinite values of dy/dx arise from zero values of the quadratic, 1 + 2κt + 3λt2. The greatest possible number of modes for any one curve is therefore five, three from the cubic and two from the quadratic. Since for infinite values of dy/dx the corresponding ordinates are infinite, it is advisable to study the location of the infinite points of the curve, rather to the neglect of the idea of maximum values at such points. [Pg 64]

Infinite Ordinates. The infinite points on a curve are given by the values of t satisfying the equation

3λt2 + 2κt + 1 = 0.

Except under certain limited conditions to be determined later a curve with infinite ordinates can not be of great statistical value.

The parabola, κ2-3λ = 0, obtained by equating the discriminant of this quadratic to zero separates the points on the (λ, κ) plane which correspond to curves of no infinite points from those corresponding to curves of two infinite points.


Types of Curves

Therefore, all pairs of values of λ and κ within the parabola, with the exception of the very narrow region also within the first discriminant curve, give uni-modal curves without infinite ordinates.

Types of Curves. Without entering into detailed proofs we will now investigate the general shape of the curves corresponding to values of λ and κ in each of the distinct regions of the plane of λ and κ. [Pg 65]

In the region beneath the parabola and to the right from the shaded area of Fig. I the curve is essentially of the shape shown in Fig. II. This type includes the most common skew curves and hence is of great importance in statistics.

As the point (λ, κ) moves from the λ-axis the crest rises until the parabola is reached when the infinite ordinates appear as two coincident lines, shown in Fig. III.

After the parabola is passed, the infinite ordinates separate and the curve apparently separates into three branches as in Fig. IV.

In crossing the κ-axis to the left one asymptote moves off to infinity giving a curve of the type shown in Fig. V.

Then the asymptote reappears giving a curve of the type shown in Fig. VI.

This general shape is preserved as the point moves toward the λ-axis and when the point reaches the discriminant curve the middle branch is flattened at the minimum point.

For points within the discriminant curve two minimum points appear and the central branch now shows a maximum with a minimum point on either side as in Fig. VII.

The Tri-modal Curves. The curves corresponding to values of (λ, κ) within the discriminant, because of the requirement that an element of area under the translated curve must always be equivalent to the corresponding element under the base or generating curve, can be of statistical value only under the following conditions.

The area between the two ordinates corresponding to t = ±3 is 0.99998 of the total area under the curve, so that when neither of the minimum points corresponds to points closer than three units to the origin of the base curve the curve may be practically valuable. A moment’s consideration will show that the abscissas of the two minimum points must be practically the same as that of the corresponding infinite ordinates. The roots of the quadratic

3λt2 + 2κt + 1 = 0

are numerically greater than 3 for all pairs of values of (λ, κ) lying above the line

27λ - 6κ + 1 = 0

As statistically promising within the discriminant of the cubic we then have the shaded area of the (λ, κ) plane. [Pg 66]

The Origin. The generating curve is the symmetrical normal probability curve with origin at its center. Since x = 0 when t = 0, the origin of the translated curve coincides with that of the base or generating curve. The translated curve may not be symmetrical so that the mean ordinate may not coincide with the modal ordinate. Because of the relation between corresponding areas the ordinate at the origin must continue to divide the area under the curve into equal parts, that is, the origin and median always coincide.

Determination of the Constants. Since the exact position of the median can not ordinarily be determined by inspection or direct computation there are in reality four constants to be determined: the distance between the median and the mean, a, κ and λ.

In determining the constants it is usual to compute the value of the first four moments. The third and fourth moments are extensions of the idea of the well known formulas for the first and second moments. Denoting the moments about the median by μ, we have


where N is the total area under the curve.

The values of the μ’s are computed from the data[8] and equated to the corresponding integrals which of course involve the four constants. In this way four equations are obtained from which the values of the constants may be determined. Since it is our present object to discuss the solution only of these equations, merely the principal results will be given. [Pg 67]

The general form for the moments about the median of the area under the translated curve is


On applying the two well known formulas:


the determination of μ1´, μ2´, μ3´ and μ4´ is reduced to a matter of algebraic detail. Then on transferring to the arithmetic mean as origin the values of μ2, μ3, and μ4 can be determined in terms of a, κ and λ. It is most convenient however, to make use of the quantities β1 = μ32 ⁄ μ23 and β2 = μ4 ⁄ μ22 or rather β = β1 ⁄ 8 and ϵ = (β2 - 3) ⁄ 12 and express the constants in terms of these quantities. It is to be noted that both ϵ and β are zero for a normal distribution, that is, for λ = κ = 0.

Omitting the detailed reduction[9] which is straightforward and direct, we have


[Pg 68]

Obviously no algebraic solution can be obtained from equations (3) and (4) for κ and λ in terms of the computed values β and ϵ, and hence a resort to tables is necessary. The values of β and ϵ for values of κ from 0 to 0.0335 and of λ from -0.040 to +0.100 have been computed.[10] The process of determining the constants of the translated normal curve consists first in computing β and ϵ from the given data, and then in entering the table and interpolating for the corresponding values of κ and λ.[11] On substituting these values in (2) the value of a can be found and thence on multiplying a by κ the position of the median of the distribution is obtained.

The sign of κ is determined by the sign of the third moment about the mean μ3, that is, by the direction of the skewness or asymmetry. For positive skewness the mean must lie to the right of the median and hence μ1´, the first moment about the mean, must be positive which necessitates a positive sign for κ. Therefore, the sign of κ is the same as that of the skewness.

To fit a curve to the given data, after the constants have been determined it is necessary to find, by solving a cubic equation for each value, the values of t corresponding to the x’s of the respective classes. The cubic is

aλt3 + aκt2 + at - x = 0.

Any of the various methods of approximating to the solution of a cubic may be used in solving these equations.

The area of each class can now be obtained by computing the corresponding areas under the standard normal curve from a table of the probability integral.

The Method of Interpolation. The actual fitting of the curve can now be readily accomplished.[12] The distinctively geometrical operation is the interpolation for the values of λ and κ for a given pair of values of β and ϵ.

Within the limits of the table[13] the curves resulting from the assignment of a constant value to β are practically [Pg 69] straight lines, β = 0 is the λ-axis; β = 1 is a line parallel to the λ-axis. Hence we may safely assume that the variation from one column to the next and from one line to the next is linear for values of β. That is, ordinary first difference interpolation methods are applicable.

As regards the system of ϵ curves we have for instance ϵ = .128 at (λ = .050, κ = 0); again, at approximately (.045, .060) and (.40, .085). We are therefore warranted in assuming the applicability of first difference methods to interpolation between the ϵ curves.

As an illustration let us find the values of λ and κ for ϵ = 0.112 and β = 0.044. On inspection of the table it is seen that λ lies between 0.30 and .035 and κ between .090 and .095. When κ = .090, λ = .033 for ϵ = .112. When κ = .095, λ = .031 for ϵ = .112. For β = .042 and κ = .090, λ = .033 and for β = .046 and κ = .095, λ = .031, ϵ = .112 in each case. Hence, to first differences, λ = .032 and κ = .093 for ϵ = .112 and β = .044. For interpolation in parts of the table showing more rapid variations appropriate methods will suggest themselves.

Taken geometrically the table represents two distinct systems of curves, with each curve of one system intersecting all the curves of the other system. Therefore, a pair of values for λ and κ can always be found for values of ϵ and β within the range of the table.

Department of Mathematics, Ohio State University.

[Pg 70]


(ϵ is the first and β the second number of each pair.)

  κ    -040   -035   -030   -025   -020   -015   -010   -005    000
000  -061 -056 -050 -043 -035 -027 -019 -010  000
   000  000  000  000  000  000  000  000  000
005   -055 -049 -042 -035 -027 -019 -010  000
     000  000  000  000  000  000  000  000
010   -055 -049 -042 -035 -027 -018 -010  000
     000  000  000  000  000  000  000  001
015     -049 -042 -035 -027 -018 -009  001
       001  001  001  001  001  001  001
020     -048 -041 -034 -026 -017 -008  002
       001  002  002  002  002  002  002
025     -047 -040 -033 -025 -016 -007  003
       002  002  002  003  003  003  003
030     -046 -039 -032 -024 -015 -006  004
       003  003  004  004  004  004  004
035     -045 -038 -031 -023 -014 -005  005
       004  005  005  005  005  005  006
040       -037 -030 -022 -013 -004  006
         006  006  007  007  007  007
045       -036 -028 -020 -011 -002  008
         008  008  008  009  009  009
050       -034 -026 -018 -009 -000  010
         009  010  010  011  011  011
055       -032 -024 -016 -007  002  012
         011  012  012  013  013  013
060         -022 -014 -005  004  014
           014  015  015  016  016
065         -020 -012 -003  006  017
           016  017  018  018  019
070         -018 -009  000  009  019
           019  020  020  021  022
075         -015 -007  002  012  022
           022  023  023  024  025
080         -013 -004  005  015  025
           025  026  026  027  028
085           -001  008  018  028
             029  030  031  032
090            002  011  021  032
             032  033  034  036
095            005  015  025  035
             036  037  038  039
100            009  018  028  039
             039  041  042  044

(ϵ is the first and β the second number of each pair.)

  κ    005   010   015   020   025   030   035   040   045   050
 000  010 021 033 045 057 071 084 098 113 128
  000 000 000 000 000 000 000 000 000 000
005 010 021 033 045 057 071 084 098 113 128
  000 000 000 000 000 000 000 000 000 000
010 011 022 033 045 058 071 085 099 113 128
  001 001 001 001 001 001 001 001 001 001
015 011 022 034 046 058 071 085 099 114 129
  001 001 001 001 001 001 001 001 001 001
020 012 023 034 046 059 072 086 100 115 130
  002 002 002 002 002 002 002 002 002 002
025 013 024 035 047 060 073 087 101 116 131
  003 003 003 003 003 003 003 003 003 003
030 014 025 036 049 061 074 088 102 117 132
  004 004 004 005 005 005 005 005 005 005
035 015 026 038 050 063 076 089 104 118 133
  006 006 006 006 006 006 007 007 007 007
040 017 028 039 052 064 077 091 105 120 135
  007 008 008 008 008 008 008 009 009 009
045 019 030 041 053 066 079 093 107 122 137
  009 010 010 010 010 011 011 011 011 011
050 021 032 043 055 068 081 095 109 124 139
  012 012 012 012 013 013 013 013 014 014
055 023 034 045 057 070 083 097 111 126 141
  014 014 015 015 015 016 016 016 016 017
060 025 036 048 060 073 086 100 114 129 144
  017 017 017 018 018 019 019 019 019 020
065 028 039 050 062 075 089 102 116 131 146
  019 020 020 021 021 022 022 022 023 023
070 030 041 053 065 078 091 105 119 134 149
  022 023 024 024 025 026 026 026 026 027
075 033 044 056 068 081 094 108 122 137 152
  026 026 027 028 028 029 029 030 030 031
080 036 047 059 071 084 097 111 125 140 155
  029 030 031 031 032 033 033 034 034 035
085 039 050 062 075 088 101 115 129 144 159
  033 034 034 035 036 037 037 038 039 039
090 043 054 066 079 092 105 119 133 148 163
  037 038 039 039 040 041 042 042 043 044
095 046 058 070 083 096 109 123 137 152 167
  041 042 043 044 045 046 046 047 048 049
100 050 062 074 087 100 113 127 141 156 171
  045 046 047 048 049 050 051 052 053 054

[Pg 71]


[6] Pearson, Karl:—“Skew Variation in Homogeneous Material;” Phil. Trans. 1895, Vol. CLXXXVI, A, pp. 253 et seq.

“On the Systematic Fitting of Curves to Observations and Measurements,” Biometrika, I, pp. 265 et seq. and Biometrika II, pp. 1 et seq.

Elderton:—“Frequency Curves and Correlation,” pp. 1-105; C. & E. Layton, 1906.

[7] Edgerton, F. Y.:—“On the Representation of Statistics by Means of Analytical Geometry,” Jour. Roy. Stat. Soc., 1914, Feb., Mar., May, June and July.

[8] Elderton, 1. c.

[9] Compare Edgeworth, “A Method of Representing Statistics by Analytical Geometry,” Proceedings Fifth International Congress of Mathematicians, Cambridge, 1912.

[10] Only a part of the original table appears in the accompanying table. The original values were computed to four places of decimals, but three place numbers are sufficient to illustrate the method of approximating to the solution.

[11] Compare “Tables for Statisticians and Biometricians,” Cambridge University Press, 1914.

[12] For the statistical details see Elderton, 1. c.

[13] As may be seen on examining the Table.


By Edmund H. Gibson and Eric S. Cogan, U. S. Bureau of Entomology.

The following preliminary list of the Jassoidae of Missouri is mainly the result of collections and notes made by the authors during the summer months of 1915. On account of the lack of records for this state the authors were prompted to undertake such a survey. As far as possible collections were made so as to embrace all conditions in different sections, giving some attention to ecological relations. The list comprises some 98 species.


Macropsis apicalis Osb. & Ball. A few specimens swept from weeds at Charleston, Mo., during the late summer.

Bythoscopus distinctus VanDuzee. Found in great numbers on willows in northern Missouri.

Pediopsis viridis Fitch. Not common. Taken from willows near drainage canals in southeast Missouri. Somewhat more numerous in northern part of the state.

Idiocerus nervatus VanDuzee. The only species taken from willows about Chillicothe.

Idiocerus verticis Say. Listed by VanDuzee as occurring in the state.

Idiocerus crataegi VanDuzee. Swept from grasses at Chillicothe.

Idiocerus snowi Gill & Baker. Recorded from Lutesville and Charleston. Feeding on millet and grasses. Nymphs numerous during August.

Agallia sanguinolenta Prov. Most plentiful in southern part of state. A decided pest of clover and alfalfa. Other food plants include wheat and several weeds. Adults abroad in fields all seasons of the year. Abundant in northern Arkansas.

Agallia constricta VanDuzee. One of the earliest jassids to appear in the spring. Most numerous on grains. Attacks wheat, [Pg 72] rye, oats, alfalfa and grass. Abundant in southern counties.

Agallia uhleri VanDuzee. Not very numerous. Occurring principally near swamps along the Mississippi River. Also collected from clover fields.

Agallia novella Say. Rather uncommon. Taken only in southern half of state. Adults collected from alfalfa and from weeds growing in marshes and bogs.

Agallia 4-punctata Prov. Clover and alfalfa are among its food plants. Most abundant in southern counties.

Agallia gillettei O. & B. Quite rare. A few adults taken at Charleston.


Oncometopia undata Fabr. Occurs throughout the state, but not abundant. Swept from grass, weeds and a number of shrubs.

Oncometopia costalis Fabr. Occasional specimens taken throughout southern part of state. Also recorded in the collection of the Experiment Station at Columbia.

Homalodisca coagulata Say. Occasional specimens taken from cotton and cowpeas. Not abundant.

Aulacizes irrorata Fabr. Recorded from the collection of the Experiment Station at Columbia.

Kolla bifida Say. Swept from weeds in marshy lands and from willows and several shrubs. Recorded only in Mississippi County.

Kolla geometrica Sign. Not common. Recorded from Springfield on grass.

Kolla tripunctata Fitch. Mentioned in VanDuzee’s Catalogue of Described Jassoidea of N. A. as occurring in Missouri.

Tettigoniella gothica Sign. Only one specimen taken. From grass at Lutesville, August 13.

Tettigoniella occatoria Say. Common in eastern part of state. Feeds on clover and weeds.

Tettigoniella hartii Wood. Quite numerous throughout the state during the late summer. Captured only from meadows and grass lands.

Tettigoniella hieroglyphica Say. Rather common in all parts of the state. Known to feed on clover and several weeds.

Tettigoniella hieroglyphica Say. var. hieroglyphica Say. One adult captured from grass at Rolla, September 21, by Mr. Geo. W. Barber.

[Pg 73]

Tettigoniella hieroglyphica Say. var. uhleri Ball. Rather common in eastern half of state. Taken from clover and weeds.

Tettigoniella hieroglyphica Say. var. confluens Uhler. Taken with the above variety.

Diedrocephala coccinea Forst. Very generally distributed. Common but not in great numbers. Injurious to many ornamental plants in the Missouri Botanical Gardens at St. Louis. Nymphal cast shins observed on leaves of Magnolia and American Holly. Adults taken from several kinds of trees near swamps along the Mississippi River.

Diedrocephala versuta Say. Very abundant in central and southern Missouri. Adults first observed in June. All stages abroad in fields from July to November. Injurious to cowpeas in Southeast Missouri. Food plants include alfalfa, clover, sunflower, grasses, and many weeds. Common on several ornamental plants and shrubs in the Missouri Botanical Gardens at St. Louis during September.

Draeculacephala reticulata Sign. Rather common at Charleston and Sikeston during July and August and September, on corn, alfalfa and grasses. Taken at Chillicothe, Sept. 6, Stanberry, Sept. 7. The last two records extend the distribution of this jassid to north of the Missouri River, a fact which is interesting in view of the distribution recorded by Prof. Osborn in Bull. 108. Bur. of Ent.

Draeculacephala angulifera Walker. Quite common on grass at Charleston.

Draeculacephala mollipes Say. Abundant throughout the state. All stages present from April to November. Of great economic importance. A decided pest to young grains and grasses. Known to feed on an innumerable list of plants and shrubs, field crops, and ornamentals. Adults migrate in large numbers. About the most common jassid in Missouri.

Draeculacephala noveboracensis Fitch. Taken on grass at Charleston.

Helochara communis Fitch. Swept from wheat on many warm, sunny days during the winter. In July collected from alfalfa. Recorded only from Mississippi County.

Gypona 8-lineata Say. Occurs throughout the state. Has special liking for shady and damp places. Appears to be essentially a grass feeder. [Pg 74]

Gypona flavilineata Fitch. Swept from grass lands at Chillicothe.

Gypona cana Burm. Taken with G. flavilineata.

Gypona pectoralis Spangb. Taken with G. flavilineata.


Xestocephalus pulicarius VanDuzee. One specimen of this form taken at an electric light at Charleston, July 28.

Xestocephalus tesselatus VanDuzee. Collected from elm leaves at Charleston. Quite rare.

Hecalus lineatus Uhler. Not common. Nymphs more numerous than adults during August. Swept from rank growing grasses near the Mississippi River at Hannibal.

Parabolocratus viridis Uhler. Recorded from Springfield, Columbia, Chillicothe, and Charleston. Observed feeding on grass, sweet clover and sorghum.

Platymetopius acutus Say. Only one adult collected. Swept from weeds near a bog at Charleston, July 28.

Platymetopius frontalis VanDuzee. Very common throughout the state. Attacks clover, alfalfa, and grasses. Also taken from woody shrubs.

Deltocephalus nigrifrons Forbes. Generally distributed in all sections of the state. Very abundant during October. Known to feed upon clover, alfalfa, wheat, many grasses including blue grass, and several weeds. Attracted to lights at night.

Deltocephalus weedi VanDuzee. Quite common on weeds along roadsides and shady places. Collected at Lutesville and Charleston during the late summer.

Deltocephalus flavicosta Stal. Quite abundant during middle and late summer, principally in southern part of state. Swept from native grasses and weeds. Occasional specimens taken from wheat.

Deltocephalus sayi Fitch. Recorded from grass lands in North western parts of state in September. Quite common in blue grass.

Deltocephalus inimicus Say. Common in all parts of the state. All stages taken from May to November. Food plants include wheat, oats, alfalfa, clover, cowpeas, timothy, blue grass, other native grasses, and weeds. [Pg 75]

Deltocephalus albidus Osb. & Ball. Recorded from the collection of the Experiment Station at Columbia.

Deltocephalus obtectus Osb. & Ball. Quite scarce. Recorded only from Mississippi County. Near swamps.

Deltocephalus misellus Ball. Captured but one adult, in a corn field near Mississippi River at West Quincy.

Deltocephalus productus Walker. Rather scarce. Swept from clover and weeds at Stanberry.

Deltocephalus debilis Uhler. Quite common on grasses in rye and wheat stubble fields about Hannibal and West Quincy.

Athysanus exitiosus Uhler. Occurs throughout the state. With the exception of Draeculacephala mollipes it is the most common jassid of northwestern Missouri. Adults present at all seasons of the year. Food plants include wheat, oats, corn, alfalfa, grasses, and weeds.

Athysanus bicolor VanDuzee. Numerous in southern part of state, especially in low or bottom lands. Feeds upon many weeds, grasses and alfalfa.

Athysanus obtutus VanDuzee. Not common. A few adults taken from sweeping wheat fields in the early spring. Recorded only from Mississippi County.

Athysanus plutonius Uhler. Rather rare. Occasional specimens swept from wheat in Scott and Mississippi Counties.

Athysanus curtisi Fitch. Only one adult captured sweeping weeds at Hannibal.

Eutettix clarivida VanDuzee. Recorded from Lutesville and Charleston, from millet and grasses. Nymphs numerous during August.

Eutettix osborni Ball. Collected by Geo. W. Barber at Poplar Bluff, from White Aster, used in ornamental plantings.

Eutettix seminuda Say. Rather numerous but not abundant. Occurring in all parts of the state. Collected principally from weeds and woody shrubs near swamps. Also from grape vines.

Eutettix strobi Fitch. Only one adult captured. Feeding on a leaf of a willow tree growing in a swamp.

Phlepsius apertus VanDuzee. Very common throughout the state, especially in the southeast section. Occurs in great numbers on alfalfa and clover upon which crops they must be considered a pest. Also recorded from grasses and weeds. Most abundant during July and August. [Pg 76]

Phlepsius irroratus Say. Very common and generally distributed throughout the state. Of economic importance, attacking alfalfa, clover, cowpeas, corn, wheat, oats, grape, many grasses, and weeds.

Phlepsius cinereus VanDuzee. Recorded only from Mississippi County. Most numerous in early summer. Often taken at lights.

Phlepsius pallidus VanDuzee. Collected at lights during summer months. Generally distributed but not abundant.

Phlepsius superbus Uhler. Not abundant. Occasional specimens captured in Mississippi County.

Scaphoideus sanctus Say. Occasional specimens taken in southern part of state.

Scaphoideus productus Osborn. One adult collected at Rodney, August 25.

Scaphoideus scalaris VanDuzee. Quite common. Recorded from Springfield and Hannibal. Taken only from weeds.

Scaphoideus jucundus Uhler. Occurs on rank weeds and willows. Only record is from Stanberry.

Scaphoideus immistus Say. Swept from woody shrubs and rank grasses about Charleston.

Scaphoideus immistus Say. var. minor Osborn. One adult taken at Charleston.

Thamnotettix clitellarius Say. An occasional adult taken in sweepings from grasses and weeds in southeast Missouri. Also taken from grape at Columbia.

Chlorotettix viridius VanDuzee. A few adults taken during the summer from grasses and weeds growing in low and swampy lands. Recorded from Pattonsburg and Charleston.

Chlorotettix unicolor Fitch. Rather common in central and northern parts of state. Collected from willows growing in lowlands.

Chlorotettix tergatus Fitch. One adult collected at Charleston, September 2.

Chlorotettix necopina VanDuzee. Only record is from Charleston where adults were swept from weeds growing in marshy places.

Chlorotettix galbanata VanDuzee. Quite rare. Occasional specimens taken from weeds growing along roadsides in Mississippi County. [Pg 77]

Jassus olitorius Say. Not common. A few adults taken in southeast Missouri. Observed them feeding upon alfalfa.

Balclutha punctatus Thunbg. Only record of occurrence is from Pattonsburg.

Gnathodus impictus VanDuzee. Not numerous. Observed feeding on grasses and several weeds at Charleston during May.

Cicadula 6-notata Fall. Occurs in all sections of the state, most abundant in northeast. Known to feed upon wheat, oats, and grasses. Especially numerous during October.

Empoasca mali LeB. One of the most common and probably the most injurious leafhopper. Feeds on a great variety of plants, shrubs and trees. A pest of field crops, nursery stock, and orchards. Especially abundant during the summer of 1915 on alfalfa and clover. In early spring adults have been observed feeding on wheat, rye and native grasses. Exhibits great adaptability to changes of climate and host plants.

Empoasca smaragdula Fall. Listed by Gillette as occurring in the state.

Empoasca radiata Gillette. Swept from willows growing in the Missouri Botanical Gardens at St. Louis.

Dicraneura abnormis Walsh. Not common. Few specimens collected from blue grass and around lights at night at Chillicothe, during September.

Typhlocyba illinoiensis Gillette. Noted feeding on rose leaves in the Missouri Botanical Gardens at St. Louis.

Typhlocyba obliqua Say. Very abundant on many weeds at Springfield during August.

Typhlocyba trifasciata Say. Listed by Gillette as occurring in the state.

Typhlocyba tricincta Fitch. Abundant on several ornamental bushes in Missouri Botanical Gardens at St. Louis. Adults exceedingly quick of movement. Also collected at Pattonsburg and Columbia.

Typhlocyba comes Say. Abundant throughout the state. A severe pest of grapes, especially in southeast Missouri. Feeds on a number of weeds. Attracted to lights at night in considerable numbers. [Pg 78]

Typhlocyba comes Say. var. vitis Harris. Occurring on ornamental shrubs, including rose, in the Missouri Botanical Gardens at St. Louis.

Typhlocyba comes Say. var. scutelleris Gillette. Very common on Sycamore in all stages, and frequently causing severe infestations. Nymphs and adults feed on under side of leaves resulting in small whitish brown spots. Occurs in all parts of Missouri.

Typhlocyba comes Say. var. basilaris Say. One adult captured by Geo. W. Barber at Poplar Bluff, September 4, from white aster.

Typhlocyba comes Say. var. ziczac Walsh. Collected from rose bushes in the Missouri Botanical Gardens at St. Louis.

Typhlocyba vulnerata Fitch. Rather numerous on several ornamental shrubs growing in the Missouri Botanical Gardens. Feeds on under side of leaves.

[Pg 79]


The Twenty-fifth Annual Meeting of the Ohio Academy of Science was held at the Ohio State University, at Columbus, on November 26th and 27th. A special program was given in commemoration of the Quarter Centennial Anniversary.

The American Association for the Advancement of Science will hold its Annual Meeting on the Ohio State University Campus, at Columbus, December 27th, 1915 to January 1st, 1916. A large attendance is expected and arrangements have been completed to make the meeting one of unusual interest.

At the November meeting of the Biological Club, the following officers were elected for the ensuing year: President, Dr. F. H. Krecker of the Department of Zoology and Entomology; Vice President, Miss Clara G. Mark, of the Department of Geology; Secretary and Treasurer, Mr. Rollo C. Baker, of the Department of Anatomy.

The following officers were named by the Ohio State University Scientific Society for the year: President, F. C. Blake, Department of Physics; Vice President, Jas. R. Withrow, Department of Chemistry; Secretary, R. J. Seymour, Department of Physiology; Treasurer, C. J. West, Department of Mathematics. These officers constitute an executive committee which will arrange programs for the regular meetings of the society, the first of which will occur during January.

An interesting event occurring during the recent meeting of the Ohio Academy of Science was the short talk given by Dr. T. C. Mendenhall to the New York and San Francisco alumni of the Ohio State University by means of the trans-continental telephone. Dr. Mendenhall, while a member of the University faculty, established the first telephone to be used in central Ohio, a line from his University office to his residence, and he expressed himself as greatly pleased at the opportunity accorded him to speak to his former students over a line extending across the continent.

[Pg 80]

The Ohio Academy of Science at its November meeting voted to change the date of its annual session to a time corresponding to the Easter recess. The exact time of the meeting is to be determined by the executive committee, the Academy voting to have the next meeting occur in the spring of 1916.

Established last Spring, the latest honorary society, Phi Sigma, a student organization open only to students having completed an amount of biological work equivalent to a minor, has awakened interest in the universities of other states. Inquiries concerning the possibility of establishing other chapters at distant institutions have been received by the parent chapter at Ohio State University and it is probable that such chapters will be formed during the present year. Phi Sigma hopes to publish a biological quarterly in the near future.

Dates of Publication:
November Number, Nov. 22, 1915.
December Number, Dec. 20, 1915.

The College Book Store

Reference books in all departments of Higher Education.

Biological Supplies and Advanced Text Books
new and secondhand.



The Bucher Engraving Co.,


Scientific Illustrations given extremely
careful attention by highly skilled
artisans using the most modern equipment





The Ohio State University



Ten Colleges and a Graduate School

     College of Agriculture
  College of Arts, Philosophy and Science
  College of Education
  College of Engineering
  College of Homeopathic Medicine
  College of Law
  College of Medicine
  College of Dentistry
  College of Pharmacy
  College of Veterinary Medicine
  Graduate School
  Summer Session (Eight weeks)

For general information, catalogue, or special bulletin describing each college, with fees and announcement of courses.

L. E. WOLFE, Secretary Entrance Board,


Transcriber's Notes:

The cover image was created by the transcriber, and is in the public domain.

Uncertain or antiquated spellings or ancient words were not corrected.

The illustrations have been moved so that they do not break up paragraphs and so that they are next to the text they illustrate.

Typographical errors have been silently corrected but other variations in spelling and punctuation remain unaltered.
