THE ROYAL MINT:

Its Working, Conduct, and Operations,
Fully and Practically Explained;

WITH
SUGGESTIONS FOR ITS BETTER SCIENTIFIC
AND OFFICIAL MANAGEMENT.
RE-WRITTEN, ENLARGED, AND REVISED TO THE
PRESENT TIME. TO WHICH IS ADDED,
AS AN APPENDIX,

A LETTER ADDRESSED TO THE RIGHT HON. LORD KINNAIRD, K.T.

By GEORGE FREDERICK ANSELL,

ANALYTICAL CHEMIST.
LATE OF THE ROYAL MINT,
FORMERLY OF THE ROYAL COLLEGE OF CHEMISTRY.

ILLUSTRATED WITH ENGRAVINGS.

“To have a thing is little if you’re not allowed to show it;
And to know a thing is nothing unless others know you know it.”

Lord Neaves.

THIRD EDITION.

LONDON:
EFFINGHAM WILSON, ROYAL EXCHANGE.
1871.

Entered at Stationers’ Hall.]  [All rights reserved. [Pg iii]

I have no objection to your appending to the third edition of your book your letter to me in regard to your case, and my correspondence with Mr. Gladstone and the Chancellor of the Exchequer, but if you add in addition to this correspondence the report of the debate on my motion for a committee to inquire into the management of the Mint, I should wish to make some few remarks on the subject in question; but before doing so I must take the opportunity of thanking you for letting me see Mr. Fremantle’s letter in answer to your offer, made at my suggestion, to meet Mr. Fremantle with a view to rendering him some assistance (which from your great experience you are well able to do) in the management of the Mint, which I have reason to know both he and Mr. Lowe find somewhat difficult.

The answer is evidently dictated by Mr. Lowe. After his letter⁠[1] to me of the 29th April, 1869, I might have known that he was not likely to do anything which might appear as if he owned himself in the wrong. This letter, indeed, showed how annoyed Mr. Lowe was at my having seen that most malicious report to the Treasury by Dr. Graham, which has been the cause of your having been so unjustly dealt with, to the ruin, in a great measure, of your prospects in life. Dr. Lyon Playfair at the time threatened that if I moved to inquire into the management of the Mint, he would move that that report be laid on the table of the House. This would not have deterred me, as the report itself would have been the best refutation of the insinuation it contained that you were dismissed because you were guilty of the Mint practice of purloining gold (whereas the note⁠[2] relieving you from further attendance stated that the short work at the Mint was the cause). Dr. Graham did not, he said, believe the insinuation, and to show that he did not believe it, although he had sent in the report to the Treasury, he authorised me to offer you the situation (at an increased salary) filled by Mr. Goodwin, who was to be retired, which of course you refused as being far inferior to the one you held; and in further proof he wrote you that handsome testimonial⁠[3] which I read to the House of Lords.

The report, however, had served its purpose in preventing you from being appointed to an office in the Mint.

I am sure Dr. Graham regretted that he had been induced by his brother, whose animus against you was known throughout the Mint, to send in such a report to the Treasury. Dr. Lyon Playfair’s threat, as I have said, [Pg iv] would not have deterred me from moving for a committee to inquire into the malpractices of the Mint, but I confess that I had great scruples in regard to Dr. Graham himself. I shall never forget the expression of his face, and the fearful agitation the mention of my intention always caused.

I confess I did hesitate to place a man of Dr. Graham’s great scientific attainments in such a position as an inquiry would have done, seeing also that his brother was just dead, and that I knew individually Dr. Graham was in no way implicated in the malpractices which formerly prevailed in the Mint; for, as you know, Dr. Graham had soon after his appointment set to work to clear out that “Augean stable,” which, with your assistance, he had almost accomplished till in an evil moment he appointed his brother, to whose intemperate habits I referred in the House of Lords,⁠[4] to a responsible office in the Mint.

Dr. Graham’s death following so soon after that of his brother, I was greatly rejoiced at having delayed bringing the subject of the Mint before Parliament, because I should have felt that I had been to some extent instrumental in hastening that event by drawing attention to the state of that Department.

On the occasion of the reading to me, by Dr. Lyon Playfair, of that wicked report to the Treasury (to which I have previously alluded), in the presence of Dr. Graham and of Mr. C. W. Fremantle, I urged, as Dr. Graham exculpated you from all blame insinuated by the report, that in common justice you should be reinstated in some office in the Mint, you having, with my advice, refused the position offered by Dr. Graham through me, when Mr. Fremantle remarked as a reason against your being appointed that “you were so unpopular with the officials;” such unpopularity being in my opinion the natural result of the work you had done at the request of Dr. Graham, and in the service of the Mint. I say the work you had done, and use the expression on the authority of Dr. Graham, copies of whose letters to the Treasury are now in my possession, and in which he distinctly states that to you mostly were due the reforms. There is no doubt, therefore, but that you were exceedingly unpopular just in the sense that a detective would be amongst the “light-fingered gentry,” and had I obtained the committee for which I moved I could have shown the true grounds of your unpopularity. I have collected some further valuable information showing the necessity for a rigid and full inquiry into the affairs of the Mint, which will show that the officials of a public department are not justified in putting into the hands of a young and rising member of the House of Lords statements which are not only erroneous, but absolutely false, so that Lord Lansdowne was obliged to declare that “he had on a previous occasion overstated the amount in regard to the profit on silver;”⁠[5] but again was he grossly misled by the Mint officials when he stated “that there was a gain of £5,000 per annum on [Pg v] the silver coinage”⁠[6] (a considerable reduction on the former statement) while the return showed a positive and very great loss. It would appear that the Mint officials mystify him, and that he, not I, confuse two things.

I alluded in the House to a job by Mr. Lowe in appointing Mr. Roberts, and Lord Lansdowne in reply stated that Mr. Roberts was a very eminent chemist who had proved his capability by “devising a system for depriving brittle gold of the obnoxious properties on which I recently commented.” Have you heard that the plan has been tried and found to be a complete failure!!! I am also informed that Mr. Roberts did not devise the process in question, but that it was invented by a really eminent chemist, who did not make the inquiry with a view to its application under the circumstances which arise in the Mint, where operations are conducted on so large a scale. The process is described in the British Association Reports for 1848, and more fully in the Philosophical Magazine for 1850.

I have just received the Report of the Deputy-Master of the Mint, on European Mints, which I have only had time to glance over. The report is evidently framed with a view of meeting the allegations I made on the appointment of the commission. It would appear, moreover, that Mr. Fremantle and his colleagues have made a very careful study of your book!!! which might have been done without the pleasant trip. For the general public the reports are interesting as showing how foreign mints are worked, but as far as the management of the English Mint is concerned, and how a department which is a serious expense to the country, and from which no one but the Bank of England and the employés derive any profit, can be made, as it ought to be, a source of revenue, the report does not show. I see it is proposed to build new offices, “so constructed as to diminish facilities for peculation!!” I think the real question is, would it not be better TO COIN BY CONTRACT—this might be tried, at all events for a time, before the new offices are commenced.

I almost fear this Mint question will not be taken up in the House of Commons, as members are afraid to “tackle” Mr. Lowe, and in these fearfully excited times the subject is too dry for members to interest themselves in; but I cannot understand how a Government bent on economy and reforming abuses in the several Departments can allow such wasteful extravagance and useless losses to go on, unless indeed Mr. Lowe is dreaded as much at the Council Board as in the House of Commons.

Believe me,
Dear Mr. Ansell,
Yours faithfully,
(Signed)KINNAIRD.

To G. F. Ansell, Esq.,
27, Bernard Street, Russell Square, London, W.C.

[Pg vi]

Influential friends have advised me to issue the present as the third edition of “The Royal Mint” on the ground that a Treatise on Coining which I wrote, at the request of Mr. Graham, for “Tomlinson’s Cyclopædia,” of which Mr. Tomlinson allowed me to have a hundred copies printed and bound separately for private circulation, was really the first edition of the more extended work I have recently published. The copies of that first edition were soon absorbed: indeed, owing to the fact that there is little literature in relation to the Royal Mint, I was flattered by foreign governments and foreign mints seeking from me copies of that book. Such applications gave me pleasure, and as far as I was able I complied with the requests preferred, except in the case of the Spanish mint, for which institution Mr. Graham asked of me a copy when, unfortunately, I had parted with the last at my disposal. I was further gratified by the fact that the Imperial Government of France sought permission to translate this book into French, with a view to give a copy to each workman in the mints of that nation.

Under considerable pressure I re-wrote the book above spoken of for public use, but omitted to style it, as I should have done, the second edition. This, in its turn, was most kindly received by those whose opinions I value in both Houses of Parliament, as well as by those who understand in an especial degree the subject of which I treated; and I have reason to know that it has found its way to all, even the most distant, parts of the world. It was produced, but not replied to, by Ministers in both Houses of Parliament, and remains yet uncontradicted (see page 198); indeed, I may assume that it has been officially confirmed; for on the motion of the Right Honourable Lord Kinnaird, returns were made to the House of Lords, which are verbatim copies of some of the most damaging pages in my book up to and inclusive of the dates then reached (see pages 91, 97, 102, 133, 135, 197-8). I say thus much in gratitude, for the subject I have chosen is one which could hardly have induced me to expect for it so generous a reception. I wrote it hoping only that the public would acquaint themselves with the manner in which one of the principal Departments of the Government was and is conducted. Lord Kinnaird, in the letter which he has done me the honour to write, and permits me to print in these pages, expresses an opinion—one that is largely entertained—that Mr. Fremantle and his fellow-travellers to European mints are greatly indebted to my books for the information on which they found their opinions, as expressed in the reports on foreign mints. For their own [Pg viii] sakes as well as for the benefit of the nation, I would that those gentlemen had followed in their entirety my suggestions, because such a course would have enabled them to avoid those difficulties which beset them, and pitfalls into which they will stumble in the carrying out the designs expressed in these reports on European mints; these I will discuss in the fitting place, but here I desire to thank those gentlemen for such attention as they have given to my opinions.

The leading newspapers and periodicals have reviewed or noticed the books in a kindly spirit, with but one exception, in which the writer without refuting one statement indulged in personalities. To those gentlemen of the Press who have spoken candidly and generously, I offer my best thanks. I have endeavoured to correct the faults they pointed out—unless, indeed, where principle was concerned; and, in deference to the expressed opinions of some of my reviewers, I, now that a new edition is called for, publish, by his Lordship’s authority, a letter which I wrote to Lord Kinnaird at his Lordship’s request, giving a history of my dissociation from the Mint, in which, I hope, will be found evidence confirming the statements I make throughout the book.

I do not attempt to disguise the fact that I consider myself to have been seriously wronged both by Mr. Thomas Graham and by the Treasury, still I consider, wisely or unwisely, that my personal grievances are of less interest to the public than is the principle involved. I, however, deem it right to invite attention now to the subject of my complaint,—fully set forth in the Appendix,—because it is illustrative of the treatment a public servant will surely receive if he should follow the intimation conveyed by the present Government, and, neglecting the fact of his own relative position, fulfil the duties of his office as he would do if the matter in hand were one of personal concern. The Government of the Right Honourable W. E. Gladstone, from their bench in the House of Commons, promised that “if each in his especial sphere would faithfully fulfil the duties required in his department irrespective of his nominal position,” “such public servant should be duly rewarded:”—the Ministers might have added, and would have so added had they been candid, “with immediate discomfort and by ultimate dismissal, and that justice would be sought at their hands by such public servant in vain!”

The effect of a rule which obliges Ministers to support the “head of a Department” “under any and all circumstances,” will be apparent to all evenly balanced minds; and I from my own knowledge, without fear of contradiction—except, indeed, official denial, which is now so perfectly understood—state that the man who best succeeds in a Government office is he who does unreasoningly and undoubtingly just what he is told to do, and avoids giving offence to his superior officers by pointing out any irregularity or improvement.

Upon the publication by Mr. Thomas Graham of the malevolent report he had written to the Treasury, I, when that fact was made known to me, obtained a high opinion, and in pursuance of advice then given, it was my intention to proceed by action at law against Mr. Graham for libel, but his early death made that step impossible. [Pg ix]

With regard to the publication of the correspondence, it is right that I should say that Lord Kinnaird had not intended to draw attention to my case; but, when his Lordship found that the Marquess of Lansdowne and His Grace the Duke of Argyll led off against me in the House of Lords, as the Right Honourable Robert Lowe had done most bitterly in the House of Commons on the previous Friday, he with great generosity threw off the natural reluctance he had entertained to hurting the feelings of Mr. Graham’s friends, and defended me with words and documents so nobly that I can never sufficiently thank his Lordship, or fittingly acknowledge the indebtedness I thereby incurred.

To Mr. Lowe, Lord Lansdowne, and the Duke of Argyll must be attributed any pain which may arise to the friends of Mr. Graham, for Lord Kinnaird desired to spare them; for myself, however, I would say that if either of the Ministers named had obligingly pointed out any presumedly false statement contained in the book which has so far excited their anger, and proved its untruthfulness, instead of saying hard words of the Author, I should have been less mindful of the sage instructions given on a celebrated occasion to an eminent Advocate, “It is a weak case, bully the counsel.”

Some of my readers will perhaps consider that the following pages are overlaid with a strong personal feeling, and may therefore feel disposed to lay the book aside. To such I would remark that it is impossible to follow a pursuit of any kind earnestly, unless it be made a matter of undivided interest. Besides, it must not be forgotten that I was invited to go to the Mint solely on the ground of my known determination to resist abuses. Having devoted fifteen years to the subject of the Mint, it is not to be supposed that I can view its mismanagement with less concern now than I did when selected for appointment to that Department, that I might repress irregularities which were then known to exist, and which appear to have been as yet uneradicated. [Pg x]

With such remarks, I invite a perusal of my new edition by such members of the legislature as are really desirous of reforming the abuses which exist in the Royal Mint. [Pg xi]

PREFATORY LETTER TO THE FIRST EDITION.

TO

THOMAS GRAHAM, ESQ., F.R.S.,

MASTER OF THE MINT, ETC. ETC.

Sir,

I have written a short article for “Tomlinson’s Cyclopædia,” for the purpose of explaining (as far as the limited space at my disposal would allow) some of the details of the process of Coining, and by permission of Mr. Tomlinson I am allowed to have a few copies of that article printed separately for private circulation.

I take advantage of this opportunity to acknowledge most gratefully that the information I have been so fortunate as to obtain on the subject of Coining has been gained in consequence of the opportunities you have afforded me in my position in the Royal Mint. With heart-felt thanks for the privileges you have accorded me, and for the support you have given me,

I beg to remain, Sir,
Your most faithful servant,
GEO. F. ANSELL. [Pg xii]

Royal Mint, August, 1862. [Pg xiii]

My Lord,

I have ventured to ask permission to dedicate this book to your Lordship, as a mark of my sense of the great kindnesses you have been pleased to show to me through a series of years. As you, my Lord, will perhaps permit me to remind you, generous efforts have been made by many with a view to reinstate me in a position of which they and you consider me to have been unjustly deprived—an opinion, I believe, your Lordship has formed from a knowledge of all the facts.

The recent death of Mr. Thomas Graham puts an end to any personal feeling between him and myself, whoever was right or whoever was wrong, or even if there were faults on both sides, the matters which caused a severance are better forgotten—our differences are beyond human adjustment.

The information I have attempted to give in the following pages is given solely with a view to throw as much light as is possible upon a subject which is now attracting very considerable attention, and which has become of national importance.

It will be to me a great pleasure if I may thus express the gratitude I feel for the valuable assistance I have received from your Lordship during a time of great trial and anxiety.

I have the honour to be,
My Lord,
Your Lordship’s most faithfully obliged and humble servant,
GEORGE F. ANSELL.

To the Right Hon. Lord Kinnaird, K.T., F.R.G.S.,
Lord-Lieutenant of Perthshire, &c. &c. &c.

[Pg xiv]

Perhaps it will be well that I should give a brief outline of the circumstances antecedent to and attending my association with the Royal Mint, because the facts and opinions which will be given in the following pages appear to require such a notice, that their worth or worthlessness may be estimated at its true value, as well as that the sources of my information, and the modes of obtaining it, may be in the hands of my readers.

In the early part of the year 1856 the Master of the Mint found himself so beset with difficulties arising from irregularities committed by those who should have supported him, that he formed a determination to engage a person who should be indisputably a faithful and intelligent officer in the Coining Department, and who at the same time had sufficient personal influence to check those irregularities which he knew were taking place, but which were beyond his personal supervision. These irregularities were known to the Government of that period, and had caused so vast an expense that that Government, which was presided over by Lord Palmerston, had intimated to the Master, that unless the Mint could be conducted more satisfactorily and economically, it would be broken up as an Imperial establishment, and thus necessitate the placing of the coinage in the hands of contractors. With this view papers were printed and issued to various firms; but Mr. Graham, being very sincere and energetic in his desire to so conduct the Mint as that this necessity should not arise, sought the advice of engineers and others, with a view to finding such a man as combined within himself the qualities which he saw to be necessary. Finally, by the advice of Dr. A. W. Hofmann, he called upon me at my residence in October, 1856, and related to me in detail the facts above alluded to, and explained precisely the position of affairs at the Mint, giving me the names of the troublesome persons, and showing his own position to be so intolerable, that without some one on whom he could rely, it would be impossible for him to continue his Mastership. Mr. Graham then proceeded to tell me what had passed between Dr. Hofmann and himself as to my fitness for the work required, and explained clearly the impossibility of placing me in a secure position or in high office at first, but that if I would accept a supernumerary clerkship temporarily, he would, when I had effected the object of his desires, advise my promotion to the office then held by Mr. W. T. Brande, when that office should become vacant. With this understanding I agreed to accept the position proposed if duly appointed; but that I might be [Pg xvi] able to carry out such reforms as were necessary, I insisted on sufficient power being given to me by himself or by the Government. In pursuance of this agreement, Mr. Graham recommended my appointment in a letter to the Treasury, dated 29th October, 1856, in the following terms:—

“I desired to introduce a young man, recommended by scientific and technical information available in coining, by energy of character, and by tried ability in the supervision of workmen—a faculty by no means common. After applying to Mr. William Fairbairn and to Mr. George Rennie, who both recommended candidates, and making inquiry in various other quarters, I have been led to propose the name of Mr. George Frederick Ansell as temporary clerk. Mr. Ansell was educated under Dr. Hofmann, and acted for some years as his laboratory assistant. He has since been Scientific Director in the Panopticon, Leicester Square, which was lately broken up. He appears to be a person of superior education and ability, and great activity and vigour of character, and, as I have been assured, has shown much discretion in the management of both pupils and workmen.”

In accordance with this recommendation I was appointed to a supernumerary clerkship, and took office in the Rolling Room of the Royal Mint; but before doing so I particularly inquired of Mr. Graham, in the presence of Mr. W. H. Barton, the then Deputy-Master, what authority I should have, and how far I should be supported if I attempted to enforce obedience, and whether I was at liberty to call for statements and examine original documents and books. He verbally authorised me to examine such books as I wished to examine, and desired Mr. Barton to give me such statements or information as I might ask for; and as to my authority, he said, “If you order the men to dance a hornpipe on the table, they shall do it, and all orders shall pass through your hands.” With such power, and a salary of £120 a year, or rather £10 a month, I took office on the 12th November, 1856.

My personal experience of men and manners in the Mint is recorded in another book, but in this I feel it right to adhere rigidly to explanations of the processes of coining, and to treat of the expense and loss attending the manipulation of the precious metals; and in the latter pages I will demonstrate what formerly was, and what should be, the cost of producing a coined sovereign, each statement being the result of actual experience, and capable of proof.

Coining is the term applied to the processes employed in the manufacture of money. It is proposed to describe the present mode of manufacture; but it may be as well to state, that in remote periods money was made by cutting out a piece of metal somewhat of the form of the intended coin, and imparting the device to it by the blow of a sledge-hammer. For this purpose the blank piece of metal was laid upon a die, say the obverse, fixed into a block of wood or stone, supposed to have been so large as to absorb the vibration caused by the blow, and to a great extent prevent the quivering which would naturally arise, and cause unsteadiness. The workman then took the other die, say the reverse, and passing it through a folded sheet of lead, in order to avoid the shock to the hand, he placed the engraved part on the blank, which was resting on the lower die, and held it firmly while another workman struck it with a sledge-hammer. It is worthy of remark that a piece of lead such as that described is in the Museum of Dies at the Royal Mint; and although its surface, by the action of the atmosphere and other causes, is now converted into carbonate of lead, indentations caused by the tips of the workman’s fingers are evident. This piece is believed to have been used with a die of Edward IV. At a later period the upper die was held in a twisted hazel stick. After each blow the dies were what is technically termed locked together; that is, the lower and upper dies were made to fit into the partly-formed coin, so that neither die could turn without turning the whole mass, and then a second or third blow was given, till the coin was completed. An improvement on this method was effected by fitting the two dies into rods of iron, which may be represented as a pair of tongs; the flat parts which are used to take a coal would then be the position occupied by the dies. This plan saved the operator some risk of bruised fingers, but the process was essentially the same as the original one; and to money produced by either means was applied the term hammered money, in contradistinction to milled money; that is, money which was made from blanks obtained from fillets which had been rolled in a very rough kind of rolling mill, driven by horse power—the germ [Pg 2] from which sprang the present machinery. On this point it is perhaps of interest to quote a passage from the Report made to the Lords of the Treasury in 1695 by Mr. William Lowndes, who says:—“All the moneys we have now in England, both gold and silver, are reducible to two sorts, one stamped with the hammer, and the other pressed with an engine called the mill. The gold or silver of the hammered money is first cast from the melting-pot into long bars, those bars are cut with shears into several square pieces of exact weight for sovereigns, angels, crowns, half-crowns, shillings, &c. Then with tongs and hammer they are forged into a round shape, after which they are blanched (that is, made white or refulgent by nealing or boiling), and afterwards stampt or impressed with an hammer to make them perfect money. This method of making money with the hammer (as appears in the said red book) was practised in the reign of King Edward the first” [the book referred to is in the Exchequer] “and this kind of hammered money continued through all the reigns of succeeding Kings and Queens till about the year of our Lord 1663, when by several warrants and command of the King, Charles the Second: to wit, by one warrant, dated the fifth of November, 1662; one warrant, dated the eighth of April, 1663; and a third warrant, dated the twenty-fourth of December, 1663; the other sort, called milled money, was first fabricated to be current in England in this manner: first, the gold or silver is cast out of the melting-pot into long flat bars, which bars are drawn through a mill (wrought by a horse), to produce the just thickness of guineas, half-guineas, crowns, half-crowns, shillings, &c. Then with forcible engines called cutters, which answer exactly to the respective sizes or dimensions of the money to be made, the round pieces are cut out from the flat bar, shaped as aforesaid (the residue whereof, called sizel, is melted again), and then every piece is weighed and made to agree exactly with the intended weight, and afterwards carried to other engines (wrought secretly), which put the letters upon the edges of the larger silver pieces, and mark the edges of the rest with a graining. The next thing is the blanching, performed as above; and at last every piece is brought to the press, which is called the mill (wrought of the strength of men), and there receives the impression, which makes it perfect milled money.”

The processes now used are as elaborate as the old methods were simple; but considering the requirements of the present day, and the enormous quantity of money produced, it must not be expected that our coins will, for depth of engraving, bear comparison with those of the Romans, who, though succeeding in producing finished works of art, seem to have forgotten the wear and tear to which they would be subjected, and so left them, as a rule, free from a protecting edge; hence they would lose their image and superscription at a far earlier date from their birth or manufacture than would well-made coins of the present period. [Pg 3]

It was formerly believed that gold could be sent to the Mint to be coined free of charge to the importer; such, however, was not the case. By the Act 33 Victoria, cap. 10, several Acts relating to the coinage are repealed, and all persons⁠[7] obtain the right to send gold to the Mint to be coined on the following terms:—

“8. Where any person brings to the Mint any gold bullion, such bullion shall be assayed and coined, and delivered out to such person, without any charges for such assay or coining, or for waste in coinage. Provided that (1)—If the fineness of the whole of the bullion so brought to the Mint is such that it cannot be brought to the standard fineness under this Act of the coin to be coined thereout without refining some portion of it, the Master of the Mint may refuse to receive, assay, or coin such bullion. (2) Where the bullion so brought to the Mint is finer than the standard fineness under this Act of the coin to be coined thereout, there shall be delivered to the person bringing the same such additional amount of coin as is proportionate to such superior fineness. No undue preference shall be shown to any person under this section, and every person shall have priority according to the time at which he brought such bullion to the Mint.”

The standard for gold is fixed by the new Act at “Twenty-two carats fine and two carats of alloy in the pound weight troy”—the same that was specified in the 3rd Edward VI., 35th Elizabeth, 2nd Charles I., and 18th Charles II. Silver is maintained at the former standard of “Eleven ounces two pennyweights fine silver and eighteen pennyweights of alloy in every pound weight troy.” Until the passing of this Act silver was coined under that of George III., which repealed the Act 18 Charles II., as regards the coining of silver free of charge. The Act 33 Victoria, cap. 10, repeals that of George III., but fails to make provision for the coining of silver, which is therefore now coined under the Common Law; yet the new Act specifies the weight and fineness of the silver coinage. The omission was made because the Chancellor of the Exchequer thought it “unfair to introduce silver to this Act as it is a source of revenue;” a little later I will examine this statement.⁠[8]

The Bank of England is practically the only “importer” of bullion to the Mint, and by coinage makes a considerable profit merely from its exceptional circumstances. By its charter and by Act of Parliament it is compelled to keep a stock of bullion equivalent to the excess of its authorised issue of notes—such authorised issue being secured by “Government debt” and “other securities”—which at the present time is fifteen millions; and gold, when at the Mint for coining, is esteemed as being still at the Bank. By the Act 7 and 8 Victoria, cap. 32, section 4, the Bank of England is compelled to purchase bullion, previously melted and assayed at the cost of the seller, at the rate of £3 17s. 9d. per ounce of standard gold, paying for it in Bank of England notes. Assuming that all the gold thus purchased is coined, the Bank makes a profit⁠[9] of about £2,000 on each million. When its authorities desire to coin gold they give notice at the Mint, and subsequently send at stated intervals “importations” of say 200 ingots of gold, each weighing about [Pg 4] 180 ounces, and previously assayed. Upon the arrival of these ingots at the Mint, they are taken to an office, where, in the presence of an officer from the Bank of England, a small piece is cut from each ingot, and hammered out into a kind of strip. This piece is then put into a paper marked with a letter which corresponds with the mark or letter on the individual ingot from which it was taken. This having been effected for each ingot, the pieces are forwarded with their respective ingots to the Mint Office, where their weight is determined and compared with that charged by the Bank of England. The pieces which have been hammered out and placed in a marked packet are called the “assay pieces.” The assay pieces are sent to the resident assayer in the Mint, who estimates and reports to the Master the amount of pure gold in each ingot. The report of the resident assayer is then submitted to the Bank authorities, and if they find it to agree with their own assayer’s report, the ingots are retained for operations in the Mint. When it is desired to get the ingots of gold into a form fit for coining, they have to be alloyed with copper, or fine gold must be added, so as to bring them to standard or crown gold, which consists of 22 parts of pure gold and 2 parts of alloy, or 91·66 per cent. of gold and 8·33 per cent. of copper in 100 parts. Copper is usually employed because it is cheaper, and forms a harder alloy than silver.

Supposing there are 100 ingots, having a total weight of 18,000 oz., and by assay it has been found that they contain 17,900 oz. of pure gold, it is required to bring them to the standard fixed by law. A rule-of-three sum tells how much alloy or how much gold is to be added. So, if 22 parts of pure gold require 2 parts of alloy, how much alloy will 17,900 parts require? The fourth term of the following proportion, viz., as 22:2::17,900:1,627·027, will show how much is to be added; but since there are already 100 oz. of alloy present, as indicated by the fact that 18,000 oz. contain within themselves only 17,900 oz. of pure gold, it is only necessary to add the excess required, viz., 1,527·027, so that these 100 ingots will produce 19,527·027 oz. of standard gold. Had the ingots been found to contain more alloy than is required, it would have been necessary to add so much pure gold as would have rendered the whole standard. The proportions of the metals having been determined, the whole mass is divided so as to make about 1,200 oz. of gold and alloy for each melting-pot. In practice it is customary to take the estimated amount of gold in a given number of ingots, and add so much alloy, or so much pure gold, as shall bring those ingots to standard, the whole weight being generally about 1,200 oz.; this is called potting the ingots. Ingots are almost invariably melted, and cast into bars for sovereigns.

I must here mention that the various illustrations I have introduced were originally used for the article “Coining” in Tomlinson’s “Cyclopædia,” and the permission to use them here has been generously granted to me by Messrs. Virtue and Co., whose property they are. [Pg 5]

In the illustrative engravings, the initial letters used to indicate the different parts are made to take their places in accordance with the order in which the various parts of the machine under description come into play, so that by tracing out the alphabet in any figure, the reader will see the consecutive action of the parts of the machine he is studying.

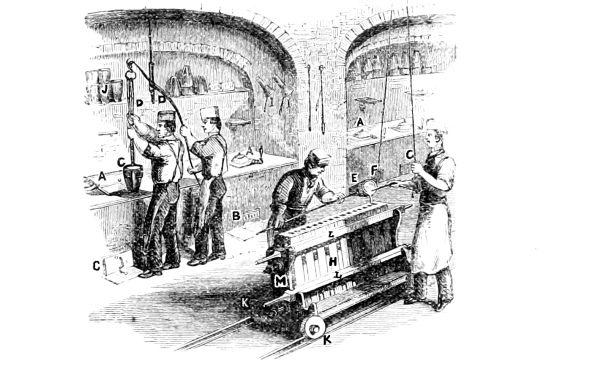

Fig. 1.—Gold Melting.

Fig. 1 represents the arrangements for melting the ingots with their alloy, for producing standard gold. In the Mint there are seven furnaces: each furnace, A, is 12 inches square and 24 inches deep to the top of the bars, which are seen at the ash-pit B. The pot C is made of a mixture of Stourbridge clay and plumbago, hence called a plumbago pot; it is 9¼ inches deep, and 7 inches across at the top inside. The pot, previously annealed, is placed in the furnace on a bottom which stands upon the two centre bars. The bottom is intended to shelter the base of the pot C from the stream of air which is necessary to the combustion of the fuel, but which would damage the pot. The pot is then covered by its muffle and lid, and surrounded by fuel, which, as it burns up, warms and then heats the pot to redness, but so gradually that there is no great risk of breaking the pot. When the pot has become of a full red heat, the ingots are carefully placed in it, and the alloy is added by means of the funnel I: the pot is then covered up, and allowed to remain till the whole mass of metal has liquefied. The foreman then stirs it with a rod made of the same substance as the pot, and allows it to remain till the fluid mass has reached a peculiar temperature, known by experience as that at which the metal, when poured into a mould, forms the most solid and workable bar. This temperature having been gained, the two outside bars at B are removed, the ash-pit is then covered to protect the men’s feet, and the firing poked out. The lid and muffle are next removed from the pot, and the pot lifted by an assistant from the furnace by the crane D. The [Pg 6] foreman then conveys the pot C, by means of a pair of tongs which clasp it, to the frame of moulds, when an assistant brings forward a loop of iron, suspended by a chain and cord from the roof of the building, and passing the loop of iron over a button on the end of the lower clamp of the tongs, as shown at E, F, supports the weight of the pot by the cord, as indicated at G. Previously to the melting, pieces of charcoal are placed at the bottom of the pot for the purpose of reducing any oxide that may be present in the alloy—and Dr. Percy has found that copper can dissolve 13·50 per cent. of oxide of copper—because oxide of copper, when dissolved in standard gold, frequently renders the mass so brittle that when the bars produced are passed between the rollers they crack and break, just as does gold containing minute quantities of lead or zinc. The influence of oxide of copper on standard gold was thus very marked in 1859, when a large proportion of the gold was so brittle, that if a bar were dropped on the floor, or tapped with a hammer, it broke, just as heated brass breaks under similar circumstances. Mr. Richard Smith had some years since pointed out that if copper in which oxide of copper is dissolved be poured through an atmosphere of coal gas, all the oxide is reduced. I therefore submitted this gold to the process thus suggested to reduce all the oxide of copper, and produced bars so tough that they could not be broken by a sledge hammer unless after repeated bending by that means. Yet this gold was not thus cured of its brittleness, but was treated peculiarly, as will be seen in a future place.⁠[10]

When the metal is fused, the charcoal which was placed at the bottom is brought to the surface by stirring, and as it rises through the fluid alloy, reduces the oxide of copper, and remains on the surface to protect the alloy from the action of atmospheric oxygen. In order to prevent it from falling into the moulds, the assistant holds a piece of stick at the mouth of the pot, thus allowing the gold to pass, but stopping the charcoal. The foreman, in the case of gold, judges almost wholly by the eye, but in the case of silver by the ear, as to when the moulds are filled. The metal poured from each pot forms four bars. The moulds H are made of iron, cast into such a form that each piece viewed from the top has the form of the letter T, so that three pieces placed together form two moulds; the whole of the set is held in its position by cross-bars, L, which fit into notches cut in the main frame M, where will be seen two powerful screws by which the moulds are forced tightly together after the cross-bars L are fixed. J represents the pots placed so as to be kept dry and ready for use; K, the wheels and tram on which the frame of moulds runs. The whole of the set of moulds having been filled, the screws at M are loosened, the bars, L, removed, and the parts of the several moulds removed, so that the bar in each mould is exposed to view. The workman takes each bar as it is exposed by a pair of tongs, and plunges it into a cistern of cold water [Pg 7] to insure rapid cooling, and then places it on a bench, where the bars produced from each pot are separated and marked with a number, to indicate the pot from which they were poured, and the entire set with letters, to indicate the day on which the melting took place. After these distinctive marks have been placed on the bars, two assay pieces are taken from the bars from each pot.

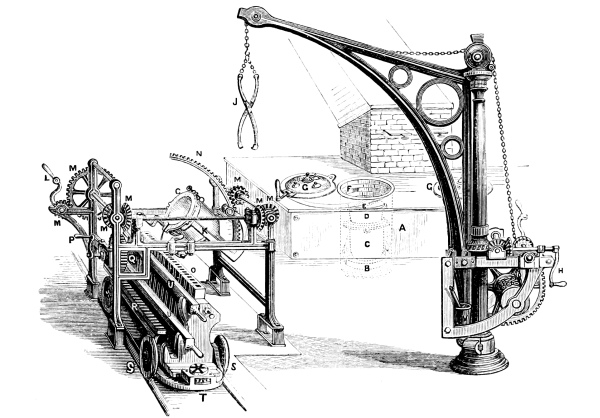

Fig. 2.—Silver Melting.

As silver melting,⁠[11] when discreetly conducted, is slightly different in some of its details, it will be well to describe it here. In Fig. 2, A indicates the furnace with the front removed, to exhibit the internal arrangements. The furnace is circular, and is 21·5 inches across, and 31 inches deep. The bars, which are represented by dotted lines, are removable at will. The bottom B stands on the centre bars, just as in the case of gold melting: it is filled with coke dust, which retains any silver issuing from a small accidental crack or pin-hole in the pot, and also offers a non-conducting medium for the pot C to rest upon, it being necessary to avoid the abstraction of heat by the current of air against the base of the pot. A muffle, D, is placed on the pot, and upon this muffle the lid E rests. The pot is circular, and provided with a lip, to facilitate the pouring of the metal; it is made of wrought-iron, 12 inches across at the top, and 15 inches deep, and [Pg 8] when melting for florins is charged with 4,800 ounces of silver. As in the case of gold, so with silver, the metal is alloyed with copper; standard silver being composed of 222 parts of pure silver and 18 parts of copper in 240 parts, or 92·50 parts of silver and 7·50 of copper in 100 parts.⁠[12] The calculations based on the assays from ingots are just the same as in the case of gold. The ingots are put into the pot, and the lid is placed on the muffle (which is intended to prevent metal from falling over the top of the pot during the process of fusion, as sometimes might happen when scissel⁠[13] is melted), and the furnace is then closed, so that the air enters through the bars, and passes into the chimney through the flue F. The lid of the furnace G is provided with peep-holes, by which the temperature can be regulated at will, while they also admit of a survey of the state of the furnace. When the fusion is complete, and carried so far as to raise the fluid metal to the necessary temperature, the bars of the furnace, with the exception of those which support the pot, are removed, and the fuel is poked out, because the pot at this temperature is so soft that it would be torn if it were pulled through the fuel. The lid and muffle are next taken off by tongs, and the crane is swung round by the handle, H, till its tongs are brought over the furnace, when, by working the handle I, the tongs J are lowered till they come to the pot; the foreman then makes them seize the pot, and by a signal gives his order for the raising of the pot from the furnace. Pieces of fuel and iron scaling are knocked off from the pot by the foreman with a brush kept in a crucible of water, indicated by V at the foot of the crane. The crane is then swung round by H, till the pot is over the cradle K, when it is lowered and secured in the cradle by the screw, shown at C. The frame of moulds is now run under the lip of the pot, and the foreman, by means of the handle L, which will be seen to communicate with the wheels M, and the rack N, tilts the pot so that the fluid metal may pour in a good stream into one of the moulds O, until, by the sound, he judges it to be full; he then lowers the pot, while his assistant, who is also watching the filling of the moulds, turns the handle P, which, by the wheel Q fitting into the rack R, moves forward the frame of moulds so far as to allow another mould to come beneath the lip of the pot, to be filled as before. The fluid silver in the melting-pot is covered with charcoal, for the same reason as explained in gold melting, and this is kept back by means of a large piece of charcoal laid at the mouth of the melting-pot. The frame of moulds runs on wheels S, and at T is provided with a rack and pinion, by which the moulds may be moved farther from or nearer to the lip of the pot, which, as it is tilted, is continually altering its relative position to the mouth of the moulds, and would, were it not for this arrangement, pour its metal outside of, or upon the moulds, instead of into them. The moulds are formed of T pieces, in the same manner as the moulds for gold, and are secured in [Pg 9] their position by the same method, the cross-bars being shown at U. The bars, having been taken from the moulds, are cooled in water, and distinctively marked, as in the case of gold. Assay pieces are cut from them, but in the case of silver three assays are taken from the bars produced from each pot.

The bars for different denominations of coins are proportioned in their width, so as to admit of two rows of blanks being cut from the fillets produced from them. The following statement gives the whole facts concerning bars for each coin, as used in the Royal Mint. It would be well to produce bars of a uniform thickness of 0·50 inch, as such bars may be cast solid, and when cast produce better fillets with half the rolling, without the cost of annealing. There would be also another advantage, for the blanks obtained from the fillets produced from bars 0·50 inch thick would not require annealing, and would thus save the cost of that process, as well as the loss occasioned by it, while the coins produced would wear immeasurably longer in circulation. There are other considerations why this thickness should be at once adopted, as will be shown when the subject of loss by coining is explained.

I am glad to notice that Mr. Fremantle, in his Report on European Mints, proposes to adopt my recommendation, as shown by the following passage, page 9:—

“... It would seem to be a question whether in a newly organised Mint considerable time and labour might not be saved by reducing the size of the moulds in which both gold and silver bars are cast. The result would be that, as bars would be thinner when first subjected to the process of rolling, the time now occupied by that process would be sensibly diminished. It should also be mentioned that although there is great difficulty in producing sound castings if the thickness of the bars should be reduced, it might nevertheless, for the metallurgical reasons which Mr. Roberts points out, be advisable to make this alteration.”

There is really no “difficulty in producing sound castings if the thickness should be reduced;” but I fear there are many DIFFICULTIES in the Royal Mint itself. Indeed the casting of the bronze bars—whose thickness is less than that I propose for those of gold—gives evidence of the ease with which thinner bars may be produced; yet against these, insuperable difficulties were urged until I experimentally demonstrated how easily they could be cast.

Statement of Particulars as regards
Bars used for Coining.

[Pg 10] It is to be regretted that crowns, half-crowns, and fourpences are no longer coined. It has been represented to me by many manufacturers and others who employ vast numbers of men, that the disuse of the fourpenny piece has caused considerable inconvenience in the weekly payments to their workpeople. The objection to this coin would appear to be that it is so nearly the diameter of the threepenny piece; but this is obviated by the fact that the edge of the latter is plain, while that of the fourpenny is crenated or “milled.”

The assay pieces,⁠[14] when cut from the bars, are placed in the divisions of a tray going from left to right, so that there can be no mistake as to the number of the pot from which the metal comes; each assay piece is then placed in a small envelope, marked with a distinctive mark, to characterise the pot from which it came. The assay pieces are sent in equal numbers to the two non-resident assayers, who determine, irrespectively of each other, the amount of gold found in each piece. Suppose we trace one assay piece, and imagine that 120 are undergoing the same process at the same time. The assay piece is flattened out into a kind of ribbon, and from it three pieces are cut, each weighing half a gramme. Each piece of this weight takes the name of a thousand, and is represented by the figures 1,000; but of course it may be called a pound, a ton, or by any other denomination. Each piece is wrapped in paper, with three times its weight of silver in two pieces, both metals being of the same thickness. The parcels, as they may now be called, are ready for the next process, and are arranged in their proper places from left to right in the divisions of a tray, and taken to the assaying furnace. In the assaying furnace is placed a Payen⁠[15] muffle, or kind of oven, perforated at places so as to allow a limited amount of atmospheric air to pass from the interior through its sides into the furnace. The muffle is surrounded with fuel, so that it is kept at a good—almost white—heat. On the floor of the muffle is sprinkled some bone ash—obtained by burning bones to whiteness—and on this bone ash is placed a set of 40 cupels, or little cups, made of compressed bone ash, and about as big as a florin, and so deep as to hold about half a teaspoonful of water. When the cupels have been in the muffle long enough to become red hot, a piece of lead of about nine times the weight of the gold to be assayed is put into each cupel, taking care not to let any lead fall over, or it would destroy the muffle. So soon as the lead has melted, the paper parcels containing the gold and the silver are placed one in each cupel of melted lead. In a short time the gold and silver melt together, and, as it were, dissolve in the lead; then a kind of circulation of the fluid metallic mixture is observed to take place; and during this circulation, the lead, as it is presented to the surface, meets with the oxygen of the [Pg 11] atmosphere, and combining with it, forms oxide of lead, which at that temperature is fluid, and drains into the substance of the cupel, carrying with it the copper and other impurities contained originally in the gold, leaving in the cupel a button which contains all the pure gold and the silver. The cupellation occupies about ten minutes, and at the end of that time the little mass of fused metal is observed to brighten up, the signal by which the assayer knows that the process is finished, and he withdraws the cupels one by one, tilting the fluid globule on one side, that it may incorporate with it any small globule which may chance to be upon the side of the cupel. Some assayers close the doorway of their muffles as the time of the brightening up of the assay approaches, to avoid the access of the atmosphere till the buttons have become solid, because the button of metal—by its silver—absorbs oxygen; and giving off this oxygen at the moment of solidification, spurts or opens, leaving the button hollow or ragged. This precaution is not thought necessary by all assayers, nor, indeed, is this system invariably followed, for some prefer to wrap the gold and silver in the lead foil which is to be used, and do not care to have the precious metals of identical thickness; these assayers use a smaller proportion of silver, viz., 15 parts to 6 of standard gold, or 17·50 to that which they judge to be fine, with a view to avoid the danger of “spurting;” they also save time by withdrawing the whole batch of cupels on a tray by means of a peel. The button is taken from the cupel as soon as it has been detached, either by dropping a little water on to it, or by allowing it to cool spontaneously, and it is then hammered out into a strip and annealed. It is next rolled into a ribbon or fillet, and again annealed, after which it is curled up into the form of a letter S. Some prefer to roll the piece into a kind of cushion, but in such a case it is more difficult to remove all the silver; the proper plan is to expose as large a surface as possible to the action of the acid in the next operation.

The S-shaped fillet is put into a flask of nitric acid of specific gravity 1·23, and the flask is placed in a little cup of brass, which stands over a small gas-burner, while the neck of the flask enters a kind of flue, through which a current of air is continually passing into the chimney of the furnace. The flask being placed in its position, the gas is lighted, and a gentle heat applied, when the nitric acid dissolves out the silver from the S-shaped fillet, and is known to have done its work when red fumes cease to be evolved. The acid is then poured off, and the remaining sponge of metal is washed with distilled water, and boiled with concentrated nitric acid, which removes the remainder of the silver. The sponge of gold is now washed with water, to remove the nitrate of silver, and is then heated to redness in a capsule to render it tough, for in its spongy state it is so rotten that it will not bear to be touched; and although it remains spongy, it is toughened by being heated to redness. It is now called a cornet. This spongy state is a consequence of the addition of [Pg 12] silver, the presence of which, and its subsequent removal, produce a separation of the particles of the gold. The gold is thus formed into a kind of network or sponge, so that the acid can get at every part of it, and remove any metal which is soluble in the acid. Diluted acid is used first, because if there be any lead left it is dissolved out, and because the action of the strong acid is so violent, that part of it would probably be carried out from the flask. Nitric acid, when boiling, is liable to form bubbles of gas, which expanding, give rise to what is called bumping; hence it is usual to put a charred pea into the flask, and this, floating on the surface, causes a more even flow of vapour and gases, and so prevents bumping. It is probable that the charred pea determines the boiling at one particular temperature, for it is found that water, if it be floated in a fluid of a higher boiling point than itself, may be raised considerably above its ordinary boiling point, although remaining quiescent till disturbed by a rod or point. The cornet is next weighed, and as it has been begun under the idea that it was a thousand—1,000—all that it weighs short of 1,000 is the alloy which has been removed, the object having been to determine how much pure gold was present in the alloy. There is, however, a source of error in the process which requires to be explained.

It is found to be practically impossible to remove every trace of silver from the cornet; it is therefore necessary to make an allowance, the amount of which is determined by a proof. The proof consists of a mixture of gold and silver of known proportions, so that if all the silver be removed from a thousand—1,000—the remaining cornet should weigh exactly 916·6. Four of these proofs are worked with each batch of assays—a batch being 120 assays—under precisely similar circumstances, every precaution being taken that the four shall be equally distributed over different parts of the furnace, &c. Now suppose that the proofs, instead of weighing 916·6, as they would weigh if the whole of the silver were removed, were found each to weigh 916·9; it would be known that 000·3 of silver had been retained, and must be deducted from each of the whole batch of assays. If the assays of coins exceed the limits of from 917·6 to 915·6, they are repeated, as it is assumed that an error has arisen. The convenience of considering the ½ gramme as 1,000 consists in the fact that 1,000 parts of standard gold contain 916·67 of gold and 83·33 of alloy; so that the result having been arrived at without any calculation, one source of error is avoided and time is saved.

Messrs. Johnson, Matthey, and Co. have invented a tray of platinum capsules or thimbles, into which the assay pieces are placed for treatment with acid, instead of into the ordinary glass vessels over gas-burners. The advantages of this invention are too manifest to require elaboration; but saving of acid, gas, labour, and risk of error are amongst the chief of them; and besides, the plan has been in [Pg 13] successful operation in their own assay offices in Hatton Garden, as well as in other important assay offices, for several years past. The first cost would seem to be the principal objection to this plan of Messrs. Johnson, Matthey, and Co.; but this is really a small matter, for the apparatus becomes stock in trade, and its cost should be viewed simply as so much capital, whose interest is paid by the saving effected in glass, but more especially by the smaller amount of acid actually employed, while the platinum can at all times be sold for nearly its original cost as old metal.

The mode of operation is as follows:—A stand of slate is so arranged that a means of heating is made to rest on its base. For this purpose a jet of gas is preferred; where, however, gas cannot be obtained, an ordinary oil lamp or a charcoal fire may be used. On a shelf over the source of heat are placed two or three receptacles of platinum, each communicating with a vessel made of porcelain, provided with three necks and an overflow pipe. There is a kind of sieve or tray of platinum, so arranged as to carry from 16 to 100 thimbles of platinum, and provided with a handle, so that this tray, with its charge, can be manipulated at pleasure. The thimbles vary in size according to taste, but each one is cut or slit at the bottom, so that the solution of silver as it is formed may by its density fall out, and allow the clean acid to take its place.

When an operation is to be performed, the tray filled with the charged thimbles—that is, containing the assay pieces—is placed in one of the platinum receptacles or boilers, and heated to a fitting temperature; when the desired effect is produced, the tray is lifted into another receptacle, and again heated; this may be carried to three times if necessary. The products of decomposition of the acid go, with the acid which evaporates, into the porcelain vessel, where the free acid falls through the overflow pipe into a proper chamber, while the acid fumes pass into the flue through the third neck before spoken of. The parted assays having been washed by several immersions in boiling distilled water, without removal from their thimbles, have now to be dried and annealed in a platinum muffle, so formed as to fit into an ordinary muffle, and, after annealing, to be weighed in the usual manner, having saved at least 75 per cent. of the usual trouble.

It is almost needless to add that the system of proofs above described must be also used with this process.

The assay for silver is not so tedious, as it is finished at the point where it leaves the muffle on the cupel; but up to this point it passes through precisely the same process as the gold.

It will have been observed that the event of the process of assaying is to exhibit the proportion of bullion which may be present in a given weight of mixed metals, but that it does not demonstrate the character of the substance which forms the alloy, because this is assumed to be copper or silver. In practice it is found that the alloy [Pg 14] may be a mixture of copper or silver with lead, mercury, antimony, arsenic, tin, or zinc, in varying proportions, but whose sum does not exceed the rate per centum in relation to the bullion which is allowed by law. The existence of minute proportions of lead, mercury, antimony, arsenic, tin, or zinc is a matter of great concern, for these, when present, add indefinitely to the difficulties of the coining departments.

Under the present system, complete analyses of bullion imported for coining are a practical impossibility. I would therefore propose to abolish the office of non-resident assayer, and then to appoint two resident assayers, who should conduct their operations in independent laboratories—already existent—and a condition of whose appointment should be an agreement to conduct, when so directed by the Master of the Mint, complete analyses of the bullion submitted for assay. The information thus obtained would enable the melter, by processes subsequently explained,⁠[16] to remove all those substances which are now found to be fatal to the coining of certain bullion. The appointment of officers possessing such ability would be an equal guarantee with the present for the faithful preservation of the integrity of the coinage. This suggestion has been adopted and recommended—so far as regards the resident assayers—by Messrs. C. W. Fremantle and C. Rivers Wilson, in their “Reports on the Mint,” 1870. Indeed two assistant assayers have been recently appointed.

When the assay reports arrive, the Master determines whether the metal has been found within the limits, and if he be satisfied he writes on the assay reports “Passed,” and signs the reports. The Deputy-Master retains the reports as his warrant, and then issues his order for the delivery of the bars by the melter to the rolling room, as recommended in my report dated 29th January, 1859; but, as the accounts are kept by weight, every set of bars is weighed by the officer who receives them into that room before he gives them to his men to work into fillets.

When, in 1856, I took charge of some departments in the Royal Mint, I found that the system of weighing was extremely loose. Officers were plainly told that if they ventured to satisfy themselves as to the weight of bullion they had received—in fact, to determine whether they received what was charged to them—“they would be paid out.” This state of things led men to accept any weight. But I objected and resisted; for I found that the average on each day’s work as received amounted to an habitual minus of five ounces on the weight charged on silver, while on gold it was seldom so little as one ounce. In illustration I will state one case which occurred. I delivered 7920·00 ounces of gold to the Mint Office. When that gold was received, the official weigher gave me credit for 7918·15 ounces, which was a deduction of no less than 1·85 ounces. I appealed to the Master, who by written order directed the gold, the weight of which was thus disputed, [Pg 15] to be weighed by Mr. Pilcher, the officer of the weighing room, in the presence of witnesses whom the Master nominated. Mr. Pilcher complied with this order, and gave a certificate, signed by the deputed witnesses, in which he stated that the gold under dispute weighed 7919·98 ounces—that is, that it differed in weight as charged by me to the Mint Office 9·60 grains instead of 888·00 grains, the difference which the official weigher had deducted from the bullion I had delivered to him. The custom had been to weigh silver to 0·50 ounce, and gold to a pennyweight; but I introduced the system of weighing silver to 0·10 ounce, and gold to 0·01 ounce, and at the same time induced the Master to order new balances of superior construction for the coining department, and one specially devised by Mr. James M. Napier for use in the Mint Office. Of this balance, received after having been ordered for some years, it will be sufficient to say that it appears to be extremely accurate when properly used, and is then capable of great results; but, unfortunately, the system is such that those who are admittedly unfit may be promoted to important posts, just because they are senior, and not because of superior fitness for the work. This fine balance, therefore, becomes equal to a good rifle in the hands of a bad marksman. Great accuracy having been enforced, the weighing is now improved, but is still far from perfect, because the officers are compelled to abide by the decision of the weigher at the Mint Office, who, as beforesaid, may be unfit for his office, while the officers themselves are debarred from all checks, by the removal from the coining department of the set of standard weights, which were bought on purpose that those gentlemen might check their own weights as to accuracy. The Master’s order for the removal of these weights was in the following terms:—

“The standard weights hitherto kept in the weighing room are permanently transferred to the Mint Office. A new set of standard weights to be made for the Mint Office. The coining department weights to be examined by Mr. —— ——, and compared with those in the Mint Office (after these have been corrected), and reported on by him. Such examinations to be repeated every six weeks.”

It should be observed that this order was preceded by one written on the 2nd February, 1865, which directed that the Mint Office weigher should be the final judge, but that any officer might demand the re-weighing of any bullion, while the second weighing was to be final. All appeals to pass through Mr. John Graham, the order proceeding to direct that—

“The final decision is not to be called in question by any other officer of the coining department.”

The latter determination, I was informed, was intended to apply to me personally. Its immediate effect was a deduction of 0·25 ounce from the first gold I delivered, and a consequent alteration of my book to that extent by Mr. John Graham, who made a note in writing as follows:—

[Pg 16] Such being the circumstances, I submitted; but the result could be in one direction only, for it had long been maintained that the reported losses were but “an hallucination,” and were, in fact, a “mere difference of weighing.”

It is true that the weights are periodically adjusted, but there is adjusting and adjusting. These facts have been dwelt upon because they have a most important bearing on the subject of loss and gain by coining, to be afterwards treated of.

Between 1856 and 1866 the old scales were removed, to make room for the superior balances of Messrs. De Grave, Short, and Fanner, the eminent scale-makers of St. Martin’s-le-Grand, of whose balances it is impossible to speak too highly, and of whom it is but fair to state that the Prize Medal was awarded to them at the International Exhibition, 1862, for their superior workmanship in balances.

Since it is necessary for the officer in charge of any department to ascertain the exact amount he gives to his workmen, and to satisfy the Master that they have returned—to within the limit of the weight of one blank of whatever denomination of coin he may be working—the bullion which they received, it became imperative to select the best balance; and in practice that made by Mr. S. R. Short, of the firm above named, was found to be the most serviceable. Mr. Short has introduced minor improvements from time to time, as experience has dictated, but the balance about to be described, after years of wear, determines to within one grain when charged with 1,200 ounces troy. The mode of proving the accuracy of a balance is to weigh as usual, and having arrived at a just determination of the weight of the matter to be weighed, to change the weights to the pan in which the matter has been weighed, and to place the matter in the pan previously occupied by the weights, so that both are now made dependent from the reverse ends of the beam; if the results be identical with the former results there can be no doubt as to the accuracy of the beam; should there be any variation, the balance must be adjusted by minute alterations of the knife-edges at its ends.

Mr. Napier has made his balance after the principle of Mr. Cotton’s balance, so that it requires no adjusting screws, but I have no personal experience of the benefits of this omission.

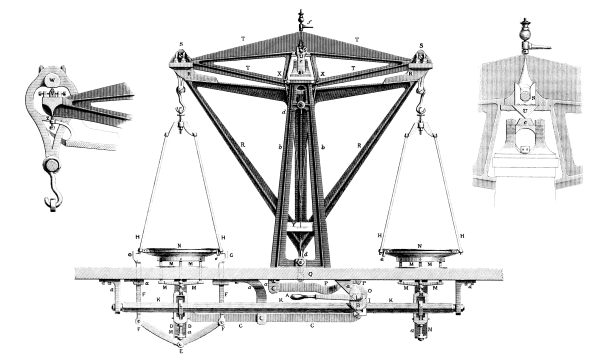

IMPROVED BALANCE (TO WEIGH 2000 OUNCES.)

BY Mʳ. S. R. SHORT, JUNʳ.

[Pg 17] The balance used in the rolling room of the Royal Mint is specially adapted for the purpose. Such a balance, as already noticed, must be accurate, as must also all the balances used in the Mint; but this balance requires an arrangement by which the pans can be released from the beam and held firmly while being loaded. Mr. S. R. Short has been peculiarly happy in effecting this object, as will be seen by reference to the steel engraving, which exhibits a fine illustration of Mr. Short’s balance. The raising of the handle A causes the partial revolution of the cam B—represented by dotted lines—and this, as it diminishes, releases the lever C, which, by the rods D acting on the point E, permits the approach of the joints on the rods F towards the centre. The rods F work on a centre fixed beneath the table on which the balance stands, so that the closing of their one end causes the opening of the other. Thus the claws G recede from the wedges H, upon which they had been fastened, and so release the pan, for the claws act simply as a man’s hand would act in fixing the pan while it is being loaded. Immediately upon the opening of the claws another action takes place by the continued movement of the handle A, which causes the cam I to rotate upon the friction roller J, affixed to a lever proceeding from the shaft K, which at L is cut with eccentric bearings, so that by the partial revolution of K, caused by the pressure of I upon J, the series of supports M sink downwards from the pans N, thus obliging the pans, with the rods which support them, to be suspended from the supports S, which rest on the frame R. So soon as the pans are thus suspended, the continued motion of the handle A causes the cam O to permit the falling of the lever P, which at Q supports upon a friction roller the iron framework R. This framework terminates upwards at the points near S in sugar-loaf cones of gun-metal, which are intended to relieve the knife-edges of the beam from the pressure of their planes while the beam T is out of use, or while it is being loaded, for at these times the knife-edges would become seriously damaged. By the lowering of the frame R the centre knife-edge U is permitted to rest on its plane of steel c, which is beautifully bedded on an arch of gun-metal, as will be seen if the enlarged representation of this part, and which is shown to the right, be examined. In fact, the steel plane c is secured by wedges exactly shaped to it, but for the sake of illustration these wedges have been replaced in the enlarged portion of the engraving by upright pillars shown against c, with screws travelling through them, and intended to fix c rigidly in a given position. At the same instant that U comes into rest upon c, the knife-edges V at the ends of the beam T receive the planes W, so that the beam has now to support the weight of the matter placed in the scale-pans, and at this time is determined the actual weight of whatever that matter may be. The weigher, by an indicator suspended from the beam at X, reads the oscillations of the beam on an ivory plate at Y. At the time of weighing, the beam with its dependents is carried by the four-legged frame of iron b. The frame R passes through friction rollers of brass at d, which rollers maintain it in its relative position to the beam. The weighing having been determined, the handle A is reversed, and the beam is placed at rest; but the vibration of the machinery in the rolling room causes a continuous chatter of the knife-edges V against the planes W, therefore at each end of the beam a small screw Z is made just to touch the lower edge of the beam when it is at rest. Final adjustments which are very [Pg 18] minute may be arranged by f; while the box e on the pan against G is intended to receive small pieces of lead, which are used to compensate for the loss by the wearing of the pans. The shaft K is supported from the table by a. The beam of the balance represented in the steel engraving measures 48·00 inches from knife-edge to knife-edge; that is to say, it measures 24·00 inches from the centre knife-edge to the knife-edge at either end. Mr. S. R. Short has made for the rolling room another balance for weighing silver, and as it differs in some important details, it is deemed wise to demonstrate those alterations in Fig. 3, where the supporting frame R will be seen to carry three upright pillars S¹, S², S³. The pillars S¹ and S³ are represented as being placed on the farther side of the beam, which at those parts is broken away, that the pieces of steel against which the pillars are made to touch may be seen. S² touches against one of these pieces of steel near the centre knife-edge U, and in front of the beam. The pillar S² terminates in a point, which passes into an inverted cone, while the point of S³ is made to pass into an inverted V, so that when the beam is raised by these pillars from its centre knife-edge, S² obliges it to take a specific position with regard to its distance from the centre of the plane on which its centre knife-edge rests, and S³ causes it to take a perfectly parallel line. S¹ is simply a plane which rises against a plane and steadies the other end of the beam, which by this arrangement stands as on a tripod, and is, therefore, prevented from moving, and in addition has its knife-edge invariably placed upon the same part of the plane at each time of weighing, while the frame R, by its continued lowering, drops the planes with equal accuracy on the end knife-edges V.

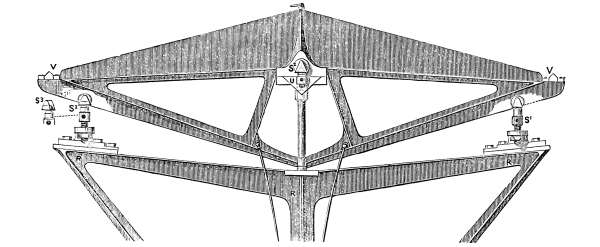

Fig 3.—Short’s Plan for Levelling a Beam.

[Pg 19]

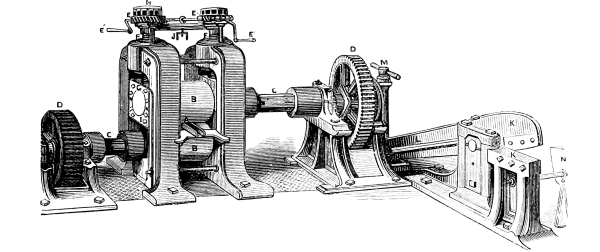

Fig. 4.—Breaking-down Mill.

The sovereign bars having been weighed by the officer, and given by him to his men, are wrought in sets of twenty; each set is called a batch, and each bar in the batch undergoes precisely the same process. The bar is passed into the opening A of the breaking-down mill Fig. 4, where it receives a considerable compression, for the rollers B, seizing its end, drag it forward, while they roll back and retard the progress of that part of the bar which is not between them. The result is that the bar is lengthened, but not widened materially, so that length is gained at the expense of the thickness, which is regulated by the distance between the rollers. The rollers are driven by shafts and adjusting couplings C, which are themselves driven by the wheels D. The distance between the rollers is determined by the action of the lever E′, which, by the endless wheels on its axle at E fitting into geared wheels, gives motion to powerful screws shown at F, which terminate in cups on the upper part of the upper brasses of the rollers B, as may be seen at G. The upper brasses are kept always against the ends of the screws by weights which are beneath the mill, but from which levers and rods terminate at the lower part of the upper brasses, at about the position indicated by I, so that the upper roller has motion either upwards or downwards at pleasure, but the motion upwards is arrested by the powerful screws F, and this point once determined by the reading of the scale H, is fixed by the clamp J. The thickness, therefore, of each bar in a batch is determined within certain limits; and when each bar in the batch has been rolled, the mill is altered, refixed, and again the rolling goes on till each bar has passed seven times at varying pinches through these rollers. Owing to the wear of the moulds in which the bars are cast—and which is largely due to the presence of minute portions of antimony in the gold—the bars are never of uniform thickness; hence bars of every denomination are passed through the rollers on their edge, so as to reduce them to one uniform thickness, otherwise the fillets resulting would be ragged, and of unequal widths, which defect would cause them to produce blanks out of [Pg 20] remedy⁠[17] as to weight. The rollers are set face to face; the graduated scale H is then fixed at zero; if now the rollers are separated until there be a space of 1·00 inch between them, the scale H will indicate 50; if, however, it be desired to read a higher figure, part of another revolution must be performed, causing the scale to read, say 31·50 of that revolution, when the rollers will be so far apart that sovereign bars which pass between them will, allowing for the expansion after compression, be found to be exactly 1·375 inches wide.

If now these bars be rolled on their sides, the mill must be turned down till the scale reads 45, when, if the bars be passed through, they will measure as under for width and thickness at each successive pinch. A spring-pinch means the passing the bar once more through the mill without altering the distance between the rollers.

When the bars have passed through the rollers at 10·50 they have become of great hardness, and of considerable length, say 6 or 8 feet. They are then taken to the shears K, where their hollow ends are cut off, and the bars cut into lengths of 18 inches; or rather, such was the practice when it was considered wise to obtain as much coined money as was possible from the bars; but recently, under other considerations, the old plan of the moneyers has been re-introduced, that of shearing the hollow ends from the bars before rolling. In this process there is needless waste, and it is to be hoped that the proper practice will be reverted to, for under that system the ends averaged 4·26 per cent., while under the re-introduced one it amounts to 7·03⁠[18] per cent. on the bars, and for the following reason. When the metal is poured into the moulds, it almost immediately solidifies, and while solidification is going on contracts in volume, leaving a kind of cup of metal or hollow part on the top of the bar. In the act of rolling, the bar maintains an equable width until this hollow part is reached, when it suddenly expands, and at this point the workman shears off the defective part of the bar, whereas in the other case he shears off the hollow end until his eye fails to discover the effects of the shrinkage; hence the loss of 2·77 per cent. on the produce of fillets, [Pg 21] as well as the loss in wages for melting the bars. The shears may be regarded as large scissors driven by a drum on the same shaft that carries the driving wheel for D. The drum is eccentric, so that at each revolution the shears are caused to open and shut. The bar being placed between the jaws K, the long end L of the shears is raised by the drum, and the piece is cut off. The shears may be closed and the end of L suspended, when out of use, by a hook on the end of the screw worked by the lever M. The length at which a bar is to be cut off is regulated by the gauge shown at N.

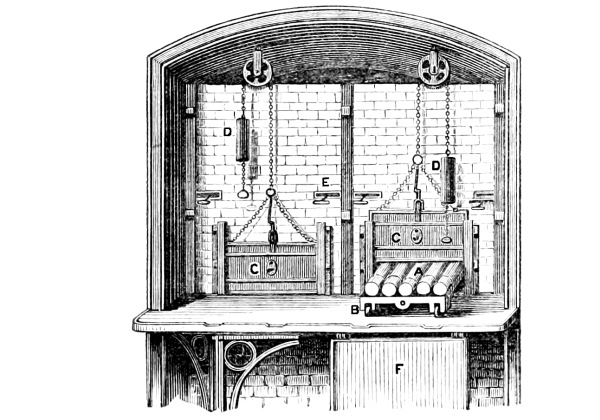

Fig. 5.—Annealing Furnace.

The sheared bars are placed in copper tubes, the tops of which are luted on with clay. It is imperative that the copper tubes should be made without solder, because this fuses at a temperature below that which is required to anneal the gold; if present it would run down upon the hot gold, and cause it to fuse and alloy with the solder, thus spoiling the work and entailing expense upon the coiner. The tubes which are used in the Royal Mint are made by Messrs. Benhams and Froud, of Chandos Street, Strand, who, after considerable pains, arrived at a method of making the tubes in such a manner as to entirely satisfy the requirements of the Mint. The tubes A are placed on an iron carriage B, which is then run into the furnace, as shown in Fig. 5. The door of the furnace C is closed by raising the counterpoise D; the heat of the furnace is regulated by the damper E. The apron F is sometimes of use in annealing very long silver bars. After remaining in this furnace for twenty minutes, the carriage is withdrawn, and the tubes, taken with tongs, are plunged into cold water, to cool the gold as rapidly as possible. The rapid cooling of gold and silver gives to each metal a peculiar character, which is of value in the after processes, and prevents the access of the atmosphere, which, in prolonged cooling, would cause the oxidation and consequent removal of so much copper that the alloyed metal would become too rich in gold for circulation as coin. The annealing of some metals is effected not so much by the [Pg 22] continued heat as by the slow cooling; it is therefore wise to raise the metal to its full heat as rapidly as possible, and then so to arrange matters that it may cool very slowly. This method does not hold good in the case of the precious metals and of copper, for they become, under such treatment, so soft, malleable, and pasty as to stick to the machinery, and thus to cause considerable trouble and loss. After annealing, the bars, which are now called fillets, go again to the breaking-down mill, through which they are passed with the scale indicating 8·50, then at 7·00, and after this are submitted to another pinch without altering the scale at all; so that what is called a spring-pinch is given, with the intention of effecting the reduction of the fillet to one uniform thickness, for the breaking down and subsequent rolling cause the fillets to become much thicker in their middle than at their sides. The spring-pinches reduce this, while at the same time they diminish the elasticity of the metal, and fit it for the other mills. It will be seen, by reference to the above table, that the widening of the fillet is very trifling; but width may be gained to any desired extent, at the will of the workman, if the bars be submitted to a heavy pinch instead of a series of light ones. The fillet having been submitted to the fourth spring-pinch, is gauged on its side by a steel instrument, of which Fig. 6 is a representation. It is a hollow wedge, which is graduated to the thousandth of an inch. Supposing that the opening from A to B were extended until it were one inch wide at A, the space would be divided between it and B into 1,000 parts, and then every fillet passed into this opening would stop at a given point, say, for instance, at 140; such being the case, every part of the same fillet should be arrested precisely at the same point. The fillets are reduced till they measure 117 on this gauge, and are consequently 0·117 inches thick. They are then passed to the next mill, where they receive four light pinches, and then to a third mill, where they receive two more very light pinches, and by means of these six pinches are reduced in thickness to 0·075 inches. They then pass to another mill, still finer than any of the preceding, and here are submitted to four very light pinches, by which they are reduced to 0·058 inches, and are finally finished at the sixth or gauging mill, where they receive three pinches, and are then 0·053 inches thick by 1·829 wide.

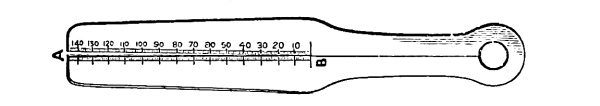

Fig. 6.—Small Gauge.

[Pg 23]

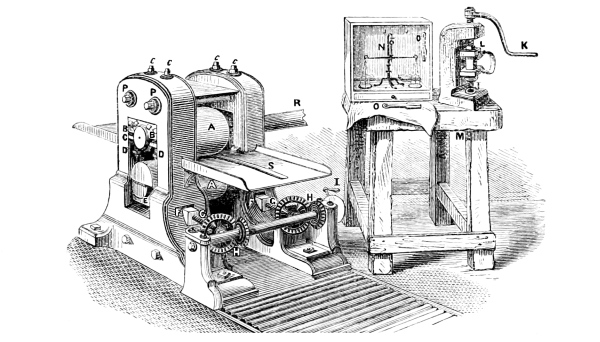

Fig. 7.—Gauging Mill.

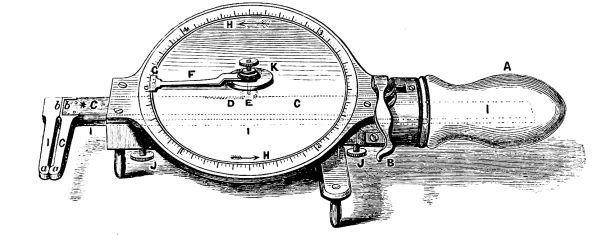

Fig. 8.—Ansell’s Standard Gauge.

The gauging mill is of different construction from the other mills, as may be seen by reference to Fig. 7, where the rollers A are seen in the act of reducing a fillet. The upper roller is fixed in brasses loosely clamped together; the upper brass, B, being firmly bolted to the main frame of the mill by the screws c, while the lower one C, which carries the weight of the roller when it is running empty, is supported by spiral springs shown at D. The lower roller works on a brass, E, which rests on a wedge shown at F; the brass being cut to fit the wedge, so that it may become similar to a solid mass, irrespective of any motion given to the wedge. By this mode of adjusting, a difference of the 0·001 of an inch may be made with ease between the distance of the rollers, and, consequently, in the thickness of fillets which may pass between them. The wedge F is moved forward and backward by the screw G, which itself has motion from the gear work H, by the handle I. Directly a fillet is passed between the rollers, the topmost one is forced against its upper brasses, and further upward motion becomes impossible. The weight of metal in this roller gives rise to irregularities in the thickness of the fillets which pass from this mill, causing much trouble and some expense; therefore it is proposed to support the upper roller by a similar arrangement to that which affects the lower roller, and to keep it rigidly against the upper brass, but with just so much pressure as its own weight would induce were circumstances reversed, and by these means to relieve the fillet from the weight of the roller, because that has an undue influence on each end of it. The gauger of fillets requires other tests besides that of the thickness of the edge of the fillet, so he punches out a blank from an occasional fillet by a hand-press, the cutter of which is shown at J, Fig. 7, worked by the handle K, through the screw L. The blank falling through the bolster of the cutter is caught at M, and is then weighed in the hand scales N, against a standard weight, from which it must not vary more than 0·50 grain. O, Fig. 7, is the gauge actually used by the workman; Fig. 6 represents the standard gauge used only by the officer in charge to check the work at its various stages. He has in addition a gauge of great accuracy, by which to measure the fillets [Pg 24] at any point, as to width and thickness. This gauge will be more intelligible by reference to Fig. 8. A is the handle, which is hollow; B is a lever attached to the flat rod of copper C, which at D is cut with a rack, into which a pinion E is made to work. The pinion E works on a shaft, the upper end of which carries a hand F, provided with a vernier G. If now the handle A be firmly held by the hand, while the thumb be made to press the lever B towards the end of the handle, the rod C is set in motion, and causes the hand G to travel in the direction of H. The rod C rests on another rod I, made of steel, and so long as to pass into the handle of the instrument. The ends of the rods C and I are fitted at b with steel shoulders, and are then continued, as represented, to a. If it be desired to measure the thickness of a fillet, the points a a and b b are caused to open by pressure applied to B, and the fillet is placed between the points a, when a spring fixed in the box K brings back the rod C as soon as B is gently released, and encloses the fillet. The separation of the points a by the fillet causes the hand or indicator G to stand at a point from zero, which is then read. The scale is divided into 500 parts; and if the points be opened 0·50 inch, the hand makes one revolution; so that the ·001 of an inch is gained by one reading. But each 0·001 is subdivided by the vernier into ten, so that a ten-thousandth part of an inch is read without trouble. To measure the diameter of a blank coin, or the width of a fillet, it must be placed between the points b; but since the extreme graduation of this gauge is 0·50 inch, it is necessary, if it be desired to measure a larger diameter, to press back the lever B till the zero of the vernier G reaches 0·500 on the scale H, and hold it there while a clamp is made fast at the spot indicated by the star (*), to prevent the motion of C without I. When the clamp is fixed the rod I must be drawn out till the zero of the vernier reaches that of the scale H, when the screws J must be tightened to retain I in its new position, with half an inch permanent opening between the points b and between the points a. In a new measurement, that permanent 0·500 must be added to the reading. This arrangement admits of measuring up to 3·5000 inches, to which limit the gauge is extremely accurate. The [Pg 25] instrument was invented by myself, because I found it difficult to convince the men that the fillet was thickest in its middle, and consequently heavier there than it should be; and, unfortunately, that the workmen habituated themselves to attributing this fault to each other, when its existence was proved. The fact was, that under the system which had prevailed, the men—with a view to make bad work for a specially-designed reason—would set the upper rollers at varying angles, so that a fillet at one mill would have one thin and one thick edge; and when that fillet passed through the next mill, the angle of the roller being altered, would make both edges alike, but the effect of the manœuvre was to push the metal into the middle of the fillet, and thus to unfit it for the draw-bench. Hence the necessity to fix where the blame should rest, and the production of this instrument, under my direction, by Mr. C. Becker, of 30, Strand, at once overcame all those difficulties.

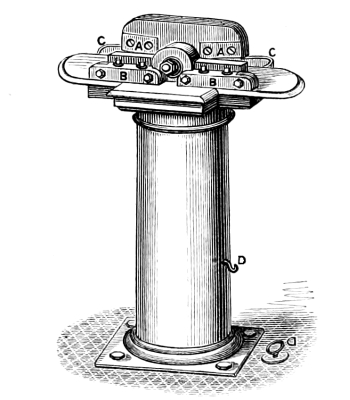

Fig. 9.—Small Shears.

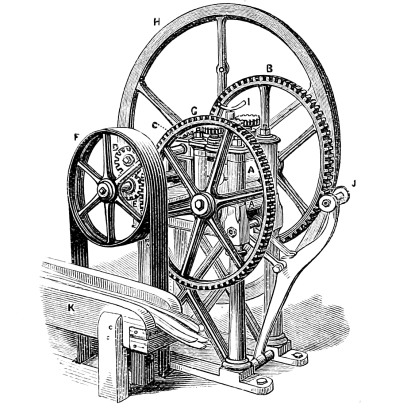

Fig. 10.—Flatting Mill.

The fillets are weighed from the rolling room to the drag room, where they are finally adjusted; for with every energy, discretion, and skill, FILLETS CANNOT BE OBTAINED OF UNIFORM THICKNESS BY SIMPLE ROLLING. In the drag room the fillets are taken to the small shears, Fig. 9, by which one end of each fillet is trimmed so as to render it square. The plates A are fixed to the head of a T-shaped lever, which is caused to oscillate by a cam beneath the floor. The plates A shut against a face of steel fixed to a block, and held by the screws shown at B; if therefore the end of the fillet be passed between the plate A and the face of B, each oscillation causes the cutting off of so much as protrudes, the pieces cut off falling into the box C, which has now been enlarged so far as to form a pan all round the top with a view to catch all of them. D forms part of a chain, by which the shears are thrown out of motion. The fillets, having been trimmed so as to render their ends square, are next passed to the extent of about two inches between the rollers of a flatting mill, shown in Fig. 10, which [Pg 26] reduce that part of the fillet to about two-thirds its thickness. A A represent a pair of small rollers, the upper one of which is cut with three flat faces, so that it has three rounding and three flat surfaces; hence, when both rollers are revolving, there are spaces with openings between them; but when the rounding faces come down, those openings are much narrowed, so that any fillet placed between them becomes thinned to just such an extent as may be deemed necessary. The rollers travel in opposite directions, so as to cause the expulsion of a fillet placed between them. The reverse motion is gained as follows:—The upper roller is driven by B, which receives its motion from the little pinion C, carried on the shaft which also supports D. D reverses the motion of E, which is driven from the drum F. E also drives G, which gives motion to the lower roller. The fly-wheel H is borne at the extreme end of the shaft which carries F and E. The fillets are rested on J while being flatted, and are, after flatting, placed in the trough K, from which they are taken to a rolling mill in the drag room, of precisely the same construction as that exhibited at Fig. 7, to be passed twice through at equal pinches, with a view to render them still more accurate than they were when leaving the rolling room, as well as to reduce them to the exact thickness at which the trier has found they will produce the best work at the draw-bench. The rolling mill in the drag room was provided with steel rollers. Steel rollers are of somewhat recent invention, and seem to have received a high character from those whose opinion may be modified by further experiments more accurately made. My opinion, founded on experience, is to the effect that they are not worth their [Pg 27] extra cost; but that their usefulness may be more fully developed when they shall have been fitted with the arrangements proposed for the gauging mills before explained.⁠[19] After these alterations have been made, it may fairly be questioned whether steel rollers will, under circumstances every way similar, produce better work than is produced by the ordinary chilled-iron rollers; in other words, I believe that steel is not a better substance for rollers than chilled cast-iron. Those who have to sell, and those who have to use, have, of course, different motives; he who has to use a machine should judge calmly, and not be led away because the invention is new. It is amongst these considerations that I am convinced that steel rollers do not save money; for if they wear longer without getting out of order, they also require a longer time to put them again in order. Rollers, made from whatsoever substance, cannot reasonably be expected to produce a fillet from every part of which blanks of equal weight can be struck, because it is not yet possible to produce a compound of equal hardness throughout; but if the construction of the mill be altered, steel rollers may approach nearer to that perfection which is gained by the draw-bench, but they can never replace it. The fillets are taken from the mill to the draw-bench.

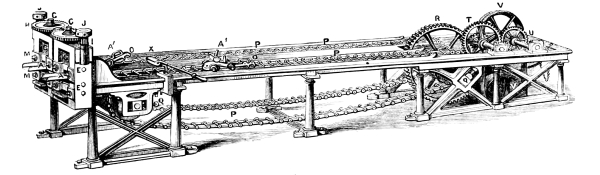

Fig. 11.—Draw-bench.

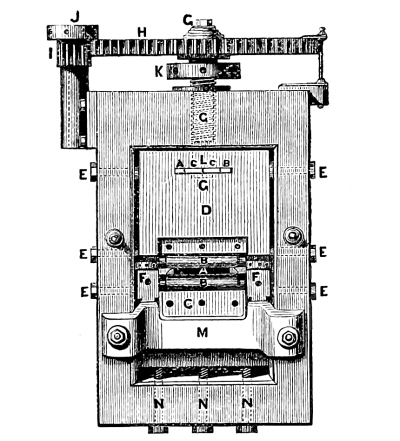

Fig. 12.—Head of Draw-bench.

Fig. 11 represents the draw-bench, the name of which is retained, as being in fact its only appropriate one. The flatted end of each fillet is passed into the opening shown at A. The dog A´ is then run up till its teeth seize the fillet. The lever is depressed until one of the hooks O catches a bar of the circulating chain P, which in its onward motion drags the dog, and causes it to bite the fillet and draw it through the opening at which it has been entered. P gets its motion from a notched cam, the axle of which is shown at Q. There are two distinct chains to each draw-bench, and there are two distinct draw-benches, so that one description does for both double ones. R is a cogged wheel, the shaft of which, Q, carries two notched drums, and each drum gives motion to a chain, so that both chains travel at the same pace. R is set in motion by the pinion S, on the shaft which is driven by the wheel T. T is driven by U, which is on the shaft driven by the strap and drums V. Fig. 12 is a representation [Pg 28] of the head of the draw-bench, and in studying this engraving it will be well to refer at the same time to Fig. 11. The dog takes its name from its resemblance to the head of a bull-dog. It consists of a pair of levers, whose long arms extend beyond the axle-tree of the wheels nearest to O, and whose shortest arms are formed by the passing of the other axle-tree through the lever. The teeth are set at the front of the short arms. The axle-tree near O is fixed to the bars forming O, and runs loosely between the long arms of the lever, so that when O is pulled forcibly it causes the axle-tree to open the long end of the levers, and thereby to close the short end or teeth of the dog, the more rigidly in proportion to the pressure exerted at O. Directly the fillet has passed through the cylinders the dog springs slightly by the elasticity of the fillet, and thus releases itself from the chain; at the instant of release the weight over the foremost wheels falls, and by its fall lifts the hooks O so high as to admit of their escaping contact with the circulating chain P. The position of the teeth of the dog is shown by A in Fig. 12. The flatted part of the fillet is just so thin as to admit of its passing easily between the cylinders B until seized by A, but the part which is not thinned comes against the cylinders B, and requires considerable force to drag it between them. The cylinders B do not rotate; in fact, they may be considered as forming part of a solid mass.⁠[20] The lower cylinder is laid on the bed C, and is clamped there by a cheek fastened on to C by three screws, the holes for which are shown on C; the upper cylinder is fixed to the mass D by a precisely similar arrangement. The beds C D are held perpendicularly by the points of the screws E; and we may now view the cylinders as secured to, and forming part of, their beds. The distance between the cylinders is regulated by [Pg 29] the capstans F, which separate the beds of the cylinders, and so separate the cylinders. The accuracy of this adjustment is all-important, because the distance between the cylinders determines the thickness of the fillet which passes between them. The bed D of the upper cylinder is required to be movable at pleasure; it is therefore provided at G with four wedges, two of which, c c, are cut so that if looked upon from the top a round hole shows itself, and through this hole the end of the screw, which at this point L is plain, and has a neck turned in it, passes, with its head beneath the wedges and against the lower G. So soon as this is effected the wedges A B are pressed into their places, and these holding c c together, cause them to secure G by its neck; if, therefore, G be now caused to rise, the block D must rise with it, but the head of this screw rests on the solid block D, while its neck is just so long as to admit of this without itself being pressed against the wedges c c. G is a very fine-cut screw which fits into a female screw cut in the frame of the head of the draw-bench; it is moved to any distance varying from the hundred-thousandth part of an inch (0·00001) and upwards by the wheel H, which receives a very minute motion from the pinion I by means of a lever fitting into the capstan head J. K was originally intended to be used to set or fix the screw G when it had been brought to its proper position, but it is not used; for, in fact, the cylinders wear away appreciably by the passage of the fillets, so that they constantly require to be brought nearer together to make up for this wear. With some species of gold the friction is so great that, although oil is used, the cylinders become so hot as to render the gold pasty; in such case a kind of welding takes place, which causes the tearing of the fillet. If this extreme point be not reached, as indeed it seldom is, the cylinders become of varying temperatures, and so great is the effect of this, that in order to compensate for it, the upper cylinder has to be continually raised or depressed. The beds which carry the cylinders become worn by the strain and fret, and require grinding out at intervals; therefore, to allow for the difference which this would make, screws N are provided, by which the cylinder in the lower bed can always be raised to its proper position. We cannot but admire the ingenious productions of inventive minds; and surely if ever there were a marvellous machine for assisting the coiner, it is this; indeed, it may be doubted whether a more admirable instrument for its purpose can be contrived. Sir John Barton, who invented and directed the making of it, took into consideration every circumstance which could possibly arise, but he never saw practically the full advantage of his conception. Under my direction, this machine was so used that the average work produced was very favourably compared with the trials recorded by Sir John Barton, and details of which were given to me by the late Mr. W. H. Barton. There are some persons who smile at the draw-bench, but it is one of those inventions which will outlive its [Pg 30] detractors, at least, so long as economy and perfection are points to be studied in coining. Foreign Mints are said to have found no advantage in the use of the draw-bench. It is to be regretted that they have not found a man with sufficient intelligence to use so accurate an instrument; it is surely not the fault of the sun if men are blind to its splendour. Mr. J. Martin, of the Paris Mint, has recently made some very accurate experiments with the draw-bench, and has produced results every way in accordance with those obtained by me in the Royal Mint, and is convinced that the draw-bench may be considered as the coiner’s right hand.

Against all sound advice the Master had been induced to buy a pair of steel rollers, at a cost of £800 (I state the sum on the authority of Mr. W. H. Barton, who, being Comptroller at the time, probably knew the actual cost), and with these I made an elaborate series of experiments, extending over many weeks. The results were wholly adverse to the new rollers—others arrived at the same conclusion—and I reported to the Master, in writing, on the facts as I found them, showing that the average gave an advantage of 19·92 per cent. in favour of the draw-bench, and on this ground I maintained the superiority of that machine. He replied by a peremptory order, directing me “to prohibit now and for ever” the “use of the draw-bench, and to take measures for its removal from the Mint.” Thus absolved from responsibility, I—after making a written protest—obeyed that which I could no longer withstand. The result was that the rejected blanks, which had averaged 3·60 per cent., now advanced to 23·52 per cent. I was unable to avoid this great expense, and when I spoke to him about it he was not very amiably disposed; however, he finally wrote me the following note, on which I remarked to him “that steel rollers, whether driven by cogged wheels or by straps, would still be steel rollers.”

It is satisfactory to me to find that Mr. Fremantle confirms the opinion at which I had arrived. He says (“European Mints,” page 9):—“The adjustment of the fillets after rolling is in some European Mints performed by the draw-bench, as in England. In others it is performed by carefully adjusted rolling mills only. The experience [Pg 31] acquired both in this country and abroad tends to show that it is advisable to retain the draw-bench—at any rate, until some more accurate method is found of equalising the fillets and reducing them to their correct thickness.” If Mr. Fremantle will investigate for himself instead of being guided by the opinions of others, he will rigidly follow the correct conclusion at which he has arrived; if, however, he will look in the drag room in the Royal Mint, he will discover evidence of the former existence of a series of rollers which were replaced by the draw-bench. Yet one of his co-travellers, who is manifestly willing to make experiments, says of the draw-bench, “Still it has yet to be proved that it can compete in sustained accuracy with a well-constructed rolling mill.” Quite true; but I think the answer holds good, and any one who would replace the draw-bench by rolling mills—which have hitherto failed—should, as Sir John Barton did, prove his proposition otherwise than at the Government expense, and then on success obtain fair remuneration. Before leaving the study of this instrument it is right that I should mention that Mr. John Murray, of the Royal Mint, has added immeasurably to the value of it by inventing a most ingenious machine for grinding the cylinders (see B, page 28) with accuracy, so that those cylinders which have been used can with ease be, as it were, repaired. In justice to Mr. Murray I should add that I omitted all mention of his invention in any former issue, because some principal contractors were to my knowledge intending to make him an offer of a sum of money for it, and under such circumstances I could not think it right to give a description of it. A like feeling induces me to postpone to another occasion details of this clever contrivance; its simplicity is such that a mere outline would put a maker of instruments in possession of means for its construction.

The fillets which have passed between the draw-bench cylinders are cut into lengths of about 18 inches by the shears shown at X, in Fig. 11, and are then sent to the trier, who by means of a hand-press similar to, but more delicate than, that shown at Fig. 7, punches out one or two blanks from each length of 18 inches, and weighs it, or them, against a standard weight, and in accordance with his judgment directs the fillets to be cut by the boys or men at the machines. The trier allows 0·20 grain on the pound of blanks for the loss which afterwards occurs by annealing.⁠[21] If, however, the bars, as previously suggested, were cast uniformly of the thickness of 0·50 inch, this allowance, which is equal to a value of £34 8s. 7½d. on each million, need not be made; but in fact, as will be seen, even this is not sufficient to cover that loss under present circumstances.

Not only has it become a habit to smile at the draw-bench, but every unfair attempt has been made to get rid of it. Officers were abused because they would not report against it, and the machine itself was [Pg 32] submitted to usage never contemplated by the inventor. The then chief coiner, who had formerly seen soap used in calico works in Manchester, insisted on using soap-suds, whereby the beds for the cylinders became rusted, the cylinders destroyed, and the whole machine thrown out of gear, so that 30 per cent. of all the work was rejected: these perverse trials, extending over weeks, appeared to throw discredit on the draw-bench. Having been a calico-printer, that officer endeavoured to engraft on to the processes of coining some of the practices adopted in that business; but had he duly appreciated the principle on which the draw-bench acts, he could not have attempted the use of soap-suds, or, at least, on its complete failure would have assented to its disuse. The very first object of the draw-bench is to produce just so much friction as will cause the lateral displacement of the molecules of the metal then under its operation. Soap, when it adheres to the bullion, permits the fillet to pass without friction, and when it is scraped off by the cylinders the gold becomes so hot from friction that the hand cannot with safety touch it; hence there are alternating parts of the fillet very hot and absolutely cold, and, as a consequence, no two blanks can be obtained of equal weight. Sir John Barton not only made the machine, but determined also that oil was the only fit lubricator for metal made to pass through the cylinders of the draw-bench. Forgetful of the immediate wear on the surface of the metal, others have attempted to replace the cylinders by wedges of steel, so made as that a constant stream of cold water should keep them cool when in operation. This also failed from the formation of rust, while the work produced never equalled that obtained from cylinders. The proper use of the draw-bench is to reduce fillets to an equable thickness in every part, and this can only be done when the trier, after studying the quality of his metal, has determined how much he can remove by once passing through the cylinders; then by keeping up a constant succession of fillets, properly smeared with oil, so that the equable friction always maintains them at the same temperature. Under such circumstances, and with a remedy of 0·24 grain, the rejected should not exceed 2 per cent., and this on the whole day’s work should contain half its weight of light and the other half heavy blanks. This also was a curious instance of want of knowledge on the part of that controlling officer, who for years maintained that if the work were properly conducted all the rejected should be on one side of the remedy.⁠[22] The fillets, notwithstanding the draw-bench, cannot be brought to perfect accuracy, and to meet such variations as arise, a difference is made in two of the cutting-out punches by altering their diameters to such an extent that a blank cut by them from a standard fillet would vary in weight from a blank cut by a standard cutter from the same fillet. One cutting-out punch is so altered that a blank would be [Pg 33] 0·125 grain, and the other that a blank would be 0·250 grain heavier. This admits of a fillet otherwise too thin being used; but if the fillet be found to err on the other side, it is passed once more either through the draw-bench, or through the mill at a spring-pinch. The trier, Mr. William Fenton, is a peculiarly steady man, possessing a calm judgment, with considerable energy, and upon him depends the accuracy of the whole process of coining; he has not unfrequently so managed his work that upon 5,000,000 of sovereigns coined, he has been within one sovereign of the calculated value.

The fillets, having been thrown by the trier into the receptacles which indicate the particular cutting-out punches to which they are to be taken, are fetched by a man, who wipes off the oil, and then carries them to the cutting-out room, where the fillets are cut into blanks and scissel. In this place it may farther be noticed that soap-suds cannot be used in the place of oil, because the soap could not be removed without washing,—a practical impossibility,—and would therefore remain, and add indefinitely to the weight of the gold, and thus open the door for peculation. The cutting-out presses used in the Royal Mint are very cumbersome, and when in operation are terribly noisy: it is therefore hoped that at no distant period they may be replaced by some of a far more simple construction; but it is believed that under all circumstances it will be found wise to adhere to the plan of cutting out a single blank at each descent of the punch.⁠[23] For bronze it is well to obtain five or more blanks at each blow, but the limited variation of weight allowed by law on blanks of the precious metals would render this false economy. Fig. 13 represents one of the twelve cutting-out presses, which are all driven by the wheel A, provided with a series of cams on its outer rim; one of these cams, B, is in the act of striking the friction roller C, which is attached to, and forms part of, the lever D. D is fixed to an upright shaft E, which at F is cut with a screw thread working into a female screw fitted into the main shoulder of the press at G. If now the cam B strikes C, and throws it outwards, it causes the shaft E to take a part of a revolution, and in so doing the screw F makes it rise and carry with it the block H, whose tendency to circular motion is prevented by a plug fitting into its groove, and fixed in the guide I. The lower end of H carries the screwed cap J, which supports the cutting-out punch, so that when E rises it carries the cutting-out punch through just the same distance that itself travels upwards. The cutting-out punch is now ready for action, and is released by the continued revolution of the wheel A, as will be seen by the figure; but as it could not fall with sufficient force of itself, assistance is rendered by the pressure of the atmosphere, as will be seen by the following arrangement. The lever D is provided, near its junction at E, with a loop of iron travelling on a screw, so that it may be moved farther from, or nearer to, the [Pg 34] centre of action, and thus admit of the increase of power. This loop of iron is represented by K, and is continued by a rod of iron across the upper part of the room and through a hole in the wall to a system of levers L, from which a rod is suspended, the lower end being connected with a piston working in the chamber M. The chamber M is an hermetically-closed vessel secured to a stone firmly fixed in the floor. The piston works in this chamber, and is covered with about two inches of oil, which prevents the access of the atmosphere by leaks to any part beneath the piston. If the piston, therefore, be raised from the base of the chamber, a vacuum is produced in that portion from which the piston is removed, and consequently the atmosphere presses on the surface of the oil, which in its turn presses on the piston, and carries it down (the reverse of the action explained by Mr. James Napier in “European Mints”); in its fall the piston pulls down the [Pg 35] cutter, which has been raised; for the same blow which raises the cutter also raises this piston; therefore, when the cutter is raised the workman places the fillet N, from which blanks are to be cut, on the bolster, shown at O, and holds it firmly while the cutter descends and punches out a blank, which falls through the bolster into the drawer P. By the time that the down stroke of the cutting-out punch is complete, the wedge Q has entered a slit in the spring R, and strikes the spring, thus throwing the machine back, and preparing it to start when the cam B shall strike the friction roller C. The point at which Q may strike R is determined by a screw near the left-hand T. The upright shaft E, which is partly hollow, terminates at a flat cogged wheel, and the upper part of F is made to pass into E; while at S is an arrangement which serves to detach or connect these pieces, that the cutter may upon occasion be used by the hand by means of the lever T, as well as to admit of the necessary alterations, as the punches, by regrinding, become shorter. The cutting-out punch, when it rises, carries with it the fillet from which the blank has been punched, until the fillet comes against the guard W, which detaches it.

Fig. 13.—Cutting-out Press.

The fillets from which the blanks have been punched have the appearance of ribbons perforated with round holes, and are now called scissel (from the Latin scindo, to cut). These are thrown into a tray, U, from which they are taken at intervals, and bound up by strips of the same into bundles of 180 ounces—in the case of silver 360 ounces—ready for re-melting. The cutting-out press is set at liberty to start by the workman pressing his foot on a lever in connection with the line and spring indicated by V; and so long as he keeps this lever down, the press is worked continuously, but when he releases it the spring catches the extreme end of D, and motion is arrested. The blanks which accumulate in the box P are collected at frequent intervals and examined, to see that their edges are smooth; if they be ragged, as may happen from the wear or fracture of the edge of either the cutter or bolster, a loss would be entailed in after processes which would cause the coin to be outside the prescribed limit, and to pass at an illegal weight into circulation, as the rough edges would be removed after the weighing of the blanks had been effected. According to the quality of the work—the character of the gold—under operation, the trier tests more or less frequently the variations of weight in a given number of blanks. This process is called POUNDING, and is, next to the trying, the most important of his duties; if such an expression can be admitted, he has, by trying, fired his shot, and here determines if he has hit the bull’s-eye, all depending on his own unaided judgment. The gauge, Fig. 8, is found of great service in detecting irregularities as to diameter and thickness, which would not be, and are not, detected by weight, for the weight may remain equal, although both diameter and thickness may vary. All these points require [Pg 36] considerable care on the part of those whose duty it is to attend to them; for the quality of a coinage is determined in this room: blanks which once leave it cannot be afterwards altered. The subsequent operations, being purely mechanical, would be quite as well performed by automaton machines.

The completing processes form undoubtedly the prettiest and most interesting part of the operation of coining; nevertheless the processes already described constitute its most essential features. The blanks are weighed from this room in drafts of about 720 ounces, and placed in bags; each bag, therefore, contains four journeys of about 180 ounces each. The term journey is said to be derived from an old French word, but circumstances render it probable that this derivation has been applied by others than the original inventor of the word, for it manifestly was not used by the coiner of it to imply a “day’s work.” I cannot find an author who gives a time at which 720 ounces of silver became a journey, while 180 ounces of gold were also called by the same name. It must have taken far longer to coin 720 ounces of shillings or groats than to coin 180 ounces of sovereigns or half-sovereigns; hence the same word could never have been intended to mean “a day’s work.” Be this as it may, it is time that such names gave place to more appropriate and expressive terms. It is to be hoped that 500 ounces will become the standard maximum weight for bags of either of the precious metals; such a system would be the means of reducing the chance of error, it would have an actual meaning, and would be a convenient weight for a man to lift to and from a scale-pan. When such a measure shall be convenient to the officers of the Bank of England, that institution will subserve the interests of the Mint by adopting it.

In a paper recently published by the Commissioners on the International Coinage (at page 228) it is stated that “in the British Mint 15 pounds troy of standard gold are coined into 701 sovereigns nearly (15 lbs. = £700 17s. 6d.).” This statement does not exactly convey the truth, and is calculated to mislead, because such an operation is not, and never has been, conducted in the British Mint, where the invariable rule is to abide rigidly by the law, and to coin 20 pounds troy weight of standard gold into 934·50 sovereigns, as specified in the Mint Indenture, now replaced by the Act of Parliament, 33 Vict., cap. 10. Of these sovereigns so coined, 701 are placed in a bag, and called a journey; but by a Mint fiction the journey was considered by the old moneyers, and yet more ancient weigher and teller, 15 pounds troy exact, because the parts of an ounce were difficult of addition; and this was maintained until 1860, when a disputed weight with the Bank of England as to the value of the deliveries corrected that which I had previously pointed out as an error. It is now the custom to consider a journey as consisting of 180·03125 ounces, instead of, as it is, 180·03210 ounces, an error of ·00085, which has a money value of about 6s. 7½d. on each delivery to the Bank.

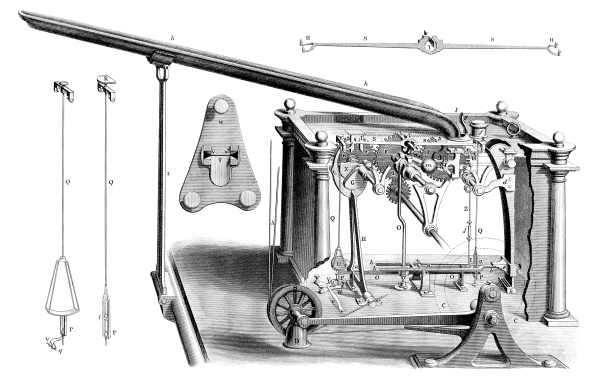

COTTON’S PATENT AUTOMATON BALANCE.

WITH PILCHER’S IMPROVEMENTS.

[Pg 37] The bags of blanks should⁠[24] be carried forward to the room in which the weighing of the individual blanks is effected by Mr. Cotton’s automaton weighing machines. Mr. Cotton’s weighing machines form perhaps the most elegant and clever invention of modern times. They effect the process of weighing far more accurately than man can hope to do, and with extraordinary accuracy determine the weight of about twenty-three blanks per minute. Peculiarly admirable as are these machines, their perfection has been greatly increased by improvements suggested by Mr. Richard Pilcher, who has immediate charge of those in the Royal Mint. Mr. Pilcher, whose inventive genius is only equalled by his desire to give to the public the benefit of his inventions, has rendered these automaton balances serviceable to the Mint; whereas, when they left the hand of Mr. William Cotton, they were of great service to the Bank of England alone, for there only two determinations, or in fact one determination is necessary. In that institution it is required to show that the coins issued by it are not below the legal weight for circulation, whereas the Mint must guarantee that coins leave its works neither above nor below the limits fixed by law: hence the necessity for the incorporation of Mr. Pilcher’s improvements with Mr. Cotton’s beautiful invention.

After reading the letter of Mr. James M. Napier in the Times of September 2nd, 1869, I can but express my surprise that that gentleman has not seen fit to acknowledge Mr. Pilcher’s modifications instead of claiming for himself all the credit, when a part only—and that undoubtedly an important one—is his due.

The steel engraving exhibits a view of Cotton’s automaton machine as used in the Royal Mint, where seventeen such machines are employed. For the purpose of illustration, the brass side of the machine has, in imagination, been torn away, as also has the top of the machine. To obtain the highly-finished drawing from which this engraving was made was a matter of no ordinary difficulty, but it was accomplished by the skill and assiduity of Mr. E. S. Gibson, to whom my thanks are due, as well as to Mr. J. W. Lowry, for the pains he has bestowed in executing the engraving.

The whole theory of this balance rests on the fact that the centre of gravity and the centre of action are in one line: either being disturbed, the balance is no longer equal. The machine gains its motion from a shaft fixed to the ceiling of the room. Steam contained in a boiler exists under an ever-varying pressure, arising from the amount of work which it may be necessary for the engine to perform, or from the irregular combustion of the fuel, as well as from other causes. Since it is of the utmost importance that the automaton balance should be made to maintain a uniform pace, Messrs. Napier and Sons found it [Pg 38] necessary to drive the shaft which gives it motion by a small atmospheric engine, which is placed in the weighing room. It has been found that a chamber may be kept equably exhausted of air, if the atmosphere be admitted to it by a uniformly weighted valve. Such a chamber—to be described presently—is used in the Mint for other purposes, and Messrs. Napier conducted from this a pipe, by the agency of which the atmospheric engine is worked with a far more even and steady motion than could be obtained by steam; in fact, the exhausted chamber becomes a regulated spring, which softens down the variations in the motion of the steam-engine. The shaft supported by the ceiling conveys its motion to the weighing machine by a line A, which, passing over the friction wheels B, circulates round the stepped wheel C, which runs loose on the shaft communicating with E. The line A is maintained with sufficient rigidity by a weight D, which is suspended at the end of the lever carrying the friction wheels B. The weight D is just sufficient to insure the continuous working of the machine, but is so light as to permit the line A to slip on C in the event of anything going wrong in the works of the balance. When the machine is to be set in motion, a kind of cheek is made—by screwing—to touch the face of the wheel C, and thus, by friction, C gives motion to the wheel E. This is an elegant mode of meeting a chance of accident, for in the event of the weight D proving to be too heavy, any extra force simply disconnects this cheek from the face of C, and so stops the machine. The machine having been set in motion, E, by communication with the wheels F, all of which are driven by it, causes the cam G to push forward the lever H, which, terminating at I, pushes forward the flattened continuation of I indicated by dotted lines, until it moves a blank placed in the collar J, at the bottom of the hopper h, on to the scale-pan K, which, for the sake of clearness, is isolated, and will be seen behind the machine and under the extreme end of the hopper. So soon as the blank coin has been placed on the scale-pan K, the cam L lowers a lever n, the office of which is to permit the opening of the forceps M, and thus to release the rod, Q, dependent from K upon the knife-edge R. The forceps are closed by the cam L, which raises n, and by it compresses an attached spring. The forceps are intended to hold this rod Q while the blank is placed on K, because the friction caused by the placing of the blank would have a tendency to push K from the knife-edge on which it is suspended, and thus blunt its delicate edge. While the forceps are opened the cam N, by its partial revolution, lifts the rod O, which is steadied in its motion, by a pin rising from it, and entering the inverted arch o; its lower extremity working into a socket on the table on which the whole frame of the machine stands.

Towards its lower extremity the rod O will be seen to branch out right and left, until each end passes through a kind of step in the rods Q, indicated by P. The office of this rod is to bring the beam, from which [Pg 39] the rods Q are dependent, to a dead level, as well as to release both ends of the beam by one action. At the moment that the forceps M have released the right hand rod Q, the cam N, by O, releases both the rods Q, by rising from the steps P, thus permitting the beam to determine the weight of the blank placed on K. A close inspection of the steel engraving will show that the rods Q are suspended from and rest upon the knife-edges R of the beam S, which has a centre knife-edge T, by which the whole mass is supported and poised. The knife-edges are made to find their own planes or resting-places upon curved or hollow pieces of steel, thus securing the smallest point of contact with a certainty of the smallest amount of friction. In ordinary balances the substance to be weighed is placed in a pan, which is on the same level as the pan which contains the counterpoise; but in Mr. Cotton’s balance this condition is of no consequence, so that the counterpoise rests ultimately upon a point which is at the same distance from the centre of action as the point upon which the matter to be weighed rests. The counterpoise U is placed in a kind of cage, and any variation from this standard is at once indicated, even if it reach only to the thousandth part of a grain. By law, the weight of a coin may vary to a certain extent from a standard weight;⁠[25] the variation or latitude allowed is called remedy, from the Latin ad remediam; and in weighing, this remedy is taken advantage of by a contrivance much simplified by Mr. Pilcher. The weight of a sovereign is 123·274 grains, but it may by law be either 123·474 grains, or it may fall to 123·074⁠[26] grains. Mr. Pilcher therefore reduced the counterpoise to the minimum allowed, thus avoiding the placing of a remedy-wire for the light side; and he then made the remedy-wire q (shown in the first enlarged portion on the left-hand side of the steel engraving), which is placed on the stand W, upon a peculiarly-formed point indicated by V, so heavy that any blank which would not raise it and the counterpoise must be within the remedy on the heavy side. In accordance with this arrangement, the continuation of the rod Q is terminated by a cage at V; so that if a blank be so light as to be unable to raise the counterpoise U until the stirrup comes in contact with the remedy, it is too light to make a legal coin. This fact being determined, the motion of the machine causes the cam X to bring back the rod I (indicated by dotted lines), that it may be ready when required to push forward another blank, and the forceps M to grasp the rod Q, while the cam Y permits the falling of the rod Z, which is nearly counterpoised by the ball m (the precise length of the rod being regulated by the screw j), until its finger a rests upon the indicator b. The depth to which a shall fall is fixed by the step l (shown by Q in the second enlarged portion of the steel [Pg 40] engraving). This is, of course, determined by the forceps, securing Q at the position indicated by the weight of the blank. The indicating finger b having come to rest, the continued motion of the machine causes the cam c to permit the shoot d to fall until one of its steps e comes into contact with the indicating finger, when the lower part of the shoot must be exactly over, and form part of, one of the tubes k, which terminate in boxes labelled respectively “heavy,” “light,” “medium.” The shoot having taken its position, the continued motion of the machine causes the cam G to induce the placing of another blank on the scale-pan K, and this blank, by advancing, pushes off the one just weighed, which, falling into and through the shoot, passes to the compartment reserved for it. Suppose the newly-placed blank to be too heavy for forming a legal coin, the same operation goes on, but it now lifts not only the counterpoise, but also causes the stirrup at V to lift the remedy-weight q. This is a most delicate operation, for if a blow, however light, be given, it would cause unsteadiness in the beam. Mr. Pilcher therefore determined to make the carriage W, which supports the remedy-wire q, stand upon micrometer screws, by which the remedy-wire is made just to touch the stirrup, without pressure, while it also rests upon the most minute points, formed by cutting away every part of V which is not actually required—in fact, shelving it out. The scale-pan K is protected from draught by the lantern f, while the blanks are directed into the collar J by the guard g, as they slide down the hopper h, which at its centre is supported by an upright, i. The blocks p are the supports which hold all the machinery to the roof of the machine.

Some new machines have recently been supplied to the Mint by Mr. James Napier, but it is not certain that these are cheaper than the old ones. That they are lower in price may be admitted, and they are certainly more convenient in use, from the fact that the wheels shown at F are placed at the back. It is, however, to be regretted that Mr. Napier did not introduce into these new machines the recent inventions of Mr. William Bradshaw, which are supremely simple, and, now that they are effected, one cannot but wonder that so many minds having been engaged on these machines, improvements such as these have not earlier seen the light. To Mr. Bradshaw, particularly, great credit is due, for he was obliged to overcome, not only innate difficulties, but difficulties of position, and these latter were of no mean kind. It is to the credit of the Mint authorities that they finally adopted these improvements, and ordered the necessary alterations to be made in all the machines.

Mr. Bradshaw’s improvements enable the automaton balances to weigh 30 per cent. more coins in the same time; yet they permit each coin to occupy a longer space of time in being weighed. This would appear to be a mechanical contradiction, but if reference be made to the plate it will be seen that the cam G pushes forward the lever H, which [Pg 41] ultimately, by the slide, pushes the blanks on to the scale-pan K. By altering the shape of the cam G, Mr. Bradshaw causes it to do its work more rapidly, and thus leaves the piece on K longer than before; but that this time may not be lost, he alters also the shapes of the cam L and of the cam N, so that the forceps M are opened, and the beam is released more rapidly: thus the balance would be longer in action; but to utilise the time ready to be saved, he alters also the driving pulley E, causing the machine to make 30 per cent. more determinations per minute, and that this may be effected with greater certainty he reduced the depth of the step, shown at e, to just one-half, so that the beam has to travel only half the distance it formerly travelled to determine the position of the light, heavy, or medium piece. He next proceeded to alter the rod O, because he observed that it received a tilting motion arising from its being lifted by a shoulder, as shown in the plate. To overcome this defect he made the rod straight up to a certain point, where he divided it into a kind of loop which passed over the cam N, which, as it revolves, lifts this rod perpendicularly. He still found that the cam N had a tendency to push this rod against its bearings, especially at o, so he placed a spring of brass between the top of its loop and the cam N, and secured at one end to p, and by this contrivance made the cam to lift the brass, and that in its turn to raise the rod O. There was yet another difficulty, caused by an occasional stoppage of the action of the spring which softens the descent of the bearing of the rod O into its lower socket; this he removed by cutting a hole in the side of the socket, so that it can be seen at once if the spring be in action. I am not one who approves his suggestions as to the remedy-wires. These may be the means of saving time, but they are wrong in principle, and I do not describe them.

Great inconvenience arose from the collection of dust, spangles of bullion, and other foreign matter on parts of the balance. This Mr. Bradshaw overcame by two simple contrivances; first, he pierced the bottoms of the grooved trays, so that these substances might in a great measure fall through while the blanks were being arranged in rouleaux, thus separating the largest pieces, which, falling down the shoot, would stop its action; and, secondly, he placed a glass shelf midway between the table and the beam, that is, beneath the hopper h, where it terminates at J, and above the beam S, where it is seen near the forceps M, thus protecting the beam and forceps. These may appear to be trifling alterations,—they are nevertheless to Cotton’s balance what the compound metal balance-wheel is to a watch. Mr. Pilcher was granted the magnificent sum of £40 for his invention of the file (to be described), but it is hoped that Mr. Bradshaw will be rewarded with a far more open-handed generosity; for if, by judicious liberality, encouragements are offered to those in the Civil Service to give to the country the benefit of their inventions, we may still hope that even our Government institutions will bear comparison with [Pg 42] ordinary commercial manufactories as regards the development of inventive genius. Nor is this a small matter, for all the working improvements in the Cotton’s balance have been made by those whose duty it is to attend to their working; yet I am not aware that any acknowledgment, either direct or indirect, has been made to the officers concerned. It is said that their salaries cover all their time and energy. This may be true, but such a policy is not calculated to result in many great steps towards perfecting either machines or processes.

It is well to state that the beam in Mr. Cotton’s balance is 8·90 inches in length, and that its weight is 288·41 troy grains.

Those blanks which are neither too light nor too heavy are called medium, and are weighed and put into bags for future issue as coins. The light are reserved for the melting-pot. The heavy blanks should be reduced by means of a peculiar kind of file to the weight of medium blanks, and thus saved from being melted, so avoiding further loss to the Mint. This file was invented by Mr. Pilcher, who, being the officer of this room, considers his duty to be neglected if there be any improvement capable of being made, but which is left undone; he never tires till the invention is complete and the machine made. Mr. Albert Barre, the distinguished engraver to the Paris Mint, declares this file to have surmounted all the difficulties he has met with in this part of the process. In his own words, “it leaves the face of the blank untouched, and free to develop the work of the engraver, which no other file does, or can effect, because any metal which is ploughed out from the face of a blank, leaves a hole which is not filled up in coining.”

The opinions which I have here expressed have so far prevailed on two of the travellers to European Mints, as to induce them to glance, though rather shyly, at the necessity for reducing heavy blanks; but Mr. Napier writes a passage which I quote, as it demonstrates that he, who is admittedly one of the most successfully ingenious men of the age, has thought over and studied the words I wrote at page 60 of the last edition—he took that book in his hand to the Mint on the day after its publication—with that attention to which he thought they were entitled. I beg the reader to ponder over Mr. Napier’s words, they are most important; but I hope those who will be called upon to vote the necessary money will also read my remarks on this extract from Mr. Napier’s report on European Mints. He says at page 44:—

The reasons which Mr. Napier gives are worthy of grave consideration—they are mine wholly—except so far as regards those to which I have drawn attention by printing them in small capital letters, and which show that even with his vast experience he dare not answer for the success of his machine, while the suggestion of the necessity “to acquire a knowledge of its use” should make a desire to recur to a successful machine paramount. If, indeed, I rested on my own opinion, I should be content to see Mr. Napier’s machine tried, although I think its failure would be established; but it so happens that I can quote the opinion of the late Master of the Mint on the machine under consideration, expressed at a period when the efficiently economical conduct of the Royal Mint had received his utmost consideration. In his letter to the Treasury, dated 7th June, 1860, he says:—

“I may be allowed to call to your recollection that a Parliamentary grant of £1,100 was obtained by the Mint in 1856 for the purchase of two automaton filing and adjusting machines, which it was proposed to have constructed by Messrs. R. Napier and Sons, the eminent engineers. No part of this grant has been appropriated. The rapid amendment in the blanks which took place immediately afterwards led me to suspend the order for these machines, and ultimately to abandon the idea of any great expenditure for the object contemplated. In the meantime also, a machine of a much more simple character was contrived by Mr. R. Pilcher, of the weighing room, and was constructed in the Mint, with no assistance from without. Pilcher’s adjusting machine has proved sufficiently effective, costs nothing for labour, and has now been in constant operation for two years. The cost of making a pair of machines such as we now possess is estimated at £60, a sum which was saved to the public by the mode in which the work was executed. Trusting that the Lords Commissioners of her Majesty’s Treasury will be disposed to consider favourably the merit and practical value of such an invention, I venture to solicit their Lordship’s sanction to the application of £60, the sum just stated, to the benefit of the inventor, jointly with an ingenious mechanic on the establishment, who gave material assistance in the construction of the machine. I would propose the following awards, if agreeable to their Lordships:—To Mr. R. Pilcher, £40; to Meredith Jones, £20.”

It was upon advice tendered by myself that Mr. Graham thus excluded the machine now recommended by Mr. Napier. I maintain that a simple machine should be preferred before a complicated one, and the Mint authorities should give Mr. Pilcher’s £60 machines—admittedly perfect in operation—a fair trial against Mr. Napier’s £1,100 machines, and see if they prove equally effective. If, on the other hand, Mr. Napier’s fails, then it is but fair to the public that that machine which is undoubtedly a success, and for which the inventor has been publicly rewarded, although in a most inadequate manner, should be used.

The machine thus spoken of was used with the utmost advantage until 1866, when its use was abolished by the advice of Mr. John Graham, who subsequently, in 1868, broke it to pieces that his improvements might be rendered permanent, thus causing an expense of 50 per cent. on the total cost of manufacture for rejected coins,⁠[27] because the use of the file having been abolished, the coined money [Pg 45] alone was weighed, thus rendering it impossible to reduce the heavy pieces.

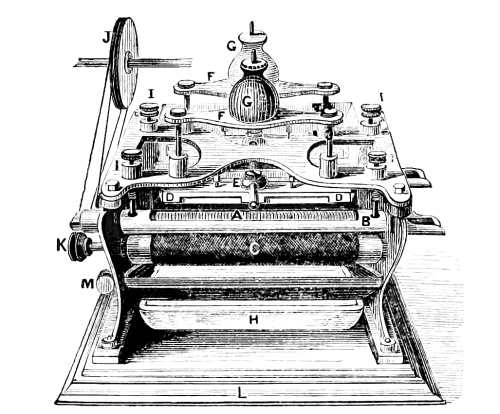

Fig. 14.—Pilcher’s Filing Machine.

Although the use of this file has thus been stopped, it is greatly to be hoped that it will again be employed, and thus enable the Government to produce coined money at the cheapest possible⁠[28] rate, because it enables the Mint authorities to obtain the largest per-centage from the bars. Feeling that this much-desired re-introduction will take place, it is thought wise to give the following description of Pilcher’s file, which, if not desired for the benefit of our own Mint, will be adopted by other coining countries:—Fig. 14 is a representation of this compact machine. The blanks A are placed in rouleaux in a tube B, which is open at top and at bottom; through the opening at the bottom the blanks rest their EDGES on the file C, which, as it revolves about 1,000 times per minute, files off metal from the edge of the blank. Each machine has two tubes, and when both have been filled the rod D, which carries a triangular knife-edge, is released by the lever E, and the knife-edge resting upon the upper edge of the blanks A,—with the intention of offering resistance to their rotary motion,—enables the operator to remove MUCH OR LITTLE metal from their edges at pleasure by increasing the resistance which D offers by adding a weight G on to the gallery F. H is a glass dish into which the dust, as it is removed from the edges of the blanks, falls, thus insuring a perfect separation of the dust from the blanks. The blanks in B are kept in their position by small blocks of ebony, which are secured by the thumb-screws I. Motion is given by the wheel J, which communicates with the pulley K by a cord or catgut. The whole machine stands on a block of mahogany L, secured to a table of oak. M is a screw which is used to tighten the cords between J and K. Between C and H is a hopper of brass to catch flying particles of the precious metals. Each file reduces 250 sovereign blanks per minute. [Pg 46]

The objections which were raised to the introduction and use of this machine were curious, and amongst others it was firmly maintained that it caused the coining press to make brockages, because the blanks which had been filed were smaller than those which had not been thus treated. The amusing part of this objection was that all the blanks were afterwards reduced to a uniform diameter by the edges being compressed before being coined.

The medium blanks—now unfortunately the coined moneys—are rung by boys to detect any which may be dumb or cracked, and which are rejected for melting. Dumb or cracked pieces arise when bubbles of air are enclosed in the bars at the time of pouring the fluid metal into the moulds in the melting-house.

Besides this source of dumb work may be mentioned another of large occurrence in silver, and occasionally met with in gold, which results from an imperfect mixture of the alloy at the time of melting, and developes itself at the draw-bench, where whole fillets, of six feet long, may be seen to separate into two complete layers of metal, the inner surfaces being coated with a thin film of copper, frequently quite pure, but sometimes in the form of suboxide. It would thus appear that a globule of copper becomes enveloped in a volume of fluid gold or silver, and, in the act of pouring, this globule is drawn out into a kind of wire, perhaps extending some inches in length, enclosed in precious metal. When this is rolled it is all flattened together, but there is no adhesion between the surfaces, so that when the fillet passes through the draw-bench the lateral motion given to the atoms of the metal causes the slip which finally separates the two surfaces of metal, and the eye at once detects the existence of the fault. In the coinage of 1857, no less than 141·38 ounces of gold fillets thus imperfect were returned to the melter in one day, and on the whole of that coinage these fillets averaged nearly 0·50 per cent. (see page 92). In the case of silver this defect is of less consequence, but of greater occurrence. It is the duty of the melter to see that such bars are neither produced nor forwarded, and there can be but little doubt that in a properly conducted Mint the melter would be directed to re-melt such fillets without payment to the men.

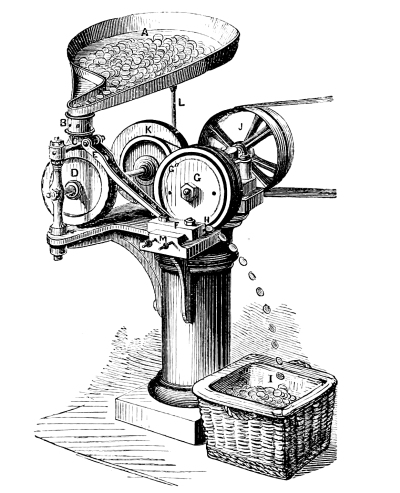

Fig. 15.—Jones’s Edge-Compressor.

The medium blanks which would now be fit for coining should be weighed up in bags of about 500 ounces, instead of 180 ounces, as is the custom, and sent forward to the room in which is placed a machine which has to diminish the diameter of each blank by compressing its edges. This is called a marking machine, but such a name being obviously improper, it is preferred to call it the EDGE-COMPRESSOR. Up to 1861 the best machine for this purpose was that invented and patented by Messrs. R. Heaton and Sons, of the Mint, Birmingham; but in the early part of 1858 the subject of the varying diameter of blanks came under consideration as effecting the [Pg 47] production of brockage. Mr. Pilcher was consulted by me, and proposed a machine, of which he gave the outline, which I submitted to the Master of the Mint on the 31st of March, 1858. This machine was to be fed from the top, but was abandoned because it did not meet the desired minimum of 1,000 pieces per minute. Mr. Pilcher therefore proposed to erect on the same spindle five revolving discs, and to face these five discs with as many cheeks. At a given time it was determined to manufacture a marking machine, and one of five which Mr. Pilcher proposed was to be made. It was preferred to ask Mr. Meredith Jones to assist in its manufacture. Mr. Jones had also a design for a machine for this purpose, and it was arranged that as Mr. Jones made Mr. Pilcher’s file he should make his own machine. Mr. Jones proposed, and Mr. Pilcher accepted, the following proposition. Mr. Pilcher was to retire from the machine, and in consideration of his so retiring, and allowing the machine to be called Jones’s marking machine, Mr. Jones was to give Mr. Pilcher one-half of whatever sum might be paid by the Mint for the use of the machine. Fig. 15 represents Mr. Jones’s machine. The blanks are placed in the hopper A, and fall by an incline into a tube B until they rest at C, on a notched wheel D. As D revolves each of its notches carries away the bottom blank of the pile from the tube B, and leaves it to slide down the tube E till it reaches the block F. The block F is [Pg 48] cut with a narrow groove, which exactly corresponds with the groove Gᵃ on the plate or disc G. The disc G revolves, and as the blank slides down and comes with some little impetus against the groove in the block F, the groove Gᵃ catches it, and causes it to take two revolutions between the disc G and the block F, finally permitting its escape at H, when it falls into I, being now reduced in diameter and thicker on the edge, but its centre remaining as it was before. The machine is driven by J, the shaft of which carries a reduced rigger for the driving of K. The hopper is supported by the rod L. The distance between F and G represents the diameter of the blank after its edge is compressed, this distance being determined by the screws seen at M. Blanks of all diameters may be compressed at this machine if the block F and the plate or disc G be removed and replaced by others, neither operation taking many minutes. The edges of the blanks are compressed at the rate of 700 per minute. A boy of fourteen could work this perfectly well, and with more convenience now that the hopper is replaced by such a one as is used to supply Mr. Cotton’s weighing machine. The edge of the blank is compressed with a view to prepare it for the crenating to be given by the collar in the after process of conversion into a coin.

The blanks are conveyed from the edge-compressor to the annealing room, where they are placed in rouleaux in iron boxes, the tops of which are luted on with clay, the boxes are then placed on iron carriages, and run into reverberatory furnaces, heated by Juckse’s smoke-consuming apparatus, where they remain for an indefinite period. The furnaces are like that represented in the rolling room for annealing the fillets in copper tubes. To anneal the blanks, the temperature should be raised rapidly until the boxes attain a full red heat; and the time allowed for the operation should be from twenty to twenty-five minutes at the utmost. After the heating, the boxes are withdrawn from the furnace and placed on the floor of the room, till the blanks are assumed to have become of a low red or black heat, the point below that at which copper combines rapidly with oxygen; they are then opened. If the boxes be opened while the blanks are still of a full red heat, there is what is called too much loss by annealing, or, in other words, too much of the copper has become oxidised, and thus rendered soluble in the dilute sulphuric acid into which they are presently removed. The box having been opened, the blanks are turned out into a copper tray, and on this carried to a cistern of cold water, in which a colander stands; they are thrown through the water into this colander, and thus cooled rapidly. When cool, they are taken in the colander to a leaden cistern of nearly boiling dilute sulphuric acid, into which they are placed, and allowed to remain for about three or four minutes. By means of this bath of sulphuric acid a thin skin of oxide of copper is removed; the gold on the surface from which the copper has been washed out is of a sponge-like form, and gives a beautiful bloom to the new coin when it [Pg 49] is struck. This process is called blanching, and is of great interest to the coiner, as it is here that his loss by coining takes place. The bars of gold sent to the coiner are found to be standard within certain limits,⁠[29] therefore the blanks produced from those bars must be of the same fineness; but by this process of blanching, copper is removed; hence the standard, or the amount of pure gold contained in the blanks, is proportionably raised, and this tells on the million to an amazing extent. When the annealing is conducted for too long a period, the copper becomes oxidised to too great an extent during the time of annealing, for there is no atmosphere more capable of oxidising than is that of one of these furnaces; it is for this reason that the heat should be gained rapidly, before that oxidising atmosphere shall have time to permeate the luting and attack the copper of the standard gold. At the trial of the pyx in 1861 the gold coined by Mr. Thomas Graham, the late Master, was found to be “4 grains on the pound too fine;” that is to say, containing in 5,760 grains 5,284 grains of pure gold in the place of 5,280 grains, which it should have contained. This is well for the people, but it is bad for the Master of the Mint, because he has lost 4 grains of pure gold on each pound that he has coined, which amounts to no less than £757·65870 in value upon every million of sovereigns. This loss may well be avoided, either by adding extra alloy to allow for this removal of copper, or, as would be far wiser, by abolishing the process of annealing the blanks, as was done in 1859, when more than a quarter of a million of sovereigns were coined from unannealed blanks obtained from brittle gold which was much harder than any ordinary gold to be met with. It must be remembered that the saving of bullion would leave a large margin for the increased destruction of dies, and in addition the coin would wear longer in circulation.

By his elaborate experiments Mr. Charles Hatchett proved not only that the British standard gold was the best alloy for coins, but that this alloy should be so manipulated as to avoid either the extreme of ductility or of hardness, and when this medium was attained the coins produced wore longer and better than any others.

It will be of importance in this place to consider the question of annealing the blanks previously to coining them, and experience teaches that this process should be omitted. The gold alluded to as coined in 1859 from unannealed blanks was the same gold that was spoken of as being so toughened in the form of bars when the fluid metal had been poured through a stream of coal gas.⁠[30] The gold contained antimony, arsenic, and lead, so was predisposed to become brittle; but by pouring through the air it absorbed oxygen, and became certainly the most brittle gold that has passed through my [Pg 50] hands. It was toughened by reducing the oxide of copper, and worked remarkably well, producing the most workable fillets, regular and uniform blanks, which yielded an average of 5·67 per cent. rejected. The blanks were tough, soft, and very malleable, capable of being cut with a chisel without fracture, and ringing musically on an iron block, thus satisfying all the requirements of good coining gold; but directly these blanks were annealed they showed 30 per cent. of pieces so brittle that they could be broken by a moderate pressure of the finger and thumb. After coining, the whole mass became so brittle that less than 2 per cent. remained sound after twice ringing on an iron block, as is the usual practice. These brittle coins, when again annealed, and suddenly cooled by plunging into cold water, became tolerably tough, and withstood ringing to 8 times, when they again became brittle. It now became evident that none of this gold should be issued to the public,—indeed, I may state that this same gold had been rejected by all the coining countries as unfit for coin. It was therefore ordered to be melted and returned to the Bank as unfit for coin, its value being £167,539. After every possible obstacle had been placed in the way, I overcame the aversion to change, obtained permission to try some experiments on this gold, rewrought it, and coined it all without annealing. The coin thus produced was so tough that an ordinary man could not break a sovereign even by the aid of a pair of pliers.⁠[31] Yet when these toughened coins were annealed, they became so brittle that a child could break them readily. In the Royal Mint some of these coins in each state are preserved. Mr. Graham, then ever anxious to secure to the Mint any advantage, was pleased to address to the Treasury a letter on the subject of this gold, in which he said, “A correspondence between the Governor of the Bank and myself on the brittle property of the gold occasionally imported into the Mint to be coined was formerly brought under your notice in my letter of the 21st March, 1857. The evidence of the evil in question was not confined to the Royal Mint, but has, I believe, been felt at all other mints, and also by goldsmiths generally, since the recent gold discoveries. It was traced to the presence in the gold of a minute portion of antimony or arsenic (often not greater in quantity than one-tenth of a per cent.), which escapes the observation of the assayers. But no remedy in dealing with such gold then presented itself, except the expensive one of having the brittle gold refined.

“An unusually large proportion of the gold received for coining last year was of this defective character, but the whole of it was successfully coined notwithstanding, and no part returned to the Bank to be refined, as on former occasions.

“This improvement in the practice of the coining department is the [Pg 51] result of a laborious investigation made in the coining department, of which I am happy to assign the chief merit to Mr. Ansell.

“It now appears that the antimony or arsenic acts injuriously when the gold blanks are allowed to cool gradually, but not when cooled suddenly, after annealing, the gold appearing to have time to crystallise and become granular under the influence of the antimony particles in the one case, but not in the other. The improvement may be justly represented as one of considerable value. It saves entirely much extra labour hitherto applied to brittle gold without any beneficial result. It will also lead to the diminution of waste, of which brittle gold was always a fruitful source.”⁠[32]

I do not accept the conclusion arrived at by Mr. Graham, for my experiments showed clearly that this peculiar gold could not be heated even to a black heat after coining without becoming absolutely brittle under all circumstances. Notwithstanding the experience gained by the coining of this brittle gold, the annealing of coined money was effected by the present authorities at the Royal Mint in 1868, when a vast amount of brittle gold was coined, of which considerably more than half a million sterling in coined pieces were annealed and plunged into cold water, just as was done in 1859, and with precisely similar effects; that is, the production of brittle pieces, as soft as lead and perfectly rotten. These pieces were sent to the Bank of England, where they have given great dissatisfaction. They should have been melted, as were those of 1859. I, being an officer of the Mint at the time, offered to coin this gold as I had coined that in 1859; my offer was declined, and a vast mass of very brittle coin was, in addition to that of which I have spoken as having been annealed after coining, issued to the public, besides many thousands of ounces uncoined having been returned to the Bank of England by the Mint authorities, who found themselves unable to coin it; these facts being, as I think, little to the credit of the official ability.

The Right Honourable Lord Kinnaird, with a view to relieve the Mint authorities, suggested, on the 22nd of March last, from his place in the House of Lords, a proviso “that such gold”—specified in clause 8 of the Coinage Bill then under discussion—“should be free from lead, [Pg 52] antimony, and other substances, so as to admit of its being coined without previous refining.” The Government promised to consider this suggestion, and, after consideration, rejected it, although the right thus proposed to be established has always been claimed by the Mint but disputed by the Bank of England. His lordship then drew the attention of the House of Lords to the issue of the brittle sovereigns, to which I have alluded, as having given so much dissatisfaction at the Bank, and on the 25th of March, the following letter appeared in the Times:—

Attention being thus forcibly drawn to a great evil, the Marquess of Lansdowne, in reply to Lord Kinnaird’s remarks on the appointment of Mr. Roberts, stated that “Mr. Roberts was a very eminent chemist, who had proved his capabilities by devising a system for depriving gold of the obnoxious properties on which the noble lord recently commented.” Lord Kinnaird has already pointed out that this process, which the eminent Mr. Roberts has “devised,” was discovered by Dr. Percy, and that the process was published by that gentleman so long since as 1848. Dr. Percy conceived the elegant idea that if a stream of chlorine gas were passed over an ore containing gold, the chlorine would combine with the gold and dissolve it out from its matrix, as water would do sugar. This it does with complete success, forming a chloride of gold which is readily soluble in water, and from which it can be obtained with the utmost ease.

With regard to the invention of the process for which Lord Lansdowne gave Mr. Roberts credit, the facts of the case stand as follows. Dr. Percy discovered that by means of chlorine gas he could separate gold from its ores. He described his invention in the Transactions of the British Association in 1848, and in the Philosophical Transactions in 1850. Plattner carried it out practically about 1852 in Silesia, and I, in January, 1856, conducted a long series of experiments upon it for the Chancellorsville Gold Mining Company. The exact process now proposed or “devised” by Mr. Roberts was patented by Mr. Miller, the present assayer to the Sydney Mint, in 1867—No. 1767. When Lord Lansdowne finds himself thus deceived, he will probably in future think it necessary to examine statements suggested to him before making them from his place in the House of Lords.

This new process consists in forcing chlorine gas through melted [Pg 53] gold, and it is assumed that the chlorine will carry off the silver, lead, antimony, tin, and arsenic, which render the gold brittle. On the face of the proposition, there are very grave reasons for believing that it will fail if tried. This also is the deliberate opinion of the most eminent metallurgical chemist of this or any other time; indeed, it has been tried and found a failure. It has failed of its object, and instead, attacks the gold, which, with the chlorine, will leave the melting-pot and pass into the chimney, creating a use for the proposed chimney chambers of Mr. Roberts.

Experience at the Mint is to the effect that the run of gold ingots produced by the melting of worn and light coins culled from those in circulation is found to be worse than standard by 1-500th, or two in each thousand parts. There can be no doubt but that this is mainly due to the fact of the loss of copper by the processes of annealing and blanching. In actual practice extending over many millions, it is found that 1,000,000 sovereign blanks lose 5,708 grains of copper: now, since this copper is removed from the surface, it leaves a sponge of pure gold coating that surface. Pure gold is very soft, and rapidly wears away, so that when the coins from which 5,708 grains of copper have been taken go into circulation, this film of gold, which amounts to £555·62 on each million pieces, is removed by friction. It will probably be argued that the copper being taken first and the gold afterwards, leaves the coin of the same standard as the original bars;⁠[33] if, however, this proposition be examined, it will be seen that the bars are assayed and found to be below standard 0·55562 on the thousand coins; but the blanks obtained from the bars are, by annealing and blanching,⁠[34] brought to standard before they are coined, and those coins assayed WHILE NEW are found to be standard by the jury of goldsmiths at the trial of the pyx, because they retain this film of gold; let them, however, go into circulation and lose their film of gold, and they will be reduced to the original composition of the bar; that is, worse than standard 0·55562 in the 1,000. The trial of the pyx⁠[35] is supposed to be a great protection to the people against deterioration of the coinage. This opinion is not entertained by those who have witnessed the whole operation, for then it is manifest that the copper is sufficiently oxidised while melting to insure the alloy containing enough gold to enable the jury to find it “Fine, 4 grains on the pound,” or any other degree of fineness. There can be no doubt that the jury should be composed of men knowing something practically of assaying, and who would not hesitate to publish every detail of the process adopted, stating specifically the amount of loss incurred by melting the ingot produced from the selected coins. That the jury is composed of honourable men—goldsmiths—is beyond doubt; but that these goldsmiths should know how to assay is also an important matter, and [Pg 54] should be a sine quâ non. It would be well if some independent member would move the House for a return of the assays by the Mint of ingots produced from worn and light coin received from the Bank of England.

Having thus specifically stated in my previous editions the facts as they exist of our coinage, I waited a refutation of my statement. I was informed that the Bank of England had made careful assays, and proved that the worn gold coin was not below the standard of fineness. I was also informed that bullion merchants in London had obtained newly-coined sovereigns, and by means of a scratch-brush had removed the film of pure gold of which I spoke, and upon a re-assay no difference had been detected. My reply was, and continues to be, the assays were either made by bunglers or were carelessly made, while with regard to the statement related for the Bank of England, I simply refused credence because in my own knowledge that Institution has been greatly puzzled for years as to the reason of the lower assay, and it was myself who pointed out the cause to Mr. Thomas Graham on the 4th January, 1860. That gentleman mentioned my suggestion to the then chief cashier, who preferred to think “it was due to the base coins which found their way into the Bank.” I said then as I think now—“I believe the officers of the Bank of England are far too sharp to take one base coin in five hundred.” This reply settled the discussion.

That the light and worn coin is habitually below the standard is conclusively proved by the fact that if any man should take, as the great Duke of Wellington did, a thousand sovereigns to a jeweller’s to be made into plate—and his Grace took coined money that he might be sure to have plate of the fineness of 22 carats, or standard gold—he would find, as the duke found to his cost, the plate “cut” at the Goldsmiths’ Hall as being below standard. That the case still exists is so well acknowledged by jewellers that they invariably add “fine gold” when they melt coin for plate which is to be stamped with the Hall mark.

“Monetarius,” who wrote to the Times from Malvern—where, singularly, Mr. Thomas Graham was then residing—and Sir John Herschel, quoted in their letters to the Times the report of a Belgian chemist to prove that our coinage is invariably standard. Such authorities seemed to quiet public opinion; but Lord Kinnaird moved on two occasions in the House of Lords for the “Returns of assays by the Mint of ingots produced from worn and light coin received at the Mint from the Bank of England.” The Government firmly refused these returns on the alleged ground that they were “too bulky;” Lord Kinnaird, however, explained the true cause of the refusal when he said that these returns would conclusively prove that the gold coinage, when worn, is habitually below the standard, as is also shown by Mr. Ernest Seyd in his letter of the 20th, inserted in the Times of the 21st August, 1869:— [Pg 55]

“... The British public are under the impression that English sovereigns stand highest as far as correctness in quality is concerned. In reality, the British gold coin falls much more below its standard fineness than French, American, and Russian coin.... But the best proof of the greater inferiority of the British gold coin is given by the action of the Bank of England. The Bank of England cuts light gold coin, and so renders it unfit for further circulation. The holder of such coin thus loses, in the first place, the value of the gold worn away by abrasion, and the cut sovereigns are handed back to him as being now only bullion (the loss so far amounts to from 1d. to 4d. per sovereign); the bullion now remaining is the metal of which the coin had been made, presumably at the rate of 77s. 10½d. per ounce, and worth that much, or, at the Bank rate for buying gold, at least 77s. 9d. per ounce. Yet the Bank of England will not give more than 77s. 6½d. for it. Worth at Mint price, 934½d., the Bank pays but 930½d. per ounce—a deduction of 0·43 per cent.”

I need not express an opinion upon such a case so stated; but I can quote one of far higher value, for Mr. J. G. Hubbard, who is a profound authority, says, in his letter in the Times of September 4th, 1869:—

“This inaccuracy of our Mint assays was pointed out by Mr. Seyd in his intelligent and well-informed letter of the 20th ult., and I can corroborate his observations by my own experience of sovereigns sent to Russia, where the Mint, more exact than our own, ranked sovereigns at fully ⅛ carat grain worse than standard.”

Let us now see what steps are taken by the authorities, and then judge of their motive for introducing a reform so greatly needed, and which would never have been attacked had not I unceasingly urged it since 1860. In his Report on European Mints, Mr. C. W. Fremantle says:—

“I have therefore received with much satisfaction the expression of Mr. Roberts’s opinion that the process of blanching may, as far as gold coin is concerned, be discontinued without detriment to the appearance of the coin. It is this process which leads to the deterioration of standard found to exist in gold which has been for some length of time in circulation, and in consequence of their Lordships’ decision that light gold coin shall for the future be received back by the Mint for recoinage, the question becomes at this moment one of PECULIAR IMPORTANCE.”

I have emphasized some of the passages as showing that this decision is very like that of the unjust judge—not so much from conviction of right as from the necessity of the case. I do not charge the Mint with yielding to importunity; but being made to bear the loss, they are willing to amend that which they now openly admit to have been a wrong. Why is the opinion of Mr. Roberts quoted? why not some of the great officials at the Mint? Silence on this head is significant. Mr. Roberts will hardly desire to claim a discovery which he found in my last book, for he, too, bought one of the first copies which were sold. That I may not appear to be claiming that which is not my own, I quote the words from Mr. Roberts’s report:—

“It is evident that bars slightly below standard may be allowed to pass to the subsequent operations of coining, on the assumption, justified by calculation, that the blanching would be attended with a sufficient elevation of standard to bring the coins within the limits of fineness prescribed by law. The film of soft pure metal, however, is removed by wear; and the coins, when remelted, will consequently be found to be below standard fineness.

“This is a question of some importance NOW that the Mint has undertaken the operation of re-coining light pieces, and I would recommend, therefore, that the process of blanching gold coin should be altogether abolished.”

The italics are my own, and if the words so pointed out be read with reference to those I have persistently used, there can be but one [Pg 56] conclusion, Mr. Roberts having had but a few months’ experience in the Mint, notwithstanding Mr. Fremantle’s reliance on his judgment.

As regards the trial of the pyx, useless and mischievously deceptive as it is shown to be, the Act of Parliament, 33 Victoria, cap. 10, makes it imperative to give this excuse for a dinner at the Goldsmiths’ Hall at least once a year. Had the Government assented to the proposition of Lord Kinnaird, and nominated the Professor of Metallurgy for the time being in the Royal School of Mines, one of their own officers, and who at present is the most distinguished of metallurgists, foreman of the jury, the country could have relied upon the verdict now given honestly enough; but upon inadequate knowledge, indeed, if the reader will refer to pages 10-12, it will become clear that so delicate a process as assaying should be watched by those who can appreciate its refinements, or its results can possess no judicial value.

I attended the trial of the pyx, which was held on the 17th July, 1860, with an especial view to, and an avowed intention of, publishing details of the operation. With a desire to further this object Mr. W. H. Barton, the then Deputy-Master, gave me the following particulars, and I, for myself, observed that the coin when melted was placed in an open crucible, without flux, and for part of the time without a cover: the ingot produced was of a GOOD BLACK colour from the oxidation of the copper. The objections to such a melting can hardly be exaggerated, and I am of opinion that however fairly selected—and they were honestly taken—1·310 ounces is not a sufficient bulk on which to form an opinion as to the purity of £24,654,849 of gold coin.

The authorities of the Mint, having assented to part of my proposition, have yet stopped half way, and blindly considering that the blanching alone was the cause of loss to and fictitious value of the coinage, they will find that their loss is greater now than it was when they unwisely permitted blanching. I do not point out to them the reason [Pg 57] why—that is now their business; but I confess that I am a little amazed at Mr. Roberts’s recommendation—one that was given up by the moneyers before he was born, yet now gravely made by that gentleman in these words, “I should prefer that in order to prevent needless wear to the dies, the blanks should be annealed, after every trace of oil has been removed by washing with the aid of alkali, the utmost care being taken to avoid oxidation by exposure to air.” One seems to see Mr. Roberts in the presence of men who would dwell on his instructions as would a soldier on those of his general, directing the filling of a copper tube with gold blanks, previously divested of “oil by alkali,” so as to leave a film of lime soap neatly protecting their surface, and covering them with powdered charcoal. The tube so filled will be duly placed in the furnace, duly heated, and duly plunged into the cistern of cold water by the foreman, who, having taken an insurance ticket from the Accidental Death Company, feels quite safe, when, suddenly, a mass of copper and some pounds weight of gold blanks occupy the space from which it is hoped his head may have retired in time. Quite seriously, I have seen the cap of a tube blown suddenly off, and the blanks projected from the tube so plunged into water—from the same cause that bursts a kitchen boiler when cold water is admitted to one already red hot—with such violence as would certainly kill a man if he chanced to be in the line of fire. Do they not at the Mint understand the true cause of loss? An officer who tells his men to “go and do,” is not so likely to effect his object as if he were to show them “how to do” the work required of them; neither “bullying” nor making the men pay for losses will stop those losses of bullion. Knowledge alone is power. Knowledge alone can direct. Knowledge alone is required in the Royal Mint. There are plenty of men there who are most desirous to carry out any instructions; but, if the bugle give an uncertain sound, who can obey?

The effect of the annealing having been thus dwelt upon and explained, I will continue the description of the subsequent operations, stating what was formerly done and what had better be recurred to till experience is gained by those who are entrusted with the management of the Mint. After about three minutes’ boiling in dilute sulphuric acid, the blanks in their colander were washed under a stream of cold water, to remove the sulphate of copper and the sulphuric acid from their surfaces, otherwise these substances would deface the dies used for coining, as well as give the coin a dirty appearance. From the washing they were taken to a sieve of sawdust, A, Fig. 16, into which they were thrown to be dried by friction with the hand. A revolving drum of brass lined with wood has lately been introduced for this purpose. The objections to this form of apparatus appear to be that the blanks get hardened by blows, through falling against each other, lose more in weight, and become indented on the surface, thus producing a less [Pg 58] perfect coin. It had been wiser to have introduced a sieve with an eccentric motion, which, if filled with sawdust, would shake that dust between the blanks and dry each one perfectly, when, by the removal of a false bottom, the sawdust could be allowed to sift itself from the blanks by one or two turns of the sieve, and the latter would be as soft as they invariably were before the introduction of the brass drum. This would be a matter of importance if, as is to be hoped, the authorities are induced to abolish the process of annealing and blanching, for then it would still be necessary to remove the film of oil which is left on the blanks in the cutting-out process, and this could be done more quickly and effectively in the proposed sieve than by any other process. The sawdust absorbs the water from the surface of the blanks just as would a piece of sponge; but the surface is not all, for it is found that by the removal of the copper the gold on the face of the blank has been brought almost into the condition known as frosted; it is, in fact, to a small extent, honey-combed. The gold represents the comb, and the copper the honey, but as the copper is removed, water takes its place, and has to be dislodged from these interstices by heat. The blanks, having been partially dried in the sieve A, are put into the tray B, and from this they were shot into the colander oven C, which was closed, and then thrust into the heated chamber D, and twisted gently round and round at intervals during ten minutes. The blanks were then turned out into a sieve E, by which any particles of dust were separated; the blanks were finally, by the aid of the tray B, placed in a bag. The sawdust fell from the sieve A on to a plate of iron heated by the furnace E, by which it was dried, and became ready for another operation. The chamber D was heated by a small furnace beneath it.

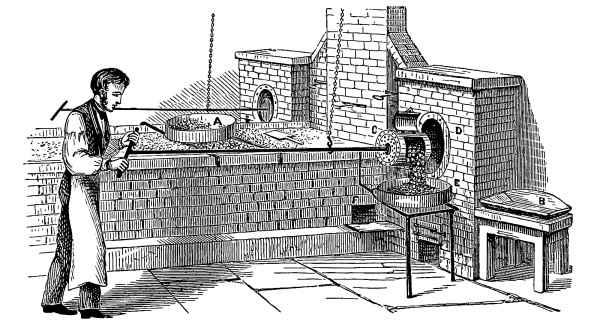

Fig. 16.—Drying Room.

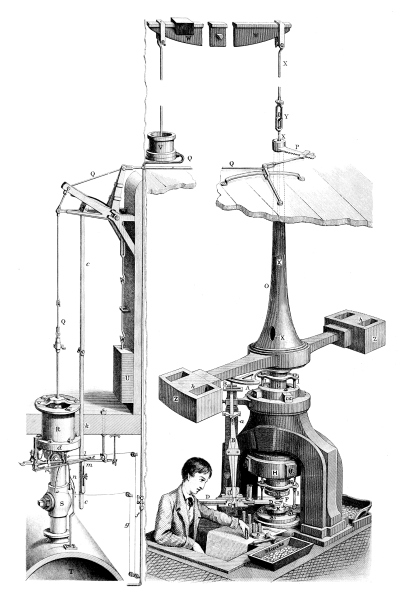

BOULTON’S SCREW-COINING PRESS.

AS USED IN THE ROYAL MINT.

[Pg 59] The blanks, having been thoroughly cleaned after annealing, are taken to the coining press, which at the present time is, as to efficiency, about what the old water-wheel is to the steam-engine; yet, as a relic of the past, it is a magnificent conception. It is perhaps the most interesting in its work of any of the coining machinery; its action is truly pleasing to watch, but one must feel that the totally deaf would enjoy the watching it at work more than do those who are endowed with the sense of hearing, because the noise of the presses would not disturb their thoughts. The noise is really painful. In these opinions Messrs. Fremantle and Napier express entire concurrence. The blanks taken from the colander oven are each by a single blow at this machine converted into coins possessing the obverse and reverse impressions, as well as the crenated edge, which is one of the means employed to protect the coin from the peculations of the clippers, those enemies to coin of all ages and all countries, but whose business has departed, not so much from the crenated edge as from the better balances placed in the hands of almost every man—certainly within reach of every man. The crenated edge is known to be no protection against the plan called “sweating,” and which is effected by shaking the new coins in bags, when perhaps an ounce of gold may be obtained from 1,000 new sovereigns. The sovereigns thus treated are passed, and the operator makes his profit, but the light gold is detected by the balance, not by the eye. This is not the place to discuss⁠[36] such a question, so that we pass on to a description of the machine which is used to give the image and superscription to coins which will be current in accordance with the law.

The steel engraving illustrates Mr. Boulton’s screw-coining press. The blank is laid by the automaton hand D on the lower die F; D retires, and the collar then rises and encloses the blank, while the upper die, fixed to the main screw of the press by the securing apparatus M, comes down with a blow estimated to be about forty tons, and, striking the blank, causes its particles to re-arrange themselves, and to assume the form given by the engraving on the dies and the crenated collar which surrounds them;⁠[37] in other words, the plain blank becomes by one blow a coin in every way complete. The following description will convey to the reader an explanation of the processes as they arise. The press having been set at rest, with the fullest space between the dies, is called up—that is to say, the upper die has been raised from the lower die, and in this position the automaton hand D has conveyed a blank from the tube E to, and holds it over, the lower die F; upon the first motion of the press downwards, the eccentric wheel or cam A causes the lever B, which works on the pivot a, to withdraw D by the pin C. The lever B may be lengthened or shortened at pleasure by an arrangement against the lower B. The first motion towards the withdrawal of D causes its finger or hand to open, and to release the blank, which falls upon the face of the lower die. The opening of the finger, or hand, is effected by a pin which works in a slit in the movable finger of D, near to C. The continuation of the motion which draws back D, causes the rods I, which are carried by the main screw G, [Pg 60] to release the collar K, by the levers J. The collar K, being thus relieved from downward pressure, rises by the elasticity of the springs L until it wholly encloses the blank which has been left on the lower die. The rods I pass through the shoulder of the frame of the press, and are destined for another service besides that just described; for the main screw G, which travels through a female screw fixed in the frame of the press (as may be seen by the dotted lines between G and H), thereby receives its power to rise or fall upon each part of a revolution, whereas the upper die must strike the blank a blow just such as would be struck by a hammer, and without a twisting motion; therefore that motion of G is lost just below H, where G fits into a cup suspended rigidly on, and is prevented from twisting by, the rods I, as shown at N. To the lower part of the cup N is fastened M, which carries the upper die. So that, just at the moment that the levers J have permitted the collar to enclose the blank, the upper die reaches the full force of its blow, and comes upon the blank. The force of the blow, by converting the blank into a coin, causes an instantaneous recoil of the screw G, which is assisted in its rise by a kind of balance just equal to its weight. The nature of this arrangement will be better understood by reference to the engraving, where the funnel-shaped tube O is seen to be traversed by a rod X, represented by dotted lines, and which terminates in the head of the screw G near the lowest X; the opening in the funnel being for the convenience of fixing this rod to G. At Y is a swivel, where the twisting motion of X, given by G, is lost. X is connected at its upper end with a balanced beam W, the other end of which is in communication with the chamber V by a rod which carries a piston working in V. The chamber V is not wholly exhausted, but is in connection by a tube with the partially-exhausted chamber T, an arrangement which, while it becomes a counterpoise to the weight of the press, is used as a regulator of the blow to be given, so that it is quite possible to coin blanks of differing denominations by the agency of this chamber without altering the vacuum in the large vessel T.

The motive power of the press, that which brings down the die with force, is gained by the pressure of the atmosphere upon a piston in the cylinder R, and is conveyed to the press as follows:—The lever P is fixed firmly on to the trumpet-shaped tube O, and is connected by a series of rods, Q, with the piston in R, from which the tube S communicates with T. The large chamber T is kept in a constant state of partial exhaustion by the action of a thirty horse-power steam-engine, through a well-made iron tube of considerable length. The boy who works the press starts it by first pulling a cord f, terminating in the box in which he sits; the cord f, by its spring n, releases the valve d at i, and permits it to act when required; he next pulls the cord g, which by its loose lever opens the valve j, through which the atmosphere passes freely [Pg 61] across the bottom of the piston in the cylinder R into the tube S, and so into the partially-exhausted chamber T; this would cause a rush of air through the valve d, but d, at the instant of its release by the line f, is closed by a spring. Atmospheric air expands instantly if the pressure be removed from it, so that immediately on the opening of the valve j, the air beneath the piston in R expands, and part of it, entering the chamber T, produces an unequal pressure upon the upper and lower sides of the piston, and the result is that the piston is forced down by the weight of an atmosphere it is unable to support. By the time that the piston has completed its stroke, the rod c has brought a button, which it carries on its farther side, and situated at k, down so low that it strikes the lever l, and closes the valve j, thus stopping the expansion of air below the piston, while the button m has at the same instant permitted the falling of the lever e, and the consequent opening of the valve d; when the recoil of the screw G takes place, the piston in its descent expels (by compression) the small amount of air remaining in the cylinder R through d, thus opening it so that air can rush in at this valve and permit the rising of the piston. The rising of the piston insures the removal of the button at k, and so soon as k is removed, l is forced up by a spring at its farther end, and opens the valve j, thus giving the means of consecutive action to the press. If it be desired to stop the press, the boy loosens the line f, and so permits the spring n to keep the valve d permanently open. The boy, before supplying blanks to the tube E, piles them on an iron block b, and flattens each blank in the pile by one or two blows of a hammer on the top of the pile.

In “European Mints” are some apt words, with which I conclude my remarks on this great invention of Mr. Boulton—great beyond compare at the period of its birth, great beyond admiration if its results be estimated faithfully and gratefully by a thoughtful people. We in our day are indebted to Mr. Boulton for his press; yet its age has passed, and as a park loses its timber, so must our Mint lose—sorrowfully to all who love the past—its glorious mementos of men who dwell in history to make present men mere manikins. Original minds are not now tolerated; subservience if you will; but invention—not if a man values or depends upon his office. Mr. Napier says truly, “The press just mentioned and its apparatus are complicated, scattered, and unhandy, reaching into three apartments, and require a foundation of great solidity, and a special construction of building. The noise and vibration accompanying their performance are disturbing to a greater extent than in the case of the blank cutting screw press to which reference has been made.”

It has been conceived that coins are made of two discs of metal soldered together, and that the crenated edge is intended to hide the join. This notion has arisen from the occasional appearance of a cracked coin in circulation; the true explanation of the cracked coin [Pg 62] being that at the time of pouring the fluid metal into the mould, an air bubble has been enclosed, and this air bubble has rent the fillet asunder at the time of its being rolled; but the separation does not exhibit itself until the final annealing, when it is too late for its discovery: recently, however, it has become a custom to ring the coined gold before it goes into circulation, and thus to detect and stop such defective pieces.

Fig. 17.—Petition Crown.

Fig. 18.—Inscription on edge of the Petition Crown.

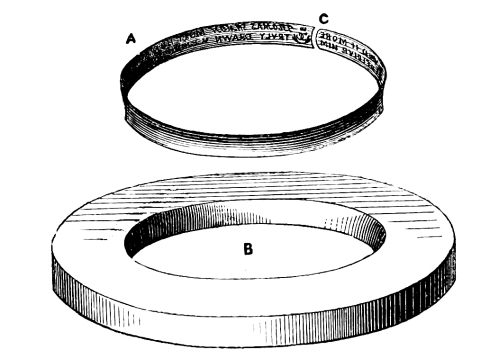

Fig. 19.—Fillet and Collar.

The origin of the crenated, commonly called the “milled,” edge (thus giving the name of the instrument to the substance operated upon), was the desire to make any clipping of the coin easily noticeable. Many devices were used, but John Evelyn suggested the motto, Decus et tutamen,⁠[38] and this was retained for some coins until 1854. The crenated edge is now produced, without exception, and it is really the best, as admitting of easier detection if counterfeited. The distinctive marking of the edges of coins is of very early date, and was performed by various species of hand labour, each in its turn easy of falsification. At length this was effected by machinery, until finally the coin was formed by striking the blank while enclosed in a collar. The use of the collar, and its first invention, are somewhat doubtful; Mr. Hawkins, however, appears to have established the fact of its having been used at so early a date as William the Conqueror (vide “Ruding,” vol. i. p. 158); but the earliest coin which gives a clear notion of the use of a collar is the celebrated Petition Crown of Simon, which he coined for and presented to Charles II. Fig. 17 represents this very highly-prized coin, one of which was sold a few years since for £275. This wood engraving is by Messrs. Cheshire and Dickenson, from a fac-simile drawing taken by Mr. E. S. Gibson; it is an exact copy of the coin in the Mint collection. It is surrounded on its edge by a petition in raised letters, of which Fig. 18 is [Pg 63] a fac-simile. The late Mr. W. H. Barton thought that this coin must have been struck while surrounded by a collar, or it could not have been produced at all. This opinion induced a further search for the collar which was used, and which is believed to be in existence, and to have been seen by men now living,—it is probably amongst the collection of curiosities of coining left by Mr. W. H. Barton. Mr. Barton suggested that the petition must have been engraved on a fillet of steel, which was then coiled up in a collar, as indicated by Fig. 19, and that the blank to be coined was then placed in the coiled fillet of steel. The coin having been struck, the fillet with the coin was knocked out from the collar, just as medals are now knocked out; and, once free, the fillet sprang off from the coin. This conjecture was so strongly confirmed by minute examination, that it may be interesting to represent the mode of operation by means of Fig. 19, where A is the engraved fillet coiled up and just ready to drop into the collar B; the opening C which is left is copied from the petition on the coin, which shows the metal to have been forced through this part of the fillet, where its ends, which were cut to fit each other, did not quite meet. The head of this protruding part has been filed off, the file marks still remaining visible on this part of the edge of the coin. This fact renders Mr. Barton’s conjecture almost a certainty. The coin weighs 517·10 grains; its average diameter is on the obverse 1·5784 inches, and on the reverse 1·5837 inches, both measures having been taken on the extreme edge. The petition is somewhat sunken and rounding inwards; if therefore it be measured from its lowest part, the centre of the edge of the coin, the diameter of the coin is 1·5741 inches, giving 0·0043 inch which must be worn away before the top of the letters of the petition can be touched in ordinary wear; thus the coin would circulate for centuries, and its petition still remain untouched. The coin being 0·0053 inch greater in diameter on its reverse than on its obverse side, admitted of its being more readily punched out from its collar, which was doubtless cut to admit of this design being carried [Pg 64] out. The engraving on this coin is the cause of its great value, Simon having so perfectly carried out the idea that coins should represent sculpture, that this specimen stands wholly unrivalled as a coin. It has led to the impression that so good artists are not to be found at this day as flourished then. The fact is that artists seek such employment as remunerates them for their study; and until their conditions of employment are satisfied we must abstain from the desire to see coins such as were produced in ages past, and which gave an honourable name to the country producing them. It may be hoped that this means of preserving the history of the age in which so much has been done may be continued. It was probably from this collar of Simon’s that Sir Isaac Newton gained his idea for that which he is said to have invented. The collar of the present day leaves nothing to desire, for it gives so distinctive a mark to the edge of the coin that any mutilation must be detected; while forgers are unable to produce coins to imitate those struck in it, unless they use the same means, which would incur too great an expense. The coinages of Victor Emmanuel illustrate beautifully how easily coins may be struck, so that, after years of wear, they still represent the original more than creditably. To take an instance, a bronze coin, 5 centesimi, has been purposely subjected, for nine years, to more than ordinarily rough usage. This coin is little worn; the whole of the features are still perfect, except that the hair is worn off above the ears, and part of the moustache is removed. The secret of success in this coin appears to be that the ear and adjacent parts are slightly sunken, while the whole of the work and inscription are kept well below the protecting edges, and there is not an indistinct figure or letter on the coin.

In the British Mint false notions lead its authorities to believe that apparent saving is real economy; so far from such being the case, if our coins carried a better design they would not only look better, but wear longer, and still maintain their weight. While it is my intention to allude in another place to the large loss occasioned by our silver coinage, I submit to the reader the facts arrived at by Mr. William Miller, the late chief cashier in the Bank of England, who devoted great attention to the rate of wear of coins. He found that coins which had lost their protecting edges wear far more rapidly than those with a protecting edge, and showed me tabular statements demonstrating that fact. It was the intention of Mr. Miller to publish these tabulated results. However, his painfully early removal has, I fear, prevented that benefit being given to the public. His brother has no knowledge of their having been published; but Mr. George Forbes, the chief cashier in the Bank of England, has courteously given me a table closely allied to those of which I speak, and another to which I shall refer hereafter. I now, with permission, print this table, showing the rates at which coins of the different reigns have worn, and which rates all tend to prove clearly Mr. Miller’s opinion to have been correctly formed. The fact of the increasing rate of wear would appear to be explained by the larger surface exposed to friction by the removal of the protecting edge. When a little later I come to the discussion, on page 155, of the second table, I shall have occasion to say a few more words on this, which seems to find a fitting place on the preceding page, but contains matter which will cause too great a digression if dwelt upon now. [Pg 65]

A Statement showing the Results of some Experiments made upon a Large Number of Silver Coins, of which 169,000 were examined singly, with the view of ascertaining the Present Condition of the Silver Circulation, and the Loss by Wear.

It should be observed that the average of loss by wear in a century, given in the Table, is founded upon the wear which the several coinages have undergone up to the present time; but as the rate at which a coin wears is an increasing rate, it is obvious that the actual loss in a century would be much greater than that here given:—

• LEGEND:
• (A) = Average of Loss by wear in 100 Years, at the rate at
• which the Coinages of the several reigns have worn,
• up to the present time.
• (B) = Loss by wear on Amount withdrawn.
• (C) = Loss by wear on Amount in Circulation.
• (D) = Number of Coins examined singly.

[Pg 66] As further showing the rate of wear, I append a note which I have copied from the eighth volume of the Journal of the Society of Arts, written by Mr. John Miller, to whose courtesy I have often been indebted, and who shows that the general rate of wear is rather higher than would appear from the above facts, for his figures prove a loss by wear to the extent of £4 11s. 8d. on a hundred sovereigns in a hundred years, as will be seen in his letter which follows:—

That I may convey as accurate information as possible I also give the following tables from the same volume of the Society of Arts. These tables seem so clear as to render detailed explanation unnecessary. It would appear that coins wear pretty much in proportion to the kind of usage they receive; for Professor Jevons, in his pamphlet “On the Condition of the Metallic Currency of the United Kingdom,” shows indisputably that at the West End of London they suffer less than at the East End, where they are thrown with force on rough and often sandy benches while at the West they are treated with more consideration.

Results of some Careful Examinations made in 1858 of Light Gold and Silver Coin of the Early Years of the Present System of Coinage, 1817 to 1825, taking 1822 as the mean of those years.

• LEGEND:
• (A) = Mint Weight of each Coin.
• (B) = Mint Weight of £100 worth.
• (C) = Weight of £100 worth of old Coin.
• (D) = Loss in 36 Years, 1822 as the Mean.

The above data applied to 100 years give the following results:— [Pg 67]

• LEGEND:
• (A) = Mint Weight of £100 worth.
• (B) = Loss of Weight of £100 worth in a Century.
• (C) = Loss of Value in a Century.
• (D) = Loss of Weight of each piece in a Century.
• (E) = Loss of Volume from 1,000 parts in a Century.

In this interesting table Mr. Miller curiously shows that the loss of value and of volume bear equal relations to a coin, from which I infer that he went so far as to measure determinately the amount of water displaced by such coins as are referred to in these very valuable researches; that he possessed a rigidly honest mind I know from occurrences in my own dealings with him, and therefore I am sure his figures are the results of actual experiment, and so, entirely reliable.

These facts show that before it is determined to withdraw our coins when they have reached the age of eighteen years, the Mint authorities should produce coins with a more perfect protecting edge, as was done at my suggestion for shillings and sixpences, and then by abolishing the annealing of blanks give to our coins a medium hardness so that they will be able to bear comparison with the Italian as regards wear and tear, and retain a juvenile appearance after the exercise, instead of their present smooth worn surface.

The method of manufacturing the collar with the interior crenated circle, which is employed to give the protecting edge to the finished coin, is very simple:—A piece of flat, soft steel is bored with a hole of the required diameter, and is fixed in a lathe so that it may be made to revolve rapidly at pleasure. While the partly-formed collar is revolving in the lathe, the slide-rest is made to place a kind of cogged wheel, carried on a rod of steel, into the hole which has been bored; by a screw in the slide-rest, the cogged wheel is brought down until it touches the inside of the partly-formed collar; at the moment of contact, the cogged wheel is turned round by the friction of the collar against it, and its continued pressure upon the inside of the collar causes the latter to receive an imprint from the cogged wheel. When the imprinting is complete, the collar is hardened, and it is then fit for use at the coining press. The system of manufacture is supposed to be the most perfect; but it is manifest that no two collars are produced of exactly the same internal diameter; hence the coin issuing from each collar of the same denomination must, as it does, vary in diameter; but this is of small consequence, the difference being so minute that it is not detected unless by very accurate measurement; indeed, coins coming from the same collar must vary in size, since the [Pg 68] collar wears away by use to a certain extent. The diameter and consequent thickness of a coin are not determined by law, but by its suitableness for the public to whom it is to be issued; consequently the usual mode of arriving at the diameter of a coin is to make it of such a size that it will emit the most musical sound it is capable of. This rule was not sustained in the case of the small florin—better known as the “godless florin;” hence, coupled with the omission of the Dei Gratia⁠[39] in its superscription, the coin fell into disfavour.

The following measurements, taken from a set of proof coins of the present reign, will convey an idea of the probable size of any coin of the realm; but from the reason before stated, a man need not be disappointed should he find the diameters differ from any he may examine by an accurate gauge. While stating the diameters (which never vary beyond a few thousandths of an inch), it is thought proper to give the legal weight and legal tender⁠[40] of each denomination of coin current in Great Britain:—

The press for coining is still defective: one of its defects is the production of imperfect coins, of which Fig. 20 is a common type. It is produced by the failure of the automaton hand to place the blank exactly on the lower die, so that the collar, when it rises, fails to enclose it; hence, when the upper die descends to strike the blank, only that part of it which is over the die is impressed, the collar being forced down by the pressure of the other part of the blank upon its upper surface. On other occasions the automaton hand drops its blank too early, or fails to bring it forward at all: on such occasions it sometimes receives a severe pinch, and retires with an impression [Pg 69] produced on its end by the dies; and on either of these occurrences, the dies may come forcibly together, and disfigure each other, so that the next coin which is produced carries with it on each side a faint impression of both dies as well as its proper impression. This could never happen if the levers which carry the weights Z on the screw of the press performed actually the whole of the functions for which they are designed. A contrivance has been adapted to the coining presses to stop their action should the automaton hand fail to bring forward a blank for coining. This, after months spent in attempting its use, is set aside because it increases the evil it was intended to remedy. Fig. 21 is a representation of an imperfect half-crown which had been submitted twice to the process of coining, and by oversight passed into circulation in 1818. It had been current, and was taken in ordinary change in July, 1861; it is much worn, but on each side may be clearly traced the impressions of the obverse and of the reverse, singular effects being produced where the crown of the reverse fits so neatly on to the back of the head of his Majesty; and where, on the obverse, the shield displaces his Majesty’s face. This could hardly have been an accidental occurrence; it would seem that the workman of the press must have struck the coin properly, and then taken some pains to fit it into a larger collar and give it a second blow. If the collars were all of precisely the same size such an act would be impossible; but there are sufficient variations in the size of the collars to admit of this explanation. Some accidental productions have been called by ignorant writers incused coins, and conjectural histories of them have been published; when, in fact, their history is simply this: it so chanced that the coin last struck remained upon the upper die, and gave its lower-side impression to the upper side of the next blank which was coined. This is no uncommon occurrence, and the effect of it would be that such a coin would have the same device on each side; but of course one would present the design in relief and the other in intaglio.

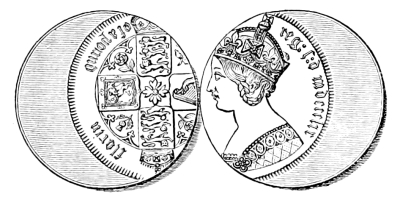

Fig. 20.—Brockage.

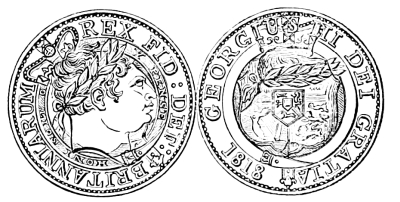

Fig. 21.—Brockage.

Such being some of the imperfections of Mr. Boulton’s coining press, it may perhaps be assumed that they can be readily overcome; but I am not aware of the existence of any press which is free from them. The French press has, however, many advantages, and the Mint authorities have recently had a new one made, from which extraordinary results were [Pg 70] anticipated, but it now appears that this is simply another improvement of the usual type, and that it has cost about £1,500 and remains on the premises of the manufacturers.

As the coined money issues from the press it is collected in trays and examined; all imperfect coins, curiously termed “brockages,” are picked out; and the good coins weighed into drafts of 701 sovereigns, equal in weight to about 180 ounces: these are at present sent to the weighing room, where they are examined for imperfect coins by passing over a kind of blanket, so arranged on a series of rollers that each coin lying on its surface can be seen as the blanket revolves. The blanket covered with coins is carried round a set of rollers, and thus produces them on the upper side of a lower blanket, when the reverse side can be seen. The effect of this machine is to worry the eye, if constant watching be enforced, for no one can watch a string of coins in continuous motion and see each one. A very minute alteration of this machine would cause it to stop for a few seconds at intervals, and during that stoppage the accustomed eye could readily detect and select the imperfect coin.

After this overlooking, the coins are rung as blanks used to be, and then weighed separately, all the rejected going to the melting-pot, by which a waste⁠[41] of 50 per cent. is incurred at the extreme end of an elaborate process; but this unwise course, it is to be hoped, will soon be abandoned when its expensive and perfectly useless extravagance is considered. After the various operations of the weighing room the coin is collected and weighed into separate bags, each containing 701 sovereigns; the exact weight of the contents of each bag is noted; and, the bags having been placed in a truck, are taken to the Mint Office, where they undergo what is called pyxing, which is simply the selecting from each and every bag a pound weight, from which two coins are taken; each coin is weighed and its weight recorded. Of these coins one is placed in the hands of the assayer to determine its value as to per-centage of gold, and the other is sealed in a packet, which is placed in a pyx for the trial of THE PYX at Westminster—an ancient process now useless, because any skilled man can detect by assay a deterioration of the coin. These particulars having been taken, the coin is in due course delivered to the officers of the Bank of England, who conduct it in amounts of about £140,000 to the Bank in a waggon.

The law enacts that 20 lbs. weight troy of standard or crown gold shall be made into 934·50 sovereigns, and this proportion gives the means of determining the theoretical weight of one sovereign; for if the 20 lbs. troy weight produce 934·50⁠[42] coins, it is only necessary to divide by that number the number of grains in 20 lbs. troy, and the quotient will represent the weight of a single sovereign, viz., 123·2744783306581059 troy grains; therefore the [Pg 71] journey of 701 sovereigns should weigh 180·032102728731942215 troy ounces, and a million 256821·829855377 troy ounces, equal to 7·8618927506797 tons avoirdupois; hence the War Indemnity of France will weigh 1572·37855 tons.

Since the coins of a people must represent food in proportion as they are of specific weight, it is to be regretted that the law does not fix the weight (with a remedy) of the individual sovereign, instead of fixing the number of coins in 20 lbs. weight, and giving a remedy⁠[43] of 12 grains on the pound troy. Irrespective of law, the practice of the Royal Mint is to apportion the estimated amount of remedy (or latitude for error) to each coin; but in America the pound weight alone is studied; hence the individual coins vary so considerably in weight that it pays as a commercial speculation to select the heavy coins, and to sell them as bullion; thus leaving the light coins in circulation, to the dishonour of the nation, because if a man take 1,000 American gold coins to the Bank of England they will not be received at their nominal value, but as bullion; hence the loss becomes personal, and so the coins of America cannot, and do not, stand on a par with those of England.

The paragraph above has stood unaltered since the first edition, and I reproduce it because its history is perhaps curious. Mr. Graham, soon after I entered the Mint, commenced urging reasons why the system of weighing coins individually, which he considered expensive, should be abandoned; as well as I was able I met his proposition by firm but adverse arguments, until at last he “ordered me to omit the weighing of individual pieces, and to pound the work as is directed by law.” I therefore asked him, as the matter was a very grave one, to write the order. This he refused to do, and thought it hard of me to require a written order, and so the matter dropped; when, however, Mr. John Graham was appointed, Mr. Graham told me that he could now carry out his wishes without a “written order.” In the meantime he had asked me “to write a treatise on coining for Tomlinson’s Cyclopædia—in fact, I have already referred Mr. Tomlinson to you, and he will call; your difficulty will be to compress your information into a sufficiently small space.” After so long an attempt to preserve the accuracy of our coinage, I felt unwilling to allow such an opportunity to pass, and therefore placed my opinions in print, and thereby gave Mr. Graham so deep an offence that he refused to place my book in the Mint library, although I gave him a copy for that purpose; it was still absent from those shelves when I left the Mint. In August, 1864, Mr. John Graham, acting under the “Master’s orders,” directed “that the contents of only one bag in three should be weighed,” and this was carried out till pieces which bore the device of florins found their way to the Bank of England, and amongst them were found some of the intrinsic value of 1s. 6d., while others reached so high as 2s. 9d. Mr. Graham was greatly distressed about this occurrence, [Pg 72] and, notwithstanding his brother’s position, directed me to stop this new system at once. He then attributed the innovation to myself, and blamed me for all that had happened. I therefore told him that he, and he alone, was to blame, for I had persistently refused to do it unless fortified with a written order. This caused, as I felt at the time, our final separation; but had I been willing to accept blame which belonged, as I told him, to himself first, and in a lesser degree to his brother, he would have made it a fair ground for my removal from the Mint—a result he had earnestly endeavoured to effect. I was so far free from blame that I was actually absent from the Mint part of the time, and during the remainder refused to enter the room where the blanks were cut, such action on my part resulting from a desire to protest firmly, by deed as I had done by word, against what I knew to be a fatal step. The wisdom of my proposition to apportion the remedy to the individual piece was so apparent that the Legislature incorporated it in the Act 33 Victoria, cap. 10, and as detailed information may be of special value to many, I quote the first schedule to that Act on the opposite page.

That others concur in my thus claiming the origination of the apportionment of the remedy to the individual piece, is, I think, clearly demonstrated by the subjoined letter, which appeared in the Money Market and City Intelligence of the Times, on Thursday, March 10, 1870.

“The following relates to the coinage question:—

I may add that Mr. Fremantle has purchased a copy of my last impression for the Mint Library.

The coinage of silver is precisely the same in every detail as the coinage of gold; but there are one or two points that require to be dwelt upon. Weight for weight, silver is more bulky than gold, and is coined in larger quantities; hence it has become important to expedite its coining by every means. Thus, in the process of annealing, it is simply placed unprotected, except by a lid of iron, upon an iron truck, and run into the annealing furnaces, from which, after twenty minutes, it is withdrawn and plunged at once into cold water. In the annealing of the silver blanks it is important to have the copper of the alloyed metal removed from their surface; this is effected by annealing the blanks for from seven to ten minutes in open pans, when the copper becomes oxidised, and is removed by the process of blanching, described under the coining of gold.⁠[44]

[Pg 73]

FIRST SCHEDULE.

The weight and fineness of the coins specified in this Schedule are according to what is provided by the Act fifty-six George III., chapter sixty-eight, that the gold coin of the United Kingdom of Great Britain and Ireland should hold such weight and fineness as were prescribed in the then existing Mint indenture (that is to say), that there should be nine hundred and thirty-four sovereigns and one ten-shilling piece contained in twenty pounds weight troy of standard gold, of the fineness at the trial of the same of twenty-two carats fine gold and two carats of alloy in the pound weight troy; and further, as regards silver coin, that there should be sixty-six shillings in every pound troy of standard silver of the fineness of eleven ounces two pennyweights of fine silver and eighteen pennyweights of alloy in every pound weight troy.

[Pg 74] In annealing the precious metals, it is intended to use large retorts of Stourbridge clay instead of the naked flame, as is the present practice. The advantage of using retorts will be the protection they will afford to the substances to be annealed, and the uniform temperature at which they may be kept for any required time. So great are the obstacles to improvement in the British Mint, that, although this suggestion was made by me, and plans were prepared, in June, 1861, the necessary alterations have not yet been attempted; indeed, it has been reserved to Mr. P. F. Comber, the intelligent chief coiner of the New Mint in Melbourne, to adopt this suggestion. The furnace for his use has been made by Messrs. Deane, of Arthur Street East, London Bridge, who, from experience, know this kind of furnace to be successful; indeed, it has been long used to gain higher temperatures than are required for metals in the annealing of glass, pottery, &c. I have recently been permitted to make a long series of experiments at the works of the Patent Fuel Company, on their wharf at Deptford, and these have convinced me that their mode of converting hydrocarbons into vapour, and burning that vapour with a proper supply of air under pressure, could be applied in the Mint with great advantage to the heating of the annealing furnaces, especially if the authorities of that department should adopt the retorts proposed.

In my previous editions I have suggested the use of these retorts, and I am glad to see that the Royal Mint is likely to adopt them, for Mr. Napier recommends them in his Report, and Mr. Roberts not only coincides in that recommendation, but specifically says, “It is a question for consideration whether muffles of clay instead of iron, and gas as fuel, might not be used with advantage.”

The coinage of bronze is somewhat new; that is to say, it has, after centuries, been re-introduced; and as little is known respecting it, it will be well to consider one or two circumstances connected therewith. The dimensions of the bars are previously given,⁠[45] those measurements were determined by me after much troublesome experimenting, and the bars are found to be capable of producing the best blanks, as regards equality of weight one for another, with the least labour. In the rolling of bronze there are some singular facts to be noted; for instance, the finding the same metal at one time ductile, and at another absolutely brittle; yet if the bronze has been properly melted, with due precaution to avoid the access of atmospheric oxygen, it is uniformly malleable and ductile, and may be rolled from such bars as described without once annealing. It is sometimes preferred not to use the knowledge gained, and then complications commence. The following [Pg 75] mode of operating will meet all cases:—The bars may be rolled down to half their thickness, and then will anneal perfectly well in an open furnace on an iron truck. The heating should be conducted rapidly, and when the fillets get to a full red heat they should be withdrawn, thrown out singly on the floor, and allowed to remain till perfectly cold. Should any bars be annealed in the rough state, they must be kept away from water. A little water thrown upon the end of a bar when red hot causes it to become rotten throughout, and on submission to any pressure it will fall to pieces as would gingerbread; yet if the bars be partly rolled to a certain proportion of their thickness, they may be plunged at once into cold water without damaging them for work. After annealing, the fillets should be blanched in diluted sulphuric acid, containing one per cent. of the ordinary commercial acid. It is well to save time by blanching two or three tons at a time; but a few minutes effect all that is required—that is, the separation of the film of oxide from the surface. The film is then removed by a mop made of rag or cotton waste, and with little labour a few boys may clean many tons in a day. Fillets which have been blanched before being rolled produce clean and bright blanks. The blanks require somewhat different treatment. It is better to anneal them in copper tubes. The bottom of the tube should be covered to about the depth of an inch with charcoal dust, then the tube filled with blanks, except allowing for another layer of coarse charcoal dust, and the top put on to the tube. The annealing should not occupy more than thirty-six minutes; the highest temperature should be that at which the tube looks a full reddish white, and this should be gained as rapidly as possible. The tube, after removal from the furnace, should be allowed to remain at rest till perfectly cold. The charcoal is intended to combine with the oxygen, which would otherwise combine with the metals of the bronze during the heating and the cooling of the blanks in the copper tubes. Having regard to the production of perfect coins, the blanks should be cooled in an atmosphere of ordinary coal gas, by which every particle of oxygen is prevented from access, and a great part of the oxides already existing in the alloy reduced by the combination of their oxygen with the hydrogen of the coal gas, thus leaving the blanks somewhat porous, and comparatively soft, so that, when coined, the metal wholly fills the work on the dies, and the coin is produced with a good protecting edge. Bronze as used at the Royal Mint consisting of 95 of copper, 4 tin, and 1 zinc in 100 parts—zinc should be omitted because it causes useless labour—may be coined to great perfection if the blanks be cooled in coal gas after annealing: whereas bronze of a far softer nature cannot be made to fill the work of the dies satisfactorily by any other method yet known, unless the engraving on the dies be very shallow. The bronze coins, which have replaced the old copper money, have what is considered to be an innovation in the inscription by the repetition of the T in the abbreviation of [Pg 76] Britanniarum, which is simply the classical mode of expressing in an abbreviated form the number of the possessions which together form Great Britain; it is equivalent to MS., which is the abbreviation for manuscript, while MSS. represents the word manuscripts; so BRITT. represents the cluster of islands or possessions called Great Britain. The objection to BRITT., on the ground of its being an innovation, is singular, as this word occurs on the shillings of George III., coined in 1816. It is also curious that the original dies for the bronze coinage were made to carry BRIT. only, until a coin found its way into the hands of the Right Hon. W. E. Gladstone, who at once pointed out the error, and thus caused the re-introduction of the classical BRITT. Mr. Gladstone also suggested the issue of octagonal bronze coins, which undoubtedly would have been a mistake had it been adopted. Perhaps it may not be uninteresting to record that the pattern penny in bronze, which was submitted to and approved by her Majesty, was lost in its passage through the post, for the postman opened the letter and destroyed both it and the penny in a closet in the Royal Mint. Copper and bronze money are merely tokens; it is therefore well to reduce such tokens to as low a weight as is consistent with the rigidity of the coin.

By Royal Proclamation, dated at Windsor, 13th of May, 1869, the old copper moneys are declared illegal; or, in the words of the proclamation, “No copper moneys whatsoever (other than and except such bronze moneys as are now current by virtue of our proclamation bearing date the 17th day of December, 1860, or any proclamation dated subsequently to the said 17th day of December, 1860) shall be allowed to pass or be current in any payment whatsoever within the kingdom of Great Britain and Ireland after the 31st of December, 1869.” So that since that date no copper moneys have been legally paid away. This, however, will not affect those who wish to preserve copper coins of this or former reigns as specimens.

As dies are the means by which metal becomes COIN, it will be material to add the processes of their manufacture. Experience alone can indicate the proper steel to be used, so that it is useless to attempt a description. But the form of the steel is a matter upon which die-makers differ. Some use square bars of that metal, and cut off pieces, which are forged into the proper form for dies; however, the more experienced die-makers use round bars of steel, which are cut by a tool somewhat of the shape of the bar, so that when the tool is struck every part of its edge begins to cut. The tool is so shaped as to leave the end of the bar from which the piece has been cut quite square, so that it may form the bottom for the next piece cut off. The piece of steel thus cut off is taken to a lathe, where its upper end is turned somewhat into the form of the top of a sugar-loaf; the depth of this form being determined by the style of work to be impressed upon the [Pg 77] steel when it is to be formed into a die. For the original matrix the piece of steel is turned to a flat end, and is usually strengthened by driving a carefully-welded ring of hot iron on to it: although some prefer thus to simply shrink on a ring of iron, the more experienced choose welding, because that which is shrunk on is never so solid, and is apt to enclose air bubbles, which prevent the mass becoming one, thus permitting an undue yield in a faulty spot when pressure is applied. In the making of a matrix, the steel is softened to different extents by different engravers, but all soften more or less. The steel having been softened, the engraver cuts with a kind of hand chisel, by a motion of the wrist, such design as may be required, and after many months of work produces a finished matrix, from which he requires to produce many copies, because this one matrix would itself soon wear out, and by frequent use would be more exposed to risk. It is, therefore, hardened to admit of its being submitted to such pressure from another piece of steel as to impart its design to that steel without itself being distorted by the pressure. For this purpose the matrix is fitted with a ring of iron round its upper part, which, when fitted on, gives the engraved part the appearance of being the bottom of a cup; this cup is filled with a paste made of beer grounds and fine charcoal dust, or, better still, with that small charcoal which is found behind the flue of the forge—a kind of soot produced by the spent sparks which fly upwards, and which is so much in request by the file-makers. Thus protected, the matrix should be placed in the naked fire wholly enclosed with fuel, and heated as rapidly as possible, keeping it constantly turned round and round, so as to insure each particle of its mass being equally heated; a quarter of an hour should be long enough to produce the necessary temperature. It must be borne in mind that the great principle is to avoid the decarbonisation of the steel, therefore the less time that is occupied the better. The temperature of the matrix should be that rich and peculiar full red which for a few seconds is visible before white heat supervenes, for a white heat once gained causes the steel to scale off, and renders the matrix partially worthless. This peculiar temperature once gained, the matrix must be permitted to remain for three minutes in the fire without any blast. If it should get too hot it must be cooled by adding exhausted fuel from the hearth. At the end of three minutes’ quiescent heating it may be assumed that the centre of the matrix has become of the same temperature as its outer particles; it is then taken quickly from the furnace and placed in a kind of colander, so that water may wholly envelope it, and yet flow freely past it while its under surface is wholly exposed. The matrix C is placed in the colander D, Fig. 22, bottom upwards, and is then brought immediately under the pipe dependent from a kind of funnel A, which should hold at least a hundred gallons of cold water; the bottom of the pipe must be secured by a plug of wood B, capable of being knocked out instantaneously. This is the [Pg 78] most important process in the hardening of the matrix, and requires considerable steadiness with great rapidity of motion. The matrix being held in the colander about half an inch above a large surface of water E, and immediately under the centre of the plugged pipe from the funnel, the plug B is knocked out from the pipe, and the water falls in a continuous stream wholly unbroken until striking the very centre of the base of the matrix, thus securing the commencement of the process of hardening FROM THE CENTRE. So soon as this first shock of the flowing water has been effected, the matrix must be sunk into the vessel of water below, until it is uniformly covered to the depth of half an inch, and must be held there until the whole of the water from the funnel has run out; then the matrix must be sunk to the bottom of the vessel of water, and allowed to remain till absolutely cold. If it be removed before it be cooled throughout, there is great danger of a crack on its surface being produced by the expansion from within. The plug is preferred to a tap in the pipe from which the water is to flow, because the turning of a tap gives a motion to the water, which causes it to fall in a hollow stream, and thus obviates the very effect which it is desired to produce. This process has been followed for more than thirty years, and during that time the [Pg 79] manufacturer who uses it—one of the most eminent engravers and die-makers in Europe—has never met with any accident, nor has he found any failure. I have recently visited a manufactory in South Yorkshire in which many thousands of dies are made annually on this system, without an instance of failure. Die-makers, after the hardening, proceed as follows:—Remove the paste of charcoal from the face of the matrix, and then clean the face of the die with hydrochloric acid. After this it is tempered—that is to say, it is raised to a temperature which somewhat relaxes the rigidity of its particles; this is commonly judged of by the COLOUR which the face of the matrix assumes; but since no two men are likely to distinguish the same tint, nor can any one actually judge of colour unerringly, it is wise to adopt another standard, the one most preferred being to temper the matrix until the engraver can make a good graver bite while the die is hot. The tempered die may be cooled by plunging it either into oil or into water as soon as the tempering has reached the desired point. If at this instant the tempering cease, when the die is dead cold the graver will no longer touch the steel, which is now just so hard as to resist a blow without fracture. It is next polished, and is then fit for use; that is to say, is fit for the multiplication of dies from itself.

Fig. 22.—Die Hardening.

The multiplication consists in the taking a set of punches, each being an exact copy of the matrix. The steel, having been formed into masses with sugar-loaf tops in accordance with the depth of the engraving, is ready to receive the impression from the matrix, just as hot sealing-wax is ready to receive the impression from a signet. The matrix is placed beneath a press, and on its face is placed the sugar-loaf end of the annealed mass of steel; a very light blow is given by the press, so as to obtain simply the sinking of the first portion of the cone, for if a violent blow be given at this stage it is manifest that a large mass of steel is forced into a smaller space; in other words, the particles of steel which formed the cone are pressed into a dense mass on the surface of the intended punch, and prepare a crack, which by-and-by developes itself. After this light blow, the partly-formed punch is placed in a covered pot filled with charcoal, and heated in a furnace just as was described for the hardening of the matrix, bearing in mind that it is the cooling, not the heating, which softens the steel. So soon as the heating has been raised to the point before indicated, the pot containing the punch is removed, and bedded in hot ashes, and there left to cool as slowly as possible; it should be forty hours before it becomes cold. When cold it is cleaned, receives a second very light blow under the press, examined, afterwards receiving a third very light blow, and is then a second time annealed, &c. The number of blows required to bring out to perfection on the punch the work on the matrix, depends entirely upon the size of the matrix and the depth of the work engraved upon it. For these reasons, no accurate instructions can be given; but for all cases light blows should be made, because all metals mould more readily under gentle treatment. [Pg 80]

From the punch is obtained, by processes which should be in every way similar, a series of dies for the use of the coining press. Each die from the punch is examined, and has the figures for the date impressed upon it before it is hardened. The dies are of two kinds: one, C, the obverse, with a long neck, upon which the collar B fits freely, and a second, the reverse, with a short neck, so that the face of the die just enters the collar sufficiently to meet and compress the blank. Fig. 23 demonstrates these two dies, and exhibits the collar, showing at B the milled interior circle, which gives the crenated edge to the finished coin at its formation. For the past few years the reverse die has been made to carry, in addition to its recognised device, a small number, with a view to determine at which coining press, and on what particular day, that die was used, that bad work might be traced to an individual. It need hardly be said that the accidents encountered in daily work overcome the object thus sought, for a die may last either minutes or days in wear owing to the irregularities of the steel from which it is made, and besides, the boys who work the presses are of necessity changed at irregular intervals.

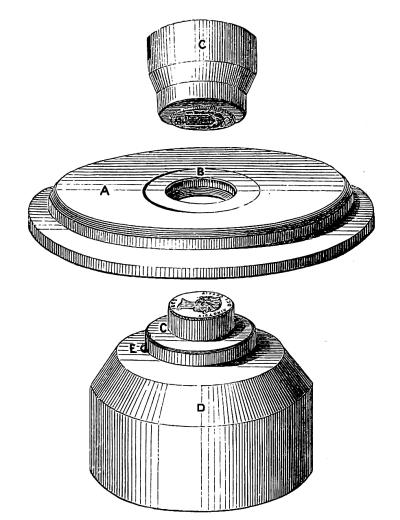

Fig. 23.—Coining Dies and Collar.

The long-necked die is fitted into a bolster D, as shown in Fig. 23, and is prevented from shifting its position in that bolster by a plug of iron indicated at E. The bolster, with its die, is secured in a kind of dish beneath the screw of the press by a series of screws, which admit of adjusting the bolster so that the die it carries shall be placed immediately beneath the upper die, which is carried on the main screw G of the press, as may be seen at page 60. [Pg 81]

There is little doubt but that certain stages of die manufacture would be rendered more effective if more reasonable treatment were employed. It has yet to be demonstrated that carbon steel is the best metal that can be employed, for it seems more than probable that some alloys would render a metal which would possess within itself more of the properties which are necessary for the perfecting a die, and for its duration when in use. For the elimination of such an alloy we must await the time when the non-resident assayers are replaced by resident chemists who, during the leisure times in the Mint, will be willing and glad to experiment on some of the compounds of iron with the rarer metals, for in that field will surely be found a combination which will be definite, and therefore homogeneous and unvarying. There can be no doubt that the cause of the uncertainty which prevails as to the endurance of steel for dies arises from its unequal composition.

Gold possesses as many colours, and exists in as many conditions, as any substance ordinarily met with. Those various changes are due to the existence of impurities in the metal, which are neglected in assaying, because the only business of the assayer is to determine that the sovereign actually contains the lawful weight of pure gold, and also so much alloy as is specified: what this alloy shall be is, in the abstract, a small matter so that it is not silver, because if it be silver it is worth the expense to separate it, and thereby destroy the coinage. Yet, although the existence of such metals as lead, bismuth, tin, antimony, and arsenic, as well as palladium and osmium-iridium is not illegal, it becomes necessary to separate them, because these metals affect the coin in various ways. Palladium and platinum alloy with the gold only after considerable time, therefore these metals may generally be seen in the finished coin, frequently as a slight bar across its surface, sometimes as spots on its crenated edge. Osmium-iridium causes trouble, inasmuch as it is so infusible, that it simply floats about in the melted gold, and several crystals agglomerate; where this takes place, the difficulty of manufacture is so great, that it is impossible to produce the desired amount of coin within the limits of remedy as to weight. The simplest means for the removal of these substances is to allow the fused metal to remain for a considerable time, when they settle to the bottom, and the clear metal can be poured off; the dregs, if so they may be called, are then sent to the refiner, but the process of separation is too long, and hardly adapted for a description in this place.

As a practical matter, the other, or volatile metals, and lead, may be, and generally are, removed by means of corrosive sublimate. This is an expensive measure, and does not answer its intention, for some of the mercury combines with the gold and renders it brittle. In practice, the best process is that recommended by Mr. Warington, who proposed to add to gold found to contain tin, antimony, or arsenic, 10 per cent. of [Pg 82] oxide of copper. The gold is fused in a Payen crucible, and the oxide of copper is then added and stirred into the gold by a rod made of the same substance as the crucible. This operation is easy of performance, because the infusible oxide of copper stirs up with the gold readily, and each particle of antimony, arsenic, or tin, as it comes into contact with the oxide of copper, reduces it to the metallic state, the volatile metals combining with the oxygen, while an equivalent of copper alloys itself with the gold. The impurities, as they oxidise, mix or combine with the oxide of copper. One or two experiments tell how much copper is thus added to the gold; consequently, how much fine gold is to be added to keep the alloy standard—and subsequent treatment by the oxide of copper simply removes the volatile metals. Gold treated by this process is perfectly workable on a large scale, and there is no trouble. A condition of success is, that no reducing agent, such as carbon, be present, and therefore plumbago pots cannot be used. In practice, half an hour is the best time to keep the metal in contact with the oxide of copper. The objection is frequently expressed, that to refine gold is not the business of the coiners. This opinion, however, will bear modification, for the expense of the oxide of copper is trifling as compared with the cost of labour in treating brittle gold.

I now advert to a most important matter in relation to coining, viz., that of the loss sustained, its cause, and prevention.

It appears that the Royal Mint should sustain less loss than any other mint by the coining of gold and silver. If allowance be made for the sale of the sweep or dust⁠[46] which results from a coinage, the total loss, inclusive of every operation in coining, should be so small that it might be passed without notice; in fact, there ought to be a minute increase of weight from traces of oil which are left on the fillets to enable them to pass through the cylinders of the draw-bench;⁠[47] by melting⁠[48] there seems to be too great a loss of metal: this should reach about £100 per million coined, and such loss would be wholly explained by the refining, which takes place through the removal of copper by oxidation; although this is minute, still it is enough to explain the loss which I indicate. If the assays be closely watched there can be no loss, for the trial of the pyx invariably shows the gold coin to err on the side of purity, so that if the Master of the Mint should determine to issue gold of exact standard, and refuse to avail himself of the latitude allowed, he may fairly cover every source of loss, and coin money WITHOUT WASTE OF METAL. Each grain that is found in excess of the standard upon the pound weight of gold causes a loss of about £180 upon each million coined. The moneyers asserted that they sustained a loss of £700 for each million coined, such loss being exclusive of melting. This has never been believed to have been a truthful statement, nor has the loss by coining alone often reached so high an amount, although so large a sum as £373 per million [Pg 83] would seem to have been determined, by some careful experimenters, as the necessary loss. Where the gold went to was not stated; but supposing such a loss to accrue, it is manifest that either the gold volatilised or the floors must be paved to many inches in thickness with gold, but it is an established fact that matter once existent cannot be annihilated; yet it has required many arguments to convince those most interested in coining that the mere cutting up of bullion into small pieces does not alter its actual weight: the present Mint Authorities entertain the fallacious notion that large loss of gold is, for metallurgical reasons, NECESSARY. Notwithstanding Mr. Graham’s opinion that a loss of £206 on a million was too high,⁠[49] they in their “Reports on European Mints” have arrived at the conclusion “that the ‘waste’ shown to have existed of late years in the English Mint has not been excessive.”

To leave, then, the realms of speculation, and for a short time to examine figures, a matter which is little understood will be reduced to one of easy comprehension. Mr. W. T. Brande, in connection with others, carried on a series of experiments between 1851 and 1856, the results of which he gave me in writing, and which induced him to arrive at the conclusion that by coining alone there was a loss varying from 1·20 grains on the pound, to 3·10 grains on the pound troy, or a mean of 2·15 grains on each pound troy coined. This loss was thought to be a necessary consequence of coining, and by a simple rule-of-three it tells as follows:—

Mr. Brande and his colleagues, by his own admission, did not know the value of the sweep recovered, therefore this loss was believed to be absolute. We will next examine the accounts and see the fruit of that belief, and then determine the effect of a contrary faith. And in the following statements, given in a tabular form, I would observe that the facts recorded were compiled by the Mint officials for the Master at my suggestion, and that copies were given to me by the late Master, who indeed invariably, when such statements were prepared, handed them to me to copy and examine for my own information, and to see that they were accurate.

It is a fact that the Mint books do not record the loss upon the gold coined in November and December, 1851; or, if they do, these accounts have been only quite recently balanced. In the following statement I omit the coin of those two quarters, because the late Deputy Master assured me that the accounts were not made up. This, I am aware, lays me open to a correction; I therefore state that the coined money of these two months is not included in my calculations. [Pg 84]

Statement showing the Rate of Coin obtained and the Loss of Metal incurred in each Quarter from March, 1852, to December, 1857.

(A) = Proportional Loss of Metal on each Million Ounces Coined.

There will be occasion to refer to the next table for further information; but as the facts in this table are not strictly comparable with any others that will be given, it is better to explain this as it stands. Of the rate per centum of coin obtained from the bars there will be occasion to speak at a later period. These figures are placed here with a view to save repetition, which would be necessary when that subject is discussed.⁠[50] Although the figures in the first column represent ounces, each item can at pleasure be converted into pounds sterling by multiplying it by £3·89375, which is the decimal expression for £3 17s. 10½d., the price per ounce of standard gold. In such case it will only be necessary to multiply the weight of the coinage by that value, and then to consider the loss of metal as pounds sterling—thus, 300,260·201 ozs. + £3·89375 = £1,171,318 5s. 3¼d., which sum lost weight by coining at the rate of £446 18s. 9½d. per million coined. If calculation be made by addition and division of the figures in the third column, it will be observed that the average loss per million between March, 1852, and December, 1856, is £577·96,⁠[51] and this was believed to be absolutely wasted in coining; but this amount may be fairly reduced by the deduction of £72 10s., the average value of sweep recovered, when it will remain £505·85. It will also be seen that the rate per million missing—for that is the fact—varied a good deal according to circumstances. [Pg 85]

It has been asserted that these losses were mere matters of account, and resulted from the removal of “fat or oil” in the various operations. These explanations shall be admitted to their fullest extent, but that they do not contain the cause for all the losses is to be gathered from the fact that gold has been returned to the Mint by the brickmaker, who found it in the ashes which he had bought. That there were cases of actual theft I am myself aware; for I, by the Master’s sanction, dismissed two men who were detected. Eleven others shared the same fate, but no prosecution was attempted or permitted, although strongly urged. As bearing on this point the following, in relation to “peculation,” is told and believed in the Mint:—In 1856, when the men had formed a strong opinion as to the honesty of one particular person, they took their own means to watch him, and to see how and when he abstracted the metal. A clear-headed man made it his business to do this duty. The suspected man was assisting the officer at the scales in the drag room, when the watcher saw him, after the bullion was weighed, take a piece stealthily and secrete it in the palm of his hand. The watcher, thinking to secure detection, requested the officer at the scales to re-weigh that draft; but this gentleman refused to comply. The watcher then told the officer what he had seen, and that if he would open the man’s hand the piece of gold was still in it, when the officer, addressing the suspected person, said, “Is it all right, John?” John replied “Yes,” and no more passed. On his road home “John” stumbled, and a piece of uncoined gold fell on the pavement.

That metal was actually removed from the premises is beyond doubt, for a late officer picked up a piece of gold in the courtyard wrapped in brown paper, and the police brought to the Master a “flat end”⁠[52] of gold, which had been offered for sale. The police inspected all the men in the Mint employ; but the person who abstracted the gold did not personally offer it for sale, and thereby escaped detection.

On the 2nd of December, 1853, the cutting room book records a loss of 87·26 ounces of gold, for which no satisfactory explanation is given. This book also contains some significant remarks by the officer who had charge of that department.

The Mint books adopt the word “Wasteage” as explanatory of these losses, which were believed to be a necessary result of coining; so generally, indeed, was this firmly-implanted belief entertained, that at the bottom of each day’s account the word loss was printed, so that the officer had only to write the amount which was missing.

If indeed proof that unnecessary wasteage⁠[53] took place be required, it will be but necessary to quote from the letter of the Master of the Mint to the Treasury, dated 7th June, 1860. [Pg 86] This letter was placed in my hands on the 1st June, 1860, by the Master, who desired me to copy such parts as related to loss and were of service to me, and that I might confirm the accuracy of his figures. He said, “It appears by the table that the average loss on the gold coinage of the first six years is £784 0s. 0¾d., and on the gold of the last three years £172 8s. 11½d. per million coined, showing an improvement of £611 11s. 1¼d. per million coined. On the twelve millions of gold coined during the last three years the saving exceeds twelve thousand pounds.” The three years here referred to were contained in the period during which Mr. Graham entrusted me with the management of the coining department.

That the actual amount of loss by coining may be got at, it will be necessary to view the matter in a different form, and in that way to show the amount of money recovered by the sale of sweep; that is, by the sale of the ignited rubbish accumulated during a coinage, and in the statement given on page 90 the money value of each item is specifically represented. It need not be insisted that the utmost care should be exercised in preserving the sweep, when it is stated that this yields, at the end of a coinage, from 15 to 20 ounces of material bullion called scrap or supply, when picked over before sale, for only such as will pass through a fine sieve is sold; yet this sweep used to stand about in open, unlocked boxes from month’s end to month’s end.

It would be wrong to state that there is no apparent loss by coining gold. If, however, the whole circumstances be examined, it will be found that, after deducting every legitimate waste, an appreciable gain should be exhibited. In annealing sovereign blanks the loss is 54·12 ounces on each million. This then would appear to be an absolute waste; but starting on the undisputed fact that “matter cannot be lost,” let us see what becomes of these 54·12 ounces apparently lost. 54·12 ounces contain 25,977·60 grains troy. Now, since careful analysis extending over more than thirty millions of gold annealed has determined that each million lost 5,708 grains of copper, and this copper is washed away as sulphate of copper, it may be admitted that so much is lost, thus leaving 20,169·60 grains unaccounted for. These 20,169·60 grains are just 42·02 ounces, and if proper care were bestowed I could show how every particle should be recovered at the end of the coinage.

That there should be a gain is demonstrable from the fact that the gold as received into the coining department is quite clean; when wrought it becomes coated with oil, and this being returned on the scissel⁠[54] to the melting-house is really charged as gold. In 1858 Mr. W. H. Barton, experimenting independently, arrived at the conclusion that there were 200 ounces of oil on 765,370 ounces of gold scissel, while on the same scissel I, by careful experiments, determined that there were 118·39 ounces of oil, the remainder being dust and other foreign matter. [Pg 87] Further experiments, conducted by Mr. Barton for his own satisfaction, brought him to adopt my figures as accurate. This proportion would give 154·55 ounces to each million ounces of scissel; but since good work returns only 35·80 per cent. of scissel on the rough bars, it becomes manifest that this same proportion is but 101·22 ounces in each million coined.

Now the MONEYERS⁠[55] used to make an allowance of 347 ounces to each million ounces of scissel, and with such sharp business-like people it is barely possible that they allowed too much. We may therefore assume that the scissel of the present day is much less covered with oil than it used to be; and this is indeed the truth, for whereas the trucks were wont to be actually spotted with oil which dropped from gold scissel, they are now unstained; and it may be mentioned that, to test the minute amount on the scissel, the Master has upon occasions wiped it with a white cambric handkerchief, by way of settling a disputed point, without perceptibly soiling the handkerchief. Admitting then a loss of 42·02 by annealing and blanching, we get, by deducting this from the gain by oil, an absolute gain of 59·20 ounces on each million ounces coined. In a little while, when examining the table, we shall see how this theory worked out in practice; for, to be perfect, it should be capable of demonstration. The question will naturally arise, If the oil be now so small in proportion, why should there not be an increased loss by melting? And here indeed arises a very nice point, but one which is proved to demonstration—that whereas large amounts of oil cause loss, small quantities of oil PREVENT loss by melting, and for the following reason. Standard gold consists of copper 2 parts, gold 22 parts. So soon as this gold approaches red heat it changes to a purple colour on its surface, owing to the oxidation of the copper. If, however, a trace of oil be present, the heat, while it warms the gold, volatilises the oil, and thus places the gold in an atmosphere free from oxygen, so that the standard gold remains metallic until it liquefies; hence the saving of loss, for any oxide of copper would be lost in the pot. This matter of the oil has been dwelt upon because it is a vexed question, and when the melter, by want of care, makes a large loss, he invariably, by a human weakness, attributes the loss to the oil on the scissel. It was on such an occasion that the assistant-melter produced the following amusing parody on the three witches of Shakespeare. The illustrative picture is clever, but unfitted for these pages.

• First Witch. Round about the journeys go,
• In the dirt and rubbish throw;
• Extraneous matters, small and great,
• Everything to make the weight.
•
• Second Witch. Stone swept up and pounded small,
• Pieces of the stuccoed wall, [Pg 88]
• A bit of saffron-coloured brick,
• Odds and ends of broken stick;
• Here’s the sweeping of the floor,
• Weighing full an ounce or more.
•
• All. Hubble bubble, toil and bubble,
• Give the melter every trouble.
•
• Third Witch. Copper by annealing got,
• Send largely to the melting-pot;
• A pennyweight of leather strap,
• A piece of old brown paper cap,
• Some cotton fluff, ten grains of coal,
• Then OIL to saturate the whole.
•
• All. Hubble bubble, toil and bubble,
• Give the melter every trouble.
•
• Macbeth (as Justice). How now, ye secret, black,
• and cunning rollers!
• What is’t ye do?
•
• All.A deed without a name.
•
• 24th November, 1862.J. G.

Upon consulting the table—see p. 90—it will be found that, by deducting the value of the sweep recovered, from the value of the metal lost, between the periods November, 1851, and March, 1857, the actual loss was £19,930 18s. 0d., which sum, divided by the amount of gold coined in that period—viz., £40345185·450, gives £494 as a bona fide loss on each million pounds coined, when the belief was to the effect that there must be a loss. The great fact, that matter once existent cannot be lost, was never applied to the operations of minting until, in 1856, I demonstrated to the Master that the floors not being paved to many inches thick with gold, the bullion which was stated to be “wasted” in coining must have been absolutely volatilised, the proposition exposing me to more than ridicule at the time, and to positive hatred and misrepresentation thereafter; but when once the determination was formed to arrest what I saw clearly was unnecessary loss, it was carried out firmly, and in November, 1856, I commenced my determinations of the necessary amount of loss in each operation, as well as a series of experiments to elucidate other points requiring reform and explanation.

In furtherance of this firm resolve I assembled the men together, and informed them that I had now taken charge of the departments over which I had been placed, and that I should not permit any man to leave the Mint until the account was satisfied, and I had received from them the bullion to its uttermost part which I proposed to entrust to them. That I might effect this determination I weighed out to them, in their presence, a limited weight of gold, and then directed their foreman, on their behalf, to satisfy himself that the weight I charged was fair and honest; and then, with a firmness which surprised them, I followed this gold step by step, never for an instant permitting it to leave my sight, and at each step in its passage from bullion to coined money [Pg 89] I carefully weighed it, and made the foreman again check me, all the men being witnesses. At the end of the operations a FIXED GAIN exhibited itself. I was called upon for an explanation, which I gave, and each man was thus convinced that it was no use to attempt to cheat me, and was compelled to acknowledge that unless by abstraction there could be no loss. Many arguments followed for months, but LOSS became a matter of history so long as I was present,—not so in my absence, even at that time, as the books will show.

Great firmness was required, but I persevered, and received not only thanks, but very valuable assistance from many of the men. With a view to keep the Master supplied with information as I gained it, I adopted a plan of reporting to him daily in writing the various changes which took place in the bullion under my care as regards differences of weighing, loss or gain, the amount per cent. of coin obtained, and other such details, and at the end of each coinage I summarised the whole of such facts into a tabular form, and thus rendered to him a complete history of the operations conducted. This proved of immense service, for upon the occurrence of an unusual event, attention was at once drawn to it, and means adopted to discover the cause, while at the same time a constant study of these reports could not fail to induce for myself a more minute inquiry into the various branches of my subject. I feel it cannot be unfitting to give, before proceeding further, one of these statements or reports relating to gold, and when I come to the discussion of silver I will, in its proper position, place such another table, because these seem to convey much practical information which will be useful to those engaged in coining.

The report placed on page 92 is a copy of one I made to the Master, so I give it in extenso, and it will be found that by it bullion may be traced from its first admission to the coining department to its final issue as coined money, while each item of its history finds a place in the immediate department in which the bullion may be under operation. [Pg 90]

Statement of Losses incurred and of Sweep recovered.
This refers wholly to Gold in the Coining Department.

[Pg 91]

Return to an Order of the House of Lords
dated 17th February, 1870.
The LORD ROSSIE. No. 1.

FROM THE COINING DEPARTMENT
OF THE ROYAL MINT.

A Statement of the Weight and Value of the Gold Moneys coined in each Financial Year from 1851 to 1869 inclusive, exhibiting the Weight and Value of the Loss or Waste sustained in each Year, as well as the Value of Sweep recovered, and the average Proportion of such Loss or Waste and Sweep recovered to each Million Pounds Sterling coined.

Statement of Work Performed in the Coining Department from
October 2nd, 1857, to December 17th, 1857, inclusive.

The Coinage was completed in 53 Days.
The Value of the coined Gold was £4,495,748 4s. 10d.

• 4495748·2 : 778·7 :: 1000 : 0·173208 = 3s. 5½d.
• 4495748 : 36·64 :: 1000 : 1·955d.
• The Wages paid for Melting 2,110,962 were £36·64
• = 1·955d. on each 1,000 Sovereigns coined.
• = 0·001955 on each Sovereign coined.
• 1,000 Sovereigns cost 3s. 5½d. to coin
• = 0·04156992 of a Penny for each Coin.

To the Master of the Mint. GEORGE F. ANSELL, January 20th, 1858.

[Pg 93] Reference to the table at page 84 will demonstrate the fact that, by March, 1857, the average loss had fallen to £233·84, while in June of the same year it had been reduced to £57·86, finally reaching so low as £18·45 in December, 1857, the sums being in every way strictly comparable with all those of that table, because the value of the sweep is not taken into account in any case. As is usual in all discoveries, the merit was soon found to be worth claiming, but that the credit was due to me the Master himself admitted; and it is a fact that I was the only new officer, while all those who had been previously employed were still retained; and I feel that the Master confirmed his opinion when, in consequence of the reforms I had effected, he obliged all officers to follow such directions as I gave. In all cases where time would permit, I made it a rule to obtain the Master’s sanction before giving orders; but in cases of necessity I was empowered to act independently, and did so act, he confirming such orders as I gave. It should also be mentioned that so soon as I entered the Mint, Mr. Graham gave me positive instructions not to allow either of the then chief officers to interfere with the coining department. Nor would he permit a gold coinage to be conducted in my continued absence. If, however, the business of the Mint called me away, he, to induce the belief that I was in town and on the spot, would pay my expenses to and from London from his own pocket, and this he did on several occasions, because he found that “in my absence unnecessary loss re-appeared.” The opposition offered to the coining of bronze in the Royal Mint was so great, that the Master wished me to go to the mint of Messrs. Heaton and Sons at Birmingham, and there make such experiments as were necessary to confirm the opinions I had formed on that subject. This firm, with a generosity ever their own, permitted me to make, during a considerable period, and free of charge, such experiments for the Mint as I deemed necessary, rendering every possible assistance; but my investigations and agreeable visit were brought suddenly to a close by the following note from the Master:—

To demonstrate, then, the correctness of the theorem I had proposed, it will be necessary to refer once more to the table on page 90, where it will be seen that these results exhibit themselves in the financial year April to March, 1857-58, when the loss in each million coined was £14 3s., and the sweep recovered in that year was sold at the rate of £39 7s. 10½d. for each million coined. If, therefore, the proportionate loss be deducted from the value of sweep sold, we have for the first⁠[56] time in the experience of coiners a GAIN BY COINING to the extent of £25 4s. 10½d. on each million coined, thus approaching to the calculated gain of £59 4s., while in the next financial year it will be observed that there was a loss of £22 11s. 0½d., with a value of sweep recovered £73 4s. 0½d., [Pg 94] giving an absolute gain of £50 13s., practically the result calculated upon. To comprehend, then, the reason, why in the following years a loss is again permitted, it will be necessary to enter into matters of the inner life of the Mint. By the year 1859 the hatred excited against me in consequence of these exposures had culminated to the extreme. The Master, then desirous of finding a permanent position for his brother,⁠[57] listened to and encouraged any stories against myself, notwithstanding the facts above related, and instead of consulting me and sending necessary orders through me, as usual, sent written orders openly by messengers, whose instructions were to read them to each officer. These styled by himself “circulating orders,” were intended to disgust all the officers who had assisted in the reforms, and it was apparently determined by these and other like means to bring back the management of the Mint into the former chaos of irregularities, that he might make his brother’s appointment appear necessary.

The disrespect thus exhibited to myself, and to the officers generally, had to a certain extent its designed effect, for in 1859-60 the loss rose to £76 7s. 7d., the sweep selling for £66 12s. 5d., showing an absolute loss of £9 15s. 2d. It will now be necessary to refer to a statement of losses and gains upon each quarter, because the accounts were not officially balanced, the next statement being for the years April, 1860, to March, 1862,⁠[58] but the quarterly account below⁠[59] shows that the loss rose to 65·444 ounces, progressing rapidly in June, 1861, to 105·823 ounces, while in March, 1862, it had reached the ugly figure of 157·745 ounces. Before, however, this vast loss had been reached, the officers consulted together with a view to devise a means of arresting the downward course. About this time a piece of gold was discovered secreted in the drag room tunnel. I felt that this was a fact on which I could legitimately appeal to the Master against his new system, and this I did on the 31st December, 1861, when I represented to him that the reappearance of the losses was wholly due to his withdrawal of support from his officers, and that if he would not take the steps which were necessary, he alone must bear the blame, for I had now represented the truth to him. He asked my advice; so I told him boldly that he must come down officially to the works, as of old, and show himself a supporter of honest men. After much persuasion he assented to this advice, and came down. From that day the losses ceased, yet the effects, so far as the accounts are concerned, are exhibited till the quarter ending March, 1862; but the following quarter, ending June, 1862, exhibits a natural gain of 17·942 ounces. This table is of value, as showing the alternations of the apparent gain or loss; for in some quarters the loss appears to be greater than in others, arising from the fact that the bullion picked from the sweep is in some cases included; but this is always included in the return of the financial year. [Pg 95]

STATEMENT SHOWING THE LOSSES AND GAINS
UPON EACH QUARTER,
FROM JUNE, 1856, TO SEPTEMBER, 1868.

These are grave charges, but an inquiry could not fail to establish their truthfulness. To return, then, to the table at page 90, it will be observed that the loss of 1859-60 increased in the years 1860-62 to £45 3s. 5d.; but the stimulus applied by the renewed support of the Master reproduced its legitimate results, and in 1862-63, instead of a loss of bullion, there was a gain of £11 3s. 8d., which, with the sweep, made £50 10s. 7d., and this increased in 1863-64 to £91 5s. 1d. [Pg 96]

Statement of Losses Incurred and
of Sweep Recovered.

This refers wholly to Gold in the Melting Department.

This mark (‡) is intended to attract the attention when at pages 98, 103, these figures are discussed. To obtain the true amount of loss, deduct the value of the sweep from the value of the gold lost. [Pg 97]

Return to an Order of the House of Lords,
dated 17th February, 1870.
The LORD ROSSIE. No. 2.

FROM THE MELTING DEPARTMENT OF THE ROYAL MINT.

[Pg 98] In November, 1863, Mr. John Graham was appointed; but he did not interfere in the coining department until about March, 1864. The disastrous effects of his mismanagement now became apparent, and the losses have again made, it is to be feared, an habitual appearance. In the first year of his efforts, the loss per million⁠[64] became £22 6s. 2d., the sweep selling for £38 18s. 6d., giving a gain of £16 12s. 4d. only; in the next year, a gain of £25 14s. 7d.; and it was now determined, notwithstanding a written protest, that the sweep and scrap were not worth collecting, so they were lost. The next two years exhibit absolute losses of £28 12s. 10d. and £30 12s. 8½d. per million respectively, while in September, 1868, a loss of 19·873 ounces is recorded as a balance; yet it is a fact that no gold was ever produced to satisfy this balance, so that in my opinion it will be correct to state that the loss is at the rate of £70 14s. 5¾d. on each million coined. Unless upon the existence of such facts, it is difficult to understand why the Mint authorities should not publish annually an official statement of the loss or gain made by coining gold and silver, as well as the amount coined; but, that the whole details may be complete, it is now necessary to enter upon the discussion of the melting-house accounts. The table on p. 96 exhibits the operations of that department upon the same gold as that just discussed. If, as in the case of the table relating to the coining department, the total loss between November, 1851, and March, 1857, be reduced by the value of the sweep sold, it will appear to be, on gold, £11,599·825, and this divided by £40,345,185·450, the total sum coined, will give an average loss of £280 7s. 8¾d. per million coined, when, as was admittedly the case, the gold scissel was saturated to dropping with oil. Let us now see if this loss be increased by the reduction of the amount of oil which was formerly sent to the melter on the scissel.

When in 1857-58 the loss by coining was put a stop to, and a gain was produced, it was roundly asserted that the melter’s account would show that the loss, so far from being stopped, had only been transferred from one department to another; but by examining the table now under discussion, it will be seen that when, in 1857-58,⁠[65] the gain of £25 4s. 10½d. occurred in the coining department, so far from there being a CORRESPONDING LOSS in the melting-house, that which had averaged £280 7s. 8¼d., fell to £165 9s. 4¾d.,—as will be seen by deducting the sweep sold from the loss recorded in the year 1857-58. When, in the next year, the gain by coining rose to £50 13s., the melter’s loss did not reach its former average amount, for in that year, when he had as large an amount of brittle gold to contend with as in 1858, his loss was £257 7s. 0¾d.,⁠[66] or still below the old average; whereas, if from this period the loss be estimated, [Pg 99] it will be found that its average is £212 6s. 1d. per million coined, as against £280 7s. 8¼d., or a clear saving of £68 1s. 7d. effected by lessening the amount of oil on the scissel (explained at page 87); and this amount may fairly be added to the total sum saved per million coined, which will be for coining £494, for melting £68 1s. 7d., making together £562 1s. 7d. on each million coined. That the loss by melting should reach the extravagant sum of £212 per million coined—Mr. Mathison, the contractor under the Company of Moneyers, made an average loss of £112 only—can hardly be maintained even in the Royal Mint; that it does occur is indisputable. The cause for it is not far to seek; yet it is hardly within my scope in this place to point out the means by which it should be reduced to within the limit of £100, which is demonstrably the maximum limit it should be permitted to reach. This, then, is the state of affairs as regards loss by the coining of gold.

Thus far I have considered the rate of loss at a period when such loss was deemed to be necessary; its reduction when it was demonstrated to be unnecessary, as resulting from preventible causes, and, in continuation, the means whereby loss should be prevented to the establishment of the absolute profit, if a correct system be established throughout the Mint. I now proceed to show the re-establishment of the old system of UNNECESSARY LOSS—loss which should not and would not be permitted in any well-regulated institution; but when men are permitted to travel at the expense of the country to European Mints, with the simple object of finding reasons why loss should arise, and authorities for its existence, we must hush our surprise, and be thankful if that loss do not exceed the amount heretofore reached. To me it appeared singular that the Mint Officials should be present in the House of Lords and hear Lord Lansdowne state from his place that “upon exact inquiry he had been assured that a loss of one shilling on £100 was not an unreasonable sum,” without subsequent protest against such a statement. It is more singular if one should compare that estimated loss with what those Officials state in their “Reports on European Mints;” but it is most singular, that by studying the returns made by those Officials to the House of Lords, it becomes apparent that throughout the whole affair there is exhibited a great disregard of the exact truth. To make clear my view of the case, I will adduce the three statements. Lord Lansdowne’s fixed sum of a shilling on £100, is equivalent to £500 on a million; while Mr. Fremantle, at page 7, “European Mints,” states that careful enquiry has shown, that as regards melting “in all Mints, considerable allowance is made for such loss, and that the ‘waste,’ shown to have existed of late years in the English Mint has not been excessive.” The return shows that between 1866-69 it averaged £296 per million.⁠[67] Mr. Roberts says: “In the English Mint the amount of loss on gold by melting [Pg 100] is considered to be 0·173 per mille, or a grain on the troy pound;” that is to say, £173 on a million. Why cannot these Authorities agree? Lord Lansdowne, of course, speaks on instructions received, probably from Mr. Fremantle, who thus exhibits his inability to agree with himself, and agreement with his fellow-traveller seems hopeless; for whereas Mr. Fremantle reduces Lord Lansdowne’s loss from £500 to £296, Mr. Roberts reduces the latter sum nearly 50 per cent., and states it at £173.

I will now refer to the returns made to the order of the House of Lords on the motion of Lord Kinnaird, and which, for this purpose, I have printed on pages 91, 97, opposite the tables obtained from the same source whence these returns were made. By the return (see page 97) the Mint Authorities clearly admit that whereas the loss by melting was in 1866-67 only £212 18s. 6d., it became, in 1867-68, £283 1s. 9d., and increased to £392 6s. 10d. in the subsequent year, as will be seen if the value of the sweep be deducted from that of the waste. It appears to me that such startling facts require attentive enquiry, especially if it be borne in mind that the loss by melting as shown in the return was so little as £165 9s. 5d. in 1857-58. Since, however, it is now the custom in the Mint to pass the bars for coining, directly from the melting-house to the coining department—in accordance with the recommendation made by me in my Report to the Master of the Mint dated 29th of January, 1859—so as to bring the whole operation of coining under one responsible officer, as I therein urged, it is but right I should give the Mint the benefit of any advantage that can be obtained by a retrospective treatment of accounts, and therefore I will refer to the table on page 101 which shows the final result of operations conducted in the coining and melting departments. In cases where gain was made by coining I will deduct such gain from the loss by melting, and where loss by coining took place I will add it to that by melting. Thus treated then, the loss by melting and coining for 1866-67 becomes £241 11s. 4d., for 1867-68 £309 8s. 4d., and for 1868-69 £319 9s. 1d., or a steadily increasing amount, as will be seen subsequently on page 104.

As regards loss on gold, enquiry would prove that a remarkable oblivion to all carefulness or the principles of economy exists in the minds of Mint Officials; for this noble metal, being one of the most dense as well as one of the most valuable, can be packed away into a small space; hence the utmost care, guided by knowledge of the subject, is necessary if waste is to be prevented. To start with that indisputable axiom, “matter cannot be lost,” is but to have the truth placed in unmistakable language; yet by the return⁠[68] made to Lord Kinnaird’s motion a most startling contradiction to this truism is brought to light. The Mint Authorities, from the time of the government occupation of the Royal Mint, have manifestly omitted [Pg 101] to think that “matter cannot be lost,” and they have assumed that the mere fact of subdivision must entail loss; but this fallacy is at once dissipated if Lord Kinnaird’s idea be adopted. He, in his speech in the House of Lords, said: “If any of your lordships will place a thousand sovereigns in a box, and cause the box to be shaken until the sovereigns have reduced themselves to impalpable powder, and will then weigh the dust—gold-dust—produced, it will be found that the dust now weighs the exact weight of the sovereigns before shaking.” So apt an illustration would be spoiled by comment, yet we find that the return (see page 102) exhibits the fact that the Mint has paid to the Bank of England sums varying from £1,132 to as low as £161 for each million of gold coined into sovereigns. Now the processes necessary to the conversion of gold into sovereigns is merely one of subdivision—of less degree than absolute powdering—therefore it is quite clear there can be no loss of gold. If there be any missing, it is because it is misplaced. Misplaced gold is practically lost, because Mint experiences appear to be adverse to the finding of the place of secretion. By this return it appears that the Mint has actually paid so large a total sum as £59,084 1s. 4d., in seventeen years to the Bank of England for gold which should have been returned to that institution. The Government of Mr. Gladstone, professedly desiring to economise governmental expenditure, permits this!!!

While it is the opinion of the Government that LOSS IS REASONABLE, it is hopeless to expect a stoppage of that which should not be permitted; yet it is right to state that these losses are not only demonstrably unnecessary, but that they have been proved by practice to be capable of great reduction, as shown by the following table, compiled from the returns before quoted on pages 91, 97.

Average Rate for Each Million Coined.

[Pg 102]

Return from the Royal Mint to an Order
of the House of Lords,
dated 17th February, 1870.
The LORD ROSSIE.

[Pg 103] In this table (page 101) care has been taken to remove every item which can mislead, and therefore the ultimate or absolute loss to the Mint is alone put forward; and while the subsequent table (page 102) shows the money and its rate per million actually paid to the Bank for loss; this shows the internal accounts of the operative departments in the Mint only, so that every item which can reduce the loss has been admitted, and it is therefore necessary to point out that each sum exhibited in the last column as the ultimate loss by both operations, is the rate for each million coined, all being under precisely similar circumstances in every respect. I have excluded loss by assay.

If this table (page 101) be examined, it will be seen that between 1851 and 1857 there was an invariable statement of loss by coining; then between 1857 and 1859 a period of gain; to be followed in the next two periods, 1859 to 1862, by loss, which was again overcome; and for the next four years a varying gain, alternated by two years of loss, and followed finally by another statement of gain.

Enquiry may fairly be made why, if up to 1857 loss had been permitted, gain could subsequently be established. The reply is, that the management of the coining department was placed under myself by Mr. Graham, and I acted firmly on my belief that “matter cannot be lost;” hence, if the accounts were short, I made the men hunt the floors—not the chimneys—carefully until the gold was found.

The Master of the Mint then discouraged my efforts, and the result was rapidly increasing loss, until I placed on the Master⁠[70] the responsibility of such loss, when there returned four years of gain, thus once more proving that under proper management loss would not occur; but from this period I was removed from responsible management, and the result was a return to the habitual loss. This would appear to have been overcome in the year 1868-1869, for in that year a gain to the extent of £72 17s. 9d. (see Return, page 91) is exhibited. It will be necessary to examine this gain to see how far it is real, and the proof is at hand that it is obtained under false pretences.

For special reasons which are not exhibited,⁠[71] the figures relating to 1851-1852 on the table at page 96 are fictitious; the fact being that losses which should have been stated are excluded. If, however, the table from 1852 to 1869 be examined it will be observed that the ultimate loss by melting varies considerably, but that in the year 1857-1858 it fell to £165 9s. 5d., while in that year a gain was made by coining to the extent of £25 4s. 10d.⁠[72] This gain being deducted from the loss by melting, leaves a final loss of £140 4s. 7d., as will be seen in the last column at page 101. To test then the gain shown in 1868-69 by the same rule, it will be observed that while the coining department (see page 101) [Pg 104] made a profit of £72 17s. 9d.,⁠[73] the loss by melting was £392 6s. 10d., or higher in amount than it has been in any previous year, so that the gain claimed for coining is false—it has not arisen—it is a STATEMENT OF ACCOUNTS, obtained by sending inaccurate weights of bullion to the melter, and thus shifting to that department the loss which fairly belonged to the coiner. The same remark applies to the year 1865-1866, when it will be seen that the system of loss fairly reset in.

Bona fide gain by coining gold in its final out-turn is only to be obtained by the possession of a firm belief in the impossibility of legitimate loss, and by entrusting the operations of coining to such men as appreciate the fact that it is atoms which build up the universe. I proved, and maintained my assertion for years, that there should be no loss, but on the other hand gain, by coining gold, and this I did with a reduction in the loss by melting to a lower point than has ever before or since been known, and with a total loss from both causes of only £140 4s. 7d. (see pages 101-102); and, had occasion served, it was always intended that I should direct the melting of gold as I had done that of silver,⁠[74] for as I had clearly shown that coining could be fairly conducted without loss, the Master was to have given me an opportunity to show the same facts in melting.

Of this loss of £140 4s. 7d. in the final out-turn of gold, it should be explained that at that date the system of weighing to and from the bank was such that there was on that coinage a difference of weighing against the Mint of £75 on each million, so that had just weighments been made, my loss from all causes being reduced by that amount would have been £65 4s. 7d. on each million coined.

With such facts established and stated in the return to the House of Lords, it is at least singular that Lord Lansdowne should support his assertion that 1s. on £100 is a moderate and fair loss, by stating that this is also the opinion of eminent refiners in London. In my experience refiners do not know what their losses are, for their customers bear them. By special agreement with Sir A. Rothschild, the Mint pays 4d. per ounce on the total sent for refining, and receives back all the gold and silver; but the general public, by previous agreement, submit to a deduction of weight, and thus pay the expenses of refining. Mr. Graham, in his paper published after his brother’s failure to conduct the gold coinage as I had done, fixed the loss at £300 on a million. Lord Lansdowne now fixes it at 1s. on £100; that is, at the rate of £500 on a million; and this sum is being rapidly approached, for Lord Kinnaird’s return shows that for the past three years it has averaged £464.⁠[75] And since such a loss is to be borne and pleasantly spoken of by Mr. Lowe, the Master of the Mint, as “going up the chimney,” it is well to see if that can take place.

[Pg 105] The volatilization of gold and silver requires an extremely high temperature. This temperature is never reached in melting the precious metals for coinage; therefore vapour of gold or of silver cannot by any possibility be conveyed into the chimney; consequently, cannot be found there. That this statement is true, has been demonstrated satisfactorily in Brussels, where the chimneys were discreetly searched to find the silver which the contractors were informed would be found: the chief contractor assured me that they failed to find the most minute trace of either silver or gold. Yet Mr. Roberts, at page 23, “European Mints,” says, “The precious metals actually volatilized may be arrested by condensation. This point has received much attention in the Roman Mint, where the flues of the gold melting furnaces have been placed in communication with condensing chambers of simple construction, the adoption of which has been attended with very satisfactory results.” On page 17 he has already said “I strongly recommend that a condensing chamber be attached to the flues of the gold melting furnaces. Such chambers have not hitherto been used in the Mint in this country, but their advantage has been proved in the Roman Mint, where they have been the means of effecting a considerable saving.”

It is with regret that one sees men entrusted with the control of so great a work as our coinage, making propositions on the authority of the Roman Mint, whose gold coinage is perhaps the smallest in Europe. If, however, Mr. Roberts should conduct on a large scale the plan he has devised for removing the obnoxious properties from brittle gold, these chambers may become useful. In the meantime the present Mint chimneys have the accumulations of more than sixty years, and it would be quite worth while to pull them down and obtain the £59,000⁠[76] which the Mint admits to have lost (see page 101). Are the chimneys lined with finely-divided gold, or does that metal accumulate in ingots? if the latter be the case, their draught must be slightly impeded, for fifty-nine thousand pounds worth of gold would more than fill an imperial bushel; in the popular view a “thousand sovereigns fill a quart measure.” If Mr. Roberts should fail to find any trace of gold, he can re-consider his proposition; should he, however, find the sum which has been supposed to be lost, that treasure will pay the cost of new chimneys.

If, instead of Lord Lansdowne appealing to Lord Kinnaird’s generosity to leave unsaid things which should be said, his Lordship would refute the facts and figures which Lord Kinnaird places before their Lordships’ House, it seems probable that the question would be settled; but while Lord Lansdowne simply pleads that “the person who supplies information to Lord Kinnaird is only a dismissed clerk,” it becomes manifest that the facts placed before Lord Kinnaird are awkward to [Pg 106] contradict, and still more awkward to explain, except by the painful delusion Lord Lansdowne adopts—that “his lordship confuses the accounts.” It may fairly be admitted that the accounts furnished by the Mint Authorities to the House of Commons are stated in such a manner that bankers and merchants find it impossible to comprehend them, and to arrive at their meaning, more than one banker in London has applied to me to unravel those statements which have been characterised as “such that if our younger clerk were to present them he would be dismissed our service.” Still, that Lord Kinnaird has not fallen into this error has, it is hoped, been now made fully manifest. Lord Lansdowne, in continuation, stated that “the author of this book appears to have left unnoticed the losing operations in the Mint, and Lord Kinnaird seems to have fallen into the trap.” Had Lord Lansdowne looked into the book he thus criticized, he would have found that each process of gain and loss is treated at considerable length, but none with more detail than the processes of the melting both for gold and silver, as he will learn if he will refer to the book, now out of print, but a copy of which is in the Mint Library—for gold melting, at pages 69, 74, 81, 82, 83; and for silver melting, at pages 101, 104, 109, 111, where it will be clearly seen that these losses are dwelt upon and shown to be inexcusable. The returns upon which I have thus commented are also of importance as introducing a new system in accounts—that of altering such accounts without reason assigned or explanation given. If the return on page 91 be examined for the year April 1867 to March 1868, it will be seen that a variation exists between it and my table on page 90; for whereas I state the value of the coinage for that year at £426,677 12s. 1¾d. and the loss at 3·357 ounces, or at the rate of £30 12s. 8¼d. on the million coined, the return states the money coined at £496,397 17s. 11d.; and leaving unaltered the amount of loss, shows it to be at the rate of £26 6s. 7d. per million coined, a similar alteration has been made in the account of the melting department. Seeing that my figures were those supplied by the then Deputy Master to the late Master of the Mint, I cannot comprehend why those accounts should be issued by Mr. Fremantle, who has entered the Mint since that gentleman’s death, with a variation in the figures, but I shall presently show that such a proceeding is not confined to this one transaction.

While the subject of accounts is under notice, I think it right to observe upon a passage in Mr. Fremantle’s “Report on European Mints,” at page 7, in which that gentleman says—

“I propose, also, that the ‘sweep,’ under which term are comprised dust collected from the floors, carbonaceous deposits from flues, ground-up crucibles, &c., should be treated in the Mint, instead of being sold, as at present, to the highest bidder. It will be important to determine what metallurgical process should be adopted with a view of carrying this intention into effect; but the step cannot fail to be advantageous to the Mint, not only as tending to economy, but also more especially as enabling the department to substitute a real for a fictitious statement of ‘waste,’ the regulations of the public service NOT ALLOWING THE PROCEEDS OF THE ‘SWEEP’, when sold to the public, to be brought to account AS A SET-OFF AGAINST THE GROSS AMOUNT OF LOSS.”

[Pg 107] that while I quite appreciate his thus carrying out the suggestion I never ceased to urge, I do object to his stating that which is hardly true as indicated by the passages I have marked. Such a statement must have been a slip of the pen, as it is but necessary to refer to the returns made to the House of Lords⁠[77] to exhibit the fact that these accounts are now kept and actually published to Parliament, and in my own knowledge, those returns are accurate—not false—for I saw much of the money paid for the sweep, which I delivered to the purchasers on the authority of Mr. Barton. There is no sense in which these returns can be said to be false unless in the one year I have pointed out. If they be false, is it not a serious matter for any one to sign his name and submit them as accurate to Parliament?

Let us, then, turn to the accounts, and see how far the other expenses are unnecessarily inflated—and why? In such a consideration it will be necessary to revert, as in the case of losses, to the earlier periods of the Government occupation of the Mint; and, without going too far into details, it may be stated that the average amount of rejected work (see page 44) reached, in some instances, 70 per cent.; but if the averages for sovereigns be taken as extending over long periods, a good general knowledge may be gained, thus:—

In 1855, between June 6th and August 13th, the highest was 40·51 per cent., the lowest 13·13 per cent., the mean of 41 days giving 21·49 per cent.; while, at that period, the coined money was 43·53 per cent. on the clean bars.

In 1856, from January 2nd to January 22nd inclusive (18 working days), the highest was 21·48 per cent., the lowest 12·72 per cent., the mean of 18 days giving 18·51 per cent.; while, at that period, the coined money was 38·39 per cent. on the clean bars.

In 1856, during a short coinage I reduced its average amount to 13·78 per cent., the coined money increasing to 41·74 per cent. on the clean bars; but, as shown at page 92, this improved in 1857 to 6·99 per cent., while the coined money rose to 57·26 per cent. on the clean bars.

In 1860, from January 4th to February 18th inclusive (41 days), the highest was 7·71 per cent., the lowest 2·33 per cent.; the mean of 41 days was 4·11 per cent., which by the file was reduced to 2·07 per cent.;⁠[78] while, at that period, the coined money was 57·43⁠[79] per cent. on the clean bars.

Before arriving at definite conclusions as regards the amount of rejected work, it will be necessary to understand that up to the 2nd of [Pg 108]August, 1861, the remedy⁠[80] allowed in practice was 0·30 grain, and that in proportion as the remedy is reduced, the amount of rejected is increased; it is also the case that when work is good all the blanks or coins approach the standard weight, but when it is bad they as invariably go to the side or margin of the remedy. The following table exhibits the amount per cent. of rejected work⁠[81] which took place, with the various remedies; and these facts once determined, are to be remembered, because the rejected will in all cases bear these proportions to each other. In this table sovereigns are alluded to.

Remedy in Parts of a Grain.

These considerations had no weight when the Coinage Bill was being hurriedly passed—at late hours, so as to avoid discussion on its clauses—by the House of Commons. It in due course reached the House of Lords, where Lord Kinnaird moved a clause—which would have been greatly to the benefit of the Mint had it been adopted—to the effect that the remedy on the individual piece should be 0·2568 grain; that is—the remedy from the old scale under the Mint Indenture proportioned to one coin. This Coinage Bill introduced a new principle, and it would have been wise had it given the Mint every chance of success. Instead, however, of proceeding cautiously, his lordship’s motion was rejected and the remedy declared fixed at 0·2000 grain, thus necessitating the use of a working remedy of 0·1700 grain, or perhaps 0·1500 grain, and the consequent rejection for re-melting of “only 15½ per cent. of the whole of the money coined.” My experience tells me, more probably of about 35 per cent.; but upon this head I will allow Mr. Napier to speak. He says, “Indeed, roundly taken, the returns to the crucible may be put at nearly 50 per cent.; so that to produce a given weight of finished coin, something like double the weight of metal must be melted. So long as this state of things lasts, the process up to the formation of the blank must be regarded as imperfect.” It is not the process that fails, it is the want of power to conduct that process which causes so candidly admitted a continuation of the fatal system re-introduced by Mr. John Graham.

The proportioned legal remedy was 0·2568 grain. Now we can only wish to be within the law. If, therefore, 0·25 grain had been adopted as a working remedy, the automaton balances are so accurate that no piece could ever be found beyond the remedy, on either side, and an immense expense would be saved in labour alone, for the rejected goes [Pg 109] to the melting-pot; yet, owing to a mistake on the part of the Bank of England, 0·20 grain was used in 1861, but under my urgent representation this was relaxed because of the extravagant expense, and for some years 0·24 grain was used, in accordance with the following order from the Master:—“Mr. Ansell is requested to increase the remedy on sovereigns from 0·20 grain to 0·24 grain, and the half-sovereigns in a similar proportion.—14th of August, 1861. (Signed) Thomas Graham.” Under other management, since the early part of 1868, the working remedy has been reduced to 0·15 grain. Such useless waste, it is to be hoped, has only to be pointed out that this clause of the New Coinage Act may be repealed.

Following these considerations, the next table will show the rate per cent. of rejected sovereigns and half-sovereigns, as well as the remedies practically employed in regular work. They are, in all cases, the average results of whole coinages of each specific year mentioned.

It will thus be seen that of the whole mass of gold coined in 1868, 17·82 per cent. of sovereigns and 20·28 per cent. of half-sovereigns went respectively to the melting-pot—a state of things which no contractor would tolerate for a week; yet this waste has continued throughout 1870. Now, there can be no reason why the bullion should not again be weighed in the form of blanks, and the heavy blanks reduced by [Pg 110] the file, as they were in former days; for it must be remembered that that file⁠[82] has met with approval and adoption by the highest authorities on coining in their respective mints, and there is manifest folly and waste in sending fully 50 per cent. more rejected work to the melter than is absolutely necessary. These remarks will be more impressive if the table of rejected work be examined for 1861, where it will be seen that, with a remedy of 0·30 grain, the rejected was 5·75, reduced to 3·36 per cent., whereas it immediately went up to 21·43, reduced to 12·22 per cent., when, on the 2nd of August, the remedy was reduced to 0·20 grain; and that on the 14th of August, when the remedy was increased to 0·24 grain, the rejected became 16·07, and was reduced to 6·68 per cent., these being the figures obtained by the total amounts passed through all the automaton machines. We will next, then, see the effect of this extravagance in manufacture on the total out-turn of coin, because this is the final test of the cost of manufacture, it being readily understood that if 17 per cent. of the whole coinage be remelted, whereas 2·07 per cent. used to suffice, there must of necessity be a clear waste of labour to the extent of 15 per cent. Therefore, not only is unnecessary labour exacted, but also a large additional loss by melting is—under the present Authorities—incurred, as well as the loss by coining (see pages 101, 103). Having considered this, it will be fitting that the subject of wages paid to workmen shall receive attention, as a means to arrive at the cost of coining a sovereign, and which, it may be here stated, has been by others estimated at far too high a sum.

In discussing, then, the amount of coined money obtained from gold bars, it will be necessary to enter into details of figures, and to show not only the rate per centum of coin obtained from bars as forwarded by the melter, but also the rate obtained from the clean bars—that is, from bars whose ends have been sheared off, and from the total weight of which the brittle bars and stopped pots have been deducted, thus leaving none but solid workable bars called, in practice, “clean bars,” as against the rough bars, which, indeed are rough enough to deserve that title. [Pg 111]

Statement showing the rate per centum of Mixed Coin
from Rough Bars of Gold, and the rate per centum of
Sovereigns and Half Sovereigns from those respective
Bars. The Brittle Bars and Stopped Pots are deducted.

[Pg 112]

Statement showing the Gold Bars used in each Coinage
from November, 1856, to August, 1868, and the rate
per centum of Ends, of Mixed Gold Coin, and of
Sovereigns and Half Sovereigns produced from
those Bars.

The half-sovereigns shown in this table (page 111) at 26·97 per cent. were coined in November, under the old system, but they are placed here that these returns may be accurate. The effect of the reduction of the remedy from 0·30 to 0·20 grain (which has been explained at page 107) is evidenced in the amount of coin obtained in the period—June, 1861, to March, 1862; yet it is fair to admit that some of this gold was exceptionally bad, for the Bank of England, finding that the bad gold of 1859 had been coined, paid the Mint the compliment to send at this period some of a singularly rotten character, with an appearance almost woolly; and if reference be made to the table of rejected at page 109, this gold will be seen to have produced, with a remedy of 0·24 grain, 16·07, reduced to 6·68 per cent., over the remainder of the coinage, thus making the disastrous effect of the reduced remedy more apparent. As has been before stated, the gold of 1859 contained, besides a vast amount of brittle gold, 0·45⁠[84] per cent. of its whole weight of dumb fillets. Then, coming to the period, October, 1863, to June, 1864, we find a continued state of bad work, influenced by the remedy of 0·24 grain to a certain extent but to a much more marked degree by the new system which was now introduced; and by referring to the next table, it will be seen that the ends at one jump went up from 4·03 to 7·60 per cent., because a mistaken opinion led to the shearing off the ends from the bars in the rolling room. The order for the re-introduction of this abandoned custom was in the following terms, so could not be set aside by those who saw its unwisdom:—“In the practice of the rolling room, Mr. John Graham is requested to cause not less than 3 inches from the hollow end of each gold bar to be cut off before beginning the rolling, with a view of keeping back the doubtful portion of the bar.—(Signed) Thomas Graham. 7th December, 1863.” Grave as was this error, it was surpassed by a real blunder, for at this period it was determined to stop all fillets that appeared to exhibit any signs of brittleness, thus hopelessly rejecting an immense bulk of really good work lest it should contain any bad; whereas, had the proper course been adopted, the good from each fillet should have been selected, as was the invariable custom under the MONEYERS and the small per-centage of really bad fillets rejected. By this system the men were thoroughly disheartened. To such a length was this mismanagement at last carried, that the officers and men allowed things to take their course, feeling sure that time would [Pg 113] demonstrate the folly of the present system. However, the extravagance has continued down to this day. Yet another source of waste of labour was left; and even this was utilised. In the working of the draw-bench, as well as the mill, there are at starting many fillets so varying in thickness that it is not fair to make the trier send them to the cutters as regular work. It was the custom at that period to detain these fillets to the end of the day, when they were especially treated, cut at a special cutter, and the blanks sent to be weighed—the good were reserved, but the bad were returned to the trier, yet not charged to him as bad work, thus enabling him to save at least 70 per cent. of, perhaps, 5,000 ounces per diem. Under the new régime this was not permitted, from sheer want of knowledge, although its stoppage was condemned alike by officers and men. Causes such as these reduced the average amount of coined sovereigns, from rough bars, from 51 to 44 per cent., as will be seen by examining the table of coined money obtained from rough bars.⁠[85] By now referring to the accompanying statement, the effect of this mismanagement will be seen, for instead of an average of 52·40, only 48·48 per cent. of coin was obtained from bars⁠[86] that had been stripped of every fault that could interfere with their producing power. Instead of yielding, as these should have done, a larger proportion of coin, they really gave less than the coin previously obtained from rough bars, as will be manifest if this statement be consulted. But, that these facts may be more clear, this abstract is made from the two previous tables, showing the averages of coin obtained and the waste of labour by manufacture under the present system, so clearly to exhibit the amount of loss in money value by labour alone.

[Pg 114]

Statement showing the Amount of Money Coined and of Pyx Pieces between November, 1856, and August, 1868.

• LEGEND:
• (A) = Money Coined:—Sovereigns and Half Sovereigns.
• (B) = Coined Money:—Sovereigns
• (C) = Coined Money:—Pyx Pieces.
• (D) = Coined Money:—Half Sovereigns.
• (E) = Coined Money:—Mixed Pyx Pieces.

[Pg 115] To show the extra cost of coining, these figures have but to be multiplied into the sums coined. Before, however, entering upon this field, it will be well to explain that the rates per cent. of coined money obtained, as exhibited in the last two tables, are inclusive of the pyx pieces, so as to show, as far as possible, the best results. The pieces taken for the Mint trial are excluded, because these do not ultimately find their way into circulation; but that the vast money loss may be seen, I have added, in a tabular form, a statement⁠[91] which will show the weight of coined money produced in each coinage from 1856 to 1868. It may, at first sight, appear that if the work be so badly conducted as to yield an average of 3·92 per cent. less coined money from a hundred ounces of bars, the expense incurred is increased to an equivalent amount; but such is not the case, for all depends on the point at which the extravagant workmanship may have taken place. If, for instance, the bad work be produced in the rolling room, it simply induces the expenditure of so much wages in the melting, because the men are paid for the bars produced; but if the rejection shall have taken place after the money is coined, it becomes a more serious matter, because, in such a case, the loss and expense attendant on each operation subsequent to the melting have been incurred. It is, therefore, extremely difficult to give a general rule, but an instance will suffice. The coinage for 1857,⁠[92] inclusive of every manufacturing expense, cost 6s. 5d. per thousand pieces; while that of 1866 cost 13s. 2d. per thousand pieces. That the exact amount of waste may be estimated for these two years, then, it is only necessary to multiply the weight given previously (refer to page 114) for the coined money and pyx pieces, which, in the period from November, 1856, to April, 1857, would be 456,111·568, added to 464·293, and the sum of these, multiplied by £3·89375,—the decimal expression for £3 17s. 10½d., when the total value of that coinage will be obtained, and found to be £1,777,796·15. Since each thousand coins cost 6s. 5d., the total sum was coined at an expense of £570 7s. 6d.; but, had the rate of expense been the same as for the coinage of 1866, the total cost would have been £1,170 7s. 7½d., or exactly £600 0s. 1½d. more than it should have cost for actual working expenses. So by the rule of proportion the actual expense for the coinage of 1866 may be obtained, and this table is valuable as showing the weight of each coinage, but will naturally be more serviceable to those who seek practical information than to general readers, and for the benefit of such it is added.

On examining this table (see page 114), it will be observed that the coinages of December, 1858, to June, 1859, and against which is placed, are bracketed, with a view to call attention to the fact that the accounts of those two coinages became inexplicably mixed. Since the present and the late Prime Minister have stated from their places in Parliament that the Royal Mint is found wanting in administrative ability, it may not be out of place to suggest that there is abundant room for reform in the Office division of that Department, for it is seldom that the accounts can be obtained for many months after the work is finished, and this circumstance, as is apparent, is a serious inconvenience to the operative department.

Following these considerations on the extravagance of manufacture, and reflecting on what the processes should be, it appears that this is a fitting point at which to study the cost of producing gold coins, and, consequently, the rates of wages paid to the men for labour. Therefore, it may be well to state that there were two systems of payments to [Pg 116] workpeople: one by which they were paid for time, that is, by the hour, for cleaning the working departments, machinery, &c., and for the more important coining of bronze; while for the coining of the precious metals they were paid by a scale of piece-work. These systems produced nothing but dissatisfaction amongst the workpeople, for at times they were receiving very good wages, and at others none at all; and to meet such contingencies the men and boys who were on the establishment received a kind of retaining fee, which was called subsistence, and in bitter irony no more fit name can be given to the miserable pittance which, under this form, was paid to them. It commenced at 6s. a week, and, after twenty years, rose to 10s. a week; and if, as often happened, the Mint were idle for months together, this was all the poor fellows had to subsist upon; and, to reduce the value of this pittance to its smallest proportion, they were not entitled to it unless they should each day present themselves, and, by a fiction, ask for leave of absence for that day, the longest period for which leave can be granted. After many attempts to compel the men to comply with these terms, they were wisely permitted to go home, and “wait further orders;” so that, by a kind of tacit resistance, they were able to overcome a regulation which would make it impossible to obtain employment elsewhere, because most other work commences before eight, at which hour they were required to present themselves. If, instead of this unsatisfactory state, the men were paid fixed wages, and, in addition, so much for each 100 lbs. of coined money produced, they would be satisfied, while the coined money would be produced at a cheaper rate, for each man would be concerned to see that every exertion was made for the final event; whereas, under the then arrangement, with a specific amount of gold to be coined, it is manifest that, with management such as is now under discussion, the sum for wages might be doubled, because the men were paid at the following

Rates for Piece-work.

• LEGEND:
• (A) = Rolling Fillets.
• (B) = Adjusting and Cutting.
• (C) = Marking and Annealing.
• (D) = Coining in Press Room.
• (E) = Melting. (Ends are not deducted.)

And, to view this matter in its practical light, we can demonstrate its unadvisedness. Thus, in the coinage of 1857,⁠[93] there were 2,110,962 ounces of gold bars wrought, which produced 2,016,337·80 ounces of fillets (equal to 95·51 per cent.). These fillets produced 1,163,502·34 ounces of good blanks, from which [Pg 117] 1,154,590·87 ounces of coined sovereigns were obtained. Now, if these various weights be reduced to wages—the men were paid for the produce of each operation—by the table above given, they will yield as follows:—

So that for producing 1,154,590·87 ounces, or £4,495,748, of coined money, the men were paid £815 7s. 5½d., which sum was equally divided amongst the whole body, except that paid to the melters, for they are still paid, by a curious fiction, as packers and tellers. This, then, is the sum paid for wages when the coin produced averaged 54·79 per cent. on the bars; but let us see its amount compared with another statement put forward by the late Master of the Mint when the sovereigns produced averaged—the coinages concerned terminated in December, 1864,⁠[94] and May, 1866⁠[95]—49·44 and 38·11⁠[96] per cent. on the bars respectively—in other words, let us compare this rate of pay with that given in the Report of the Commissioners on the International Coinage, from which book the figures for 1864 in the following Table are taken.

Statement showing the Cost of producing
1,000 Coined Sovereigns and Half Sovereigns.

By which it is demonstrably shown that whereas at that period 1,000 coins cost for wages 7s. 2d., at the periods above given, and shown as 1857-8, the cost was 3s. 5½d. for the same number of coins, thus showing a clear saving for wages, by the proper system of management, of 3s. 8½d. on each 1,000 sovereigns coined, or on that total quantity no less than £1,050 2s. 8½d. While such extravagance is not only tolerated but approved, miserable savings are effected at the cost of the helpless. But to treat of the wrongs to which men in this Department are submitted would take volumes which none would read.

Since, however, the appearance of the last edition of this book, the Mint Authorities have adopted in part the plan of wages payment I therein suggested, and which I had submitted to the late Master of the Mint in my Report dated 29th January, 1859. Indeed, I believe the [Pg 118] system now in force was recommended to the Treasury, in the first instance, by Mr. Thomas Graham. I am sorry they did not give full effect to my propositions, still they have improved the positions of the workmen by the alterations made, but for the reasons I shall state I cannot concur in what they have done. I leave my original proposition to speak for itself, as I reproduce it a few pages hence, and here content myself with exhibiting the system of payment to workmen now in force in the Royal Mint. Vide “Mint Reports,” No. 7, 1870.

“We propose that for the future all piece-work in gold and silver coining shall be paid for at the reduced rate of 1s. 9d. per 1,000 good pieces, and all bronze coining at the rate of £2 10s. per ton for pence, £3 10s. per ton for halfpence, and £7 per ton for farthings.

“In addition to their wages for piece-work, we propose that the men should be entitled to a uniform payment of £1, and the boys to a payment of 10s., and after three years’ service, to 15s. per week. The only exception to these arrangements would be the payments made to certain overmen, which would be in one case £1 10s., and in five other cases £1 5s. per week. These payments would continue to be made when the Mint is at work as well as when it is unemployed, and to the boys as well as to the men. All the men and boys would thus receive sufficient weekly wages to maintain them, both during a cessation of work and while the Mint is in full operation.

“By this arrangement an average saving of £100 a year only will be effected.”

To the principle involved in this system I take exception; for the manufacturers, who gave the idea for it, never coined the precious metals, so that the whole operation of the system could not have been present to their minds when they recommended it. By this plan the men are paid for simple numbers, and not as they should be, in proportion to the labour and anxiety incurred.

That this fault may stand out clearly, I submit in the following table a fair week’s work on each coin, and we will assume that the one kind of coin follows the other, as indeed would really be the case in actual operation, only at greater intervals.

It is reasonable to suppose that men are more exposed to temptation when gold is within their reach (and that this is Mr. Fremantle’s view may be gathered from one of his reasons for urging a removal of the Mint, viz., to avoid “opportunities for peculation”) than when they are operating upon silver or bronze; yet we find by the above demonstration that sovereigns and half-sovereigns yield almost the worst wages to the men, for the sums specified are divided amongst the whole body of them, who probably number now, as when I left the Mint, 27 men and 11 boys. The contrast is stronger if the payment for florins be compared with that for THREEPENCES, which, with a tithe of the labour, yield just double the remuneration. [Pg 119] The Reporters give a reason why they altered the system, which after I have pointed out the above facts, will seem to be curious. They state that the inequalities of wages induce “the improvident to contract liabilities, and, on the other hand, the more skilful workmen are induced to accept employment elsewhere, and the Mint loses their services.” In my own experience, the men prefer regular wages of a smaller amount to an irregular income of greater value, because they can then regulate their household expenses and save money by fixed weekly sums, but that this reason never entered the heads of the Reporters is manifest from their own admission. They urge “this arrangement because an average saving of £100 a year will be effected,” which saving is to come out of the pockets of men already underpaid. I would say to the Reporters, “Muzzle not the ox that treadeth out the corn.”

The total cost, then, of producing a sovereign in 1857 under proper management was 0·174d., while under Mr. Graham’s system it would appear to have been 0·311d. in 1864. If, however, the facts be examined, and stripped of the sensational effect of the cost of one coin, it will be found that the difference is far from infinitesimal, for whereas the total absolute cost per 1,000, inclusive of everything, was 14s. 4¼d. in 1857, it had reached £1 5s. 11¼d. in the years 1864-66 (see page 117). The increased expense thus incurred amounts to 11s. 7d. on each 1,000 coins, or, on the whole amount of that coinage, to £3,280 4s. This, then, is the state of cost at a selected period, when a large amount was coined weekly. But what would have been the cost had it been taken on the total coinage? For then we should have found an increase in the amount per 1,000 pieces for salaries and contingent expenses, whereas the figures for 1857 include the whole coinage—beginning, middle, and ending; so that the average produce of coins per week, although appearing to be smaller than that of 1864, is really far greater, for whereas the largest number reached in any one week in 1864 was 585,899⁠[97] pieces, in 1857 the largest number in any one week was 915,506⁠[98] pieces, or larger by 329,607 pieces, the average per week being 17,253 pieces less, because the coinages of 1864-1866 referred to, do not contain the beginning and “tailing-off” of the coinage; in simple fact, they are figures written for effect, not for information. That the complete coinage costs more for salaries and contingent expenses is self-evident, because those expenses remain the same if no coins be struck, but that this is a fact is demonstrated by the little coinages of 1858 in the same table,⁠[99] where it will be seen that, although the payments for wages nearly approach the cost of 1857, the cost for salaries and contingent expenses is greater than it was in 1864. Another point is here also proved to demonstration—that whereas the loss by coining is clearly proved to be unnecessary, the late Master of the Mint states it at [Pg 120] 6s. per 1,000, or £300 per million coined. That this should have been so stated is of ill omen,⁠[100] for when the belief of Mr. Brande and his colleagues led them to the conclusion that loss was necessary at a mean rate of £373 per million, they exceeded £500; and, by rule of proportion, we may expect the Mint to make, now that the belief of the late Master has found expression, a loss of £452.⁠[101] Be this as it may, the difference between 6s. and 2s. 9½d. is sufficient to make men think, for even this trifle of 3s. 2½d. on 1,000 coins amounts to £908 2s. 6½d. on that single coinage. That the loss on the coinages of 1858 should be so great is explained by the fact that in a small coinage the first loss by gilding the machinery is as great as in a large one; but in the case of a great coinage this is so distributed over the mass as not to appear. Had it been determined, however, to exhibit the actual facts by the system of selection followed by others, not only would this loss of metal have disappeared, but a gain would have been shown, for on those particular coins there was an actual gain of 1·39 ounces, which is at the rate of £9 18s. 10½2d. per million coined, or 2·386d. per 1,000 pieces coined, so reducing the cost of these actual coins to £1 0s. 10½d. and £1 1s. 6d. per 1,000 respectively; but as these matters are dwelt upon for information alone, it is preferred to place the fair proportion of the loss on this coinage on this portion of it. It should be observed that the contingent expenses for 1857 do not include £1,100 voted for the new files,⁠[102] because that sum was never appropriated to that purpose; but that they do include the subsistence paid to the men, and, indeed, every possible sum other than weekly wages paid to the men by the piece-work scale above quoted. I have not questioned, nor have I investigated, the figures used by the late Master of the Mint, for as he wrote those papers, and invited the Signatories to give their names after the copies were fairly made, it is but just to suppose that that gentleman satisfied himself of their accuracy.

The Chancellor of the Exchequer has proposed to reduce the value of the gold coinage by removing one grain of gold from the sovereign, a reduction of 0·81119 per cent, of its value. This matter has been so fully discussed, and its error so completely demonstrated, that little need be here said; but there is one consideration which should not be omitted. The new standard of value, for such it will be, will be worth only its value in gold immediately after it has quitted our shores. To travellers, therefore, it is a tax of about one per cent., for each of Mr. Lowe’s pounds will fetch but 19s. 10d., and, whether the coins be exchanged here or abroad, the reduction must be borne; whereas, if it were determined to charge the importer for the cost of coining, and for that alone, no tax could fall on individuals—a system which must be unjust, and the coin would, by this burden, be restricted in its power of sale as bullion, so small a sum as one-eighth of one per cent. having frequently determined the sending of coin rather than of bullion, because, when the exchanges are nearly [Pg 121] equal, merchants thus save the cost of assaying, which, inclusive of loss of interest, &c., amounts to 2s. 6d. per £100. To fix, then, the sum proper to charge for the coining of gold is practically a simple matter, if it be desired, as should be the case, to protect our coinage from conversion into bullion, to the profit of special merchants, but to the loss of the nation. In the following proposition the exact cost can be determined, and that should be the maximum limit of a Mint charge or mintage, for if that charge be so enlarged as to insure a profit, the fears of Mr. J. G. Hubbard as to the illicit coiners relieving the Mint may be expected to be realised.

Between April, 1855, and December, 1865, £59,581,957 were coined, or an average of £5,958,195 in each year. If, however, six millions be accepted as the average yearly coinage of gold, it will give data for the following calculations.

That the cost of coining may be always the same, let there be thirty-six efficient workmen and twelve boys, and let these be paid for wages in the following manner:—To each man £1 a week, whether at work or not, and to boys a sum beginning at 14s. per week, to be increased 1s. per week for each additional year of service, until the age of twenty be reached, when they should receive the same sum of £1 as is paid to the men, but the “rating as men” should be stopped till a vacancy occurs, that the number of men, inclusive of melters, shall not exceed thirty-six, as then no injustice will be done the men, and the boys are sufficiently provided for to enable them to wait. When, however, work is in progress I would pay for piece-work as follows; for—
