ILLUSTRATED SCIENCE
FOR
BOYS AND GIRLS.
BOSTON:
D. LOTHROP & COMPANY,
FRANKLIN STREET.
Copyright, 1881,
By D. Lothrop & Company.
TABLE OF CONTENTS.
Page | |
How Newspapers are made. | 11 |
Umbrellas. | 38 |
Paul and the Comb-makers. | 54 |
In the Gas-works. | 69 |
Racing a Thunder-storm. | 86 |
August’s “’Speriment.” | 103 |
The Birds Of Winter. | 125 |
Something About Light-houses. | 141 |
“Buy a Broom! Buy a Broom!” | 158 |
Talking by Signals. | 171 |
Jennie finds out how Dishes are made. | 183 |
Archery For Boys. | 192 |
Dolly’s Shoes. | 202 |
A Glimpse of some Montana Beavers. | 208 |
How Logs go to Mill. | 211 |
LIST OF ILLUSTRATIONS.
Page | |
Frontispiece | |

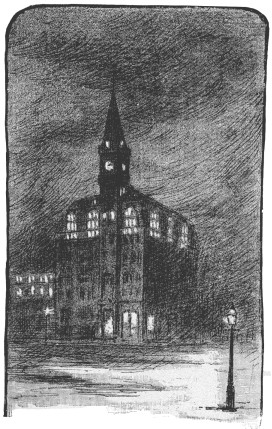

The N. Y. Tribune Building at Night. | 13 |
A Contributor to the Waste-Paper Basket. | 16 |
Office of the Editor-In-Chief. | 17 |
Regular Contributors | 19 |
How Some of the News is Gathered | 22 |
Type-Setter’s Case In Pi. | 22 |
Type-Setters’ Room. | 23 |
Taking “Proofs.” | 24 |
In the Stereotypers’ Room. | 25 |
Finishing the Plate. | 27 |

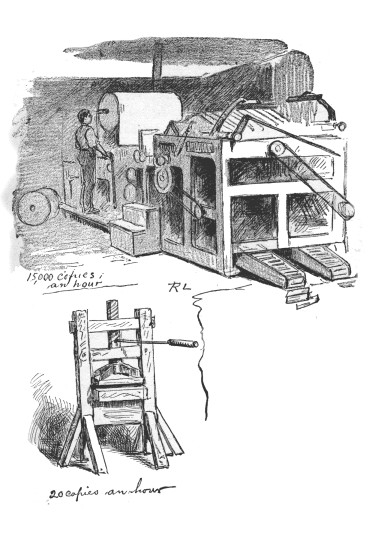

Printing Presses of the Past and Present | 30 |
A News-Dealer. | 33 |
A Bad Morning for the News-Boys. | 36 |
“Any Answers come for Me?” | 37 |
The First Umbrella. | 38 |
What Jonas saw adown the Future. | 39 |
Lord of the Twenty-Four Umbrellas. | 42 |

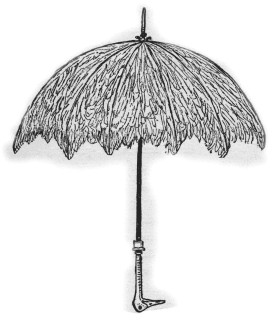

A “Duck’s Back” Umbrella. | 44 |
An Umbrella Handle Au Naturel. | 46 |
Cutting the Covers. | 47 |
Finishing the Handle. | 50 |
Sewing “Pudding-Bag” Seams. | 51 |
Completing the Umbrella | 53 |
Master Paul did not feel Happy. | 55 |
My Lady’s Toilet. | 58 |
The New Circle Comb | 61 |
Ancient or Modern—Which? | 62 |
“In Some Remote Corner Of Spain.” | 65 |
A Retort. | 72 |
Kitty in the Gas-Works. | 77 |
The Metre. | 77 |
The Gasometre. | 83 |
Inflating the “Buffalo.” | 87 |
A Plucky Dog. | 91 |
Our Balloon Camp. | 94 |
The Professor’s Dilemma. | 99 |
The Wreck of the “Buffalo.” | 101 |
The Incubator. | 105 |
How the Chicken is Packed. | 117 |
How the Shell is Cracked. | 118 |
The Artificial Mother. | 120 |
The Chickadee. | 126 |
The Black Snow-Bird. | 129 |
The Snow Bunting. | 133 |
The Brown Creeper. | 134 |
Nuthatches. | 136 |
The Downy Woodpecker. | 138 |
Fourth Order Light-House. | 141 |
A Modern Light-House | 144 |
Light-House on Mt. Desert. | 147 |
Light-House at “The Thimble Shoal” | 151 |
First Class Light-Ship. | 154 |
The Blind Broom-Maker of Barnstable. | 159 |
A Gay Cavalcade. | 160 |
The Comedy of Brooms. | 163 |
Up in the Attic. | 164 |
Plant the Broom! | 166 |
The Tragedy of Brooms. | 169 |
In Obedience to the Signals. | 177 |
The Potter’s Wheel. | 184 |
The Kiln and Saggers. | 186 |
Mould for a cup. | 188 |
Handle Mould. | 188 |
Making a Sugar-Bowl. | 189 |
Rest for flat Dishes. | 191 |
The Target. | 201 |
Dolly’s Shoes | 204 |
A Maine Wood-Chopper. | 211 |
A River-Driver. | 214 |

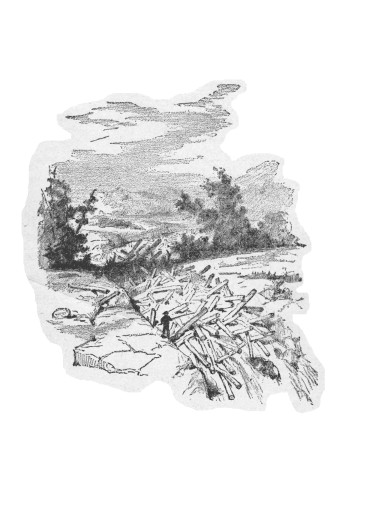

“The Liberated Logs came sailing along.” | 216 |
Through the Sluice. | 218 |
ILLUSTRATED SCIENCE FOR
BOYS AND GIRLS.
We will suppose that it is a great newspaper, in a great city, printing daily 25,000, or more, copies. Here it is, with wide columns, with small, compact type, with very little space wasted in head lines, eight large pages of it, something like 100,000 words printed upon it, and sold for four cents—25,000 words for a cent. It is a great institution—a power greater than a hundred banking-houses, than a hundred politicians, than a hundred clergymen. It collects and scatters news; it instructs and entertains with valuable and sprightly articles; it forms and concentrates public opinion; it in one way or another, brings its influence to bear 12 upon millions of people, in its own, and other lands. Who would not like to know something about it?
And there is Tom, first of all, who declares that he is going to be a business man, and who already has a bank-book with a good many dollars entered on its credit side—there is Tom, I say, asking first of all: “How much does it cost? and where does the money come from? and is it a paying concern?” Tom shall not have his questions expressly answered; for it isn’t exactly his business; but here are some points from which he may figure:
“How much does it cost?” Well, there is the publishing department, with an eminent business man at its head, with two or three good business men for his assistants, and with several excellent clerks and other employès. Then there is the Editor-in-Chief, and the Managing Editor, and the City Editor, and a corps of editors of different departments, besides reporters—thirty or forty men in all, each with some special literary gift. Then there are thirty or forty men setting type; a half-dozen proof-readers; a half-dozen stereotypers; the engineer and foreman and assistants below stairs, who do the printing; and several men employed in the mailing department. Then there are tons and tons of paper to be bought each week; ink, new type, heavy bills for 13 postage; many hundreds of dollars a week for telegraphic dispatches; and the interest on the money invested in an expensive building; expensive machinery, and an expensive stock of printers’ materials—nothing being said of the pay of correspondents of the paper at the State Capitol, at Washington, at London, at Paris, etc. Tom is enough of a business man, already, I know, to figure up the weekly expenses of such an establishment at several thousands of dollars—a good many hundreds at each issue of the paper.
“And where does the money come from?” Partly from the sale of papers. Only four cents apiece, and only a part of that goes to the paper; but, then, 25,000 times, say two-and-a-half cents, is $625, which it must be confessed, is quite a respectable sum for quarter-dimes to pile up in a single day. But the greater part of the money comes from advertisements. Nearly half of the paper is taken up with them. If you take a half-dozen lines to the advertising clerk, he will charge you two or three dollars; and there are several hundred times as much as your small advertisement in each paper. So you may guess what an income the advertising yields. And the larger, the more popular, and the more widely read the paper, the better will be the prices which advertisers 14 will pay, and the more will be the advertisements. And so the publisher tries to sell as many papers as he can, partly because of the money which he gets for them, but more, because the more he sells the more advertising will he get, and the better rates will he charge for it. So, Tom, if you ever become the publisher of a newspaper, you must set your heart on getting an editor who will make a paper that will sell—whatever else he does or does not do.
“And is it a paying concern?” Well, I don’t think the editors think they get very large pay, nor the correspondents, nor the reporters, nor the printers, nor the pressmen. They work incessantly; it is an intense sort of work; the hours are long and late; the chances of premature death are multiplied. I think they will all say: “We aren’t in this business for the money that is in it; we are in it for the influence of it, for the art of it, for the love of it; but then, we are very glad to get our checks all the same.” As to whether the paper pays the men who own it—which was Tom’s question: I think that that “depends” a great deal on the state of trade, on the state of politics, and on the degree to which the paper will, or will not, scruple to do mean things. A great many papers would pay better, if they were meaner. It would be a great deal easier to make a good paper, if you did not 15 have to sell it. When, then, Jonathan shall have become a minister, he doesn’t want to bear down too hard on a “venal press” in his Fast Day and Thanksgiving sermons. Perhaps, by that time, Tom will be able to explain why.
“How, now, is this paper made?” “But,” interrupts Jonathan, “before they make it, I should like to know where they get the 100,000 words to put into it; I have been cudgeling my brains for now two weeks to get words enough to fill a four page composition—say 200 words, coarse.”
The words which are put into it are, besides the advertisements, chiefly: 1. News; 2. Letters and articles on various subjects; 3. Editorial articles, reviews, and notes; 4. Odds and ends.
The “letters and articles on various subjects” come from all sorts of people: some from great writers who get large pay for even a brief communication; some from paid correspondents in various parts of the world; some from all sorts of people who wish to proclaim to the world some grievance of theirs, or to enlighten the world with some brilliant idea of theirs—which generally loses its luster the day the article is printed. A large proportion of letters and articles from this last class of people get sold for waste-paper before the printer sees them. This is 16 one considerable source of income to the paper, of which I neglected to tell Tom.
As for the “odds and ends”—extracts from other papers, jokes, and various other scraps tucked in here and there—a man with shears and paste-pot has a 17 good deal to do with the making of them. If you should see him at work, you would want to laugh at him—as if he were, for all the world, only little Nell cutting and pasting from old papers, a “frieze” for her doll’s house. But when his “odds and ends,” tastefully scattered here and there through the paper, come under the reader’s eye, they make, I am bound to say, a great deal of very hearty laughter which is not that laughter of ridicule which the sight of him at his work might excite.
About the “news,” I must speak more fully. The “editorial articles, reviews, and notes,” we shall happen upon when we visit the office.
A part of the news comes by telegraph from all parts of the world. Some of it is telegraphed to the paper by its correspondents, and the editors call it “special,” because it is especially to them. Perhaps there is something in it which none of the other papers have yet heard of. But the general telegraphic news, from the old-world and the new, is gathered up by the “Associated Press.” That is to say, the leading papers form an Association and appoint men to send them news from the chief points in America and in Europe. These representatives of the Associated Press are very enterprising, and 18 they do not allow much news of importance to escape them. The salaries of these men, and the cost of the telegraphic dispatches, are divided up among the papers of the Association, so that the expense to each paper is comparatively small. Owing to this association of papers, hundreds of papers throughout the country publish a great deal of matter on the same day which is word-for-word alike.
Two devices in this matter of Associated Press dispatches save so much labor, that I think you will like me to describe them.
One is this: Suppose there are a dozen papers in the same city which are entitled to the Associated Press dispatches. Instead of making a dozen separate copies, which might vary through mistakes, one writing answers for all the dozen. First, a sheet of prepared tissue paper is laid down, then a sheet of a black, smutty sort of paper, then two sheets of tissue paper, then a sheet of black paper, and so on, until as many sheets of tissue paper have been piled up, as there are copies wanted. Upon the top sheet of paper, the message is written, not with pen, or pencil, but with a hard bone point, which presses so hard that the massive layers of tissue paper take off from the black paper a black line wherever the bone point has pressed. Thus a dozen pages are 19 written with one writing, and off they go, just alike, to the several newspaper offices. The printers call this queer, tissue-paper copy—“manifold.”
The other device is a telegraphic one. Suppose the Associated Press agent in New York is sending a dispatch to the Boston papers. There are papers belonging to the Association at, say, New Haven, Hartford, Springfield and Worcester. Instead of sending a message to each of these points, also, the message goes to Boston, and operators at New Haven, Hartford, Springfield, and Worcester, listen to it as it goes through, and copy it off. Thus one operator at New York is able to talk to perhaps a score of papers, in various parts of New England, or elsewhere, at once.
But in a large city there is a great deal of city and suburban news. Take for example, New York; and there is that great city, and Brooklyn, and Jersey City, and Hoboken, and Newark, and Elizabeth, to be looked after, as well as many large villages near at hand. And there is great competition between the papers, which shall get the most, the exactest, and the freshest, news. Consequently, each day, a leading New York paper will publish a page or more of local news. The City Editor has charge of collecting this news. He has, perhaps, twenty or twenty-five 20 men to help him—some in town, and others in the suburbs.
His plan for news collecting will be something like this: He will have his secretary keep two great journals, with a page in each devoted to each day. One of these, the “blotter,” will be to write things in which are going to happen. Everything that is going to happen to-morrow, the next day, the next, and so on, the secretary will make a memorandum of or paste a paragraph in about upon the page for the day on which the event will happen. Whatever he, or the City Editor, hears or reads of, that is going to happen, they thus put down in advance, until by and by, the book gets fairly fat and stout with slips which have been pasted in. But, this morning, the City Editor wants to lay out to-day’s work. So his secretary turns to the “blotter,” at to-day’s page, and copies from it into to-day’s page in the second book all the things to happen to-day—a dozen, or twenty, or thirty—a ship to be launched, a race to come off, a law-case to be opened, a criminal to be executed, such and such important meetings to be held, and so on. By this plan, nothing escapes the eye of the City Editor who, at the side of each thing to happen, writes the name of the reporter whom he wishes to have write the event up. This second book 21 is called the “assignment book;” and, when it is made out, the reporters come in, find their orders upon it, and go out for their day’s work, returning again at evening for any new assignments. Besides this, they, and the City Editor, keep sharp ears 22 and eyes for anything new; and so, amongst them, the city and suburbs are ransacked for every item of news of any importance. The City Editor is a sort of general. He keeps a close eye on his men. He finds out what they can best do, and sets them at that. He gives the good workers better and better work; the poor ones he gradually works out of the office. Those who make bad mistakes, or fail to get the news, which some other paper gets, are frequently “suspended,” or else discharged out-and-out. Failing to get news which other papers get, is called being “beaten,” and no reporter can expect to get badly “beaten” many times without losing his position.
And now, Tom, and Jonathan, and even little Nell, we’ll all be magicians to-night, like the father of Miranda, in “The Tempest,” and transport ourselves in an instant right to one of those great newspaper offices.
It is six o’clock. The streets are dark. The gaslights are glaring from hundreds of lamp-posts. Do you see the highest stories of all those buildings brilliant with lights? Those are the type-setters’ rooms of as many great newspapers. In a twinkling we are several stories up toward the top of one of these buildings. These are the Editorial Rooms. 23 We’ll make ourselves invisible, so that they’ll not suspect our presence, and will do to-night just as they always do.
Up over our heads, in the room of the type-setters, are a hundred columns, or more, of articles already set—enough to make two or three newspapers. The Foreman of the type-setters makes copies of these on narrow strips of paper with a hand-press, and 24 sends them down to the Editor-in-Chief. These copies on narrow strips of paper, are called “proofs,” because, when they are read over, the person reading them can see if the type has been set correctly—can prove the correctness or incorrectness of the type-setting.
The Editor-in-Chief runs rapidly through these proofs, and marks, against here and there one, “Must,” which means that it “must” be published in to-morrow’s paper. Against other articles he marks, “Desirable,” which means that the articles are “desirable” to be used, if there is room for them. Many of the articles he makes no mark against, because they can wait, perhaps a week, or a month. By having a great many articles in type all the time, they never lack—Jonathan will be glad to know—for something to put into the paper. Jonathan might well take the hint, and write his compositions well in advance. Against some of the articles, the word “Reference” is written, which indicates that when the article is published an editorial article or note with “reference” to it must also be published. Before the Editor-in-Chief is through, perhaps he marks against one or two articles the word “Kill,” which means that the article is, after all, not wanted in the paper, and that the type of it may be taken 25 apart—the type-setters say “distributed”—without being printed.
When the Editor-in-Chief is through with the proofs, perhaps he has a consultation with the Managing Editor—the first editor in authority after him—about some plans for to-night’s paper, or for to-morrow, or for next week. Perhaps, then, he summons in the Night Editor. The Night Editor is the man who stays until almost morning, who overlooks everything that goes into the paper, and who puts everything in according to the orders of the Editor-in-Chief, or of the Managing Editor. Well, he tells the Night Editor how he wants to-morrow’s paper made, what articles to make the longest, and what ones to put in the most important places in the paper. Then, perhaps, the City Editor comes knocking at the door, and enters, and he and the Editor-in-Chief talk over some stirring piece of city news, and decide what to say in the editorial columns about it.
After the Editor-in-Chief has had these consultations, perhaps he begins to dictate to his secretary letters to various persons, the secretary taking them down in short-hand, as fast as he can talk, and afterwards copying them out and sending them off. That is the sort of letter-writing which would suit little Nell—just to say off the letter, and not to have to write 26 it—which, in her case, means “printing” it in great, toilsome capitals. After dictating perhaps a dozen letters, it may be that the Editor-in-Chief dictates in the same manner, an editorial article, or some other matter which he wishes to have appear in the paper. Thus he spends several hours—perhaps the whole night—in seeing people, giving directions, dictating letters and articles, laying out new plans, and exercising a general headship over all things.
Turning, now, from his room, we observe in the great room of the editors, a half dozen men or more seated at their several desks—the Managing Editor and the Night Editor about their duties; two or three men looking over telegraph messages and getting them ready for the type-setters; two or three men writing editorial, and other articles.
From this room we turn to the great room of the City Department. There is the City Editor, in his little, partitioned-off room, writing an editorial, we will suppose, on the annual report of the City Treasurer, which has to-day been given to the public. At desks, about the great room, a half-dozen reporters are writing up the news which they have been appointed to collect; and another, and another, comes in every little while.
Over there, is the little, partitioned-off room for the Assistant City Editor. It is this man’s duty, with his assistant, to prepare for the type-setters all the articles which come from the City Department. There are stacks and stacks of them. Each reporter thinks his subject is the most important, and writes it up fully; and, when it is all together, perhaps there is a third or a half more than there is room in the paper to print. So the Assistant City Editor, and his Assistant, who come to the office at about five o’clock in the afternoon, read it all over carefully, correct it, cut out that which it is not best to use, group all the news of the same sort so that it may come under one general head, put on suitable titles, decide what sort of type to put it in, etc.,—a good night’s work for both of them. They also write little introductions to the general subjects, and so harmonize and modify the work of twenty or twenty-five reporters, as to make it read almost as if it were written by one man, with one end in view.
The editors of the general news have to do much the same thing by the letters of correspondents, and by the telegraphic dispatches.
While this sort of work goes on, hour after hour, with many merry laughs and many good jokes interspersed to make the time fly the swifter, we will 29 wander about the establishment. Here, in the top story of the building, is the room of the type-setters. Every few minutes, from down-stairs in the Counting Room, comes a package of advertisements to be put into type; and from the Editorial Rooms a package of news and general articles for the same purpose. They do not trouble to send them up by a messenger. A tube, with wind blown through it very fast, brings up every little while a little leathern bag, in which are the advertisements or the articles—the “copy” as the type-setters call it.
In this room are thirty or forty type-setters. Each one of them has his number. When the copy comes up, a man takes it and cuts it up into little bits, as much as will make, say, a dozen lines in the paper, and numbers the bits—“one,” “two,” etc., to the end of the article. Type-setter after type-setter comes and takes one of these little bits, and in a few moments sets the type for it, and lays it down in a long trough, with the number of the bit of copy laid by the side of it. We will suppose that an article has been cut up into twenty bits. Twenty men will each in a few moments be setting one of these bits, and, in a few minutes more they will come and lay down the type and the number of the bit in the long trough, in just the right order of the number of the bits—“one,” “two,” etc. Then all the type will be 30 slid together, and a long article will thus be set in a few minutes, which it would take one or two men several hours to set. It is by this means that long articles can in so short a time be put into type. Each man who takes a bit, has to make his last line fill out to the end of the line; and, because there are sometimes not words enough, so that he has to fill out with some extra spaces between the words, you may often see in any large daily paper every two inches, or so, a widely spaced line or two showing how the type-setter had to fill out his bit with spaces—only he would call the bit, a “take.”
I said that each type-setter has his number. We will suppose that this man, next to us, is number “twenty-five.” Then he is provided with a great many pieces of metal, just the width of a column, with his number made on them—thus: “TWENTY-FIVE.” Every time he sets a new bit of copy, he puts one of these “twenty-fives” at the top; and when all the bits of type in the long trough are slid together the type is broken up every two inches or so, with “twenty-five,” “thirty-seven,” “two,” “eleven,” and so on, at the top of the bits which the men, whose numbers these are, have set. When a proof of the article is taken, these several numbers appear; and, if there are mistakes, it appears from these numbers, what type-setters made them, and 31 they have to correct them. Also, of each article, a single “proof” is taken on colored paper. These colored paper “proofs” are cut up the next day, and all the pieces marked “twenty-five,” “thirty-seven,” and so on, go to the men who have these numbers, and when pasted together show how much type, number “twenty-five,” “thirty-seven,” and so on, are to be paid for setting—for the type-setters are paid according to the amount of type which they set.
FAC-SIMILE OF “PROOF” SHOWING “TAKES.”
As fast as the proofs are taken they go into the room of the proof-readers to be corrected. The bits 32 of copy are pasted together again, and one man holds the copy while another reads the proof aloud. The man holding the copy notices any points in which the proof does not read like the copy, and tells the man who is reading it. The man reading it corrects the variations from copy, and corrects all the other mistakes which he can discover, and then the type-setters have to change the type so as to make it right. There the proof readers sit hard at work, reading incredibly fast, and making rapid and accurate corrections; then the “copy” is locked up, and no one can get at it, except the Managing Editor or Editor-in-Chief gives an order to see it. This precaution is taken, in order to make certain who is responsible for any mistakes which appear in the paper—the editors, or the type-setters.
By this time it is nearly midnight, and the editors, type-setters, etc., take their lunches. They either go out to restaurants for them, or have them sent in—hot coffee, sandwiches, fruit, etc.—a good meal for which they are all glad to stop.
And now the Foreman of the type-setters sends to the Night Editor that matter enough is in type to begin the “make-up”—that is, to put together the first pages of the paper. There the beautiful type stands, in long troughs, all corrected now, the great 33 numbers of the type-setters removed from between the bits of type—the whole ready to be arranged into page after page of the paper. So the Night Editor makes a list of the articles which he wants on the page which is to be made up; the Foreman puts them in in the order which the Night Editor indicates; the completed page is wedged securely into an iron frame, and then is ready to be stereotyped.
The room of the stereotypers is off by itself. There is a furnace in it, and a great caldron of melted type metal. They take the page of the paper which has just been made up; put it on a hot steam chest; spat down upon the type some thick pulpy paper soaked so as to make it fit around the type; spread plaster of Paris on the back, so as to keep the pulpy paper in shape; and put the whole under the press which more perfectly squeezes the pulpy paper down 34 upon the type, and causes it to take a more perfect impression of the type. The heat of the steam chest warms the type, and quickly dries the pulpy paper and the plaster of Paris. Then the pulpy paper is taken off, and curved with just such a curve as the cylinders of the printing-press have, and melted type metal is poured over it, which cools in a moment; when, lo, there is a curving plate of type-metal just like the type! The whole process of making this plate takes only a few minutes. They use such plates as these, rather than type, in printing the great papers chiefly for reasons like these: 1. Because plates save the wear of type; 2. Because they are easier handled; 3. Because they can be made curving, to fit the cylinders of the printing presses as it would be difficult to arrange the type; 4. Because several plates can be made from the same type, and hence several presses can be put at work at the same time printing the same paper; 5. Because, if anything needs to be added to the paper, after the presses have begun running, the type being left up-stairs can be changed and new plates made, so that the presses need stop only a minute for the new plates to be put in—which is a great saving of time.
But, coming down into the Editorial Rooms again—business Tom, and thoughtful Jonathan, and sleepy 35 little Nell—all is excitement. Telegrams have just come in telling of the wreck of an ocean steamer, and men are just being dispatched to the steamer’s office to learn all the particulars possible, and to get, if it may be, a list of the passengers and crew. And now, just in the midst of this, a fire-alarm strikes, and in a few moments the streets are as light as day with the flames of a burning warehouse in the heart of the business part of the city. More men are sent off to that; and, what with the fire and the wreck, every reporter, every copy-editor, every type-setter and proof-reader are put to their hardest work until the last minute before the last page of the paper must be sent down to the press-rooms. Then, just at the last, perhaps the best writer in the office dashes off a “leader” on the wreck sending a few lines at a time to the type-setters—a leader which, though thought out, written, set, corrected, and stereotyped in forty minutes, by reason of its clearness, its wisdom, and its brilliancy, is copied far and wide, and leads the public generally to decide where to fix the blame, and how to avoid a like accident again. There is the work of the “editorial articles, reviews, and notes”—to comment on events which happen, and to influence the minds of the public as the editorial management of the paper regards to 36 be wise. There is all sorts of this editorial writing—fun, politics, science, literature, religion—and he who says, with his pen, the say of such a newspaper, wields an influence which no mind can measure.
Well, the fire, and the wreck, have thoroughly awakened even little Nell. And so down, down we go, far under ground, to the Press-rooms. There the noise is deafening. Two or three presses are at work. At one end of the press is a great roll of paper as big as a hogshead and a mile or more long. This immense roll of paper is unwinding very fast, and going in at one end of the machine; while at the other end, faster than you can count, are coming out finished papers—the papers printed on both sides, cut up, folded, and counted, without the touch of a hand—a perfect marvel and miracle of human ingenuity. The sight is a sight to remember for a lifetime. Upon what one here sees, hinges very much of the thinking of a metropolis and of a land.
And now, here come the mailing clerks, to get their papers to send off—with great accuracy and speed of directing and packing—by the first mails which leave the city within an hour and a half, at five and six o’clock in the morning. And after them come the newsboys, each for his bundle; and soon the frosty morning air in the gray dawn is alive 37 with the shouting of the latest news in this and a dozen other papers.
This, I am sure, is too fast a world even for business Tom: so let us “spirit” ourselves back to our beds in the quiet, slow-moving, earnest country—Tom and Jonathan and little Nell and I—home, and to sleep—and don’t wake us till dinner-time!
About one hundred and thirty years ago, an Englishman named Jonas Hanway, who had been a great traveller, went out for a walk in the city of London, carrying an umbrella over his head.
Every time he went out for a walk, if it rained or if the sun shone hotly, he carried this umbrella, and all along the streets, wherever he appeared, men and boys hooted and laughed; while women and girls, in doorways and windows, giggled and stared at the strange sight, for this Jonas Hanway was the first man to commonly carry an umbrella in the city of London, 40 and everybody, but himself, thought it was a most ridiculous thing to do.
But he seems to have been a man of strength and courage, and determined not to give up his umbrella even if all London made fun of him. Perhaps, in imagination, he saw adown the future, millions of umbrellas—umbrellas enough to shelter the whole island of England from rain.
Whether he did foresee the innumerable posterity of his umbrella or not, the “millions” of umbrellas have actually come to pass.
But Jonas Hanway was by no means the first man in the world to carry an umbrella. As I have already mentioned, he had travelled a great deal, and had seen umbrellas in China, Japan, in India and Africa, where they had been in use for so many hundreds of years that nobody knows when the first one was made. So long ago as Nineveh existed in its splendor, umbrellas were used, as they are yet to be found sculptured on the ruins of that magnificent capital of Assyria, as well as on the monuments of Egypt which are very, very old; and your ancient history will tell you that the city of Nineveh was founded not long after the flood. Perhaps it was that great rain, of forty days and forty nights, that put in the minds of Noah, or some of his sons, the idea to build an umbrella! 41
Although here in America the umbrella means nothing but an umbrella, it is quite different in some of the far Eastern countries. In some parts of Asia and Africa no one but a royal personage is allowed to carry an umbrella. In Siam it is a mark of rank. The King’s umbrella is composed of one umbrella above another, a series of circles, while that of a nobleman consists of but one circle. In Burmah it is much the same as in Siam while the Burmese King has an umbrella-title that is very comical: “Lord of the twenty-four umbrellas.”
The reason why the people of London ridiculed Jonas Hanway was because at that time it was considered only proper that an umbrella should be carried by a woman, and for a man to make use of one was very much as if he had worn a petticoat.
There is in one of the Harleian MSS. a curious picture showing an Anglo-Saxon gentleman walking out, with his servant behind him carrying an umbrella; the drawing was probably made not far from five hundred years ago, when the umbrella was first introduced into England. Whether this gentleman and his servant created as much merriment as Mr. Hanway did, I do not know; neither can I tell you why men from that time on did not continue to use the umbrella. If I were to make a “guess” about it, I should say that they thought it would not be “proper,” for it was 42 considered an unmanly thing to carry one until a hundred years ago when the people of this country first began to use them. And it was not until twenty years later, say in the year 1800, that the “Yankees” began to make their own umbrellas. But since that time there have been umbrellas and umbrellas!
The word umbrella comes from the Latin word umbra, which means a “little shade;” but the name, most probably, was introduced into the English language from the Italian word ombrella. Parasol means “to ward off the sun,” and another very pretty name, not much used by Americans, for a small parasol, is “parasolette.”
It would be impossible for me to tell you how many umbrellas are made every year in this country. A gentleman connected with a large umbrella manufactory in the city of Philadelphia gave me, as his estimate, 7,000,000.
This would allow an umbrella to about one person in six, according to the census computation which places the population of the United States at 40,000,000 of people. And one umbrella for every six persons is certainly not a very generous distribution. Added to the number made in this country, are about one-half million which are imported, chiefly from France and England. 43 You who have read “Robinson Crusoe,” remember how he made his umbrella and covered it with skins, and that is probably the most curious umbrella you can anywhere read about. Then there have been umbrellas covered with large feathers that would shed rain like a “duck’s back,” and umbrellas with coverings of oil-cloth, of straw, of paper, of woollen stuffs, until now, nearly all umbrellas are covered either with silk, gingham, or alpaca. And this brings us to the manufacture of umbrellas in Philadelphia, where there are more made than in any other city in America.
If you will take an umbrella in your hand and examine it, you will see that there are many more different things used in making it than you at first supposed.
First, there are the “stick,” made of wood, “ribs,” “stretchers” and “springs” of steel; the “runner,” “runner notch,” the “ferule,” “cap,” “bands” and “tips” of brass or nickel; then there are the covering, the runner “guard” which is of silk or leather, the “inside cap,” the oftentimes fancy handle, which may be of ivory, bone, horn, walrus tusk, or even mother-of-pearl, or some kind of metal, and, if you will look sharply, you will find a rivet put in deftly here and there. 44
For the “sticks” a great variety of wood is used; although all the wood must be hard, firm, tough, and capable of receiving both polish and staining. The cheaper sticks are sawed out of plank, chiefly, of maple and iron wood. They are then “turned” (that is made round), polished and stained. The “natural sticks,” not very long ago, were all imported from England. But that has been changed, and we now send England a part of our own supply, which consists principally of hawthorne and huckleberry, which come from New York and New Jersey, and of oak, ash, hickory, and wild cherry.

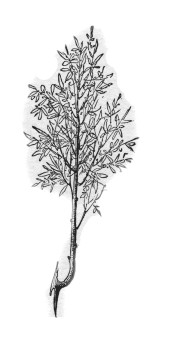

If you were to see these sticks, often crooked and gnarled, with a piece of the root left on, you would 45 think they would make very shabby sticks for umbrellas. But they are sent to a factory where they are steamed and straitened, and then to a carver, who cuts the gnarled root-end into the image of a dog or horse’s head, or any one of the thousand and one designs that you may see, many of which are exceedingly ugly. The artist has kindly made a picture for you of a “natural” stick just as it is brought from the ground where it grows, and, then again, the same stick after it has been prepared for the umbrella.
Of the imported “natural” sticks, the principal are olive, ebony, furze, snakewood, pimento, cinnamon, partridge, and bamboo. Perhaps you do not understand that a “natural” stick is one that has been a young tree, having grown to be just large enough for an umbrella stick, when it was pulled up, root and all, or with at least a part of the root. If, when you buy an umbrella that has the stick bent into a deep curve at the bottom for the handle, you may feel quite sure that it is of partridge wood, which does not grow large enough to furnish a knob for a handle, but, when steamed, admits of being bent.
The “runner,” “ferule,” “cap,” “band,” etc., form what is called umbrella furniture and for these articles there is a special manufactory. Another manufactory 46 cuts and grooves wire of steel into the “ribs” and “stretchers.” Formerly ribs were made out of cane or whalebone; but these materials are now seldom used. When the steel is grooved, it is called a “paragon” frame, which is the lightest and best made. It was invented by an Englishman named Fox, seventeen or eighteen years ago. The latest improvement in the manufacture of “ribs” is to give them an inward curve at the bottom, so that they will fit snugly around the stick, and which dispenses with the “tip cup,”—a cup-shaped piece of metal that closed over the tips.
Of course we should all like to feel that we Americans have wit enough to make everything used in making an umbrella. And so we have in a way; but it must be confessed that most of the silk used for umbrella covers, is brought from France. Perhaps 47 if the Cheney Brothers who live at South Manchester in Connecticut, and manufacture such elegant silk for ladies’ dresses, and such lovely scarfs and cravats for children, were to try and make umbrella silk, we would soon be able to say to the looms of France, “No more umbrella silk for America, thank you; we are able to supply our own!”
But the “Yankees” do make all their umbrella gingham, which is very nice. And one gingham factory that I have heard about has learned how to dye gingham such a fast black, that no amount of rain or 48 sun changes the color. The gingham is woven into various widths to suit umbrella frames of different size, and along each edge of the fabric a border is formed of large cords. As to alpaca, a dye-house is being built, not more than a “thousand miles” from Philadelphia on the plan of English dye-houses, so that our home-made alpacas may be dyed as good and durable a black as the gingham receives; for although nobody minds carrying an old umbrella, nobody likes to carry a faded one. Although there are umbrellas of blue, green and buff, the favorite hue seems to be black.
And now that we have all the materials together to make an umbrella, let us go into a manufactory and see exactly how all the pieces are put together.
First, here is the stick, which must be “mounted.” By that you must understand that there are two springs to be put in, the ferule put on the top end, and if the handle is of other material than the stick, that must be put on.
The ugliest of all the work is the cutting of the slots in which the springs are put. These are first cut by a machine; but if the man who operates it is not careful, he will get some of his fingers cut off. But after the slot-cutting machine does its work, there is yet something to be done by another man with a 49 knife before the spring can be put in. After the springs are set, the ferule is put on, and when natural sticks are used, as all are of different sizes, it requires considerable time and care to find a ferule to fit the stick, as well as in whittling off the end of the stick to suit the ferule. And before going any farther 50 you will notice that all the counters in the various work-rooms are carpeted. The carpet prevents the polished sticks from being scratched, and the dust from sticking to the umbrella goods.
After the handle is put on the stick and a band put on for finish or ornament, the stick goes to the frame-maker, who fastens the stretchers to the ribs, strings the top end of the ribs on a wire which is fitted into the “runner notch;” then he strings the lower ends of the “stretchers” on a wire and fastens it in the “runner,” and then when both “runners” are securely fixed the umbrella is ready for the cover.
As this is a very important part of the umbrella, several men and women are employed in making it. In the room where the covers are cut, you will at first notice a great number of V shaped things hanging against the wall on either side of the long room. These letter Vs are usually made of wood, tipped all around with brass or some other fine metal, and are of a great variety of sizes. They are the umbrella cover patterns, as you soon make out. To begin with, the cutter lays his silk or gingham very smoothly out on a long counter, folding it back and forth until the fabric lies eight or sixteen times in thickness, the layers being several yards in length. (But I must go back a little and tell you that both edges of the 51 silk, or whatever the cover is to be, has been hemmed by a woman, on a sewing machine before it is spread out on the counter). Well, when the cutter finds that he has the silk smoothly arranged, with the edges even, he lays on his pattern, and with a sharp knife quickly draws it along two sides of it, and in a twinkling you see the pieces for perhaps two umbrellas cut out; this is so when the silk, or material, is sixteen layers thick and the umbrella cover is to have but eight pieces.
After the cover is cut, each piece is carefully examined by a woman to see that there are no holes nor defects in it, for one bad piece would spoil a whole umbrella.
Then a man takes the pieces and stretches the cut edges. This stretching must be so skilfully done that the whole length of the edge be evenly stretched. This stretching is necessary in order to secure a good fit on the frame.

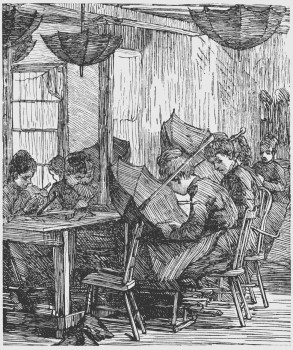

After this the pieces go to the sewing-room, where they are sewed together by a woman, on a sewing-machine, in what is called a “pudding-bag” seam. The sewing-machine woman must have the machine-tension just right or the thread of the seam will break when the cover is stretched over the frame.
The next step in the work is to fasten the cover to 52 the frame, which is done by a woman. After the cover is fastened at the top and bottom, she half hoists the umbrella, and has a small tool which she uses to keep the umbrella in that position, then she fastens the seams to the ribs; and a quick workwoman will do all this in five minutes, as well as sew on the tie, which has been made by another pair of hands. Then the cap is put on and the umbrella is completed.
But before it is sent to the salesroom, a woman smooths the edge of the umbrella all around with a warm flat-iron. Then another woman holds it up to a window where there is a strong light, and hunts for holes in it. If it is found to be perfect the cover is neatly arranged about the stick, the tie wrapped about it and fastened, and the finished umbrella goes to market for a buyer.
After the stick is mounted, how long, think you does it take to make an umbrella?
Well, my dears—it takes only fifteen minutes!
So you see that in the making of so simple an every-day article as an umbrella, that you carry on a rainy day to school, a great many people are employed; and to keep the world supplied with umbrellas thousands and thousands of men and women are 53 kept busy, and in this way they earn money to buy bread and shoes and fire and frocks for the dear little folks at home, who in turn may some day become umbrella makers themselves.
Little Paul Perkins—Master Paul his uncle called him—did not feel happy. But for the fact that he was a guest at his uncle’s home he might have made an unpleasant exhibition of his unhappiness; but he was a well-bred city boy, of which fact he was somewhat proud, and so his impatience was vented in snapping off the teeth of his pocket-combs, as he sat by the window and looked out into the rain.
It was the rain which caused his discontent. Only the day before his father, going from New York to Boston on business, had left Paul at his uncle’s, some distance from the “Hub,” to await his return. It being the lad’s first visit, Mr. Sanford had arranged a very full programme for the next day, including a trip in the woods, fishing, a picnic, and in fact quite 55 enough to cover an ordinary week of leisure. Over and over it had been discussed, the hours for each feature apportioned, and through the night Paul had lived the programme over in his half-waking dreams.
And now that the eventful morning had come, it brought a drizzling, disagreeable storm, so that Mr. 56 Sanford, as he met his nephew, was constrained to admit that he did not know what they should find to supply the place of the spoiled programme.
“And my little nephew is so disappointed that he has ruined his pretty comb, into the bargain,” said the uncle.
“I was—was trying to see what it was made of,” Paul stammered, thrusting the handful of teeth into his coat pocket. “I don’t see how combs are made. Could you make one, uncle?”
“I never made one,” Mr. Sanford replied, “but I have seen very many made. There is a comb-shop not more than a half-mile away, and it is quite a curiosity to see how they make the great horns, rough and ugly as they are, into all sorts of dainty combs and knicknacks.”
“What kind of horns, uncle?”
“Horns from all parts of the country, Paul. This shop alone uses nearly a million horns a year, and they come in car-loads from Canada, from the great West, from Texas, from South America, and from the cattle-yards about Boston and other Eastern cities.”
“You don’t mean the horns of common cattle?”
“Yes, Paul; all kinds of horns are used, though some are much tougher and better than others. The 57 cattle raised in the Eastern, Middle and Western States furnish the best horns, and there is the curious difference that the horns of six cows are worth no more than those of a single ox. Many millions of horn combs are made every year in Massachusetts; perhaps more than in all the rest of the country. If you like we will go down after breakfast and have a look at the comb-makers.”
Paul was pleased with the idea, though he would much rather have passed the day as at first proposed. He was not at all sorry that he had broken up his comb, and even went so far as to cut up the back with his knife, wondering all the while how the smooth, flat, semi-transparent comb had been produced from a rough, round, opaque horn.
By and by a mail stage came rattling along, without any passengers, and Mr. Sanford took his nephew aboard. They stopped before a low, straggling pile of buildings, located upon both sides of a sluggish looking race-way which supplied the water power, covered passage-ways connecting different portions of the works.
“Presently, just over this knoll,” said his uncle, “you will see a big pile of horns, as they are unloaded from the cars.”
They moved around the knoll, and there lay a monstrous pile of horns thrown indiscriminately together.
“Really there are not so many as we should think,” said Mr. Sanford, as Paul expressed his astonishment. “That is only a small portion of the stock of this shop. I will show you a good many more.”
He led the way to a group of semi-detached buildings in rear of the principal works, and there Paul saw great bins of horns, the different sizes and varieties carefully assorted, the total number so vast that the immense pile in the open yard began to look small in contrast.
At one of the bins a boy was loading a wheelbarrow, and when he pushed his load along a plank track through one of the passage-ways Mr. Sanford and his nephew followed. As the passage opened into another building, the barrow was reversed and its load deposited in a receptacle a few feet lower.
In this room only a single man was employed, and the peculiar character of his work at once attracted the attention of Paul. In a small frame before him was suspended a very savage-looking circular saw, running at a high rate of speed. The operator caught 60 one of the great horns by its tip, gave it a turn through the air before his eyes, seized it in both hands and applied it to the saw. With a sharp hiss the keen teeth severed the solid tip from the body of the horn, 61 and another movement trimmed away the thin, imperfect parts about the base. The latter fell into a pile of refuse at the foot of the frame, the tip was cast into a box with others; the horn, if large, was divided into two or more sections, a longitudinal slit sawn in one side, and the sections thrown into a box.
“This man,” said Mr. Sanford, “receives large pay and many privileges, on account of the danger and unpleasant nature of his task. He has worked at this saw for about forty years, and in that time has handled, according to his record, some twenty-five millions of horns, or over two thousand for every working day. He has scarcely a whole finger or thumb upon either hand—many of them are entirely gone; but most of these were lost during his apprenticeship. The least carelessness was rewarded by the loss of a finger, for the saw cannot be protected with guards, as in lumber-cutting.”
Paul watched the skilful man with the closest interest, shuddering to see how near his hands passed and repassed to the merciless saw-teeth as he sent a ceaseless shower of parts of horns rattling into their respective boxes. Before he left the spot Paul took a pencil and made an estimate. 62
“Why, uncle,” he said, “to cut so many as that, he must saw over three horns every minute for ten hours a day. I wouldn’t think he could handle them so fast.”
Then, as he saw how rapidly one horn after another was finished, he drew forth his little watch and found that the rugged old sawyer finished a horn every ten seconds with perfect ease.
“Would you like to learn this trade?” the old fellow asked. He held up his hands with the stumps of fingers and thumbs outspread; but Paul only laughed and followed his uncle.
They watched a boy wheeling a barrow-load of the horns as they came from the saw, and beheld them placed in enormous revolving cylinders, through which a stream of water was running, where they remained until pretty thoroughly washed. Being removed from these, they were plunged into boilers ranged along one side of the building, filled with hot water.
“Here they are heated,” said Mr. Sanford, “to clear them from any adhering matter that the cold water does not remove, and partially softened, ready for the next operation.”
From the hot water the horns were changed to a 63 series of similar caldrons at the other side of the room, filled with boiling oil. Paul noticed that when the workmen lifted the horns from these vats their appearance was greatly changed, being much less opaque, and considerably plastic, opening readily at the longitudinal cut made by the saw. As the horns were taken from the oil they were flattened by unrolling, and placed between strong iron clamps which were firmly screwed together, and put upon long tables in regular order.
“Now I begin to see how it is done,” Paul said, though he was thinking all the time of questions that he would ask his uncle when there were no workmen by to overhear.
“The oil softens the horn,” said Mr. Sanford, “and by placing it in this firm pressure and allowing it to remain till it becomes fixed, the whole structure is so much changed that it never rolls again. Some combs, you will notice, are of a whitish, opaque color, like the natural horn, while others have a smooth appearance, are of amber color, and almost transparent. The former are pressed between cold irons and placed in cold water, while the others are hot-pressed, it being ‘cooked’ in a few minutes. These plates of horn may be colored; and there are a great many 64 ‘tortoise-shell’ combs and other goods sold which are only horn with a bit of color sprinkled upon it.
“The solid tips of the horns, and all the pieces that are worth anything cut off in making the combs, are made up into horn jewelry, chains, cigar-holders, knife-handles, buttons, and toys of various kinds. These trinkets are generally colored more or less, and many a fashionable belle, I suppose, would be surprised to know the amount of money paid for odd bits of horn under higher sounding names. But the horn is tough and serviceable, at any rate, and that is more than can be said of many of the cheats we meet with in life.”
The next room, in contrast with all they had passed through previously, was neat and had no repulsive odors. Here the sheets of horn as they came from the presses were first cut by delicate circular saws into blanks of the exact size for the kind of combs to be made, after which they were run through a planer, which gave them the proper thickness.
“What do you mean by ‘blanks’?” Paul asked, as his uncle used the term.
“You can look in the dictionary to find its exact meaning,” was the answer. “But you will see what it is in practice at this machine.”
They stepped to another part of the room; and here Paul saw the “blanks” placed in the cutting-machine standing over a hot furnace, where, after being softened by the heat, they were slowly moved along, while a pair of thin chisels danced up and down, cutting through the centre of the blank at each stroke. When it had passed completely through, an assistant took the perforated blank and pulled it carefully apart, showing two combs, with the teeth interlaced. After separation they were again placed together to harden under pressure, when the final operations consisted of bevelling the teeth on wheels covered with sand-paper, rounding the backs, rounding and pointing the teeth; after which came the polishing, papering and putting in boxes.
“I suppose they go all over the country,” said Paul as he glanced into the shipping-room.
“Much further than that,” was the reply. “We never know how far they go; for the wholesale dealers, to whom the combs are shipped from the manufactory, send them into all the odd corners of the earth. Every little dealer must sell combs, and in the very nature of the business they frequently pass through a great many hands before reaching the user, so at the last price is many times what the 67 makers received for them. I suppose it often happens that horns which have been sent thousands of miles to work up are returned to the very regions from which they came, in some other form, increased very many fold in value by their long journey. Or a horn may come from the remoter parts of South America to be wrought here in Massachusetts, and then be shipped from point to point till it reaches some remote corner of Africa, Spain, or Siberia, as an article of barter. And even different parts of the same horn may be at the same moment decking the person of a New York dandy and unsnarling the tangled locks of a Russian Tchuktch.”
While Paul was watching the deft fingers of the girls who filled the boxes and affixed the labels, his uncle stepped through a door communicating with the office, and soon returned with three elegant pocket-combs.
“One of these,” he said, “represents a horn which came from pampas of Buenos Ayres; this one, in the original, dashed over the boundless plains of Texas; and here is another, toughened by the hot, short summers and long, bitter winters of Canada. Take them with you in memory of this cheerless rainy day.” 68
Paul could not help a little sigh as he thought again of the pleasures he had enjoyed in anticipation; but still he answered bravely, “Thank you; never mind the rain, dear uncle. All the New York boys go off in the woods when they get away from home; but not many of them ever heard how combs are made, and I don’t suppose a quarter of them even know what they are made of. I can tell them a thing or two when I get home.”
Philip and Kitty were curled up together on the lounge in the library, reading Aldrich’s “Story of a Bad Boy.” It was fast growing dark in the corner where they were, for the sun had gone down some time before, but they were all absorbed in Tom Bailey’s theatricals, and did not notice how heavy the shadows were getting around them. Papa came in by-and-by.
“Why, little folks, you’ll spoil your eyes reading here; I’d better light the gas for you,” and he took out a match from the box on the mantle.
“O, let me, please,” cried Philip, jumping up and running to the burner. So he took the match, and climbed up in a chair with it. Scr-a-tch! and the new-lit jet gave a glorified glare that illuminated everything in the room, from the Japanese vase on the 70 corner bracket to the pattern of the rug before the open fire. But as Philip turned it off a little it grew quieter, and finally settled down into a steady, respectable flame. Philip always begged to light the gas. It had not been long introduced in the little town where he lived, and the children thought it a very fine thing to have it brought into the house, and secretly pitied the boys and girls whose fathers had only kerosene lamps.
“Why can’t you blow out gas, just as you do a kerosene light?” asked Kitty, presently, leaving the Bad Boy on the lounge, and watching the bright little crescent under the glass shade.
“Because,” explained papa, “unless you shut it off by turning the little screw in the pipe, the gas will keep pouring out into the room all the time, and if it isn’t disposed of by being burned up, it will mix with the air and make it poisonous to breathe. A man at the hotel here, a few nights ago, blew out the gas because he did not know any better, and was almost suffocated before he realized the trouble and opened his window.”
“And where does the gas come from in the first place?” pursued Kitty.
“Why, from the gas-works, of course,” said Philip in a very superior way, for he was a year the elder of 71 the two. “That brick building over by Miller’s Hill—don’t you know—that we pass in going to Aunt Hester’s.”
“I know that as well as you do, Philip Lawrence,” said Kitty with some dignity. “What I wanted to know was what it’s made out of. What is it, papa?”
“Out of coal,” said papa. “They put the coal in ovens and heat it till the gas it contains is separated from the other parts of the coal, and driven off by itself. Then it is purified and made ready for use.”
“Out of coal? How funny! I wish I could see all about it,” said Philip, looking more interested.
“And so do I wish I could,” added Kitty.
“I don’t see why it cannot be done,” said papa. “If you really care to see it, and won’t mind a few bad smells, I will ask Mr. Carter to-morrow morning, when he can take you around and explain things.”
The next day when Mr. Carter was asked about it, he said, “O, come in any day you like. About three in the afternoon would be a good time, because we are always newly-filling the retorts then.” This sounded very nice and imposing to the children, and at three the next afternoon they started out with papa. The gas-house certainly did smell very badly as they drew near it, and dainty Kitty sniffed in considerable disgust. Philip suggested that perhaps she had better not go in after all; he didn’t believe girls ever did go into such places. And upon that Kitty 72 valiantly declared she did not mind it a bit, and sternly set her face straight.
Mr. Carter met them at the door. “You are just in time to see the retorts opened,” said he, and led the way directly into a large and very dingy room, along one side of which was built out a sort of huge iron cupboard with several little iron doors. The upper ones were closed tight, but some of the lower ones were open a crack, and a very bright fire could be seen inside. Everything around was dirty and gloomy, and these gleams of fire from the little iron doors made the place look weird and ghostly. Long iron pipes reached from each of the upper doors up to one very large horizontal pipe or cylinder near the ceiling overhead. This cylinder ran the whole length of the room, and, at its farther end, joined another iron pipe which passed through the wall.
“Those are the furnace-doors down below,” said Mr. Carter to the children. “What you see burning inside of them is coke. Coke is what is left of the coal after we have taken the gas and tar out of it. The upper doors open into the retorts, or ovens, that we fill every five hours with the coal from which we want to get gas. Each retort holds about two hundred pounds, and from that amount we get a thousand cubic feet of gas.” 73
“Is it just common coal;” asked Kitty, “like what people burn in stoves?”
“Not exactly. It is a softer kind, containing more of a substance called hydrogen than the sorts that are generally used for fuel. Several different varieties are used: ‘cherry,’ ‘cannel,’ ‘splint,’ and so on, and they come from mines in different parts of England and Scotland, chiefly. Glasgow, Coventry and Newcastle send us a great deal.”
Philip started as if a bright idea had struck him. “Is that what people mean when you’re doing something there’s no need of, and they say ‘you’re carrying coals to Newcastle?’”
“Yes. You see such an enterprise would be absurd. Just notice the man yonder with the long iron rod! He is going to open one of the retorts, take out the old coal—only it is now coke—and put in a fresh supply.”
A workman in a grimy, leather apron loosened one of the retort doors, and held up a little torch. Immediately a great sheet of flame burst out, and then disappeared.
He took the door quite off, and there was a long, narrow oven with an arched top, containing a huge bed of red-hot coals. 74
“What a splendid place to pop corn!” exclaimed Kitty.
Papa laughed. “You would find it warm work,” said he, “unless you’d a very long handle to your corn-popper.” And Kitty thought so too, as she went nearer the fiery furnace.
“You see,” said Mr. Carter, “these red-hot coals have been changed a great deal by the heat. They have given up all their gas and tar, and are themselves no longer coal, but coke. We shovel out this coke and use it as fuel in the furnaces down below to help heat up the next lot. Then new coal is put into the retorts, and they are closed up with iron plates, like that one lying ready on the ground.”
“It’s all muddy ’round the edge,” observed Kitty.
“Yes, that paste of clay is to make it air-tight. The heat hardens the clay very quickly, so all the little cracks around the edge are plastered up. When the coal is shut up in the ovens, or retorts, the heat, as I just told you, divides it up into the different substances of which it is made; that is, into the coke which you have seen, a black, sticky liquid called tar, the illuminating gas, and more or less ammonia, sulphur, and other things that must be got rid of. Almost all these things are saved and used for one purpose or another, though they may be of no use to 75 us here. If we have more coke than we ourselves need it is sold for fuel. The coal-tar goes for roofing and making sidewalks, or sometimes (though you wouldn’t think it possible, as you look at the sticky, bad-smelling, black stuff) in the manufacture of the most lovely dyes, like that which colored Miss Kitty’s pink ribbon. The ammonia is used for medicine and all sorts of scientific preparations, in bleaching cloth, and in the printing of calicoes and cambrics.”
“When the materials of the coal are separated as I told you in the retorts, most of the tar remains behind, and is drawn off; but some gets up the pipes. That large, horizontal cylinder is always nearly half full of it. The gas, which is very light, you know, rises through the upper pipes leading from the retorts, and bubbles up through the tar in the bottom of the cylinder. Then it passes along the farther end of the cylinder, and into the condensing pipes.”
He opened a door, and they went through into the next room. Here the large pipe which came through the wall of the room they had just left, led to a number of clusters of smaller pipes that were jointed and doubled back and forth upon each other, cob-house fashion.
“When the gas goes through these pipes,” said Mr. Carter, “it gets pretty well cooled down, for the 76 pipes are kept cold by having so great an amount of surface exposed to draughts of air around them. And when the gas is cooled the impurities are cooled too, so that many of them take a liquid form and can be drawn off.”
The next room they entered had a row of great, square chests on each side, as they walked through.
“These are the purifiers,” explained Mr. Carter again. “They are boxes with a great many fan-like shelves inside, projecting out in all directions, and covered thickly with a paste made of lime.”
“Lime like what the masons used when they plastered the new kitchen?” asked Philip.
“About the same thing. The boxes are made air-tight, and the gas enters the first box at one of the lower corners. Then before it can get through the connecting-pipe into the next box, it has to wind its way around among these plates coated with lime. This lime takes up the sulphur and other things that we do not want in the gas, and so by the time it gets through all the boxes it is quite pure and fit to use.”
Then the party all went into the room where the gas was measured. It was a little office with a queer piece of furniture in it; something that looked like a very large drum-shaped clock, with several different dials or faces. This, Mr. Carter said, was the metre 77 or measurer, and by looking at the dials it could be told exactly how much gas was being made every day.
“As soon as the gas gets through the purifiers,” said he, “it comes, by an iron pipe, in here, and is made to pass through and give an account of itself before any of it is used. And now I suppose you would like to know how it does report its own amount, wouldn’t you?”
Philip and Kitty both were sure they did want to know, so he sketched a little plan of the metre on a piece of paper, and then went on to explain it:
“This shows how the metre would look if you could cut it through in the middle. The large drum-shaped box A. A. is hollow, and filled a little more than half way up with water. Inside it is a smaller hollow drum, B. B. so arranged as to turn easily from right to left, on the horizontal axis C. This axis is a hollow pipe by which the gas comes from the purifiers to enter the several chambers of the metre in turn, through small openings called 78 valves. The partitions P. P. P. P. divide the drum B. B. into—let us say—four chambers, 1, 2, 3, 4, all of the same size, and capable of holding a certain known amount of air or gas. The chamber 1 is now filled with gas, 3 with water, and 2 and 4 partly with gas and partly with water. The valves in the pipe C are so arranged that the gas will next pour into the chamber 2. This it does with such force as to completely fill it, lifting it quite out of the water and into the place that 1 had occupied before. Then as 1 is driven over to the place which 4 had occupied, the gas with which it was filled passes out by another pipe and off to the large reservoir you will see by and by, its place being filled with water. At the same time 4 is driven around to the place of 3, and 3 to that of 2. The water always keeps the same level, and simply waits for the chambers to come round and down to be filled.
“Next, 3, being in the place of 2, receives its charge of gas from the entrance pipe, is in turn lifted up into the central position, and sends all the other chambers around one step further. And when the drum gets completely around once, so that the chambers stand in the same places as at first, you know each chamber must have been once filled with gas and then emptied of it. If then we know that each 79 chamber will hold, say two and a half cubic feet of gas, we are sure that every time the drum has turned fully around it has received and sent off four times two and a half feet, or ten feet in all. Now we connect the axis C with a train of wheel-work, something like that in a clock, and this wheel-work moves the pointers on the dials in front, so that as the gas in passing in and out of the chambers turns the drum on the axis, it turns the dial pointers also.
“The right hand dial marks up to one hundred. While its pointer is passing completely around once, the pointer on the next dial (which marks up to one thousand) is moving a short space and preserving the record of that one hundred; and then the first pointer begins over again. The two pointers act together just like the minute and hour hands on a clock. Then the next dial marks up to ten thousand, and acts in turn like an hour-hand to the thousands’ dial as a minute-hand, and so on. You see each dial has its denominations, ‘thousands,’ ‘hundred thousands,’ or whatever it may be, printed plainly below it. And now, when we want to read off the dials, we begin at the left, taking in each case the last number a pointer has passed, and read towards the right, just as you have learned to do with any numbers in your ‘Eaton’s Arithmetic.’ There is one thing 80 more to remember, however; the number you read means not simply so many cubic feet of gas but so many hundred cubic feet.”
Philip and Kitty immediately set to work to read the dials on the office metre, and found that they were not now so very mysterious.
“But how do you know how much people use?” asked Philip. “There is something like this metre, only smaller, down cellar at home, and a man came and looked at it the other day, to see how much gas had been burned in the house he said, when I asked him what he was going to do.”
“The metre you have at home works in the same way as this,” said Mr. Carter, “and the dial-plates are read in the same way. But the gas that your little metre registers is only that which you take from the main supply-pipe, to light your parlors and bed-rooms.
“When a stream of gas from the main enters the house, it has to pass through the metre the very first thing, before any of it is used; and each little metre keeps as strict an account of what passes through from the main to the burners, as the large one here in the office does of that which passes from the purifiers to the reservoir. But there is this difference between the two: the gas keeps pouring through the office metre as long as we keep making it in the retorts, 81 but it passes through your metre at home only just as long as you keep drawing it off at the burners. So if we find by looking at the metre that 5450 feet have passed through during a given time, we send in our bill to your papa for that amount, knowing it must have been burned in the house.
“But most likely the metre doesn’t say anything directly about 5450. It says, perhaps, 11025. ‘How can that be?’ you would think. ‘We haven’t burned so much as that,’ and you haven’t—during this one quarter. But after the metre had been inspected at the end of the last quarter, the pointers did not go back to the beginning of the dials and start anew; they kept right on from the place where they were, so that 11025 is the amount you paid for last time and the amount you want to pay for this time, lumped together. Now this is what we do. We turn to our books and see how much you were charged with last time, and subtracting that record from the present record leaves the amount you have used since the last time of payment.
“Then suppose another case. Your metre registers only as far as 100,000. At the end of the last quarter it marked 97850; now it records but 3175. How would you explain that, master Philip?”
Philip looked puzzled a moment, and then said, 82
“I should think it must have finished out the hundred thousand and begun over again.”
“Exactly. And to find the amount for this quarter you would add together the remainder of the hundred thousand (2150) and the 3175, and get 5325, the real record. But I guess you’ve had arithmetic enough for the present, so we’ll go out now and see the gasometer, or gas reservoir.”
They all went out of doors then, papa, Mr. Carter, Philip and Kitty, across a narrow court-yard. There was a huge, round box, or drum, with sides as high as those of the carriage-house at home, but with no opening anywhere, “like a great giant’s bandbox,” thought Kitty. Four stout posts, much taller still than the “bandbox” itself, were set at equal distances around it, and their extremities were joined by stout beams which passed across over the top of the gasometer.
As the children went up nearer to it, they saw it was made of great plates of iron firmly riveted together, and that it did not rest on the ground, as they had supposed, but in the middle of a circular tank of water.
“After the gas has been made and purified and measured,” said Mr. Carter, “it is brought by underground pipes into this gasometer, and from here 83 drawn off by other pipes into the houses. The weight of this iron shell bearing down upon the gas, gives pressure or force enough to drive the gas anywhere we wish.”
“But why do you put the—the iron thing in water, instead of on the ground?” asked Kitty.
“So as to make it air-tight, and give it a chance to move freely up and down. Of course if the iron shell were empty its own weight would make it sink directly to the bottom of the water-tank and stay there. But gas, you know, is so much lighter than 84 common air that it always makes a very strong effort to rise higher and higher, carrying along whatever encloses it. You saw that illustrated in the balloon that went up last Fourth of July. Now, as the gas from the works pours into the reservoir from beneath, it is strong enough to lift the iron box up a little in the water. Of course that gives a little more room. Then as more gas comes in to take up this room, the gasometer keeps on rising slowly. We make sure of its not rising above the water and letting the gas leak out, by means of the beams you see stretched across above it. They are all ready to hold it down in a safe position if the need should come.
“On the other hand, as the people in town draw off the gas to burn, the gasometer would, of course, tend to sink down gradually. So we have the water-tanks made deep enough to allow for every possible necessity in that direction. In very cold weather we keep the water from freezing by passing a current of hot steam into it. If it should ever freeze, the gasometer might as well be on the ground, for it could not move up and down, or be trusted to keep the gas from leaking out around the edges. With these precautions, however, we know it is perfectly trustworthy.”
“I saw it one morning early, when I was out coasting on the hill,” said Philip, “and it wasn’t more than half as high as it is now.” 85
“A great deal had been drawn off during the night and we had not been making any more during the time to take its place.”
“Does it ever get burned out too much?”
“No, there’s no danger of it. We make enough to allow a good large margin above what we expect will be used.”
The children looked about a little longer, and then, with good-byes and many thanks to Mr. Carter, walked home again with papa, over the crisp, hard snow.
Next week Philip had a composition to write at school. He took “Gas” for his subject, and wrote:
“Gas that you burn is made out of soft coal. They put it in Ovens and cook it until it is not coal any longer. The Ovens are so hot you cant go anywhare near them but the men do With poles and big lether aprons. I would not like to shovle in the coal. I would rather have a Balloon. They use two or three tons every day. it makes coke and Tar and the gas that goes up the pipes. They make the gas clean and mesure it in a big box of water, and tell how much there is by looking at the clock faces in front. Then it goes into a big round box made of iron and then we burn it. but I do not like to smell of it. you must not blow it out for if you do you will get choked. This is all I Remember about gas.
“Philip Raymond Lawrence.”
If it had been a yacht in which we were speeding along at the rate of a trifle over a mile per minute, we should have “taken our reckoning,” “hove the log,” or done something nautical, and the captain would doubtless have reported in regular sea-faring terms that we were off Oil City with Lake Chautauqua so and so many knots on our port quarter.
But it wasn’t a yacht, nor a schooner, nor a Conestoga wagon, lightning express or catamaran, in which we were travelling neck and neck with one of the wildest looking storm clouds of hot mid-summer.
No. It was—can you guess it? Yes, a balloon.
And this is how it all came about:
Fourth of July came upon the fifth that year, (because of some strange oversight on the part of the folks who first hit upon the plan of dividing time into 87 weeks, somehow the Fourth will, every once in a while, strike Sunday.)
At least it did in Cleveland; and although they were a day late, the Clevelanders determined to have a big time. So they had sent for Prof. Samuel A. King, an aeronaut of distinction. Balloonists, you know, are nearly always called “Professors”—why this is so I don’t profess to know. And Prof. King had arrived in Cleveland a few days before, bringing his great balloon, the “Buffalo.”
Early upon the morning of the 5th he was on hand with the helpless monster all in a heap tied about with ropes, mixed up with netting and sand-bags, and supplemented with a big basket which looked a good deal like an inverted straw hat made for some huge giant.
The netting was carefully spread out on the Nicholson pavement in the centre of the pretty square that you will remember if you have ever been in Cleveland. The bags were filled from a wagon-load of sand and hitched with snap-catches about the edges. So they stood about in a circle. Then the aerostat, as the great bag is called, was unrolled and spread evenly over this. An oiled-muslin tube was tied to the neck, and its other extreme to a gas 88 main in a hole which some of the workmen had dug for the purpose.
Next the gas was turned on. The bag began to rise, looking at first like ever so many young whales all huddled together. The men now began, under the Professor’s direction, to pull the netting over to hold the bag down. The sand-bags were brought closer and set along on either side of the tube. The bag now began to grow round and plump. Groups of lookers-on kept growing, too, until all the square was alive with them. The helpers kept walking around the swelling globe, changing the bags to lower strands of the netting; and so it continued until by two o’clock the balloon was full—that is, allowance was made only for expansion when the balloon should have reached the clouds.
Every few moments the breeze would sway the monster to and fro, and it seemed chafing to break away. Soon after, the basket was tied upon the ring, and into this a great heap of sand-bags was piled, and a lot of ropes, an anchor, an aneroid, thermometer, compass and other accessories tied into the rigging or outside of the basket.
How grandly she stood there, the vast dome towering above the trees, her amber sides bright with decorations 89 and her shapely globe held in leash by the white network—but bless me! here’s more than four pages used up, and we haven’t started yet.
At precisely four o’clock the Professor’s cheery voice was heard all through the square as he sang out, “All aboard!” And his eight companions responded as soon as they could get through the dense crowd that surged on every side.
Now the sole remaining rope which held us to the earth was gripped by a score of eager men.
The order came, “Let go!” The basket was raised a few feet and then settled slowly back. This made the crowd laugh.
“Throw out two bags!” cried the Professor.
Then—then how grandly we lifted! How the cannon roared and bands added their noise to the shouts of the hundred thousand people whose faces were all turned toward our little wicker car!
The writer was sand-man, and following orders, he let out the contents of another bag which fell in a swift gray stream plump down into the midst of a little group of young ladies who were seated on a house-top.
If it happens that this book reaches that family, opportunity is now taken to apologize to those young 90 ladies for thus pouring sand down the backs of their necks.
Well, we sailed along grandly, soon leaving the city far behind—I forgot to say that just as we were leaving, a darkey in a white apron came through the crowd bringing us a hamper of good things. What an appetite this keen upper air gave us, to be sure! We ate and drank and toasted everything and everybody.
Pretty soon one of the boys said, (we were all newspaper men, and spoke of each other as “boys”):
“Listen a moment!”
And we all held our breaths. What supreme silence! the gentle sighing of the wind among the trees a mile below, the barking of dogs, or subdued shouts of excited villagers, was all we could hear—but hark!
We were approaching a small town. In the square, through the gathering twilight, we could discern a crowd, and now there came to us, refined by distance, the familiar notes, played by the village band, of “Up in a balloon, boys!”
We passed over the village, and the Professor pulled the valve cord gently, so we dropped towards the place and cheered in reply.
“Now let’s give them a song,” said the Professor.
So he began, and we came in on the chorus:
“Oh! ’twas old Sam Simons, And young Sam Simons, Old Sam Simons’ son: Now young Sam Simons Is old Sam Simons, For old Sam Simons is gone.” |
I wish the editor would only give me room to tell you about the scores of funny things that happened that afternoon; but after all, the real adventures happened the next day. So I can only speak briefly of the pretty carrier-pigeons we loosed, which flew swiftly back to Cleveland, bearing our messages to the newspapers—short notes only, to be sure, wrapped about their slender legs, and which appeared in the papers the following morning. One of these I find in the scrap-book before me, for it was returned to me some weeks afterwards. It reads:
“We’ve just eaten supper out of our hamper, unhampered by any fears as to breakfast. Supper above the clouds is what I call high living. We can see you yet, but you are only a smoky stain upon the shore of Lake Erie. The Professor says we are to go into camp and then continue trip to-morrow. Good-night.”
It would never do, either, to forget the plucky dog 93 which ran after our drag-rope as it trailed along the ground when we were quite near the earth, and held on with his teeth though we pulled him along over the stubble on his back, and never let go until we had jerked him plumb over a fence.
I’ve been in all sorts of camps—military camps, hunting camps and camp meetings, but never dreamed of such a thing as a balloon camp before! By the help of some farmers we filled the great basket with stones and then pitched a tent and made a fire at a safe distance. Lines were run to trees in three directions, loosely to give the balloon “play” in case of much wind, and then we all lay down in our blankets and tried to sleep.
At the very first signs of dawn we were up, and there she stood in the still air just like a vision. At sunrise a hospitable farmer invited us to breakfast, and wasn’t it good? I’ll never forget that coffee.
By eight o’clock quite a large number of country folks had reached the field. Teams were hitched all along the fences. Now the Professor announced that as he wished to make a long trip that day, he should carry plenty of ballast and so could allow only two persons with him. It had been agreed that we should draw cuts, and this was done good-naturedly. The
choice fell upon a photographer, and the writer.
We were sorry indeed to leave our companions behind us, but there was no help for it. So we took our seats in the basket, said good-by, and were off.
Now we went up! up! UP! passing through a thin cloud that made everything below look dim and distant. We were in the region where November spends the summer. Whew! how chilly it was. We wrapped our overcoats and blankets close about us and our teeth chattered. Then we rubbed our hands and faces. Why! how queerly they looked and felt.
“Ha! ha! look at the Professor’s face. Why! there ain’t a wrinkle left!” said the photographer.
And so it proved. The aneroid told us that we were over three miles from the ground, and the atmosphere was so diminished in pressure that the internal forces of the body pressed outward and made the skin full and smooth.
One of yesterday’s party had provided some large envelopes with long red tails of tissue paper to drop into towns, and we wrote messages and enclosed them in some of these, putting sand in one end, and launched them. We watched them as they shot hither and yon in their swift flight toward the earth. The chance finder was requested to send the contents 96 to the nearest telegraph office, but we never heard from any of them, save one.
About noon we found by comparing our maps with the streams below that we had passed into Pennsylvania; and not long afterwards we descried Oil City set upon the creek, with all its hills covered with derricks and oil tanks.
Speaking of Oil City, reminds me of a rather funny incident: For a couple of years I had been in correspondence with a young man who resided there, and who was also a journalist. His name and mine were just the same. I had promised faithfully to stop and see him at any time chance might bring me near his home. I took one of the envelopes and wrote a regret, dropping it over the city. It was picked up in the road and handed to him, but he always insisted that I had broken my promise unreasonably.
At the rate in which Oil City was left behind we knew our pace was very rapid, though to us it all seemed like a dead calm, for we kept just even with the wind.
The Professor said we could reach New England by midnight if the wind held and it didn’t grow cloudy; but alas! for the past hour we had been watching a little fleecy nebulous bit of mist that seemed, like a 97 spirit, to spring from the nothingness of the blue ether, growing constantly, and attracting other cloudlets which came toward it from all quarters of the heavens and were swallowed up. A growing, whirling wall of pearly gray mounted and spread its shadow over half the earth.
We threw out sand and mounted above it. Then it arose toward us again. It seemed as though we could reach our hands into its surging depths. Over went seats, baskets, the tent—everything we could spare, and I’m not sure the Professor didn’t glare at one of his companions with malicious and deadly intent.
The truth rushed upon us that we were racing with a storm.
It was of vital importance to keep in the sun, for the moment the shadows below could place their chilly spell upon our steed, the gas would chill and condense, and we would drop! drop! swiftly to the earth. At last it came, and we knew it was inevitable. Below us we could hear the crashing of thunder reverberating away into the depths of the black storm masses, and the lightnings every moment lit the weird scene with a grandeur but few mortals have ever witnessed. For a brief moment we hung 98 suspended like Mahomet’s coffin in the centre of a great cave of pearl. Shall I ever forget that glimpse of heavenly splendor? A single shaft of sunlight broke through its walls and then died like the last ray of hope. Then downward we rushed! A mile nearer earth within the first minute! As the air grew denser we fell more gradually. Our long drag-rope was out, weighing perhaps three hundred pounds. Now we were closely enshrouded by leaden clouds. The rain ran down the bag in rivulets and trickled upon our heads.
“Look, oh look!” cried the Professor.
We were now below the storm, and along its dense ceiling could see its broad extent. We were above the mountains. No towns nor even houses could be discovered, only dense forests, through which the gale howled as among the rigging of a ship upon a winter sea.
Very quickly our drag-rope touched the tree-tops and began to glide among the swaying pines.
“Hold on at life-ropes!” shouted the Professor, knife in hand.
In another instant the basket gave a dreadful surge; a mass of pine boughs swept about our heads, followed by a strong jerk. The Professor had cut the 99 cord which bound the anchor coil. The anchor had dropped and caught among the limbs. We were safe! No! not yet.
The line must be shortened so we could clear the tree-tops. All three tugged at the rope. Then other lashings were made while the great aerostat plunged about like a wounded leviathan. We were eighty feet from the ground. Two of us found it convenient to go down the drag-rope, but the poor Professor, tall and heavy, preferred to try the tree. This was wet and slippery, as well as full of projecting points of broken branches. About twenty feet from the ground the Professor’s clothes caught. He was in a great dilemma. 100
Amid a good deal of laughter we managed to liberate him, and as he reached the ground he exclaimed: “Well, of all the scrapes I was ever in, this is about the meanest!”
But help came even here. Far down the slope we heard a shout, which you may be sure was quickly answered. Then, after a while, the bushes parted and a half-score of woodsmen carrying gleaming axes ran to our aid. They were all thoroughly wet, like ourselves.
“What can we do for you?” they asked.
“Cut down half a dozen of these pines. I want to save the balloon,” answered the aeronaut.
Then you should have seen the chips fly! Down came the trees, one after the other, and finally the one to which our steed was lashed. The gas soon escaped through great holes torn by the limbs, and our gallant craft was robbed of its power. Standing upon one of the fallen trees I made the sketch you see before you.
We found upon inquiring that we had landed in Potter county, Pennsylvania; and consulting our watches, found we had travelled one hundred and twenty-five miles in about two hours.
We were made comfortable at a lumberman’s cabin,
and managed to get out of the woods in a couple of days where we could telegraph to our friends.
It cannot be denied that after the excitement had passed we felt very much like an old farmer who listened to our adventures. He said:
“Mebbe some folks prefer to travel in a flying Beelzebub, but I’m willin’ to git along in a buck-board with a good road to put my feet agin when I git off.”
You’ll say, now, “I guess that race was enough for you!” But you’re wrong; for I’ve had several trips since; and now you’ve a perfect right to retort, “Well! you are a bigger balloonatic than I took you for.”
Perhaps you’re right.
August was rather a troublesome boy. Generous and jolly,—his playmates called him a firstrate good fellow, but older people complained that he was curious, meddlesome, and always “cluttering round.”
But here is mamma’s opinion:
“August was born to be busy. He is inventive too. He asks questions to gain information, and he handles things to see how they are made.”
“What is he tinkering at now, mamma?” asked Tom. “He has got hold of an old, old book, full of f ss, and all yellow; he’s rigged two pans in a barrel, and bought a naptha lamp, and locked us all out of the attic.”
“And he just came in with a covered basket, mamma,” said Katie, “carrying it ever so carefully. 104 I was jumping rope in the hall, and he asked me not to joggle. What do you suppose he was doing, mamma?”
“Suppose we wait till he tells us,” said mamma, smiling.
“He’s only trying some of his ’speriments,” said wise little Robbie, aged five.
After the children went out, mamma took up her work and sat down by the window, watching the three outside, and waiting for her oldest boy, August, who presently came to take her into his confidence.
“Mamma, I am trying an experiment.”
“And is that something new, August?” with an encouraging smile.
“But the kind is new, mamma. Did you ever hear of Réaumur?”
“Who wrote that curious old book on the art of hatching fowls by artificial incubation? Yes, August.”
“Then will you come and see, mamma, what I have begun to do?”
He led the way, two steps at a time, to the attic. When they reached the door, August drew from his pocket a key, and unlocked it and led his mother in.
A flour-barrel stood in the centre of the floor, 105 closely covered. August removed the cover, and lifted up a piece of carpet. His mother looked in.
Within the barrel was suspended a large, deep pan, resting on three iron cleats. This pan was partly filled with hot water, and floating on the water was another pan—a shallow one—which contained a layer of sand an inch deep. Over this was spread a piece of linen cloth, and in the cloth thirty-six large Brahma eggs lay closely packed. In the center stood a neat thermometer.
“You have made your arrangements very neatly, August,” said mamma. “Of course I do not understand them exactly.”
“Well, you see, mamma, this shallow pan gets its heat from the water beneath it. I put that in hot, and keep it just right with this lamp.”
Saying which, he knelt in front of the barrel, and opened a neat little door, fitted with a brass knob and hinges.
Stooping down and looking in, his mother saw on 106 a tall flower-pot, which stood upside down, a naptha safety-lamp sending forth a small, steady flame.
“That keeps the temperature about equable;” said August, “but I have another lamp, larger than this, to use in case my incubator grows too cool.”
“When did you set them?” asked mamma.
“This morning.”
“To-day is the first of March: then if no accident happens, and the eggs are good, you expect them to hatch on the twenty-first?”
“Yes, mamma, and the eggs are all right because I told Grandma I wanted some very fresh, and she saved them for me.”
“Did Grandma know of your experiment?”
“Oh! no, mamma. Not a soul but you knows about it; and I want you to keep the secret until we know how it will turn out.”
“Very well!” said mamma; “but if you lock the door you had better leave the key with me in case anything should happen. I will look at your incubator occasionally while you are at school.”
August gave his mother a grateful look—he felt so encouraged by her sympathy.
“How warm do you keep the eggs?” she asked as he carefully replaced the carpet and cover. 107
“Réaumur says at 32°, that is about 103 1-2 Fahrenheit.[A]”
“Must the eggs be kept at that temperature all the time?”
“No, only through the first week. The second it is a little less and the third still less.”
“There is the luncheon-bell, dear; we must go down or the children will be trooping up here. I hope, my boy, that you will succeed.”
“If I don’t I shall try again,” said August. Then, taking a final look to see that the thermometer and lamp were all right, he locked the room and they went down.
He paid several visits to the attic during the day and evening, finding on each occasion that all worked well and steadily. Before going to bed he refilled the lamp, so the supply of naptha shouldn’t be exhausted; then he went to sleep and dreamed all night of eggs and chickens.
In the morning he was up and at his incubator before any one else was stirring. The thermometer indicated that the eggs were a trifle cool, so he turned up the wick of the lamp. Before going to church he turned the eggs. This he did twice daily, being careful 108 not to jar them. The incubator worked well all day and all night.
The next day was Monday and he had his school duties to attend to. He left everything in good order, took the attic key to his mother, and went off to school full of confidence.
Alas! When mamma went up at ten o’clock, she could scarcely see across the room. Everything was black with soot. The naptha lamp was smoking fiercely.
The first thing was to get the window open, and put out the lamp. Then mamma looked at the eggs. Alas, again! There they lay covered with fine black soot. She took up one and tried to wipe it, but succeeded only in making a smirch which she could not wipe off. She knew then that the eggs were spoiled.
In the midst of it all August came in from school having been dismissed early. Poor August! He could scarcely keep the tears back.
“Well, August,” said his mamma very practically, “I don’t think a naptha lamp just the thing. They are very apt to smoke, and they are very inflammable.”
“Yes,” said August, trying to be cheerful. “Failure the first! I shall try it again. Grandma will give me some more eggs. I’ve only lost three days.” 109
“And I will go to town this afternoon,” said his mother, “and see if I cannot find a lamp which will be more reliable.”
There was no school that afternoon, so August cleaned the room, and supplied the incubator with fresh eggs, greatly encouraged by his mother’s sympathy and interest.
The other children were curious enough to know what was going on in the attic; but they could get no information.
Toward evening Mrs. Grant returned from town, bringing for her little boy a large tin lamp which would burn kerosene. He lighted it and adjusted the wick to just the right height. Then it was placed within the barrel to warm the second setting of eggs.
Day after day August and his mother watched and tended them. Everything progressed finely.
On the next Monday the eggs, having been in the incubator a week, were far enough advanced to be tested. At a south window there hung a heavy green Holland curtain. In this mamma allowed August to cut a hole, a little smaller than an egg, and she herself staid to assist him.
When all was ready, she handed August the eggs one by one. One by one he held them to the aperture. The first seemed quite transparent. In vain 110 August turned and turned it—there was nothing to be seen but the yolk floating at the top. With a sigh he laid that aside and took up another.
“O, mamma, look!” he cried excitedly.
Mrs. Grant examined it with great interest. Not only could she distinctly see the dark form of a little chick, particularly the head with its immense eye, but bright blood-veins were also plainly defined, branching out in all directions from the body. Another and still another of the eggs looked like this one. August was greatly excited.
“They are lively enough!” he said. “See, mamma, this one moves, and this!”
Then came one that was dark and shaky. “Addled,” pronounced August. After this a number more appeared as promising as the former ones.
Finally all were tested. They were pleased enough with the result. Three were clear—that meant there were no chickens within the shells; one was addled; and thirty-two contained live chicks.
August was so wild over this discovery that his hands grew unsteady, and he unfortunately dropped two of the eggs and broke them. This left him but thirty likely to hatch; but these were all very promising. 111
“I am sure we will succeed now, mamma,” cried August gaily.
“It looks like it, certainly,” said mamma.
But alas for poor August’s bright hopes! and alas for the expected chickens! Whether August was too confident and grew careless, or whether it was one of those unforeseen accidents that will happen, will never be known; but this is certain, that the next morning when August went, later than usual, to look at his incubator, he found the thermometer had gone up to 110 and must have been at that temperature some time, for in egg after egg, which he opened in despair, was a poor little dead chick.
Even if a boy is fourteen years old, he cannot help crying sometimes over a great disappointment.
Poor August put out his lamp with sorrowful breath and some of his tears fell upon the hot chimney which hissed as if in mockery.
Then he locked himself in his own room, threw himself on the bed, refused his breakfast and gave way to his grief.
Tom, Katie and Robbie all tried to get at him, but without avail. Katie coaxed with loving words. Robbie murmured, “Poor Gussie!” Tom said “Never mind, old fellow, if your ’speriment has failed. Come and play ball.” 112
August’s reply was not very polite.
“My experiment hasn’t failed, and that is all you know about it, Tom!”
But the word “fail” seemed to rouse him, to restore his courage; for presently unlocking the door and coming out, he said quietly to himself, “I shall just go down to Grandma’s for some more eggs—that’s what I shall do!”
Grandma was curious to know what he did with so many eggs; but she asked no questions. She had great respect for August and his ’speriments.
She only said, “This makes one hundred and eight eggs, child. Now, if I had set all these, and if they had all hatched, what a lot of little chickens I would have had!”
“Ah!” thought August. “If!—” And he drew a long sigh.
Mamma, meanwhile, had been up to the attic to look at the incubator, knowing nothing of what had happened. Great was her amazement to find the lamp out, a basin full of broken eggs and little dead chicks, and the incubator itself deserted and empty.
“Why, August!” she cried, as she met him in the door with a basket of fresh eggs. “What has happened, dear child?”
“Only failure number two;” he answered, trying to 113 speak cheerfully, though even yet the tears lay high. “They got too hot in the night, mamma.”
“Yet you are not quite discouraged?” said mamma.
August held out his basket with a smile.
So once more the incubator was set.
“We must take more pains this time,” said mamma.
“Yes’m,” answered August, “I’ll try not to let any thing happen to these.”
Things did work more smoothly this time. The temperature was kept about right, the eggs were tested successfully and without accident.
One week, two weeks, two weeks and a half, and then things happened again, things which came near being serious enough. It was Saturday afternoon. August was going with the other children to a circus. He had turned the eggs carefully and sprinkled them lightly with warm water. He had admitted the children into his secret, and they were all in the room waiting for him.
“These eggs are a little cool,” said August, putting one up to his cheek. “I must leave them just right, I think I will fill the lamp and turn it up a little. Tommy, will you take the lamp out?”
Down on his knees Tommy went, and drew out the lamp which he set on the floor. Then, kneeling still above it, he blew hard, directly down the chimney. 114
“Puff! BANG! Crack!” went something, causing August, Katie and Robbie to start violently, while poor Tommy, with his hands to his eyes, rolled over on the floor with a groan.
“Mamma, oh! mamma!” screamed Katie, “the lamp is ’sploded!”
“And Tommy’s killed!” shrieked Robbie.
Mamma flew up the stairs and to Tommy.
“Oh! his eyes!” she cried. “Quick, August, water!”
“Oh! my poor Tommy!” sobbed little Robbie. “See him all b’eedin’, b’eedin’!”
August came running with the water, and knelt down and held the basin while Katie flew for a sponge and soft linen.
When the blood was washed off, and his smarting eyes had been bathed with fresh, cool water, Tommy discovered that he had been more frightened than hurt; and mamma and the rest were greatly relieved to find his worst wound, a slight cut between the eyes, could be cured by court-plaster.
It was a great wonder, however, that more harm had not been done; for when the child blew so forcibly down the chimney, the wick shot up out of the lamp and the chimney shivered in pieces; one of the pieces had struck his face, making the cut, while the 115 hot air and smoke flashing into his eyes caused them to smart fiercely. August had neglected to fill the lamp at the proper time, and the oil had burned nearly out. It was the sudden forcing of air down the tube which caused the explosion.
“I thought you said ’twas a safety lamp!” said Katie indignantly.
“’Tisn’t half so good as our un-safety ones;” declared Robbie.
“It’s never safe to blow directly down upon a full flame in any lamp,” said mamma. “The wick should always be turned down first and the flame gently blown.”
“Accident the third;” said August ruefully. “Mamma, do you feel like trusting me any farther?”
His mother smiled. “The usual experience of inventors, my son.”
Sunday passed quietly. Monday with its school duties was well over. Tuesday morning—“Three weeks to-day!” said August, and half fearfully opened his incubator.
“Peep! Peep! Peep!”
The lad trembled with excitement, and a flush of joy spread over his face. He could hardly believe his ears. “One, two, three,” he hurriedly counted, “four, five, six.” On he counted, up to twenty eggs 116 chipped or cracked. One chicken was half out of its shell, and one, quite independent, was scrambling over the rest of the eggs.
August held his breath and looked at them as long as he dared to keep the incubator open. Then softly closing the lid, he rushed down stairs.
“Hurrah! Hurrah!” he shouted at the door of his mother’s room. “They’re hatching, mamma! They’re hatching!”
“Are they, really?” asked mamma, pleased enough, and she hurried up the stairs, closely followed by the children, whom August’s joyful cry had aroused from their sleep. In great excitement they clustered around the barrel.
“Oh! what a cunning, fluffy one!” cried little Katie, as she spied the oldest chick.
“But what is the matter with that other one?” asked Tommy.
“He has just left the shell and is not dry yet,” August explained. “As soon as he is dry he will be downy like the other.”
“Hear em say ‘peep! peep!’” cried little Robbie, grasping the edge of the barrel with both hands, and stretching his short legs to their utmost extent in order to get his eyes high enough to look over the edge. 117
“What lots are cracked!” said Tommy. “Oh! August, here is one cracked all round.”
“Yes,” said August, “that chick will soon be out.” Even as he spoke the shell parted, and a third little bright-eyed chicken struggled out and looked about in amazement.
The children could have watched them much longer with great interest, but mamma was afraid the incubator would get too cool, and she advised August to cover it.
“How do they do it, mamma?” asked Katie.
“The little chick is packed very wonderfully in his shell,” said mamma. “His head under his wing, legs folded up with the feet toward the head, his bill coming out from under one wing. This bill is furnished with a little hard point on the top. When he is ready to crack the shell and come out, he begins to move. He turns his whole body slowly round, cracking the shell as he goes, by pressing with his whole force against it, the hard, sharp point on the top of his bill coming next the shell. When he is a few days old this hard point drops off. Just before he hatches, after the egg is cracked all 118 around, he frees his head from his wing and struggles to stretch himself. Then the shell parts and he gets his head out, and presently his legs, one after the other. I forgot to say that just before hatching he gradually absorbs the yolk of the egg into his body, and that nourishes him for twenty-four hours after hatching.”
“It’s very curious, isn’t it?” said Tommy.
“I didn’t know anything but hens or ducks could hatch eggs,” said Katie.
“Why, Katie!” exclaimed August, “there is a place at Canton, in China, where thousands of ducks’ eggs are hatched artificially every day. There are twenty-eight rooms to the establishment, and all along the sides of these rooms are rows of sliding trays filled with eggs. These eggs are put in the first room the first day; on the second day they are moved to the second room; and so on, until they hatch in the last room. The heat is graduated, the last rooms being cooler than the first. All these eggs are hatched by the heat of the rooms.”
“If they hatch thousands every day,” asked Tommy, “what do they do with the little ducks?”
“They hatch them for the people in the neighboring towns,” replied August. “The Chinese are very fond of ducks and ducks’ eggs. A gentleman who 119 has been to Canton, and seen the hatching-rooms, told me he had seen people take eggs there to be hatched. They would pay for the hatching and then one of the men in charge of the rooms would count their eggs, and give them just as many little ducklings.”
“I guess they don’t have accidents there, then,” said Katie.
“I won’t have accidents always,” August replied.
“But what do they do with so many ducks?” asked Tommy.
“Why, half the poor Chinese people near the coast live on the water all the time in boats that are half houses. Of course they could not keep hens, but they can keep ducks and they do.”
“Oh, yes!” cried Tommy. “I ’member how papa told about seeing them fed and called into the boats. He said every flock knew its own call, and would go scuttling through the water to the right boat. He thought they were in this d’edful hurry, cause the last one got whipped.”
“What shall I do about school, mamma?” August asked.
“Oh! go, and recite your most important lessons,” she answered wisely. “I will take care of the eggs and chickens till you return.” 120
It was just as well for August to be occupied, since the hatching, although it went on surely, was slow work.
With great faith in his incubator, August had previously built a little yard for the expected chickens.
It was in box form, about eight feet long and two feet wide. In the center was a feeding-tray and water tank, and at one end a hover. This hover (H) was
lined with soft fur loosely tacked to the top and sides and hanging down the front in narrow strips to form a curtain. It sloped from the front to the back. The water tank was a stout earthen bottle in a saucer; a small hole near the bottom of the bottle let the water, drop by drop, into the saucer, so that as the chickens drank, the supply in the saucer was continually freshening. The bottom of the yard was covered with gravel three inches deep. This neat yard was now waiting down stairs in a sunny shed room to receive the chickens.
August went to school, and on his way home called for his grandmother to go up to the house to dinner. 121
Grandma knew that it was just three weeks since August had taken the last eggs, and that twenty-one days was the time allotted by nature for the bringing forth of chickens, so she shrewdly suspected what she would find; but it had not occurred to her that she would find chickens alive without the aid of a hen.
“Grandma,” asked August, as they walked along “when you set a hen on thirteen eggs, how many do you expect will hatch?”
“I hope for all,” she replied, “but I seldom get all. I think ten out of thirteen is a very good proportion.”
“My incubator beats your hens!” thought August.
When they reached the house he took her straight to the attic.
“Well, I never!” she exclaimed. “So that is your secret, August! Well, I declare! And it really hatches the eggs, doesn’t it? I always knew, child, that you would invent something wonderful.”
“I didn’t invent much,” he said modestly. “In 1750, Réaumur, the French naturalist, gave an account of his experiments in hatching eggs in barrels set in hot-beds of horse-manure; and the Chinese and the Egyptians have hatched them for ages in ovens.”
“But this is by hot water and lamps,” said Grandma.
“Yes,” said August, “I never saw an incubator before 122 I made this; but, Grandma, I had read of them made on the same principle.”
“At any rate,” said Grandma, “I think that you deserve great credit for patience and ingenuity.”
By evening thirty chickens were hatched from the thirty-six eggs. The other six gave no signs of life. By Grandma’s advice they were left in the incubator “to give them a chance,” but they never hatched.
The next morning all the members of the family took the chickens down-stairs, even Robbie, who took two in a basket, and deposited them in their new home.
Then their food was prepared, the yolks of hard-boiled eggs crumbled up fine, bread crumbs, milk, and a little fine cracked corn. After a few days they could be fed almost entirely upon the cracked corn.
The whole family then stood around the yard admiring the brood, thirty little, bright-eyed, yellow, fluffy balls. They soon learned to eat and to drink, and were busy, happy little creatures. They would run under the hover when they wanted warmth or quiet, just as naturally as they would have run under a mother hen. The box was built on castors, and could be rolled from window to window, and thus kept in the sunlight, in which the little creatures reveled; and at night it could be pushed near the stove. Of course August had to renew the gravel very often, 123 and he was very particular to keep the food dishes sweet and clean. When the weather grew warm enough the yard was rolled into an open shed, and they could run out of doors.
These chickens were considered very wonderful, and many visitors came to see them. They grew fast and were as tame as kittens. Day after day the children came to feed the pretty pets, bringing them young clover tops and tender grass. Katie treated them with her birds’ canary and hemp seed. Robbie gave them bits of his cookies and cakes. Anything that the children liked to eat, these little chickens liked also; and when they heard the little boots coming towards them they would perch on the edge of their yard and chirp and peep and coax for their dainties.
By and by their wings began to grow and the fluffy down was changed to feathers. Grandma said that now they must have meat occasionally, chopped up fine, and they had it Wednesdays and Saturdays.
The little creatures were frantic for the meat. They would fly upon August, and, if they could get there, into the dish, which they more than once overturned.
When their plumage was well out they were handsome fowls. August built a large coop and out-door yard for them, but they were not often confined in it, 124 for the children loved to have them about with them, and watched them as carefully as a hen mother could have done; and great was the joy of Katie and Robbie as they ran to their mother to report the first crowing of the little cockerels.
When last I saw them they were well grown. The pullets, August proudly informed me, were laying.
It was the glorious Fourth. Torpedoes were the order of the day, and Katie and Robbie were amusing themselves by throwing the snappers in all directions, and seeing their feathered pets run to eat what they could never find. The other fowls, disturbed by the noise of the day, preferred to keep hidden away in their houses, but these liked to keep about with the children and see the fun.
August began his experiments when some of my young readers were quite little children. He has continued them through several seasons, until now, after much study and patient industry, he has enlarged and greatly improved his incubator. He has changed its form entirely, and has attached an electric apparatus which regulates the heat, and avoids all danger from smoke. He has applied for a patent, and has made arrangements for taking care of a large number of chickens as early as February, being still greatly interested in this successful “’speriment.”
Fahrenheit and Réaumur were both inventors of thermometers. Those commonly in use are Fahrenheit’s.
It seems strange that any birds should stay with us during the cold and frost when there is so much food which they like in the southern part of our country. Men of science wonder why they do remain here, and are unable to account for it. Perhaps it is because it is the true home of these birds which remain, and they prefer to search long and diligently for their scanty food, and bear the cold and the winds and the frost, rather than leave it. This is as we should do, and doubtless the birds that stay through the winter love their homes just as much—as a bird possibly can.
Of course everybody,—that is, everybody except the tiniest, wee baby, has seen the winter birds, some 126 of them; at least the Chickadees, the Snow-birds, and Downy Woodpeckers, and Bluejays and Shore larks. But are you acquainted with the little fellows? Do you know where and how they live, and what they eat, and of their habits and songs?
A great favorite of mine is the Chickadee, with his black cap and white shirt bosom. This active little gentleman is the most social and friendly of them all. If out in the country, this little fellow in company with his mates will twitter gaily at sight of you, every now and then looking curiously at you as if asking, 127 “And who are you, sir?” or “Who are you, ma’am?” and pecking his way gradually nearer and nearer will inspect you in the quaintest and merriest way. Afraid! O no, not they. Mr. Samuels, a writer about birds, says that he once had an inquisitive little Chickadee perch on the end of his boot and sit there watching him inquiringly. They have even been known to feed from the open hand. If you will daily scatter some crumbs for them before the door, or upon the window-sill, you will learn for yourselves how neighborly they are.
Still the Chickadees are strangely tender, needing a warm, cosy nest to shield their little bodies. They cannot make their nests on the limbs of trees. Oh, no, that wouldn’t do, for the first thing they knew the wind would blow, blow, and down would come their home. So they hunt around in the woods or along the rails and posts, for the nests in the wood that have been deserted by the woodpecker, who has flown away to a milder clime. If the Chickadees can not find these, they set to work themselves and with great labor dig a hole in a tree, or post, for their winter quarters. They prefer decayed trunks or posts so they can work more easily. To the bottom of their holes they bring pieces of wool, moss, and feathers or hair, and weave warm carpets and curtains to make cosy their little homes. 128
The Chickadees are very active, lively little things. They are always in motion; now hopping along in search of food, sending forth the peculiar cry that gives them their name, and then alighting on the tree limbs and moving from one tree to another “traversing,” as Wilson, a great authority on birds, says, “the woods in regular procession from tree to tree, and in this manner traveling several miles a day.” They are very strong for their size, and will hang below a limb supported by their claws, with their head downwards, which we should think would make them dizzy, but it does not seem to.
These little roamers of our roads and woods are so genial, companionable and social, that not only do we enjoy their society, but other birds are enchanted with them and seek their company. The Chickadees do not object. And so Brown Creepers, Nuthatches, Downy Woodpeckers, and other birds, often join them in their merry rambles and scrambles. They feed mostly on very small insects and eggs, such as infest the bark of trees, but will eat almost anything offered them; even meat they will peck from a bone.
Pleasant, indeed, in the midst of winter is this little bird’s cry:
“Chick-a-dee-dee-dee! Chick-a-dee-dee-dee!” 129
Pleasant his sharp whistle:
“Pe-wee! Pe-wee! Pe-wee!”
How much we should miss these amiable favorites should they ever take a notion to desert us! They stay with us throughout the year, but in summer they are shyer than in winter for they rear their young then. It is not until their family cares are over in the autumn, that they gather in small flocks and resume their merry life and social ways.
Another very interesting and neighborly winter bird is our familiar Snow-bird, often called the 130 “Black Snow-bird” to distinguish it from the Snow Bunting or “White Snow-bird.”
These tiny birds visit us from the north. Their journeys extend over the whole breadth of the United States. They appear here in the latter part of October, and are first seen among the decaying leaves near the borders of the woods, in flocks of about thirty. If molested, they at once fly to the trees. As the weather becomes colder they approach nearer the farm-houses and towns.
They are real weather prophets. When a storm is near at hand they gather together in large flocks, and work very, very diligently in search of food,—doubtless making provision for the time of wind and storm when they can get none.
But it is after the snow-storms, when the ground is white with the downy flakes, that the Snow-birds become the most friendly. How pleasant it is then to see them gather about the house, and around the barn and out-houses, to search for edibles. Not only then do they appear in the country-places, but even in the crowded city their little forms may be seen in multitudes, on the snowy streets and in the windows.
They build their nests near the ground, often on a stump or log, or in a deep thicket, in such a manner as to be shielded from the wind and storms. They 131 construct their homes from bits of fine grasses and leaves, and it is interesting to observe what wonderful architects they are.
The Snow-birds, I am sorry to say, though friendly with us are not, like the little Chickadees, peaceful among themselves. They are often very quarrelsome, and will peck at each other in a way that little birds should not. Perhaps they “make up” with one another and are good friends again. I hope so.
The Snow-birds are very nimble on the ground, and, I guess, can eat faster and more for their size than any other winter bird. It is a very funny sight to see them scratch away the snow with their tiny feet to get their food, which, when insects and eggs are not to be had, is the seeds of many kinds of weeds that still rise above the snow, and along the border of the roads.
Sometimes, perhaps, you have come upon a dead Snow-bird in the morning following a cold night, and perhaps have wondered if the poor little creature froze to death, and why he did not die at home. But the Snow-birds are sometimes affected with a dizziness or faintness which makes them fall from the limbs, or during their flight. What makes them dizzy or faint, we do not know; not from hanging head downwards like the little Chickadees, surely. 132 But they often, alas! come to their death through this affection.
The snow-birds have a peculiar cry of “Chuck! chuck!”—and another of “Chit, chit-a-sit!” which however, they seldom utter except when taking flight. They stay with us until about the 29th of April, when they wing away to the north or to the higher ranges of our mountains.
Somewhat similar to the Snow-birds are the Snow Buntings or “White Snow-birds.” They appear every winter in large flocks, often of many thousands. They are sometimes called “bad weather birds,” from the fact of their moving to the northward during fine weather and to the southward on the advent of deep snow-storms. They are much shyer than either the Chickadees or Snow-birds; but they are often seen on the roadsides and in the lanes searching for the seeds of weeds that grow there. On the sea-shore, which they greatly frequent, they live on small shellfish. It is curious that the greater the snow and the colder the weather of winter, the whiter do the Snow-Buntings appear.
They are very swift flyers, and often in flocks of great numbers seem to be a cloud of snow-flakes driven before a storm. They make their nests in the fissures of the rocks, forming from grass, and feathers, 133 and the down of the Arctic fox, a very cosey home. They frequent the roads and lanes in the vicinity of Boston, and their white forms and busy beaks can be seen throughout the winter season.
They have peculiar notes like a clear whistle, and a “chirr, chirr!” which they utter when flying.
A very fine little bird quite common in this State in the winter season, is the Brown Creeper, with its showy brown and white coat. These active little creatures are great lovers of the woods and pass their lives among the trees.
Unlike the Chickadees and Nuthatches, who also are partial to the woods, they very rarely descend to 134 the ground to either hop about or hunt for food. Nor do they, like the two former birds, ever hang to a limb with their heads downward.
Still the Brown Creeper seems to be constantly in activity, and hunts most diligently for the insects it feeds upon. This it does somewhat in the manner of the Woodpecker, by clinging to the trunks or branches of trees, supporting itself by its stiff tail-feathers and thus moving about quite securely.
They are very methodical. They strive to get every insect from a tree that there is on it, before leaving for another. So they generally alight near 135 the foot of a tree and gradually climb to the top; an insect must be very, very small to escape their piercing gaze.
They often work around a tree in spirals, and so are at times lost to the sight of an observer of their ways; and if the watcher runs around to the other side of the tree, very likely by the time he gets there, lo! they are back to the former side.
But they are not at all shy, and though not as neighborly and social as the Chickadee, or Snow-bird, still they will not fly away from the presence of unmolesting persons.
The Brown Creeper has not the bill suitable to excavate a hole for himself, so he is obliged to find a hollow trunk, a squirrel’s nest, or a deserted Woodpecker’s home. Here the little bird builds a nest of dry twigs and lays its pretty eggs.
As the mid-winter cold deepens they retire to the depths of the woods, or into the brown and sheltered thickets, where their little cry of “Chip, chip,” and “Cree, cree, cree,” may be frequently heard; and very pleasant it is, too. Very useful they are, these little Brown Creepers, as well as the Chickadees and Nuthatches, for they help preserve our beautiful trees and shrubbery from the destroying worms and insects.
I have mentioned the Nuthatches. These birds, 136 a little larger than the others before noticed, are not so numerous as the Chickadees and Snow-birds, but they are very interesting. The name of Nuthatches was given to them long ago, because it was supposed they broke the wood nuts by repeated hatchings or hammerings with their bills. But now men of science, who study birds, do not think that is true, and believe the Nuthatches to be wrongly named.
It was also thought that the Nuthatches, like the squirrels, lay up in the summer a store of nuts for their winter use. But this also is doubted, since the Nuthatch will climb along the trees and limbs in 137 search of insects and larvæ when the tree hangs full of nuts. So it is thought their principal food is composed of ants, seeds of various shrubbery, bugs and insects.
While the female bird is sitting on her eggs, the male Nuthatch displays a great deal of care and affection, supplying her regularly with the choicest food he can collect. With this he flies away to the mouth of the hole where they have established their home, and calls to her so tenderly, offering her the delicacy he has brought. He seems to call to her sometimes, simply to inquire how she is, and to soothe her labors with his incessant chatter. Seldom does he venture far from the nest, and if any danger threatens he instantly flies back to alarm her.
The white-breasted Nuthatch is known by his cry of “quank, quank,” repeated frequently as he keeps moving along the branches of a tree, piercing the bark with his bill and breaking off pieces in search of insects and their larvæ.
This affectionate bird, like the little Chickadees, rests and roosts with his head downwards; and also like them, is very curious and inquiring. If you are in sight, he will gradually make his way to you and reconnoitre your appearance, as if he would learn who you are. 138
There is also another bird of this species called the red-breasted Nuthatch, who is seen in New England, in winter, and who leads a similar life to his white-breasted relative.
Though most of the many species of Woodpeckers leave us on the advent of cold weather, still there are some that remain. My little readers, I am certain, have nearly all seen the round homes of the Woodpecker. You may observe them in almost any wood. They are about alike except in size and situation. A round hole in a tree or post is all you will see from a distance; but if you can climb,—for their holes are 139 usually more than six feet from the ground,—you may look down into the deep home itself.
How much patience and perseverance they must have to dig, bit by bit, such straight deep nests. These holes are seldom lined with any thing, but are generally enlarged at the bottom so as to give the family more “elbow room.”
The one we know best in winter is the Downy Woodpecker, the prettiest and smallest of the tribe. It builds its nest in various trees, preferring the apple-tree, poplar and birches. Its hole is smaller than those of other woodpeckers because, I suppose, the bird itself is so much smaller that he can do with less room.
The Downy Woodpeckers are very sociable; and although they themselves are not gregarious, you may often see them followed by Chickadees, Creepers, Nuthatches and Wrens, whose company they appear to be pleased with.
They are not shy of man, but, unlike most of their tribe, haunt roadsides, orchards, and grounds about houses and out-buildings, which they prefer to the deep forests. They are generally seen in pairs, and are very active little birdies. In searching for food, insects and eggs, they move from tree to tree and thus pass the day. They rarely alight on the ground. Their 140 ordinary cry is a “Chick, chick,” repeated rapidly.
A somewhat larger Woodpecker, called the Hairy Woodpecker, is also an inhabitant of our woods in winter and much like the Downy Woodpecker in habits.
These are the principal and most common of our winter birds. There are some others sometimes seen, such as the Tree-Sparrow, Blue-Jay and Golden Crowned Wren, but space forbids an account of their ways and songs. I hope what I have told you of the winter birds will induce you to study and observe more closely their almost human ways.
You have all heard of the Seven Wonders of the World; did you know that two of these wonders were veritable Light-houses?
About 300 B. C., Cheres, the disciple of Lysippus, cast the famous brazen Colossus of Rhodes, a statue of the Sun God Apollo, and erected it at the entrance of the harbor where it was used as a Light-house, the flames which crowned the head of the Sun God by night serving to guide wandering barks into his Rhodian waters.
For eighty years its hundred brazen feet towered superbly above port and town, and then it was partly destroyed by an earthquake. For nearly a thousand years the sacred image remained unmolested where it had fallen, by Greek and Roman, Pagan and Christian; but at last the Saracen owners of Rhodes, caring 142 as little for its religious association as for its classic antiquity, sold the brass of it for the great sum of £36.000, to the Jewish merchants of Edessa.
Just about the time that the Colossus was set astride the Rhodian harbor, King Ptolemy Philadelphus caused a noble tower of superb white stone, four hundred feet high, to be erected by an architect named Sostrasius, son of Dixiphanes, at the entrance to the port of Alexandria, which was a bran-new busy city in those days, a mere mushroom growth in that old, old Egypt, where the upstart Ptolomies were reigning on the throne of the Pharaohs.
It is said that this Sostrasius didn’t want his own name to be forgotten, so he carved it deep in the stone of the tower and covered it over with plaster whereon he inscribed by royal command:
“King Ptolemy to the Gods, the Saviours, for the benefit of sailors.”
Josephus tells us that the light, kept burning on the top of this Pharos, as it was called, probably from a word that signifies fire, was visible for forty miles at sea. For a thousand years it shone constantly until the Alexandrian Wonder likewise fell a prey to time and the Saracens.
The words Pharos-Phâre, Faro, etc., have been adopted into more than one European language to express Light-house or sea-light. 143
Some persons suppose that great mirrors must have been used to direct the light on the Pharos and keep it from being lost, but it is most probable that no more effective means of illumination than a common fire was employed.
The only other Light-houses of antiquity of which any record has been preserved are the Tower of Conira in Spain, which Humboldt mentions as the Iron Tower, and a magnificent stone Light-house at Capio, near the mouth of the Guadalquiver, that Strabo tells us about, on a rock nearly surrounded by sea.
Then tradition points out Cesar’s Altar at Dover, the Tour d’ Ordre at Boulogne, a Roman Pharos at Norfolk, and, in early British history, St. Edmund’s Chapel at the same place, as having been originally intended for sea-lights.
Though we are far ahead of our forefathers in our scientific apparatus for illuminating Light-houses, we have never equalled them in magnificence of architecture; for, in point of grandeur, the Tour de Corduan at the mouth of the River Garonne, in France, is probably the noblest edifice of the kind in the world, and it is nearly three hundred years since it was completed under Henry IV., having been twenty-six years in building.
All these centuries it has stood strong on its great reef, and has served to guide the shipping of Bordeau and the Languedoc Canal, and all that part of the Bay of Biscay; and it promises, in all human probability, to show its steadfast light for centuries to come.
Corduan is stoutly built in four stories, each of a different order of architecture, highly ornamented and adorned with the busts of the Kings of France, and of the heathen divinities. The first story contains the store-rooms, the second, the so-called King’s apartments, the third a chapel, and the fourth the dome or lower lantern. The tower completed is 197 feet high.
When this splendid structure was completed no better method for illuminating was known than by burning billets of oak wood in a chauffer in the upper lantern; and it was considered a great matter when a rude reflector in the form of an inverted cone was suspended above the flame to prevent the light from escaping upward. It is not known, in fact, that any more effective mode of lighting was employed until 1760, not much more than one hundred years ago; and then the radiance was not especially brilliant as it would seem to us. At that time Smeaton the engineer began to use wax candles at the Eddystone Light-house, 146 which soon degenerated to tallow dips, probably on account of the expense, and they must have given the keeper abundance of occupation in the way of snuffing and replenishing.
In 1789 a French scientist, M. Lenoir, made an epoch in the history of Light-houses, and in the progress of civilization as well, when he introduced an improvement in the way of lighting up the Tour de Corduan; for, of course, the comparative safety in coast navigation attained to by means of our modern Light-house system is of the first consequence in commerce and international communication, which means the spread of science, enlightenment and religion throughout the world. M. Lenoir placed Argand lamps with parabolic mirrors or reflectors in the lantern, which is, as it appears, a glass room on the summit of the tower entered by a trap-door at the head of a spiral staircase. Such a great change having been brought about, men of science have not rested content, but have gone on making one advance after another. In 1820 the famous diaptric instruments of Mr. Fresnel were placed in Corduan on trial, and proved such a grand success that, gradually, they have been universally adopted. The wonderful lens which you saw at the Centennial belongs to a diaptric refracting light of the first order, and oil lamps 147 constructed on the Fresnel principle, and, placed with lenses of different orders, according to the Light-house they are used for, serve an admirable purpose. Lard is found to be the best illuminator, as a general thing, for the light it casts through lenses of the first order reaches as far out to sea as it is possible for any light to be seen on account of the convexity of the earth. Experiment has proved it safer than mineral oil, and it is cheaper than gas, which however is occasionally used near a city whence it can easily be obtained. Only in some few special instances electric light, the most intense procurable, is employed.
The Centennial birth-day gift of the citizens of France to the American Republic is a colossal brazen statue of Liberty, which is to be a Pharos to light the shipping of the world into New York harbor. It will stand on Bedloe’s Island, and from the torch in its uplifted hand will flash a calcium light. Only the hand and arm were finished in time to be sent to the Exposition; but these were on so gigantic a scale that a man standing in the little gallery which ringed the thumb holding the torch seemed like an ant or a fly creeping along at that height.
Sir Walter Scott—dear Sir Walter, whose “Tales of a Grandfather” and Scottish stories and poems were so delightfully familiar to the boys and girls of 148 the last generation, left a charming little diary of a voyage he made in the summer of 1814, on board a Light-house yacht, in company with the Commissioners of Northern Lights,—who have charge of the Light-houses in Scotland, as the Elder Brethren of Trinity House have of those in England,—their Surveyor-Viceroy, the engineer Stevenson, and a few other gentlemen.
The first Light-house they visited was an old tower, like a “border keep,” still illuminated by a grate fire on top. The commissioners think of substituting an oil revolving-light; but Sir Walter wonders if the grate couldn’t be made to revolve!
Next they came to Bell Rock, which, in olden times, was the terror of sailors feeling their way in and out of the islands and rocks and shoals of the beautiful, perilous coast of Scotland. Inch-cape Rock, as it was then called, had shipwrecked many a helpless crew before the Abbot of Aberbrathock, fifteen miles off, out of pity caused a float to be fixed on the rock, with a bell attached which, swinging by the motion of the waves, warned seamen of the danger.
Many years later, when Abbot and Monastery bells had all become things of the past, a humane naval officer set up two beacons on Bell Rock by subscription; 149 but they were soon destroyed by the fury of the elements.
At last in 1802, people began to realize the danger of this terrible reef in the highway of navigation, and the Commissioners appointed Mr. Robert Stevenson to erect a Light-house on this point.
It was a perilous undertaking, and once the engineer and his workmen made a very narrow escape from drowning; but it was successfully accomplished by the brave and skilful Stevenson. Sir Walter thus describes this famous beacon.
“Its dimensions are well known; but no description can give the idea of this slight, solitary, round tower, trembling amid the billows, and fifteen miles from Arbraeth (Aberbrathock), the nearest shore. The fitting up within is not only handsome, but elegant. All work of wood (almost) is wainscot; all hammer-work brass; in short, exquisitely fitted up. You enter by a ladder of rope, with wooden steps, about thirty feet from the bottom where the mason-work ceases to be solid, and admits of round apartments. The lowest is a storehouse for the people’s provisions, water, etc.; above that, a storehouse for the lights, oil, etc.; then the kitchen of the people, three in number; then their sleeping chamber; then the saloon or parlor, a neat little room; above all the 150 Light-house; all communicating by oaken ladders with brass rails, most handsomely and conveniently executed.”
In the course of the voyage Mr. Stevenson determined that his “constituents” should visit a reef of rocks called Skerry Vhor (Skerrymore), where he thought it would be essential to have a Light-house. Sir Walter’s description of this visit is quite amusing and perhaps you would like to read it. The wind had blown squally all night, and in consequence everything and everybody were pitched and tossed about at a great rate, on board the little vessel. Nobody relished the attempt to land under these circumstances on this wild ridge.
“Quiet perseverance on the part of Mr. Stevenson, and great kicking, bouncing, and squabbling upon that of the Yacht, which seems to like the idea of Skerry Vhor as little as the Commissioners. At length, by dint of exertion, comes in sight this long ridge of rocks (chiefly under water) on which the tide breaks in a most tremendous style. There appear a few low, broad rocks at one end of the reef, which is about a mile in length. These are never entirely under water though the surf dashes over them. Pull through a very heavy swell with great difficulty, and approach a tremendous surf dashing over black pointed 151 rocks—contrive to land well wetted. We took possession of the rock in the name of the Commissioners, and generously bestowed our own great names on its crags and creeks. The rock was carefully measured by Mr. S. It will be a most desolate position for a Light-house—the Bell Rock and Eddystone a joke to it, for the nearest land is the wild island of Tyree, at fourteen miles distance. So much for the Skerry Vhor.”
As might have been expected, the Commissioners were discouraged at the aspect of affairs and delayed the work from year to year, but at last, in 1834, the Board placed this serious undertaking in the hands of Mr. Alan Stevenson.
Mr. Stevenson has left us a thrilling account of his noble work on Skerrymore Rocks, than which no worthier monument was ever left behind to the memory of a gifted and conscientious man.
In the first place he had to build barracks for his workmen on the Isles of Tyree and Mull, and then to begin the foundation of the tower on the only one of the gneiss rocks of the reef which was broad enough for the purpose, and this is but barely so, for at high water little remains around the tower’s base but a narrow band of a few feet of rugged rocks, washed into gullies by the sea, which plays through them almost incessantly. 152
Everything had to be thought of and provided for beforehand; even so small a matter as the want of a little clay for tamping holes might have stopped the work for a time.
Piers were built at Mull where the granite was quarried, and all sorts of conveniences and contrivances for the vessels and tug in use.
The poor workmen suffered dreadfully from seasickness when compelled to live on their vessel, so they erected a temporary wooden barrack on the rock, but it was completely swept away in a November gale, destroying the work of a season in a single night. The dauntless men went to work again, however, and built another shelter which stood so successfully that it was finally taken down several years after the Light-house was completed.
Alan Stevenson tells us of their life in this wave-washed eyrie, where he was perched forty feet above the sea-beaten rock with a goodly company of thirty men, where often for many a weary night and day they were kept prisoners by the weather, anxiously looking for supplies from the shore. At such times they were generally obliged to stay in bed, where alone they found an effectual shelter from the wind and spray which searched every cranny in their walls. More than once the fearfulness of the storm drove the 153 more timid from their frail abode, which the sea threatened to overwhelm, out on the bare rock where the roofless wall of the Light-house offered a safer defence against the perils of the wind and waves.
Innumerable were the delays and disappointments which tried the courage and faith of Stevenson and his brave band. It was a good lesson in the school of patience, and they learned to trust in something stronger than an arm of flesh. More than once their cranes and materials were swept away by the waves, and the workmen left, desponding and idle. They incurred daily risks in landing and in blasting the splintery gneiss, and in the falling of heavy bodies in the narrow space to which they were confined. For all, they met with no loss of life or limb, and maintained good health in spite of being obliged to live on salt provisions for six summers.
But the hardships and responsibilities by no means end with the building of the Light-house; the keeper who has it in charge holds a most important position, for upon the skill of his hands in the management of the delicate costly lenses and machinery, the clearness of his head, and the courage of his heart, as well as his honesty and fidelity, depends, even more than upon the captain of a vessel, the safety of many precious lives and millions of property; so it is 154 of the first importance that he be intelligent, efficient and trustworthy.
A Light which has been visible for years cannot be suffered to be extinct for one hour without endangering a vessel’s safety. The failure to illuminate at the proper time might prove fatal to the confiding mariner.
In England it is a situation for life unless the holder prove unworthy, with a pension if superannuated; but in our own country the appointments are in a measure political, and consequently liable to be temporary. This circumstance is deplored by the Board which sometimes in this way loses valuable servants after they have gained a skill and experience which only comes with time; and raw, untried hands have to be placed in positions of trust. It is hoped that some change will soon be brought about in this matter.
A year or more ago a gentleman, who holds an important position in the office of the Light-house Board and is specially interested in the comfort and welfare of the keepers, came in the course of a tour he was making on one of the Supply Ships, which carry half-yearly stores to the different posts, to a very isolated Light-house off the Florida coast, twenty miles from any human habitation and sixteen from terra firma. Just before the arrival of the vessel a little child of 155 the keeper had died, and was about to be buried in the sea without so much as a word of prayer being said over it. Mr. —— was shocked to find that these poor people in their isolation seemed to have no idea of religion, and that there was not a book of any kind at the station. The parents made no objection to his reading the burial service over the poor baby, out of a little prayer-book which he happened to have in his pocket, and he went away determined to do his part towards making good the deficiency he had discovered; for on investigation it was found that very many Light-houses were quite as much cut off from books as the one he had visited, and one instance had occurred of a poor fellow who had actually gone crazy, from sheer mental starvation, in his loneliness.
Many persons have interested themselves in Mr. ——’s scheme. An appropriation has been asked from Congress for supplying reading matter to the six hundred and more Light-houses along our coast; and in the mean time private individuals have sent in contributions in the way of old books and magazines. The lady and gentlemen clerks at the Light-house Board have been most kind and helpful in the matter; for they always feel an interest in the condition of the keepers and their families, and when cases of suffering come to their knowledge, as lately, when a keeper 156 at the South was burnt out and lost all his possessions, are prompt with their assistance. In this instance they helped to sort and arrange the motley piles of donated literature, which was then bound up nicely, in uniform volumes, at the Government Printing Office, and a neat little library-case of strong oak wood was made, fitted up with shelves and having heavy metal clasps and handles; and just so many volumes, always including a Bible, were placed in each case.
The Store-ships will now go out with a goodly lading of these supplies; one will be left at each station, and the next time the ship comes round the old case will be taken away and a fresh one substituted. In this way a circulating library system is established, and every Keeper well supplied with abundance of wholesome and entertaining reading matter.
You children, with your wealth of books and delightful magazines coming every month, can perhaps hardly appreciate the boon this kind thought, so well carried out, will prove; for you have never known what it is to be shut up in a lonely tower, day after day, month after month, with no outside interest or amusement. You can do your part towards brightening the lives of these men with their wives and children, and I am sure you will be glad of the opportunity. 157 Many of you, no doubt, have piles of old magazines or story papers, or even of books, for which you have no further use. Would you not like to put up a nice package of these, and send them by Express to the “Care of the Chief Clerk of the Light-house Board, Washington, D. C.”?
New supplies are constantly needed, and in this way you could not fail to give pleasure to those who have little enough in a life of monotonous duty.
Last summer while on our vacation trip along the sea-coast we made our plans so as to stop over a train at Barnstable that we might have time to take a look at that ancient burgh, but found to our dismay when it was too late, that of time we had altogether too much, for when we stepped out of the car it was seven o’clock in the morning, and our train would not leave till four in the afternoon! And to make matters worse it began to rain. We managed, however, at intervals when the rain held up, to get a pretty good idea of the place, but were driven back to the station by the persistent drizzle 159 long before noon; and there we seemed destined to spend five tedious hours, with not much of anything to do, except to get the way-bills of the Old Colony Railroad by heart, and commit to memory whatever might be available in the other advertisements posted on the walls.
We were beginning to be desperate, when my companion, strolling about, discovered a small placard saying that fruit was for sale in the freight depot. I set out to explore, having visions of apples and pears, but especially peaches and grapes before me.
Passing the wide freightage doors, I came to a narrow one which was wide open; so I first looked, and then walked in. It was an unfinished place where a slim young woman was busy about her housework, while a sick-looking man was “standing round.” There was a cooking-stove, and she was taking pies out of the oven, which she set in a row on a cumbrous wooden bench that filled all the opposite end of the room, and under it were stored bunches of something unknown to me which I found afterwards was broom-corn. She was pretty and girlish, and had blue eyes, and fair hair.
She asked me to sit down, and told me they had been living there off and on for three years. “We 160 used to live in ‘Commons,’ but we did not like, and so came up here. My husband is not well, and I go out washing, and take in washing.”
It was a very queer place to live in, but neat and comfortable, yet it seemed just as if they might have been moving, and had merely stopped here over night and set up their stove in order to cook something to eat.
Upon inquiring for the fruit, about which it began to seem as if there must be either a mistake or a mystery for nothing of the kind was to be seen except the dish of apples left over from the pies, she directed me up-stairs; and up the steep narrow stairs I went, nearly stumbling over a great black dog (which she assured me would not bite) that lay stretched at the threshold of a dreary kind of room which had one occupant—a man with his shirtsleeves rolled up to the elbows at work near one of the windows at the farther end. And now I remembered that we had seen him at his bench there as we sat in the depot, and wondered what he was doing.
No indications of fruit; but there were four machines and a stack of brooms, and the litter of shreds and waste, and I was about to retreat with an apology after making known my errand. He said I had 161 made no mistake, but he was out of everything except confectionery; peanuts, dates and figs. So as there were no apples, no pears, no peaches, no grapes, after all my perseverance, dates I would have, and he went to a closet where he said he kept them, holding his hands out before him in such a way that I knew he could not see even before he said, “I am blind.”
After he had weighed them and received his pay, there were a few words about his business, which he seemed delighted to talk about, and because I put a question or two, he asked if I was a reporter, and said “that used to be my business. I was on the reportorial staff of the Pennsylvania legislature, when from overtasking my eyes, and other causes, I became blind. I went to the Institution at South Boston, and learned to make brooms so that I could earn my living.”
He was full of interest in the work he had been compelled to fall back upon, and invited me to come in with my companion and see how it was done.
“Now I wish,” said he, “that I had some stuff ready. I have to soak it before I use it. But your train does not go till four o’clock. I will put some to soak immediately, and if you will come in about 162 three I will begin at the beginning and make a broom, so that you can then see the whole process.”
To be sure we were glad to go, and he did as he said he would, and explained every particular, even to the cost.
“The broom-corn comes from the West,” he said, “though a good deal grows in the Mohawk valley, and the largest broom establishment in the United States is at Schenectady.
“It often grows, if thriving stalks, ten or twelve feet tall; it can be cultivated here, but not so profitably. It comes in large bales, weighing anywhere from one hundred and fifty to five hundred pounds. Where I buy mine in Boston it costs me six cents a pound, though the price varies.
“I sort it out on a ‘sorting bench,’ first, for if I took it as it is, the brooms would be of queer qualities. Sorting is a regular trade to learn.
“The next thing, I tie it in bundles, and then it is ready for use. I put as many of these to soak the night before, as I want to make up in the day. I leave it in the water half an hour, then let it drain, and it keeps damp enough for working; if it was dry it would break when I sew it. Here you see this lot, from which I shall make the broom. I call 163 now we have wire, and it is galvanized to prevent it from rusting. It costs me twelve cents a pound; it used to cost seventeen.”
Having made the handle fast, he took a bunch of the corn, smoothed it carefully through his hands to even it, laid it against the handle, put his foot on the treadle or whatever the hour-glass shaped piece of mechanism might be named, and with one or two revolutions wired it tight. This lot had the butts left on, but from the next layer he sliced them down wedge-fashion with a very sharp knife, having secured them to those already on by a strap which could be fastened at such length as he chose by means of a leather button; another and another tier, each time of choicer quality, succeeded, and so on till the stock for that broom was used up.
“This,” he explained, “is a number eight broom. If there had been time I would have made a hurl broom, which is the best. (The ‘hurl’ is the finest part of the corn, the heart.) I make five sizes: number six is the smallest, and it is the smallest manufactured in this country. I can make twenty of those in a day. Of the number ten, the hurl, I have made twelve, and they sell for forty cents apiece. Sometimes when I have got a lot of brooms 164 on hand I hire a horse and cart, take a boy with me, and go round the country to sell them; and people will object to paying my prices, and I can’t always make them believe that it pays to buy a good article, even if it is a broom. They sometimes say that they can get enough of them at fourteen cents, but I tell them when they pay fourteen cents for a broom, they only get a fourteen-cent broom.”
He had now a rough broom, which he released from the vise and took over to the press which had three pairs of cruel-looking irons that he said were “the jaws,” of sizes to shut round brooms of three different thicknesses and hold firmly, while he did the next thing, which he made known in this wise:
“Now I shall sew it. The number six have only two sewings—all they need, they are so thin. The others have three. They are all sewed with waxed linen twine: the higher sizes have pink, because it looks better; the others have tow-colored. You see my needle? It is some like a sail-maker’s, but not exactly. I have two, though one will last a lifetime. I keep them in this oiled rag to prevent them from rusting. They cost fifty cents apiece, and were made of the very best of steel. See what nice metal it is!” He held out one, shaped more like a paddle 165 than anything else, polished to the last degree, and as lustrous as silver; then he threw it on the floor to show us how it would ring.
“Broom tools of all kinds are made at Schenectady, but my needles, knives and combs come from Hadley. I will show you the combs pretty soon; the knives you have already seen. Let me see—where did I lay that other needle? No, you need not look for it; I must find it myself. I have to be careful where I leave my things, so that I can put my hand on them the moment I want them. Oh, here it is,” picking it up with his long supple fingers, and rolling it securely up in the oiled cloth.
“Now you notice I put on this palm,” and he held up what looked like a mitt just large enough to cover the palm of the hand and the wrist, having a hole to slip the thumb through and leaving that and the fingers free. It was made of cowhide, and sewed together on the back, while in the inside was set a thimble against which the needle was to be pressed in doing the hard sewing, while the leather protected the skin from being fretted by the broom.
“It is not just like a sail-maker’s palm,” he added. “I have one of those which a man gave me, and I 166 will show it to you.” So going again to his dark closet, he groped for it among his multifarious things, and came back with one similar, except that it was of raw-hide, and the thimble was a little projection looking like a pig’s toe.
He sewed the broom through and through, producing the three pink rows. Then he said he would comb it to clear away the loose and broken stems; and so he passed through it a sort of hetchel made of thirty small knife-blades set in a frame, “which cost me,” said he, “more than you would think—that comb was five dollars; and now I comb it out with this one to remove the small stuff and the seeds.” And releasing it from the clamp, he took down a fine comb from a nail, and repeated the process.
“And now it is ready to be trimmed. I lay it on this hay-cutter, which some friends bought cheap for me at a fair, and answered my purpose after a few alterations, and I trim it off, nice and even at one end—and now it is done. You have seen a broom made.”
That was true. Our only regret was that we could not have that same broom to take away; but on our zig-zag journey, when we were likely enough to stop 167 over or turn off anywhere, that was an absurdity not to be thought of. We did, however, “buy a broom” that we could take—and an excellent one it proved—and we accepted a small package of broom-corn seed which the blind workman was anxious we should have, “to plant in some spare spot just to see how it looks when growing.”
When we went down-stairs, the woman was out on the platform, her yellow hair tossing about in the wind, and she seemed as happy with her meagre accommodations in the freight house as if she were owner of a mansion. She begged us to go in and get some of her apples, we were welcome, and “they did not cost me anything,” she added. She told us more about her fellow-tenant, and said he paid half the rent, “and he used to board with us, but now he boards up in town, and he goes back and forth alone, his self.”
This curious and pleasant little episode made us so ready to be interested in everything pertaining to brooms that it seemed a kind of sarcasm of circumstances when, at a junction not very far along our route, we saw, perched upon his cart, a pedler doing his best to sell his brooms to the crowd on 168 their way home from one of the Cape camp-meetings. His words were just audible as the train went on:
“Buy a broom! Buy a broom! Here’s the place to buy a cheap broom, for fourteen cents! only fourteen cents! A broom for fourteen cents! So CHEAP!”
And it happened not many days later that somebody read in our hearing that the broom-corn is a native of India, and that Dr. Franklin was the means of introducing it into this country; from seeing a whisk of it in the hands of a lady he began to examine it—being of an inquiring mind, as everybody knows—and found a seed, which he planted.
The street-sweeper’s broom is the genuine besom, made of birch stems, cut out in the country, and brought into town tied up in bundles like fagots; suitable enough for those stalwart men who drag them along so leisurely, but burdensome for the hands of the wretched little waifs, who, tattered and unkempt, make a pretence of keeping the crossings clean; who first sweep, and then hold out a small palm for the penny, dodging the horses’ hoofs, and just escaping by a hair’s breadth the wheels of truck or omnibus in their attempts to secure the coin, if some pitiful passer-by stops at the piping call: 169
“Please ma’am, a penny!”
That is the almost tragic prose of brooms.
But there is a bit of poetic history that ought not 170 to be forgotten, for it was a sprig of the lovely broom bush—call it by the daintier name of heath if you will—such as in some of its varieties grows wild in nearly every country in Europe, a tough little flowering evergreen, symbol of humility, which was once embroidered on the robes, worn in the helmet, and sculptured on the effigies of a royal house of England. Which of the stories of its origin is true, perhaps no one at this distant day can determine; but whether a penitent pilgrim of the family was scourged by twigs of it—the plantagenesta—or a gallant hunter plucked a spray of it and put in his helmet, it is certain that the humble plant gave the stately name of “Plantagenet” to twelve sovereigns of that kingdom; and their battle-cry—which meant to them conquest and dominion, but has a very practical sound to us, and a specially prosaic meaning to one like the blind broom-maker of this simple story—was this:
“Plant the broom! Plant the broom!” |
When boys live some distance apart, it is pleasant to be able to communicate with each other by means of signals. Many and ingenious have been the methods devised by enthusiastic boys for this purpose. But it can be brought much nearer perfection than has yet been done, by means of a very simple system.
At the age of fourteen I had an intimate friend who lived more than a mile away, but whose home was in plain sight from mine. As we could not always be together when we wished, we invented a system of signalling requiring a number of different colored flags; but we were not quite satisfied with it, for we could send but few communications by its use. Then, when we came to test it, we found the distance was too great to allow of the different colors 172 being distinguished. The white one was plainly visible. It seemed necessary, therefore, that only white flags should be used. We studied over the problem long and hard, with the following result.
We each made five flags by tacking a small stick, eighteen inches long, to both ends of a strip of white cloth,[B] two feet long by ten inches wide. Then we nailed loops of leather to the side of our fathers’ barns, so that, when the sticks were inserted in them, the flags would be in the following positions:
The upper left hand position was numbered 1, upper right 2, lower right 3, lower left 4, centre 5. Notice, there was no difference in the flags; the positions they occupied determined the communication.
Thirty combinations of these positions can be made:
1—1 2—2 4—1 2 3—1 4 5—1 2 3 5 2—1 3—2 5—1 2 4—2 3 5—1 2 4 5 3—1 4—3 4—1 2 5—2 4 5—1 3 4 5 4—1 5—3 5—1 3 4—3 4 5—2 3 4 5 5—2 3—4 5—1 3 5—1 2 3 4—1 2 3 4 5. |
These combinations were written down; and opposite each was written the question or answer for which it stood. The answers likely to be used most we placed opposite the shortest combinations, to save time in signalling. My old “Code” lies before me, from which I copy the following examples:
1. Yes. 2. No. 3. Morning. 4. Afternoon. 5. Evening. 1 2. Can you come over? 1 3. When? 2 5. Wait till I find out. 1 3 4. Can you go a-fishing? 2 4 5. Are you well to-day? |
Suppose, now, that I place flags in positions 2 4 and 5. (See the above examples.) 174
Harry glances down his “code” until he reaches 2 4 5 and its signification, and perhaps answers with a flag at 1.
Then the following dialogue ensues:
I. 1 2.
He. 1 5.
I. 4.
He. 2 5.
And, in a few moments,
He. 1.
We usually spent our noon hour conversing with each other in this manner; and, when it became necessary for either to leave his station, all the flags, 1 2 3 4 5, were put out, signifying “gone.”
One combination, 1 2 3 4, was, by mutual consent, reserved for a communication of vital importance, “Come over!” It was never to be used except in time of trouble, when the case would warrant leaving everything to obey the call. We had little expectation of its ever being used. It was simply a whim; although, like many other things, it served a serious purpose in the end.
Not far from my father’s house stood a valuable timber lot, in which he took an especial pride. Adjoining this was an old apple-orchard, where the limbs of several trees that had been cut down, and the prunings of the remainder, had been heaped 175 together in two large piles to be burned at a favorable opportunity. One afternoon, when there was not the slightest breath of wind, we armed ourselves, father and I, with green pine boughs and set the brush-heaps a-fire. We had made the heap in as moist a spot as possible, that there might be less danger of the fire spreading through the grass. While the flame was getting under way, I busied myself in gathering stray bits of limbs and twigs—some of them from the edge of the woods—and throwing them on the fire.
“Be careful not to put on any hemlock branches!” shouted my father from his heap. “The sparks may snap out into the grass!”
Almost as he spoke a live coal popped out with a loud snap and fell at my feet, and little tongues of flame began to spread through the dead grass. A few blows from my pine bough had smothered them, when snap! snap! snap! went three more in different directions. As I rushed to the nearest I remembered throwing on several dead hemlock branches, entirely forgetting their snapping propensity.
Bestowing a few hasty strokes upon the first spot of spreading flame, I hastened to the next and was vigorously beating that, when, glancing behind me, I saw to my dismay that the first was blazing again. 176 Ahead of me was another, rapidly increasing; while the roaring, towering flame at the heap was sputtering ominously, as if preparing to send out a shower of sparks. And, to make matters worse, I felt a puff of wind on my face. Terror-stricken I shouted:
“Father! The fire is running! Come quick!”
In a moment he was beside me, and for a short time we fought the flame desperately.
“It’ll reach the woods in spite of us!” he gasped, as we came together after a short struggle. “There isn’t a neighbor within half a mile, and before you could get help it would be too late! Besides, one alone couldn’t do anything against it!”
A sudden inspiration seized me.
“I’m going to signal to Harry!” I cried. “If he sees it he’ll come and, perhaps, bring help with him!”
“Hurry!” he shouted back, and I started for the barn. The distance was short. As I reached it I glanced over to Harry’s. There were some white spots on his barn. He was signalling and, of course, could see my signal.
Excitedly I placed the flags in 1 2 3 4, and, without waiting for an answer, tore back across the fields to the fire. It was gaining rapidly. In a large circle, a dozen rods across, it advanced toward the 177 buildings on one hand and swept toward the woods on the other. We could not conquer it. We could only hope to hinder its progress until help should arrive.
Fifteen minutes of desperate struggle and then, with a ringing cheer, Harry and his father dashed 178 upon the scene. Their arrival infused me with new courage; and four pairs of hands and four willing hearts at length conquered the flame, two rods from the woods!
My father sank down upon a rock, and, as he wiped the perspiration from his smutty face, he said:
“There, boys, your signalling has saved the prettiest timber lot in the town of Hardwick! I shall not forget it!”
Were we not justly proud?
Two days after I found upon my plate at breakfast a small package, which contained two pretty little spy-glasses.
“Perhaps they will enable you to enlarge your ‘signal code,’” was all my father said when I thanked him.
We soon found that with the aid of the glasses we could distinguish any color. So we made a set of blue flags, which gave us thirty more communications by using them in place of the white ones. And, by mixing the blue flags with the white combinations and the white with the blue combinations, over two hundred communications could be signalled. Thus we could converse with each other by the hour.
The way we wrote down the mixed combinations was, by using a heavy figure to represent a blue flag; 179 as 1245, which meant that positions 1 and 4 were occupied by white flags, 2 and 5 by blue ones.
Blue flags can be inserted in the original thirty combinations in the following manner: 12, 123, 123, 1234, 1234, 1234, 1234, 1234, 235, 235, 2345, 2345, 2345, 2345, 2345, 2345, 2345, and so on.
Among the many recollections that throng my memory in connection with this subject, is that of an incident which has caused me many a hearty laugh since its occurrence, although at the time I did not feel particularly amused. Harry had gone away visiting, giving me no definite idea of when he would return. So, one drizzling, uncomfortable day, as I was sitting rather disconsolate at my barn window, I was delighted to see several flags appear on his barn.
Eagerly I read:
1 3 4. “Can you go a-fishing?”
The fine drizzling rain was changing into larger drops, and there was every reasonable prospect of a very wet day, and I thought he must be joking; but I answered:
“When?”
“Now,” was the reply.
“Where?” I asked.
“Are you in earnest?”
“I will meet you there.”
I answered “Yes,” and, shouldering my fish-pole, started off across-lots. The distance was fully a mile and a half, and before I had passed over a quarter of the distance the bushes, dripping with rain, had completely drenched me. When nearly there the increasing rain became a heavy shower; but I kept on. I reached the pond, but nothing was to be seen of Harry. Not a frog could I find for bait, owing to the incessantly pouring rain, and I knew it would be difficult to find a worm. So, after half an hour of tedious waiting and monotonous soaking, I started for Harry’s, my patience entirely worn out.
The rain came down in torrents as, at length, I turned in at the gate; and I suppose I looked as forlorn as a drenched rooster, for I heard a girlish giggle as I stepped upon the piazza, but I did not then suspect the truth.
“Where’s Harry?” I asked of his mother whom I found alone.
“Why, you didn’t expect to find him at home, did you? He won’t be back for a number of days yet.”
(Another subdued giggle from the next room.)
“You’re as wet as a drowned rat!” went on the 181 motherly woman. “What on earth started you out in this rain?”
“It’s that Hattie’s work!” I burst out angrily, and told her the whole story.
“Dear me!” she exclaimed, holding up her hands, despairingly, “I never did see such a torment as that girl is! I noticed she has seemed very much tickled over something! I’ll give her a real scolding!”
I darted out the door; and, as I splashed my way disconsolately down to the road, I heard a voice, struggling between repentance and a desire to laugh, call after me:
“Forgive me, Charlie, but it was such a joke!”
Hattie never meddled with her brother’s signals again. For her mother’s displeasure and the severe cold that followed my drenching more than balanced the enjoyment she derived from that very practical joke.
Two years ago I visited my native town. Resuming my old place by the barn window, I gazed across the intervening forest to where Harry used to stand and signal to me. Tacked up against the window-sill was my old “signal code,” covered with dust and cobwebs. Harry was hundreds of miles away, 182 carving himself a name among his fellow-men. Of all the friends of former days, scarcely one remained in the old town. And I could only wish, with all my heart, that I were once again enjoying my boyhood’s happy hours.
If the buildings should be painted, the flags should be of a color that would contrast with that of the paint.
Ah! I know something! I know something you girls don’t know! I know how they make dishes what you eat off of; and it’s just the same way they make dolly’s dishes, I guess.
Yes, I do know. And I’ve got some pictures papa drawed for me, too, and I’ll tell you all about them. They’re in my pocket right under my handkerchief. I put them under my handkerchief because I don’t want them to get dirty. I’ve got some ’lasses candy on top. I haven’t got enough, or I’d give you all some.
Papa took me to a pottery. I don’t know why they call it a pottery, for they make cups and saucers, and sugar-bowls, and everything. First the man took us through the dressing-room. I did not see any dresses, nor anybody dressing themselves. I only saw piles 184 of dishes and men and women hammering at them. I asked papa why they called it that, and he said, wait till we come back, for that was the very last of all. So we went on into the yard. I looked into one part of the building where it was all dark, with three great chimneys, broad on the ground and narrow high up. But the man and papa went right on, round to the other side of the building.
There wasn’t anything to see, though, but horses and carts hauling clay, and great heaps of it on the ground. I wouldn’t have called it anything but dirt, but papa said it was kaolin, not exactly dirt, but clay. He spelt it for me.
There was another of those big chimneys in the yard, only bigger. The man said that was where they dried the clay. Then he led us to a little door in the side of the house, and we went in. That brought us into a little room where they were getting the clay ready.
First there was a sand-screen—like Mike uses, where they sieved it. Next they weighed it and put it into bins. It looked like fine, dark flour.
A little piece off from the bins there was a big deep box. They were mixing clay and water in it, and making a paste. It looked like lime when they’re making mortar. The box leaked awfully, and white paste was running down on the floor.
At the end of the box they had a pump working, and it was pumping the paste into what they called a press. It was too funny for anything. I couldn’t more than half understand it. But it looks something like a baby-crib, only it has slats across the top, and they’re close together. They have a lot of bags inbetween the slats, and the clay gets into the bags and gets pressed flat, so that most of the water is squeezed out. When they take it out of the bags it looks something like a sheet of shortcake before it’s cut or baked. Then they roll a lot of them together, and that’s what they make dishes out of. They call it biscuit.
The man took us down into the cellar under the little room to show us the engine that made the paste and pumped and pressed the clay. I was afraid, and didn’t want to go down, but papa said it was only a little one. It was nice and clean down there, with a neat brick floor, but awful hot. I was glad to come up.
After the little room there’s one big room where they don’t do much of anything. It is like a large shed, for it is dark and has no floor. The dressing-room where we were first is on one side, and the dark room where the big chimneys are, is back of it. We went through it, and over to one side and up the stairs to the second story.
It’s nice up there. It’s one great big room, five times as big as our Sunday School room, with ever so many windows. All around the sides and down the middle, and cross-ways, and out in the wings are shelves, piled full of brand-new dishes. And there are tables all along the walls, and that’s where they make them. I could stand and look all day.
I saw two boys throwing up a great big lump of clay and catching it; then cutting it with a string and putting the pieces together again, then throwing it up again, until it made me dizzy to look at them. I asked the man what they were doing, and he said, wedging the clay. That means taking the air out. They keep on doing that until there are no air-bubbles in it.
We stopped and talked to a man who was making a sugar-bowl, and he told us how he did it. All the men have on the table in front of them a lump of clay, a wheel, some moulds, a sharp knife, a bucket of water with a sponge in it, and something like the 188 slab of a round, marble-topped table, only it’s made of plaster Paris, to work on.
And do you know what the potter’s-wheel is? It’s as old as the hills and it’s in the Bible, but I guess everybody don’t know what it is. It looks as if it was made of hard, smooth, baked white clay, and is something like a grindstone, only not half as thick. The grindstone stands up, but this lays flat, with its round side turned up, like the head of a barrel. And it’s set on a pivot, like the needle of the compass in our geographies.
The moulds are like Miss Fanny’s wax-fruit moulds. They’re made of plaster Paris, and they’re round outside, and they have the shape of what the man wants to make on the inside, and they’re in two pieces. Little things like cups are made in one mould; but big things like pitchers are made in two or three pieces, in two or three moulds, and then put together. Handles and spouts and such things are made separately in little moulds and put on afterwards.
Here’s the way. First the man cuts off 189 a piece of the biscuit, and kneads it on the plaster Paris slab. Then he takes one piece of the mould, fixes the clay in nicely, shaves off what he don’t want, then puts on the other piece of the mould, and sets it on the wheel. He gives it a shove and sets it spinning. It stops itself after a while, then he opens the mould, and there is the dish. The clay keeps the same thickness all through, and fills both pieces of the mould.
Then the man takes it out and sponges it. If it isn’t just the right shape all he has to do is wet it, and it will come right. Then he puts on the handle or puts the pieces together, fixing them just so with his fingers and knife. It isn’t very hard, but he has to be careful. The soft dishes look real cute. Then they’re ready to be burnt the first time.
We walked all around and saw here one man making cups, another, tureens, another, bird-baths, and every imaginable thing that is ever made in porcelain. Then we went down-stairs, through the dark rooms, into where the tall chimneys are. Then I found out they called them kilns. They have at the bottom a prodigious furnace, over that a tremendous oven, where they put the dishes in to bake.
But they don’t put them right in just as they are. Oh, no. There were on the high shelves all around, a 190 lot of things called saggers. They look something like bandboxes made of firebrick. The soft dishes are put in them, the lids are put on, and then they are piled up in the oven. Then the men build a big fire in the furnace, and let it burn for several days. When it goes out they let several more days go by for the kiln to cool, and then take out the saggers. When the dishes are taken out they are hard and rough and of a yellowish white. They build the fire after they get them in, and let it out and the kiln cool off before they take them out, because the men have to go in and out the big ovens.
Wouldn’t you think a pile of soft plates and saucers would burn all together and stick fast to each other? Well, they don’t. There are little things made of hard clay with three bars and three feet, and they put them in between dishes so that one plate has one in it, and the next plate sets on top of that, so that they can’t stick together. Did you ever see three little dark spots on the bottom of a saucer? This is what makes them. There are lots and lots of these little stands lying all around everywhere, and broken pieces of them and the clay, scattered like flour all over the ground and floors thick.
We next went into the room back of the kilns. It had shelves all around, too, and there were piles of 191 dishes after the first burning. A lot of women sat on stools on the floor and they were brushing the fire cracks with some stuff out of little bottles. This was to fill them up so that the glazing wouldn’t run in.
We went into another room at one side of the first and there’s where they did the glazing. They called it dipping. There was a large tank in the middle of the room with a deep red liquid in it. Papa asked the man what it was, and he said it was a secret preparation. The men dipped the dishes in, and they came out a beautiful pink, so pretty that it seemed a pity they couldn’t stay so. There were shelves all around this room, too, and there the dishes look like they do when we see them—the pink glazing has turned white.
There is nothing more done to them except the dressing. We had now gone all around, and were almost at the dressing-room where we started. And when we went in again we found that the dressing was nothing but knocking off any rough lumps with a chisel. I remember every bit of it. And every time I look at dishes I think there are ever so many things we use every day and don’t know anything about.
Mr. Maurice Thompson has excited all the grown-up boys who loved in their younger days to draw the bow, by his graceful articles on archery for young men and women.
Fig. A.
I want to tell the boys who are wide awake how they may, without too much labor and with but little expense, make their own bows and arrows and targets, having their fun, like their elders, in this health-giving and graceful recreation.
In the first place, after you have made your implements for the sport, you must never shoot at or towards anyone; nor must you ever shoot directly upwards. In the one case you may maim some one for life, and in the other you may put out your own eye as an acquaintance of the writer’s once did in Virginia. 193
To make a bow take a piece of any tough, elastic wood, as cedar, ash, sassafras or hickory, well-seasoned, about your own length. Trim it so as to taper gradually from the centre to the ends, keeping it flat, at first, until you have it as in this sketch—for a boy, say, five feet in height: (Fig. A)
This represents a bow five feet long, one and a quarter inches broad in the middle, three-fourths of an inch thick at the centre, and a half-inch scant at the ends in breadth and thickness.
Bend the bow across your knee, pulling back both ends, one in each hand, the centre against your knee, and see whether it is easily bent, and whether it springs readily back to its original position. If so your bow is about the right size. Cut near each end the notch for the string as in this figure: (Fig. B.)
Fig. B.
Bevel the side of the bow which is to be held towards you, so that a section of your bow will look like this figure: (Fig. C.)
Fig. C.
The back or flat part is held from you in shooting, and the bevelled or rounded part towards you. Scrape the bow with glass and smooth it with sand-paper.
To shape your bow lay it on a stout, flat piece of timber, and drive five ten-penny nails in the timber, one at the centre of your bow, and the others as in figure below, so as to bend the ends for about six inches in a direction contrary to the direction in which you draw the bow: (Fig. D.)
Fig. D. (A and B are six inches from the ends.
The bow is bent slightly at C.)
Your bow is now finished as far as the wood-work is concerned, and you may proceed to wrap it from end to end with silk or colored twine, increasing its elasticity and improving the appearance. The ends of the wrap must be concealed as in wrapping a fish-hook. Glue with Spaulding’s glue a piece of velvet or even red flannel around the middle to mark your handhold. 195 The ends may in like manner be ornamented by glueing colored pieces upon them.
A hempen string, whipped in the middle with colored silk, to mark the place for your arrow nock to be put, in shooting, will make a very good string.
For arrows any light, tough wood, which splits straight, will do. I use white pine, which may be gotten from an ordinary store-box, and for hunting-arrows seasoned hickory. These must be trimmed straight and true, until they are in thickness about the size of ordinary cedar pencils, from twenty-five to twenty-eight inches in length. They must be feathered and weighted either with lead or copper, or by fastening on sharp awl-points or steel arrow-points with wire.
I used to make six different kinds; a simple copper-wrap, a blunt leaden head, a sharp leaden head like a minie bullet, an awl-point wrapped with copper wire and soldered, and a broad-head hunting-arrow.
To make a copper wrap, wrap with copper wire the last half-inch of the arrow until you get near the end, then lay a needle as large as your wire obliquely along the arrow as in this figure: (Fig. E.) Continue the wrapping until you have weighted the arrow sufficiently; draw out the needle and thrust the end
of your wire through the little passage kept by the needle, and draw it tight thus: (Fig. F.)
Fig. F (Before wrap was drawn through.)
Fig. G. (After wire was drawn through.)
A blunt leaden head is made by pouring three or four melted buck-shot into a cylinder of paper, wrapped around the end of the arrow, slightly larger at the open end, and tied on by a piece of thread. The wood of the arrow must be cut thus: (Fig. H.)
Fig. H.
The paper is put on thus: (Fig. X.)
Fig. X.
It should look like this after the metal has been poured in and the paper all stripped off. (Fig. I.)
Fig. I.
It should look like this after being sharpened like a minie bullet: (Fig. J.)
Fig. J.
An awl-point arrow is made by inserting the point in the end of the arrow, wrapping with copper wire, and getting a tinner to drop some solder at the end to fasten the wire and awl-point firmly together. The awl-point looks like this: (Fig. K.)
Fig. K.
The awls (like Fig. L.) are filed like this into teeth-like 198 notches on the part going into the wood, and roundly sharp on the other part thus: (Fig. M.)
Fig. L.
Fig. M.
These may be shot into an oak-tree and extracted by a twist of the hand close to the arrow-point.
Fig. N.
The broad-head hunting-point (Fig. N.) is put on by slitting the arrow and inserting the flat handle of the arrow point, and wrapping it with silk, sinews, or copper wire. These points can be sharpened along the line A B on a whetstone, and will cut like knives. The hunting arrow looks like this: (Fig. O.)
Fig. O.
To feather an arrow you strip a goose feather from the quill and, after clipping off the part near the quill-end, you mark a line down the arrow from a 199 point one inch from the nock and, spreading some Spaulding’s glue along that line apply the feather, lightly pressing it home with forefinger and thumb. After you have glued on one piece lay aside the arrow and fix another, and so on until the first is set, so that you may put on another piece. When you have fastened these feathers on each arrow lay them aside for ten or twelve hours. The three feathers will look like this: (Fig. P.)
Fig. P.
A boy can hardly make a good quiver unless he were to kill some furred animal and make a cylindrical case such as the Indians have, out of its skin. I am afraid that he usually would have to get a harness-maker to make him a quiver out of leather, somewhat larger at the top than at the bottom. It should hold from eight to twelve arrows.
A good target may be made of soft pine, circular or elliptical in shape. In the latter case a line-shot might count, even though it were farther from the 200 centre. Pieces should be tacked to the back of this target at right angles to the grain of the wood. Differently-colored circles or rings, a little more than the width of an arrow, must be painted on this, with a centre twice the width of an arrow. The outer ring 201 counts one, the next two, three, four and so on to the centre, which of course counts highest. By this plan one’s score could be told with perfect accuracy.
If an arrow struck on a line between number three and four it counts three and a half. Anything like this rarely happens. The target is fixed upon an easel formed of three pieces of wood fastened together by a string at the top, and it ought to lean back at the top slightly, away from the archer.
The three arrows count seven, nine, ten—twenty-six in all. In target-shooting you should use awl-pointed, wire-wrapped arrows, as they can be easily drawn out of even a wooden target.
I can’t help wondering if any of the little maidens who are having so much comfort with their beloved dolls in these Christmas holidays, ever think that somebody must have taken a great deal of pains to dress them up so nicely, and above all, to make the tiny garments and hats and shoes.
The doll’s shoes!—so pretty, so daintily shaped, so beautifully stitched and trimmed, so perfectly, faultlessly finished from heel to toe, the “cunningest things” in all dolly’s wardrobe—did it ever occur to the girlie “playing mother,” to ask where they came from, and by whose dexterous fingers they were fashioned? She knows well enough that when Angelina Christina, or Luella Rosa Matilda Jennette, has worn 203 these out, there are enough to be bought in the toy shops for twenty-five or thirty cents a pair; but who makes them?
That was the question which came into my head one day, and I set to work to find out—doing just what must suggest itself to anybody who wants information, whatever the subject: that is to say, I went to head-quarters, and asked questions.
There are two places in Boston—one a “shoe and leather exchange,” and the other the establishment of an importer and dealer in shoe store supplies, where they furnish doll’s shoes “to the trade,” as the phrase is: one is on Congress street, and the other on Hanover; and the proprietors, Mr. Daniels and Mr. Swanberg, instead of being amused at my errand, very kindly told me what I wanted to know.
Some of the shoes are imported, but they are inferior in style to those made in this country—notwithstanding they come from Paris, and everything from that place is supposed superlatively choice and to be desired, as you are very well aware. In the United States there is one factory—and but one, so far as I could ascertain—which supplies a large quantity, about fifteen hundred dozens, for the American market, sending them to all parts, and furnishing 204 the toy-stores in Chicago and other western cities, as well as New York, Philadelphia and Boston.
This manufactory is at Bordentown, New Jersey, and has been in existence about twelve years, and the value of stock now sent out is about seven thousand dollars a year; so much money for the wee feet that run on no errands, and save no steps for anybody! The wholesale jobbers of course advance the price, and in the retail stores they are higher yet; so that each tradesman through whose hands they pass has his trifle of profit in helping to shoe the feet of the doll-people. They retail from a dollar and a dollar and a quarter a dozen, to three dollars and seventy-five cents, according to the style.
They “run,” as the dealers express it, in twelve sizes; the “common doll’s shoes” (which means shoes for common dolls) vary, however, from the class made for wax dolls, which have grades peculiar to themselves, being not only extra full and wider in the soles, but numbering fewer sizes, from one to six only. Of the common kind, the slippers and ties run from one to twelve, the others from three, four or five to that number. They come packed in regular sizes, a “full line,” as those for children do, or in assorted sizes and styles; in small, square boxes, such as shoe dealers know by the name of “cartoon,” which is 205 another word for the French carton, meaning simply that they are made of paste-board. The tiniest is not much more than an inch long, but is a perfectly formed and finished shoe on that miniature scale; and the largest is almost big enough for Mrs. Tom Thumb, measuring about four inches, and it could certainly be worn by many a baby you have seen.
As for the names, they come in this order:—slippers, ties, ankle ties, Balmorals, buttoned boots, Polish buttoned, Polish eyeletted, and Antoinette, which is a heeled, croquet slipper, in which her doll-ship, when engaged in that out-of-door game, can show off her delicate, clocked stockings to advantage.
But what shall I say of the variety in color and trimmings? They are in white and crimson, in buff and blue, in scarlet and purple, in rose color and violet, in bronze and silver and gold, everything but black, for dolls don’t like black except in the tips of their gay Balmoral or Polish boots. And the stuff they are made of is such soft material as can only be found in goat and sheep and kid and glove kid, and skivers, which is the name for split leather. I strongly suspected that they were all made of scraps left from large slippers and shoes, but, though this is generally the case, some whole skins have to be used because nothing is ever manufactured for real people 206 boots and shoes and slippers for all kinds of dolls, high and low, rich and poor; to walk in, to dance in, to play croquet in, or to stay at home in; to match their costumes, to match their hair, to match their eyes, to suit them if anything on earth could suit. And every doll could be sure about her “size,” for the number is stamped on the bottom of the soles; and I must not forget to say that they have also the “trademark,” which is the imprint under the number; this “trade mark” is a pair of boots smaller than anything you can think of.
Now I am coming to the original question—“who makes them?” They are made in large quantities during about six months of the year, accumulating in the summer, ready for the trade, which begins in August, and drops off after the first of January, and is over with for that season by March. In those six working months the factory employs about forty women, and they are mostly invalids or old persons who are not able to do anything but light work, and who receive only small wages, because they are not capable of earning much. So they are generally thin, pale hands and slender fingers which patiently and skillfully fit the patterns, and sew the seams, and do the even nice stitching, and dainty ornamentation, 207 which help to make glad the hearts of the many little girls all over the country, who have found a precious doll, all so daintily shod, among the gifts of their Merry Christmas.
MY DOLLY! MY OWN LITTLE DAUGHTER!
Our road passed down along Hell-Gate river, leaving Deer Lodge City some eight miles to the left. As one goes down, the country changes, and occasional pines appear along the banks of the stream, and the landscape becomes much more interesting. At one place, where a tiny tributary flows in, a large community of beavers were building a dam. They were not at all afraid of us, and so we leisurely observed the process, wishing to settle the vexed question as to whether beavers do actually do intelligent mason-work.
They had already sunk a great deal of brush, together with limbs of trees, and were now filling this 209 wicker-work in with earth and rocks which they procured a little distance above on the opposite bank. A beaver would run up, flatten his tail on the mud near the bank, then another beaver would scrape the earth up and upon the tail of the first, and pack it down. After he had his load complete, the carrier-beaver would swim away rapidly; his tail, with the load of earth, floating on the surface, the swift movement of the animal alone keeping it afloat.
The sagacious creature would invariably swim to the right place and dump the load, and then return for another, the stream presenting a scene of great activity, as several of these curious animal-masons were constantly and swiftly passing and repassing each other with their heavy loads.
Others, the carpenters among them, were at work in the thicket opposite, cutting brush. We saw many large trees which had been cut down by them. The stumps looked as though some boy had chopped them down with a dull axe. It is surprising to reflect upon the pertinacity of these creatures which enables them to gnaw down such immense trees, and the wisdom with which they calculate the direction in which the trees will fall.
It is said here that the beavers cut the limbs off from these trees and then sever them into lengths of 210 about three feet each, and after that float them to the center of their pond, sink them to the bottom and fasten them there, where they remain and are used as food during the winter when the pond is frozen over. This is thought to be one of the principal uses of the pond—to provide a pantry which will not freeze. The pond furnishes a depth of water that is always still, and never freezes to the bottom.
Although, after witnessing this almost human sagacity, we had many compunctions, we concluded to shoot one fine animal for his skin. We shot one through the head. His companions immediately disappeared; and before we could secure our wounded beaver he also had dived beneath the waters of their pond, and although we waited sometime in the vicinity, we failed to discover him again. The inhabitants say it is nearly impossible to kill a beaver with a rifle, and never, on any occasion does the trapper shoot one.
All boys and girls know that boards are made of sawed logs, and that logs are trunks of trees. Few, however, know 212 with what hardship and difficulty the trees are felled, trimmed and carried from the woods where they grow to the mills where they are made into boards.
In the far West, and in the wilds of Maine, are acres upon acres, and miles upon miles, of evergreen forests. One wooded tract in Maine is so vast that it takes an army of choppers twenty years to cut it over. By the time it is done a new growth has sprung up, and an intermediate one is large enough to cut; so the chopping goes on year after year. The first or primeval growth is pine. That is most valuable. After the pines are cut, spruce and hemlock spring up and grow.
Most of the men who live in the vicinity of the lake region work in the woods in the winter. They camp in tents and log huts near the tracts where they are felling trees. All day long, day after day, week after week, they chop down such trees as are large enough to cut, lop off the branches and haul the logs to the nearest water. This work is done in winter because the logs are more easily managed over snow and ice. All brooks large enough to carry them, all rivers, ponds and lakes, are pressed into service and made to convey the ponderous freight towards civilization. All along 213 the shores and in the woods are busy scenes—men, oxen and horses hard at work, the smoke from the logging camps curling among the trees.
Every log has the initial or mark of the owner chopped deep into the wood to identify it. Then, when the ice breaks up, the logs are sent down the brooks to the rivers and through the rivers to the lakes. The logging camps are disbanded, the loggers return to their homes, and the river-drivers alone are left to begin their duties.
The river-drivers are the men who travel with the logs from the beginning of their journey till they are surrendered to the saw-mills. Each wears shoes the soles of which are thickly studded with iron brads an inch long; and each carries a long pole called a “pick-pole,” which has a strong sharp-pointed iron spike in the end. This they drive into the wood, and it supports and steadies them as they spring from log to log.
Their first duty is to collect “the drive.” The logs which form “the drive” are packed together and held in place by a chain of guard-logs which stretches entirely around the drive, forming what is called “the 214 boom.” The guard-logs are chained together at the ends about two feet apart. The guard is always much larger than the boom of logs, so that the shape of the boom may be changed for wide or narrow waters.
At the head of each boom is a raft which supports two large windlasses, each of which works an anchor. On this head-work about thirty river-drivers take up their position to direct the course of the boom.
To change its position or shape, ten of the drivers spring into a boat or bateau; one takes a paddle at the bow; eight take oars; and one, at the stern, holds the anchor. They row with quick strokes toward the spot where the anchor is to be dropped, the cable all the time unwinding from the windlass.
“Let go!” shouts the foreman.
Splash! goes the anchor overboard.
The boat then darts back to the head-works. Out spring the men to help turn the windlass to wind the cable in. They sing as they work, and the windlass creaks a monotonous accompaniment as “Meet me by moonlight,” or the popular “Away over yonder,” comes floating over the rippling water.
Meanwhile another bateau has been out with another 215 anchor; and as both windlasses turn, the boom swings toward the anchorage, and thus is so much further on its way.
Though the men sing as they work, and make the best of their mishaps with jests and laughter, they often carry homesick hearts. In cold and stormy weather their hardships are great, an involuntary bath in the icy water being an event of frequent occurrence. Also their work demands a constant supply of strength which is very trying; frequently a head wind will drive them back from a position which it has taken several days to gain, and all the toil of fresh anchorages must be repeated.
The most dangerous part of the work is “sluicing” the logs. When the boom reaches the run which connects the lake or river with the dam through the sluice of which the logs must pass, the chain of guard-logs is detached, and fastened in lines along both sides of the run, and the rafts are drawn off to one side and anchored to trees. The river-drivers, armed with their pick-poles, are then stationed along the run, on the dam, wherever they may be needed.
The liberated logs now come sailing along, their 216 speed quickening as they near the sluice. When they reach it they dart through, their dull, rapid, continuous thud mingling with the roar of the water. How they shoot the sluice! log after log—two, six, a dozen together—pitching, tossing, struggling, leaping end over end; finally submitting to destiny and sailing serenely down the river toward another lake.
Meanwhile the river-drivers with their long poles and quick movements, looking not unlike a band of savages, have enough to do, with steady feet, and eyes on the alert. For of all the vast array of logs—and I once saw twenty-four thousand in one drive—not one goes through the sluice but is guided on to it by one or more of the drivers. They often ride standing on the floating logs, conducting this, pushing that, hurrying another, straightening, turning and guiding; and just before the log on which a driver stands reaches the sluice, he springs to another.
Woe to him if his foot should slip, or his leap fail! He would be crushed among the logs in the sluice, or dashed among the rocks in the seething water.
After all the logs are safely sluiced, the chains of the guards are slipped, the rafts are broken up, and 217 these, windlasses and all, follow the logs. Then the boats are put through the sluice. Sometimes, when the dam is high, some of the river-drivers go through in the boats—a dangerous practice, this; for often the bateaux have gone under water, entirely out of 218 sight, to come up below the falls, and more than once have lives been lost in this foolhardy feat.
A boom generally passes from three to six dams, and sometimes takes four months to reach the mills.
Occasionally the logs become jammed in the rivers, and must wait for more water; if this can be supplied from a lake above, the difficulty is easily remedied.
In the spring of 1880, a jam occurred at Mexico in Maine. The logs were piled forty feet above the water and covered an extent of area as large as an ordinary village. This great jam attracted visitors from all parts of the country until the spring freshets of the next year could supply the river with water sufficient to loose them and bear them on their way.
At the present time, July, 1880, the jam is still there. I saw the driving and sluicing as I have described it, in May, 1880. It was very interesting.—S. B. C. S.
***END OF THE PROJECT GUTENBERG EBOOK ILLUSTRATED SCIENCE FOR BOYS AND GIRLS***
******* This file should be named 25822-h.txt or 25822-h.zip *******
This and all associated files of various formats will be found in:
http://www.gutenberg.org/2/5/8/2/25822
Updated editions will replace the previous one--the old editions will be renamed.
Creating the works from public domain print editions means that no one owns a United States copyright in these works, so the Foundation (and you!) can copy and distribute it in the United States without permission and without paying copyright royalties. Special rules, set forth in the General Terms of Use part of this license, apply to copying and distributing Project Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm concept and trademark. Project Gutenberg is a registered trademark, and may not be used if you charge for the eBooks, unless you receive specific permission. If you do not charge anything for copies of this eBook, complying with the rules is very easy. You may use this eBook for nearly any purpose such as creation of derivative works, reports, performances and research. They may be modified and printed and given away--you may do practically ANYTHING with public domain eBooks. Redistribution is subject to the trademark license, especially commercial redistribution.
*** START: FULL LICENSE *** THE FULL PROJECT GUTENBERG LICENSE PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK To protect the Project Gutenberg-tm mission of promoting the free distribution of electronic works, by using or distributing this work (or any other work associated in any way with the phrase "Project Gutenberg"), you agree to comply with all the terms of the Full Project Gutenberg-tm License (available with this file or online at http://www.gutenberg.org/license). Section 1. General Terms of Use and Redistributing Project Gutenberg-tm electronic works 1.A. By reading or using any part of this Project Gutenberg-tm electronic work, you indicate that you have read, understand, agree to and accept all the terms of this license and intellectual property (trademark/copyright) agreement. If you do not agree to abide by all the terms of this agreement, you must cease using and return or destroy all copies of Project Gutenberg-tm electronic works in your possession. If you paid a fee for obtaining a copy of or access to a Project Gutenberg-tm electronic work and you do not agree to be bound by the terms of this agreement, you may obtain a refund from the person or entity to whom you paid the fee as set forth in paragraph 1.E.8. 1.B. "Project Gutenberg" is a registered trademark. It may only be used on or associated in any way with an electronic work by people who agree to be bound by the terms of this agreement. There are a few things that you can do with most Project Gutenberg-tm electronic works even without complying with the full terms of this agreement. See paragraph 1.C below. There are a lot of things you can do with Project Gutenberg-tm electronic works if you follow the terms of this agreement and help preserve free future access to Project Gutenberg-tm electronic works. See paragraph 1.E below. 1.C. The Project Gutenberg Literary Archive Foundation ("the Foundation" or PGLAF), owns a compilation copyright in the collection of Project Gutenberg-tm electronic works. Nearly all the individual works in the collection are in the public domain in the United States. If an individual work is in the public domain in the United States and you are located in the United States, we do not claim a right to prevent you from copying, distributing, performing, displaying or creating derivative works based on the work as long as all references to Project Gutenberg are removed. Of course, we hope that you will support the Project Gutenberg-tm mission of promoting free access to electronic works by freely sharing Project Gutenberg-tm works in compliance with the terms of this agreement for keeping the Project Gutenberg-tm name associated with the work. You can easily comply with the terms of this agreement by keeping this work in the same format with its attached full Project Gutenberg-tm License when you share it without charge with others. 1.D. The copyright laws of the place where you are located also govern what you can do with this work. Copyright laws in most countries are in a constant state of change. If you are outside the United States, check the laws of your country in addition to the terms of this agreement before downloading, copying, displaying, performing, distributing or creating derivative works based on this work or any other Project Gutenberg-tm work. The Foundation makes no representations concerning the copyright status of any work in any country outside the United States. 1.E. Unless you have removed all references to Project Gutenberg: 1.E.1. The following sentence, with active links to, or other immediate access to, the full Project Gutenberg-tm License must appear prominently whenever any copy of a Project Gutenberg-tm work (any work on which the phrase "Project Gutenberg" appears, or with which the phrase "Project Gutenberg" is associated) is accessed, displayed, performed, viewed, copied or distributed: This eBook is for the use of anyone anywhere at no cost and with almost no restrictions whatsoever. You may copy it, give it away or re-use it under the terms of the Project Gutenberg License included with this eBook or online at www.gutenberg.org 1.E.2. If an individual Project Gutenberg-tm electronic work is derived from the public domain (does not contain a notice indicating that it is posted with permission of the copyright holder), the work can be copied and distributed to anyone in the United States without paying any fees or charges. If you are redistributing or providing access to a work with the phrase "Project Gutenberg" associated with or appearing on the work, you must comply either with the requirements of paragraphs 1.E.1 through 1.E.7 or obtain permission for the use of the work and the Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or 1.E.9. 1.E.3. If an individual Project Gutenberg-tm electronic work is posted with the permission of the copyright holder, your use and distribution must comply with both paragraphs 1.E.1 through 1.E.7 and any additional terms imposed by the copyright holder. Additional terms will be linked to the Project Gutenberg-tm License for all works posted with the permission of the copyright holder found at the beginning of this work. 1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm License terms from this work, or any files containing a part of this work or any other work associated with Project Gutenberg-tm. 1.E.5. Do not copy, display, perform, distribute or redistribute this electronic work, or any part of this electronic work, without prominently displaying the sentence set forth in paragraph 1.E.1 with active links or immediate access to the full terms of the Project Gutenberg-tm License. 1.E.6. You may convert to and distribute this work in any binary, compressed, marked up, nonproprietary or proprietary form, including any word processing or hypertext form. However, if you provide access to or distribute copies of a Project Gutenberg-tm work in a format other than "Plain Vanilla ASCII" or other format used in the official version posted on the official Project Gutenberg-tm web site (www.gutenberg.org), you must, at no additional cost, fee or expense to the user, provide a copy, a means of exporting a copy, or a means of obtaining a copy upon request, of the work in its original "Plain Vanilla ASCII" or other form. Any alternate format must include the full Project Gutenberg-tm License as specified in paragraph 1.E.1. 1.E.7. Do not charge a fee for access to, viewing, displaying, performing, copying or distributing any Project Gutenberg-tm works unless you comply with paragraph 1.E.8 or 1.E.9. 1.E.8. You may charge a reasonable fee for copies of or providing access to or distributing Project Gutenberg-tm electronic works provided that - You pay a royalty fee of 20% of the gross profits you derive from the use of Project Gutenberg-tm works calculated using the method you already use to calculate your applicable taxes. The fee is owed to the owner of the Project Gutenberg-tm trademark, but he has agreed to donate royalties under this paragraph to the Project Gutenberg Literary Archive Foundation. Royalty payments must be paid within 60 days following each date on which you prepare (or are legally required to prepare) your periodic tax returns. Royalty payments should be clearly marked as such and sent to the Project Gutenberg Literary Archive Foundation at the address specified in Section 4, "Information about donations to the Project Gutenberg Literary Archive Foundation." - You provide a full refund of any money paid by a user who notifies you in writing (or by e-mail) within 30 days of receipt that s/he does not agree to the terms of the full Project Gutenberg-tm License. You must require such a user to return or destroy all copies of the works possessed in a physical medium and discontinue all use of and all access to other copies of Project Gutenberg-tm works. - You provide, in accordance with paragraph 1.F.3, a full refund of any money paid for a work or a replacement copy, if a defect in the electronic work is discovered and reported to you within 90 days of receipt of the work. - You comply with all other terms of this agreement for free distribution of Project Gutenberg-tm works. 1.E.9. If you wish to charge a fee or distribute a Project Gutenberg-tm electronic work or group of works on different terms than are set forth in this agreement, you must obtain permission in writing from both the Project Gutenberg Literary Archive Foundation and Michael Hart, the owner of the Project Gutenberg-tm trademark. Contact the Foundation as set forth in Section 3 below. 1.F. 1.F.1. Project Gutenberg volunteers and employees expend considerable effort to identify, do copyright research on, transcribe and proofread public domain works in creating the Project Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm electronic works, and the medium on which they may be stored, may contain "Defects," such as, but not limited to, incomplete, inaccurate or corrupt data, transcription errors, a copyright or other intellectual property infringement, a defective or damaged disk or other medium, a computer virus, or computer codes that damage or cannot be read by your equipment. 1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right of Replacement or Refund" described in paragraph 1.F.3, the Project Gutenberg Literary Archive Foundation, the owner of the Project Gutenberg-tm trademark, and any other party distributing a Project Gutenberg-tm electronic work under this agreement, disclaim all liability to you for damages, costs and expenses, including legal fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE PROVIDED IN PARAGRAPH F3. YOU AGREE THAT THE FOUNDATION, THE TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH DAMAGE. 1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a defect in this electronic work within 90 days of receiving it, you can receive a refund of the money (if any) you paid for it by sending a written explanation to the person you received the work from. If you received the work on a physical medium, you must return the medium with your written explanation. The person or entity that provided you with the defective work may elect to provide a replacement copy in lieu of a refund. If you received the work electronically, the person or entity providing it to you may choose to give you a second opportunity to receive the work electronically in lieu of a refund. If the second copy is also defective, you may demand a refund in writing without further opportunities to fix the problem. 1.F.4. Except for the limited right of replacement or refund set forth in paragraph 1.F.3, this work is provided to you 'AS-IS,' WITH NO OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE. 1.F.5. Some states do not allow disclaimers of certain implied warranties or the exclusion or limitation of certain types of damages. If any disclaimer or limitation set forth in this agreement violates the law of the state applicable to this agreement, the agreement shall be interpreted to make the maximum disclaimer or limitation permitted by the applicable state law. The invalidity or unenforceability of any provision of this agreement shall not void the remaining provisions. 1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the trademark owner, any agent or employee of the Foundation, anyone providing copies of Project Gutenberg-tm electronic works in accordance with this agreement, and any volunteers associated with the production, promotion and distribution of Project Gutenberg-tm electronic works, harmless from all liability, costs and expenses, including legal fees, that arise directly or indirectly from any of the following which you do or cause to occur: (a) distribution of this or any Project Gutenberg-tm work, (b) alteration, modification, or additions or deletions to any Project Gutenberg-tm work, and (c) any Defect you cause. Section 2. Information about the Mission of Project Gutenberg-tm Project Gutenberg-tm is synonymous with the free distribution of electronic works in formats readable by the widest variety of computers including obsolete, old, middle-aged and new computers. It exists because of the efforts of hundreds of volunteers and donations from people in all walks of life. Volunteers and financial support to provide volunteers with the assistance they need, is critical to reaching Project Gutenberg-tm's goals and ensuring that the Project Gutenberg-tm collection will remain freely available for generations to come. In 2001, the Project Gutenberg Literary Archive Foundation was created to provide a secure and permanent future for Project Gutenberg-tm and future generations. To learn more about the Project Gutenberg Literary Archive Foundation and how your efforts and donations can help, see Sections 3 and 4 and the Foundation web page at http://www.gutenberg.org/fundraising/pglaf. Section 3. Information about the Project Gutenberg Literary Archive Foundation The Project Gutenberg Literary Archive Foundation is a non profit 501(c)(3) educational corporation organized under the laws of the state of Mississippi and granted tax exempt status by the Internal Revenue Service. The Foundation's EIN or federal tax identification number is 64-6221541. Contributions to the Project Gutenberg Literary Archive Foundation are tax deductible to the full extent permitted by U.S. federal laws and your state's laws. The Foundation's principal office is located at 4557 Melan Dr. S. Fairbanks, AK, 99712., but its volunteers and employees are scattered throughout numerous locations. Its business office is located at 809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email business@pglaf.org. Email contact links and up to date contact information can be found at the Foundation's web site and official page at http://www.gutenberg.org/about/contact For additional contact information: Dr. Gregory B. Newby Chief Executive and Director gbnewby@pglaf.org Section 4. Information about Donations to the Project Gutenberg Literary Archive Foundation Project Gutenberg-tm depends upon and cannot survive without wide spread public support and donations to carry out its mission of increasing the number of public domain and licensed works that can be freely distributed in machine readable form accessible by the widest array of equipment including outdated equipment. Many small donations ($1 to $5,000) are particularly important to maintaining tax exempt status with the IRS. The Foundation is committed to complying with the laws regulating charities and charitable donations in all 50 states of the United States. Compliance requirements are not uniform and it takes a considerable effort, much paperwork and many fees to meet and keep up with these requirements. We do not solicit donations in locations where we have not received written confirmation of compliance. To SEND DONATIONS or determine the status of compliance for any particular state visit http://www.gutenberg.org/fundraising/pglaf While we cannot and do not solicit contributions from states where we have not met the solicitation requirements, we know of no prohibition against accepting unsolicited donations from donors in such states who approach us with offers to donate. International donations are gratefully accepted, but we cannot make any statements concerning tax treatment of donations received from outside the United States. U.S. laws alone swamp our small staff. Please check the Project Gutenberg Web pages for current donation methods and addresses. Donations are accepted in a number of other ways including checks, online payments and credit card donations. To donate, please visit: http://www.gutenberg.org/fundraising/donate Section 5. General Information About Project Gutenberg-tm electronic works. Professor Michael S. Hart is the originator of the Project Gutenberg-tm concept of a library of electronic works that could be freely shared with anyone. For thirty years, he produced and distributed Project Gutenberg-tm eBooks with only a loose network of volunteer support. Project Gutenberg-tm eBooks are often created from several printed editions, all of which are confirmed as Public Domain in the U.S. unless a copyright notice is included. Thus, we do not necessarily keep eBooks in compliance with any particular paper edition. Each eBook is in a subdirectory of the same number as the eBook's eBook number, often in several formats including plain vanilla ASCII, compressed (zipped), HTML and others. Corrected EDITIONS of our eBooks replace the old file and take over the old filename and etext number. The replaced older file is renamed. VERSIONS based on separate sources are treated as new eBooks receiving new filenames and etext numbers. Most people start at our Web site which has the main PG search facility: http://www.gutenberg.org This Web site includes information about Project Gutenberg-tm, including how to make donations to the Project Gutenberg Literary Archive Foundation, how to help produce our new eBooks, and how to subscribe to our email newsletter to hear about new eBooks. EBooks posted prior to November 2003, with eBook numbers BELOW #10000, are filed in directories based on their release date. If you want to download any of these eBooks directly, rather than using the regular search system you may utilize the following addresses and just download by the etext year. http://www.gutenberg.org/dirs/etext06/ (Or /etext 05, 04, 03, 02, 01, 00, 99, 98, 97, 96, 95, 94, 93, 92, 92, 91 or 90) EBooks posted since November 2003, with etext numbers OVER #10000, are filed in a different way. The year of a release date is no longer part of the directory path. The path is based on the etext number (which is identical to the filename). The path to the file is made up of single digits corresponding to all but the last digit in the filename. For example an eBook of filename 10234 would be found at: http://www.gutenberg.org/dirs/1/0/2/3/10234 or filename 24689 would be found at: http://www.gutenberg.org/dirs/2/4/6/8/24689 An alternative method of locating eBooks: http://www.gutenberg.org/dirs/GUTINDEX.ALL *** END: FULL LICENSE ***
