VOLUME NINE |
NUMBER THREE |
|
|
JOURNAL OF ENTOMOLOGY AND ZOOLOGY SEPTEMBER, 1917 |
||
PUBLISHED QUARTERLY BY POMONA COLLEGE DEPARTMENT of ZOOLOGY CLAREMONT, CALIFORNIA, U. S. A. |
||
| Page | |
| List of Bees from Claremont-Laguna Region—Henry Bray | 93 |
| A Partial List of the Mammals of the Claremont Region—Leon L. Gardner | 101 |

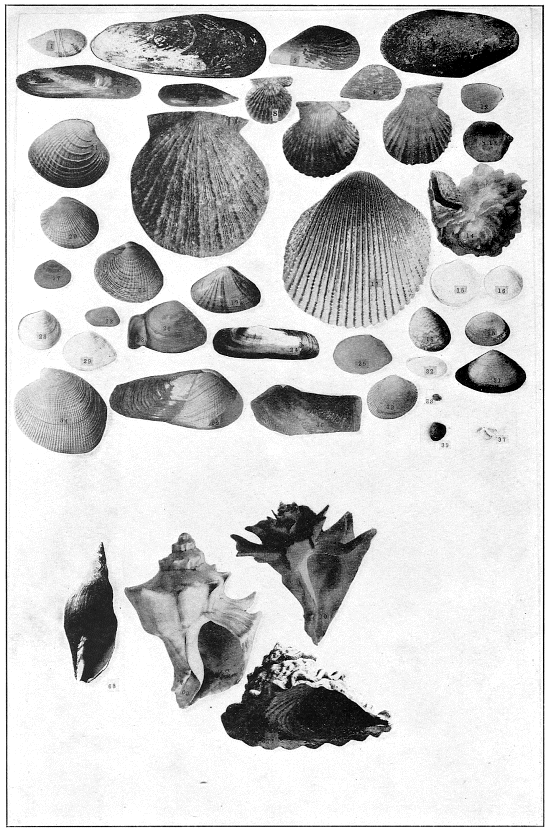

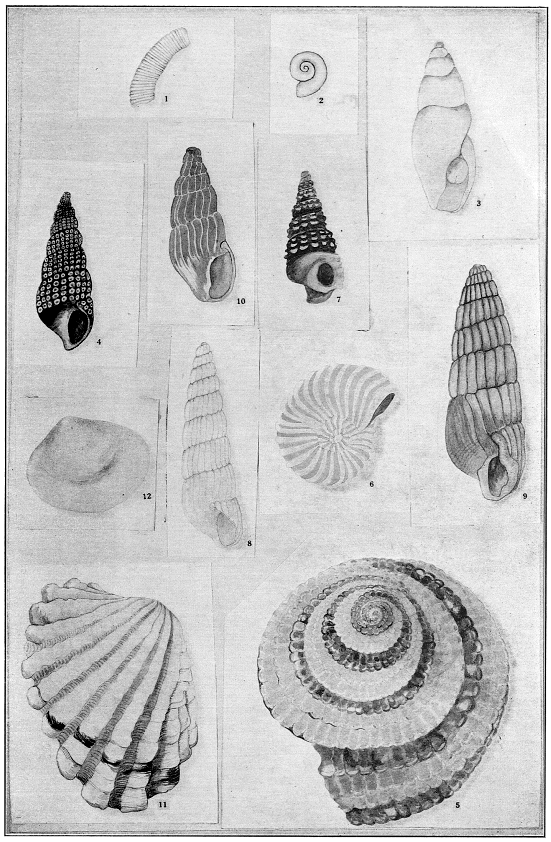

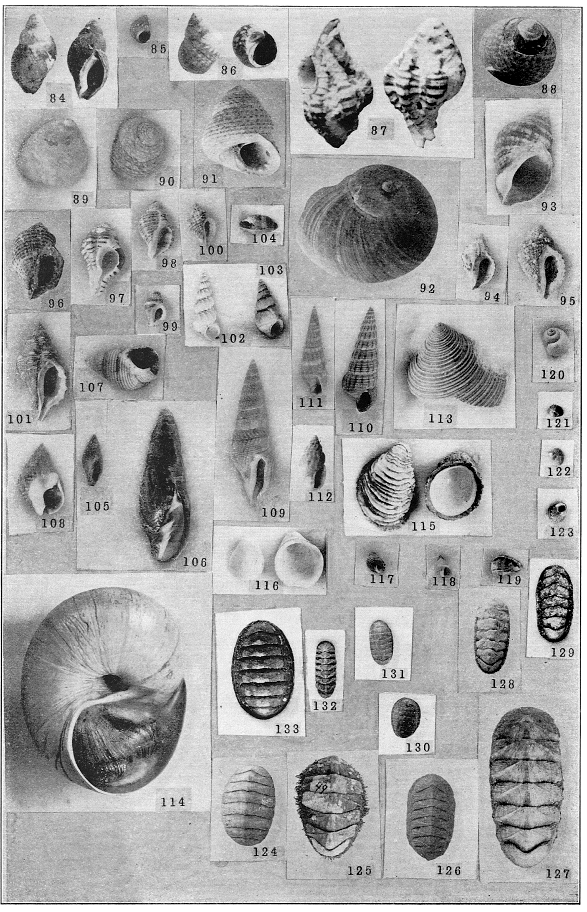

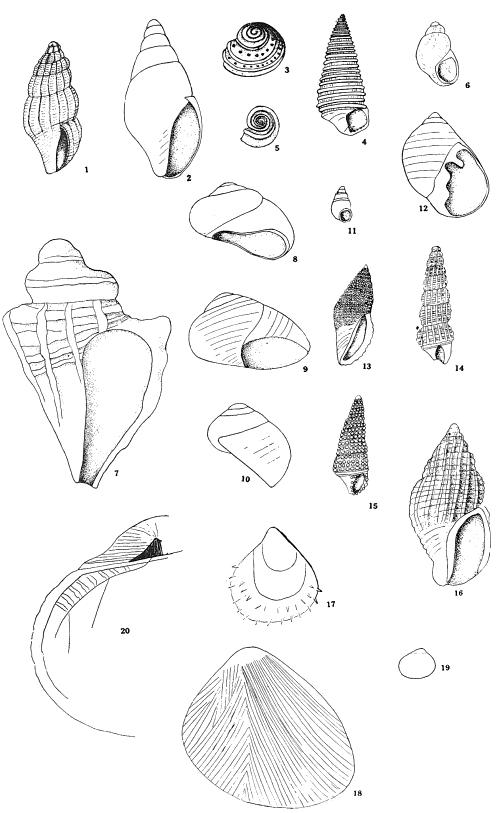

| A Preliminary List of Shells from Laguna Beach and Nearby | 107 |

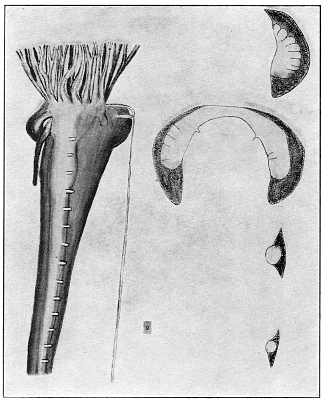

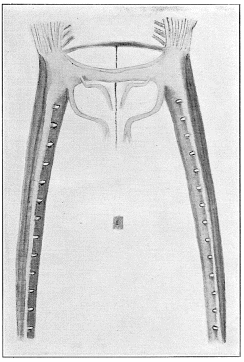

| A Reconstruction of the Nervous System of a Nemertian Worm—W. A. Hilton | 119 |
Entered at Claremont, Cal., Post-Office Oct. 1, 1910, as second-class matter, under Act of Congress of March 9, 1879
Journal of Entomology and Zoology
EDITED BY POMONA COLLEGE, DEPARTMENT OF ZOOLOGY
Subscription $1.00 to domestic, $1.25 to foreign countries.
This journal is especially offered in exchange for zoological and entomological journals, proceedings, transactions, reports of societies, museums, laboratories and expeditions.
The pages of the journal are especially open to western entomologists and zoologists. Notes and papers relating to western and Californian forms and conditions are particularly desired, but short morphological, systematic or economic studies from any locality will be considered for publication.
Manuscripts submitted should be typewritten on one side of paper about 8 by 11 inches. Foot notes, tables, explanations of figures, etc., should be written on separate sheets. Foot notes and figures should be numbered consecutively throughout. The desired position of foot notes and figures should be clearly indicated in the manuscript.
Figures should be drawn so that they may be reproduced as line cuts so far as possible. An unusually large number of half tones must be paid for in part by the author. Other more expensive illustrations will be furnished at cost. Figures for cuts should be made to conform to the size of the page when reduced, that is, 5 by 7½ inches or less. The lettering should be by means of printed numbers and letters pasted on the drawings, in most cases.
Authors of articles longer than a thousand words will receive fifty reprints of their publications free of cost. If more than this are desired, the order should be given with the return of the proof sheets. Extra copies and special covers or special paper will be furnished at cost. Authors of short contributions will receive a few extra copies of the number containing their articles.
Manuscripts should be sent by express or registered mail.
Address all communications to
The Journal of Entomology and Zoology
William A. Hilton, Editor
Claremont, California, U. S. A.
List of Bees from Claremont-Laguna Region
HENRY BRAY
Through the kindness of Prof. T. D. A. Cockerell and several others I have been able to get large numbers of our local bees determined. The basis of the work was the extensive Cook-Baker collection of the college with additional material of my own and others. Many of the species here listed have been collected by me and others, but unless not represented in the original college collection it is not noted in the list. So far as the relations of bees to plants has been noted by me it is given in the list. Many other species remain to be determined and only a beginning has been made in respect to the relation of the bees to plants.
BOMBIDÆ
Bombus sonorous. Say. Det. Vier. Claremont, Cal., Baker. April, Fl., Nemophila.
Bombus californicus. Sm. Det. Vier. Claremont, Cal., Baker. May, Fl., Phacelia tanacætifolia.
Bombus crotchii. Vier. Det. Cr. Claremont, Cal., Baker. May, Fl., Tar weed.
ANTHOPHORIDÆ
Anthophora anstrutheri. Ckll. Det. Ckll. Claremont, Cal., Baker. April, Fl., Lotus glaber.
Anthophora curta. Prov. Claremont, Cal., Baker. April, Fl., Lotus glaber.
Anthophora urbana. Cr. Claremont, Cal., Baker. April, Fl., Cactus and poppy.
Anthophora washingtoni. Ckll. Det. Ckll. Claremont, Cal., Baker.
Anthophora stanfordiana. Vier. Claremont, Cal., Baker. May, Fl., Amsinckia intermedia.
Anthophora pacifica. Vier. Mountains near Claremont, Cal., Baker. April, Fl., Lotus glaber.
Anthophora simillima. Cr. Claremont, Cal., Baker. April, Fl., Lotus glaber.
Anthophora edwardsii. Cr. Det. Ckll. Claremont, Cal., Baker. April, Fl., Phacelia tanacætifolia.
Mellisodes pallidicineta. Ckll. Det. Br. from Coll. Claremont, Cal., Bray. April, Fl., Phacelia tanacætifolia.
Mellisodes maura. Cr. Det. Br. from Coll. Claremont, Cal., Bray. May, Fl., Amsinckia intermedia.
Mellisodes pullata. Cr. Det. Br. from Coll. Claremont, Cal., Bray. April, Fl., Phacelia tanacætifolia.
Mellisodes menuacha. Cr. Det. Br. from Coll. Claremont, Cal., Bray. May, Fl., Phacelia tanacætifolia.
Mellisodes beltragei. Cr. Det. Br. from Coll. Claremont, Cal., Bray. Fl., Amsinckia interm.
Synhalonia atrientis. Smith Det. Br. from Coll. Claremont, Cal., Bray. May, Fl., Phacelia tanacætifolia.
Diadasia crassicauda sp. n. Ckll. Det. Ckll. Laguna, Cal., R. La Follette.
Diadasia bituberculata. Cr. Det. Cr. Claremont, Cal., Baker. April, Fl., Cactus.
Diadasia australis rinconis. Ckll. Det. Ckll. Claremont, Cal., Baker. May, Fl., Cactus.
Diadasia australis opuntia. Ckll. Claremont, Cal., Baker. May. Fl., Cactus.
EUCERIDÆ
Tetralonia actuosa. Det. Cr. Claremont, Cal., Baker.
Tetralonia fowleri. Ckll. Det. Ckll. Claremont, Cal., Baker.
Tetralonia pomonæ sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Tetralonia robertsoni. Ckll. Det. Ckll. Claremont, Cal., Baker.
MELECTIDÆ
Bombomelecta thoracicia. Cr. Det. Cr. Claremont, Cal., Baker. April, Nemophila.
Pseudomelecta californica miranda. Fox. Claremont, Cal., Baker.
Bombomelecta thornica. Cr. Claremont, Cal., Baker. May, Fl., Nemophila.
Zacosmia maculata. Cr. Claremont, Cal., Baker.
Triepeolus ancoratus sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Triepeolus callopus. Ckll. Det. Ckll. Claremont, Cal., Baker.
Bombomelecta maculata. Vier. Det. Ckll. Claremont, Cal., Baker.
NOMADIDÆ
Nomada edwardsii. Cr. Det. Ckll. Claremont, Cal., Baker. June, no Fl.
Nomada beulahensis. Ckll. Det. Br. Claremont, Cal., Bray. From Coll. April, no Fl.
Nomada americana. Kby. Det. Br. Claremont, Cal., Bray. From Coll. April, no Fl.
Nomada crotchii nigrior. Ckll. Det. Ckll. Claremont, Cal., Baker.
Nomada civilis. Cr. Det. Ckll. Claremont, Cal., Baker.
Nomada pyrrha sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Nomada melanosoma, sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Nomada subvicinalis. Ckll. Det. Ckll. Claremont, Cal., Baker.
Nomada erythrospila sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Nomada odontocera sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Exomalopsis velutinus. Ckll. Det. Ckll. Claremont, Cal., Baker.
Exomalopsis melanurus sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Exomalopsis nitens sp. n. Ckll. Det. Ckll. Laguna, Cal., R. La Follette.
XYLOCOPIDÆ
Xylocopa varipuncta. Patt. Det. Vier. Claremont, Cal., Baker. April, no Fl.
Xylocopa orsifex. Sm. Det. Vier. Mountains near Claremont, Cal., Baker. April, Wood.
Xylocopa californica. Cr. Det. Friese. Claremont, Cal., Baker. April, Nemophila.
MEGACHILIDÆ
Megachile pruing. Sm. Det. Friese. Claremont, Cal., Bray. May, Fl., Cactus.
Megachile grindeliarum. Ckll. Det. Ckll. Claremont, Cal., Bray. May, Fl., Poppy.
Megachile occidentalis. Fox. Det. Ckll. Claremont, Cal., Bray.
Megachile frugalis. Cr. Det. Ckll. Claremont, Cal., Baker.
Osmia erythrosmia remotula. Des. Ckll. Claremont, Cal., Baker.
Osmia quadriceps. Ckll. Det. Cr. Mountains near Claremont, Cal., Baker.
Osmia atrocyanea. Ckll. Det. Ckll. Claremont, Cal., Baker. May, Fl., Amsinckia intermedia.
Osmia propinqua. Cr. Claremont, Cal., Baker.
Osmia kincaidii. Ckll. Det. Ckll. Mountains near Claremont, Cal., Baker.
Osmia bennettæ. Ckll. Det. Ckll. Mountains near Claremont, Cal., Baker.
Osmia integra. Ckll. Det. Ckll. Claremont, Cal., Baker.
Osmia cobaltina. Cr. Det. Ckll. Claremont, Cal., Baker. May, Lotus glaber.
Osmia faceta. Cr. Det. Ckll. Claremont, Cal., Baker.
Osmia clarescens. Ckll. Det. Ckll. Claremont, Cal., Baker. April, Fl., Phacelia tanacætifolia.
Osmia granulosa. Ckll. Det. Ckll. Claremont, Cal., Baker.
Osmia regulina. Ckll. Det. Ckll. Mountains near Claremont, Cal., Baker.
Osmia ednæ, female. Ckll. Det. Ckll. Mountains near Claremont, Cal., Baker.
Osmia playtura. Ckll. Det. Ckll. cotype. Claremont, Cal., Baker.
Osmia hypochrysea. Ckll. Det. Ckll. Claremont, Cal., Baker.
Osmia pumila. Frieze Det. Cr. Claremont, Cal., Bray. May, Fl. Mustard.
Osmia cyanopoda sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Osmia cyanosoma. Ckll. Det. Ckll. Claremont, Cal., Baker.
Osmia nigrobarta sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Hoplitis sambuci. Titus Det. Ckll. Claremont, Cal. April, Poppy.
Hoplitina pentamera. Ckll. Det. Ckll. Claremont, Cal., Baker.
Osmia pogonigera. Ckll. Det. Ckll. Claremont, Cal., Baker.
Alcidamea hypocrita. Ckll. Det. Ckll. Claremont, Cal., Baker.
Osmia melanopleura sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Anthidium maculoscum. Cr. Det. Cr. Claremont, Cal., Baker.
Dianthidium illustri. Cr. Det. Ckll. Claremont, Cal., Baker.
Anthidium palliventre. Cr. Det. Br. from Coll. Claremont, Cal., Baker.
Anthidium tricuspidum. Prov. Det. Ckll. Claremont, Cal., Baker.
Dianthidium consimile. Ashmead Det. Ckll. Claremont, Cal., Baker.
Dianthidium robertsoni. Ckll. Det. Ckll. Mountains near Claremont, Cal., Baker.
Anthidium angelarum. Titus Det. Ckll. Claremont, Cal., Baker.
Dianthidium provancheri. Titus Det. Ckll. Claremont, Cal., Baker.
Dioxys producta. Cr. Det. Ducke. Claremont, Cal., Baker.
Dioxys pomonæ. Ckll. Det. Ckll. Claremont, Cal., Baker.
Coelioxys megatricha sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Coelioxys angulifera sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Xenoglossa angelica. Ckll. Det. Ckll. Claremont, Cal., Baker.
ANDRENIDÆ
Andrena porteræ. Vier. Det. Ckll. Claremont, Cal., Baker.
Andrena mustelicolor. Vier. Det. Vier. Claremont, Cal., Baker.
Andrena prunorum. Vier. Det. Ckll. Claremont, Cal., Baker and Bray. May, Phacelia tana. and Poppy.
Andrena mimecta. Ckll. Det. Ckll. Mountains near Claremont, Cal., Baker.
Andrena texana. Cr. Det. Br. from Coll. Claremont, Cal., Bray. May, Fl., Poppy.
Andrena bipuntala. Lovell Det. Br. from Coll. Claremont, Cal., Bray. April, Fl., Phacelia tan.
Andrena cerasifolii. Vier. Det. Ckll. Claremont, Cal., Baker. April, Phacelia tanacætifolia.
Andrena carlina Ckll. Ashmead Det. Br. from Coll. Claremont, Cal., Bray. May, Fl., Mustard.
Andrene osmoides sp. n. Cr. Det. Ckll. Claremont, Cal., Baker.
Andrena peratra sp. n. Prov. Det. Ckll. Claremont, Cal., Baker.
Andrena auricoma. Sm. Det. Ckll. Claremont, Cal., Baker.
Andrena plana. Vier. Det. Ckll. Claremont, Cal., Baker.
Andrena opaciventris sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Andrena chlorura sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Agapostemon splendens. Friese Des. Lange. Los Angeles, Cal.
Agapostemon californicus. Crawford. Claremont, Cal., Baker. May, Poppy.
Agapostemon radiatus. Say. Det. Br. from Coll. Claremont, Cal., Bray. April, Fl., Daisy.
Diandrena beatula sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Diandrena chalybæa. Cr. Det. Ckll. Claremont, Cal., Baker.
Diandrena cyanosoma sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Diandrena clarventris sp. n. Ckll. Claremont, Cal., Baker.
Diandrena scintilla sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
Conanthalictus bakeri. Crawford Det. Ckll. Claremont, Cal., Baker.
Conanthalictus macrops sp. n. Ckll. Det. Ckll. Claremont, Cal. Baker.
Augochlora pomoniella. Ckll. Det. Ckll. Claremont, Cal., Baker.
Andrena candida. Sm. Det. Ckll. Claremont, Cal., Baker.
Andrena angustitarsata. Vier. Det. Vier. Claremont, Cal., Baker.
Andrena huardi. Vier. Det. Vier. Claremont, Cal., Baker.
Andrena pallidifæva. Vier. Det. Vier. Claremont, Cal., Baker.
Andrena cyanosoma. Ckll. Det. Vier. Claremont, Cal., Baker.
Andrena nigripes. Prov. Det. Vier. Claremont, Cal., Baker.
Andrena scripta. Vier. Det Vier. Claremont, Cal., Baker.
Andrena subtristis. Ckll. Det. Vier. Claremont, Cal., Baker.
CERITINIDÆ
Ceratina neomexicana punctigena sub. sp. n. Ckll. Det. Ckll. Claremont, Cal., Baker.
HALICTIDÆ
Halictus incompletus. Craw. Det. Mountains near Claremont, Cal., Baker.
Halictus punctatoventris. Craw. Claremont, Cal., Baker.
Halictus nigrescens. Craw. Claremont, Cal., Baker.
Halictus catalinensis. Craw. Det. Ckll. Claremont, Cal., Baker.
Halictus ligatus. Say. Det. Craw. Claremont, Cal., Baker.
Halictus robustus. Craw. Det. Claremont, Cal., Baker.
Halictus mellipes. Craw. Det. Claremont, Cal., Baker.
Halictus farinosus. Sm. Det. Craw. Claremont, Cal., Baker.
Halictus rhoptoides. Craw. Det. Br. from Coll. Claremont, Cal., Bray. April, Daisy.
COLLETIDÆ
Colletes californicus. Prov. Claremont, Cal., Baker.
Colletes guadialis. Sm. Det. Ckll. Claremont, Cal., Baker.
PROSOPIDÆ
Prosopis episcopalis, female. Ckll. Det. Metz. Claremont, Cal., Baker (Rhus laurina).
Prosopis coloradensis. Ckll. Det. Metz. Mountains near Claremont, Cal., Baker.
Prosopis polifolii, female. Ckll. Det. Metz. Mountains near Claremont, Cal., Baker.
PANURGIDÆ
Panurginus atriceps. Ckll. Det. Cr. Claremont, Cal., Baker.
(Contribution from the Zoological Laboratory of Pomona College)
A Partial List of the Mammals of the Claremont Region
LEON L. GARDNER
Since little or nothing has been published on mammals of this region it was deemed advisable to print a list even though very incomplete and based on preliminary and limited collecting in order to have some definite forward step in this much neglected line. Some of the mammals listed below have not been collected by us but are known to occur. Thanks are due Mr. H. S. Swaith for his kind aid in identification of some of the skins collected.
Bears of course have long since disappeared but still have left their reputation among old mountaineers. The story goes that a bear, perhaps the last one, was killed at Bear Flats on the trail to “Old Baldy,” hence the name.
Odocoileus hemionus californicus. (Caton.) California Mule Deer. Fairly common through Upper Sonoran and Transition zones. They have been taken as low as the mouth of San Dimas canyon. The recently established game preserve assures an increase in the future. Already they seem to have sensed the protection for on May 19, 1916, we were surprised to find just 75 feet before us a large doe on the auto road not far above the first power house.
Ovis canadensis nelsoni? C. M. Merriam. Merriam Desert Bighorn. Mountain sheep have lived for years in the higher peaks above Claremont but being very shy and in inaccessible and little frequented parts have escaped attention very successfully. Rumor has it that Mountain Goats are found with the sheep but I believe this to be unfounded, having been originated probably by the sight of the smaller horned females and young. The area occupied by the sheep is a very definite one and comprises the peaks Ontario, Cucamonga, Telegraph, St. Antonio (“Old Baldy”), and Iron Mountain with their high rocky intervening ridges. Of the points mentioned the first three peaks are the favored ones. I found only a few tracks on Iron Mountain and a rumor of a pair of horns found there some five or eight years ago. “Old Baldy” being too « 102 » often visited is not a frequented spot for the sheep, serving only as a connecting link to Iron Mountain. However signs around Ontario, Cucamonga and Telegraph peaks are abundant and anyone with a little patience and diligent endeavor can readily see the sheep themselves. They travel often in bands, as many as fifty and in summer keep to the highest places. Where they go in winter is as yet a mystery to me, probably lower into canyon heads for I have never found them on the top during this season. This of course is natural for these peaks practically become great ice mountains dangerous for anything to travel over. Besides grass the food consists of twigs and leaves of Castonapsis sempewirens, several species of Ceanothus, Rhammus croceus californicus, Rhus trilobata and a parsnip Pastinaca sativa.
Citellus beecheyi. Richardson. California Ground Squirrel. Abundant in all parts from brush land to 8,000 feet altitude in suitable localities.
Sciurus griseus anthonyi. Mearns. Anthony Gray Squirrel. Very common in the transition zone. In early spring they start working on pine cones on the mountain tops, gradually coming down to more abundant supplies of food until fall finds them down in the oak belt feeding on acorns. They winter as low as Palmers canyon in some cases.
Entamias Sp. Abundant in the pine belt and as high as the top of “Baldy.” They are good climbers, exceedingly active and bursting with curiosity.
Onychomys torridus ramona. Rhoads. San Bernardino Grasshopper Mouse. But two specimens of this carnivorous mouse were taken in a period of trapping extending over three months. Both specimens were taken on bait consisting of rolled oats and in the same place, east of Indian Hill in the brush. A good many of my specimens were more or less devoured in the traps in this locality, and I strongly suspect this mouse of the crime. Nowhere else were my mice eaten or were any grasshopper mice taken.
Peromyscus maniculatus gambeli. Baird. Gambel White-footed Mouse. This species was one of the most common forms taken, being abundant in the brushy valley and foothills. There is a great deal of color variation in the specimens taken.
Peromyscus boylei rowleyi. (Allen.) Rowley White-footed Mouse. No specimens were trapped in the valley. However these mice were found not uncommon at the mouth of Palmers canyon, just four miles north of Claremont, in the dry brush land. Within the canyon they were common and were taken as high as the top of Ontario peak along fallen logs. At Camp Baldy they are very common especially along watercourses and fallen logs. Indications are that they ignore zonal limits being taken well down in Lower Sonoran zone and in high transition and not necessarily near water.
Peromyscus californicus insignis. Rhoads. Chemisal Mouse. Not common. None were taken in the valley and few in the canyons. They were not found along waterways but frequently brushy hillsides. This is a large species of mouse and was almost too much for the little “gee whiz” traps to hold.
Peromyscus eremicus fraterculus. Miller. Dulzura Mouse. Common in the brush land of both valley and foothill, being found in the canyons also.
Reithrodontomys megalotis longicauda. Baird. Long-tailed Harvest Mouse. Common in valley and foothill. Although partial to grassy areas (I took many in the grassy runways made by meadow mice—Microtus californicus). I found them not uncommon in the dry brush land east of Indian Hill.
Neotoma fuscipes macrotis. Thomas. Southern Brush Rat. Common from valley to 5,000 feet in the mountains in suitable localities. I took one in the property house at the Greek theatre this June. The large nests are seen very commonly in the canyons and hillsides.
Neotoma intermedia intermedia. Rhoads. Intermediate Brush Rat. There seems to be a curious reversal of conditions between this and the former species. Whereas this species is supposed to be taken only up to 3,000 feet, I took none below 3,000, all being taken at 5,000 feet or more along fallen logs near watercourses, and the former species was limited more distinctly to the foothills which is not a typical condition.
Microtus californicus californicus. (Peale.) California Meadow Mouse. Common in runways through the grass in damp « 104 » canyons, at Palmers canyon and in other suitable localities. One was taken as high as Kelly’s cabin—on Ontario peak, among fallen logs by a cold mountain stream. While setting trap in the runways I more than once caught glimpses of them darting along the aisles in the grass.
Thomomys bottæ pallescens. Rhoads. Southern Pocket Gopher. Abundant in the valley, often doing much damage in lawns and orchards.
Perodipus agilis agilis. (Gambel.) Gambel Kangaroo Rats. Abundant from valley to Transition zone. I found them abundant at Brown’s Flats where the evidences of their digging and their holes are on every side. I have trapped them in brush country, rocky areas, open brushless places, and at the mouth of ground squirrel holes.
Lepus californicus. (Gray.) Jack-Rabbit. Common in the valley and to a certain extent in the foothills and higher.
Sylvilagus auduboni sanctidiegi. (Miller.) San Diego Cottontail. Abundant in the Lower Sonoran zone. Increasing each year due to the protection afforded by game laws. Considerable damage to young trees is done by cottontails and they are a great pest to the farmer.
Sylvilagus bachmani cinerascens. (Allen.) Ashy Brush Rabbit. Fairly common in the brush. They are not swift runners and rely on escaping by hiding behind clumps of brush. This is more typically an Upper Sonoran form.
Felis oregonensis oregonensis. (Rafinesque.) Pacific Cougar. Numberless reports are always coming in of Mountain Lions and as usual most of them prove to be unfounded. However authentic records of these beasts are not lacking. I have personally inspected a specimen shot in Cold Water Canyon not more than five years ago. Tradition has it that at one time a mountaineer was actually besieged for two days in the little cabin at Browns Flats. Lions have been seen at Browns Flats, Cattle Canyon and the north of Telegraph peak. Mountaineers tell me that they are a great deal more common in the San Gabriel drainage. The specimen which I saw was from one of the tributary canyons to the San Gabriel river.
Lynx eremicus californicus. (Mearns.) California Wild Cat. Common in the mountains and ranging over the valley. About once a year a specimen is brought in to be skinned or identified and great stories are told about them. One of the commonest fallacies is that there are two forms in the mountains, one a “Bob cat” with short tail and ear tufts, and the other a true “Link” or Lynx with longer tail and more prominent ear tufts. It is little wonder, however, that such a notion exists in view of the fact of the great range or variations found in these animals. As for actual records of captures. In the summer of 1911 one was shot in the brushy hillsides of Laguna Canyon (Orange Co.) and brought in to the Marine Laboratory. In the spring of 1912 a ♀ was shot at the mouth of San Dimas canyon and brought to the college. In December 1914 a ♀ in very worn pelage was shot while crossing the Santa Ana river near Prado Beach and brought to me to be skinned. Finally while trapping for foxes in Palmers canyon in March of 1916 I took a male.
Canis ochropus ochropus. (Eschscholtz.) California Coyote. Common in the brush land above Claremont and in the foothills. The yapping bark is a very familiar cry to any who live near the outskirts of the town and may be heard nearly any evening. Although having camped numerous times in the mountains I have never heard Coyotes above the foothill region.
Urocyon cinereoargenteus californicus. (Mearns.) California Gray Fox. Signs of foxes in the canyons and along mountain trails are always quite common. Fœces containing seeds of manzanita berries are familiar occurrences. They are fond of fruit and are readily trapped with such bait. In March 1916 three were caught one night at the same place in Live Oak canyon.
Procyon psora psora. (Gray.) California Coon. Coons are fairly common in the larger canyons where there is an abundance of water. I have seen their tracks in Palmers, Cucamonga and San Antonio canyons. Three were trapped this winter (1916) just above Camp Baldy at an altitude of about 5400 feet.
Mephitis occidentalis holzneri. (Mearns.) Southern California Striped Skunk. Not very common in this region, found mostly in the Upper Sonoran zone in wooded districts.
Spilogale phenax phenax. (C. H. Merriam.) California Spotted Skunk. Very common in valley, foothills and up to 6,000 feet in the mountains. They are fearless little creatures and will readily enter cabins in the mountains and keep the occupant awake by rattling pots and pans while scrambling around in search of food, needless to say creating an awkward situation for the host. They have been known to take up their abode underneath houses in Claremont and take the liberty of scampering around the parlor floor without regard to the presence of human beings. This was a common occurrence in a certain family I have in mind and on such occasions the unwelcome guest was gently ushered to the door without hurting its feelings and peace of mind restored to the household. They are the easiest of all animals to trap and made considerable trouble and embarrassment for me by continually blundering into traps of mine set for other game. I have found these little creatures as high as 6,000 feet in the canyons.
Mustela xanthogenys xanthogenys. (Gray.) California Weasel. I had always been interested in weasels as to their occurrence and until this year had taken only one in town with a record of only two or three seen along the railroad track. Then in one week four weasels were given me and a record of seven others obtained, all these are from nearby orange groves and from below town along the railroad track where for a long time I have known they occurred.
Scapanus latimanus occultus. (Grinnell and Swartz.) Southern California Mole. Moles are occasionally caught in orchards and lawns and the characteristic workings are familiar sights in the mountains up to 8,000 feet. Our specimens were all from the valley.
Antrozous pallidus pacificus. (Merriam.) Pacific Pale Bat. I have taken several of these bats from behind pictures and in the attics of some of the college buildings. I do not know their relative abundance or distribution but they are certainly common on the campus in spring and summer.
Myotis evotis. (Allen.) Long-eared Bat. This form also occurs in the college buildings and I believe to a certain extent in the mountains.
(Contribution from the Zoological Laboratory of Pomona College)
A Preliminary List of Shells from Laguna Beach and Nearby
For a number of years past students have collected shells from Laguna Beach, these and the Bradshaw collection form the basis for this list, which includes shells not farther than ten or twelve miles up and down the coast. The earlier collections were by Mabel Guernsey and P. R. Daggs. Practically all the shells drawn and photographed are from the Bradshaw collection because the shells were in better condition. Some of the earlier specimens were determined by the United States National Museum. Suggestions and corrections were kindly made by Mrs. T. S. Oldroyd. The photographs are by Robins and Cooper. Many of the drawings are by Miss Margaret Cate. Doubtful specimens are largely omitted in this list, but a few are included and marked by a question.
Plate I, reduced one-half; Plates II and III, natural size; Plate IV, ×10; Plate V, ×6.
BIVALVES
Yoldia cooperi Sabb. Fig. 1.
Mytilus californicus Conr. Fig. 2.
M. stearnsii Pils and Raym. Fig. 3.
Septifer bifurcatus Rve. Fig. 4.
Modiolus modiolus Linn. Fig. 5.
M. rectus Conr. Fig. 6.
Lithophaga plumula Hanl. Rock borer. Fig. 7.
Pectin (Chlamys) monotimeris Conr. Fig. 8.
Pectin (Chlamys) æquisulcatus Cpr. Fig. 9.
Pectin (Chlamys) pastatus Sby. Fig. 10.
Pecten (Hinnites) giganteus Gray. Fig. 11.
Lima dehiscens Conr. Fig. 12.
Ostrea lurida Cpr. California oyster. Fig. 13.
Chama Pellucida Sby. Fig. 14.
Phacoides californicus Conr. Fig. 15.
Phacoides (Lucina california) californicus Conr. Fig. 15.
Phacoides nuttallii Conr. Fig. 16.
Cardium quadrigenarium Conr. Fig. 17.
Cardium (Livocardium) substriatum Conr. Fig. 18.
Tivela (Pachydesma) crassatelloides Conrad. Fig. 19. small specimen.
Chione fluctifrage Sby. Fig. 20.
Chione succincta Val. Fig. 21.
Chione undatella Sby. Fig. 22.
Donax lævigata Desh. Fig. 23.
Tagelus californicus Conr. Fig. 24.
Macoma nasuata Conr. Bent-nosed Macoma. Fig. 25.
Macoma indentata Cpr. Indented Macoma. Fig. 26.
Macoma inflatula Dall. Inflated Macoma. Fig. 27.
Samele rupium Sby. Semele-of-the-Rocks. Fig. 28.
Cumingia californica Conr. California Cuming-shell. Fig. 29.
Mya (Cryptomya) californica Conr. False Mya. Fig. 30.
Spisula planulata Conr. Fig. 31.
Spisula falcata Sld. (?). Falcate Mactra. Fig. 32.
Paphia staminea Conrad. Ribbed Carpet-shell. Fig. 33.
Paphia tenessima Cpr. Finest Carpet-shell. Fig. 34.
Parapholas californica Conr. California Piddock. Fig. 35.
Pholadidea penita Conr. Common Piddock. Fig. 36.
Pholadidea subrostrata Sby. Little Borer. Fig. 37.
Milneria minima Dall. Last Milner-shell. Fig. 38.
Aula (Nucula) casternsis Hinds. Camp Nut-shell. Fig. 39.
FRESH-WATER AND LAND SHELLS UNIVALVES
Physa heterostropha Say. Laguna stream. Fig. 40.
Physa occidentalis Tryon. Aliso Lake. Fig. 41.
Limnophysa palustris Mull. Fig. 42.
Planorbis (Helisoma) trivolvis Say. Fig. 43.
Helix aspera Mull. Fig. 44.
Epiphragmophora Sp. Fig. 45.
MARINE UNIVALVES
Acmaea persona Esch. Mask Limpet. Fig. 46.
Acmaea spectrum Nutt. Ribbed Limpet. Fig. 47.
Acmaea patina Esch. Pale Limpet. Fig. 48.
Acmaea scabra Roe. Tile Limpet. Fig. 49.
Acmaea incessa Hds. Seaweed Limpet. Fig. 50.
Acmaea asmi Midd. Black Limpet. Fig. 51.
Acmaea (Lottia) gigantea. Owl Limpet. Fig. 52.
Acmaea paleacea Gld. Chalf Limpet. Fig. 53.
Tylodina fungina Gab. Fig. 54.
Gadinia reticulata Sby. Netted Button-shell. Fig. 55.
Crucibulum spinosum Sby. Cup and Saucer Limpet. Fig. 56.
Crepidula dorsata Brod. Wrinkled Slipper-shell. Fig. 57.
Crepidula aculeata Gmel. Prickly Slipper-shell. Fig. 58.
Crepidula adunca Sby. Hooked Slipper-shell. Fig. 59.
Crepidula nivea Gould. White Slipper-shell. Fig. 60.
Crepidula onyx Sby. Onyx Slipper-shell. Pl. II. Fig. 19.
Fissurella volcano Rve. Volcano Shell. Fig. 62.
Fissuridea aspera Esch. Rough Key-hole Limpet. Fig. 63.
Fissuridea murina Dall. White Key-hole Limpet. Fig. 64.
Lucapina crenulata Sby. Great Key-hole Limpet. Fig. 65.
Clypidella (Lucapinella) calliomarginata Cpr. Southern Key-hole Limpet. Fig. 66.
Megatebennus bimaculatus Dall. Spotted Key-hole Limpet. Fig. 67.
Turris (Bathytoma) carpenteriana Gab. Carpenter Turret Shell. Fig. 68. (Laguna Beach, Jahraus.)
Trophon belcheri Hds. Belcher Trophon. Fig. 69. (Jahraus.)
Trophon triangulatus Cpr. Three-cornered Trophon. Dredged off Laguna Beach. Bean. Fig. 70.
Australium undosus Wood. Wavy Topshell. Fig. 71.
Bullaria gouldiana Pisb. Gold’s Bubble-shell. Many collected at Balboa much larger than the specimens shown. Fig. 72.
Haminea vesicula Gld. White Bubble-shell. Fig. 73.
Haminea virescens Sby. Green Bubble-shell. Fig. 74.
Cypraea spadicea Gray. Nut-brown Cowry. Fig. 75.
Trivia californica Gray. Little Coffee-bean. Fig. 76.
Trivia solandri Gray. Solander Trivia. Fig. 77.
Erato vitellina Hds. Veally Erato. Fig. 78. (Slightly enlarged.)
Erato collumbella Mke. Dove Shell. Fig. 79.
Marginella varia Sby. Colored Marginella. Fig. 80.
Marginella jewetti. California Rice shell. Much like the last but white.
Olivella biplicata Sby. Purple Olive Shell. Fig. 81.
Olivella pedroana Conr. Pedro Olive Shell. Fig. 82.
Conus californicus Hds. California Cone. Fig. 83.
Macron lividus A. Ad. Livid Macron. Fig. 84.
Littorina scutulata Gld. Checkered Littorine. Fig. 85.
Littorina planoxis Nutt. Gray Littorine. Fig. 86. Turned.
Purpura (Cerostoma) nuttallii Conr. Nuttall’s Hornmouth. Fig. 87.
Tegula (Chlorostoma) gallina Fbs. Speckled Turban Shell. Fig. 88.
Tegula (Chlorostoma) aureotincta Fbs. Gilded Turban Shell. Large umbilicus with yellow. Fig. 89.
Omphalus fuscecens Phil. Banded Turban Shell. Fig. 90.
Tegula veridula ligulata Wke. Fig. 91.
Norrisia norrisii Sby. Smooth Turban Shell. Fig. 92.
Thais emarginata Desh. Rock Purple. Fig. 93.
Acanthia lapilloides Conr. Pebbly Unicorn. Fig. 94.
Acanthia elongata Conr. Angled Unicorn. Fig. 95.
Acanthia spirata Blain. Fig. 96.
Murex gemma Sby. Fig. 97.
Murex (Tritonalia) lurida Cpr. Lurid. Fig. 98.
Murex (Tritonalia) gracillima R. E. C. S. Fig. 99.
Murex (Tritonalia) circumtexta R. E. C. S. Fig. 100.
Murex (Tritonalia) poulsoni Nutt. Fig. 101.
Epitonium hindsii Cpr. White Wentletrap. Fig. 102.
Epitonium crenatoides Cpr. Fig. 103.
Actæon puncticælatus Cpr. Barrel Shell. Fig. 104.
Mitra idæ Melv. Ida’s Miter Shell. Fig. 105.
Mitra lowei Dall (?). Fig. 106.
Alectrion (Nassa) perpinguis Gld. Fig. 107.
Arcularia (Nassa) tegula Reeve. Cover-lip. Fig. 108.
Turris ophioderma Dall. Pencilled Drill Shell. Fig. 109.
Potomides (Certhidæ) californica Hold. California Horn Shell. Fig. 110.
Myurella simplex Cpr. Simple Auger Shell. Fig. 111.
Amphissa versicolor Dall. Joseph Coat. Fig. 112. Slightly enlarged.
Calliostoma canliculatum Mart. Channeled Top Shell. Fig. 113.
Polynices recluziana Desh (?). Southern Moon Shell. Fig. 114. under side.
Amalthea antiquata Linn. Ancient Hoof Shell. Fig. 115.
Amalthea tumens Cpr. Sculptured Hoof Shell. Fig. 116.
Fossarus fenestratus Cpr. Windowed Isapis. Fig. 117.
Lacuna unifasciata Cpr. One-banded Chink Shell. Fig. 118.
Melampus olivaceus Cpr. Olive Ear Shell. Fig. 119.
Janthina trifida Nutt. Violet Snail. Shell violet. Jahraus collection. Fig. 120.
Leptothyra carpenteri Pilsb. Red Turban Shell. Fig. 121.
Leptothyra baccula Cpr. Berry Turban. Fig. 122.
Calliostoma tricolor Gabb. Three-colored top shell. Fig. 123.
Haliotis rufescens Swains. Red Abalone. Quite common near Laguna.
Haliotis cracherodii Leach. Black Abalone. More common than the red.
TOOTH SHELLS
Dentalium neohexagnum S. and P. Hexagonal Tusk Shell. Dredged off Laguna.
CHITONS
Mophia hindsii Sby. Hind’s Chiton. Fig. 124.
Mophia mucosa Gld. Mossy Chiton. Fig. 125.
Ischnochiton clathratus Rve. Fig. 126.
Ischnochiton magdalensis Hinds. Gray Chiton. Fig. 127.
Nuttallina scabra Rve. Scaly Chiton. Fig. 128.
Nuttallina californica Nutt. California Chiton. Fig. 129.
Trachydermon dentiens Gld. (Pseudodenturus). Fig. 130.
Lepidopleurus rugatus Cpr. Fig. 131.
Callistochiton crassicostatus Pilsb. Thick-ribbed Chiton. Fig. 132.
Tonicella hartwegii Cpr. Hartweg’s Chiton. Fig. 133.
SMALL SHELLS Wash Drawings by Miss M. Cate
Caecum californicum Dall. Common at Laguna Beach. Pl. IV. Fig. 1 ×10.
Vitrinella williamsoni Dall (?). Pl. IV. Fig. 2 ×10. (This specimen in the Bradshaw collection was so determined, probably at Washington.) Arch Beach, Cal., near Laguna.
Columbella chrysalloidea Cpr. Shell white. Pl. IV. Fig. 3 ×10.
Columbella pencillata Cpr. White shell, cross lines brown. Pl. V. Fig. 1 ×6.
Columbella gausapata Gould. Common Dove-shell. Brown mottled. Pl. V. Fig. 2 ×6.
Liotia acuticostata Cpr. Sharp-ribbed Liotia. Pure white. Pl. V. Fig. 3 ×6.
Seila assimilata Cpr. Dark brown. Pl. V. Fig. 4 ×6.
Turbonilla lammata Cpr. Pl. IV. Fig. 4 ×10. Light brown. (Dunkeria).
Tinostoma supravalata Cpr. (?). Pl. V. Fig. 5 ×6. Clear white. (Ethalia).
Callistoma tricolor Gabb. Pl. V. Fig. 5 ×10.
Phasianella pulloides Gld. Pl. V. Fig. 6 ×6. Mottled red and white.
Tritonalia barberensis Gabb. Pl. V. Fig. 7.
Leptothyra baccula Cpr. Pink to gray. Pl. V. Fig. 8 ×6.
Leptothyra carpenteriana Pilsb. Red Turban-shell. Pl. V. Fig. 9 ×6.
Leptothyra paucicosta Dall. White. Pl. V. Fig. 10 ×6.
Jeffreysia translucens Cpr. (?). Pl. V. Fig. 11 ×6.
Pedipes unisulcata J. G. Cooper. Light brown. Pl. V. Fig. 12 ×6.
Mitromorpha aspera Cpr. Brown. Pl. V. Fig. 13 ×6.
Vermetus anellum Morch. White. Pl. IV. Fig. 6 ×10. This specimen is more coiled than some others.
Cerithiopus convexa Cpr. Dark brown. Pl. V. Fig. 14.
Cerithiopus columna Cpr. Light brown. Pl. V. Fig. 15.
Turritella mesalia lacteola Cpr. Pure white. (No figure.)
Bithium aspera Gabb. Brown. Pl. IV. Fig. 7 ×10.
Turbonilla stylina Cpr. (?). Pl. IV. Fig. 8 ×10.
Turbonilla costanea Cpr. (?). Pl. IV. Fig. 9 ×10.
Anachis subturiata Cpr. (?). Pl. IV. Fig. 10 ×10.
Amphissa versicolor Dall. Pink, white, brown. Pl. V. Fig. 16 ×6.
Corbila luteola Cpr. Small bivalve.
Philobrya setosa Cpr. Small bivalve. Pl. V. Fig. 17 ×6.
Acila castrensis Hds. Brownish. Pl. V. Fig. 18 ×6.
Carditanera minima Dall. Brownish-yellow. Pl. IV. Fig. 11 ×10.
Crassatella marginata Cpr. Pl. IV. Fig. 12 ×10.
Lasea rubra Mort. Tinged with red. Pl. V. Fig. 19 ×10.
Arca solida Br. & Sby. (?). Pl. V. Fig. 20 ×10.
(Contribution from the Zoological Laboratory of Pomona College)
A Reconstruction of the Nervous System of a Nemertian Worm
WILLIAM A. HILTON
Small specimens of Carinella cingulata Cole were fixed in Mercuric chloride and cut in series. A general hematoxylin stain was very satisfactory for general anatomy. For a study of the finer structure other preparations will be necessary.
No attempt will be made to give a complete review of the literature relating to this group. Almost every systematic paper has something, because of the importance of the nervous system in classification and because in many cases the nervous system may be seen through the body-wall without dissection.
One of the first extensive accounts of these animals which also included quite a consideration of the nervous system was McIntosh in 1874. Several of the genus Nemestes were studied and the general form of the nervous system shown. Amphipheris is shown in a similar manner with a single lobe of the brain and with the two brain commissures. Tetrastemma is shown in a similar manner. Hubrecht in 1887 has an extensive paper in which the details of several nervous systems are shown as they show in reconstructions from sections. Eupolia girardi is especially well shown with its small dorsal and large ventral commissure and with three brain lobes. It is in this paper that Hubrecht makes his interesting comparison between the nemertians and cordates. In his paper of 1880 he has shown the structure and position of different parts of the nervous system of nemertians, especially of Cerebratulus of which he gives a very good figure. In this he shows a reconstruction of the brain with its chief nerves, ventral and dorsal commissures, general position of the cells, the two lobes of the brain on each side and the chief nerves. He also treats of nemertian nervous systems of many other forms, but not in so much detail.
Burger in 1890, '91, has extensive papers on the nervous system of the group. He discusses not only the general form, but also the minute structure of the nervous system of a number of different types. In 1895 Burger has another important paper on this « 120 » group of animals. In it he shows in some forms a marked dorsal ganglion and a ventral ganglion with the typical nerves. Burger showed that all ganglion cells are unipolar, without membranes. Montgomery, 1897, discusses the minute anatomy of the nerve cells. Coe, 1895 and 1910, considers the general anatomy of the nervous system, but nerve details are for the most part not shown.
In a young Carinella cingulata Cole which I have studied by means of reconstructions, I find no unusual features. The nervous system is typical of the group. The brain, however, is not very clearly made up of two lobes on each side. This may be because the specimen used was a young one. This may also be the reason why the brain is not sharply marked off from the lateral nerve cords.
Figure 1 shows the brain and part of the lateral cords from the ventral side. From the two halves of the brain come the nerves to forward parts. The small dorsal commissure is shown with its usual median extension. From the larger ventral commissure come the two nerves to the proboscis, lateral to these are the nerves to the intestine, while from the ridge of the lateral cords the lateral nerves are shown.
Figure 2 in the larger drawing at the right shows the nervous system as viewed from the side with the dorsal side to the left. The central core of the ganglion and cord is to indicate the position of the fiber area. The small drawings at the left show various levels of the nervous system as seen in cross section. The ventral side is up. The drawing at the top is through the brain before the commissures are reached, the next lower is through the thickest part of the brain and the lower two drawings are through one of the lateral cords.
The KA Binocular Microscope
Is of great value in all biological work where low and medium powers are employed. In embryology the true stereoscopic image shows the relative position of important details. This feature is of great assistance to the student and makes the instructor’s work easy.
Write for booklet
Bausch & Lomb Optical Co.
of California
154 Sutter St., San Francisco, Cal.
|
The Journal of Edited by The subject matter is strictly confined to original zoological Each volume will consist of 4 parts, price $5. All subscriptions should be forwarded to Messrs. Dulau & Co., Ltd. |
|
|
GRIFFITH Incubators
A simple, well constructed bacteriological incubator |
The Journal of A Quarterly devoted to Medical This journal will be a medium for the prompt publication of briefer papers and research notes on animal parasites. Emphasis laid on the morphology, life history and biology of zooparasites and the relations of animals to disease. Subscription, $2.00 a volume Managing Editor, HENRY B. WARD, Univ. Illinois, Urbana, Ill. |
Gage—The Microscope
An Introduction to Microscopic Methods and to Histology
By SIMON HENRY GAGE
Twelfth edition in press. Entirely rewritten, with many new illustrations.
Price $2.00.
This work aims to give help to everyone who uses the microscope, whether he is a beginner or an advanced worker.
Comstock—A Manual for the Study of Insects
By JOHN HENRY COMSTOCK, Professor of Entomology in Cornell University, and ANNA BOTSFORD COMSTOCK, member of the Society of American Wood-Engravers. 8vo. cloth, IX.+701 pages, 797 figures in the text, and six full page plates. Nearly all of the figures were engraved especially for this work. Postpaid $4.07; net $3.75.
This handbook is designed to meet the needs of teachers in the public schools and of students in high schools and colleges.
Needham—General Biology
A book of outlines and practical studies for the general student
By JAMES G. NEEDHAM, Professor of Limnology and General Biology in Cornell University. Cloth 8vo. XIV.+542 pages; 288 figures, mostly original. Postpaid $2.00.
This book is expressly designed to help the general student obtain a comprehensive grasp of the principles of biology.
Comstock—Handbook of Nature-Study
By ANNA BOTSFORD COMSTOCK, Lecturer in Nature-Study in Cornell University. Cloth 8vo. XVIII.+938 pages, more than 1,000 illustrations. Prices, postpaid: Bound in one volume, $3.65; bound in two volumes, $4.50; Volume I., including Animal Life, $2.25; Volume II., including Plant Life, $2.25. Sample pages sent on application.
A handbook of Nature-Study for teachers and parents, based on the Cornell Nature-Study Leaflets, with much additional material and many new illustrations.
GAGE—Optic Projection
By SIMON HENRY GAGE, Professor Emeritus of Histology and Embryology in Cornell University, and Henry Phelps Gage, Ph. D.
This work of over 700 pages and with over 400 figures is of especial interest to workers in all fields of Biology in that it deals especially with the use of the Projection Microscope for demonstrations and for drawing. It also gives the fundamental principles of all the forms of projection. A 16-page circular will be sent on request. Postpaid, $3.00.
RILEY—Handbook of Medical Entomology
By WM. A. RILEY, Ph. D., Professor of Insect Morphology and Parasitology in Cornell University and O. A. JOHANNSEN, Ph. D., Professor of Biology in Cornell University.
A concise account of poisonous, and disease-carrying insects and their allies, including descriptions and illustrations of the principal species, with keys for their determination, and method of control. Bound Library Buckram, medium 8vo. Nearly 375 pages. Price $2.00 net.
The Comstock Publishing Company
Cornell Heights, Ithaca, N. Y.
It affords this establishment pleasure to state that though we are over fifty years old we are still seeking with youthful energy new finds of choice mineral specimens.
A few of our recent additions will show from what widely distributed areas we draw:
| Japan: | Chalcopyrite in groups of sharp crystals, some of them beautifully iridescent. |
| Stibnite, brilliant crystals, 5 to 8 inches long. | |
| Hokutolite, a new radio-active barium-lead silicate. | |
| Reinite, in large, sharp crystals. | |
| Quartz Twins, fine, large crystals. | |
| Rhodesia: | Malachite, beautiful polished specimens showing concentric banding. |
| Hopeite, in small groups of excellent crystals. | |
| Madagascar: | Betafite, a new uranium niobate, in good crystals. |
| Euxenite, good crystals. | |
| Beryl, in large brown crystals with pyramidal faces. | |
| California: | Tourmaline, polished transverse sections of large crystals of rich red and green colors. |
| Kunzite, superb gem crystals. | |
| Benitoite and Neptunite in fine crystals and groups. | |
| Greenockite on Magnetite, uncommonly good. | |
| Utah: | Willemite, drusy masses of colorless and red crystals. |
| Aurichalcite, singularly beautiful robin’s-egg blue, crystallized coatings. | |
| Nova Scotia: | Magnesite in groups of small distinct hexagonal crystals. |
New lots of fine specimens are constantly arriving. Ask for price-list No. 160.
Cheap minerals are described in No. 158.
Circular No. 170 enumerates all of our many catalogues and price-lists.
Ward’s Natural Science Establishment
84-102 College Avenue
Rochester, N. Y.
Entomological News
A forty-eight page illustrated magazine, published monthly except August
and September, devoted to the study of INSECT LIFE. It contains a list
of the titles of the current Entomological Literature, and also
articles by the leading Entomologists in the United
States and Canada. Valuable information
for the beginner, the economic
entomologist and the
systematist.
To new subscribers, $1.90; Renewals, $2.00; payable in advance.
Single copies 25 cents. Address
ENTOMOLOGICAL NEWS
1900 Race Street, Philadelphia, Pa.
CLASS WORK MATERIAL
CAN BE PROCURED AT ANY TIME OF
THE YEAR FROM
C. S. BRIMLEY, Zoologist
1135 Newberne Avenue
RALEIGH, N. C., U. S. A.
To Entomologists
I can supply Entomologists with all orders of insects from all parts of the world, as I am continually receiving fresh consignments from my own collectors.
General lists of Lepidoptera and Coleoptera on application; also special lists of Sphingidæ, over 300 species, of Pieridæ in papers, over 100 species. Collections just received from Natal, Madagascar, Peru, Ivory Coast, French Guiana, Java and Argentine; selections of these at low rates. Particulars on application.
E. LE MOULT
4 Rue Duméril, Paris XIII, France
Pomona College
Located in one of the most healthful and beautiful parts of the west coast. The mountains reach an elevation of ten thousand feet within a few miles of the college and these with the nearby ocean afford many special advantages for the study of things not in books. Special advantages are afforded by the fact that the college limits its attendance, the freshman class being restricted to two hundred applicants. The success of the college is particularly indicated by the large proportion of the graduates who proceed to advanced work in the large universities. In addition, well-manned departments of music and art afford exceptional advantages.
For further information, address
Secretary of Pomona College
Claremont, California
End of the Project Gutenberg EBook of Journal of Entomology and Zoology,
September 1917, by Various
*** END OF THIS PROJECT GUTENBERG EBOOK JOURNAL OF ENTOMOLOGY, ZOOLOGY, SEPT 1917 ***
***** This file should be named 48122-h.htm or 48122-h.zip *****
This and all associated files of various formats will be found in:
http://www.gutenberg.org/4/8/1/2/48122/
Produced by Larry B. Harrison, Tom Cosmas and the Online
Distributed Proofreading Team at http://www.pgdp.net (This
file was produced from images generously made available
by The Internet Archive)
Updated editions will replace the previous one--the old editions will
be renamed.
Creating the works from print editions not protected by U.S. copyright
law means that no one owns a United States copyright in these works,
so the Foundation (and you!) can copy and distribute it in the United
States without permission and without paying copyright
royalties. Special rules, set forth in the General Terms of Use part
of this license, apply to copying and distributing Project
Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm
concept and trademark. Project Gutenberg is a registered trademark,
and may not be used if you charge for the eBooks, unless you receive
specific permission. If you do not charge anything for copies of this
eBook, complying with the rules is very easy. You may use this eBook
for nearly any purpose such as creation of derivative works, reports,
performances and research. They may be modified and printed and given
away--you may do practically ANYTHING in the United States with eBooks
not protected by U.S. copyright law. Redistribution is subject to the
trademark license, especially commercial redistribution.
START: FULL LICENSE
THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK
To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full
Project Gutenberg-tm License available with this file or online at
www.gutenberg.org/license.
Section 1. General Terms of Use and Redistributing Project
Gutenberg-tm electronic works
1.A. By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement. If you do not agree to abide by all
the terms of this agreement, you must cease using and return or
destroy all copies of Project Gutenberg-tm electronic works in your
possession. If you paid a fee for obtaining a copy of or access to a
Project Gutenberg-tm electronic work and you do not agree to be bound
by the terms of this agreement, you may obtain a refund from the
person or entity to whom you paid the fee as set forth in paragraph
1.E.8.
1.B. "Project Gutenberg" is a registered trademark. It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement. There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement. See
paragraph 1.C below. There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this
agreement and help preserve free future access to Project Gutenberg-tm
electronic works. See paragraph 1.E below.
1.C. The Project Gutenberg Literary Archive Foundation ("the
Foundation" or PGLAF), owns a compilation copyright in the collection
of Project Gutenberg-tm electronic works. Nearly all the individual
works in the collection are in the public domain in the United
States. If an individual work is unprotected by copyright law in the
United States and you are located in the United States, we do not
claim a right to prevent you from copying, distributing, performing,
displaying or creating derivative works based on the work as long as
all references to Project Gutenberg are removed. Of course, we hope
that you will support the Project Gutenberg-tm mission of promoting
free access to electronic works by freely sharing Project Gutenberg-tm
works in compliance with the terms of this agreement for keeping the
Project Gutenberg-tm name associated with the work. You can easily
comply with the terms of this agreement by keeping this work in the
same format with its attached full Project Gutenberg-tm License when
you share it without charge with others.
1.D. The copyright laws of the place where you are located also govern
what you can do with this work. Copyright laws in most countries are
in a constant state of change. If you are outside the United States,
check the laws of your country in addition to the terms of this
agreement before downloading, copying, displaying, performing,
distributing or creating derivative works based on this work or any
other Project Gutenberg-tm work. The Foundation makes no
representations concerning the copyright status of any work in any
country outside the United States.
1.E. Unless you have removed all references to Project Gutenberg:
1.E.1. The following sentence, with active links to, or other
immediate access to, the full Project Gutenberg-tm License must appear
prominently whenever any copy of a Project Gutenberg-tm work (any work
on which the phrase "Project Gutenberg" appears, or with which the
phrase "Project Gutenberg" is associated) is accessed, displayed,
performed, viewed, copied or distributed:
This eBook is for the use of anyone anywhere in the United States and
most other parts of the world at no cost and with almost no
restrictions whatsoever. You may copy it, give it away or re-use it
under the terms of the Project Gutenberg License included with this
eBook or online at www.gutenberg.org. If you are not located in the
United States, you'll have to check the laws of the country where you
are located before using this ebook.
1.E.2. If an individual Project Gutenberg-tm electronic work is
derived from texts not protected by U.S. copyright law (does not
contain a notice indicating that it is posted with permission of the
copyright holder), the work can be copied and distributed to anyone in
the United States without paying any fees or charges. If you are
redistributing or providing access to a work with the phrase "Project
Gutenberg" associated with or appearing on the work, you must comply
either with the requirements of paragraphs 1.E.1 through 1.E.7 or
obtain permission for the use of the work and the Project Gutenberg-tm
trademark as set forth in paragraphs 1.E.8 or 1.E.9.
1.E.3. If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any
additional terms imposed by the copyright holder. Additional terms
will be linked to the Project Gutenberg-tm License for all works
posted with the permission of the copyright holder found at the
beginning of this work.
1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.
1.E.5. Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.
1.E.6. You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including
any word processing or hypertext form. However, if you provide access
to or distribute copies of a Project Gutenberg-tm work in a format
other than "Plain Vanilla ASCII" or other format used in the official
version posted on the official Project Gutenberg-tm web site
(www.gutenberg.org), you must, at no additional cost, fee or expense
to the user, provide a copy, a means of exporting a copy, or a means
of obtaining a copy upon request, of the work in its original "Plain
Vanilla ASCII" or other form. Any alternate format must include the
full Project Gutenberg-tm License as specified in paragraph 1.E.1.
1.E.7. Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.
1.E.8. You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works
provided that
* You pay a royalty fee of 20% of the gross profits you derive from
the use of Project Gutenberg-tm works calculated using the method
you already use to calculate your applicable taxes. The fee is owed
to the owner of the Project Gutenberg-tm trademark, but he has
agreed to donate royalties under this paragraph to the Project
Gutenberg Literary Archive Foundation. Royalty payments must be paid
within 60 days following each date on which you prepare (or are
legally required to prepare) your periodic tax returns. Royalty
payments should be clearly marked as such and sent to the Project
Gutenberg Literary Archive Foundation at the address specified in
Section 4, "Information about donations to the Project Gutenberg
Literary Archive Foundation."
* You provide a full refund of any money paid by a user who notifies
you in writing (or by e-mail) within 30 days of receipt that s/he
does not agree to the terms of the full Project Gutenberg-tm
License. You must require such a user to return or destroy all
copies of the works possessed in a physical medium and discontinue
all use of and all access to other copies of Project Gutenberg-tm
works.
* You provide, in accordance with paragraph 1.F.3, a full refund of
any money paid for a work or a replacement copy, if a defect in the
electronic work is discovered and reported to you within 90 days of
receipt of the work.
* You comply with all other terms of this agreement for free
distribution of Project Gutenberg-tm works.
1.E.9. If you wish to charge a fee or distribute a Project
Gutenberg-tm electronic work or group of works on different terms than
are set forth in this agreement, you must obtain permission in writing
from both the Project Gutenberg Literary Archive Foundation and The
Project Gutenberg Trademark LLC, the owner of the Project Gutenberg-tm
trademark. Contact the Foundation as set forth in Section 3 below.
1.F.
1.F.1. Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
works not protected by U.S. copyright law in creating the Project
Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm
electronic works, and the medium on which they may be stored, may
contain "Defects," such as, but not limited to, incomplete, inaccurate
or corrupt data, transcription errors, a copyright or other
intellectual property infringement, a defective or damaged disk or
other medium, a computer virus, or computer codes that damage or
cannot be read by your equipment.
1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.
1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from. If you
received the work on a physical medium, you must return the medium
with your written explanation. The person or entity that provided you
with the defective work may elect to provide a replacement copy in
lieu of a refund. If you received the work electronically, the person
or entity providing it to you may choose to give you a second
opportunity to receive the work electronically in lieu of a refund. If
the second copy is also defective, you may demand a refund in writing
without further opportunities to fix the problem.
1.F.4. Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO
OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.
1.F.5. Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of
damages. If any disclaimer or limitation set forth in this agreement
violates the law of the state applicable to this agreement, the
agreement shall be interpreted to make the maximum disclaimer or
limitation permitted by the applicable state law. The invalidity or
unenforceability of any provision of this agreement shall not void the
remaining provisions.
1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in
accordance with this agreement, and any volunteers associated with the
production, promotion and distribution of Project Gutenberg-tm
electronic works, harmless from all liability, costs and expenses,
including legal fees, that arise directly or indirectly from any of
the following which you do or cause to occur: (a) distribution of this
or any Project Gutenberg-tm work, (b) alteration, modification, or
additions or deletions to any Project Gutenberg-tm work, and (c) any
Defect you cause.
Section 2. Information about the Mission of Project Gutenberg-tm
Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of
computers including obsolete, old, middle-aged and new computers. It
exists because of the efforts of hundreds of volunteers and donations
from people in all walks of life.
Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come. In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future
generations. To learn more about the Project Gutenberg Literary
Archive Foundation and how your efforts and donations can help, see
Sections 3 and 4 and the Foundation information page at
www.gutenberg.org
Section 3. Information about the Project Gutenberg Literary Archive Foundation
The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service. The Foundation's EIN or federal tax identification
number is 64-6221541. Contributions to the Project Gutenberg Literary
Archive Foundation are tax deductible to the full extent permitted by
U.S. federal laws and your state's laws.
The Foundation's principal office is in Fairbanks, Alaska, with the
mailing address: PO Box 750175, Fairbanks, AK 99775, but its
volunteers and employees are scattered throughout numerous
locations. Its business office is located at 809 North 1500 West, Salt
Lake City, UT 84116, (801) 596-1887. Email contact links and up to
date contact information can be found at the Foundation's web site and
official page at www.gutenberg.org/contact
For additional contact information:
Dr. Gregory B. Newby
Chief Executive and Director
gbnewby@pglaf.org
Section 4. Information about Donations to the Project Gutenberg
Literary Archive Foundation
Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment. Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.
The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States. Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements. We do not solicit donations in locations
where we have not received written confirmation of compliance. To SEND
DONATIONS or determine the status of compliance for any particular
state visit www.gutenberg.org/donate
While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.
International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States. U.S. laws alone swamp our small staff.
Please check the Project Gutenberg Web pages for current donation
methods and addresses. Donations are accepted in a number of other
ways including checks, online payments and credit card donations. To
donate, please visit: www.gutenberg.org/donate
Section 5. General Information About Project Gutenberg-tm electronic works.
Professor Michael S. Hart was the originator of the Project
Gutenberg-tm concept of a library of electronic works that could be
freely shared with anyone. For forty years, he produced and
distributed Project Gutenberg-tm eBooks with only a loose network of
volunteer support.
Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as not protected by copyright in
the U.S. unless a copyright notice is included. Thus, we do not
necessarily keep eBooks in compliance with any particular paper
edition.
Most people start at our Web site which has the main PG search
facility: www.gutenberg.org
This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
