History tells us—what some of us luckier ones heard the Wright Brothers themselves tell—that the Wrights’ active work in aëronautics was a result of the interest aroused by a toy helicopter presented to them by the Reverend Bishop Milton Wright, their father.

Tremendous developments have taken place in aëronautics and aircraft are fast developing in size, speed, and range of action. They have revolutionized warfare, and seem to be destined to become a most important factor in the reconstruction that will follow the war.

The greater the development the truer the fact that model aëroplanes may be instrumental in bringing to aëronautics men who may make valuable contributions to aëronautics. As a matter of fact, there are already in active life, contributing their share to the development of aëronautics, young men who only a few years ago competed for prizes which the writer offered for model competition.

The young men who are now flying models will live in the new age—and they have much to give and much to receive from it.

Through the tremendous strides forward of aëronautics there are wonderful possibilities for the employment of ingenuity, genius and skill, and business opportunities, as great as have ever been created by progress in important lines of human endeavor. Problems of engineering as huge as were solved by master builders; juridical and legal questions to be decided as stupendously difficult as any Gladstone would wish them; possibilities for the development of international relations greater than were ever conceived; problems of transportation to be solved by the application of aircraft, as wonderful as any economist could wish; opportunities to gain distinction splendid enough to satisfy the most ambitious person.

Model aëroplaning, as a sport, was first introduced in America during the year of 1907. It was then that the first model aëroplane club in America was formed by Miss E. L. Todd, with the assistance of Mr. Edward Durant, now Director of the Aëro Science Club of America. Prior to this the model aëroplane was considered an instrument of experimentation or, when built to resemble a full sized machine, was used for exhibition purposes. Noted scientists, men such as Maxim, Langley, Eiffel and others, depended largely on models to bring about the desired results during their experiments. Before the Wright Brothers brought forth and launched the first heavier than air machine their experiments, to a great[2] extent, were confined to model aëroplanes. There is little doubt but that a large majority of aviators engaged in flying machines in different parts of the world were at one time in their career interested in the construction and flying of model aircraft, and from which no doubt they obtained their initial knowledge of the aëroplane, in so far as the same principles and laws apply to any aëroplane, regardless of its size.

The first model aëroplane club went under the name of the New York Model Aëro Club and during its existence a great many of its contests were carried on in armories. The reason for this was because of the fact that the greater number of the models prevalent at that time were built along the lines of full sized machines, and their manner of construction was such as to interfere with the flying efficiency of the model. Streamline construction was something unknown to model constructors in those days and, in consequence, crudely constructed and heavy models were very often evidenced,[3] and, as a result, flights of over one hundred feet were very seldom made. At about the same time model enthusiasts in both England and France were actively engaged in constructing and flying models, but the type of model used was of a different design from those flown by the American modelists and as a result of this innovation many of the early records were held abroad. The type of model flown by the English modelists resembled in appearance the letter “A”, hence the term “A” type.

It was not long after the introduction of this type of model in America that model aëroplaning as a sport began to assume an aspect of great interest. Models were constructed along simpler lines and with a greater tendency toward doing away with all unnecessary parts, thus increasing the flying qualities of the models. Flights of greater distance and duration were the objects sought and, in their efforts to achieve them new records were made at most every contest, until flights of from 500 to 1000[4] feet were common occurrences. By the use of the A type model and the single stick model which made its appearance shortly after the A type model, American modelists succeeded in breaking most of the world records for this type of model which is now termed by English modelists “flying sticks.”

One by one model aëroplane clubs were formed in different parts of the country until to-day there are in existence about twenty-five clubs and all with memberships of from two to eight times that of the first model aëro club. The work which was started by the New York Model Aëro Club is now being carried on by the Aëro Science Club of America and its affiliated clubs. The interest in model flying grew to such an extent that during the year of 1915 the Aëro Club of America decided to hold the First National Model Aëroplane Competition for the purpose of offering to the young men of America an opportunity of becoming acquainted with this new sport and its advantages. The results of this competition were beyond expectation.[5] Models were made capable of flying distances and with durations that, to the early flyers, seemed impossible. In the hand launched contests models were flown for distances ranging from 2000 to 2500 feet, the winning flight being 3537 feet, and it might also be said that the contestant who flew this model, with a model of the same design established a duration record of 195 seconds. As this goes to press, information is received that the World’s Record for distance for hand launched models has been broken by Thomas Hall, of Chicago, Ill., an Illinois Model Aëro Club member, with a flight of 5337 feet. Another interesting result of the competition was the establishing of a world hydroaëroplane record by a member of the Illinois Model Aëro Club with a model of the tractor type, a four-bladed propeller being used in connection with the model. The flying boat which is a late advent to the field of model flying also proved a record breaker in this competition, having remained in the air after rising from the surface of the[6] water, for a duration of 43 seconds. This model was flown by a member of the Pacific Northwest Model Aëro Club of Seattle, Washington. The establishing of these records clearly indicates the advantage of scientific designing and construction and careful handling.

So satisfactory have been the results of the First National Model Aëroplane Competition that the Aëro Club of America has made arrangements for holding the Second National Model Aëroplane Competition during the year 1916. But in the announcement of the Second National Competition the Aëro Club of America has made provision for the holding of contests for mechanically driven models, in view of the interest which is being shown by model flyers in the construction of models more closely resembling large machines to be driven by compressed air, steam and gasoline power plants. This is the outcome of a desire on the part of model constructors to substitute for what is now commonly known as the “flying stick,” models more closely resembling large[7] machines, which models can be more satisfactorily flown by the use of compressed air, steam or gasoline power plants. As in the early days, the best flights made by models using compressed air and steam have been made by English flyers, the duration of the flights ranging anywhere from 25 to 50 seconds.

Whether or not the American flyers will repeat history and achieve greater results with this type of model motive power is something that can only be determined in the future. But in any event the scientific mechanically driven model will, without doubt, assume an important position in the field of model aviation.

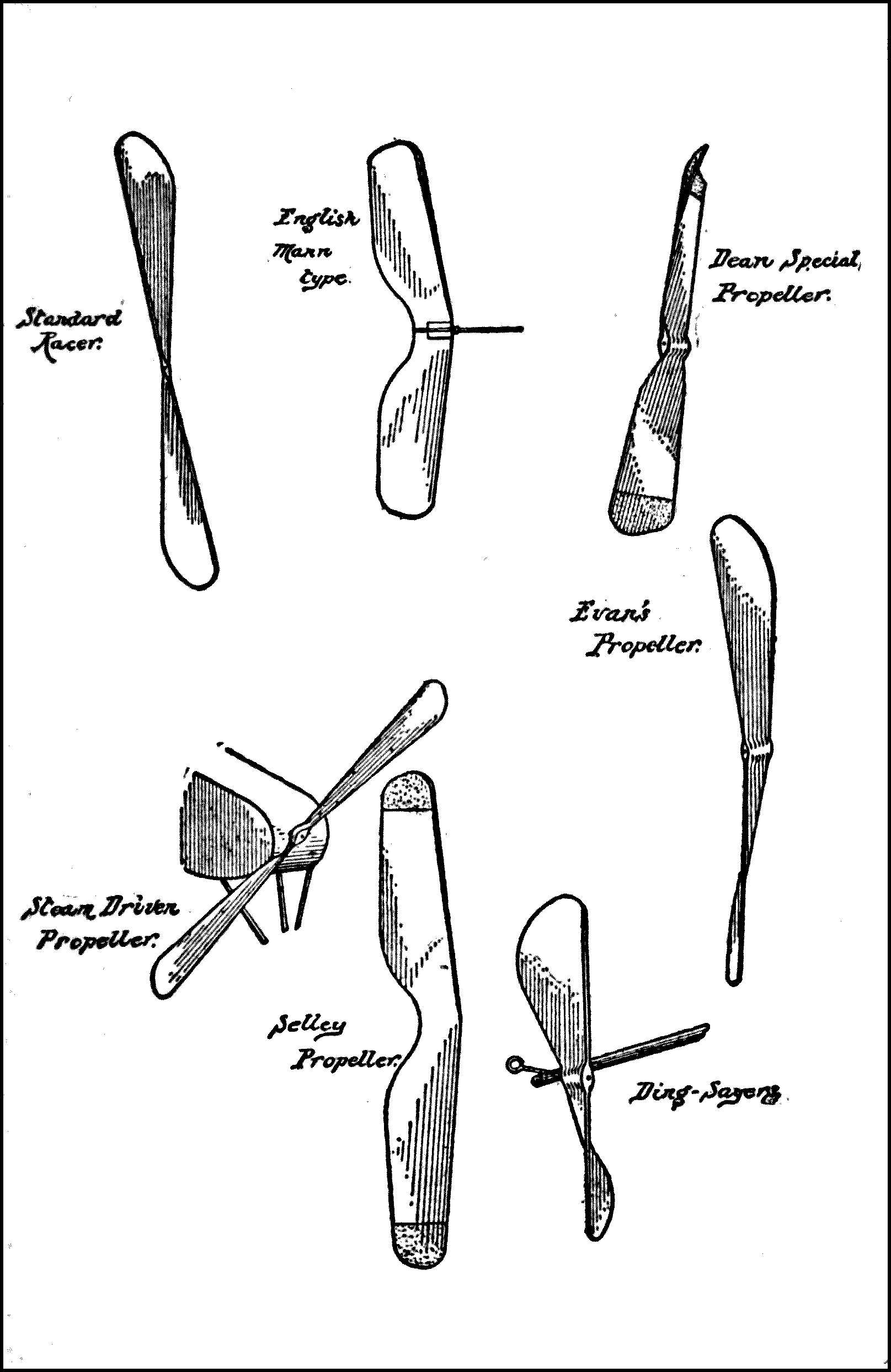

PROPELLERS

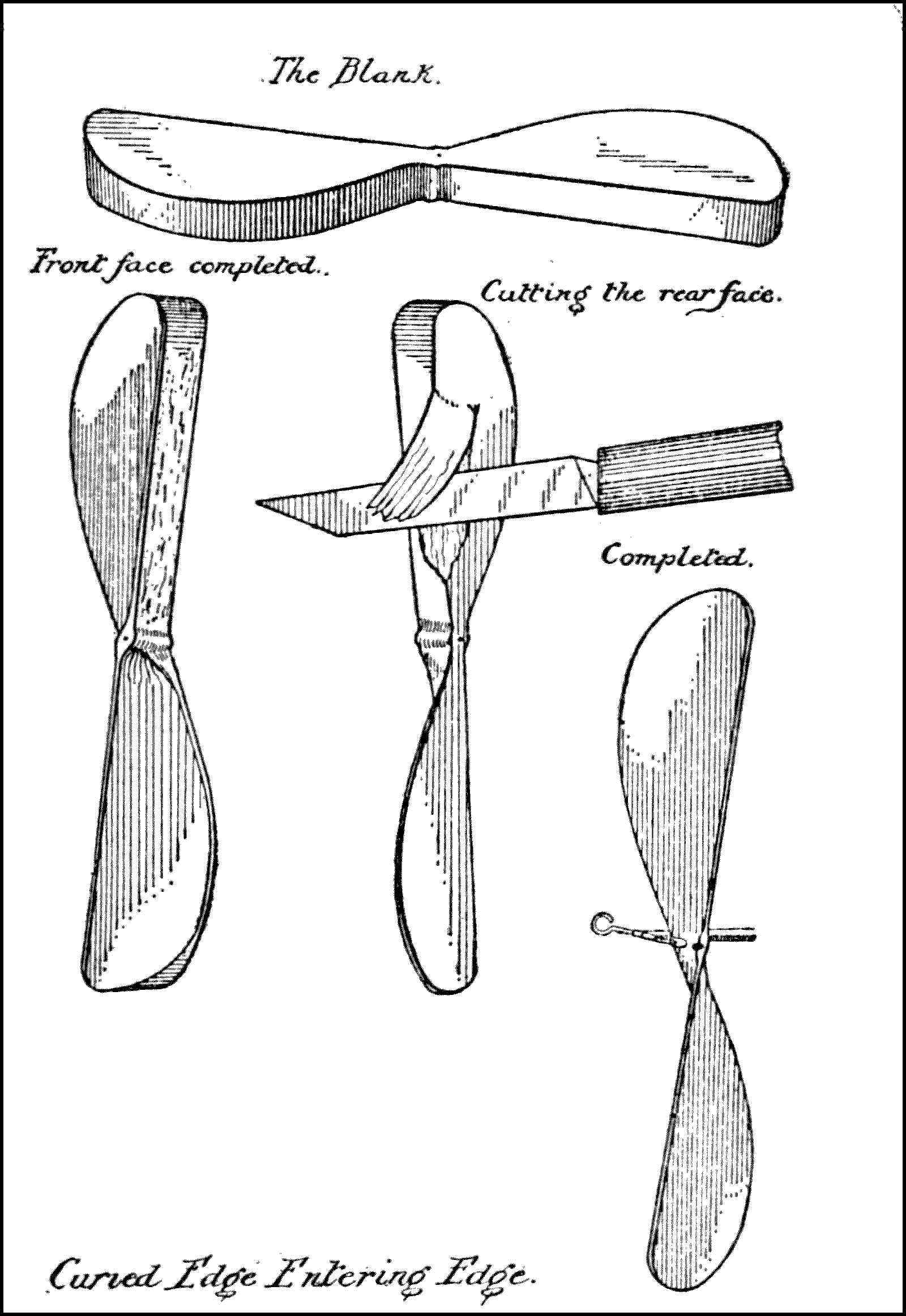

Propellers may be cut from various kinds of wood, but the most suitable, from every standpoint, is white pine. The advantage of using this wood lies in the fact that the propellers may be cut more rapidly and when cut are lighter than those made from most other kinds of wood. When coated with the proper kind of varnish they are sufficiently strong for ordinary flying. Wood selected for propellers should be free from knots, holes and other imperfections and it is very desirable that it should be of perfectly straight grain.

A piece of such clear white pine 8″ long, 1″ wide and ³⁄₄″ thick should be selected and on one side marked Top. A tracing of the propeller similar in design to Figure 1, should be laid on this piece of wood and an imprint of the propeller design drawn on the Top side.

To find the center of the block two lines should be drawn from the opposite corners, their point of meeting being approximately in the center—near enough for all practical purposes to insure greater accuracy. Similar lines should be drawn from the corners on the Bottom side of the block of wood. A hole ³⁄₃₂ of an inch in diameter should be bored through the center thus obtained, through which the propeller shaft will be inserted when the propeller is finished. The two sections of the propeller blades drawn in diagrammatical form on the Top of the block, should be marked respectively Blade 1 and Blade 2, as shown in diagram 1. The block is then ready for the commencement of the actual cutting. In cutting out the propeller, Blade 1 should be held in the left hand and the knife in the other, with the blade of the knife on the straight edge of Blade 1. The cutting should be carried out very carefully with attention constantly paid to Fig. 2, and should be stopped when the line shown in Fig. 2 has been reached. The semi-blade should then be sandpapered until a small curve is obtained by which the propeller will be enabled to grip the air.

To cut Blade 2, Blade 1 should be held in the left hand and Blade 2 cut until the line shown in Fig. 3 is reached, after which the sandpapering process is carried out in the same manner as in the case of Blade 1. During all of the foregoing operations it must be clearly borne in mind that the Top of the blank propeller must always face upward, and the cutting should always be done on the Straight lines. Should the straight edge be cut on one edge of the blank propeller and the curved edge on the other, it would result in the blades of the finished propeller having a tendency to push in opposite directions and in consequence no propulsion of the model would be possible.

Attention should next be turned to the back of the propeller blank on which the manner of cutting is exactly like that suggested for the top side, with the exception that instead of cutting along the Straight lines, the cutting is done[13] along the Curved lines. In this part of the work great care is to be exercised for by the time the necessary cutting has been done on the back of the propeller the entire structure is very fragile and one excessive stroke of the knife may result in destroying the entire propeller blade. By constantly holding the wood to the light it is possible to determine with a reasonable degree of accuracy the evenness of thickness. To complete the Bottom side of the propeller the blade should be sandpapered as was the top.

The method of cutting the second propeller is exactly that used in cutting the first propeller, only that the diagram shown in Fig. 4 should be used. This will result in two propellers being made that will revolve in opposite directions in order to produce even and balanced propulsion. If both propellers revolved in the same direction the effect would be to overturn the model.

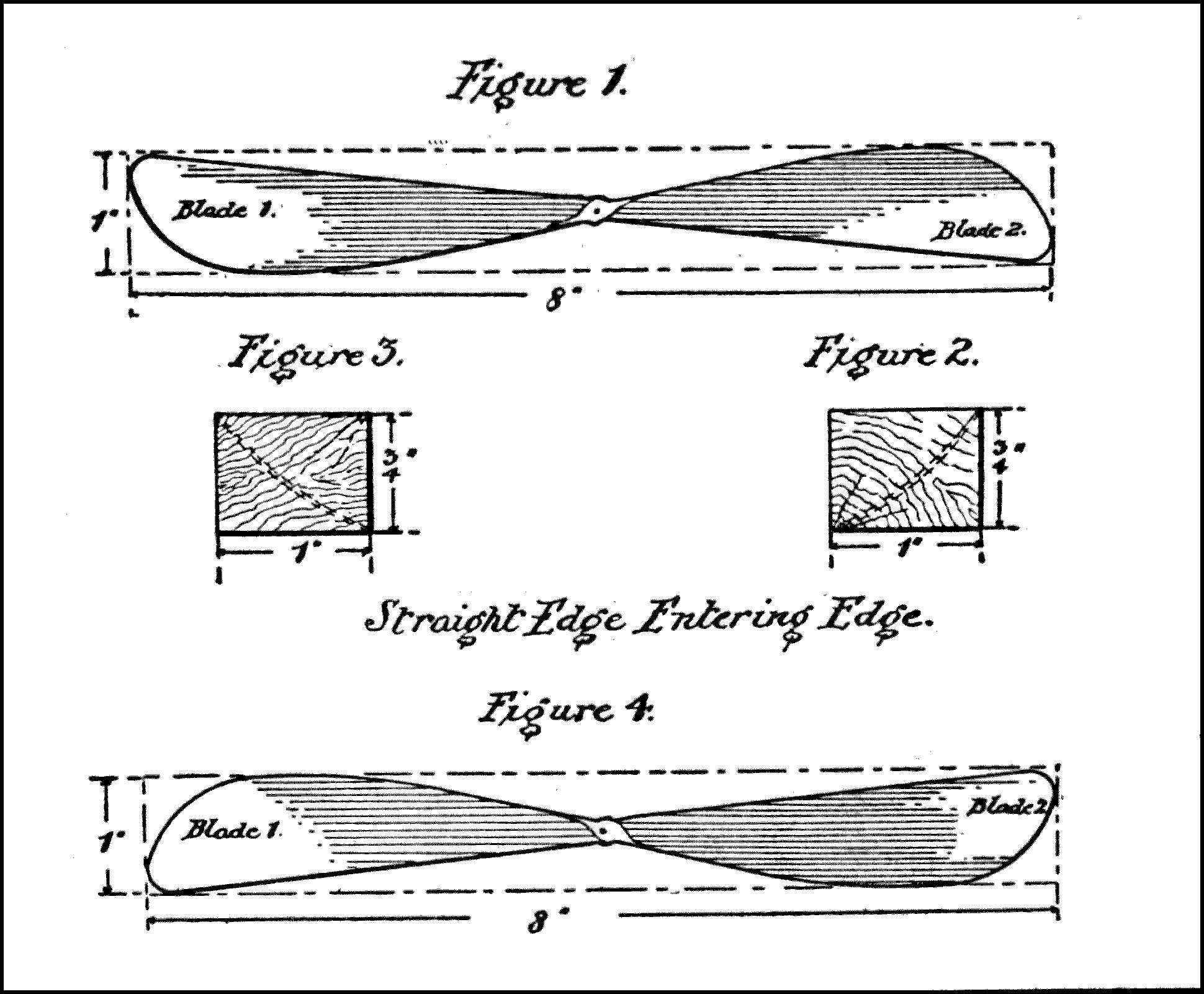

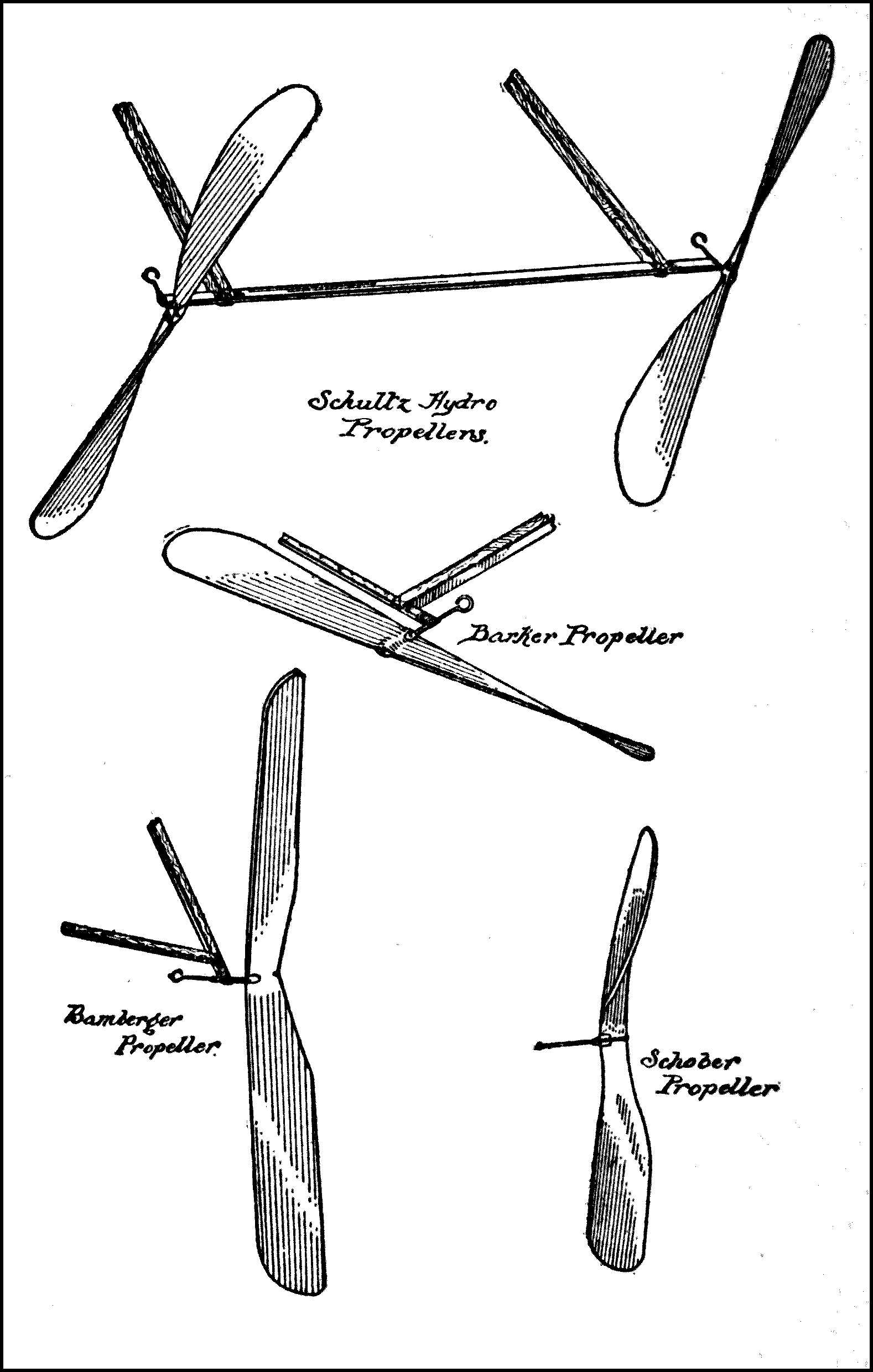

In diagram 1 the propellers are shown with the straight edge as the entering or cutting edge of the blade. Some of the model builders prefer the curved edge as the cutting edge (diagram 2). It is significant that Mr. Frank Schober, a well known model constructor, tested both designs on his compressed air driven model, and while both propellers were the same in weight, diameter and pitch, the one having the straight edge as the cutting edge was found one-third more efficient.

When the propellers have been given a light coat of shellac they should be laid aside until the assembling of the complete model.

By following the foregoing instructions a simple and effective set of propellers will be produced. But in order to vary the experimental practice of the constructor various other diagrams, Nos. 3 and 4, illustrating suitable designs, are provided and can be made by applying the above general theory and using the diagrams herewith.

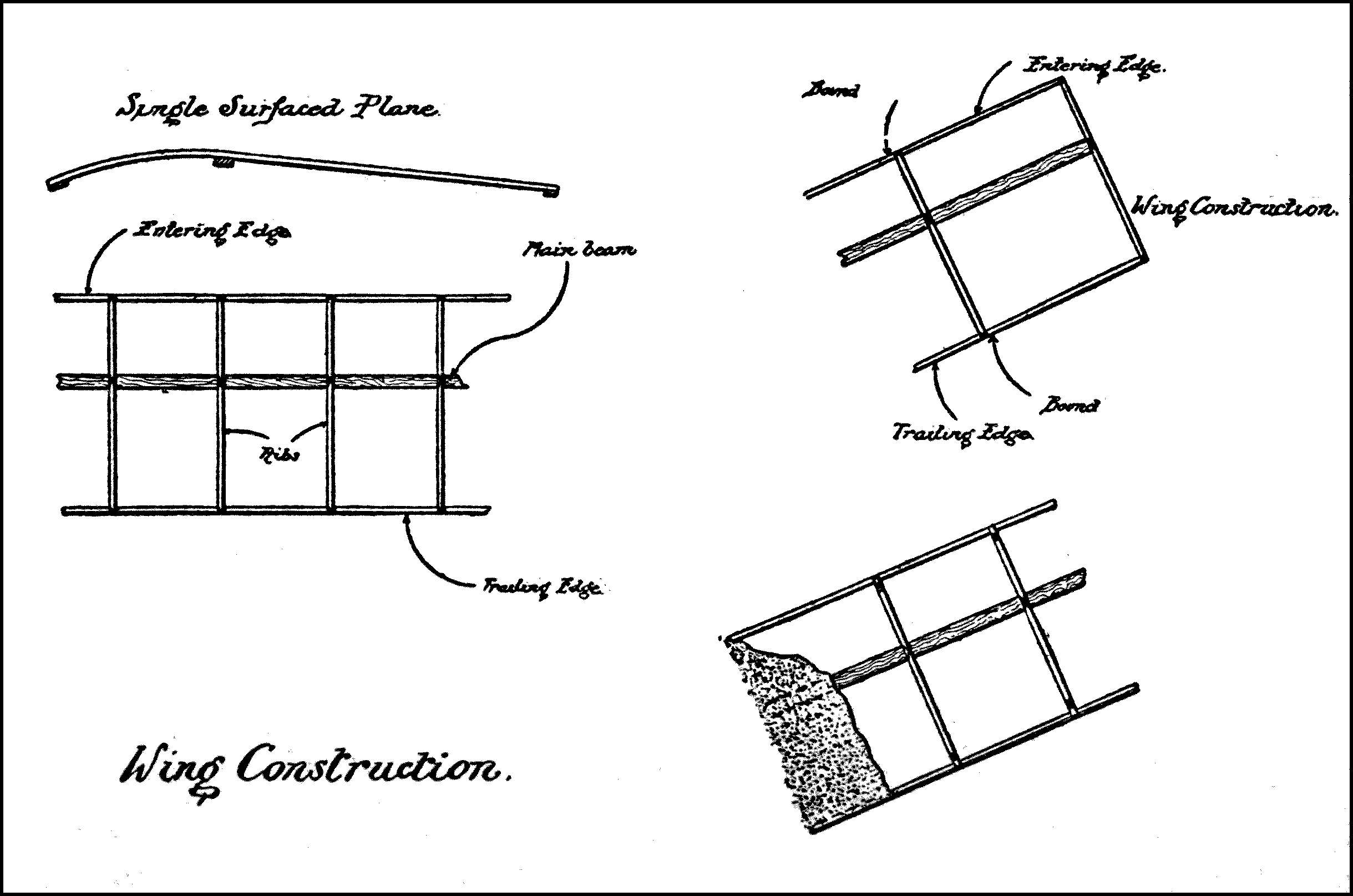

WINGS

One of the most important considerations in the construction of a model is the making of the[16] wings. To obtain the greatest efficiency the wings must be carefully designed, with due attention to whether the model is being constructed for speed, duration or climbing ability. Attention should be given to streamline construction; that is, the parts of the wing should be so assembled that the completed wing would offer the least possible resistance to the air, if the best results are to be obtained.

For the main wing three strips of spruce, each 30″ in length, two of them being ³⁄₁₆″ × ¹⁄₄″ and the third ³⁄₁₆″ × ¹⁄₁₆″ are required. To make them thoroughly streamline all edges should be carefully rounded off and all surfaces should be smooth. A strip of bamboo at least 20″ long, ¹⁄₂″ wide, ¹⁄₈″ thick, should be cut into pieces, each piece to be 5 in. long. To secure the necessary curve, ¹⁄₂″ depth, the pieces of bamboo should be held in steam and slowly bent in a manner closely resembling the skids of an ordinary bobsled. When the curvature has been obtained, care should be exercised in cutting each piece into four longitudinal strips, from which twelve should be selected to be used as ribs, each to be ¹⁄₈″ wide. The bending of the bamboo preliminary to making the ribs is done in order to secure uniformity of curvature.

When this has been done the ribs are ready for fastening to the sticks—entering and trailing edges—and each must be attached an equal distance apart. In order that the ribs may be evenly spaced it is necessary to put a mark every 3″ on the larger stick or entering edge of the wing, and also on the flat stick or trailing edge. The main beam which is of the same dimensions as the entering edge is afterwards fastened across the center of the wing, and does not necessarily need to be thus marked, as it is fastened to the ribs after the ribs have been attached to the entering and trailing edges of the wing frame. By holding the ribs one at a time so that the curved edge rests upon the entering edge where the mark indicates, as shown in diagram 5, they should be fastened thereon by means of thread and glue. The rear end of[19] the rib must be fastened to the trailing edge where the mark indicates, also by thread and glue.

After all ribs have been thus securely fastened to both edges of the frame the third stick, or main beam, should be attached to the frame on the underside, the fastening being made at the highest point of the curve of each rib. This main beam prevents the wing covering from drawing in the end ribs and adds very materially to the strength of the entire wing structure. To cover the wings fiber paper may be used and is a suitable material, but the best results, from a standpoint of flying efficiency and long service, are obtained by the use of China silk.

The frame of the forward wing or elevator is made in the same manner as is the main wing, but it is only 12″ in span by 4″ in chord, and is constructed without the use of a main beam. This wing has only five ribs which are made in the same manner as those for the rear wing, and each is placed a distance of 3″ apart.

A piece of silk measuring 2″ longer and 2″ wider than each of the wing frames should be used in covering the wings, and this can be held in position by the use of pins prior to the actual sewing. The extra inch of silk on all sides of the frame is placed around the under side of the frame—in order that it can be made thoroughly taut when the silk has been sewn close to the edges of the frame. After the silk has been sewn close to the edges the pins may be removed and the surplus silk that hangs from the under side of the frame may be cut off. To make this silk airproof it should be coated with a thin coat of shellac or varnish and the wings should be thoroughly dry before being used. This coating, in addition to airproofing, will assist in making the covering perfectly taut, and also in making the wing ready for service when the entire model is ready to be assembled.

FRAME

As all other parts of the model are attached to the frame in addition to its having to stand[22] the strain of the tightly wound rubber strands which serve as the motive power for the model, it must be made strong. It is therefore necessary to exercise care and judgment in making certain that the different units that make up the frame are rightly proportioned and are of the proper material. Just as in the large sized aëroplanes there are many types of bodies, so there are many different types of frames in use in model construction, but the standard, and for all practical purposes the best frame, resembles the letter A in shape, hence the name A type. The lightness of the frame depends entirely on the materials used and the manner in which it is constructed.

Some model flyers use but a single stick for the frame, but generally the A type frame is preferred for the reason that it is more durable, the wings can be more securely attached to it, and that it is possible of developing very much better results.

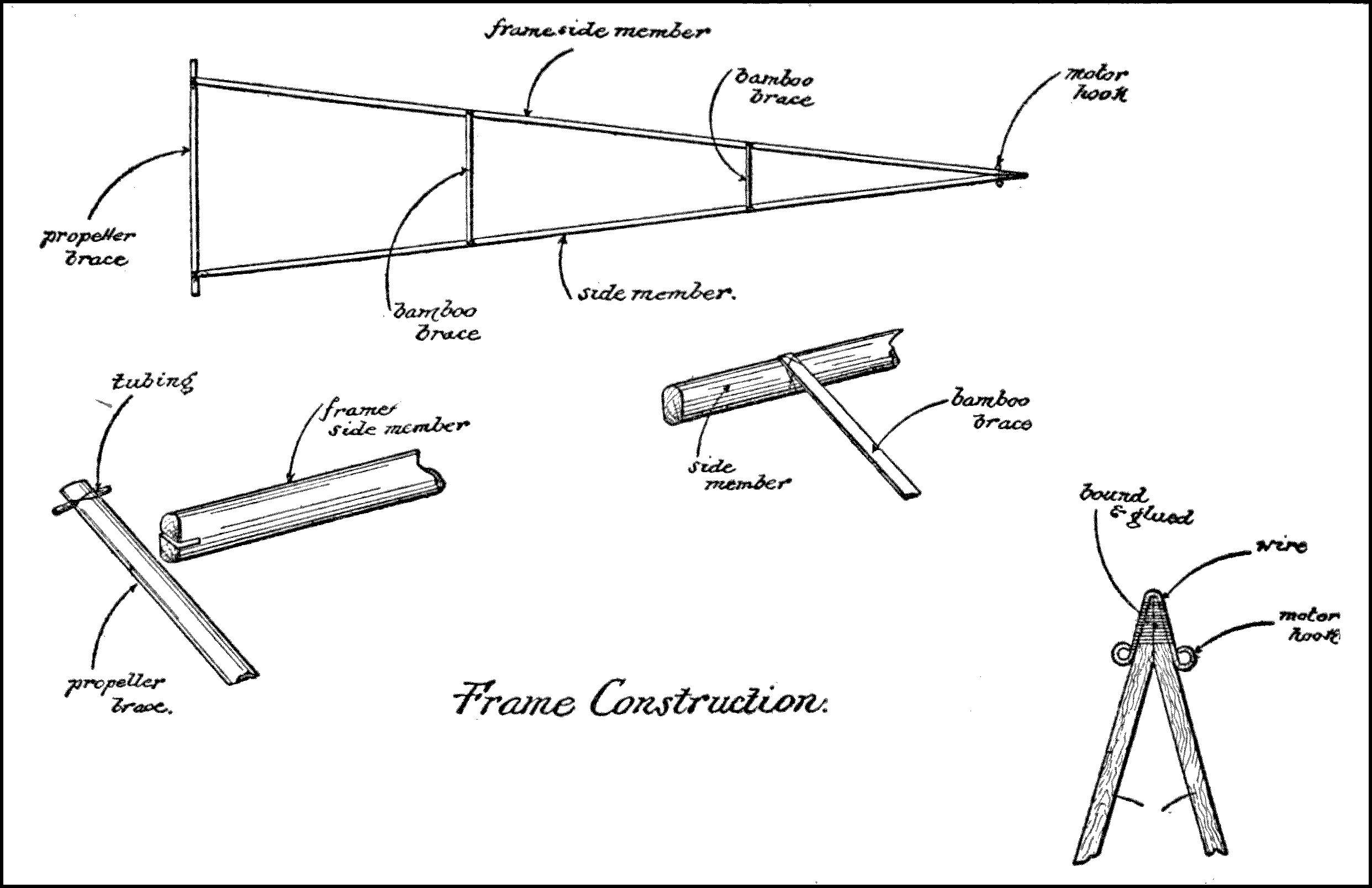

To construct such an A type frame 2 main sticks to serve as frame side members are necessary and are made from spruce. Each member should be 36″ in length, ³⁄₈″ in depth by ¹⁄₄″ in width. By rounding the edges and smoothing the various surfaces with sandpaper streamline effect will be secured and will add to the efficiency of the machine as well as to its appearance. When the side members are placed in A formation the extremity of the sticks at which they meet should be so tapered in the inner sides that when they meet and are permanently fastened the result will be a continuance of the general streamline effect. The permanent fastening of the frame side members at the point of the A may be accomplished by using either strong fish glue or better, a good waterproof glue and then have the jointure reinforced by securing a piece of ³⁄₃₂″ steel wire 3″ in length and placing the center of it at the point of the A, afterwards bending the wire along either outer edge of the frame side members, putting as much pressure on the wire as the strength of the structure will permit; after this the reinforced jointure should have thread[24] wound around it to insure even greater strength. About ¹⁄₂″ of the wire on each side of the point should be left clear and afterwards turned into a loop as shown in diagram 6, for the purpose of attaching the hooks that hold the rubber strands. To hold the side members apart at the rear end and for a propeller brace, a piece of bamboo 10″ long, ¹⁄₈″ thick by ¹⁄₂″ in width is required and this should be fastened to the extreme rear ends of the frame side members, allowing the propeller brace to protrude on either side 1¹⁄₂″ as illustrated. To put the propeller brace in position a slot ¹⁄₂″ deep by ¹⁄₈″ wide should be cut into the rear ends of the frame side members for the reception of the propeller brace. After the brace has been placed in position the outer edge should come flush with the rear ends of the side members. To hold the brace in place thread and glue should be used in the same manner as described for the point of the frame side members. Between the point of the frame and the propeller brace two bamboo pieces, one 9″ long and another 2¹⁄₃″ long, should be used as braces for the general strengthening of the structure. The longest piece should be secured across the top of the frame about 9″ from the rear and the shorter piece about 9″ from the point.

When these two braces are in position the next matter that calls for the attention of the constructor is the matter of getting into position at the two outer extremities of the propeller brace bearings for the propellers. For this purpose two pieces of ³⁄₃₂nd inch brass tubing, each ³⁄₄th of an inch long, should be used, and should be fastened to the underside of the propeller brace, at each extremity of that brace, by the use of thread and glue. Sometimes greater efficiency is secured by putting these pieces of bronze tubing about ¹⁄₄″ from the end. Some model constructors make a very neat jointure here by soldering the piece of tubing to a strip of thin brass, which is bent over the end of the propeller brace and bound and glued thereon. In fastening the bronze tubing to the propeller brace it should be so[27] adjusted that it will run parallel to the side members of the frame and will therefore offer the least possible resistance to the shaft of the propeller when the rubber strands have been attached.

When the frame has been completed a coat of shellac should be applied to the entire structure to render it damp-proof.

ASSEMBLING

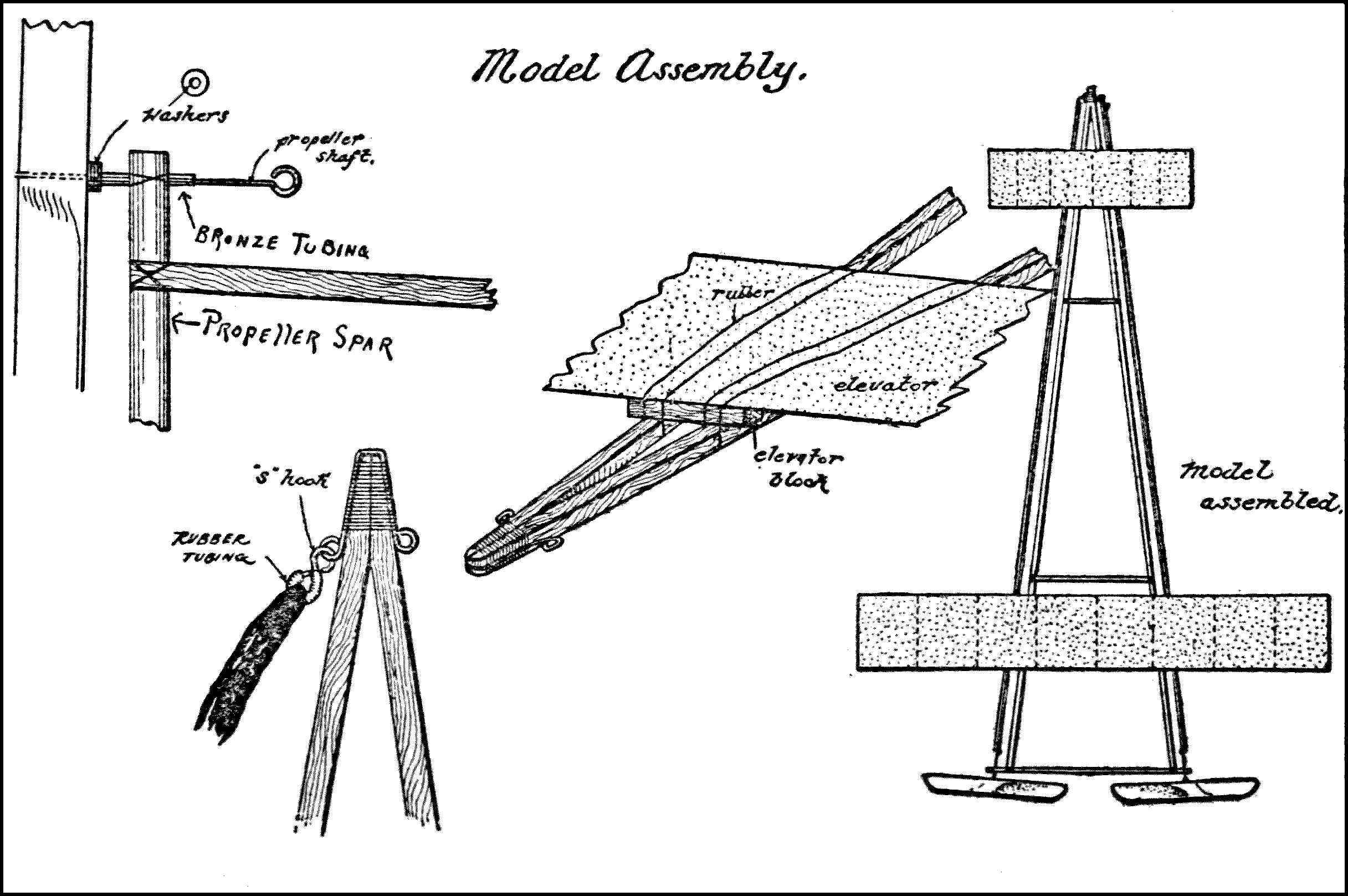

The proper assembling of the parts of the model is as essential to good results as is the designing and making. Parts, although properly made, if improperly placed in relation to each other will very often lead to trouble. Therefore very great care must be exercised in the assembling process.

When all the parts have been prepared and are ready to be assembled the first thing that should be done is to mount the propellers in position. This must be done very carefully on account of the fact that the propeller shafts are easily bent and if bent the result is considerable[28] trouble, for such a bend in the propeller shaft will cause the propeller to revolve irregularly with a consequent loss of thrust. Before inserting the propeller shafts in the tubing 4 washers each ¹⁄₄″ in diameter should be cut from hard metal, and a hole large enough for the propeller shaft to pass through should be bored in the center of each washer. The metal washers should be passed over the straight ends of the shafts which extend from the rear of the tubing, after they have been inserted in the tubing, and in this manner the cutting into the hubs of the propellers which would follow is avoided. The propellers are now to be mounted and this is accomplished by allowing the ends of the shafts, which extend out from the rear of the tubing, to pass through the hole in the hub of each propeller. In mounting the propellers it is absolutely necessary to have the straight edge of the propellers to face the point or front end of the model. The propeller shown in Fig. 4 of diagram 1, should be mounted on the left side of the frame to revolve[29] to the left, while the propeller shown in Fig. 1 should be mounted on the right side of the frame to revolve to the right. When the propellers have thus been mounted the one-half inch of shafting which extends out from the hubs of the propellers should be bent over to grip the propeller hub and thereby prevent the shaft from slipping during the unwinding of the rubber strands. For the reception of the rubber strands to provide motive power a hook must be formed in each shaft and this can be done by holding securely that portion of the shaft which extends toward the point of the model, while the end is being formed into a hook as illustrated in diagram 7.

Eighty-four feet of ¹⁄₈th″ flat rubber is necessary to propel the model. This should be strung on each side from the hooks (see diagram) at the front part of the model to the propeller shafts at the rear of the model. In this way 14 strands of rubber will be evenly strung on each side of the frame. To facilitate the winding of the rubbers two double hooks made of ³⁄₃₂″ steel wire to resemble the letter S, as shown in diagram 7, should be made. One end of this S hook should be caught on the frame hook, while the other end is attached to the strands of rubber, and to prevent the possible cutting of the strands a piece of rubber tubing is used to cover over all wire hooks that come in contact with the rubber strands providing propelling power.

The wings are mounted on the top side of the frame members by means of rubber bands and in placing them upon the frame it should be noted that the entering edge of each wing must face the point or front of the model. The wings must be so adjusted on the frame that they result in perfect side balance which means that there is an even amount of surface on either side of the model. To secure a longitudinal balance it will be found that the entering edge of the main wing should be placed approximately 8″ from the propeller brace or rear of the model, and the entering edge of the small wing or elevator approximately 6″ from[32] the point. But it is only by test flying that a true balance of the entire model can be obtained. To give the necessary power of elevation (or lifting ability) to make the model rise, a small block of wood about 1″ long by ¹⁄₄″ square must be placed between the entering edge of the small wing and the frame of the model.

After the wings have been thus adjusted and a short test flight made to perfect the flying and elevating ability of the model, and this test flight has been satisfactory, the model is ready for launching under its full motive power.

LAUNCHING

In the preliminary trials of a model close attention must be paid to the few structural adjustments that will be found to be necessary and which if not properly and quickly remedied will result in the prevention of good flights or even in possible wrecking of the model. Careful designing and construction are necessary but it is equally as important that the model should be properly handled when it is complete and ready for flying.

The approximate idea of the balance of a model can be secured by launching it gently into the air. If the model dives down point first it indicates that the main wing should be moved a little toward the front. If it rises abruptly the main wing should be moved slightly toward the rear. In this way by moving the wing forward or rearward until the model glides away gracefully and lands flat upon the ground, proper adjustment of the balance can be effected. If when launching from the hand the model should curve to the left the main wing should be moved slightly to the left of the frame members. And if the curve is to the right the main wing should be moved in that direction. This process can be continued until the model flies in the course desired.

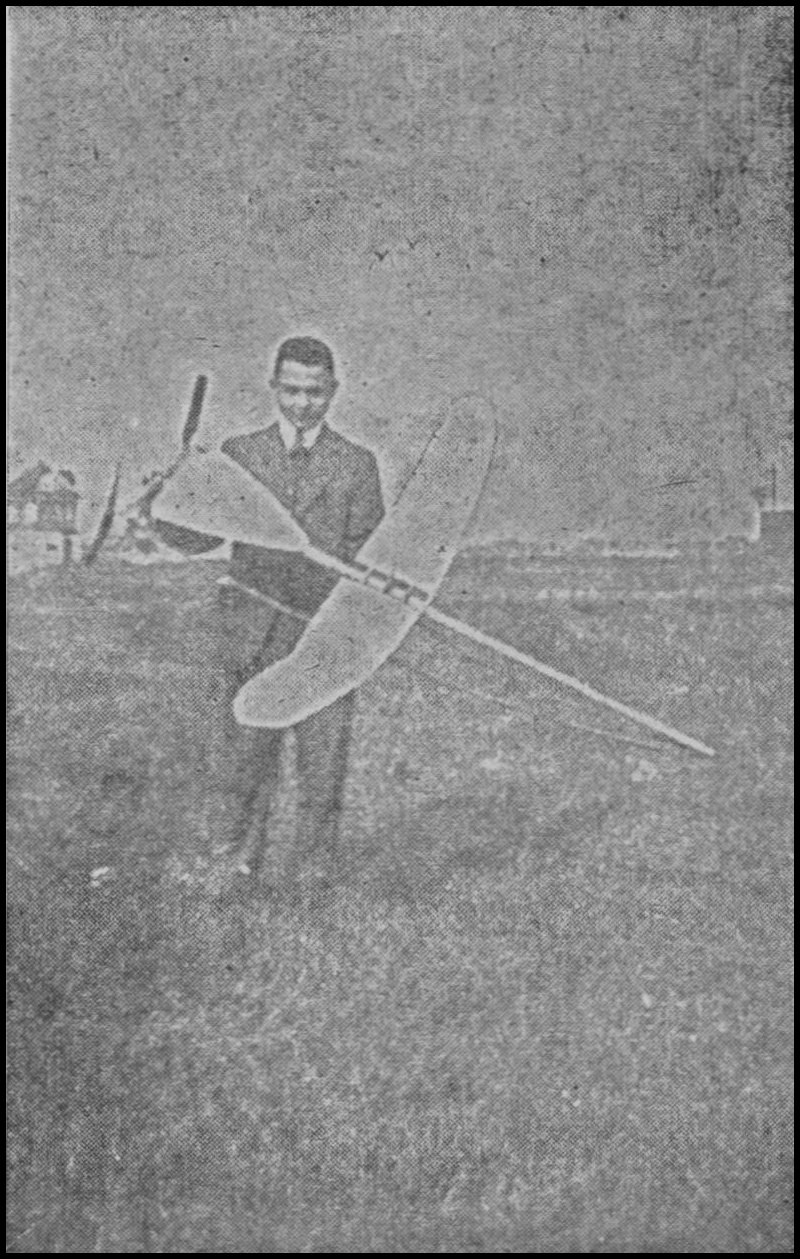

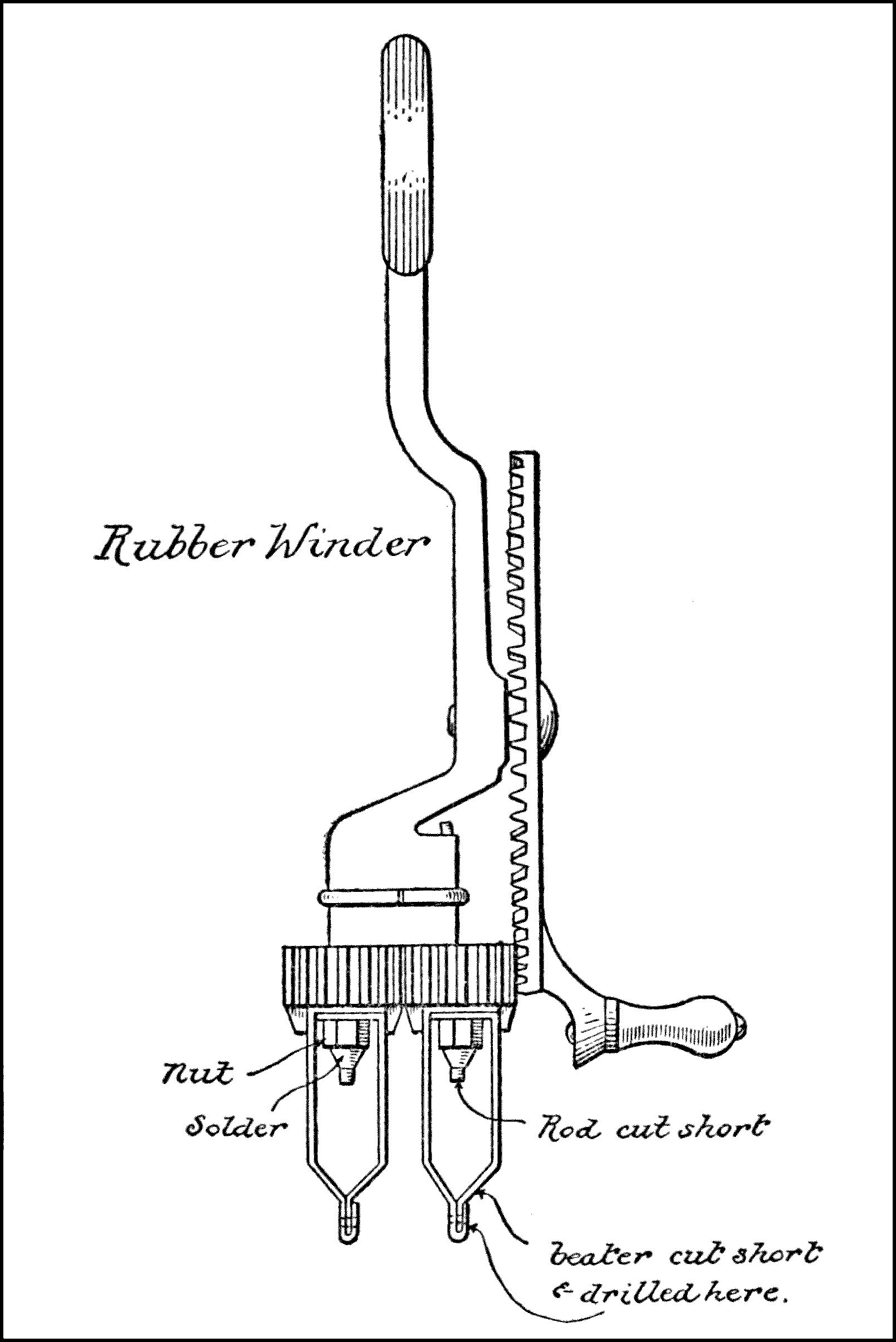

The winding of the rubber strands to get the necessary propelling power is an important detail. The model should be firmly held by some one at the rear with the thumb on either side[34] member, pressing down on the jointure and with the four fingers of each hand gripping the under side of the frame members, and in this way holding the model steady and until the rubber strands have been sufficiently wound. With the hands in this position the propellers, of course, cannot and should not revolve. The hooks attached to the rubber strands at the point or front of the model should be detached from the side members and affixed to the hooks of the winder. A winder may be made from an ordinary egg beater as is shown in diagram 8. When the hooks attached to the rubber strands at the point of the model have been affixed to the winder the rubbers should be stretched four times their ordinary length (good rubber being capable of being stretched seven times its length) and the winding commenced, the person winding slowly moving in towards the model as the strands are wound. If the ratio of the winder is 5 to 1, that is if the rubber is twisted five times to every revolution of the main wheel of the winder, 100 turns of the winder will be sufficient for the first trial. This propelling power can be increased as the trials proceed. When the winding has been accomplished the rubber hooks should be detached from the winder hooks and attached to the hooks at the front of the side members as shown in the diagram.

In preparation for launching, the model should be held above the head, one hand holding it at the center of the frame, the other in the center of the propeller brace in such a way as to prevent the propellers from revolving. When the model is cast into the air if it is properly adjusted it will fly straight ahead.

A precaution which is sometimes worthy of attention before the launching of the model under its full power is to test out the propellers to find out whether or not they are properly mounted and whether they revolve evenly and easily. To do this the rubber strands may be given a few turns, enough to revolve the propellers for a brief period, while the machine is held stationary. If the shafts have been properly[37] inserted in the hubs of the propellers and have not been bent during the winding of the rubbers, the propellers will revolve evenly and readily. If the propellers revolve unsteadily it indicates that there is a bend in the propeller shafts or the propellers have not been properly balanced. If the trouble is a bend in the shaft, it must be removed before the model is launched on actual flight. If the propeller does not revolve freely the application of some lubrication (such as vaseline) to the shaft will eliminate this trouble. With these adjustments made satisfactorily, the model can be launched with the anticipation of good flying.

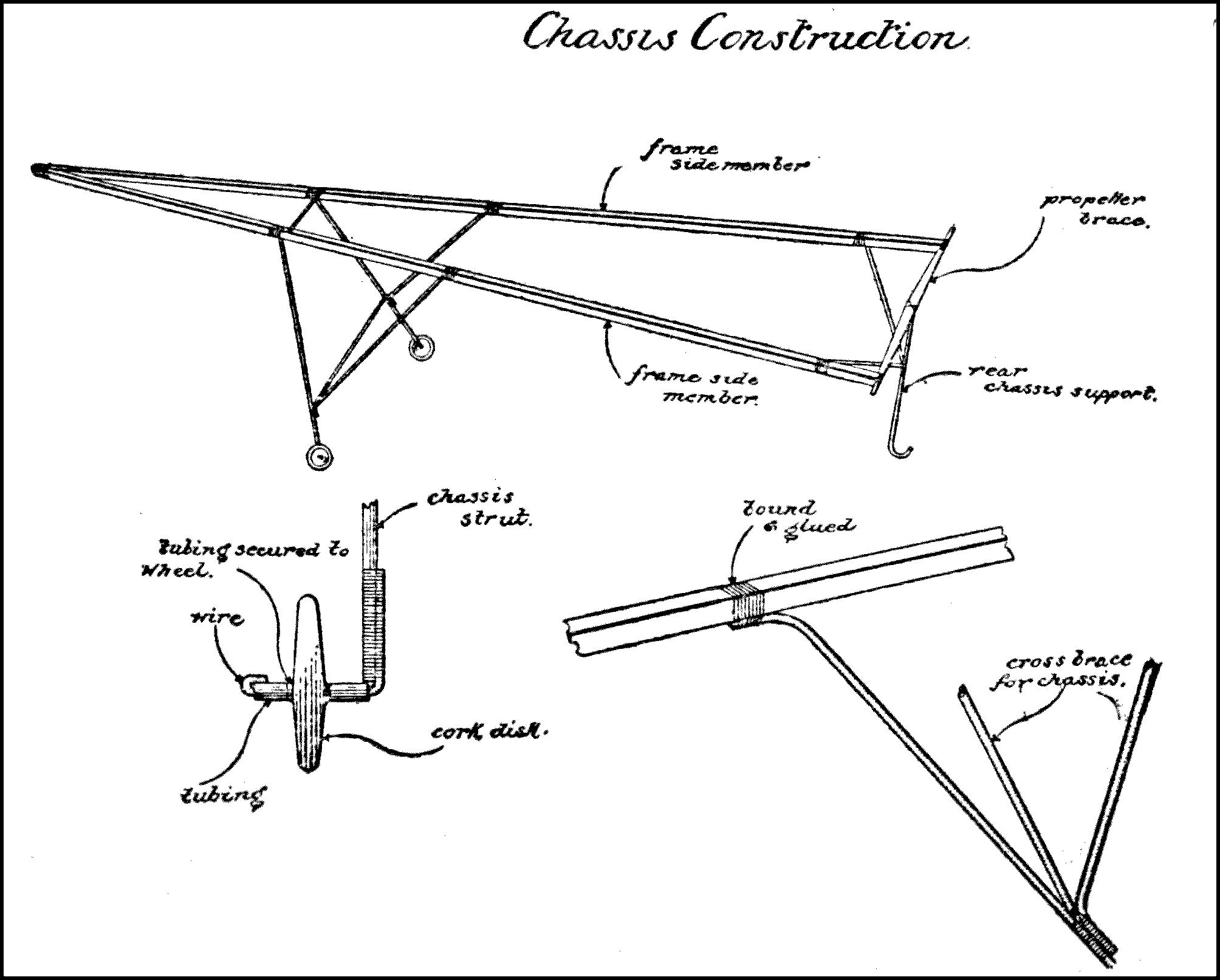

CHASSIS

The preceding instructions and discussions have dealt with different parts of a simple model to be used as a hand-launched type of model. The experience which will come as the result of flying this type of model for a period will undoubtedly tend toward a desire on the part of the constructor to make his model more nearly represent a large sized aëroplane and will make him want to have his model rise from the ground under its own power. Such a model is known as an R. O. G. type, that is, rises off the ground.

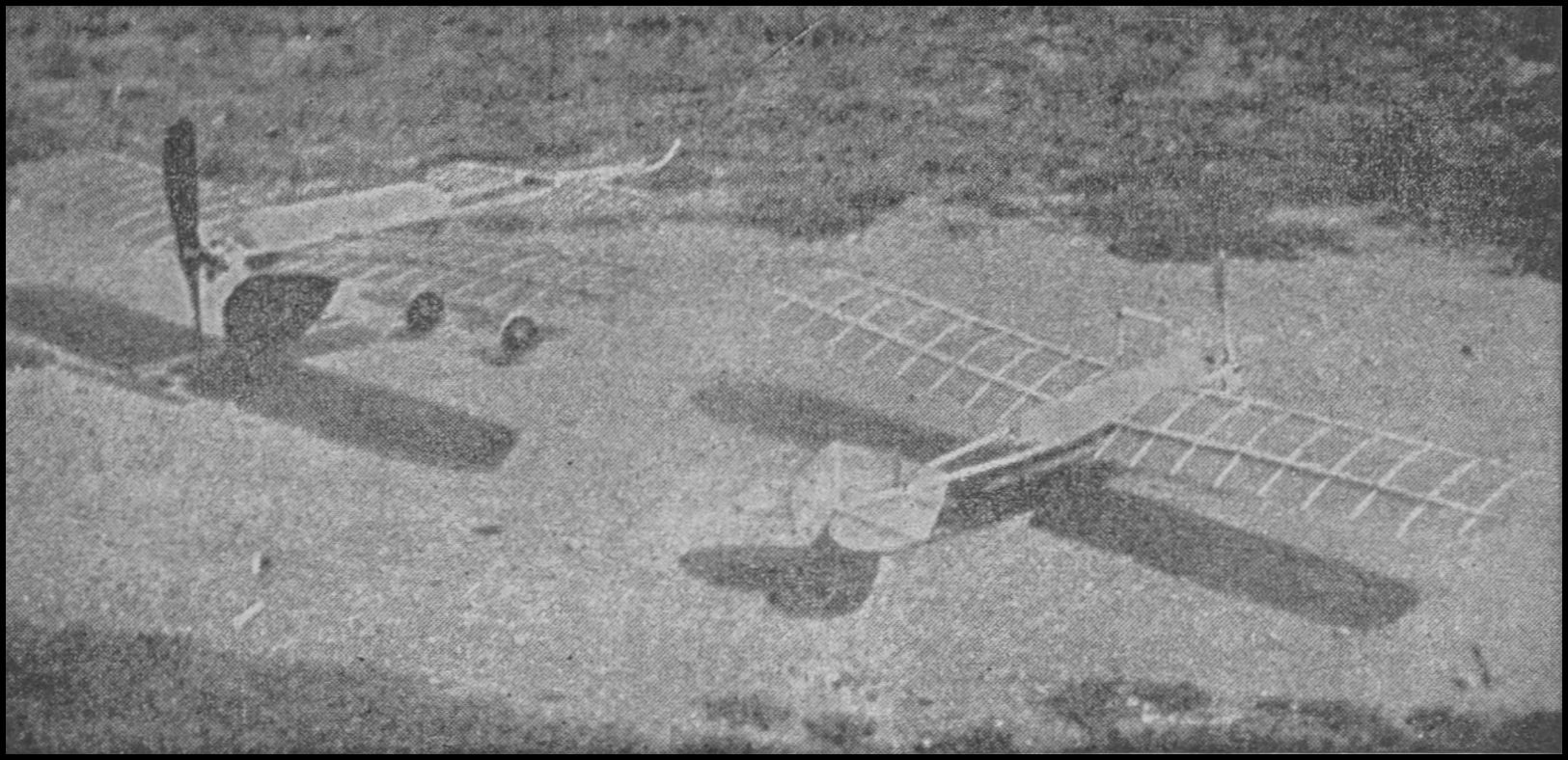

To meet this desire all that it is necessary to do is to make a chassis, or carriage, which can be secured to the frame of the model, and with extra power added, will result in a practical R. O. G. model. In constructing such a chassis or carriage it is necessary to bear in mind that it must be made sufficiently strong to withstand the shock and stress which it will be called upon to stand when the model descends to the ground.

For the main struts of the chassis two pieces of bamboo each 9″ in length are needed and these should be bent over 1″ on one end as shown in the diagram, that they may be fastened to the under side of the frame members, one on either side, at a point on that member 12″ from the front. Two similar pieces of bamboo, each piece about 7″ in length, are required to act as braces between the frame members[40] and the main chassis struts. Each end of each of the braces should be bent over in the same direction and in the same manner as that described for the main strut so that the fastening to the main frame member and the main chassis strut may be accomplished. Steam may be used in bending the ends of the pieces of bamboo. To make the landing chassis sufficiently stable to withstand landing shocks a piece of bamboo 9″ should be fastened from either side of the main chassis struts at the point where the chassis brace on either side meets with main strut. The ends of this cross brace should be bent in similar fashion to the other braces to enable its being fastened easily and securely.

Two small wheels constitute the running gear for the front part of the chassis, for which two pieces of ¹⁄₁₆″ steel wire each 2¹⁄₄″ long are required. These small wires are fastened to the bottom ends of the main struts, and to accomplish this the wire should be bent in the center at right angles; one leg of the angle is[41] attached to the bottom end of the main strut as shown in the diagram. Disks for wheels may be cut from a bottle cork which should be ³⁄₄″ in diameter by approximately ¹⁄₄″ in thickness. The edges should be rounded off to prevent chipping. Before mounting the wheels on the axles which have been provided by the wires attached to the bottom of the main struts, a piece of bronze tubing ³⁄₃₂″ inside diameter and ³⁄₁₆″ long should be inserted in the center of each disk. To secure the least possible resistance on the revolutions of the wheels, there should be placed on the wire axles pieces of bronze tubing similar in diameter and ¹⁄₈″ in length on either side of the wheel (see illustration). When the wheel is thus placed in position with the pieces of bronze tubing on either side about ¹⁄₄″ of the axle wire will extend from the outward end of the outside piece of tubing. This should be bent over the tubing to prevent its falling off and at the same time hold the wheel securely in position.

For the rear skid a piece of bamboo 6″ long[42] is used, one end of which is curved as in a hockey stick so that it will glide smoothly over the ground. The other end of the rear skid should be bent over about ¹⁄₂″ so that it can be securely fastened to the propeller braces, as illustrated in the diagram. Two 7″ pieces of bamboo are required to act as braces for the rear skid. Both ends of each brace strut are bent over ¹⁄₂″ in the same direction, one end of each strut is securely fastened to a side member 3″ from the rear and the other end of each strut is fastened to the rear skid, at their point of meeting as shown in diagram 9, the method of attaching being the same as in the case of the forward portion of the chassis. All joining should be accomplished by first gluing the braces and then binding with thread. When completed, the rear skid should glide along the ground in bobsled fashion, thus preventing the propellers from hitting the ground.

In making such a chassis or carriage the endeavor should be made to use, as near as possible, the same weight of material on either side of the model so as little interference as possible will be made with the general balance of the model in flight.

PONTOONS

Having satisfactorily developed the hand launched model and the model rising off the ground under its own propulsion the constructor will next turn his mind to the question of having his model rise under its own power from the surface of the water in the fashion of passenger-carrying hydros and flying boats. This will be accomplished by the use of pontoons attached to a specially designed chassis.

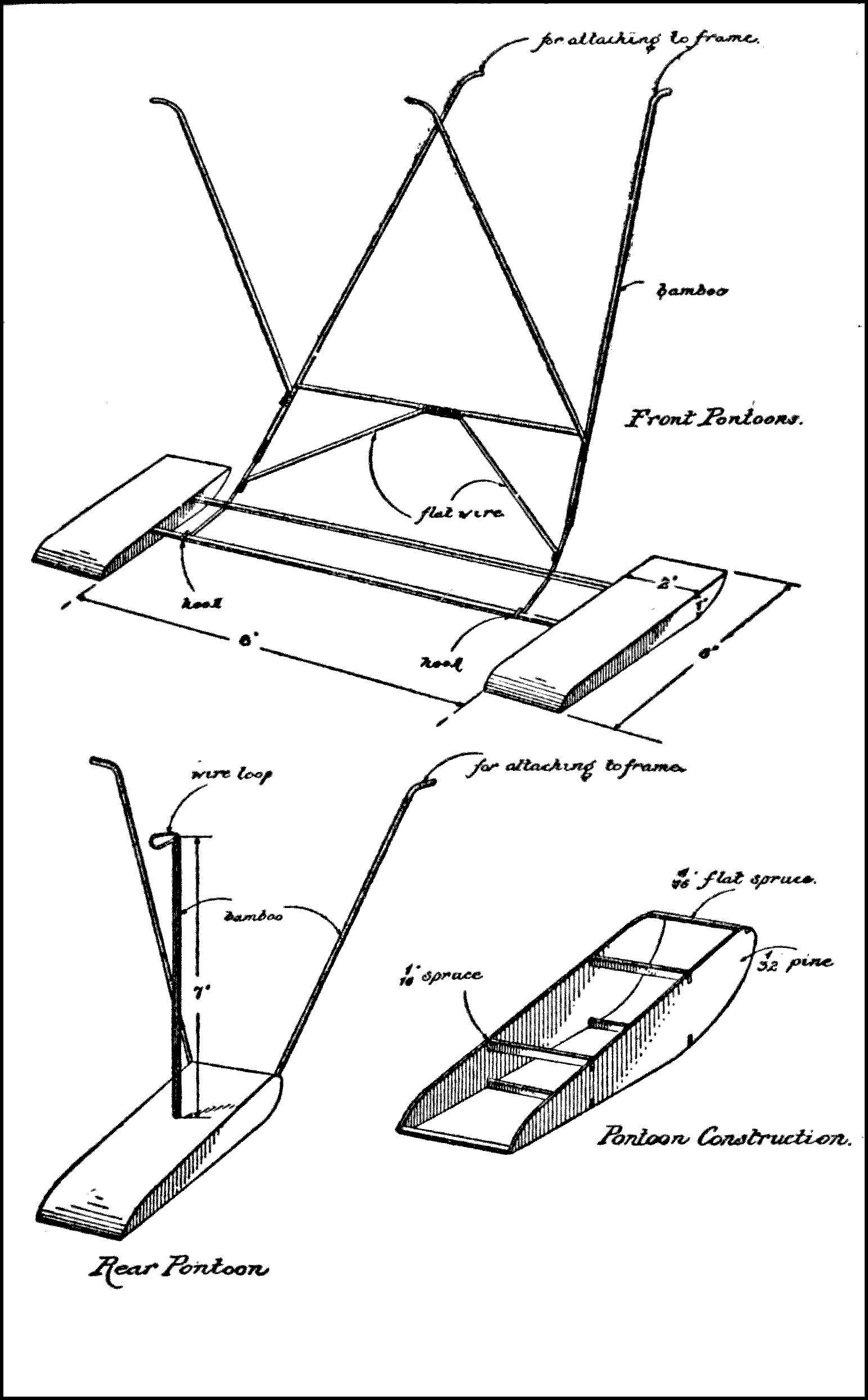

Three pontoons are necessary and these should be made as light as possible. Each pontoon should be made 6″ long, 1″ deep toward the forward part, by ³⁄₄″ at the rear and 2″ wide. The side members of each pontoon are made from pieces of thin white pine wood ¹⁄₃₂nd of an inch thick, slightly curved up at the front and sloped down toward the rear. Small niches should be made on the top and bottom sides of the pontoons into which the cross[45] braces are inserted and glued. Further reference to diagram 10 will show that at the extreme forward end of the sides a cut is made large enough to receive a flat piece of spruce ¹⁄₁₆″ wide. Another cut of the same dimensions is made at the extreme rear end. Still further cuts are made on the top and bottom sides of the pontoons, the forward cuts measuring 1¹⁄₂″ from the front and the rear cuts 1¹⁄₂″ from the rear, to join the sides of the pontoons as illustrated in diagram 10. Six pieces of ¹⁄₁₆″ flat spruce are required for the rear pontoon, the ends of which are held in position by glue. For the forward pontoon only 4 braces are required in so far as the ends of the two main brace spars of the forward part of chassis are inserted in the cuts on the top sides of the pontoon. These brace spars measure 10 inches in length and are made from bamboo ¹⁄₈th inch in diameter, which necessitates enlargement of the cuts on the top sides of the forward pontoons so that the extreme ends of the spars can be inserted in the cuts in the place[46] of the braces. To complete the rear pontoon and prepare it for covering, three strips of ¹⁄₈″ bamboo are required for struts. Two of these strips should measure 9″ in length and should be attached to the front of the pontoon on the inner side as shown in diagram 10. Thread and glue should be used in attaching the ends of the strips to the pontoon. To enable fastening to the frame the upper ends of the bamboo strips should be bent over about ¹⁄₂″. The third strip should measure 8″ in length and is attached to the upper and lower braces toward the front of the pontoon as shown in the diagram. It is necessary that this strip be secured in the approximate center of the pontoon to insure a good balance. For the purpose of securing the upper end of the third strut to the center of the propeller brace a piece of wire 1¹⁄₂″ long should be secured to the upper end of the strut and looped as shown in diagram 10. The three pontoons should now be covered with fiber paper and it is necessary to exercise care to avoid punctures. For[47] the purpose of coating the fiber paper to render it waterproof, a satisfactory solution can be made by mixing banana oil with celluloid until it has attained the desired thickness, after which it should be applied to the covering of the pontoons with a soft brush.

For the main strut of the forward portion of the chassis two pieces of ¹⁄₈″ bamboo, each 11″ in length, are required and these should be bent over 1″ on one end as shown in the diagram, that they may be fastened to the under side of the frame members, one on either side at a point on that member 11″ from the front. Two similar pieces of bamboo, each piece 8″ in length, are required to act as braces between the frame members and the main chassis struts. Each end of the braces should be bent over in the same direction and in the same manner as that described for the main struts so that the fastening to the main frame member and the main chassis struts may be accomplished. Steam or an alcohol lamp may be used in bending the ends of the pieces of[48] bamboo. To make the chassis sufficiently stable a piece of bamboo 7¹⁄₂″ should be fastened from either side of the main chassis struts at the point where the chassis brace on either side meets with the main strut. The ends of this cross brace should be bent in similar fashion to the other braces to enable its being fastened easily and permanently.

For the accommodation of the pontoons two strips of flat steel wire, each 4″ in length, should be attached to the ends of the main struts, about one inch from the bottom, the farthest ends should be bent to grip the second spar which joins the pontoons. Note diagram 10.

To further strengthen the chassis a strip of flat steel wire sufficiently long enough should be bent so that ¹⁄₂″ of the central portion can be securely fastened to the center of the cross brace as shown in diagram 10. The two outer ends should be bent down and are fastened to the wires which are attached to the bottom ends of the struts. This method of attaching the forward pontoons enables the constructor to adjust them to any desired angle and also detach them when not in use.

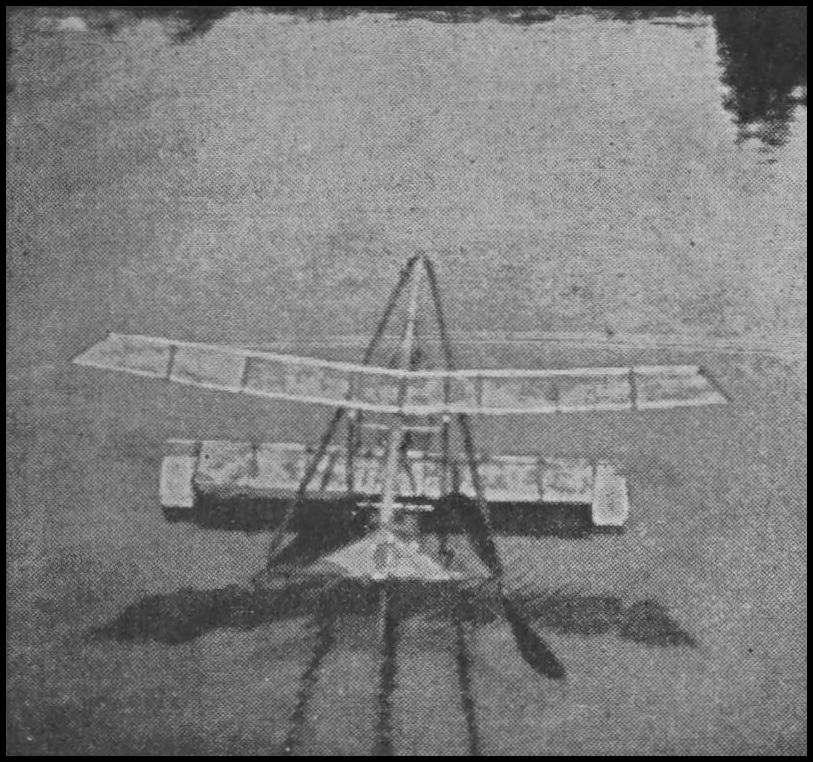

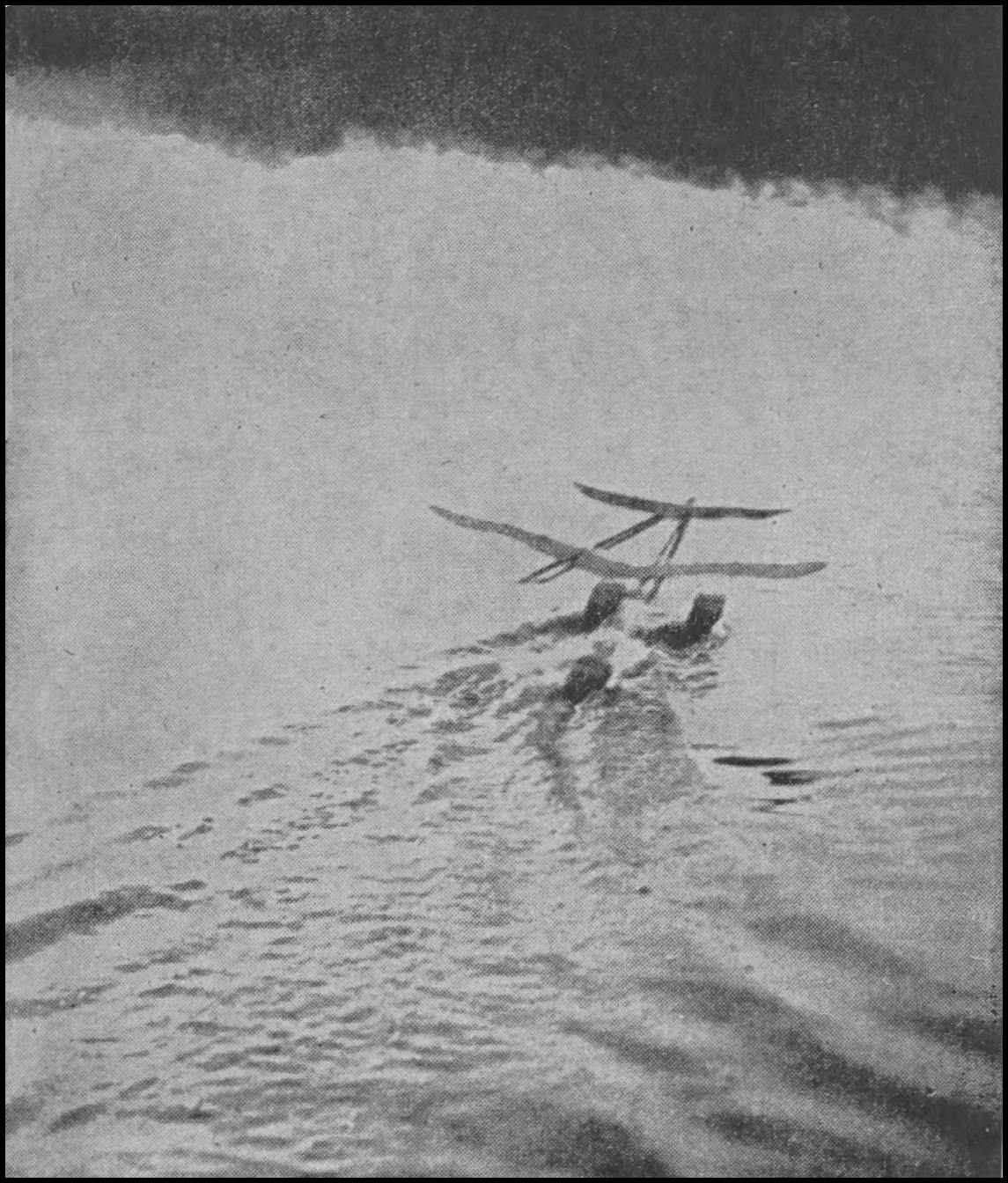

A model hydroaëroplane is one of the most interesting types of models and if properly taken care of will afford the constructor many pleasant moments.

LAUNCHING AN R. O. G. OR MODEL HYDROAËROPLANE

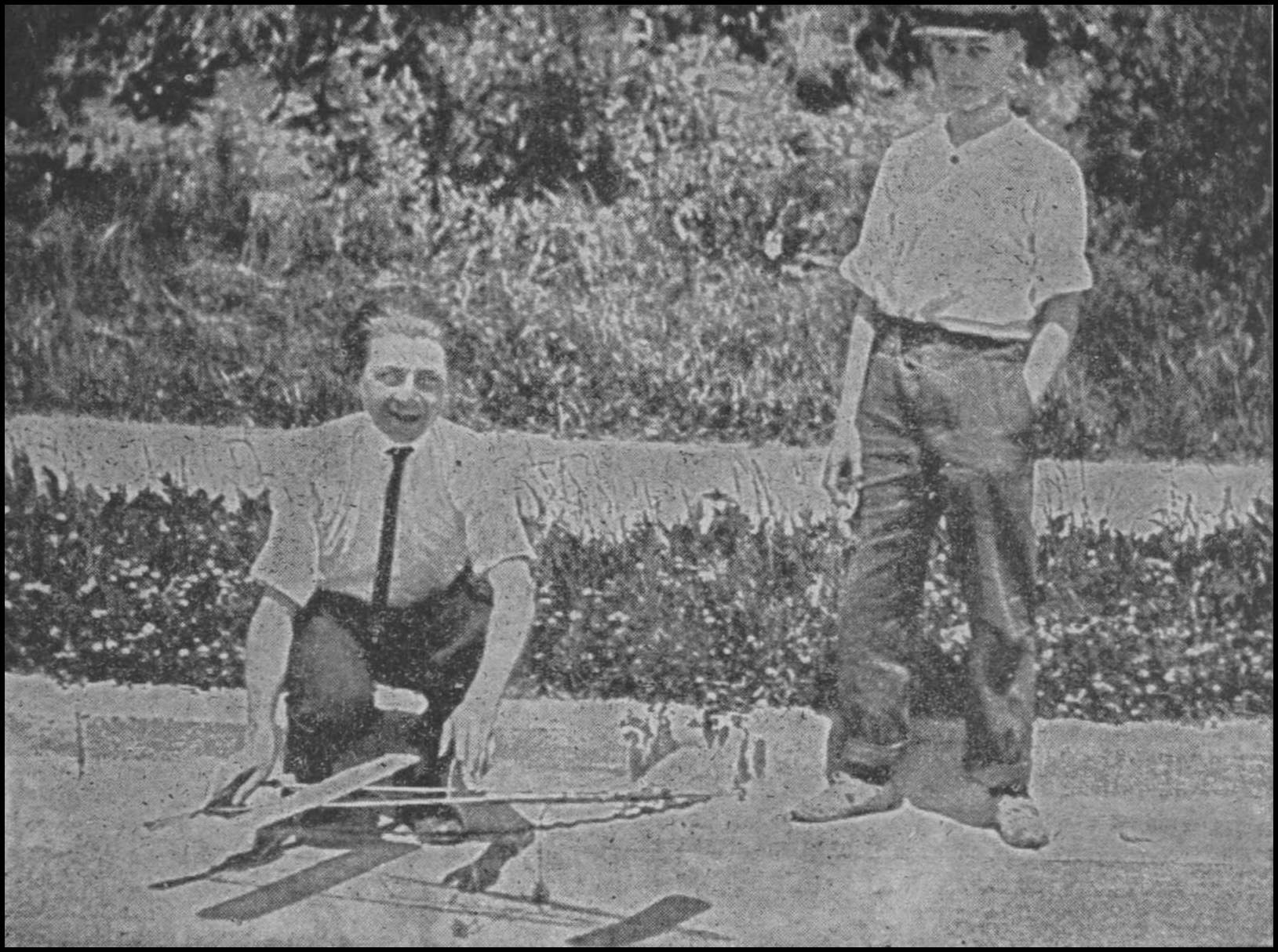

Although the method of determining the balance of an R. O. G. or a model hydroaëroplane is exactly the same as that of a hand launched model, the manner of launching is somewhat different. Instead of holding the model one hand in the center of the frame and the other at the rear as in the case of the hand launched model, in launching an R. O. G. or hydro, the model should be rested upon the ground or water, as the case may be, with both hands holding tightly to the propellers. Then when about to let the model go release both propellers instantly. If the model has sufficient power[50] and it has been properly adjusted it will glide over the surface of the ground or water for a short distance, then rise into the air. Should the model fail to rise into the air additional strands of rubber should be added, after which it should be rewound and a second attempt made.

Should the model fail to respond after the addition of extra rubber, the indications are that something requires further adjustment. Perhaps the pontoons need further elevation if the model is a hydro, or if it be an R. O. G. model the forward wing may require an increase of elevation. In any event the model should be carefully examined and adjustments made where necessary, after which the model should be tested for balance and elevation. If satisfied with the behavior of the model after test flights have been made, another attempt should be made to launch the model from the ground or water.

On no account try to fly the model in the house, or see, supposing the model is of the R.[51] O. G. type, if it will rise from the dining room floor. This advice may seem unnecessary, but it is not so, for there has been quite a number of instances in which the above has been done, nearly always with disastrous results, not always to the model, more often to something of much greater value. The smashing of windows has often resulted from such attempts, but generally speaking pictures are the worst sufferers. It is equally unwise to attempt to fly the model in a garden in which there are numerous obstructions, such as trees and so forth. A wrecked model is very often the result of such experimenting. The safest way to determine the flying ability of any model is to take it out in an open field where its flight is less apt to be interrupted.

THE LAUDER DISTANCE AND DURATION MODEL

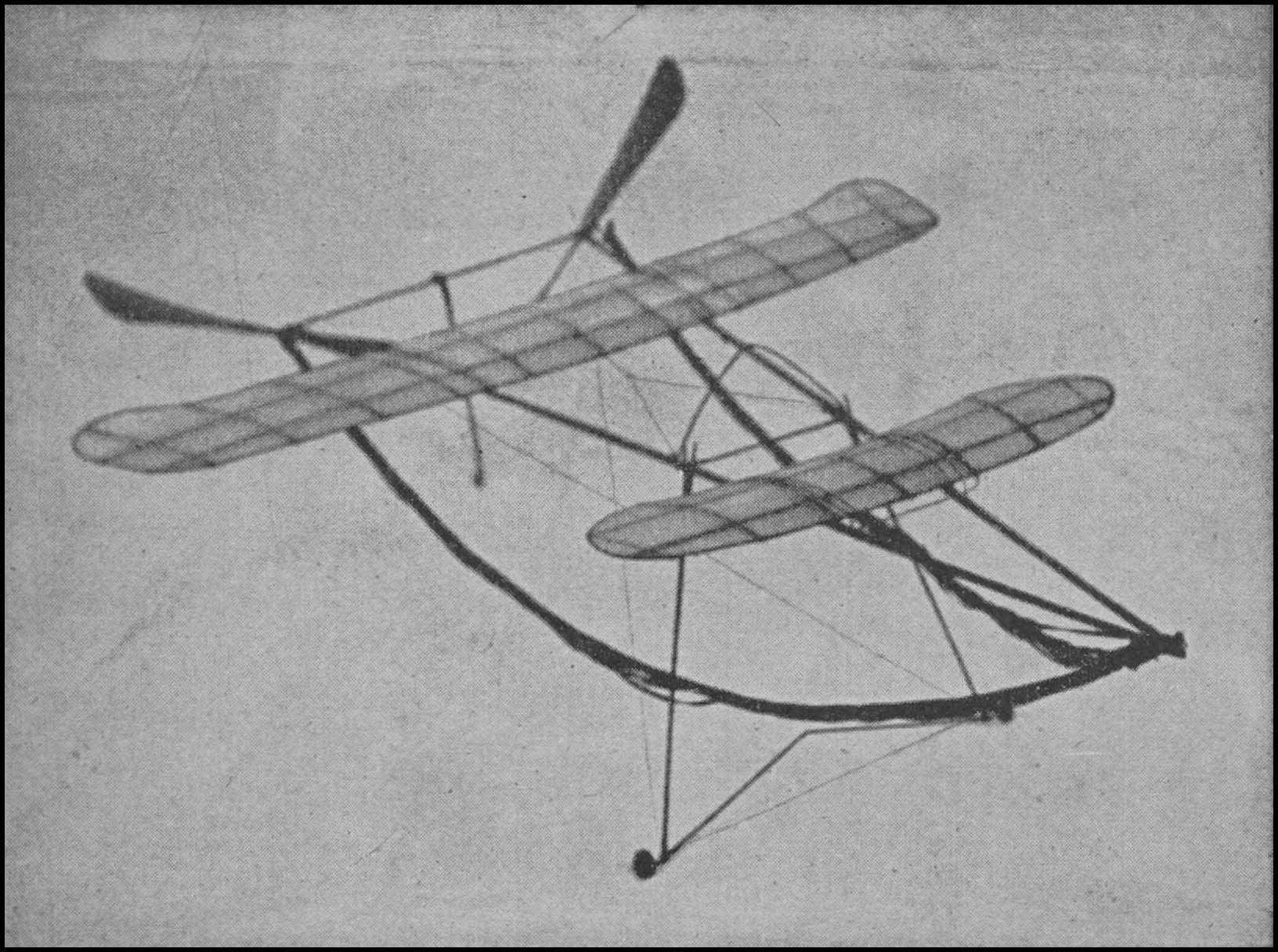

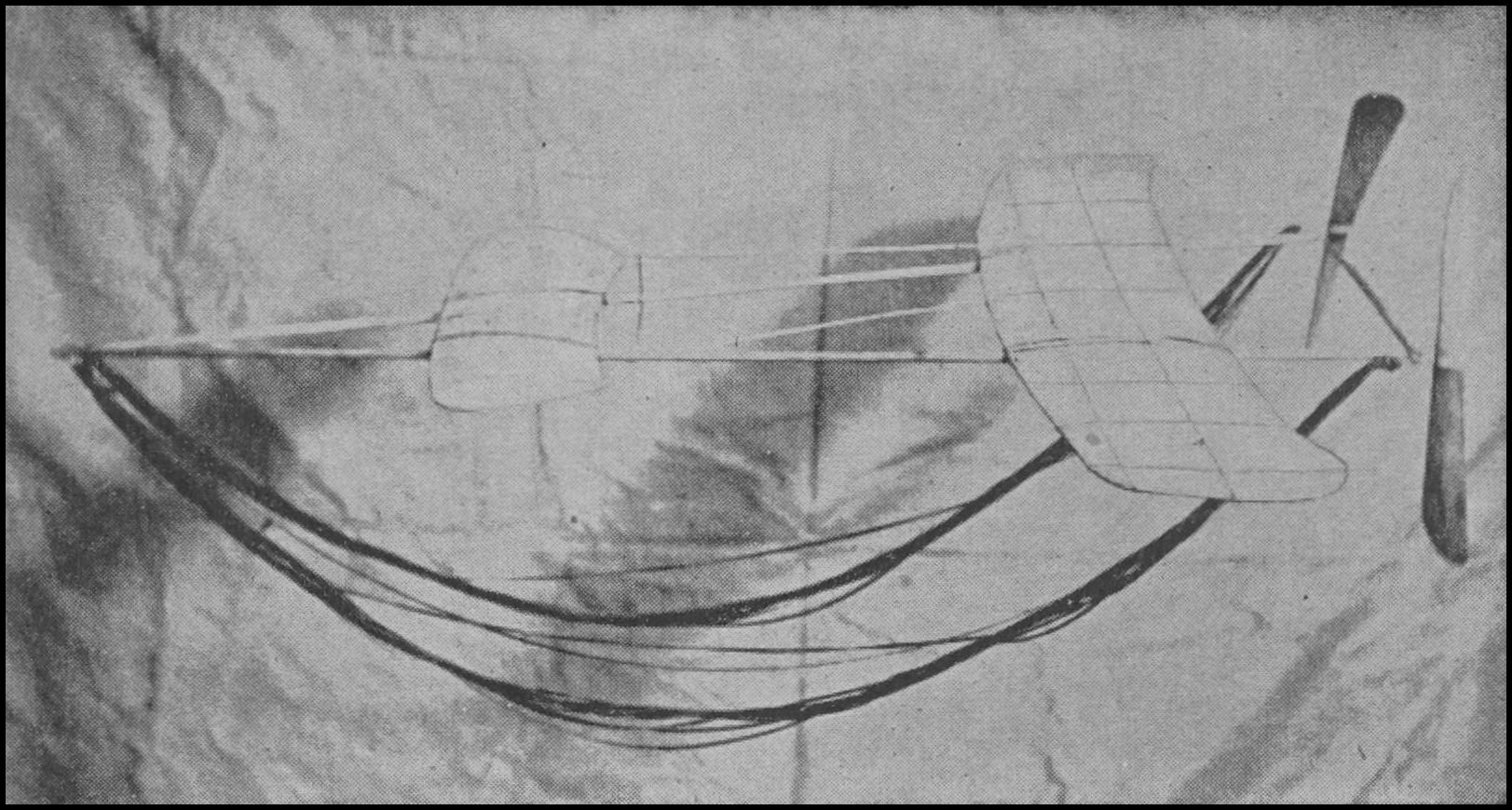

After many months of experimentation Mr. Wallace A. Lauder succeeded in producing a model that proved to be one of his most successful models. But a few years ago flights of 1000 feet with a duration of 60 seconds were considered remarkable. But so rapid has been the development of the rubber strand driven model that to-day it is hardly considered worth while to measure a flight of 1000 feet, especially in contests where models fly over 2500 feet or 3537 feet which was the distance flown by Mr. Lauder’s model during one of the contests of the National Model Aëroplane competition of 1915. Mr. Lauder’s model on several occasions made flights of over 3500 feet with a duration in each event of over 195 seconds. It is therefore to be remembered that this model[53] is both a distance and duration model, both qualities being seldom found in one model.

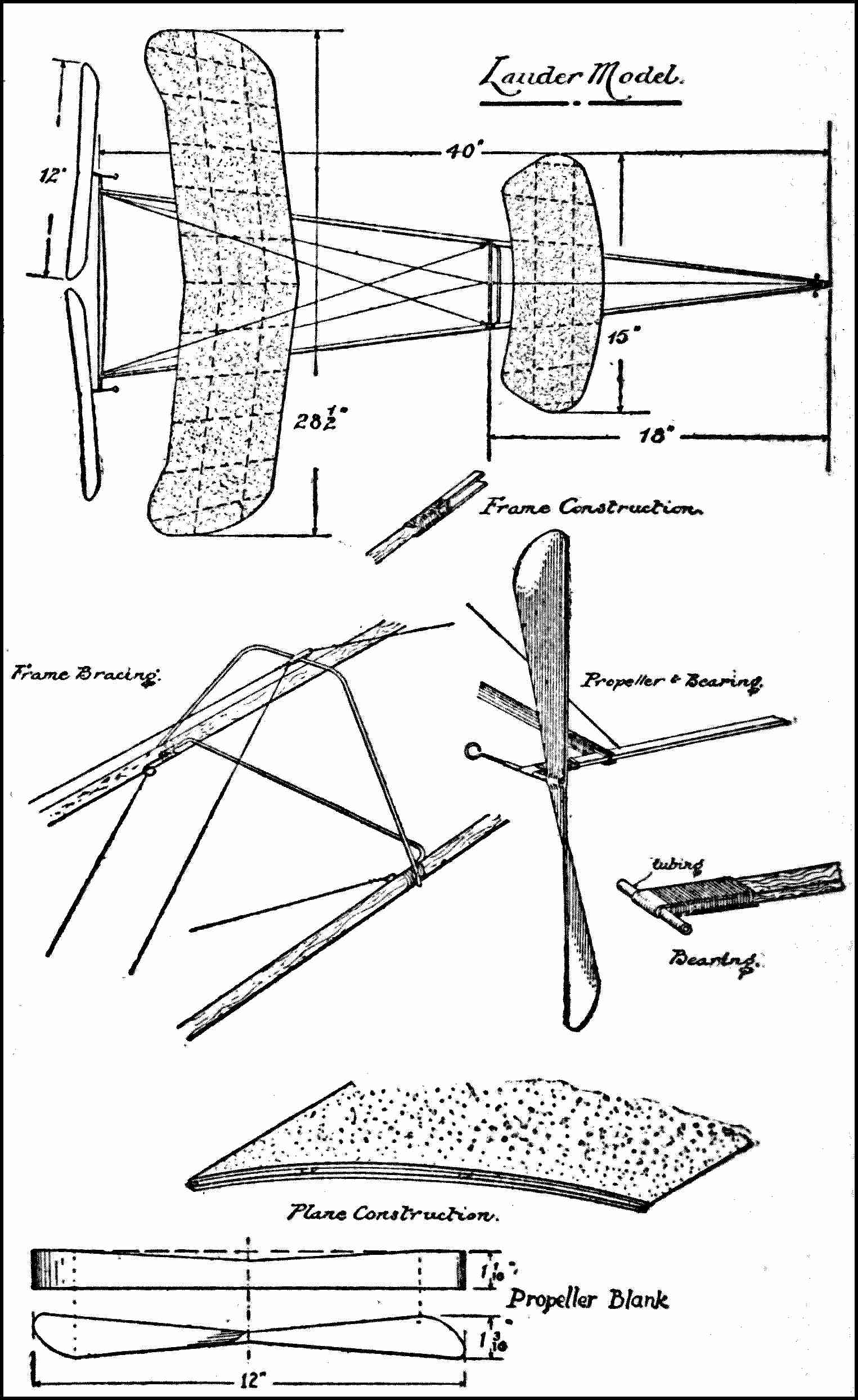

Reference to the accompanying drawing will give a clear idea of the constructional details.

The frame or fuselage consists of two side members 40″ in length, of straight grained spruce. At the center each member is of approximately circular cross section, and is ¹⁄₄″ in diameter. The members taper to about ³⁄₁₆″ at the ends, the circular cross section being maintained throughout. The frame is braced by a strip of bamboo of streamline form, extending from one side member to the other, 18″ from the apex of the frame. The ends of this frame are bent to run parallel to the side members of the frame where they are secured by binding with silk thread and gluing. Piano wire hooks are also secured to the side members of the frame adjacent the ends of the cross brace, and from these hooks extend wires of steel (No. 2 music wire) which run diagonally to the rear brace or propeller spar where they are secured.

The frame is braced further by an upwardly arched strip of bamboo, as shown in diagram 11, this strip being 2¹⁄₂″ in height. At the top of this brace are two bronze strips of No. 32 gauge brass, one above the other, one on top of the brace and the other below.

Adjacent the ends of these strips of metal are perforations through which pass bracing wires, one of which wires runs to the front of the frame where a hook is mounted for its reception, and the other two wires extend to the rear of the frame where they are secured to the propeller brace. The propeller brace consists of a strip of streamlined spruce 11³⁄₄″ in length, the propellers being at an angle, thus clearance is allowed ¹⁄₄″ wide at the center, tapering to ³⁄₁₆″ at the ends. The ends of the propeller brace extend out one inch from the side members of the frame, to allow room for the rubber strands to be used as motive power. In order to avoid slotting the ends of the side members of the frame so that the propeller brace can be secured therein, thin strips of bamboo are[56] secured above and below the end of each side member, by binding with silk thread and gluing, the space between these bamboo strips being utilized for the brace which is securely bound and glued therein. The propeller bearings consist of strips of very thin bronze (No. 32 gauge), about ³⁄₁₆″ in width, bent over ⁵⁄₈″ strips of German silver tubing, the tubing being soldered to the bronze strips and the propeller brace, which fits between the upper and lower portions of the bronze strips, is securely bound and glued thereto.

The propellers are cut from solid blocks of pine, and are 12″ in diameter. The blade, at its widest portion, measures 1³⁄₈″. The blades are cut very thin, and in order to save weight, they are not shellacked or painted.

The propeller shafts are of piano wire (No. 20 size) to fit the tubing used in the bearings, pass through the propellers and are bent over on the outer side to prevent turning. A few small bronze washers are interposed between the propellers and the outer ends of the tubing to minimize friction when the propellers are revolving. Twelve strands of rubber are used for each propeller, the rubber being ¹⁄₈″ flat.

The wings are both double surfaced, and are of the swept back type. The span of the main wing is 28¹⁄₂″, with a chord of 6¹⁄₂″. The elevator has a span of 15″ with a chord of 4³⁄₄″. The main wing has eleven double ribs, these ribs being built up on mean beams of spruce ¹⁄₁₆″ × ³⁄₁₆″, the front beam being placed 1¹⁄₄″ from the entering edge, and the second beam being 2″ back from the front beam. The entering and trailing edges are formed from a single strip of thin split bamboo, all the joints being made by binding with thin silk and gluing.

The elevator is constructed in like manner, except that it only has seven ribs, and the measurements are as above set forth. Both planes are covered with goldbeater’s skin, sometimes known as “Zephyr” skin, which is first glued in place and then steamed, which tightens the same on the plane, and given a coat of preparation used for this purpose.

THE HITTLE WORLD RECORD MODEL

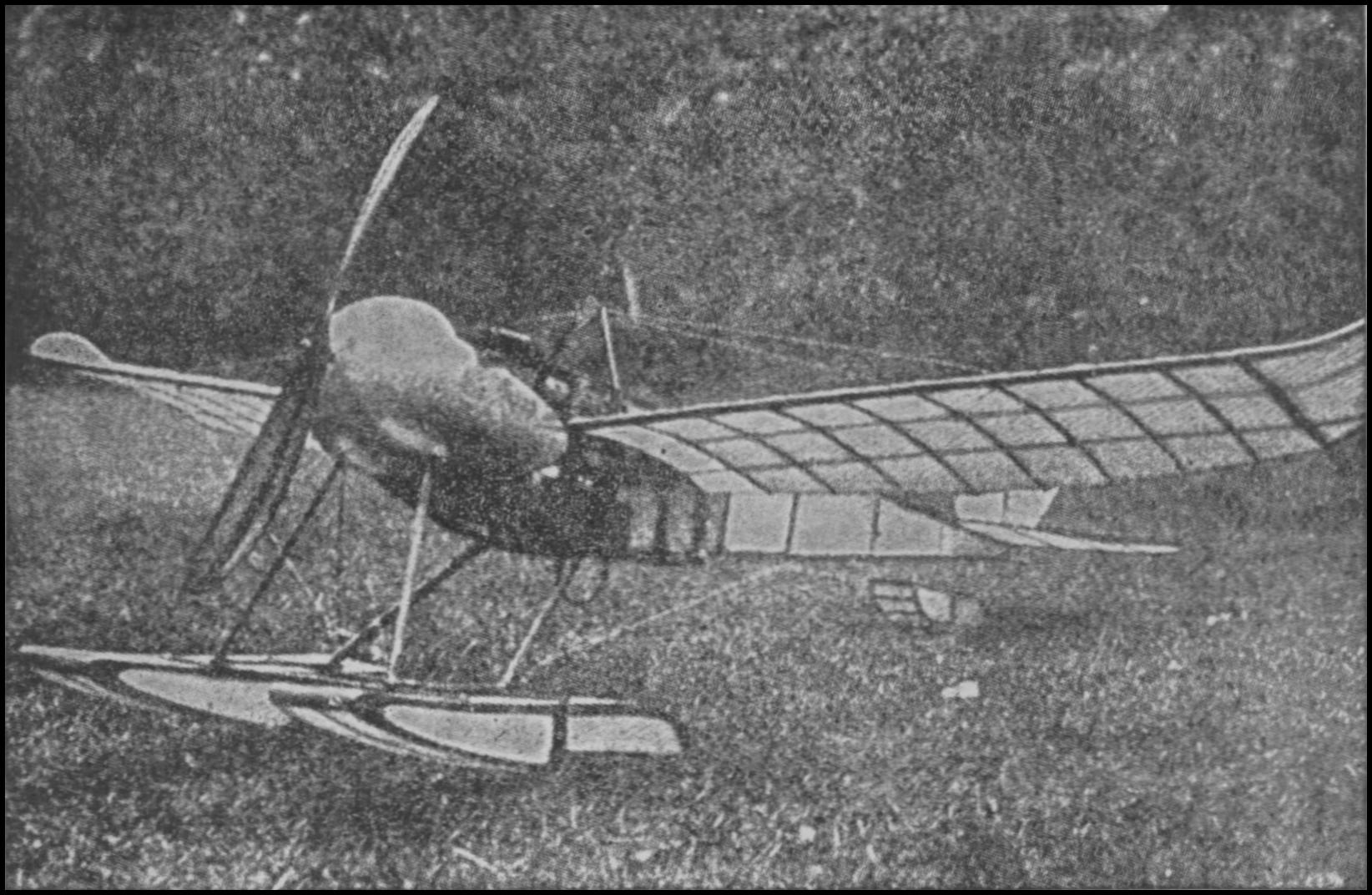

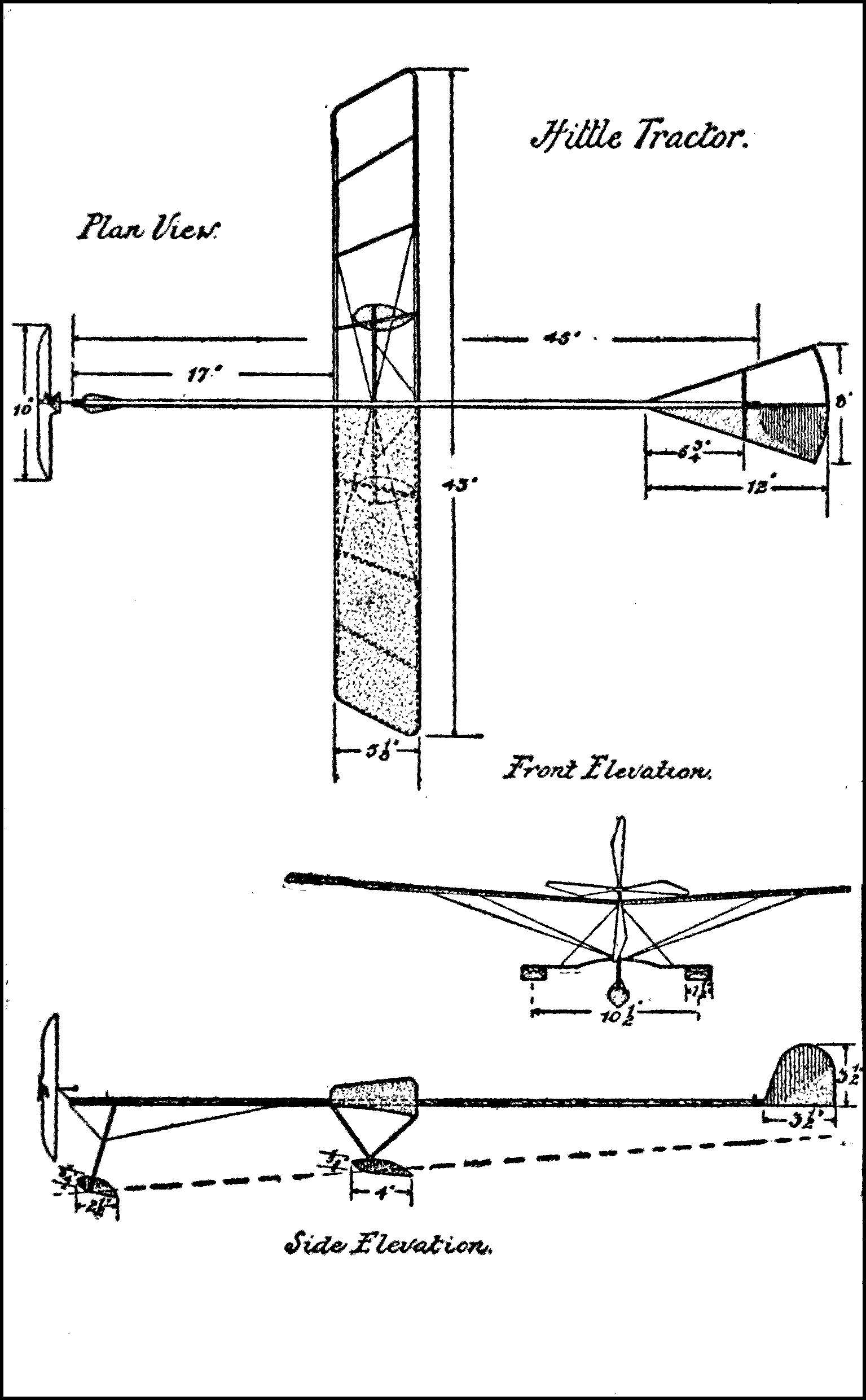

The Hittle World record model hydroaëroplane, designed and constructed by Mr. Lindsay Hittle of the Illinois Model Aëro Club, is perhaps one of the most interesting types of models yet produced. The establishing of this record illustrates the value of careful designing and construction and offers to the beginner an example which might be followed if good results are sought. In having broken the world’s model hydroaëroplane record with a tractor type model Mr. Hittle accomplished a feat of twofold importance. First, in having advanced the possibilities of the tractor model, and, second, in illustrating the value of scientific construction. The previous record for[59] this type of model has been but 29 seconds, just one-fourth of the duration made by Mr. Hittle’s model.

Mr. Hittle’s model shows many new and original features not hitherto combined on any one model. Note diagram 12. The model is of extremely light weight, weighing complete but 1.75 ounces. The floats and their attachments have been so designed as to offer the least possible wind resistance. In fact every possible method was utilized in order to cut down weight and resistance on every part of the model. As a result of this doing away with resistance an excellent gliding ratio of 8³⁄₄ to 1 has been obtained.

For the motor base of the model a single stick of white pine ⁵⁄₆″ deep and 45″ in length is used. On the front end the bearing for the propeller is bound with silk thread and a waterproof glue of the constructor’s own composition being used to hold it secure. For the bearing a small light weight forging somewhat in the shape of the letter “L” is used, this being made streamline.[60] At the rear end of the engine base is attached a piano wire hook for the rubber. The stabilizer consisting of a segment of a circle measuring 12″ × 8″ is attached to the under side of the engine base. The rudder measuring 3¹⁄₂″ × 3¹⁄₂″ is attached to the stabilizer at the rear of the engine base.

The wing is built up of two beams of white pine with ribs and tips of bamboo and has an area of 215 square inches.

The wing which has a total span of 43″ and a chord of 5¹⁄₈″ is built up of two beams of white pine with ribs and tips of bamboo and has a total area of 215 square inches. The wing is given a small dihedral and the wing tips are slightly upturned at the rear.

The trailing edge is longer than the entering edge the ribs being placed somewhat oblique in order to secure an even spacing. The wing is attached to the frame by two small bamboo clips which hold it rigidly and permit easy adjustment and is set at an angle of about 4 degrees with the line of thrust.

Both the floats which take practically the whole weight of the machine are situated directly under the wing just far enough behind the center of gravity to prevent the model from tipping backward. These floats are attached to the engine base by means of streamlined bamboo struts. Bamboo is also used in the construction of the float frames. A single float of triangular sections is situated just behind the propeller. The entire weight of the floats and their attachments is but .23 ounces.

The propeller which consists of four blades is built up of two propellers joined together at the hubs and securely glued, the completed propeller having a diameter of 10″ with a theoretical pitch of 14″. The blades are fairly narrow, tapering almost to a point at the tips. The propeller is driven by five strands of ³⁄₁₆th″ strip rubber at about 760 r.p.m. when the model is in flight. At the time when the model made its record flight of 116 seconds the rubber was given 1500 turns which is not the maximum number of turns. At other times the[63] model has flown satisfactorily with less turns of the rubber. While in the air the model flies very slow and stable notwithstanding its light weight and large surface. On three occasions the model has made durations of approximately 90 seconds which rather dispenses the possibility of its being termed a freak.

THE LA TOUR FLYING BOAT

One of the most notable results of the National Model Aëroplane Competition of 1915 was the establishing of a new world’s record for flying boats. Considering that the model flying boat is a difficult type of model to construct and fly, the establishing of this new world record of 43 seconds is remarkable. Credit for this performance is due Mr. Robert La Tour of the Pacific Northwest Model Aëro Club, who designed, constructed and flew the model flying boat which is herewith described and illustrated. Diagram 13.

The frame is made of laminated spruce 40″ in length, made of two strips glued together. They are ³⁄₈″ × ¹⁄₈″ at the center tapering to ³⁄₁₆″ × ¹⁄₈″ at the ends. The cross braces are of split bamboo and are fastened to the frame side members by bringing them to a wedge at the ends and then inserting them into slots in the[65] sides of the frame side members and are finally drilled and bound to the latter. The rear brace is of streamlined spruce ¹⁄₄″ × ¹⁄₈″; this butts against the frame side members and is bound to them. The propeller accommodations are made of brass.

The propellers are 10″ in diameter with a 19″ pitch. These are carved from a block of Alaska cedar 1¹⁄₄″ wide by ³⁄₄″ thick. Of course the propellers may also be made from white pine. To turn the propellers 15 strands of ¹⁄₈″ flat rubber are used.

Bamboo about ¹⁄₁₆″ square is used to obtain the outline of the wings. The main wing has a span of 33″ with a chord of 5¹⁄₂″. Split bamboo is used for the making of the 9 ribs. The wing spar or brace is of spruce ³⁄₁₆″ × ¹⁄₈″ and is fastened below the ribs as illustrated in diagram 13. The elevator is constructed in like manner but has a span of only 17″ × 4³⁄₄″ and has only 5 ribs. A block ³⁄₄″ high is used for elevation. Both wings have a camber of ¹⁄₂″ and are covered on the upper side with silk doped with a special varnish and a few coats of white shellac.

The boat is 20″ long, 3″ in width and shaped as shown. The slip is ¹⁄₂″ deep and is located 7″ from the bow. The rear end is brought down steeply to avoid the drag of the water on this point when the boat is leaving the surface of the water. Spruce ³⁄₆₄ths of an inch thick is used for the making of the sides, but the cross bracing is of slightly heavier material, there being six braces used throughout. The rear brace is much heavier in order to withstand the pull of the covering and to receive the ends of the wire connections. The outriggers or balancing pontoons are constructed of the same material as that of the boat and are held together by a spruce beam 18″ long, ¹⁄₂″ wide by ³⁄₁₆″ thick, streamlined. This beam is fastened to the boat by means of three brads to permit changing if necessary. The lower edges of the outriggers should clear the water about ¹⁄₈″ before the steps on the boat leave the water. The boat and outriggers are covered with silk,[68] shrunk with a special solution and then coated several times with white shellac. It is a good plan to shellac the interior walls of the boat and pontoons before covering to prevent them from losing their form by becoming soft from the influence of water in the case of a puncture.

The boat is connected to the frame at its front by two steel wires, their ends being inserted into the cross members of the boat, and then brought up along the sides, crossed and then bound to the frame. A similar pair of connecting wires are used to connect the rear end of the boat to the rear end of the frame. A U-shaped wire is bound to the outrigger beam and frame. A single diagonal strip of bamboo is also fastened to the outrigger beam with a brad, its upper end being bound to the cross bracing of the frame, making a very solid connection.

Under ideal weather conditions this model will fly on 12 strands of rubber with the possibility of a better duration than has been made. But, however, with 15 strands the model will[69] rise at every attempt. More rubber, however, causes the bow of the boat to nose under and to accommodate this increase of power the boat should be lengthened.

THE COOK NO. 42 WORLD RECORD MODEL

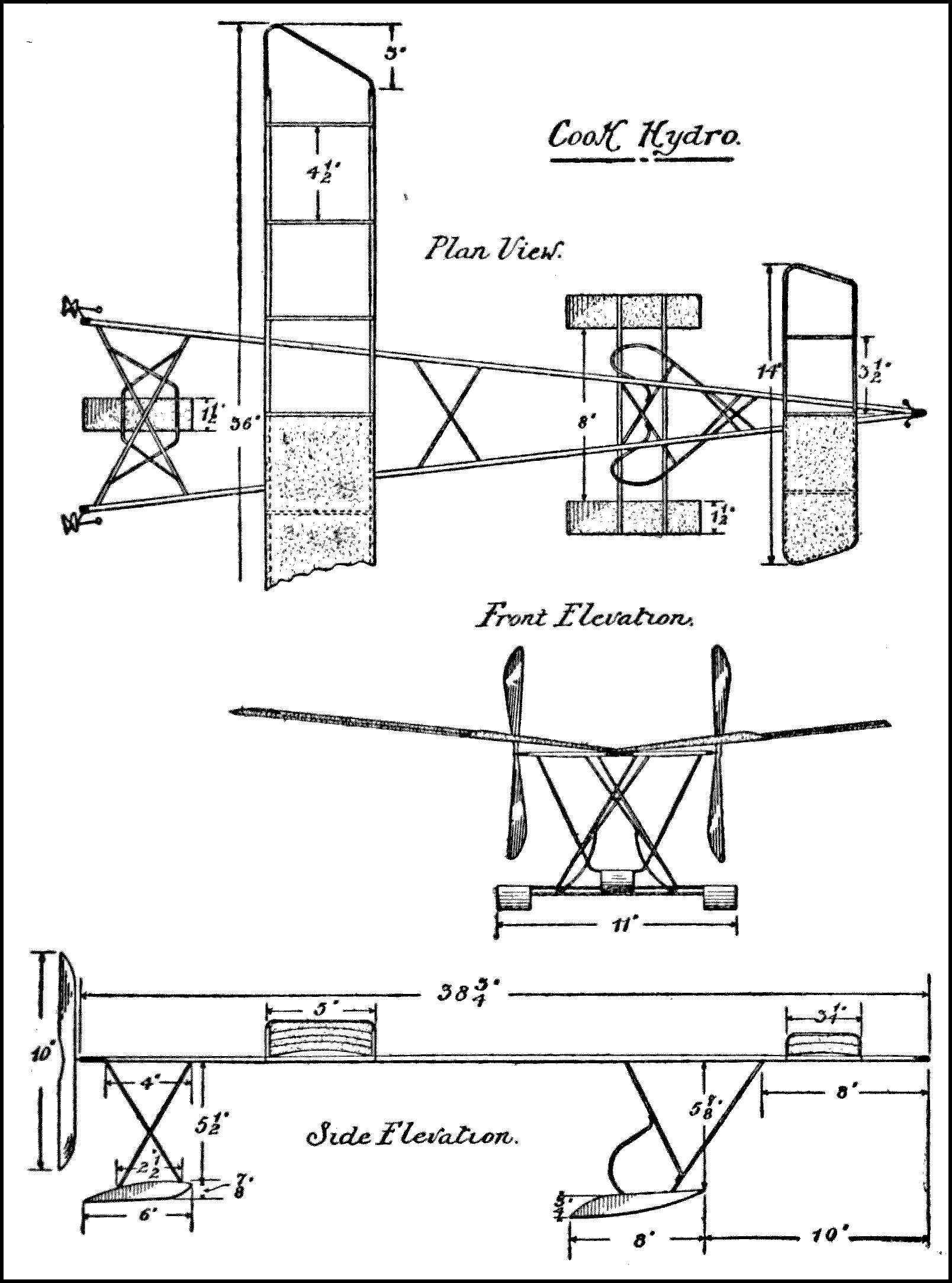

During the National Model Aëroplane Competition of 1915 held under the auspices of the Aëro Club of America, a number of new world records were established, one of which was for twin propeller hydroaëroplanes. The credit for this record is due Mr. Ellis C. Cook of the Illinois Model Aëro Club, who succeeded in getting his model hydroaëroplane—which by the way is a rather difficult type of model to operate—to rise from the water and remain in the air for a duration of 100.6 seconds. This model is of the common A frame design with the floats or pontoons arranged in the familiar fashion, two forward and one aft. The model is fairly light, weighing, when complete, 3.33[71] ounces, ¹⁄₂ ounce of which is made up in rubber strands for motive power. Diagram 14.

The frame is made of two sticks of white pine for side members, each member measuring 38¹⁄₄″ in length, ⁵⁄₁₆″ in depth, by ¹⁄₈″ in width. These are cut to taper toward the ends where they are only ¹⁄₈″ in width by ³⁄₁₆″ in depth in the front and rear respectively. Three “X” strips of streamlined bamboo measuring ³⁄₁₆″ in width by ³⁄₆₄ths of an inch in depth, are used for bracing the frame between the front and rear and are arranged as shown in diagram 14. The propeller bearings are of small streamlined forgings of light weight, and are bound to the rear end of each side member first by gluing, then binding around with thread. The front hook is made of No. 16 piano wire and is bound to the frame as shown in diagram 14. The chassis which holds the floats or pontoons is made of ³⁄₃₂″ bamboo bent to shape and bound to the frame members. By the use of rubber strands the floats are attached to the chassis;[72] the forward ones being attached so that angle may be adjusted.

The main wing has a span of 36″ and a chord of 5″ and is constructed of two white pine beams each 39″ long, with bamboo wing tips. The ribs, seven in number, are also made of bamboo and are spaced along the edges of the wing at a distance of 4¹⁄₂″ apart. The “elevator” or front wing has a span of 14″ and a chord of 3¹⁄₄″, the framework of which is made entirely of bamboo. The entering edge of this wing is given a slightly greater dihedral so that the angle of incidence at the tips is greater than at the center. By this method the added incidence in the front wing is obtained. By the use of rubber bands both wings are attached to the frame.

The two forward floats are spaced eight inches apart and are of the stepped type, the step being 3¹⁄₂″ from the front and has a depth of ¹⁄₈″. These two floats are separated by two bamboo strips as shown in the diagram, which are tied to the rounded portion of the under carriage by small rubber bands. By the sliding of these strips back and forth the necessary angle of the floats may be obtained to suit conditions. The floats are built up with two thin pieces of white pine for sides, separated by small pieces of wood about one-half the size of a match in cross section. Chiffon veiling which is used for the covering of the wings, is also used for the covering of the floats, after which it is covered with a special preparation to render both the wings and the floats air and water-tight.

The two ten-inch propellers with which the model is fitted have a theoretical pitch of twelve and one-half inches. The propellers are carved from blanks one-half inch thick, the blades of the completed propellers having a maximum width of one inch at a radius of three inches. The propeller shafts are made from No. 16 piano wire and have small washers for bearings. Each propeller is driven by three strands of ¹⁄₄″ strip elastic. The rubber[75] is given 1700 to 1750 turns and revolves the propellers at 1150–1200 r.p.m., when the model is in flight.

The model usually runs over the surface of the water for a distance of from two to three feet before it rises, after which it climbs at a very steep angle to the necessary altitude. The model seems, when in flight, to be slightly overpowered but this is misleading. The rubbers usually unwind in from 85 to 90 seconds. On four out of six flights this model has made a duration of between 98 and 100 seconds which is rather unusual for a model of this type.

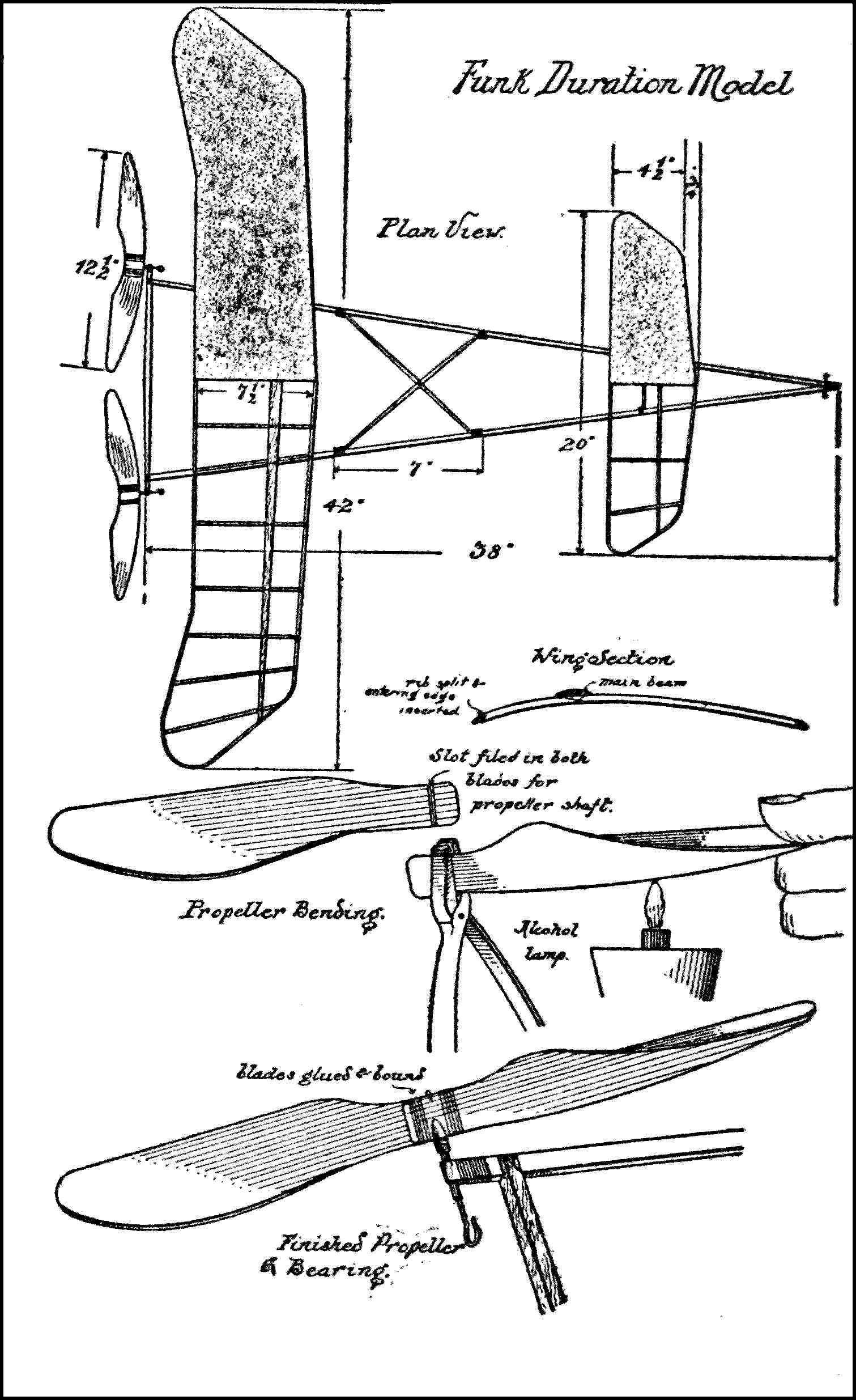

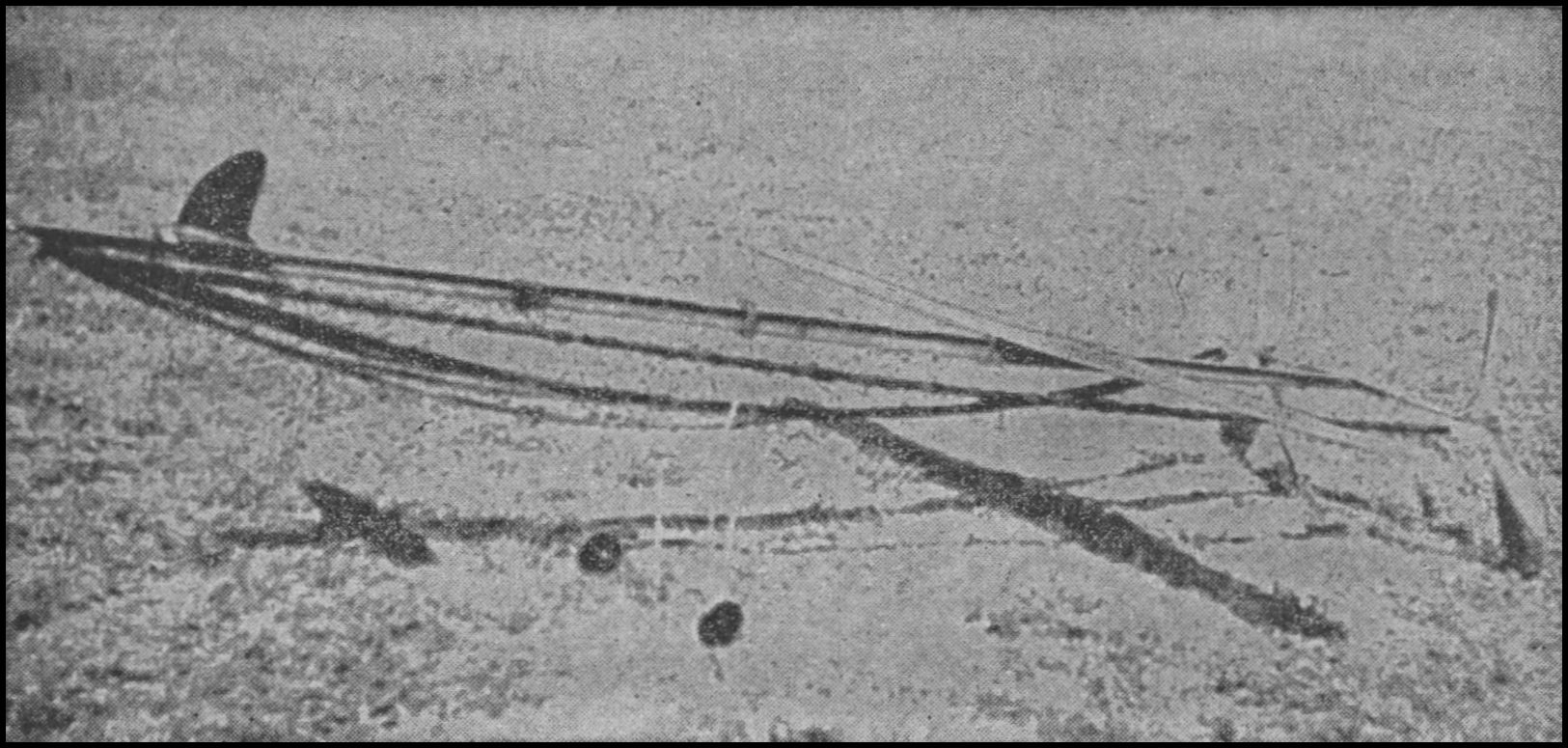

THE RUDY FUNK DURATION MODEL

Of the many different types of duration models that have made their appearance during the year of 1915 perhaps the model described herewith, constructed and flown by Mr. Rudolph Funk, of the Aëro Science Club, was one of the most successful. Unlike most models the propellers of this model are bent and not cut. This model made its appearance during the latter part of 1915, on several occasions having flown for over 100 seconds duration. Diagram 15.

While retaining the important characteristics of his standard model, slight changes have been made. Instead of the usual wire for the construction of the frame of the wings, bamboo is used in its place for lightness and strength. The wing frames are single surfaced, China[77] silk being used for covering. The “dope” which is used to render the silk airtight is made by dissolving celluloid in banana oil. This in turn is applied to the silk with a soft brush.

The camber of the main wing is ³⁄₄″ at the center, with a slight reduction towards the negative tips; it also has a dihedral angle of 2 degrees. The main beam, which is secured to the under side of the frame for rigidness, is of spruce 1″ by ⁵⁄₆₄″, tapering to ³⁄₄″ × ⁵⁄₆₄″. The ribs for the main wing and small wing or “elevator” are cut from solid pieces of bamboo ³⁄₁₆″ thick by ¹⁄₄″ wide. These pieces of bamboo are first bent to the proper camber and are then cut into strips each ¹⁄₁₆″ wide. The ribs are next tapered to a V at the bottom, toward the trailing edge, as shown in diagram 15, and also toward the entering edge. To accommodate the entering and trailing edges of the frame, each rib is slit slightly at both ends. Both edges of the frame are then inserted in the slots at the ends of the ribs and bound around with silk thread.

The frame is composed of two sticks of silver spruce 38″ in length, ⁵⁄₁₆″ × ³⁄₁₆″, tapering to ¹⁄₄″ × ⁵⁄₃₂″, held apart by a streamline bamboo cross brace in the center. An additional brace of bamboo is securely fastened across the frame toward the front. The propeller brace consists of a streamline-cut piece of bamboo 12¹⁄₂″ in length by ³⁄₈″ in width at the center, tapering to ¹⁄₄″ toward the ends. The propeller brace is inserted in slots cut in the rear ends of the frame members, then bound and glued.

The propellers are bent from birch veneer, the bending being done over an alcohol flame as illustrated in diagram 15. But first of all the blades are cut to shape, sandpapered and finished before they are bent. As shown in the drawing a slot is filed in the hub of each blade to enable the propeller shaft to pass through when both have been glued together. The blades are then glued and bound together, first by placing a piece of wire in the slots to insure their being centered and also to prevent their being filled with glue. After this has been done[80] each propeller is given three coats of the same dope as is used on the wings.

The propeller bearings are turned out of ¹⁄₃₂″ bronze tubing, the length of each bearing being ¹⁄₂″. Steel washers are slipped over the propeller shaft, between the bearing and propeller to insure smooth running. The propeller shafts are made from steel hatpins which are heated at both ends, one end of which is bent into a loop to receive the rubber strands, the other end being bent around the hub of the propeller to prevent the shaft from slipping during the unwinding of the rubbers. Two strips of brass, each ¹⁄₄″ × 2″, are bent around the one-half inch bearing and soldered. The brass strips are then glued and bound onto the ends of the propeller brace as shown in diagram 15.

THE ALSON H. WHEELER WORLD RECORD MODEL

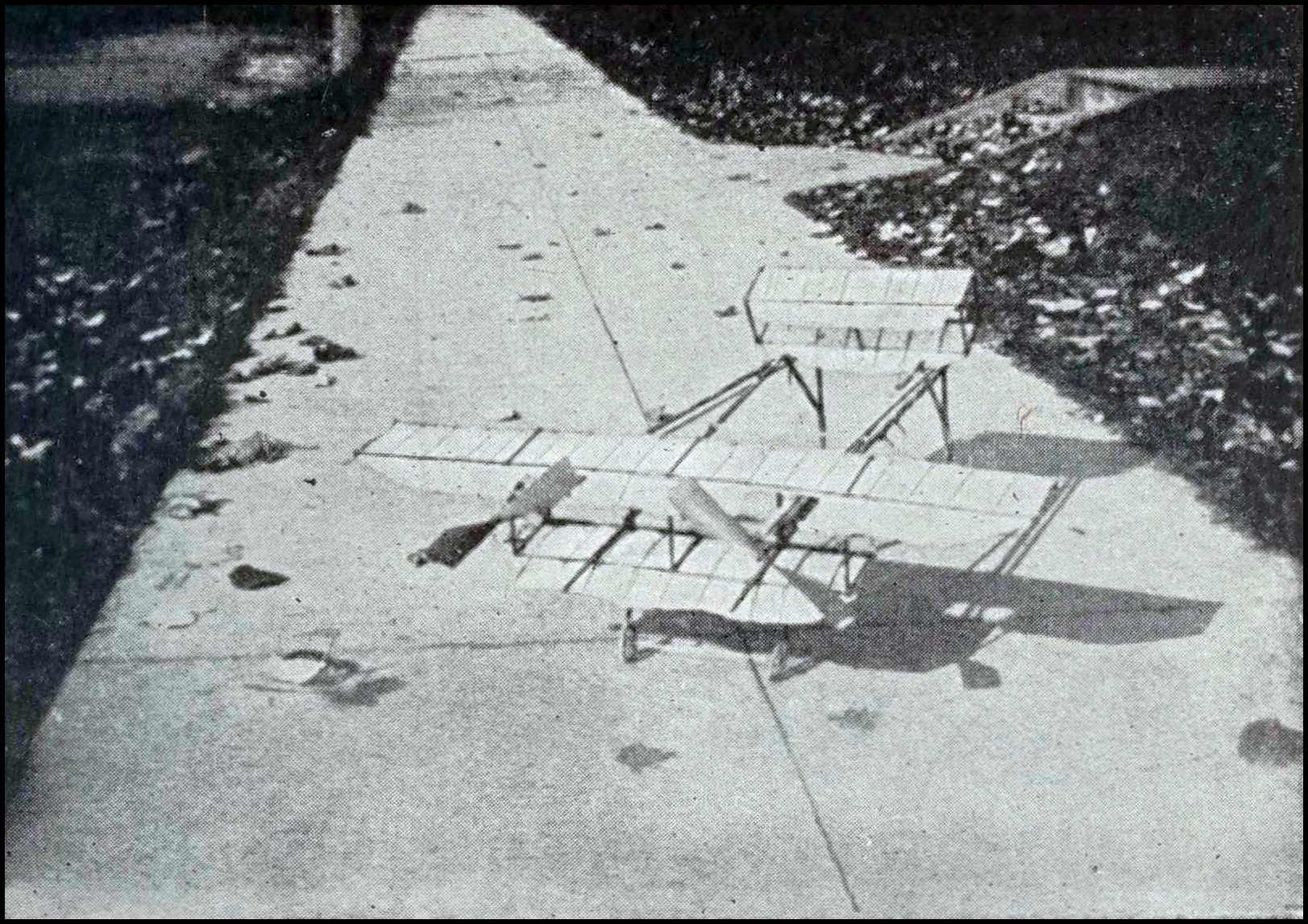

Since the beginning of model flying very little attention has been paid to the model biplane. Practically all records are held by model aëroplanes of the monoplane type. With this fact in view, the record established by Mr. Wheeler with his Twin Pusher Biplane is extraordinary, in so far as it surpasses many of the monoplane records. This model is a very slow flyer, and has excellent gliding ability. At the time when this model flew and broke the world’s record, the greater portion of the flight consisted of a beautiful glide of 86 seconds’ duration, after the power gave out, making it possible for the model to remain in the air for a duration of 143 seconds.

The frame consists of two I-beams, each 48″ in length, running parallel, and spaced by cross pieces, each piece 11¹⁄₂″ long. The bearing blocks used made it possible for the propellers to clear by one-half inch. Two 12″ expanding pitch racing propellers are used and these are mounted on ball bearing shafts. The main upper plane has a span of 34″ with a chord of 5″, the lower plane being 26″ by 5″. The elevator consists of two planes, each measuring 14″ by 5″. Cork wheels are used, each being one inch in diameter. For motive power one-eighth inch flat rubber is used, this being coated with glycerine to prevent sticking.

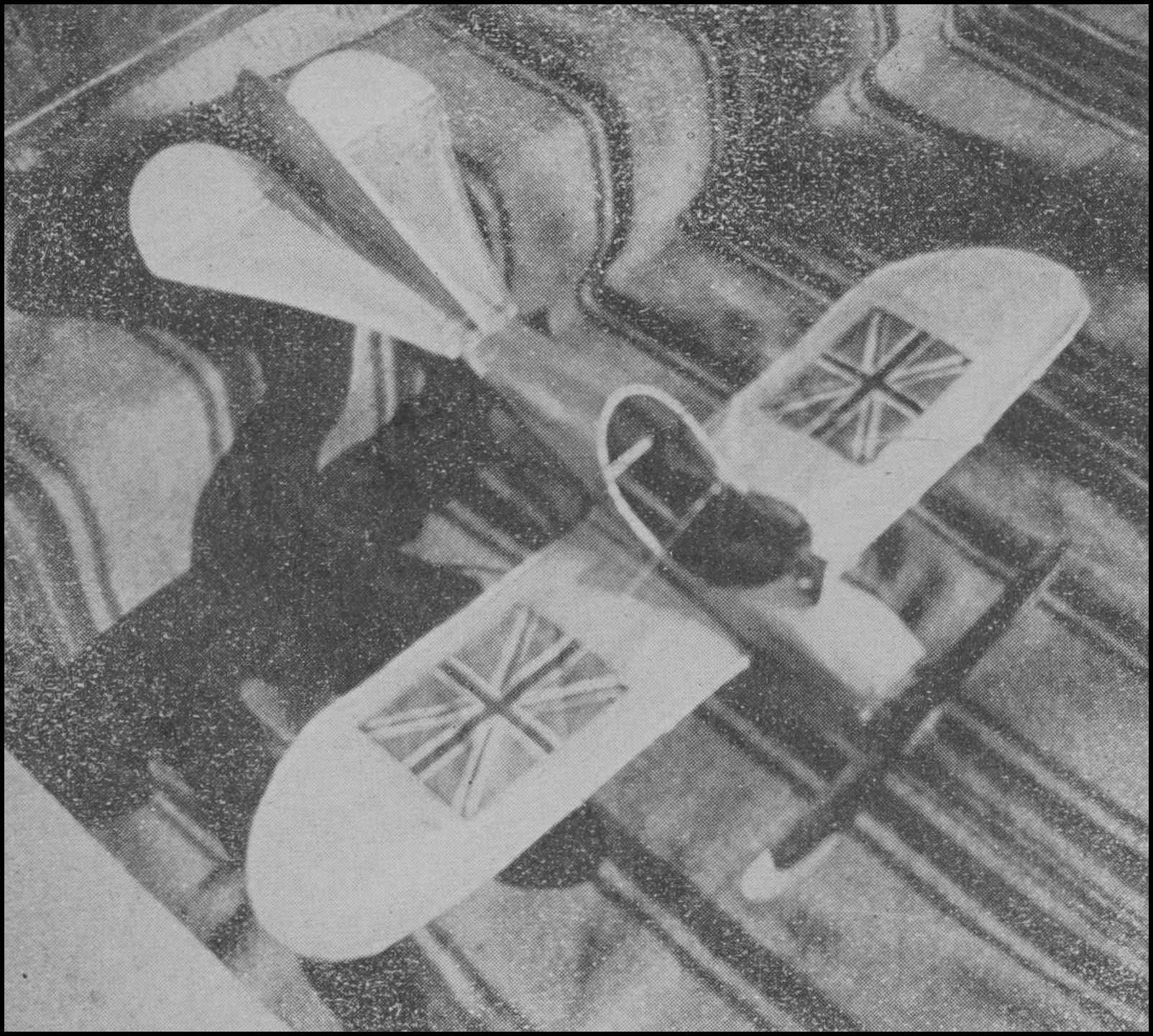

The model shown in the accompanying photograph was constructed by Master R. O’Neill, of Montreal, Canada. The machine was designed after one of the leading warplanes now in active service abroad and in carrying out the entire features he did not fail to include the identification marks which are of utmost importance in the war zone.

The dimensions of the model are as follows: Length of fuselage, 23″; span of top wing, 33″; span of lower wing, 29″, both having a chord of 7″. Motive power is derived from two ¹⁄₈ inch square elastic strands which operate a multiple gear to which is attached a 10″ propeller.

In coloring the model a dull aluminum was selected. Complete the model weighs 12 ounces. Perhaps the most interesting feature[84] of the model is the ability to change it to a monoplane by the removal of the upper wing after which the lower wing is raised to the sockets in the fuselage which were especially arranged for that particular purpose.

During the past few years model flyers in America have shown a tendency toward the adoption of compressed air engines for use in connection with model aëroplanes. Hitherto, England has been the home of the compressed air engine, where a great deal of experimenting has been carried on, to a considerable degree of success. Flights of over 40 seconds have been made with models in which compressed air power plants were used. But, however, the desire on the part of a large majority of model flyers in America to build scientific models, that is, models more closely resembling large machines, has made it necessary to find a more suitable means of propulsion; rubber strands being unsatisfactory for such purposes. Many different types of compressed air engines have made their appearance during the past few years, among which the two cylinder opposed[86] type is very favorably looked upon, because it is perhaps one of the easiest to construct.

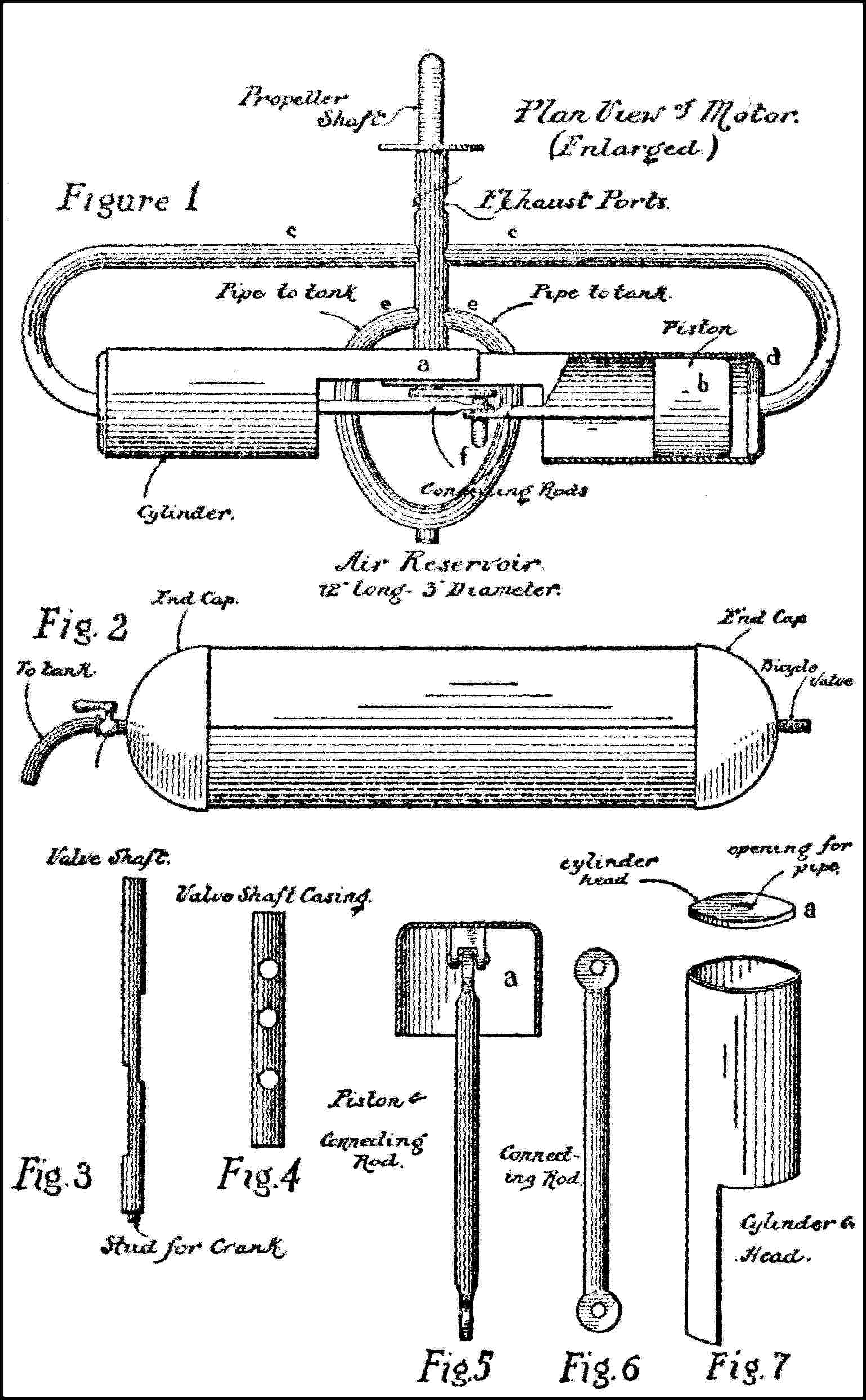

To make a simple two cylinder opposed compressed air power plant, as illustrated in Figure 1 of diagram 16, it is not necessary that the builder be in possession of a machine shop. A file, drill, small gas blow torch and a small vise comprise the principal tools for the making of the engine.

The first things needed in the making of this engine are cylinders. For the making of the cylinders two fishing rod ferrules, known as female ferrules, are required. And for the heads of the cylinders, two male ferrules are required. Such ferrules can be secured at most any sporting goods store. The female ferrules should be filed down to a length of 2″, cut down on one side a distance of ³⁄₄ of the diameter, then cut in from the end as shown in Figure 7. When this has been done the two male ferrules should be cut off a distance of ¹⁄₈″ from the top as shown in Figure 7-a, to serve as heads for the cylinders.

A hole ¹⁄₈″ in diameter should be drilled in the center of each head so as to enable the connecting of the intake pipes. By the use of soft wire solder the heads should be soldered into the ends of the cylinders as shown in Figure 1-d.

The pistons should now be made; for this purpose two additional male ferrules are required. These should be made to operate freely within the cylinders by twisting them in a rag which has been saturated with oil and upon which has been shaken fine powdered emery. When they have been made to operate freely they should be cut down one-half inch from the closed end as shown in Figure 5-a. For the connecting rods, 2 pieces of brass tubing, each ¹⁄₈″ in diameter by 1¹⁄₄″ long, are required, and, as illustrated in Figure 6, should be flattened out at either end and through each end a hole ³⁄₃₂″ in diameter should be drilled. For the connecting of the piston rods to the pistons, studs are required, and these should be cut from a piece of brass rod ¹⁄₄″ in diameter by ¹⁄₂″ in length. As two studs are necessary, one[89] for each piston, this piece should be cut in half, after which each piece should be filed in at one end deep enough to receive the end of the connecting rod. Before soldering the studs to the heads of the pistons, however, the connecting rods should be joined to the studs by the use of a steel pin which is passed through the stud and connecting rod, after which the ends of the pin are flattened, to keep it in position as shown in Figure 5-a.

For the outside valve mechanism and also to serve in the capacity as a bearing for the crankshaft, a piece of brass tubing ¹⁄₄″ in diameter by 1¹⁄₂″ long is required. Into this should be drilled three holes, each ¹⁄₈″ in diameter, and each ¹⁄₂″ apart as shown in Figure 4. Next, for the valve shaft and also propeller accommodation, secure a piece of ³⁄₁₆″ drill rod 2″ long. On the left hand side of the valve shaft, as shown in Figure 3, a cut ¹⁄₃₂″ deep by ¹⁄₂″ in length is made 1″ from the end. Another cut of the same dimensions is made on the right side only; this cut is made at a distance of ³⁄₈″ from the stud end.

As shown in Figure 1-f, the crank throw consists of a flat piece of steel, ³⁄₃₂″ thick, ³⁄₈″ in length by ¹⁄₄″ in width. At each end of the crank throw a hole ³⁄₁₆″ in diameter should be drilled, the holes to be one-half inch apart. Into one hole a piece of steel drill rod ³⁄₃₂″ in diameter by ¹⁄₄″ long is soldered, to which the connecting rods are mounted, as shown in Figure 1-f. Into the other hole the stud end of the crank throw is soldered.

Before making the tank it is most desirable to assemble the parts of the engine, and this may be done by first fitting the pistons into the cylinders as shown in Figure 1-b, after which the cylinders should be lapped one over the other and soldered as shown in Figure 1-a. When this has been done a hole one-fourth of an inch in diameter should be drilled half way between the ends of the cylinders, and into this hole should be soldered one end of the valve casing shown in Figure 4. For the inlet pipes as shown in Figure 1-c secure two pieces of ¹⁄₈″ brass tubing and after heating until soft,[91] bend both to a shape similar to that shown in Figure 1-c. When this has been done solder one end to the end of the cylinder and the other in the second hole of the valve shaft casing. The valve shaft should now be inserted in the valve shaft casing and the connecting rods sprung onto the crank throw as shown in Figure 1-d. To loosen up the parts of the engine which have just been assembled it should be filled with oil and by tightly holding the crankshaft in the jaws of a drill the engine can be worked for a few minutes.

The tank is made from a sheet of brass or copper foil 15″ long by ¹⁄₁₀₀₀″ thick. This is made in the form of a cylinder, the edges of which are soldered together as shown in Figure 2. Sometimes this seam is riveted every one-half inch to increase its strength, but in most cases solder is all that is required to hold the edges together. For the caps, or ends, the tops of two small oil cans are used, each can measuring 2¹⁄₂″ in diameter. To complete the caps two discs of metal should be[92] soldered over the ends of the cans where formerly the spouts were inserted, the bottoms of the cans having been removed. The bottom edges of the cans should be soldered to the ends of the tank as shown in Figure 2. Into one end of the completed tank a hole large enough to receive an ordinary bicycle air valve should be drilled. Figure 2. Another hole is drilled into the other end of the tank, into which is soldered a small gas cock to act as a valve. Figure 2. This should be filed down where necessary, to eliminate unnecessary weight. To connect the tank with the engine, a piece of ¹⁄₈″ brass tubing 3″ long is required, the ends of which are soldered into the holes in the valve shaft casing nearest the cylinders, as shown in Figure 1-ee. As shown in Figure 1-ee, a hole ¹⁄₈″ in diameter is drilled in one side of this piece, but not through, in the end nearest the tank. Another piece of brass tubing ¹⁄₈″ in diameter is required to connect the tank with the engine, one end of which is soldered to the cock in the tank, the other in the hole in the[93] pipe which leads from the engine to the tank, illustrated in Figure 1-ee, thus completing the engine.

In conclusion it is suggested that the builder exercise careful judgment in both the making and assembling of the different parts of the engine in order to avoid unnecessary trouble and secure satisfactory results. After having constructed an engine as has just been described, the constructor may find it to his desire to construct a different type of engine for experimental purposes. The constructor therefore may find the descriptions of satisfactory compressed air engines in the following paragraphs of suggestive value.

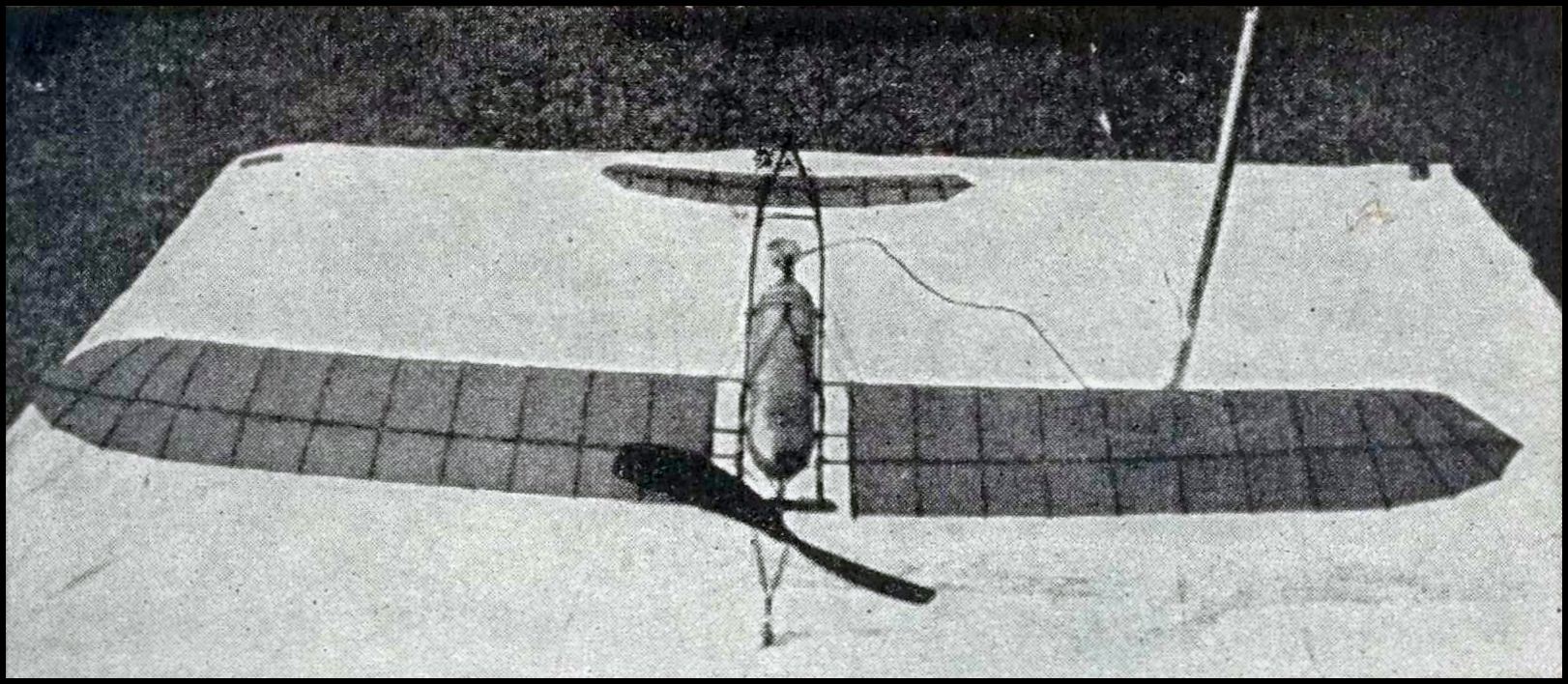

The development of the compressed air engine has given an added impetus to model making, necessitating more scientific experimenting and developing the art of model flying along lines of greater value to those who may eventually take up the work of building our future air fleets.

THE DART COMPRESSED AIR DRIVEN MODEL

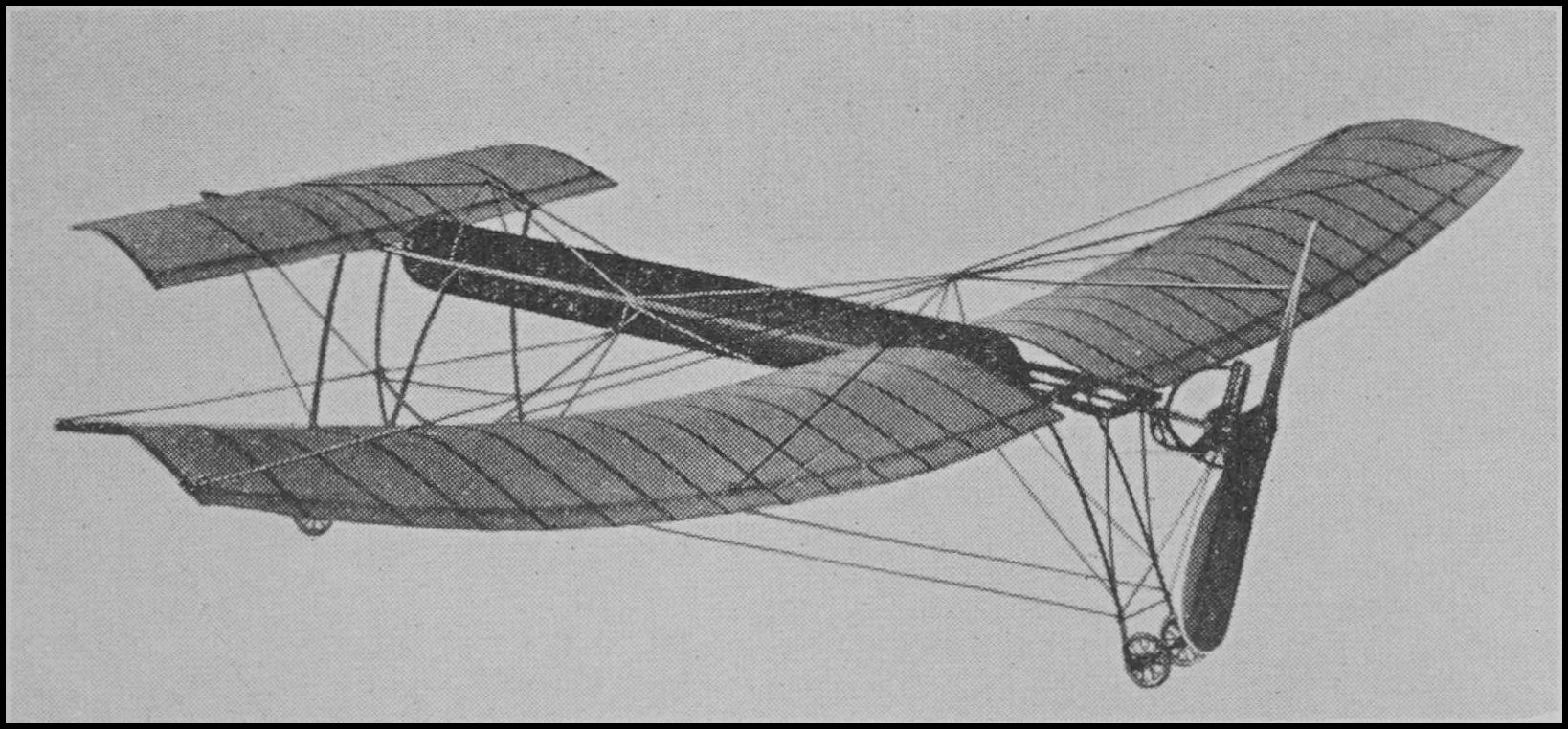

In the accompanying illustration is shown a model aëroplane of monoplane type driven by a three-cylinder rotary engine which was constructed by Edward Willard Dart of South Norwalk, Connecticut.

The engine was constructed after several months of patient labor. Careful judgment was exercised in the drafting of the plane and likewise in the assembling of the engine for it is absolutely essential that all parts be properly fitted as to enable the engine to run[95] smoothly. In designing the wings every detail was taken into consideration to insure good flying.

The main wing has a spread of 58″ and 7″ in chord. The elevator measures 23″ in spread and 6″ in chord. In the construction of both wings bamboo ribs are used, the frames being covered over with China silk and coated with celluloid solution. The main wing is made in two sections to facilitate quick adjustment to the fuselage.

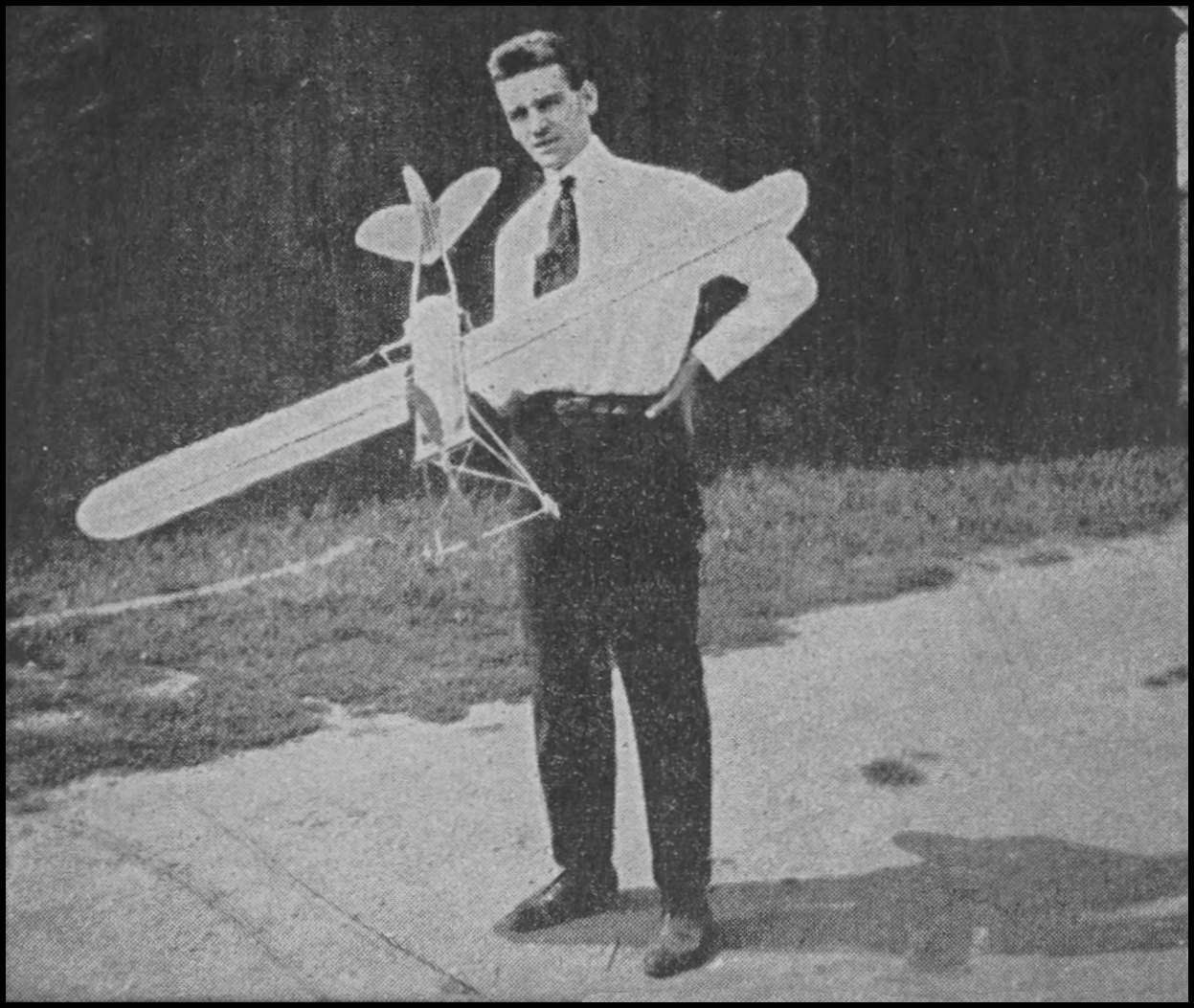

THE MCMAHON COMPRESSED AIR DRIVEN MONOPLANE

One of the latest developments in the field of model flying is the McMahon compressed air driven monoplane. This model was built to be used as either a tractor or pusher, but in view of its ability to balance more easily as a pusher most of the experiments have been carried out on this machine as a pusher. The machine in itself is simple and inexpensive to construct, the chief portion of the expense being involved in the making of the engine. By using the machine as a pusher a great deal of protection is afforded both the propeller and engine, and this protection helps to avoid damaging the propeller or engine, which would mean an additional expenditure for repairs, thus minimizing the cost of flying the model.

The frame has been made to accommodate both the tank and engine, and this is done by using two 30″ strips of spruce, each ¹⁄₄″ wide by ³⁄₈″ deep, laid side by side, a distance of three inches apart, up to within 10″ of the front, as shown in the accompanying photograph. No braces are used on the frame, as the tank, when securely fastened between the frame, acts in that capacity.

The wings are made in two sections, each section measuring 24″ in span by 8″ in chord, consisting of two main spars, ³⁄₁₆″ in diameter, one for the entering edge and one for the trailing edge. To these edges, at a distance of three inches apart, are attached bamboo ribs, 18 in all, each measuring 8″ in length by ¹⁄₈″ in width by ¹⁄₁₆″ thick. The wings are round at the tips, and have a camber of approximately one-half inch, but they are not set at an angle of incidence. Light China silk is used for covering and after being glued over the top of the wing frame is given two coats of dope to shrink and fill the pores of the fabric. A good[98] “dope” for the purpose can be made from celluloid dissolved in banana oil. The wing sections are attached to the frame and braced by light wire. The forward wing or “elevator” is made in the same manner as the main wing, but should measure only 18″ × 3″. Instead of being made in two sections as the main wing, the forward wing is made in one piece.

The chassis is made by forming two V struts from strong steel wire sufficiently large enough so that when they are attached to the frame of the model the forward part will be 9″ above the ground. One V strut is securely fastened to either side of the frame, at a distance of 8″ from the front. A 7″ axle is fastened to the ends of these struts. On the axle are mounted two light wheels, each about 2″ in diameter. The chassis is braced by light piano wire.

The rear skid is made in the same manner as the forward skid, only that the ends of the struts are brought together and a wheel 1 inch in diameter is mounted at the bottom ends by means of a short axle. The struts are not more than 7¹⁄₂″ long, thus allowing a slight angle to the machine when it is resting upon the ground.

The machine complete does not weigh over 7 ounces. The power plant used in connection with this model is of the two cylinder opposed engine type, with tank such as has just been described in the foregoing chapter.

The tank is mounted in the frame by drilling a ¹⁄₁₆″ hole through either end of the tank, through which a drill rod of this diameter can be inserted. About ³⁄₄ths of the drill rod should extend out on each side of the tank, to permit the fastening of the tank to the frame side members. This method of mounting the tank serves two purposes to a satisfactory degree. First, it permits secure fastening; second, as the rods are passed through the side and cap of the tank they help materially in preventing the caps from being blown off in the event of excessive pressure.

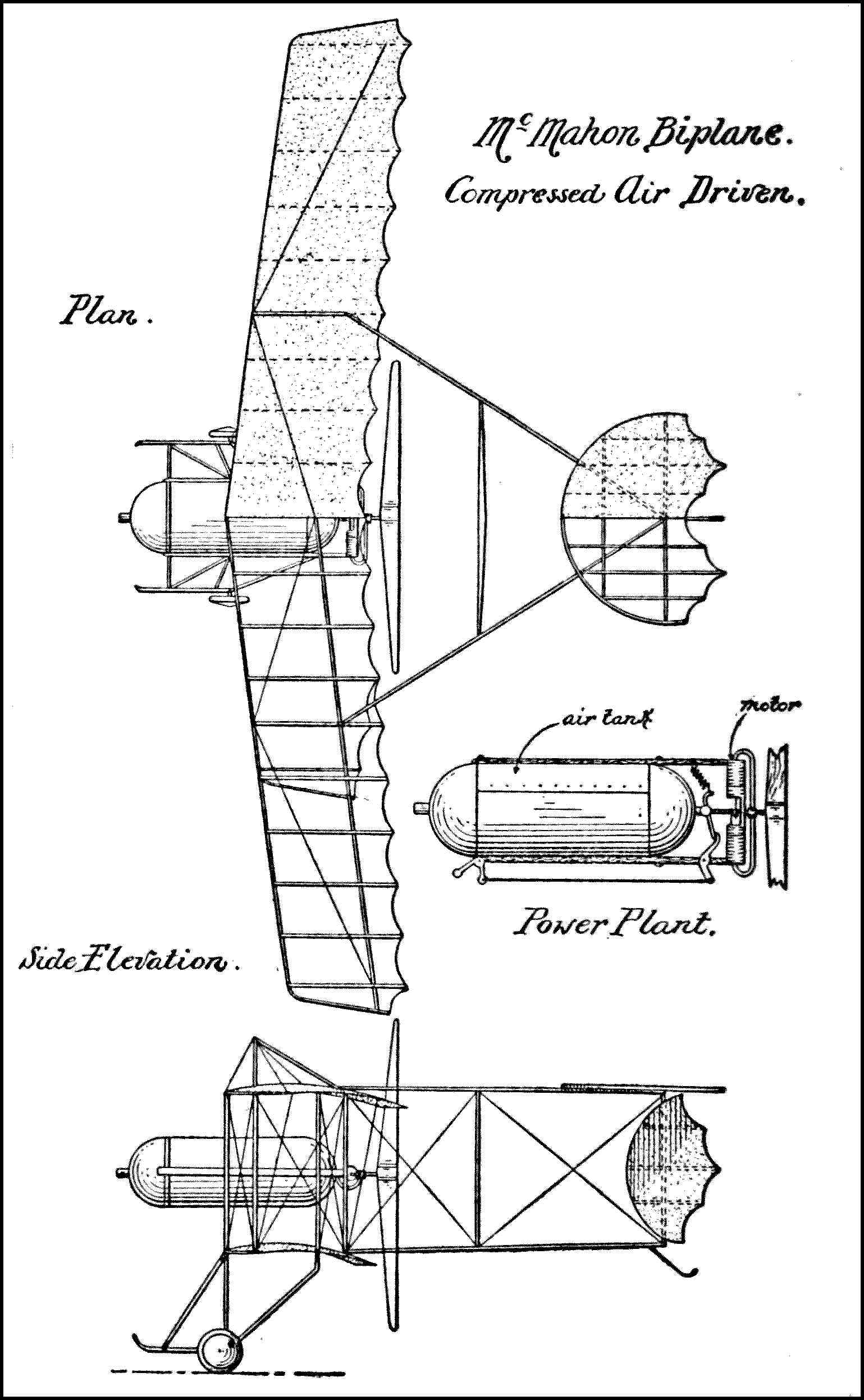

In the McMahon model we find a very satisfactory type of compressed air driven model. On several occasions this model has made flights of over 200 feet with a duration of between 10 and 15 seconds, and the indications are that by the use of a more powerful engine the model can be made to fly a greater distance, with a corresponding increase of duration. The engine used in connection with the model is of the two cylinder opposed type, such as described in the foregoing paragraphs. The tank, however, is somewhat different in design from that just described, it having been made of 28 gauge sheet bronze, riveted every one-half inch. The two long bolts that hold the steel caps on either end of the tank also serve as attachments for the spars that hold the tank to the engine bed, as shown in diagram 17. The tank has been satisfactorily charged to a pressure[101] of 200 lbs. per square inch, but only a pressure of 150 lbs. is necessary to operate the engine. The tank measures 10″ in length by 3″ in diameter and weighs 7 ounces.

The wings of this machine are single surfaced and covered with fiber paper. The top wing measures 42″ in span by 6″ in chord. The lower wing is 24″ by 6″. The wings have a total surface of 396 square inches and are built up of two ³⁄₁₆″ dowel sticks, flattened to streamline shape. Only two sets of uprights separate the wings, thus adding to the streamline appearance of the machine.

Both tail and rudder are double surfaced and are built entirely of bamboo for lightness, the tail being made in the form of a half circle measuring 12″ by 8″. Steel wire is used on the construction of the landing chassis, the chassis being so designed as to render it capable of withstanding the most violent shock that it may possibly receive in landing. The propeller used in connection with the model is 14″ in diameter and has an approximate pitch of 18″.

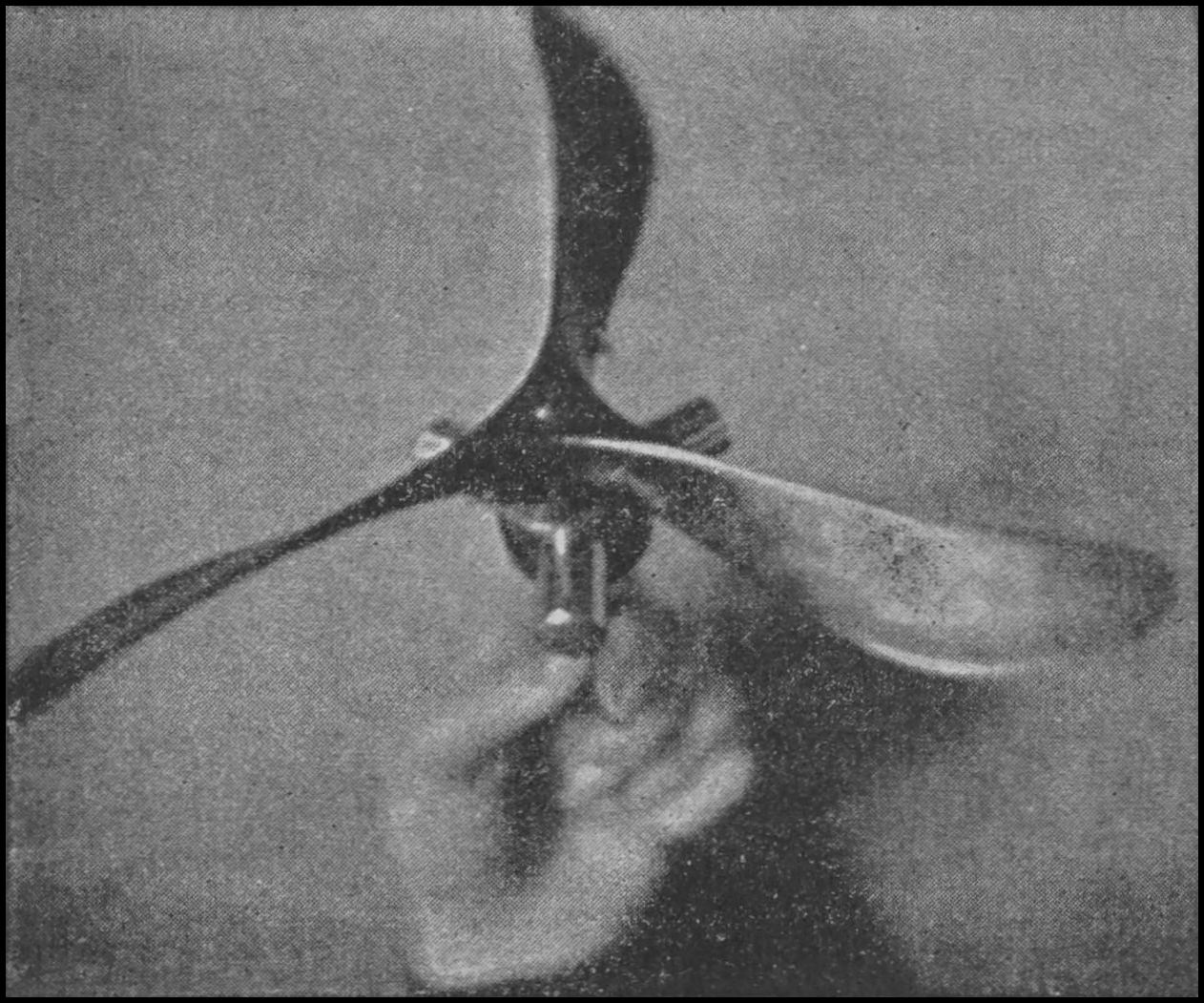

THE WISE COMPRESSED AIR ENGINE

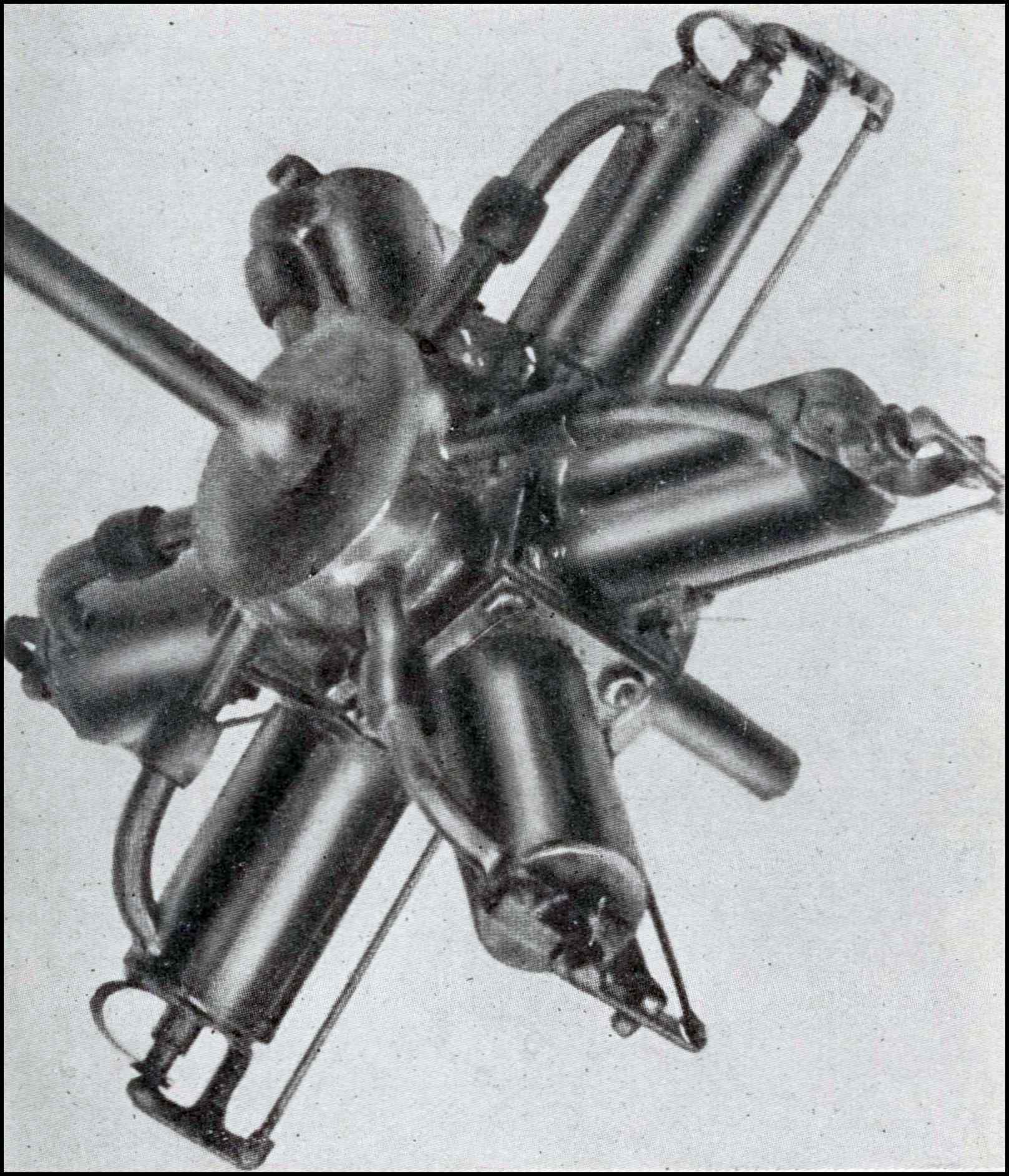

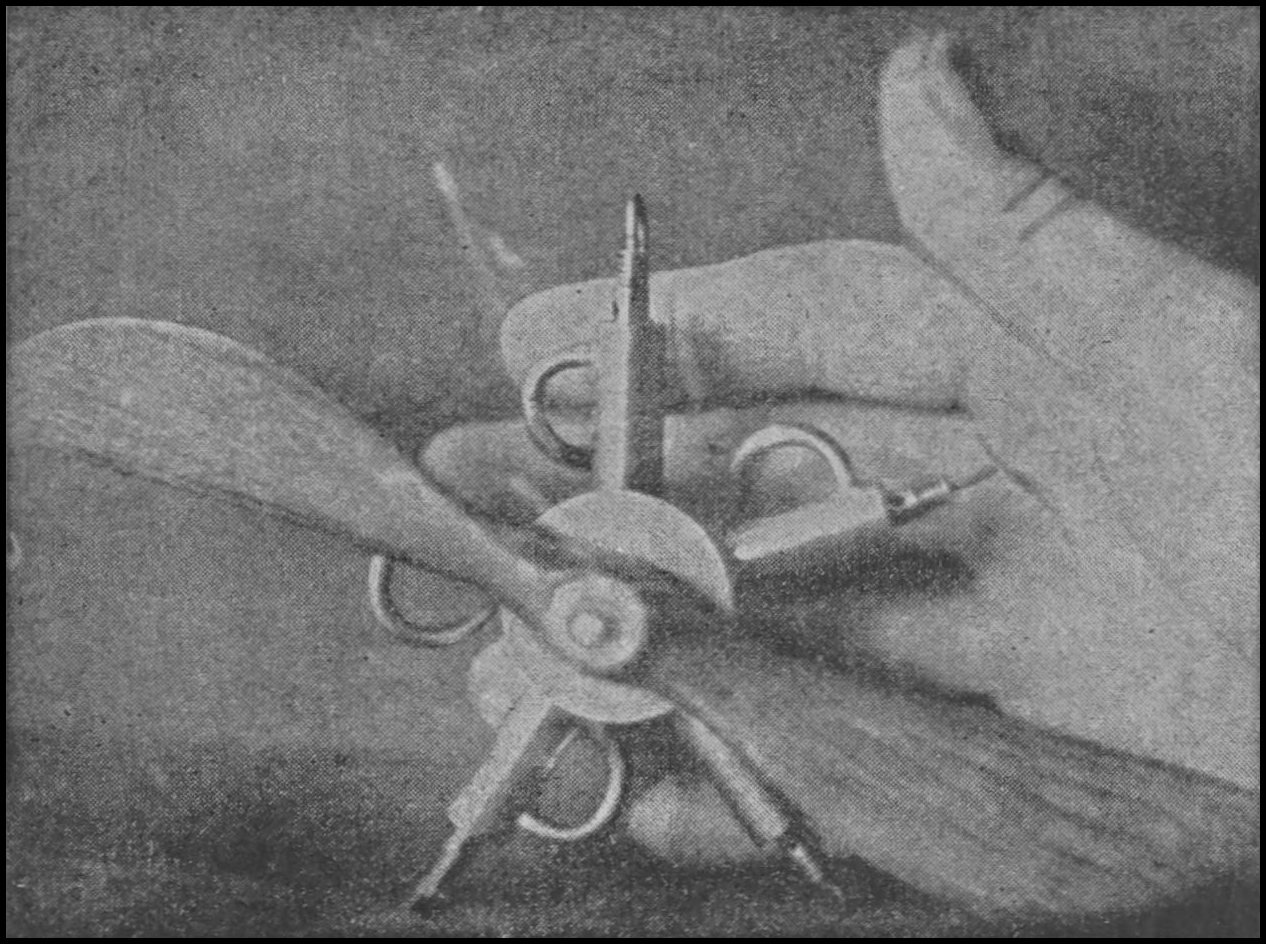

Although of peculiar construction, the Wise rotary compressed air engine offers a very interesting design from a viewpoint of ingenuity. This engine embodies a number of novel features not hitherto employed in the construction of compressed air engines, and in view of the fact that the majority of compressed air engines are made on the principle of the opposed type, this engine suggests many possibilities for the rotary type engine.

The engine consists of five cylinders and weighs four ounces, including the propeller and mounting frame. On a pressure of 15 lbs. the engine will revolve at a speed of 1000 r.p.m. The connecting rods are fastened to the crankshaft by means of segments and are held by two rings, making it possible to remove any one[104] piston without disturbing the others. This is done by simply removing a nut and one ring. The crank case is made from seamless brass tubing, into which the cylinders are brazed. The valve cage and cylinder heads are also turned separately and brazed. One ring only is used in connection with the pistons. The cylinders have a bore of ¹¹⁄₃₂″, with a piston stroke of ⁷⁄₁₆″. In view of the fact that pull rods show a greater tendency to overcome centrifugal force, they are used instead of push rods to operate the valves. The crankshaft has but one post, which is uncovered in turn by each inlet pipe as the engine revolves. The “overhang” method is used to mount this engine to the model. With the exception of the valve springs, the entire engine, including the mounting frame and tank, is made of brass.

THE SCHOBER-FUNK COMPRESSED AIR ENGINE

Two of the most enthusiastic advocates of the compressed air engine for use in model aëroplanes are Messrs. Frank Schober and Rudolph[105] Funk, both members of the Aëro Science Club. For a number of months both these gentlemen have experimented with compressed air engines of various designs, until they finally produced what is perhaps one of the most satisfactory rotary engines now in use, from a standpoint of simplicity and results.

As can be seen from the accompanying illustration, this little engine is remarkably simple in appearance. The engine complete, with equipment, weighs at the most but 14 ounces. The cylinders, three in all, are stamped from brass shells for strength and lightness. The pistons are made from ebony fiber. The cylinders have a bore of ⁵⁄₈″, with a piston stroke of ¹⁄₂″. The crank case is built up from a small piece of brass tubing and is drilled out for lightness. The crankshaft is hollow, and is supported at the rear by a special bearing which acts as a rotary valve, admitting the intake through the crankshaft and permitting the exhaust to escape through a specially constructed bearing.

The tank is constructed of 30 gauge sheet bronze, wire wound, and fitted at the ends with spun brass caps. The actual weight of the engine alone is 2¹⁄₂ ounces, the tank and fittings weighing 11¹⁄₂ ounces, making the total weight of the complete power plant 14 ounces.

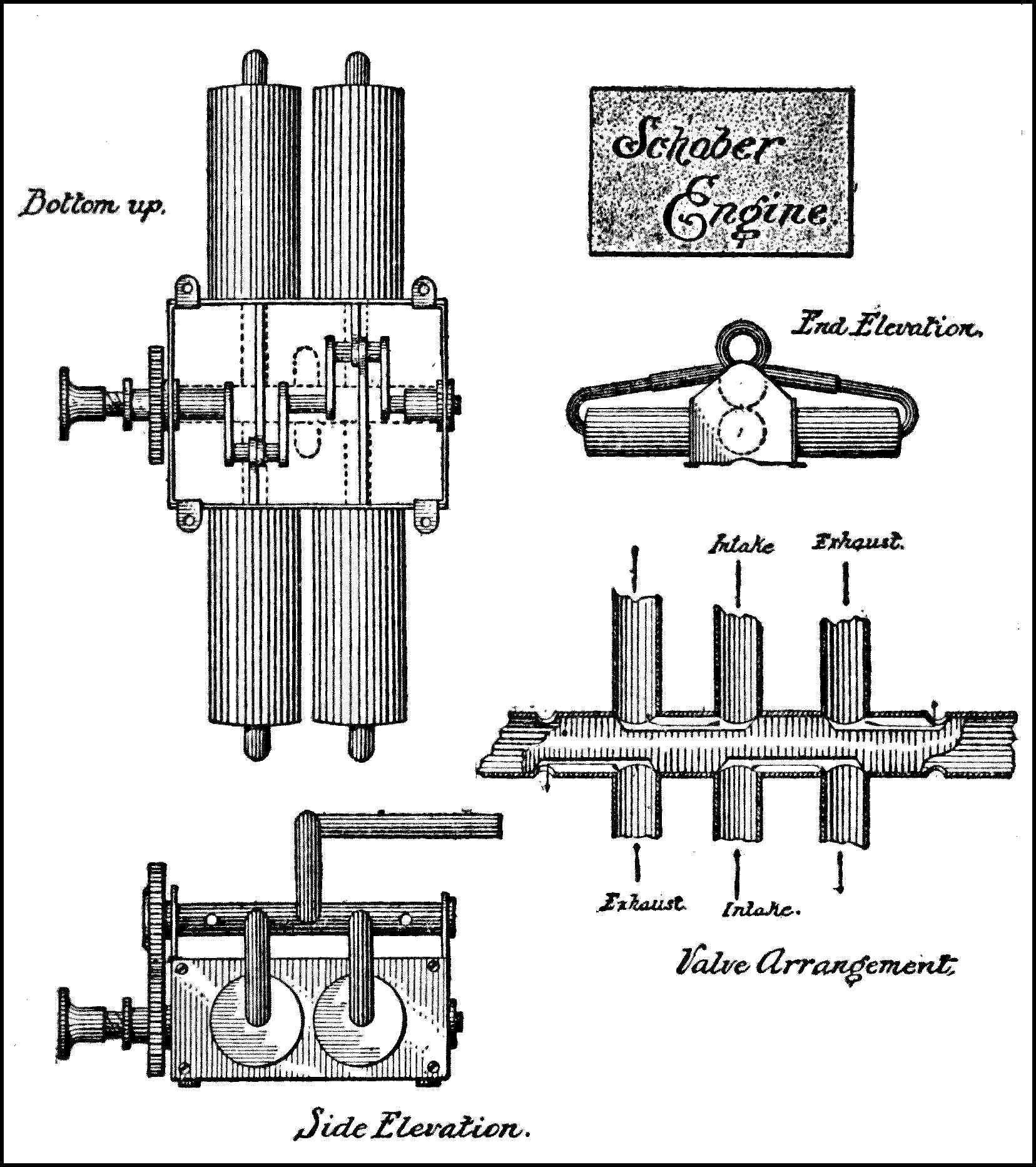

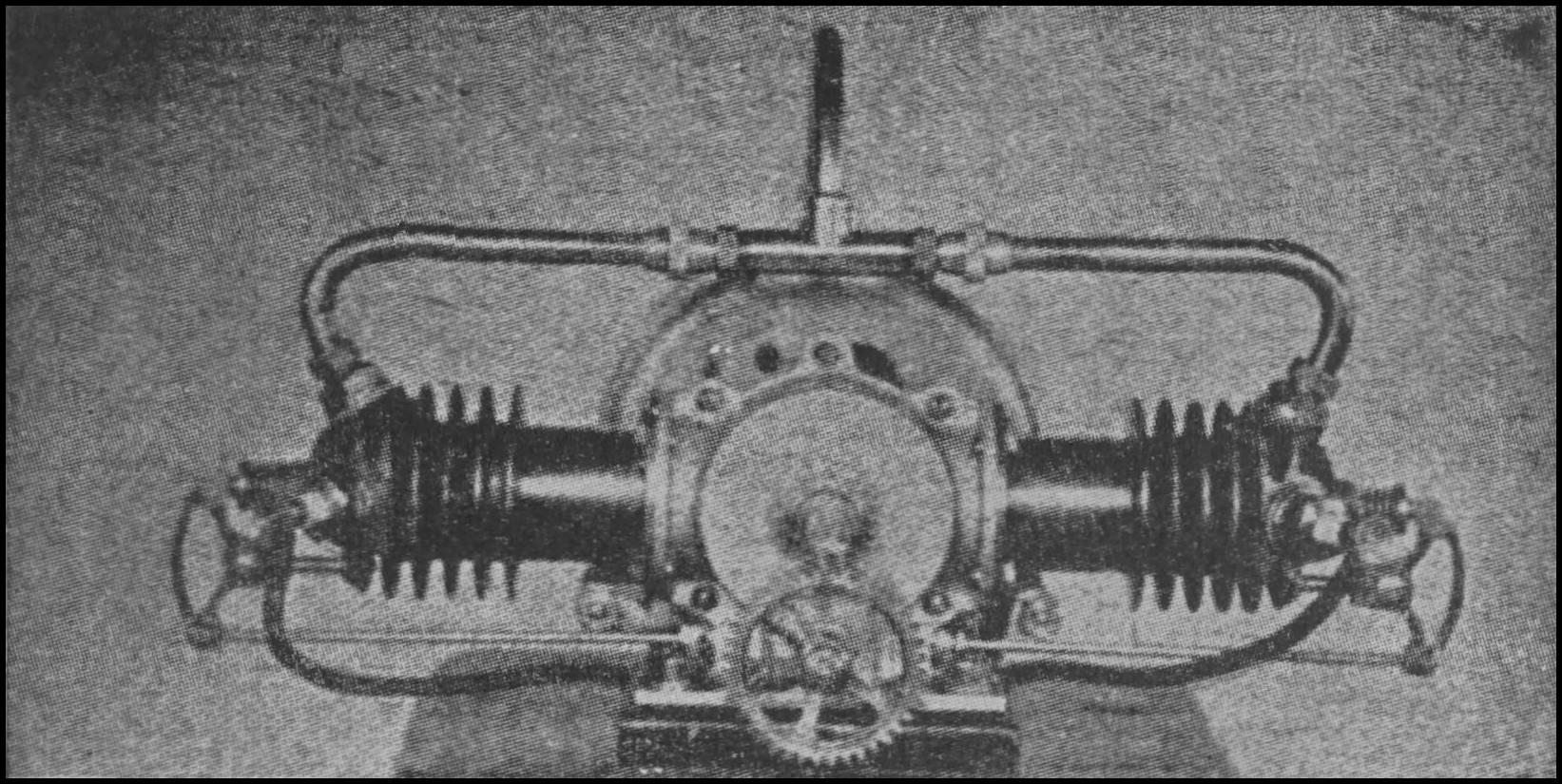

THE SCHOBER FOUR CYLINDER OPPOSED ENGINE

Another interesting type of compressed air engine that has been developed in America is the Schober four cylinder opposed engine. While this engine is different in appearance from most compressed air engines, it has been made to work satisfactorily and is consistent with the same high class construction that is displayed in most all of Mr. Schober’s engines. The accompanying diagram 18 illustrates the method of operation of the four cylinder engine.

The crank case is constructed from four pieces of 24 gauge spring brass, substantially connected in the form of a rectangle, the top and bottom being left open. The front and rear walls have flanges which engage the inside of the side walls and are secured thereto by four small screws on each side, thereby making it an easy matter to take the crank case apart.

The four cylinders are made from drawn brass shells and have a bore of ¹⁄₂″ and stroke of ¹⁄₂″. The pistons are made of solid red fiber. The two-throw crankshaft is built up of steel with brass webs. The bearings are of steel. The valves, being overhead, are driven by a gear mounted at the end of the crankshaft, the gear driving the valve shaft by means of a gear on that shaft, with which the crankshaft gear meshes. The valve arrangement, as shown in diagram 18, consists of four recesses cut into the valve shaft, two of which allow the air to pass from the inlet pipes, which lead into the valve chamber at the center of same, to two of the cylinders at once, while the other two recesses allow the exhaust to pass from openings in the sides of the valve chamber.

The cylinders are secured to the side plates[109] of the crank case so that when those side plates are removed, the cylinders are removed with them. The pipes are detachable at their centers; small pipes running to the heads of the cylinders extending into the larger pipes which run to the valve chamber. This arrangement is shown in the end view of the engine. A 17″ propeller is used in connection with this engine.

THE JOPSON 1 H. P. GASOLINE ENGINE FOR MODEL AËROPLANES

During the past few years several attempts have been made, both in this country and abroad, to produce a reliable gasoline engine for model aëroplane work, but mostly without any degree of success. The reason for this inability, no doubt, is due to the scarcity of small working parts sufficiently light and at the same time reliable. The engine described herewith, designed by Mr. W. G. Jopson, a member of the Manchester Aëro Club, England, is one of the few that have been made to work satisfactorily.

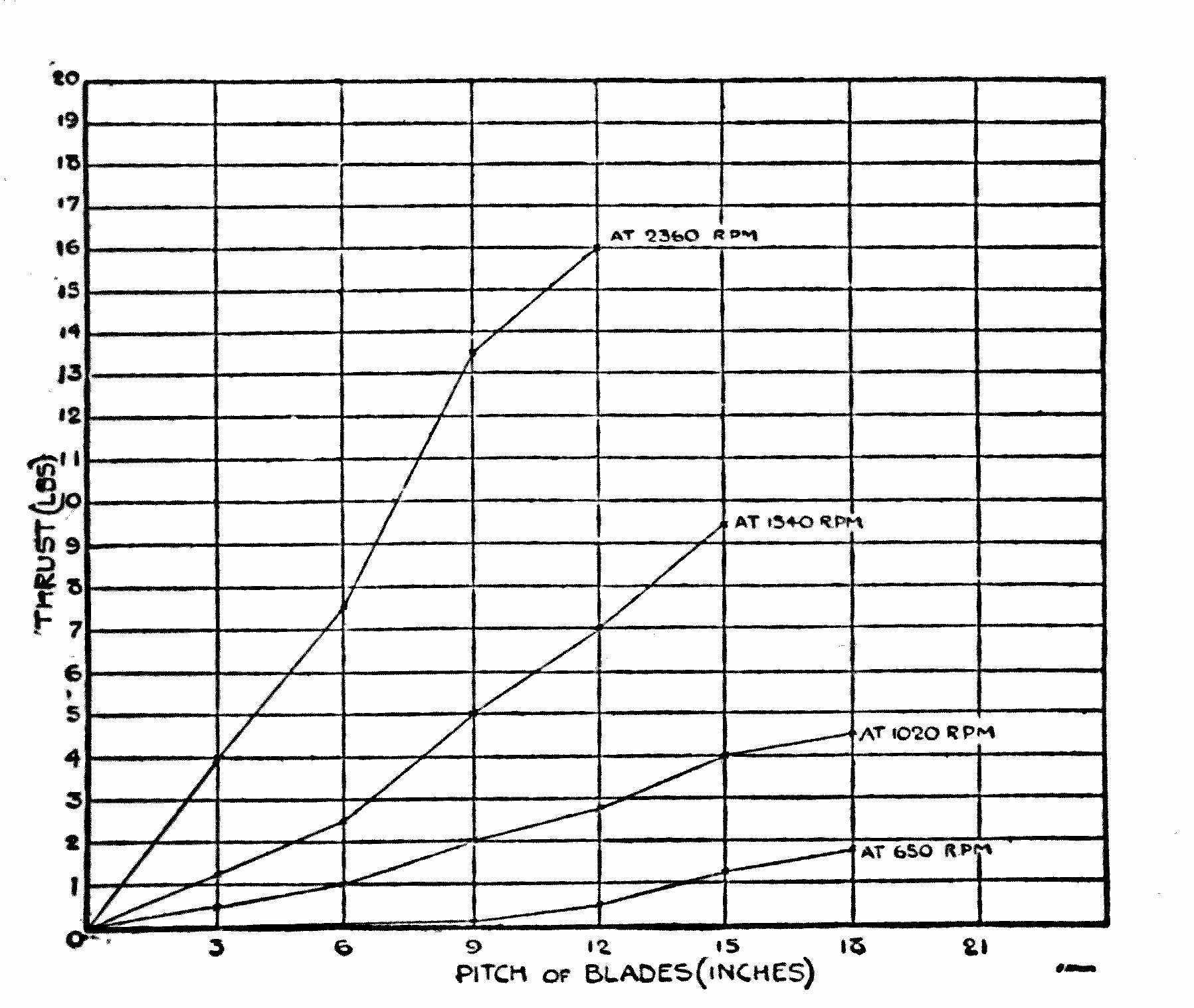

As the accompanying diagrams 19 and 20 and photograph show, the engine is of the four-cycle, horizontal opposed type, having two cast-iron cylinders of 1¹⁄₄″ bore and 1³⁄₈″ stroke. Each cylinder is cast in one piece, and as the[111] engine is air cooled, they are cast with radiating fins. One h.p. is developed at 1500 r.p.m. The total weight of the engine, gasoline tank and propeller is 7¹⁄₂ lbs. In preparing the design of this engine, the designs of similar full-sized aëro engines were followed as far as possible. The pistons are similar to those used on large aëro engines and are fitted with two rings; the crankshaft is turned out of two inch special bar steel, and is carried in two phosphor-bronze bearings. There is no special feature about the connecting rods, these being of the standard type, but very strong and light. To enable the two cylinders to be exactly opposite one another, the connecting-rods are offset in the pistons and are connected to the latter by gudgeonpins. The aluminum crank case is extremely simple, being cylindrical and vertically divided. The inlet valves are automatic, the exhaust valves being mechanically operated; the camshaft is driven from the main shaft by two-to-one gearing.

To assist the exhaust, and also the cooling, small holes are drilled round the cylinder in such a position that when the piston is at the inner end of its stroke, these holes are uncovered, thus permitting the hot exhaust to escape, and so relieve the amount passing through the exhaust valves. The commutator is also driven off the camshaft, as shown in the drawing. No distributor is fitted to the commutator, as small ones are somewhat troublesome and very light coils are obtainable at a reasonable price.

The gasoline tank is made of copper in streamline form, and is usually fitted to the back of the crankcase, thus reducing the head resistance, but if desired it can be fitted in any other position. The action of the carburetor can be easily seen from the drawings; it is of the surface type and much simpler, lighter and quite as efficient as the spray type. Specially light and simple spark plugs are used, that give very little trouble. The propeller used in connection with this engine is somewhat out of the ordinary, having been specially designed for this engine, and patented. The propeller[114] is made entirely of aluminum and has a variable pitch, this being easily obtainable, as the blades are graduated so that any desired pitch, within certain limits, may be given at once. The results of a series of tests on a 30 inch propeller are shown on the accompanying chart, and from it the thrust as certain speeds with a certain pitch can be obtained. Taking the engine running at 1540 r.p.m. with a pitch of 15″, the thrust comes out at 9¹⁄₂ lbs., or more than the weight of the engine and accessories.

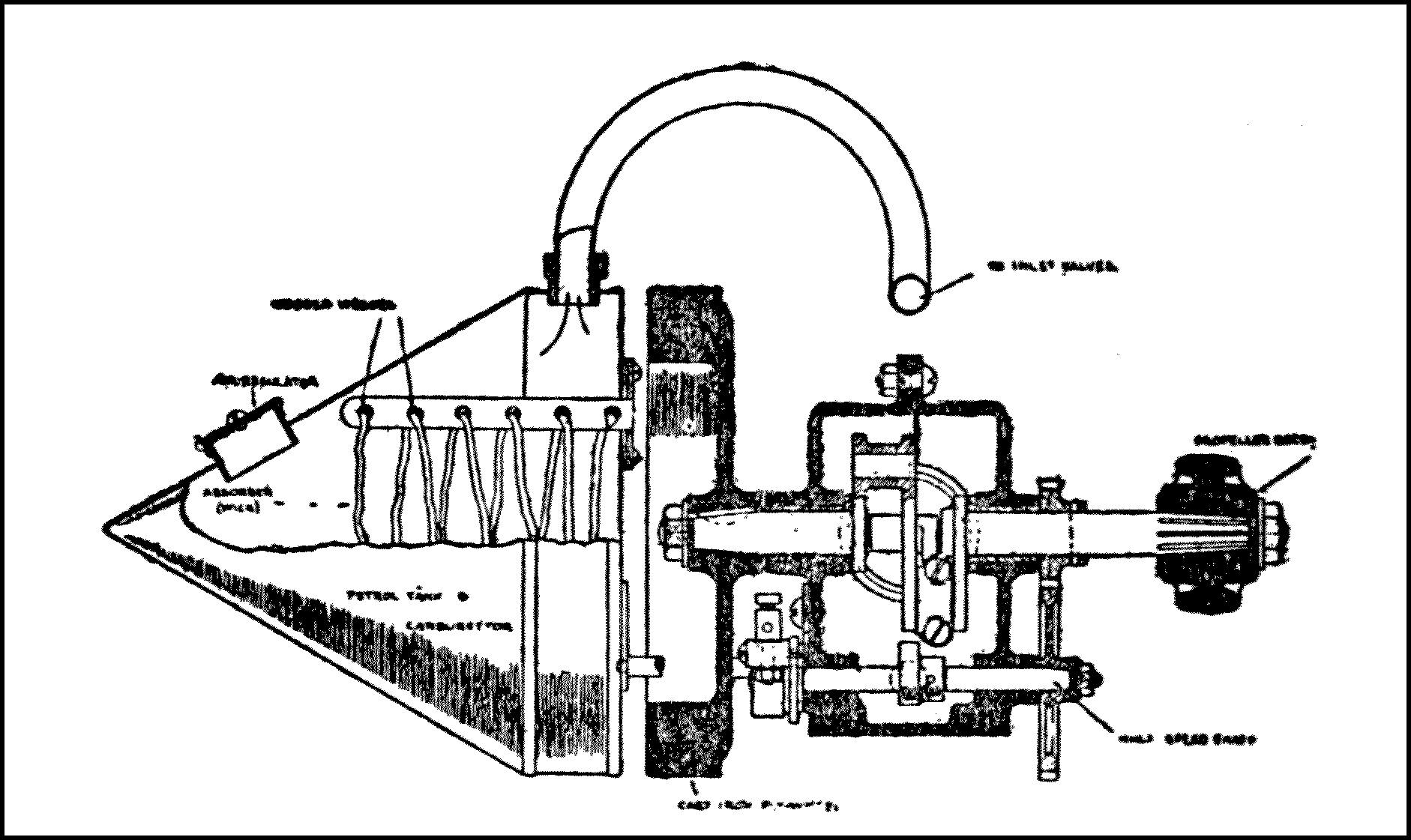

THE MIDGET AËRO GASOLINE ENGINE

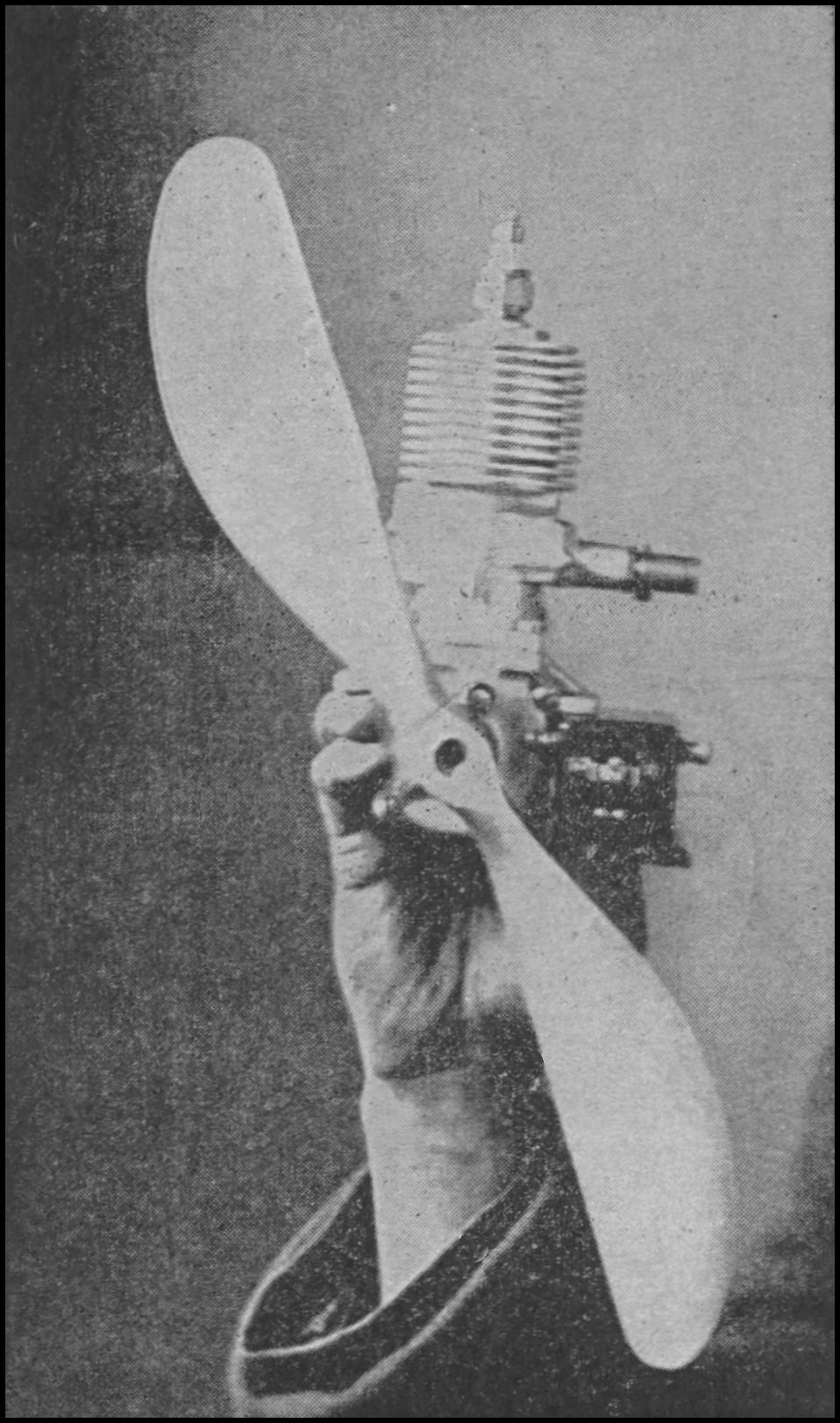

Although numerous model constructors in America are experimenting with model gasoline engines, the Midget Gasoline Engine, the product of the Aëro Engine Company, Boston, Massachusetts, is perhaps the most satisfactory up to the present time. An engine of this type was used by Mr. P. C. McCutchen of Philadelphia, Pennsylvania, in his 8 foot Voisin Type Biplane Model, for which he claims a number of satisfactory flights.

The engine is made from the best iron, steel, aluminum and bronze and the complete weight including a special carburetor, spark plug and spark coil is 2¹⁄₂ lbs. From the top of the cylinder head to the bottom of the crank case the engine measures 7″. It is possible to obtain from this engine various speeds from 400 to 2700 r.p.m., at which speed it develops ¹⁄₂ h.p. The propeller used in connection with this engine measures 18″ in diameter and has a 13″ pitch.

It might be of interest to know that one of the parties responsible for the development of this engine is Mr. H. W. Aitken, a former model maker and who is now connected with one of the largest aëro engine manufacturing companies in America.

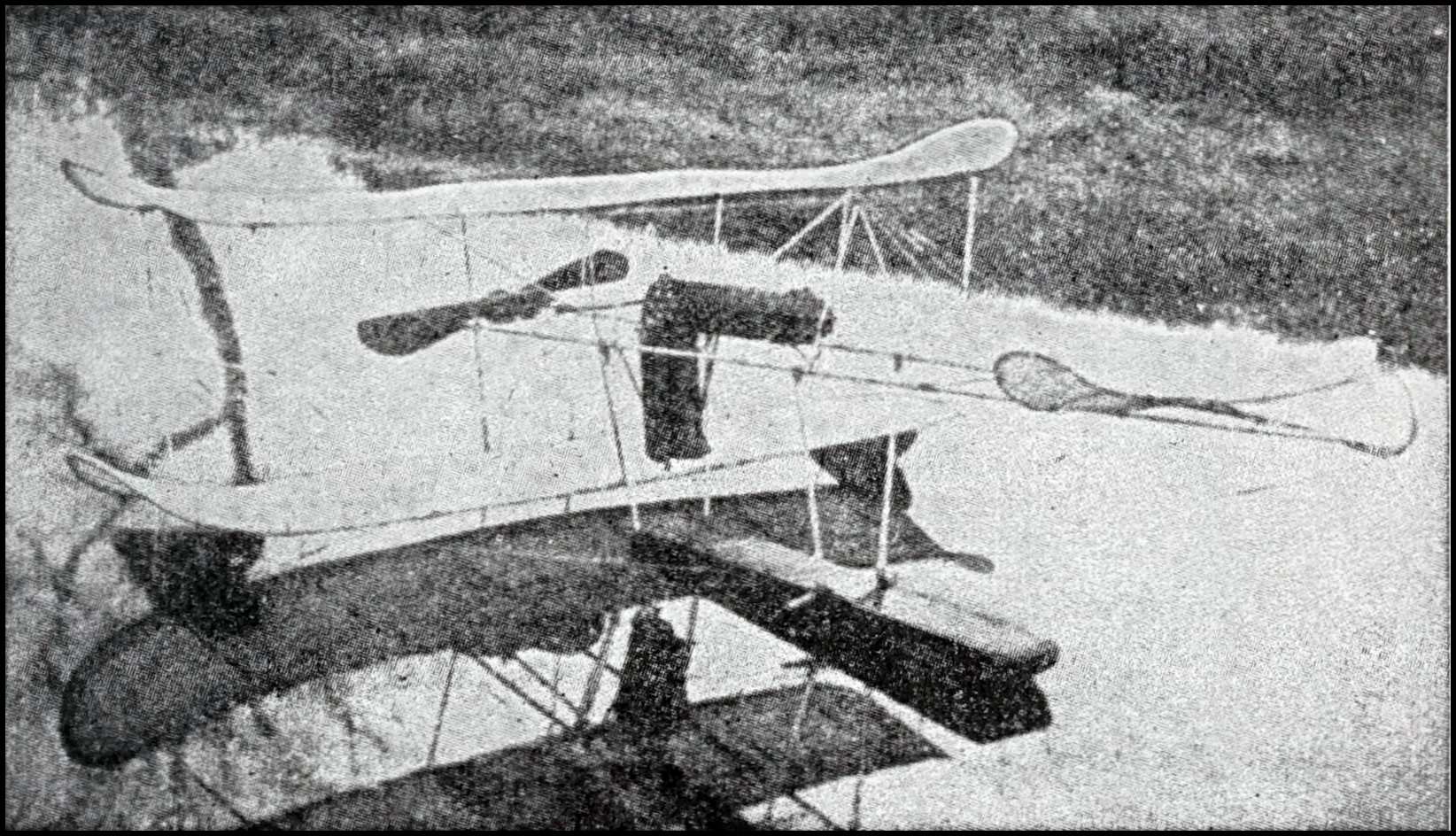

Aside from the compressed air engine there is the steam driven engine which has been used abroad to considerable degree of success. Owing to the difficulty in constructing and operating a steam driven engine, very few model flyers in America have devoted any attention to the development of this engine as a means of propulsion for model aëroplanes. But irrespective of the limitations of the steam engine a great deal of experimentation has been carried on in England, and without doubt it will soon be experimented with in America.

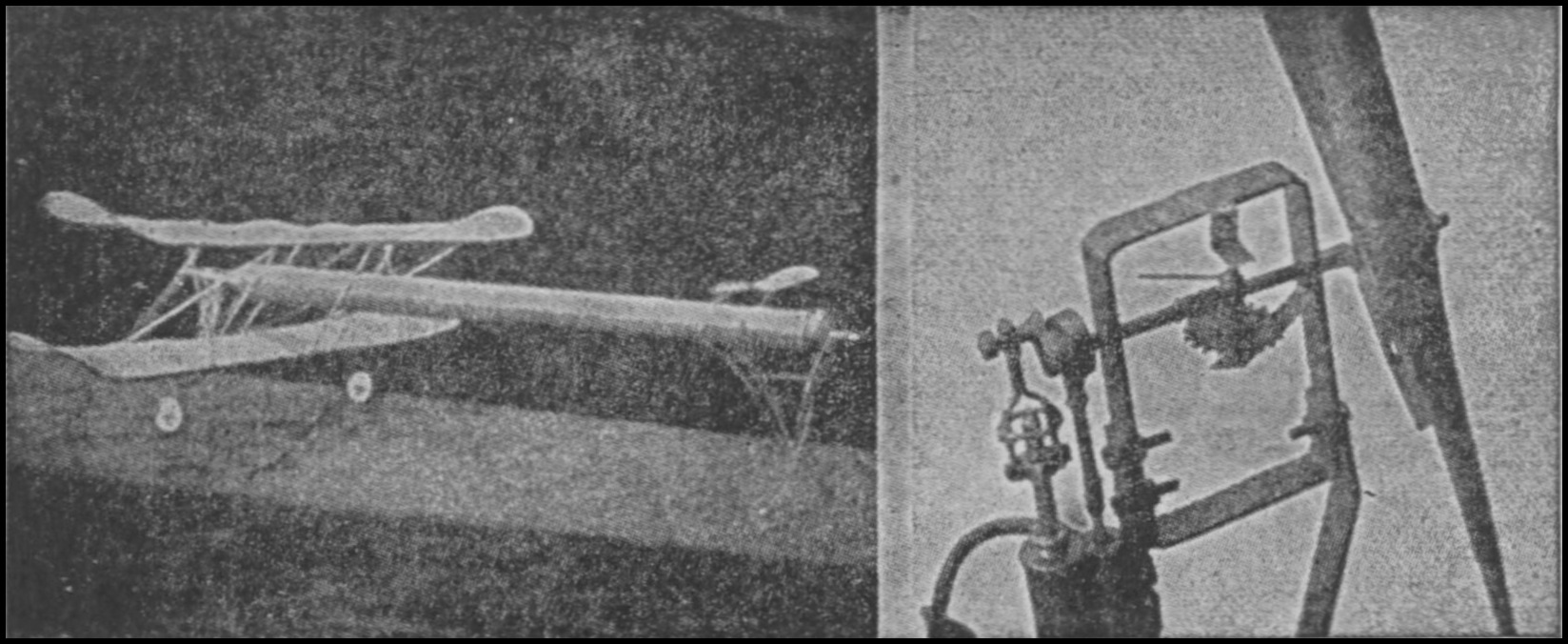

H. H. GROVES STEAM POWER PLANTS

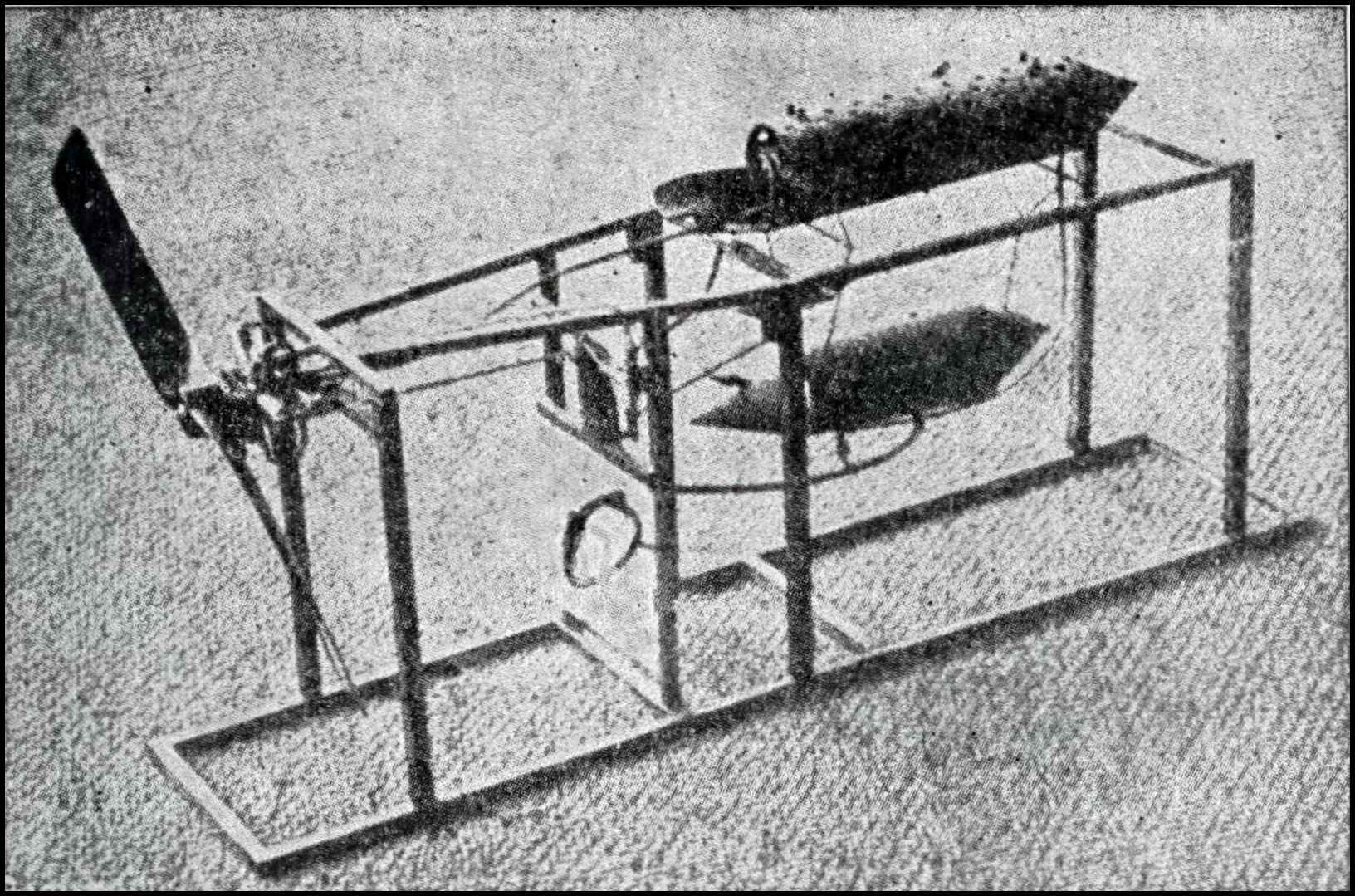

Perhaps one of the most successful steam power plants to have been designed since the development of the Langley steam driven model, is the Groves type of steam power plant, designed by Mr. H. H. Groves, of England. On one occasion several flights were made with a model[119] driven by a small steam engine of the Groves type weighing 3 lbs. The model proved itself capable of rising from the ground under its own power and when launched it flew a distance of 450 feet. This is not a long flight when compared with the flight made by Prof. Langley’s steam driven model on November 28, 1896, of three-quarters of a mile in 1 minute and 45 seconds, but the size of the models and also that Mr. Groves’ model only made a duration of 30 seconds, must be considered. The model was loaded 12 ounces to the square foot and had a soaring velocity of some 20 m.p.h. The total weight of the power plant was 1¹⁄₂ lbs. Propeller thrust 10 to 12 ounces. The total weight of the model was 48 ounces. The type of steam plant used in connection with this model was of the flash boiler, pressure fed type, with benzoline for fuel.

Mr. Groves has done considerable experimenting with the steam driven type power plant. Many of the designs used in the construction of steam plants for models are taken[120] from his designs. A Groves steam power plant is employed in one of Mr. V. E. Johnson’s (Model Editor of Flight) model hydroaëroplanes, the first power-driven, or “mechanically driven” model hydroaëroplane (so far as can be learned) to rise from the surface of the water under its own power. This model has a total weight of 3 lbs. 4 ounces.

G. HARRIS’S STEAM ENGINE

Another advocate of the steam driven type model is Mr. G. Harris, also of England. Several good flights were made by Mr. Harris with his pusher type monoplane equipped with a steam driven engine. As a result of his experiments he concluded that mushroom valves with a lift of ¹⁄₆₄ part of an inch were best, used in connection with the pump, and at least 12 feet of steel tubing should be used for boiler coils. The first power plant constructed by Mr. Harris contained a boiler coil 8 feet long, but after he had replaced this coil with one 12 feet long, irrespective of the fact that the extra length of tube weighed a couple of ounces, the thrust was increased by nearly a half pound.

The principal parts used in Mr. Harris’s steam power plant was an engine of the H. H. Groves type, twin cylinder, ⁷⁄₈″ bore with a piston stroke of ¹⁄₂″. The boiler was made from 12″ of ³⁄₁₆″ × 20″ G. steel tubing, weighing 10.5 ounces. The blow lamp consisted of a steel tube, ⁵⁄₃₂″ × 22″ G. wound round a carbide carrier for a nozzle. The tank was made of brass ⁵⁄₁₀₀₀″ thick. The pump, ⁷⁄₃₂″ bore, stroke variable to ¹⁄₂″, fitted with two non-return valves (mushroom type) and was geared down from the engine 4.5 to 1.

PROFESSOR LANGLEY’S STEAM ENGINE

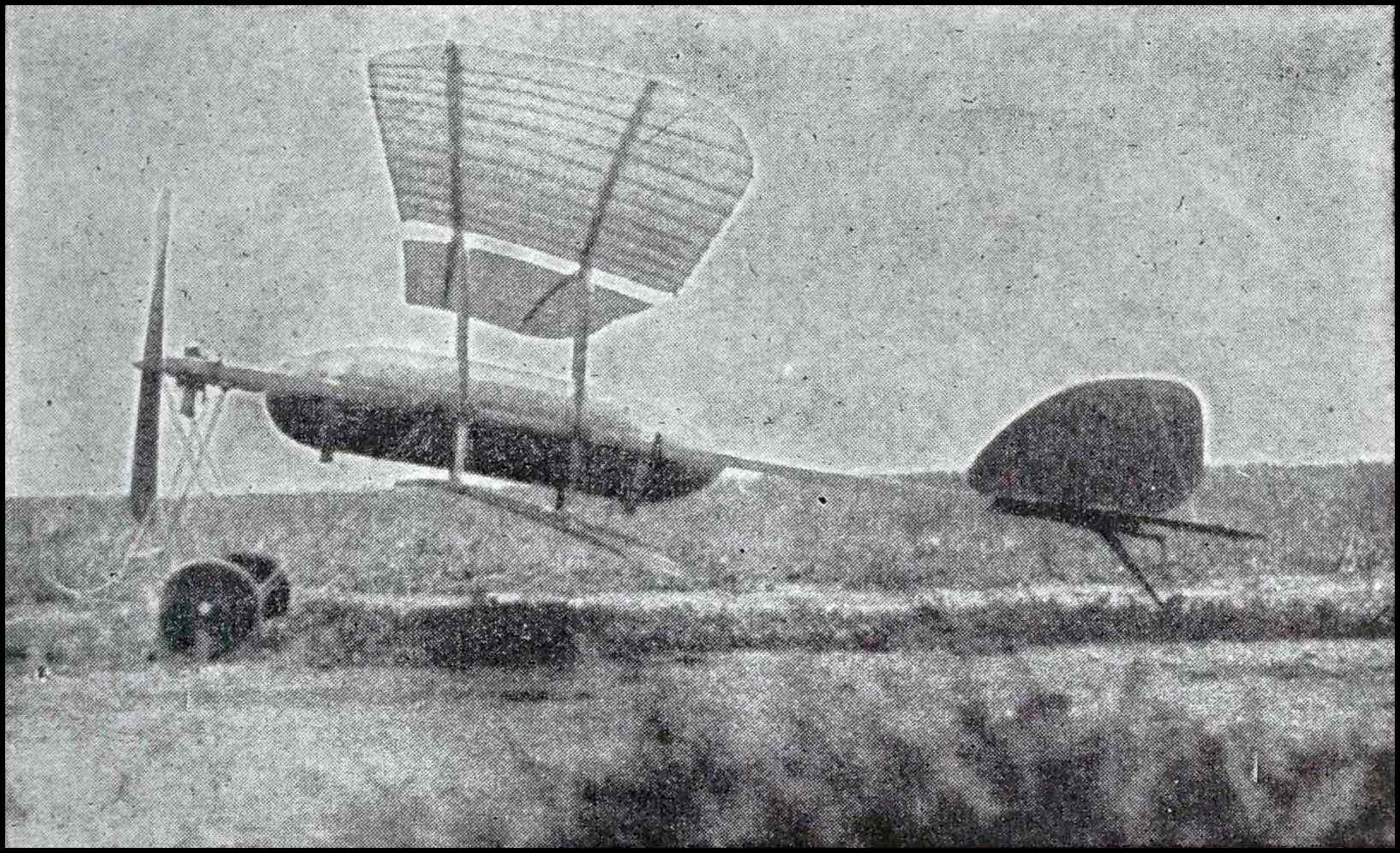

The Langley steam driven model, of which so much has been said, and which on one occasion flew a distance of one-half mile in 90 seconds, had a total weight of 30 lbs., the engine and generating plant constituting one-quarter of this weight. The weight of the complete plant worked out to 7 lbs. per h.p. The engine developed from 1 to 1¹⁄₂ h.p. A flash type boiler was used, with a steam pressure of from 150 to 200 lbs., the coils having been made of copper. A modified naphtha blow-torch, such[122] as is used by plumbers, was used to eject a blast or flame about 2000 Fahrenheit through the center of this coil. A pump was used for circulation purposes. With the best mechanical assistance that could be obtained at that date, it took Professor Langley one year to construct the model.

FRENCH EXPERIMENTS WITH STEAM POWER PLANTS

About ten months after Langley’s results, some experiments were carried out by the French at Carquenez, near Toulon. The model used for the experiments weighed in total 70 lbs., the engine developing more than 1 h.p. As in the Langley case, twin propellers were used, but instead of being mounted side by side, they were mounted one in front and the other behind. The result of these experiments compared very poorly with Langley’s. A flight of only 462 feet was made, with a duration of a few seconds. The maximum velocity is stated to have been 40 m.p.h. The span of this model was a little more than 6 meters, or about 19 feet, with a surface of more than 8 square meters, or about 80 square feet.

The six-cylinder carbonic gas engine described herewith is the product of Mr. Henry Rompel, Kansas City, Missouri.

This is perhaps one of the most interesting of its kind to have been developed during 1916, and its appearance in the model aëroplane field adds weight to the claim that mechanical engines will soon replace the rubber strand as motive power for model aëroplanes.

Mr. Rompel’s engine is of rotary, carbonic gas type, having six cylinders, a bore of ⁵⁄₈″ and a stroke of ³⁄₄″.

The intake is derived through a rotary valve which also acts as a crank shaft bearing, thereby saving weight.

The exhaust is accomplished by mechanically operated valves situated in the heads of the cylinders being opened by the aid of rocker[124] arms and push rods, which gain their timing from a cam placed on the crankshaft.

To save weight in construction the crankshaft, connecting rods, pistons and cylinders were made of telescopic tubing with a side wall of one thirty-second of an inch or less in thickness.

The engine has a swing of 5¹⁄₂″ over all, weighs a little less than 8 ounces complete, and is operated on 1,500 pounds pressure (carbonic gas) and at a speed of 3,500 to 3,700 r.p.m. will develop about 1 horse power. While spinning a 17″ propeller with a pitch of 20 inches it will deliver a thrust of 21 ounces, and has a duration of 40 seconds. Two hundred and fifty-six pieces were embodied in its construction.

To form a model aëroplane club at least six interested persons are necessary. As soon as a place in which to hold meetings has been decided upon the club should proceed to elect a director whose duty should be to manage the affairs of the club. One of the first things to be considered is the name under which the club will operate; the custom is usually to adopt the name of the town or city in which the club is located, viz.: Concord Model Aëro Club, Concord, Massachusetts, although it is the privilege of the majority of the members to choose a name such as they might feel will best benefit the purpose for which the club was organized. As in the case of the Aëro Science Club of America, this club was formed for the purpose of stimulating interest in model[126] aëronautics and to help those who might become interested therein, not only in New York City but throughout the entire United States.

When the matter of name and place has been settled the club should decide upon the course it is to follow, first by electing officers and second by preparing a constitution and by-laws. In the case of clubs whose membership does not comprise more than six members, it does not seem desirable to have more than one officer, namely, a director, who might perform the duties of a president, treasurer and secretary until the club has reached a larger membership. In this way the members are enabled to concentrate upon the construction and flying of models and to engage in such other activities as to carry out the purpose for which the club was organized. However, the foregoing is merely a suggestion on the part of the writer, who by the way is a member of the Aëro Science Club of America and formerly acted in the capacity of secretary to that club.

Clubs whose membership totals more than twelve, however, should proceed to elect a President, Treasurer and Secretary, all of whom must receive a vote of at least two-thirds of the membership. With clubs of this size a director is not needed as the affairs of the club are usually entrusted with the governing officers, the President, Treasurer and Secretary. In as much as the constitution and by-laws are an important factor in the affairs of any model club, the governing officers, before mentioned, should hold a private meeting at the earliest moment whereat to frame a constitution and set of by-laws embodying the purposes and policy of the club. When the proposed constitution and by-laws are completed they should be presented to the members for approval after which a copy should be given to every member.

The following is a specimen of constitution and by-laws that might be used by any person or persons desiring to form a Model Aëro Club:

Article 1. Name. The name of this club will be known as The .......... Model Aëro Club.

Purpose. The object of this club shall be to study and increase the interest in the science of aëronautics in every way possible and to realize this object, shall construct and fly model aëroplanes, gliders and man carrying machines.

Further, Contests shall be held for model aëroplanes and prizes awarded to the winners thereof. And as a further step in the advancement of this art, meetings, lectures, discussions, debates and exhibitions will be held.

Article 2. Membership. Any person may become a member of this club provided his application receives the unanimous approval of the majority of members, or is passed upon by the membership committee. A member[129] may resign his membership by written communication to the secretary who shall present it to the membership committee to be passed upon.

Article 3. Officers. The officers of this organization shall be a President, Vice-president, Secretary and Treasurer and a board of governors to consist of said officers. The president and vice-president shall constitute the executive committee of the board of governors, with full powers to act for them in the affairs of the club. The election of officers shall take place at the first meeting held during the month of .......... of each year and shall hold office for one year. In the event of a vacancy in the office of the President the Vice-president or next highest officer present shall preside. Any other vacancy shall be filled by an officer temporarily appointed by the President. The President shall preside at all meetings of the club and of the board of governors, and shall perform such other duties as usually pertain to that office. The President shall[130] have full authority to appoint committees or boards as may be necessary to further the interests of the club.

The Secretary shall keep a record of all meetings of the club, board of governors and committees and shall use the seal of the club as may be directed by the executive committee. Further, he shall issue notices to officers and members of all special meetings and perform such other duties as may be assigned him by the constitution, by the club or by the board of governors.

The Treasurer shall have charge of the funds of the club, receive all moneys, fees, dues, etc.; pay all bills approved by the board of governors, and preserve all proper vouchers for such disbursements.

We now come to the matter of contests. As there are many different types of models so must there be rules to correspond to avoid misunderstandings, and until the club has reached[131] the stage where it may decide upon a particular set of rules under which its members should participate perhaps the following set of rules, applicable to contests for hand launched models, can be adopted. In so far as there are different rules for different contests, namely, hand launched, R. O. G. and R. O. W. and mechanical driven, the following rules are used only in connection with contests for hand launched models; rules for other contests follow:

Each contestant must abide by the rules of the contest and decision of the judges.

Trials to start from a given point indicated by the starter of the trials, and distance to be measured in a straight line from the starting[132] point to where the model first touches the ground, regardless of the curves or circles it may have made. Each contestant must have his models marked with his name and number of his models (1, 2, 3, etc.), and each model will be entitled to three official trials. Contestant has the privilege of changing the planes and propellers as he may see fit, everything to be of his own construction, but only three frames can be used in any contest. If in the opinion of the board of judges there are too many entries to give each one nine flights in the length of time fixed, the judges have the power to change that part of rule No. 6 to the following:

“Six flights or less, as circumstances may require, will be allowed to each contestant, which can be made with one model or any one of three entered; all of his own construction; due notice must be given to each contestant of the change.”

No trial is considered as official unless the model flies over 100 feet from the starting[133] point. (The qualifying distance can be changed by agreement between the club and the starter provided the entrants are notified.) Should the rubber become detached from the model, or the propeller drop off during the trial, the trial is counted as official, provided the model has covered the qualifying distance. No matter what may happen to the model after it has covered the qualifying distance the flight is official. Contests should cover a period of three hours, unless otherwise agreed.

No contestant shall use the model of another contestant, although the former may have made it himself.

The officials should be: a starter, measurer, judge and scorer; also three or four guards to keep starting point and course clear. The first three officials shall, as board of judges, decide all questions and disputes. A space 25 feet square (with stakes and ropes) should be measured off for officials and contestants, together with an assistant for each contestant. All others must be kept out by the guards and a[134] space kept clear (at least 25 feet) in front of the starting point, so a contestant will not be impeded in making his trial.

Each official should wear a badge, ribbon or arm band designating his office, and must be upheld in his duties.

At the discretion of the club there may be imposed a handicap for club events as follows: A contestant in order to win must exceed his last record with which he won a prize.

First, second and third records to count. Lowest number of points to win. For example:

Models to be set on the ground and allowed to start off without any effort on the part of the contestant. Models should rise from the ground before reaching a predetermined mark, no flight to be considered unless it does so. Contestant may start at any length back from the mark, but the distance is to be measured only from the mark.

For duration, or distance, contests for mechanically driven models might be held under the same ruling that applies to R. O. G. models. But owing to the many types of engines used in mechanically driven models, definite rules for the holding of such a contest must be left to the discretion of the club or contestants.

These events are open to all, with no handicaps to be imposed on either club members or others.

Dates for inter-club contest should be arranged for at least three weeks prior to date of first contest, to allow ample time for the construction of special models and elimination trials.

In event of inclement weather the contest to take place the week following (each contest following to be set one week ahead), or at any time that may be determined by a committee appointed by the contesting clubs.

Each competing club must be represented by a team of three contestants and one non-competitor, who will act as judge in conjunction with the judges from the other clubs, and a manager selected by the judges who will supervise over the entire tournament and issue calls for meetings. (Substitutes should also be selected for any possible vacancy.)

Meetings of the judges of the competing clubs should be held at some designated place, at which time dates and general details shall be arranged, and between events there should be a meeting called, for general discussion regarding the recent event, receive protests and suggestions and to announce officially the result of the contest.

The manager shall have control of the various events, assisted by the judges and they shall decide all disputes that may arise, and act as scorers and timers, as well.

Each flyer will be allowed but one model and shall be entitled to three official flights, but he shall be permitted to make any repairs or[138] replace any broken parts. No contestant shall be privileged to fly a model not of his own construction. Each event shall close when all the contestants have made three official flights, or when three hours’ time has elapsed.

Aërodynamics—The science of Aviation, literally the study of the influence of air in motion.

Aëroplane—A heavier than air machine supported by one or more fixed wings or planes.

Aërostatics—The science of aërostation, or of buoyancy caused by displacement, ballooning.

Aileron—The outer edge or tip of a wing, usually adjustable, used to balance or stabilize.

Airship—Commonly used to denote both heavier and lighter than air machines; correctly a dirigible balloon.

Area—In the case of wings, the extent of surface measured on both the upper and lower sides. An area of one square foot comprises the actual surface of two square feet.

Aspect Ratio—The proportion of the chord to the span of a wing. For example if the wing has a span of 30 inches and a chord of 6 inches the aspect ratio will be 5 or ^span / _chord.

Automatic Stability—Stability secured by fins, the angle of the wings and similar devices.

Angle of Blade—The angle of the blade of a propeller to the axis of the shaft.

Bearing Block—Used in connection with the mounting of propellers on model aëroplanes. Made from wood and metal.

Brace—Strip of bamboo or other material used to join together the frame side members. Also used in joining other parts of a model.

Camber—The rise of the curved contour of an arched surface above the Chord Line.

Center of Pressure—The imaginary line beneath the wing at which the pressure balances.

Chassis (Carriage)—The part on which the main body of an aëroplane or model aëroplane is supported on land or water.

Directional Control—The ability to determine the direction of the flight of an aëroplane.

Dihedral Angle—The inclination of the wings to each other usually bent up from the center in the form of a flat V.

Elevator—The plane or wing intended to control the vertical flight of the machine.

Entering Edge or Leading Edge—Front edge or edge of the surface upon which the air impinges.

Flexed—A wing is said to be flexed when it curves upward forming an arc of a circle.

Flying Machine—Literally a form of lighter than air craft; a gas-borne airship.

Flying Boat—A hull or large float used in connection with an aëroplane to enable its rising from and alighting upon the surface of the water.

Frame—A single or double stick structure to which all parts of a model are attached. Three or more sticks are sometimes employed in the construction of a frame. However, the usual number is two, joined together in the form of letter “A.”

Frame Hooks—The looped ends of a piece of wire attached to the point of the frame to accommodate the S hooks attached to the rubber strands.

Gross Weight—The weight of the aircraft, comprising fuel, lubricating oils and the pilot.

Helicopter—A flying machine in which propellers are utilized to give a lifting effect by their own direct action on the air. In aviation the term implies that the screw exerts a direct lift.

Hydroaëroplane—An aëroplane with pontoons to enable its rising from the surface of the water. Known as hydro in model circles.

Keel—A vertical plane or planes arranged longitudinally either above or below the body for the purpose of giving stability.

Loading—The gross weight divided by the supporting area measured in square feet.

Longitudinal Stability—Stability which prevents fore and aft motion or pitching.

Mast—A perpendicular stick holding the stays or struts which keep the wings rigid.

Mechanical Power—A model driven by means other than rubber strands such as compressed air, steam, gasoline, spring, electricity and so forth is termed a mechanical driven model. The power used is termed mechanical power.

Motive Power—In connection with model aëroplanes a number of rubber strands evenly strung from the propeller shaft to the frame hooks which while unwinding furnish the necessary power to propel the model.

Main Beam—In connection with model aëroplanes a long stick which is secured to the under side of the wing frame at the highest point in the curve of the ribs adding materially to the rigidity of the wing.

Monoplane—An aëroplane or heavier than air machine supported by a single main wing which may be formed of two wings extending from a central body.

Nacelle—The car of a dirigible balloon, literally a cradle. Also applied to short body used in connection with aëroplanes for the accommodation of the pilot and engine.

Ornithopter—A flapping wing machine which has arched wings like those of a bird.

Outriggers—Members which extend forward or rearward from the main planes for the purpose of supporting the elevator or tail planes of an aëroplane.

Plane—A surface or wing, either plain or flexed, employed to support or control an aëroplane.

Propeller Bearings—Pieces of bronze tubing or strips of metal formed to the shape of the letter “L” used to mount propellers. Also made from blocks of wood.

Propeller Spar(s)—The heavy stick or sticks upon which the bearing or bearings of a single or twin propeller model are mounted.

Propeller Shaft—A piece of wire which is run through the hub of the propeller and tubing in mounting the propeller.

Pylon—Correctly, a structure housing a falling weight used for starting an aëroplane, commonly a turning point in aëroplane flights.

Pusher—An aëroplane with the propeller or propellers situated in back of the main supporting surfaces.

Running Gear or Landing Gear—That portion of the chassis consisting of the axle, wheels and shock absorber.

Scale Model—A miniature aëroplane exactly reproducing the proportions of an original.

Side Slip—The tendency of an aëroplane to slide or slip sideways when too steep banking is attempted.

Slip—The difference between the distance actually traveled by a propeller and that measured by the pitch.

Sustaining Surface—Extent of the wings or planes which lend support to an aëroplane.

Skids—In connection with model aëroplanes, steel wires or strips of bamboo allowed to extend below the frame to protect the model in landing and to permit its rising off the ground or ice.

S or Motor Hooks—A piece of wire bent in a double hook to resemble the letter “S.” One end to be attached to the frame hook, the other serving as accommodation for the rubber strands.

Tail—The plane or planes, both horizontal and vertical, carried behind the main planes.

Tractor—An aëroplane with the propeller situated before the main supporting surfaces.

Torque—The twisting force of a propeller tending to overturn or swerve an aëroplane sideways.

Wash—The movement of the air radiating from the sides of an aëroplane in flight.

Wings—Planes or supporting surfaces, commonly a pair of wings extending out from a central body.

Winder—An apparatus used for winding two sets of rubber strands at the same time in opposite directions or one at a time. Very often made from an egg beater or hand drill.

Warping—The springing of a wing out of its normal shape, thereby creating a temporary difference in the extremities of the wing which enables the wind to heel the machine back again into balance.

Updated editions will replace the previous one—the old editions will be renamed.

Creating the works from print editions not protected by U.S. copyright law means that no one owns a United States copyright in these works, so the Foundation (and you!) can copy and distribute it in the United States without permission and without paying copyright royalties. Special rules, set forth in the General Terms of Use part of this license, apply to copying and distributing Project Gutenberg™ electronic works to protect the PROJECT GUTENBERG™ concept and trademark. Project Gutenberg is a registered trademark, and may not be used if you charge for an eBook, except by following the terms of the trademark license, including paying royalties for use of the Project Gutenberg trademark. If you do not charge anything for copies of this eBook, complying with the trademark license is very easy. You may use this eBook for nearly any purpose such as creation of derivative works, reports, performances and research. Project Gutenberg eBooks may be modified and printed and given away—you may do practically ANYTHING in the United States with eBooks not protected by U.S. copyright law. Redistribution is subject to the trademark license, especially commercial redistribution.

START: FULL LICENSE

THE FULL PROJECT GUTENBERG LICENSE

PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg™ mission of promoting the free distribution of electronic works, by using or distributing this work (or any other work associated in any way with the phrase “Project Gutenberg”), you agree to comply with all the terms of the Full Project Gutenberg™ License available with this file or online at www.gutenberg.org/license.

Section 1. General Terms of Use and Redistributing Project Gutenberg™ electronic works

1.A. By reading or using any part of this Project Gutenberg™ electronic work, you indicate that you have read, understand, agree to and accept all the terms of this license and intellectual property (trademark/copyright) agreement. If you do not agree to abide by all the terms of this agreement, you must cease using and return or destroy all copies of Project Gutenberg™ electronic works in your possession. If you paid a fee for obtaining a copy of or access to a Project Gutenberg™ electronic work and you do not agree to be bound by the terms of this agreement, you may obtain a refund from the person or entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B. “Project Gutenberg” is a registered trademark. It may only be used on or associated in any way with an electronic work by people who agree to be bound by the terms of this agreement. There are a few things that you can do with most Project Gutenberg™ electronic works even without complying with the full terms of this agreement. See paragraph 1.C below. There are a lot of things you can do with Project Gutenberg™ electronic works if you follow the terms of this agreement and help preserve free future access to Project Gutenberg™ electronic works. See paragraph 1.E below.

1.C. The Project Gutenberg Literary Archive Foundation (“the Foundation” or PGLAF), owns a compilation copyright in the collection of Project Gutenberg™ electronic works. Nearly all the individual works in the collection are in the public domain in the United States. If an individual work is unprotected by copyright law in the United States and you are located in the United States, we do not claim a right to prevent you from copying, distributing, performing, displaying or creating derivative works based on the work as long as all references to Project Gutenberg are removed. Of course, we hope that you will support the Project Gutenberg™ mission of promoting free access to electronic works by freely sharing Project Gutenberg™ works in compliance with the terms of this agreement for keeping the Project Gutenberg™ name associated with the work. You can easily comply with the terms of this agreement by keeping this work in the same format with its attached full Project Gutenberg™ License when you share it without charge with others.

1.D. The copyright laws of the place where you are located also govern what you can do with this work. Copyright laws in most countries are in a constant state of change. If you are outside the United States, check the laws of your country in addition to the terms of this agreement before downloading, copying, displaying, performing, distributing or creating derivative works based on this work or any other Project Gutenberg™ work. The Foundation makes no representations concerning the copyright status of any work in any country other than the United States.

1.E. Unless you have removed all references to Project Gutenberg:

1.E.1. The following sentence, with active links to, or other immediate access to, the full Project Gutenberg™ License must appear prominently whenever any copy of a Project Gutenberg™ work (any work on which the phrase “Project Gutenberg” appears, or with which the phrase “Project Gutenberg” is associated) is accessed, displayed, performed, viewed, copied or distributed:

This eBook is for the use of anyone anywhere in the United States and most other parts of the world at no cost and with almost no restrictions whatsoever. You may copy it, give it away or re-use it under the terms of the Project Gutenberg License included with this eBook or online at www.gutenberg.org. If you are not located in the United States, you will have to check the laws of the country where you are located before using this eBook.

1.E.2. If an individual Project Gutenberg™ electronic work is derived from texts not protected by U.S. copyright law (does not contain a notice indicating that it is posted with permission of the copyright holder), the work can be copied and distributed to anyone in the United States without paying any fees or charges. If you are redistributing or providing access to a work with the phrase “Project Gutenberg” associated with or appearing on the work, you must comply either with the requirements of paragraphs 1.E.1 through 1.E.7 or obtain permission for the use of the work and the Project Gutenberg™ trademark as set forth in paragraphs 1.E.8 or 1.E.9.

1.E.3. If an individual Project Gutenberg™ electronic work is posted with the permission of the copyright holder, your use and distribution must comply with both paragraphs 1.E.1 through 1.E.7 and any additional terms imposed by the copyright holder. Additional terms will be linked to the Project Gutenberg™ License for all works posted with the permission of the copyright holder found at the beginning of this work.

1.E.4. Do not unlink or detach or remove the full Project Gutenberg™ License terms from this work, or any files containing a part of this work or any other work associated with Project Gutenberg™.

1.E.5. Do not copy, display, perform, distribute or redistribute this electronic work, or any part of this electronic work, without prominently displaying the sentence set forth in paragraph 1.E.1 with active links or immediate access to the full terms of the Project Gutenberg™ License.

1.E.6. You may convert to and distribute this work in any binary, compressed, marked up, nonproprietary or proprietary form, including any word processing or hypertext form. However, if you provide access to or distribute copies of a Project Gutenberg™ work in a format other than “Plain Vanilla ASCII” or other format used in the official version posted on the official Project Gutenberg™ website (www.gutenberg.org), you must, at no additional cost, fee or expense to the user, provide a copy, a means of exporting a copy, or a means of obtaining a copy upon request, of the work in its original “Plain Vanilla ASCII” or other form. Any alternate format must include the full Project Gutenberg™ License as specified in paragraph 1.E.1.

1.E.7. Do not charge a fee for access to, viewing, displaying, performing, copying or distributing any Project Gutenberg™ works unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8. You may charge a reasonable fee for copies of or providing access to or distributing Project Gutenberg™ electronic works provided that:

• You pay a royalty fee of 20% of the gross profits you derive from the use of Project Gutenberg™ works calculated using the method you already use to calculate your applicable taxes. The fee is owed to the owner of the Project Gutenberg™ trademark, but he has agreed to donate royalties under this paragraph to the Project Gutenberg Literary Archive Foundation. Royalty payments must be paid within 60 days following each date on which you prepare (or are legally required to prepare) your periodic tax returns. Royalty payments should be clearly marked as such and sent to the Project Gutenberg Literary Archive Foundation at the address specified in Section 4, “Information about donations to the Project Gutenberg Literary Archive Foundation.”

• You provide a full refund of any money paid by a user who notifies you in writing (or by e-mail) within 30 days of receipt that s/he does not agree to the terms of the full Project Gutenberg™ License. You must require such a user to return or destroy all copies of the works possessed in a physical medium and discontinue all use of and all access to other copies of Project Gutenberg™ works.

• You provide, in accordance with paragraph 1.F.3, a full refund of any money paid for a work or a replacement copy, if a defect in the electronic work is discovered and reported to you within 90 days of receipt of the work.

• You comply with all other terms of this agreement for free distribution of Project Gutenberg™ works.

1.E.9. If you wish to charge a fee or distribute a Project Gutenberg™ electronic work or group of works on different terms than are set forth in this agreement, you must obtain permission in writing from the Project Gutenberg Literary Archive Foundation, the manager of the Project Gutenberg™ trademark. Contact the Foundation as set forth in Section 3 below.

1.F.

1.F.1. Project Gutenberg volunteers and employees expend considerable effort to identify, do copyright research on, transcribe and proofread works not protected by U.S. copyright law in creating the Project Gutenberg™ collection. Despite these efforts, Project Gutenberg™ electronic works, and the medium on which they may be stored, may contain “Defects,” such as, but not limited to, incomplete, inaccurate or corrupt data, transcription errors, a copyright or other intellectual property infringement, a defective or damaged disk or other medium, a computer virus, or computer codes that damage or cannot be read by your equipment.

1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the “Right of Replacement or Refund” described in paragraph 1.F.3, the Project Gutenberg Literary Archive Foundation, the owner of the Project Gutenberg™ trademark, and any other party distributing a Project Gutenberg™ electronic work under this agreement, disclaim all liability to you for damages, costs and expenses, including legal fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH DAMAGE.

1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a defect in this electronic work within 90 days of receiving it, you can receive a refund of the money (if any) you paid for it by sending a written explanation to the person you received the work from. If you received the work on a physical medium, you must return the medium with your written explanation. The person or entity that provided you with the defective work may elect to provide a replacement copy in lieu of a refund. If you received the work electronically, the person or entity providing it to you may choose to give you a second opportunity to receive the work electronically in lieu of a refund. If the second copy is also defective, you may demand a refund in writing without further opportunities to fix the problem.

1.F.4. Except for the limited right of replacement or refund set forth in paragraph 1.F.3, this work is provided to you ‘AS-IS’, WITH NO OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.

1.F.5. Some states do not allow disclaimers of certain implied warranties or the exclusion or limitation of certain types of damages. If any disclaimer or limitation set forth in this agreement violates the law of the state applicable to this agreement, the agreement shall be interpreted to make the maximum disclaimer or limitation permitted by the applicable state law. The invalidity or unenforceability of any provision of this agreement shall not void the remaining provisions.

1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the trademark owner, any agent or employee of the Foundation, anyone providing copies of Project Gutenberg™ electronic works in accordance with this agreement, and any volunteers associated with the production, promotion and distribution of Project Gutenberg™ electronic works, harmless from all liability, costs and expenses, including legal fees, that arise directly or indirectly from any of the following which you do or cause to occur: (a) distribution of this or any Project Gutenberg™ work, (b) alteration, modification, or additions or deletions to any Project Gutenberg™ work, and (c) any Defect you cause.

Section 2. Information about the Mission of Project Gutenberg™

Project Gutenberg™ is synonymous with the free distribution of electronic works in formats readable by the widest variety of computers including obsolete, old, middle-aged and new computers. It exists because of the efforts of hundreds of volunteers and donations from people in all walks of life.

Volunteers and financial support to provide volunteers with the assistance they need are critical to reaching Project Gutenberg™’s goals and ensuring that the Project Gutenberg™ collection will remain freely available for generations to come. In 2001, the Project Gutenberg Literary Archive Foundation was created to provide a secure and permanent future for Project Gutenberg™ and future generations. To learn more about the Project Gutenberg Literary Archive Foundation and how your efforts and donations can help, see Sections 3 and 4 and the Foundation information page at www.gutenberg.org.

Section 3. Information about the Project Gutenberg Literary Archive Foundation

The Project Gutenberg Literary Archive Foundation is a non-profit 501(c)(3) educational corporation organized under the laws of the state of Mississippi and granted tax exempt status by the Internal Revenue Service. The Foundation’s EIN or federal tax identification number is 64-6221541. Contributions to the Project Gutenberg Literary Archive Foundation are tax deductible to the full extent permitted by U.S. federal laws and your state’s laws.

The Foundation’s business office is located at 809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887. Email contact links and up to date contact information can be found at the Foundation’s website and official page at www.gutenberg.org/contact

Section 4. Information about Donations to the Project Gutenberg Literary Archive Foundation

Project Gutenberg™ depends upon and cannot survive without widespread public support and donations to carry out its mission of increasing the number of public domain and licensed works that can be freely distributed in machine-readable form accessible by the widest array of equipment including outdated equipment. Many small donations ($1 to $5,000) are particularly important to maintaining tax exempt status with the IRS.

The Foundation is committed to complying with the laws regulating charities and charitable donations in all 50 states of the United States. Compliance requirements are not uniform and it takes a considerable effort, much paperwork and many fees to meet and keep up with these requirements. We do not solicit donations in locations where we have not received written confirmation of compliance. To SEND DONATIONS or determine the status of compliance for any particular state visit www.gutenberg.org/donate.

While we cannot and do not solicit contributions from states where we have not met the solicitation requirements, we know of no prohibition against accepting unsolicited donations from donors in such states who approach us with offers to donate.

International donations are gratefully accepted, but we cannot make any statements concerning tax treatment of donations received from outside the United States. U.S. laws alone swamp our small staff.

Please check the Project Gutenberg web pages for current donation methods and addresses. Donations are accepted in a number of other ways including checks, online payments and credit card donations. To donate, please visit: www.gutenberg.org/donate

Section 5. General Information About Project Gutenberg™ electronic works

Professor Michael S. Hart was the originator of the Project Gutenberg™ concept of a library of electronic works that could be freely shared with anyone. For forty years, he produced and distributed Project Gutenberg™ eBooks with only a loose network of volunteer support.

Project Gutenberg™ eBooks are often created from several printed editions, all of which are confirmed as not protected by copyright in the U.S. unless a copyright notice is included. Thus, we do not necessarily keep eBooks in compliance with any particular paper edition.

Most people start at our website which has the main PG search facility: www.gutenberg.org.

This website includes information about Project Gutenberg™, including how to make donations to the Project Gutenberg Literary Archive Foundation, how to help produce our new eBooks, and how to subscribe to our email newsletter to hear about new eBooks.

	PAGE
Introduction	ix
History of Model Aviation	1
Construction	8
Propellers—Wings—Frame—Assembling—Launching—Chassis—Pontoons—Launching an R. O. G. or Model Hydroaëroplane.
World Record Models	52
Lauder Distance and Duration Model—Hittle Tractor Hydro—La Tour Flying Boat—Cook No. 42 Model—Rudy Funk Duration Model—Alson H. Wheeler Twin Pusher Biplane.
A Model Warplane	83
A Simple Compressed Air Engine	85–93
Compressed Air Driven Models	94–102
The Dart Compressed Air Driven Model—The McMahon Compressed Air Driven Monoplane—The McMahon Compressed Air Driven Biplane.
Compressed Air Engines	103–109
Wise Compressed Air Engine—Schober-Funk Three Cylinder Engine—The Schober Four Cylinder Opposed Engine.
Gasoline Engines	110–117
Jopson—Midget Aëro Gasoline Engine.
Steam Power Plants	118–122
H. H. Groves Steam Power Plants—G. Harris’s Steam Engine—Professor Langley’s Steam Engine—French Experiments with Steam Power Plants.
Carbonic Gas Engine	123–124
The Formation of Model Clubs	125–138
World’s Model Flying Records	139–141
Dictionary of Aëronautical Terms	142–152

		PAGE
Model Aëroplane in Flight		Frontispiece
First Model Aëroplane Exhibition	Opp.	4
Propellers (Diagram 1)		9
How to cut propellers (Diagram 2)		11
Designs for propellers (Diagram 3)		14
Designs for propellers (Diagram 4)		17
Wing construction (Diagram 5)		20
Members of the Aëro Science Club	Opp.	22
Members of the Milwaukee and Illinois Model Aëro Clubs	Opp.	22
Frame construction (Diagram 6)		25
Model Assembly (Diagram 7)		30
C. W. Meyer and Wm. Hodgins exhibiting early type models	Opp.	32
Henry Criscouli with five foot model	Opp.	32
Schultz hydroaëroplane	Opp.	32
Rubber winder (Diagram 8)		35
Chassis construction (Diagram 9)		38
Pontoon construction (Diagram 10)		43
Obst flying boat	Opp.	44
McLaughlin twin tractor hydroaëroplane	Opp.	44
Louis Bamberger hydro about to leave water	Opp.	44
E. B. Eiring and Kennith Sedgwick Milwaukee Club How to launch R. O. G. model	Opp.	48
Waid Carl, Concord Model Club Launching R. O. G. model	Opp.	48
Wallace A Lauder model (Diagram 11)		54
Lauder distance and duration model	Opp.	56
Lauder R. O. G. model	Opp.	56
Lindsay Hittle world record hydroaëroplane (Diagram 12)		61
La Tour Flying Boat (Diagram 13)		66
Ellis Cook R. O. G. model (Diagram 14)		73
Funk duration model (Diagram 15)		78
Rudy Funk speed model	Opp.	80
McMahon and Schober compressed air driven models	Opp.	80
Alson H. Wheeler twin pusher biplane	Opp.	82
C. V. Obst tractor	Opp.	82
Model Warplane		84
Simple compressed air engine (Diagram 16)		87
Schober compressed air driven monoplane	Opp.	90
Schober compressed air driven biplane	Opp.	90
Dart compressed air driven model		95
John McMahon and compressed air driven monoplane	Opp.	98
Frank Schober preparing model for flight	Opp.	98
John McMahon pusher biplane (Diagram 17)		102
Wise compressed air engine	Opp.	104
Schober-Funk three-cylinder rotary engine	Opp.	105
Schober four cylinder engine (Diagram 18)		107
Jopson gasoline engine	Opp.	110
Sectional view of Jopson engine (Diagram 19)		112
Power curve of Jopson engine (Diagram 20)		115
Midget gasoline engine	Opp.	116
English steam power plant	Opp.	120
V. E. Johnson steam driven hydroaëroplane	Opp.	120
English compressed air driven biplane	Opp.	122
Tractor hydroaëroplane fitted with steam power plant	Opp.	122
English compressed air engine fitted with simple speedometer	Opp.	122
The Rompel six-cylinder carbonic gas engine	Opp.	124

H. P.	Horse Power.
R. P. M.	Revolutions per minute.
H. L.	Hand launched.
R. O. G.	Rise off ground model.
R. O. W.	Rise off water model.
M. P. H.	Miles per hour.

MODEL AEROPLANES AND THEIR ENGINES

INTRODUCTION

LIST OF CONTENTS

LIST OF ILLUSTRATIONS

HISTORY OF MODEL AVIATION

CONSTRUCTION

PROPELLERS

WINGS

FRAME

ASSEMBLING

LAUNCHING

CHASSIS

PONTOONS

LAUNCHING AN R. O. G. OR MODEL HYDROAËROPLANE

WORLD RECORD MODELS

THE LAUDER DISTANCE AND DURATION MODEL

THE HITTLE WORLD RECORD MODEL

THE LA TOUR FLYING BOAT

THE COOK NO. 42 WORLD RECORD MODEL

THE RUDY FUNK DURATION MODEL

THE ALSON H. WHEELER WORLD RECORD MODEL

A MODEL WARPLANE

A SIMPLE COMPRESSED AIR ENGINE

COMPRESSED AIR DRIVEN MODELS

THE DART COMPRESSED AIR DRIVEN MODEL

THE MCMAHON COMPRESSED AIR DRIVEN MONOPLANE

THE MCMAHON COMPRESSED AIR DRIVEN BIPLANE

COMPRESSED AIR ENGINES

THE WISE COMPRESSED AIR ENGINE

THE SCHOBER-FUNK COMPRESSED AIR ENGINE

THE SCHOBER FOUR CYLINDER OPPOSED ENGINE

GASOLINE ENGINES

THE JOPSON 1 H. P. GASOLINE ENGINE FOR MODEL AËROPLANES

THE MIDGET AËRO GASOLINE ENGINE

STEAM POWER PLANTS

H. H. GROVES STEAM POWER PLANTS

G. HARRIS’S STEAM ENGINE

PROFESSOR LANGLEY’S STEAM ENGINE

FRENCH EXPERIMENTS WITH STEAM POWER PLANTS

CARBONIC GAS ENGINE

THE FORMATION OF MODEL CLUBS

WORLD’S MODEL FLYING RECORDS

DICTIONARY OF AËRONAUTICAL TERMS

MODEL AEROPLANES
AND THEIR ENGINES
