SKETCH BOOK

TRADE MARK       COPYRIGHT
OF THE

PHILADELPHIA & BOSTON
FACE BRICK CO.

165 MILK ST-BOSTON-MASS.

- 2 -

Entered, according to Act of Congress, in the year

1904, by the

Phila. & Boston Face Brick Co.

in the office of the Librarian of Congress

at Washington.

FROM time immemorial the domestic hearth has been the theme of optimists and poets, who have lavished on it the most endearing words, and have associated it with their most delightful thoughts. The fireplace has always been, and always will be, the happiest rallying-place of the family. It has been aptly called the "sun in the house," and its ruddy glow, its sociable warmth, and cheering qualities have not been lost sight of in the development of æsthetic art as applied to home decoration during recent years, and the chimney-piece has been made, with most excellent results, the central part of the decorative scheme. To all home-builders there comes the thought, "We must have at least one or two open fireplaces." How natural the thought, and what great pleasures in even the anticipation.

As to the choice of materials for the Fireplace Mantel, nothing has ever been used that meets all requirements so completely as our Ornamental Unglazed Brick. The essential idea of a fireplace is "Brick" from beginning to end, and the practice of using a brick facing with a wooden mantel around it (a practice which is now passing by) has only been a sort of makeshift, employed because Ornamental Brick of new and artistic patterns were not obtainable, our Company being the first to make them. There is always so much woodwork in a room, anyway, so why overcrowd the eye with a "mantelful" more? The glazed tiles which were formerly used in mantels were found to have such a cold, hard, and glassy look that they have been relegated to bathrooms, elevator shafts, sanitary uses, etc., to such an extent that few people now care to consider their use about the fireside.

Our Brick Mantels are the best kind to have. The bricks are patterned after the most artistic Greek and Renaissance designs, and the appearance of them when set in mantels is that of carved work. The joints between the courses of brick serve to break up any tendency to a heavy or monumental effect, and the general appearance of our mantels is exceedingly soft, rich, and harmonious. They have a pleasing effect which the eye never tires of. They have the stamp of character, and their simplicity and modest elegance lend a particular charm to the surroundings.

The designs in this book were all prepared by a well-known Boston architect whose extended European travel rendered him peculiarly fitted for the work, and the designs embody many of the best ideas of the best brickwork of England and the Continent. Some of the designs are purposely shown in the architect's original pen-and-ink drawings, while the others are shown as photographs furnished by our customers. We make the brick in six colors; viz., red, cream, buff, pink, brown, and gray: thus giving you the choice of a color which will harmonize with or contrast properly with any scheme of surrounding decoration. The sizes of many of the designs can be altered to fit a required space. In shipping the brick, we pack them carefully in sawdust, in barrels, and with every order we furnish an architect's scale drawing and directions, and any intelligent brick-mason can easily set the mantels up.

The prices given in this book are net, and include packing and delivery to cars or steamer at Boston. In comparing prices of other kinds of mantels with our prices, please bear in mind that to the other prices you must add the expense of the brick or other material for the side linings, the back, the under-fire, and the hearth, while our prices include all these. Ours are far better than any other kinds, but still they don't cost any more.

Our mantels are suitable for any kind of a room, the selection depending upon the size, the color, the amount of ornamentation, etc. They are substantial and durable, and look just as well in after years as when new. It is folly to build a house and put in articles that are passing out of use. The more permanent furnishings should be of the newest designs. That means that the Fireplace Mantels should be of our Ornamental Brick. No other kind combines so many good, practical, and artistic features. Of all kinds, ours are the most unique, the fittest, and the best.

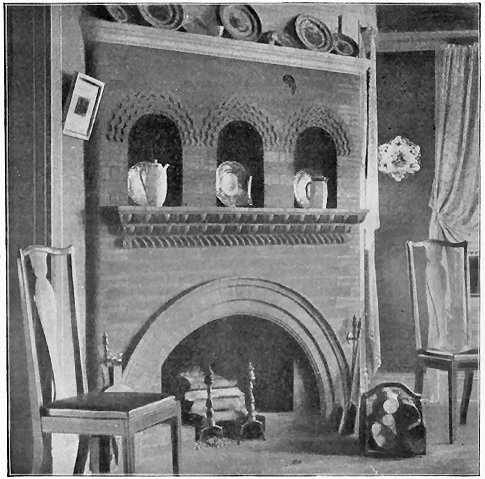

A mantel with an arched fireplace and a niche above it. This mantel should have nearly the width indicated below, as the arch would not look well in a much narrower fireplace. The hobs may be omitted, if desired.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $82.

Price of cream, buff, brown, pink or gray bricks, $123.

Below is a drawing of each ornamental brick used in this design.

No. 114 Centre Reverse	No. 120 Header	No. 104 Corner
No. 41 Header	No. 18 Header	No. 33 Header

- 5 -

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $42.

Price of cream, buff, brown, pink or gray bricks, $63.

Below is a drawing of each ornamental brick used in this design.

No. 8 Header	No. 33 Face Return In	No. 11 Stretcher
No. 105 Corner	No. 113 Stretcher	No. 117 Corner

- 7 -

A low mantel with panel pilasters and enriched architrave.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $37.

Price of cream, buff, gray, pink or brown bricks, $55.50.

Below is a drawing of each ornamental brick used in this design.

No. 7 Stretcher	No. 8 Stretcher
No. 113 Corner
No. 9 Stretcher	No. 11 Right Face Return In

- 9 -

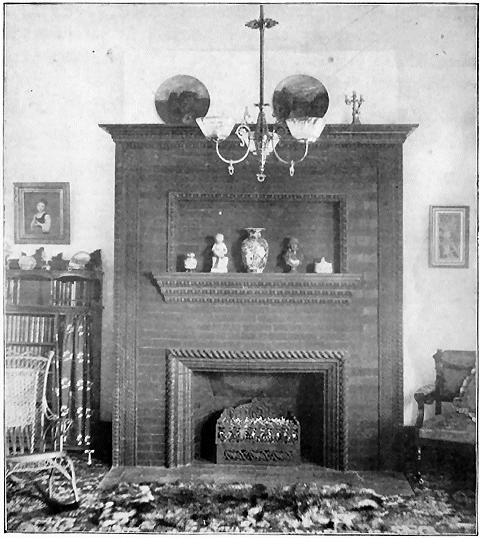

A handsome high mantel, with a wide niche above the fireplace. This design requires a wooden cornice at the top forming a shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $62.

Price of cream, buff, gray, pink or brown bricks, $93.

Price of wood cornice not included.

Below is a drawing of each ornamental brick used in this design.

No. 103 Stretcher	No. 117 Stretcher
No. 33 Header	No. 114 Stretcher

- 11 -

This design would require a width of 7 feet 6 inches, as the arched motif could not be used advantageously in a mantel of more than 8 inches less in width. The cornice to the mantle is of wood.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, lire-back, under-fire and tile shelf, $72.

Price of cream, buff, gray, pink or brown bricks, $108.

Price of wood cornice not included.

Below is a drawing of each ornamental brick used in this design.

No. 41 Header	No. 104 Stretcher
No. 25 Header
No. 112 Header	No. 103 Stretcher

- 13 -

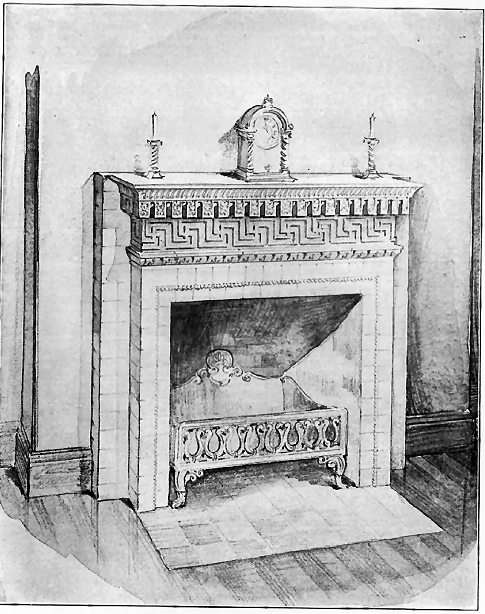

A delicate mantel, with fret ornament around fireplace.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $24.

Price of cream, buff, gray, pink or brown bricks, $61.50.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher
No. 33 Header	No. 105 Stretcher
No. 113 Stretcher

- 15 -

A plain but very rich mantel.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $32.

Price of cream, buff, gray, pink or brown bricks, $48.

Below is a drawing of each ornamental brick used in this design.

No. 6 Stretcher	No. 7 Stretcher	No. 8 Stretcher
No. 9 Stretcher	No. 108 Stretcher	No. 117 Stretcher

- 17 -

A very good design.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $34.

Price of cream, buff, gray, pink or brown bricks, $51.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher
No. 104 Corner	No. 33 Face Return In

- 19 -

The opening in this mantel is 5 feet high, the upper portion being fitted with a wrought-iron grille, with a sheet of plate-glass at the back. This enables one to see the flames as they curl up the chimney, and a decided charm is added to the fireplace. This design is best adapted to a narrow chimney breast.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $55.

Price of cream, buff, gray, brown or pink bricks, $82.50

Iron grille and plate-glass, $28 additional.

Below is a drawing of each ornamental brick used in this design.

No. 108 Stretcher	No. 105 Stretcher
No. 4 Stretcher

- 21 -

A design with much ornamentation.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, under-fire, fire-back and tile shelf, $44.

Price of cream, buff, gray, pink or brown bricks, $66.

Below is a drawing of each ornamental brick used in this design.

No. 33 Header	No. 8 Stretcher
No. 103 Stretcher	No. 105 Corner

- 23 -

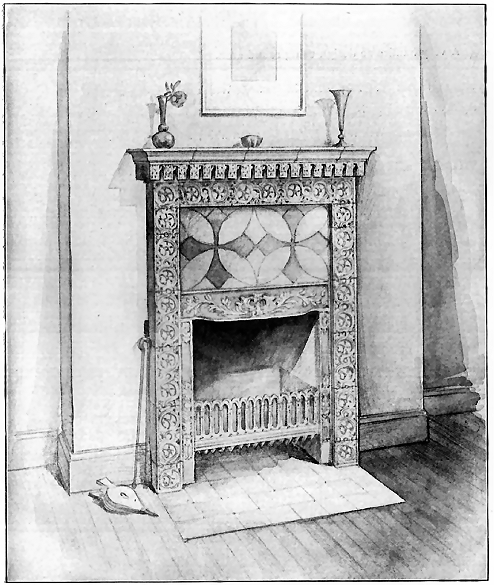

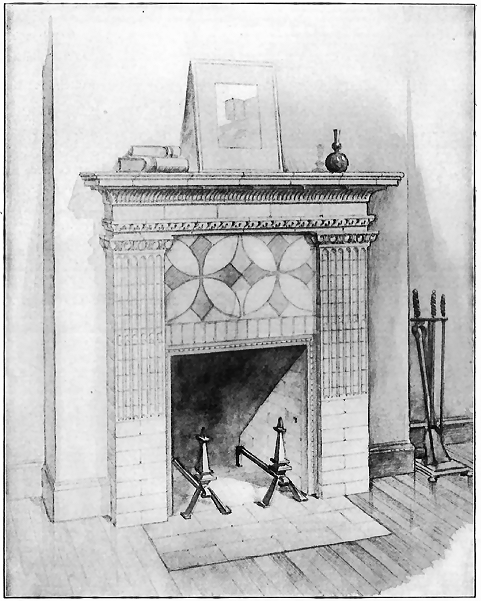

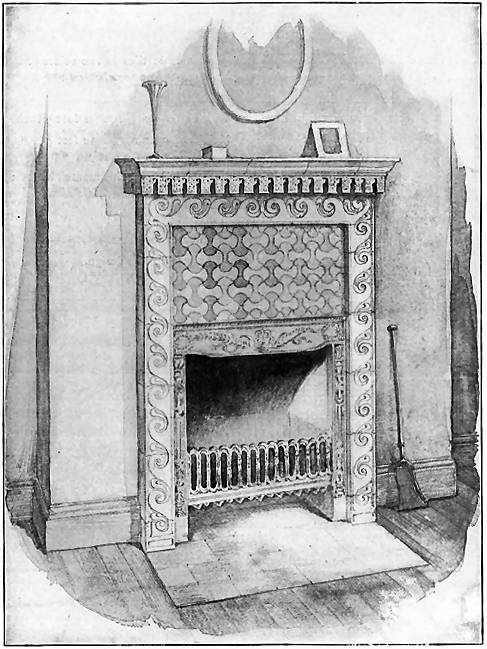

A new and beautiful feature is introduced in this design. The mosaic decoration is made of the same clay as the brick in a great variety of shades. Assume all the plain and moulded bricks in this design a warm gray color and the tones of the mosaic decorations, as indicated in sketch, from a dark, warm gray to cream. This scheme of color can be produced in reds, etc. A frame % inch x i % inch wrought iron and brackets around the fireplace opening form a part of this design.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $55.

Price of cream, gray, pink, buff or brown bricks, $82.50.

Price of frame and brackets, $6 additional.

Below is a drawing: of each ornamental brick used in this design.

No. 30 Header	No. 105 Corner	No. 106 Stretcher	No. 114 Starter

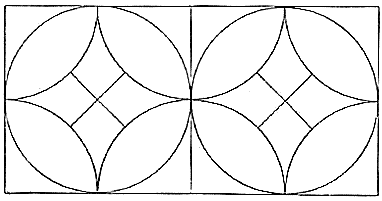

No. 300 Tile	No. 301 Tile		No. 117 Corner

- 25 -

This illustration shows a design adapting the form of mantel frequently seen i\\ England and France, with a hood extending to the ceiling. The fireplace opening may be from 3 feet 6 inches to 4 feet 6 inches in width, without changing the height of the mantel. If a wider opening is desired, the proportion of the mantel should be changed, and we would be pleased to prepare a drawing for the same. This design would look well in a large hall of a residence or in a public building, as a library, assembly hall or hotel.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $84.

Price of cream, gray, buff, pink, or brown bricks, $126.

Below is a drawing of each ornamental brick used in this design.

No. 3 Stretcher	No. 5 Stretcher	No. 11 Stretcher	No. 104 Stretcher
No. 105 Stretcher	No. 111 Stretcher		No. 113 Stretcher

- 27 -

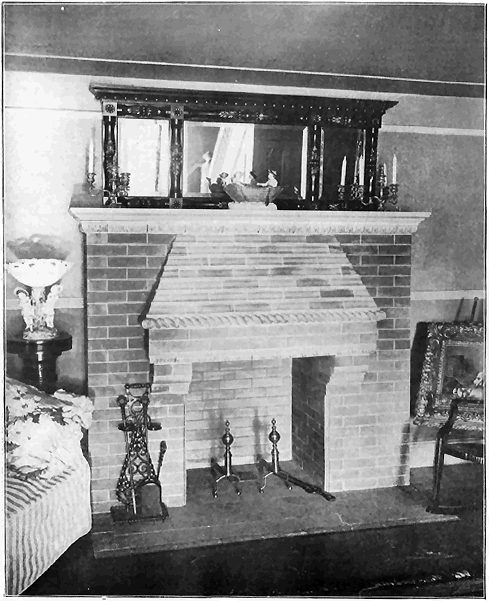

This also shows a hooded mantel, but much lower.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $38.

Price of cream, buff, pink, gray or brown bricks, $57.

Price with plain sides in cream bricks, and the corbels, lintel hood and egg and dart at the top of a warm gray, $57.

Below is a drawing of each ornamental brick used in this design.

No. 3 Stretcher	No. 4 Header	No. 8 Stretcher
No. 103 Stretcher	No. 104 Stretcher	No. 106 Stretcher

- 29 -

A very attractive mantel.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $38.

Price of cream, buff, gray, pink or brown bricks, $57.

Wood shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 104 Corner

No. 6 Stretcher

No. 117 Corner

- 31 -

This sketch suggests the use of glazed tiles in the panel above the fireplace opening. Blue and white Dutch tiles would go well with either red or light bricks. The fireplace should have a brass or iron face-moulding.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire, tile shelf and glazed tile, $36.

Price of cream, buff, gray, pink or brown bricks, $54.

Face moulding, from $2 to $4 additional.

Below is a drawing of each ornamental brick used in this design.

No. 5 Stretcher	No. 7 Stretcher	No. 8 Stretcher
No. 11 Right Face Return In	No. 103 Stretcher	No. 117 Stretcher

- 33 -

High mantel with a hood and ornamental cornice.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $86.

Price of gray, buff, cream, pink or brown bricks, $129.

Below is a drawing of each ornamental brick used in this design.

No. 6 Stretcher	No. 7 Stretcher	No. 8 Stretcher
No. 11 Stretcher	No. 106 Stretcher	No. 103 Stretcher
No. 104 Corner	No. 113 Stretcher	No. 300 Tile

- 35 -

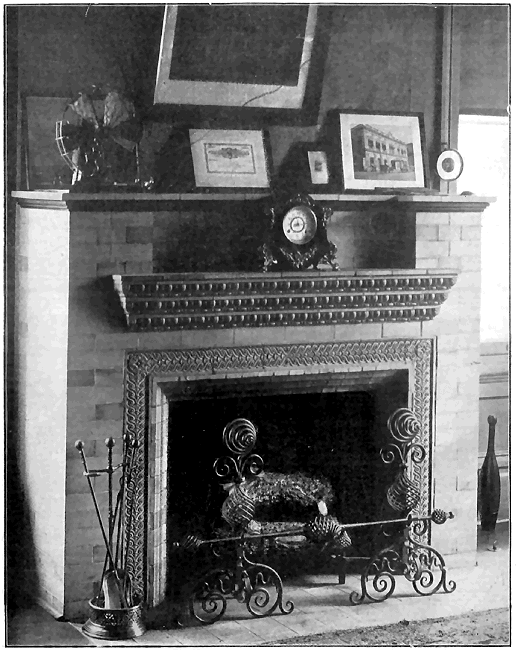

A mantel with guilloche ornament around opening, and the shelf corbelled with three rows of egg and dart.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $38.

Price of cream, buff, pink, gray or brown bricks, $57.

Price with all the plain bricks of cream and all the moulded bricks of warm gray, $53.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 33 Header
No. 114 Stretcher	No. 117 Stretcher

- 37 -

Shelf of slate, iron, marble or wood; wood moulding at top. Should have iron or brass frame around inside of opening.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $33.

Price of cream, buff, gray, pink or brown bricks, $49.50.

Shelf, wood moulding and iron frame not included.

Below is a drawing of each ornamental brick used in this design.

No. 8 Header	No. 5 Stretcher	No. 11 Cap or Base for 8 in. Panel
No. 13 Header	No. 101 Stretcher	No. 101b Stretcher
No. 101c Stretcher	No. 104 Corner	No. 114 Stretcher

- 39 -

A narrow mantel, with circular niche above fireplace.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $52.

Price of cream, buff, gray, pink or brown bricks, $78.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 48 Header	No. 100 Stretcher
No. 106 Stretcher	No. 23 Header	No. 108 Stretcher
No. 105 Stretcher	No. 117 Stretcher	No. 121 Header

- 41 -

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $29.

Price of cream, buff, gray, pink or brown bricks, $43.50.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 101 Stretcher	No. 101a Stretcher
101b Stretcher	No. 101d Stretcher	No. 101c Stretcher
No. 11 Right Face Return In No. 117 Corner

- 43 -

An exceedingly good design.

Price of red face and moulded bricks necessary to lay up thus mantel, including the hearth, lire-back, under-fire and tile shelf, $31.

Price of cream, buff, brown, pink or gray bricks, $46.50.

Below is a drawing of each ornamental brick used in this design

No. 6 Stretcher	No. 7 Stretcher	No. 8 Stretcher
No. 11 Left Face Return In	No. 101 Stretcher	No. 101b Stretcher
No. 101c Stretcher No. 100 Stretcher

- 45 -

Drawing of interior of an English hall or a living-room, showing a high fireplace built of brick. The top of the hood would be plastered and painted a color to harmonize with the decorations. The corbels are to be of brick.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and corbels, $82.

Price of cream, buff, brown, pink or gray bricks, $123.

Below is a drawing of each ornamental brick used in this design.

No. 3 Stretcher	No. 5 Stretcher	No. 8 Stretcher
No. 10 Stretcher	No. 11 Left Face Return In	No. 15 Stretcher
No. 101 Stretcher No. 117 Stretcher

- 47 -

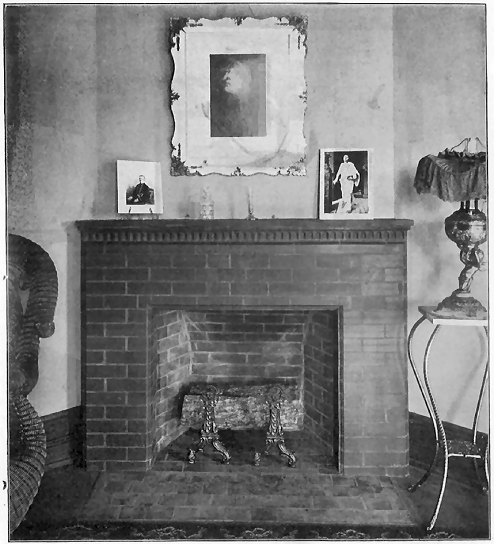

A simple mantel with a wooden shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, tire-back and under-fire, $24.

Price of cream, buff, brown, pink or gray bricks, $36.

Wood shelf not included in prices.

Below is a drawing of each ornamental brick used in this design.

No. 4 Stretcher	No. 13 Header
No. 106 Stretcher	No. 108 Stretcher

- 49 -

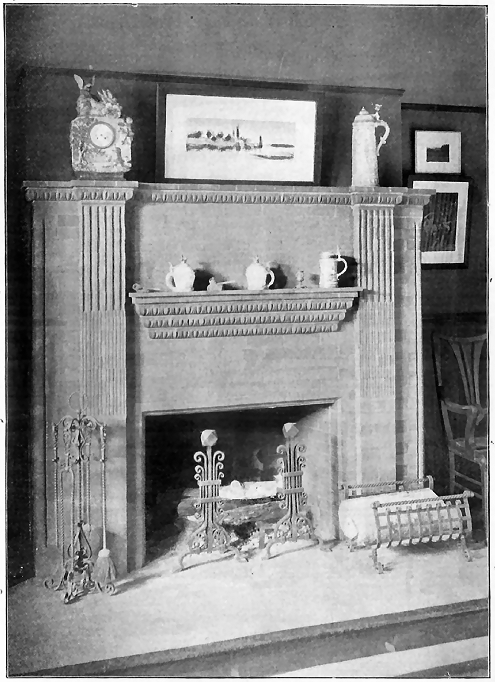

Mantel with pilasters at the side with fluted faces and long recess above fireplace. The sketch shows three rows of egg and dart corbelled out to form a shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $55.

Price of cream, buff, brown, pink or gray bricks, $82.50.

Below is a drawing of each ornamental brick used in this design.

No. 2 Stretcher	No. 15 Stretcher	No. 16 Stretcher	No. 41 Header
No. 101 Stretcher	No. 101a Stretcher	No. 101b Stretcher	No. 101d Stretcher
No. 101c Stretcher No. 105 Stretcher No. 117 Stretcher

- 51 -

Design for a mantel suitable for a large room. The wide recess above the shelf and the long panel below may be a shade lighter than the deep red of the mantel.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $165.

Price with all the plain bricks cream, and all the moulded bricks, together with the whole of the pilasters, a warm gray, $247.50.

Price of cream, buff, gray, pink or brown bricks, $247.50.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 7 Stretcher	No. 11 Stretcher	No. 15 Stretcher
No. 16 Stretcher	No. 122 Cap		No. 105 Corner
No. 33 Header			No. 105 Corner
No. 41 Header	No. 112 Header		No. 117 Corner

- 53 -

Very simple mantel with wooden shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, and under-fire; $20.

Price of cream, buff, gray, pink or brown bricks, $30.

Price of wood shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 4 Stretcher

No. 101 Stretcher

- 55 -

A simple, attractive design, with a pilaster each side of opening, and three rows of egg and dart corbelled to receive the shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $47.

Price of cream, buff, gray, pink or brown bricks, $70.50.

Below is a drawing of each ornamental brick used in this design.

No. 101 Stretcher	No. 101a Stretcher	No. 101b Stretcher
No. 101d Stretcher	No. 101c Stretcher	No. 105 Stretcher
No. 4 Header No. 13 Header

- 57 -

Design for simple mantel with arched opening and wooden shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $28.

Price of cream, buff, brown, pink or gray bricks, $42.

Price of wood shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 11 Right Face Return In

No. 108 Stretcher

No. 121 Header

- 59 -

A handsome mantel which would look well in two or three colors.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $66.

Price of cream, gray, pink, buff or brown bricks, $99.

Price with plain bricks and moulded pilaster and panels above shelf, with the two rows of egg and dart of cream bricks, the rope moulding and shaded mosaic of warm gray, the lighter mosaic in sketch to be of cream, $90.

Below is a drawing of each ornamental brick used in this design.

No. 11 Right Face Return In	No. 30 Header	No. 103 Stretcher
No. 105 Corner No. 117 Stretcher
No. 301 Tile

- 61 -

Design for mantel, with arched opening and wooden shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $24.

Price of cream, buff, gray, pink or brown bricks, $36.

Price of wood shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 46 Header	No. 46 Bonds with 2 Headers
No. 104 Stretcher	No. 112 Header

- 63 -

A simple mantel, with arched opening and plain niche with marble shelf above, and egg and dart ornament forming a finish between the brickwork and the wooden cornice at the top of the mantel. This cornice projects a few inches, and a lambrequin may be added to soften the effect of the mantel.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $45.

Price of cream, buff, gray, pink or brown bricks, $67.50.

Price of marble shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 30 Header

No. 41 Header

No. 117 Corner

- 65 -

This sketch shows a mantel in a corner of a room. The mosaic ornamentation above the shelf should be in two colors or shades of the same color. The wooden cornice forms a soffit, which should be panelled.

Price of red face and moulded bricks, with the darker mosaic the color of the bricks and the lighter mosaic a much lighter shade of red, including the hearth, fire-back, under-fire and tile shelf, $57.

Price of all gray bricks, excepting the mosaic, which would be in three shades, from a cream to a warm gray, $85.50.

Price of cream, buff, brown or pink bricks, $85.50.

Below is a drawing of each ornamental brick used in this design.

Note.—Breast measured under shelf.

No. 45 Header
No. 30 Header	No. 300 Tile	No. 48 Header
No. 105 Corner		No. 117 Corner
No. 121 Header

- 67 -

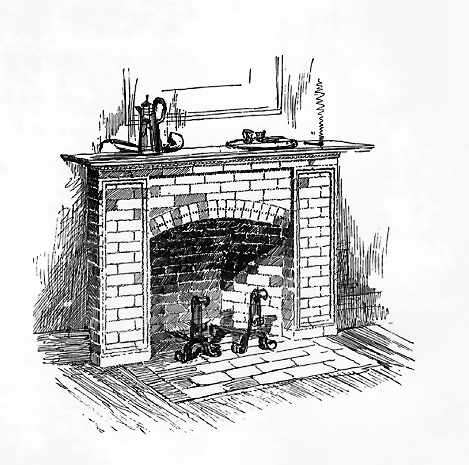

A simple mantel with wooden shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $24.

Price of cream, buff, gray, brown or pink bricks, $36.

Price of wood shelf is not included.

Below is a drawing of each ornamental brick used in this design.

No. 11 Stretcher

No. 105 Stretcher

No. 118 Header

- 69 -

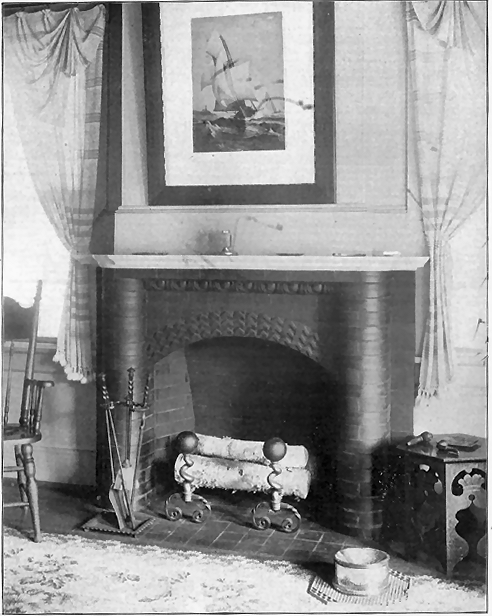

A low arched mantel with wooden shelf.

Price of red face and moulded bricks, with a lighter shade of red in the spandrels above arch, including the hearth, fire-back and under-fire, $56.

Price of cream, buff, gray, pink or brown bricks, $84.

Price in warm gray bricks, with spandrel and bricks above the shelf between pilasters of cream, $84.

Price of wood shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 11 Left Face Return In
No. 5 Stretcher	No. 108 Stretcher	No. 24 Header
No. 30 Header		No. 117 Stretcher
No. 121 Header

- 71 -

The sketch shows a bay window with a seat on either side. The entire end of the bay is faced with the brickwork of the mantel. The entire width of the brickwork is 8 feet. The height of the brickwork is 6 feet 10 inches. Both of these dimensions may be extended to sizes desired.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $58.

Price of cream, buff, pink, gray or brown bricks, $87.

Price of wood shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 4 Stretcher	No. 11 Left Face Return In
No. 104 Stretcher	No. 108 Stretcher

- 73 -

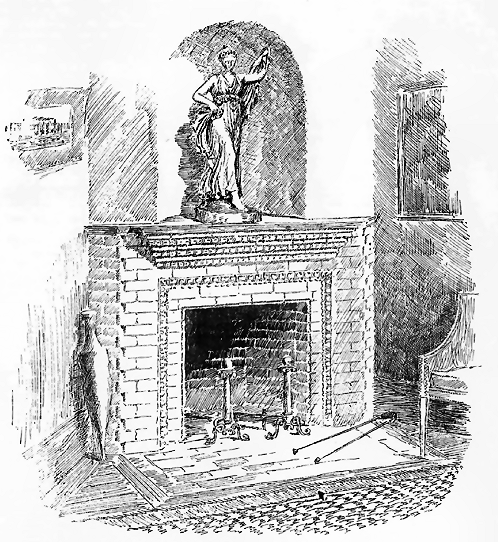

A low mantel in a corner of a room.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $$3.

Price with the egg and dart and the bricks around the opening and the corbel of warm gray, all the other bricks cream, $49.50.

Wood shelf not included.

Below is a drawing of each ornamental brick used in this design

No. 4 Stretcher	No. 8 Stretcher	No. 45 Header
No. 106 Stretcher No. 117 Stretcher

- 75 -

A mantel with panelled pilasters and wood shelf.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $45.

Price of cream, gray, buff, pink or brown bricks $67.50.

Price of wood shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 4 Stretcher	No. 8 Stretcher	No. 11 Left Face Return In
No. 16 Stretcher	No. 112 Header	No. 117 Stretcher

- 77 -

This design represents a mosaic face made of the same clay as the brick. It is susceptible of a great variety of color treatment. The cornice with modillions will be of wood. The curved shelf to niche should be of marble.

Price of red face and moulded bricks necessary to lay up this mantel, with the mosaic in four shades, from a buff to a red, including the hearth, fire-back and under-fire, $70.

Price of cream, buff, gray, pink or brown bricks, $105.

Price, with all the bricks a gray and the mosaic in four shades, from a cream to the darkest gray, $105.

Price of marble shelf not included.

Below is a drawing of each ornamental brick used in this design.

No. 30 Header	No. 300 Tile
No. 117 Corner	No. 106 Stretcher

- 79 -

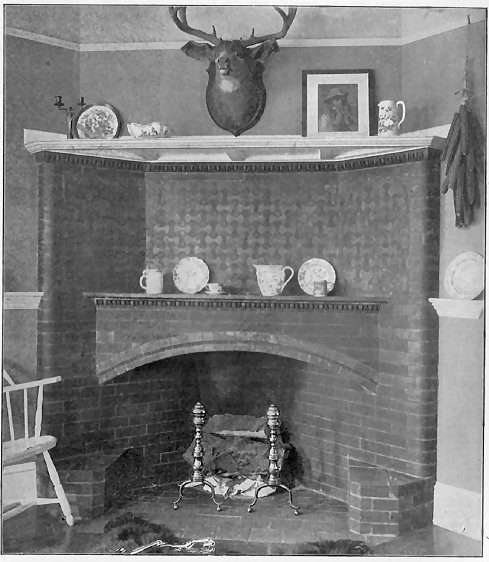

This shows a corner mantel with arch and panelled sides and top.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $56.

Price of cream, gray, pink, buff or brown bricks with red hearth, $84.

Below is a drawing of each ornamental brick used in this design.

Note.—Breast measured between wings.

No. 11 Stretcher	No. 105 Stretcher	No. 117 Stretcher
No. 121 Header No. 113 Stretcher

- 81 -

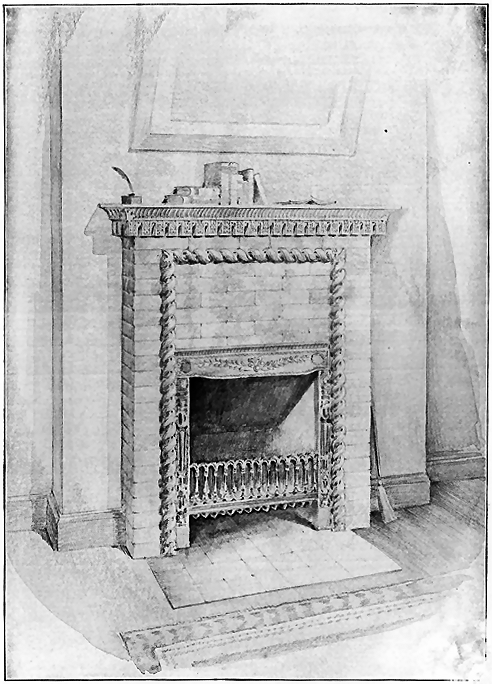

This shows a portable fireplace (24½ in. wide x 30¼ in. high) set inside of the regular mantel opening. It is made of iron, is lined with fire-brick, and can be taken out and moved away in one piece at any time. The front is copper plated. The back has two dampers leading to the chimney. The fire-pot opening is 20 in. wide at the front and narrower at the back and is fitted with a dumping grate. It is suitable for either coal or 12-in. wood.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, under-fire and tile shelf, $16.

Price of cream, buff, gray, pink or brown bricks, $24.

The portable fireplace costs $11.75 extra.

We do not include face bricks for inside lining of mantel opening, as none are required.

Below is a drawing of each ornamental brick used in this design.

No. 103 Stretcher	No. 131 Stretcher
No. 130 Stretcher

- 83 -

A mantel with handsome panel design in mosaic and a metal frame around the opening.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, fire-back, under-fire and tile shelf, $18.

Price of cream, buff, gray, pink or brown bricks, $27.

Additional cost of frame is $2 for iron and $4 for brass.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 130 Stretcher	No. 146 Stretcher
No. 301 Tile

- 85 -

A mantel showing portable fireplace same as described in sketch No. 41. Also panel design in mosaic.

Price of red moulded brick necessary to lay up this mantel, including hearth, under-fire and tile shelf, $12.

Price of cream, buff, gray, pink or brown bricks, $18.

The portable fireplace costs $11.75 extra.

We do not include face bricks for inside lining of mantel opening, as none are required.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 130 Stretcher
No. 144 Stretcher	No. 300 Tile

- 87 -

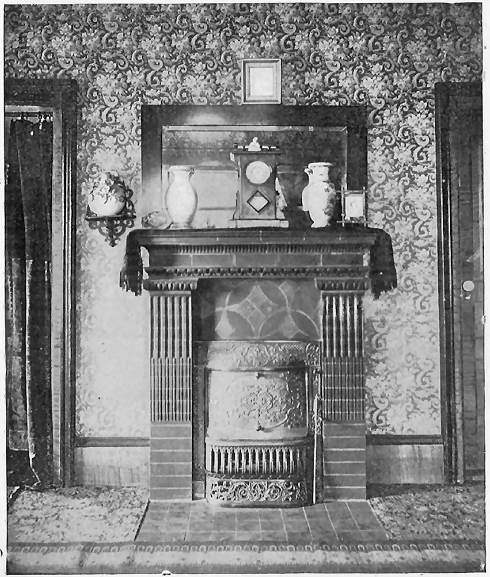

A mantel with fluted pilasters and a panel of mosaic tiles in two colors or two shades of the same color. Metal frame around opening.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, fire-back, under-fire and tile shelf, $22.

Price of cream, buff, gray, pink or brown bricks, $33. Additional cost of metal frame is p for iron or $4 for brass. Below is a drawing of each ornamental brick used in this design.

No. 10 Stretcher	No. 101 Stretcher	No. 101a Stretcher	No. 101b Stretcher
No. 101d Stretcher	No. 301 Tile		No. 101c Stretcher
No. 105 Stretcher No. 131 Stretcher No. 141 Stretcher

- 89 -

Same as No. 44, except that a portable fireplace (as described in No. 41) is provided for.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, under-fire and tile shelf, $19.

Price of cream, buff, gray, pink or brown bricks, $28.50.

The portable fireplace costs $11.75 extra.

We do not include face bricks for inside lining of mantel opening as none are required.

Below is a drawing of each ornamental brick used in this design.

No. 10 Stretcher	No. 101 Stretcher	No. 101a Stretcher	No. 101b Stretcher
No. 101d Stretcher	No. 301 Tile		No. 101c Stretcher
No. 105 Stretcher No. 131 Stretcher No. 141 Stretcher

- 91 -

A mantel with narrow pilasters.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $22.

Price of cream, buff, gray, pink or brown bricks, $33.

Below is a drawing of each ornamental brick used in this design.

No. 101a Header	No. 97 Stretcher	No. 117 Stretcher
No. 130 Stretcher	No. 131 Stretcher	No. 141 Stretcher

- 93 -

A mantel with a hooded opening.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, fire-back, under-fire and tile shelf, $20.

Price of cream, buff, gray, pink or brown bricks, $30.

Below is a drawing of each ornamental brick used in this design.

No. 117 Stretcher	No. 131 Stretcher	No. 141 Stretcher

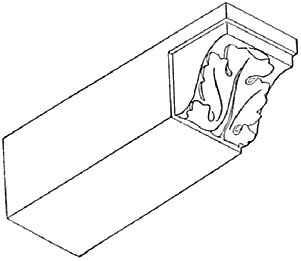

No. 130 Stretcher No. 152 Header

- 95 -

A mantel with mosaic panel and a metal frame around opening.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, fire-back, under-fire and tile shelf, $15.

Price of cream, buff, gray, pink or brown bricks, $27. Additional cost of metal frame is $2 for iron or $4 for brass. Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 130 Stretcher
No. 144 Stretcher	No. 300 Tile

- 97 -

A very pretty design.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, fire-back, under-fire and tile shelf, $20.

Price of cream, buff, gray, pink or brown bricks, $30.

Below is a drawing of each ornamental brick used in this design.

No. 113 Stretcher	No. 121 Header	No. 131 Stretcher
No. 130 Stretcher No. 141 Stretcher

- 99 -

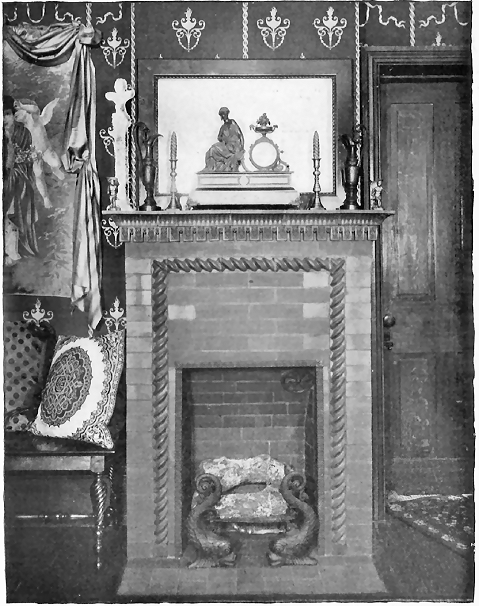

This mantel is like sketch No. 41, except that it has a face brick lining and a metal frame around the opening, and has no portable fireplace.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire, and tile shelf, $20.

Price of cream, bull, gray, pink or brown bricks, $30.

Additional cost of frame is $2 for iron or $4 for brass.

Below is a drawing of each ornamental brick used in this design.

No. 103 Stretcher	No. 131 Stretcher
No. 130 Stretcher

- 101 -

A highly ornamental mantel with metal frame around opening.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $30.

Price of cream, buff, gray, pink or brown bricks, $45.

Additional cost of metal frame is $2 for iron or $4 for brass.

Below is a drawing of each ornamental brick used in this design.

No. 15 Right Return	No. 114 Centre Reverse	No. 117 Stretcher
No. 108 Stretcher	No. 131 Stretcher	No. 141 Stretcher
No. 105 Stretcher No. 130 Stretcher

- 103 -

A mantel designed for portable fireplace (as described in sketch No. 41).

Price of red moulded bricks necessary to lay up this mantel including hearth under-fire and tile shelf, $12.

Price of cream, buff, gray, pink or brown bricks, $18.

The portage fireplace costs $11.75 extra.

We do not include face bricks for inside lining, as none are necessary.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 130 Stretcher	No. 146 Stretcher
No. 301 Tile

- 105 -

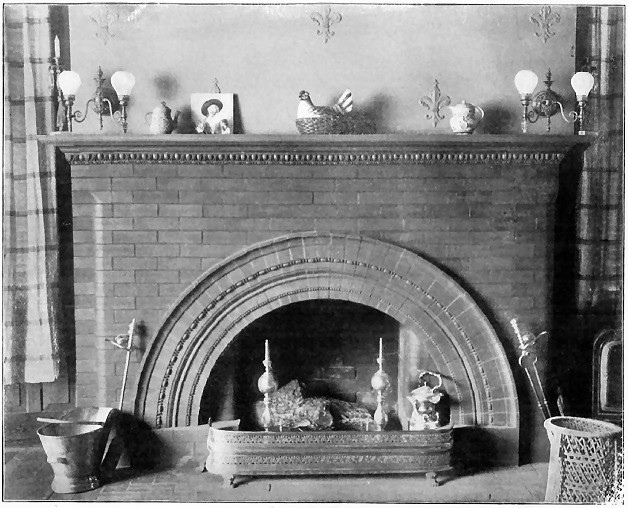

A very handsome design using round arch.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, fire-back, under-fire and tile shelf, 558.

Price of cream, gray, buff, pink or brown bricks, 587.

No. 8 Stretcher	No. 18 Header
No. 41 Header	No. 117 Stretcher
No. 120 Header

- 107 -

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $20.

Price of cream, buff, gray, pink or brown bricks, $30.

Below is a drawing of each ornamental brick used in this design.

No. 30 Header

No. 104 Stretcher

- 109 -

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $26.

Price of cream, gray, pink, buff or brown bricks, $39.

Below is a drawing of each ornamental brick used in this design.

No. 30 Header

No. 131 Stretcher

- 111 -

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, under-fire and tile shelf, $28.

Price of cream, buff, gray, pink or brown bricks, $42.

Below is a drawing of each ornamental brick used in this design.

No. 30 Header

No. 117 Stretcher

- 113 -

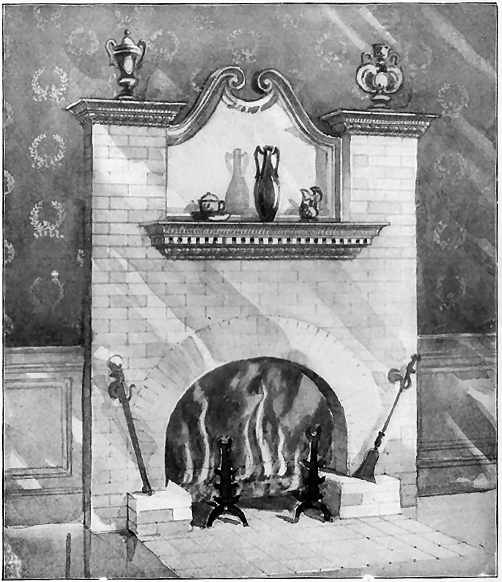

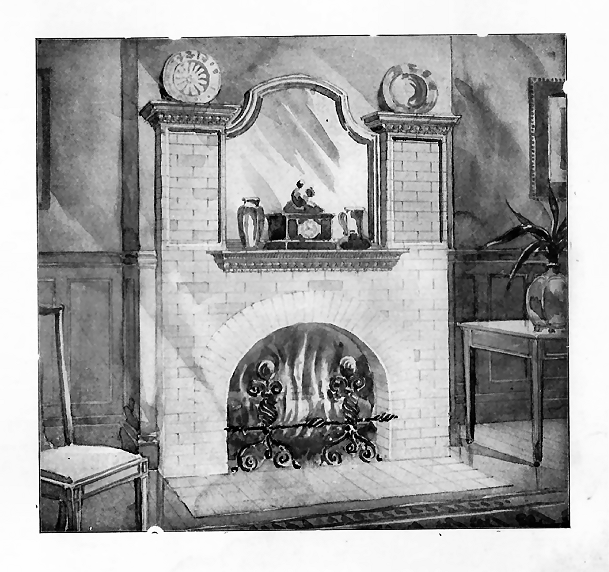

This design provides for a mirror-space which can be used for that purpose or not at the option of the purchaser.

Price of red face and moulded bricks necessary to lay up this mantel, including hearth, fire-back and under-fire, $37.

Price of cream, buff, pink, gray or brown bricks, $55.50.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 11 Stretcher
No. 30 Header	No. 117 Stretcher
No. 131 Stretcher

- 115 -

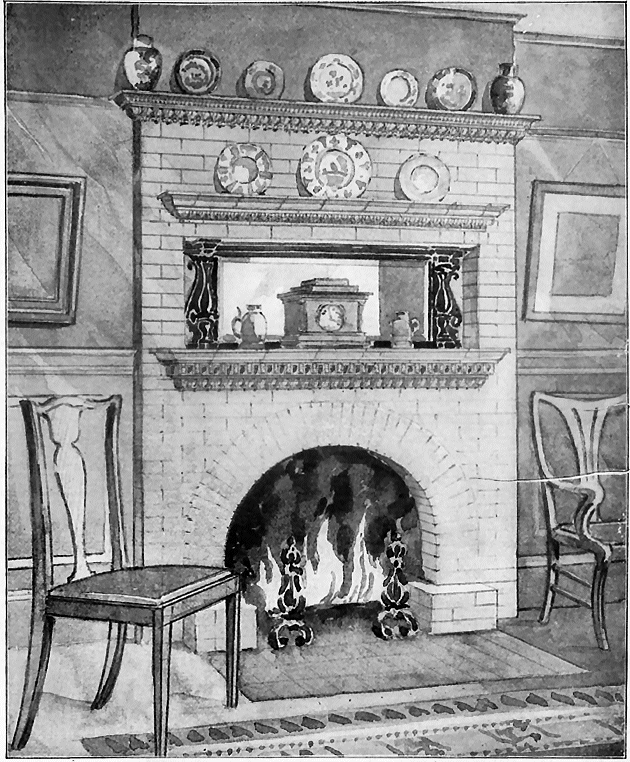

This design provides for a mirror-space which can be used for that purpose or not at the option of the purchaser.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back and under-fire, $37.

Price of cream, buff, gray, pink or brown bricks, $55.50.

Below is a drawing of each ornamental brick used in this design.

No. 30 Header	No. 128 Stretcher
No. 117 Stretcher	No. 131 Stretcher

- 117 -

This design provides for a mirror-space which can be used for that purpose not at the option of the purchaser.

Price of red face and moulded bricks necessary to lay up this mantel, including the hearth, fire-back, and under-fire, $50.

Price of cream, buff, gray, pink or brown bricks, $75.

Below is a drawing of each ornamental brick used in this design.

No. 8 Stretcher	No. 7 Stretcher	No. 30 Header
No. 117 Stretcher	No. 131 Stretcher	No. 141 Stretcher
No. 130 Stretcher

- 119 -

- 120 -

The Arakelyan Press

364 TO 372 CONGRESS STREET

BOSTON MASS.

- 121 -

- 122 -
